arxiv: 2605.03059 · v1 · submitted 2026-05-04 · 💻 cs.CV · cs.LG

Learning to Segment using Summary Statistics and Weak Supervision

Omkar Kulkarni , Edward Raff , Tim Oates This is my paper

Pith reviewed 2026-05-08 18:41 UTC · model grok-4.3

classification 💻 cs.CV cs.LG
keywords image segmentationweak supervisionsummary statisticsmedical imagingloss functionultrasoundCT scan
0
0 comments X

The pith

Segmentation models can be trained using summary statistics like area plus a few weakly labeled pixels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Medical experts often retain only summary statistics such as the area of an annotated region after discarding full image segmentations. The paper shows that these statistics alone do not suffice to train accurate segmentation models, but adding a small number of labeled pixels inside the region of interest produces a clear performance gain. A composite loss function is introduced that penalizes failures in image reconstruction, mismatches with the summary statistics, and insufficient overlap with the weak labels. Experiments cover standard images along with ultrasound scans for breast cancer and CT scans for kidney tumors. The goal is to ease the annotation burden on experts by reusing data that is already kept.

Core claim

A segmentation model trained by minimizing a loss that enforces input reconstruction, fidelity to summary statistics such as region area, and spatial overlap with sparse point-wise weak supervision can produce usable foreground masks, as shown on both generic and medical imaging datasets.

What carries the argument

A composite loss function that adds terms for image reconstruction quality, matching to summary statistics, and overlap between the predicted foreground and the weak supervisory signal.

If this is right

  • Segmentation accuracy rises substantially once a few weak pixels are supplied alongside summary statistics.
  • The approach applies to both everyday images and clinical tasks including breast cancer ultrasound and kidney tumor CT.
  • Full pixel-wise annotations become unnecessary when summary statistics and minimal point labels are retained.
  • The annotation workload for medical experts can be reduced by reusing statistics that are already saved.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same loss structure could incorporate additional summary statistics such as perimeter length or mean intensity.
  • Integration with other weak-supervision signals might further cut labeling requirements.
  • Testing the method on modalities beyond ultrasound and CT would reveal how far the limited-supervision regime extends.

Load-bearing premise

The novel loss function can train accurate segmentation models from summary statistics combined with limited weak pixel labels on the tested datasets.

What would settle it

If adding the overlap term with weak pixels produces no measurable gain in segmentation accuracy on the ultrasound or CT datasets relative to using only reconstruction and statistic matching, the value of the combined supervision would be refuted.

Figures

Figures reproduced from arXiv: 2605.03059 by Edward Raff, Omkar Kulkarni, Tim Oates.

Figure 1

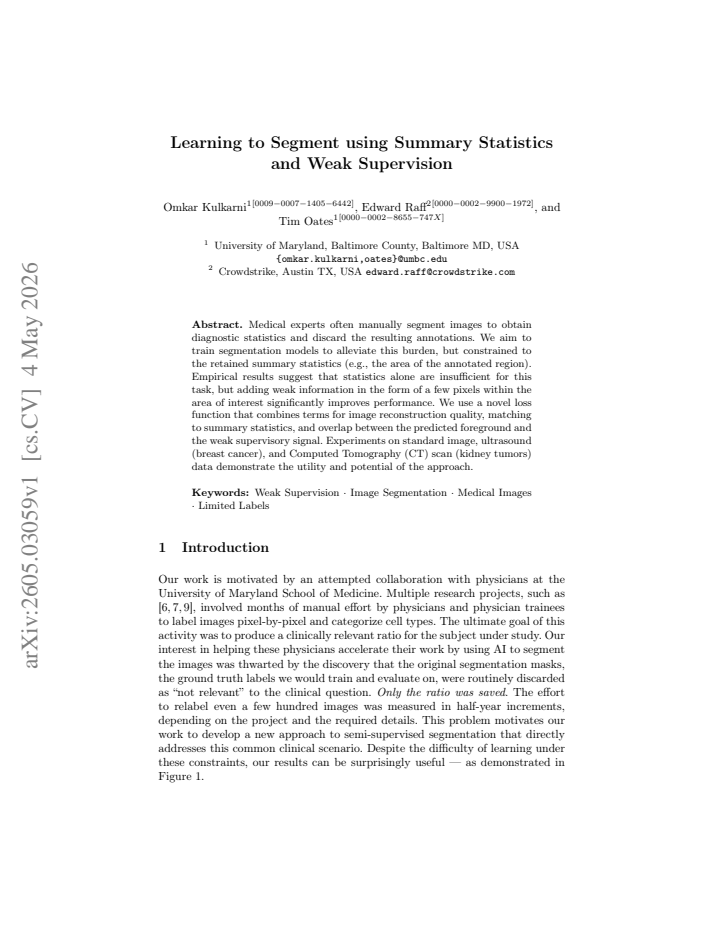

Figure 1. Figure 1: arXiv:2605.03059v1 [cs.CV] 4 May 2026 view at source ↗
Figure 1

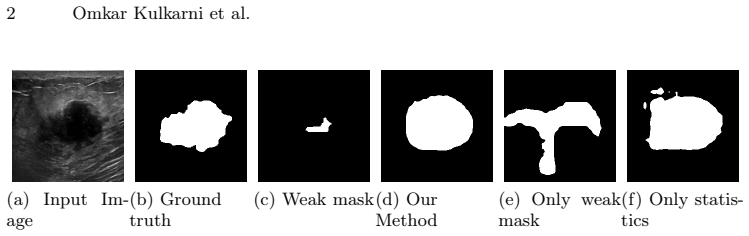

Figure 1. Figure 1: Example images from the BUSI dataset, showing that we can obtain reasonably accurate segmentations even under highly restrictive and minimal learning signals from the physician. Numerous prior works have investigated medical image segmentation as sum￾marized in [8], however, these are all fully supervised methods. Recent ap￾proaches toward weakly/semi supervised segmentation use skeletonization meth￾ods to… view at source ↗
Figure 2

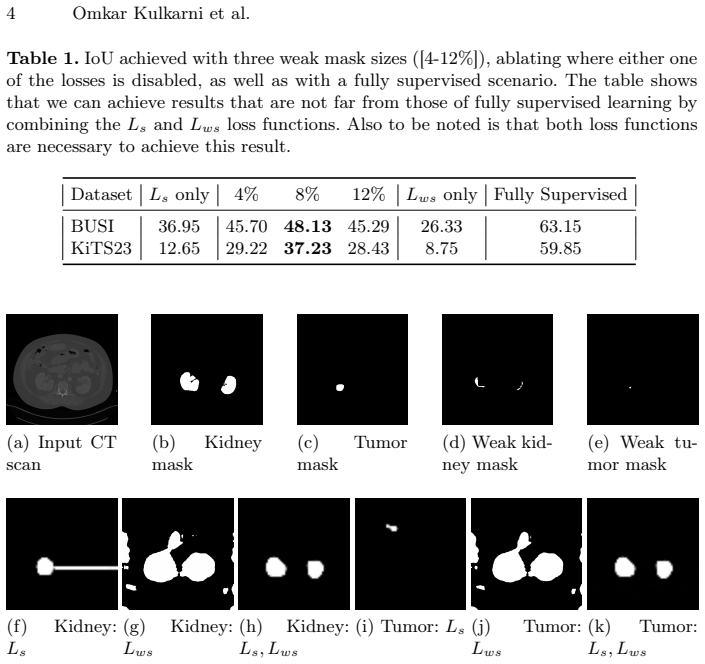

Figure 2. Figure 2: A sample from the KiTS dataset, showing reasonably accurate segmentation masks even under highly restrictive and minimal learning signals. While the tumor prediction is less accurate, the kidney prediction is very close to the ground truth mask. weak ground-truth used in training. The bottom row shows the kidney and tumor predictions for the three combinations of Ls and Lws. Notice that the kidney mask is … view at source ↗
read the original abstract

Medical experts often manually segment images to obtain diagnostic statistics and discard the resulting annotations. We aim to train segmentation models to alleviate this burden, but constrained to the retained summary statistics (e.g., the area of the annotated region). Empirical results suggest that statistics alone are insufficient for this task, but adding weak information in the form of a few pixels within the area of interest significantly improves performance. We use a novel loss function that combines terms for image reconstruction quality, matching to summary statistics, and overlap between the predicted foreground and the weak supervisory signal. Experiments on standard image, ultrasound (breast cancer), and Computed Tomography (CT) scan (kidney tumors) data demonstrate the utility and potential of the approach.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes training segmentation models from retained summary statistics (e.g., area of annotated regions) that medical experts typically keep after discarding pixel-wise annotations. It introduces a composite loss combining image reconstruction quality, matching to the summary statistics, and overlap with a small number of weakly labeled pixels inside the region of interest. The central empirical claim is that summary statistics alone are insufficient, but the combined loss yields substantial improvements on standard images, breast-cancer ultrasound, and kidney-tumor CT data.

Significance. If the quantitative results hold, the work offers a practical route to reduce annotation burden in medical imaging by exploiting routinely retained summary statistics plus minimal weak supervision, potentially enabling model training where full labels are unavailable.

major comments (2)
  1. The abstract states that 'empirical results suggest that statistics alone are insufficient' and that the combined approach 'significantly improves performance,' yet supplies no metrics, baselines, dataset sizes, or error bars. The Experiments section must report these quantities (including the exact improvement over the statistics-only baseline) with statistical significance tests to substantiate the central claim.
  2. The novel loss is described only at the level of its three constituent terms. The paper must define the precise functional form of each term (including any hyperparameters or weighting coefficients) and demonstrate that the claimed performance is not an artifact of particular hyperparameter choices or dataset-specific tuning.
minor comments (2)
  1. Clarify the selection procedure for the weak supervisory pixels and report sensitivity of results to the number and location of these pixels.
  2. Add a clear statement of the network architecture, training protocol, and implementation details (optimizer, learning-rate schedule, data augmentation) so that the experiments can be reproduced.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive review. We address each major comment point by point below, indicating the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: The abstract states that 'empirical results suggest that statistics alone are insufficient' and that the combined approach 'significantly improves performance,' yet supplies no metrics, baselines, dataset sizes, or error bars. The Experiments section must report these quantities (including the exact improvement over the statistics-only baseline) with statistical significance tests to substantiate the central claim.

    Authors: We agree that the abstract is qualitative and omits specific numbers. The Experiments section already presents quantitative comparisons on the three datasets (standard images, breast-cancer ultrasound, and kidney-tumor CT), including performance of the combined loss versus the statistics-only baseline. To fully substantiate the claim, we will revise the manuscript to explicitly report dataset sizes, mean and standard deviation results over multiple runs (error bars), the exact percentage-point improvements over the baseline, and statistical significance tests (e.g., paired t-tests or Wilcoxon tests with p-values). We will also update the abstract to include the key quantitative findings. revision: yes

  2. Referee: The novel loss is described only at the level of its three constituent terms. The paper must define the precise functional form of each term (including any hyperparameters or weighting coefficients) and demonstrate that the claimed performance is not an artifact of particular hyperparameter choices or dataset-specific tuning.

    Authors: The loss is a weighted combination of an image reconstruction term, a summary-statistics matching term, and a weak-supervision overlap term. In the revised version we will supply the exact mathematical definitions (e.g., L2 reconstruction loss, L1 or KL divergence on retained statistics such as area, and Dice or cross-entropy on the sparse pixel labels) together with the concrete weighting coefficients used. We will also add a sensitivity analysis (varying the weights over a reasonable range) and an ablation across the three datasets to show that the reported gains are robust and not the result of dataset-specific tuning. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper presents an empirical method for segmentation using a composite loss (reconstruction + summary statistic matching + weak overlap) trained on standard datasets. No equations, derivations, parameter-fitting procedures, or self-citation chains are described in the provided text that would allow any claimed prediction to reduce to its inputs by construction. The central claim is an experimental demonstration that the combined loss improves performance over statistics alone; this is not a mathematical derivation and therefore cannot exhibit self-definitional, fitted-input, or uniqueness-imported circularity. The approach is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no information on free parameters, axioms, or invented entities used in the method or loss function.

pith-pipeline@v0.9.0 · 5411 in / 1125 out tokens · 55441 ms · 2026-05-08T18:41:35.884705+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
