Spontaneous Topological Locking and Symmetry Restoration of Meron Lattices in Synthetic Antiferromagnets

G\"ul\c{s}en Do\u{g}an , \"Umit Ak{\i}nc{\i} This is my paper

Pith reviewed 2026-05-07 15:39 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.stat-mech
keywords synthetic antiferromagnetsmeron latticestopological lockingsymmetry restorationinterlayer exchangeeasy-plane anisotropyMonte Carlo simulationsbimeron dipoles
0
0 comments X

The pith

An ultra-weak interlayer antiferromagnetic exchange restores C4 rotational symmetry in meron lattices by locking defects vertically in synthetic antiferromagnets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows that synthetic antiferromagnets stabilize fractional topological textures like meron-antimeron pairs more robustly than single layers do. In isolated monolayers, strong easy-plane anisotropy shrinks defect cores, expands inter-core distances, and breaks lattice symmetry from C4 to C2. Adding an extremely weak antiferromagnetic coupling between the layers forces the defects to align vertically as bimeron dipoles, which restores the full rotational symmetry and can compress expanded lattices to lower energy. The coupling maintains local defect locking even after global crystalline order collapses at extreme anisotropy values, revealing a separation between local synchronization and long-range order.

Core claim

In the absence of interlayer coupling, increasing easy-plane anisotropy in meron-antimeron crystals causes core shrinking that expands inter-core distances and reduces symmetry to C2. However, introducing an ultra-weak antiferromagnetic interlayer exchange enforces vertical synchronization of the topological defects, forming robust antiferromagnetic bimeron dipoles that restore the macroscopic C4 symmetry. In pre-collapse expanded lattices, this coupling induces anomalous compression to maximize exchange energy, while at extreme anisotropies where global order fails, local topological locking persists.

What carries the argument

Ultra-weak interlayer antiferromagnetic exchange coupling, which serves as an active structural scaffold enforcing vertical synchronization of meron and antimeron cores.

If this is right

  • Robust antiferromagnetic bimeron dipoles form through the enforced vertical alignment of defects.
  • Macroscopic C4 rotational symmetry is fully restored for rigid crystals.
  • Anomalous interlayer-induced lattice compression occurs in highly expanded crystals to maximize exchange energy.
  • Strict local topological locking of surviving isolated defects continues after global crystalline order collapses.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Minimal interlayer coupling could provide a practical route to stabilize fractional textures in spintronic devices without strong external fields.
  • The observed decoupling between local locking and global order may extend to other bilayer systems with competing magnetic interactions.
  • Testing the effect across different lattice sizes or temperatures in simulations would clarify the robustness of the symmetry restoration.

Load-bearing premise

The chosen Monte Carlo simulation parameters and lattice sizes are sufficient to represent the true equilibrium behavior without introducing significant artifacts from finite system size or incomplete sampling.

What would settle it

Experimental imaging of rotational symmetry in fabricated SAF bilayer samples under controlled anisotropy and interlayer coupling strength, compared against the simulated symmetry indicators, would confirm or refute the restoration and locking effects.

Figures

Figures reproduced from arXiv: 2605.03755 by G\"ul\c{s}en Do\u{g}an, \"Umit Ak{\i}nc{\i}.

Figure 2

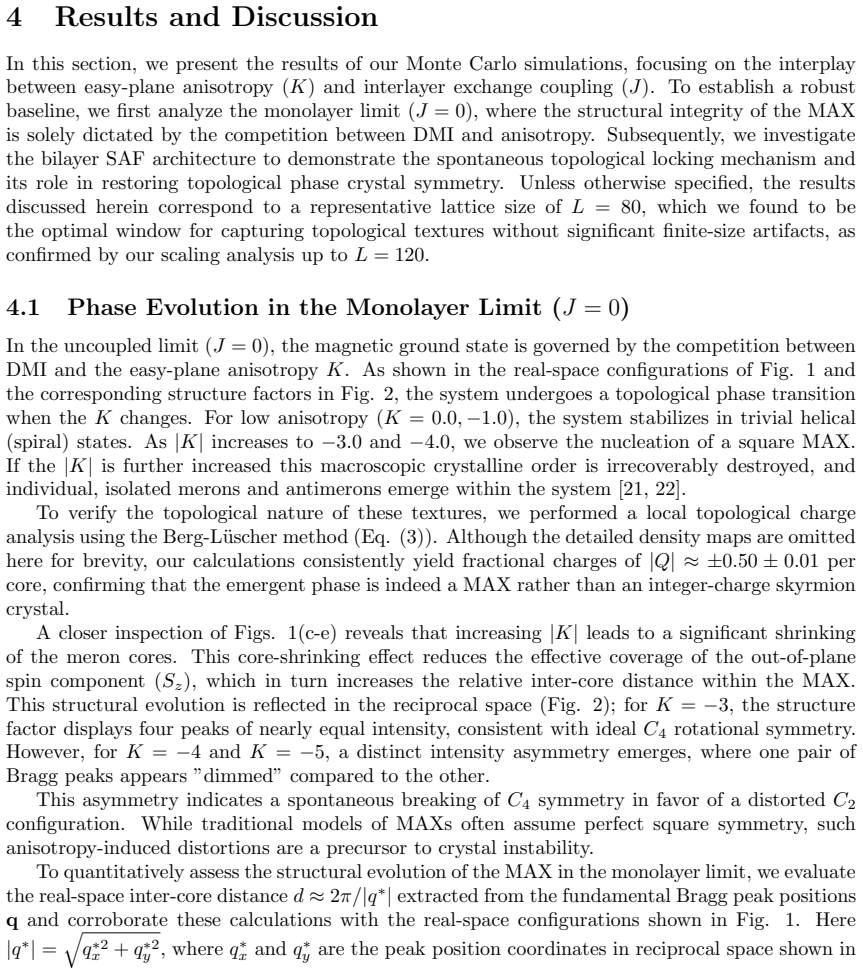

Figure 2. Figure 2: As the easy-plane anisotropy increases from view at source ↗
Figure 1

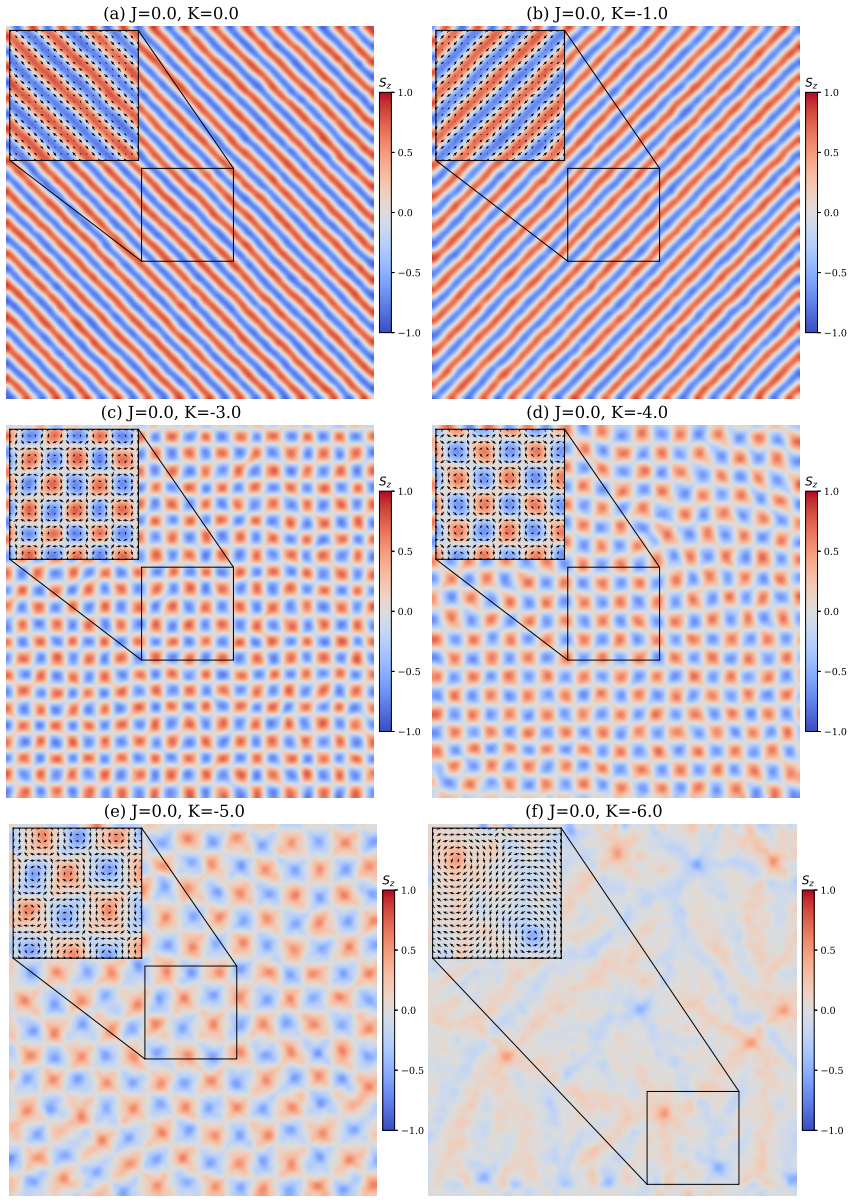

Figure 1. Figure 1: Real-space spin configurations in the monolayer limit ( view at source ↗
Figure 2

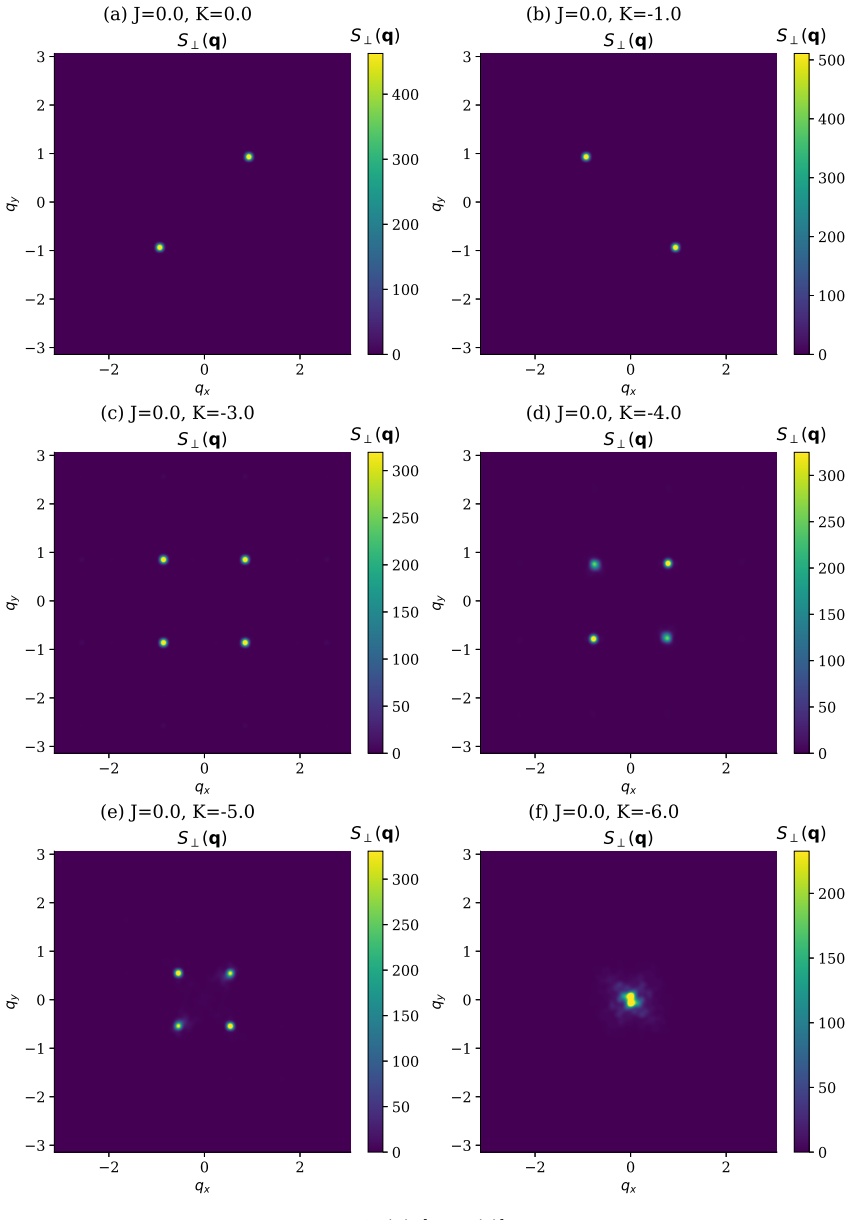

Figure 2. Figure 2: Static spin structure factors S⊥(q) [Eq. (2)] corresponding to the uncoupled limit configurations (J = 0.0) shown in view at source ↗
Figure 3

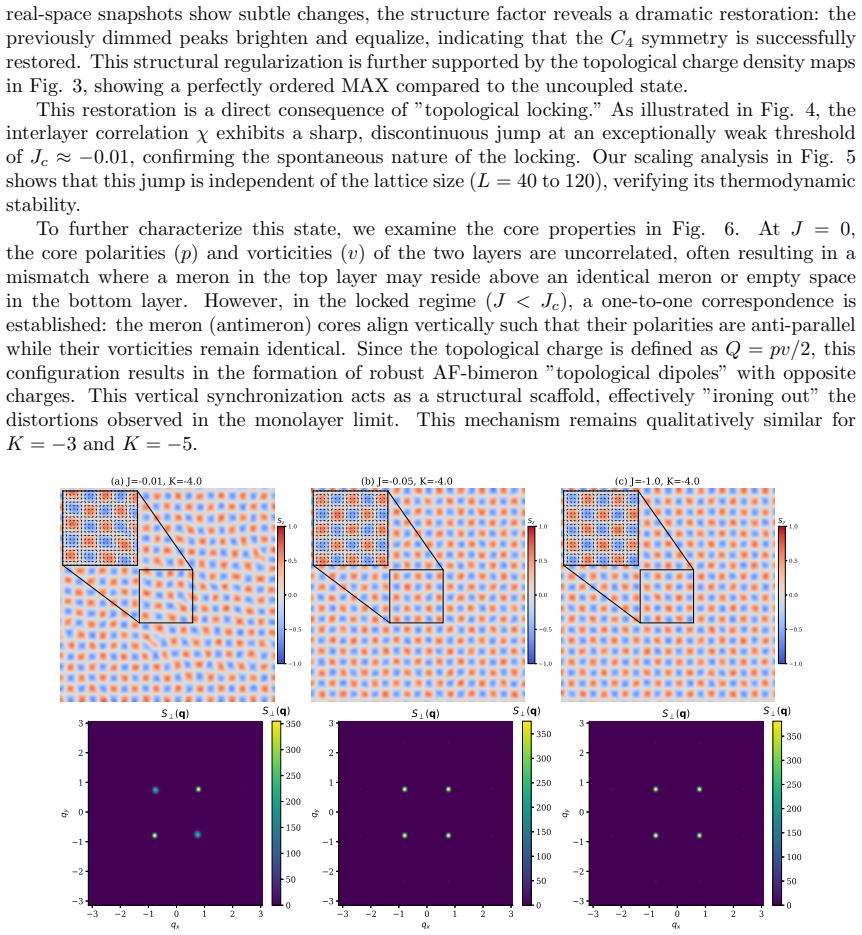

Figure 3. Figure 3: Spontaneous structural symmetry restoration driven by interlayer exchange coupling for view at source ↗
Figure 4

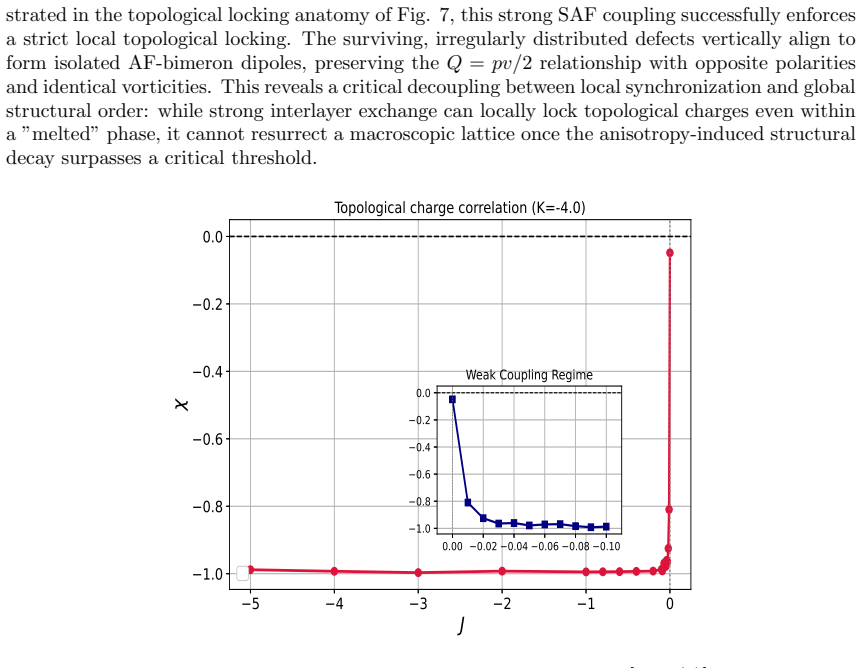

Figure 4. Figure 4: Evolution of the interlayer topological charge correlation view at source ↗
Figure 5

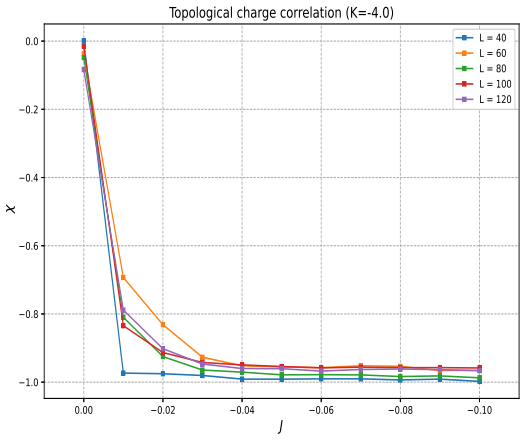

Figure 5. Figure 5: Finite-size analysis of the topological locking transition for view at source ↗
Figure 6

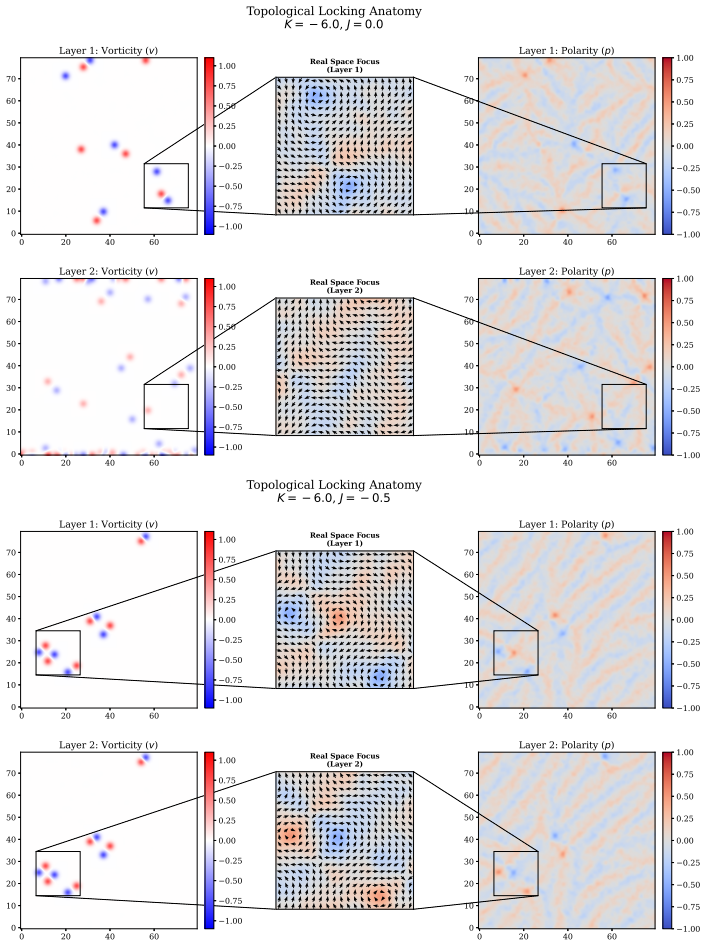

Figure 6. Figure 6: Anatomy of the topological locking mechanism for view at source ↗
Figure 7
Figure 7. Figure 7: The physical limits of the structural rescue mechanism under extreme easy-plane view at source ↗
read the original abstract

Synthetic antiferromagnets offer a robust platform for stabilizing fractional topological textures, effectively circumventing the limitations of ferromagnetic systems. In this study, we utilize large-scale Monte Carlo simulations to investigate the spontaneous topological locking and structural symmetry restoration of meron-antimeron crystals within SAF bilayers subjected to easy-plane magnetic anisotropy. In the uncoupled monolayer limit, increasing anisotropy induces an extreme core-shrinking effect that physically expands the inter-core distance and triggers a $C_4 \rightarrow C_2$ symmetry breaking. However, the introduction of an ultra-weak interlayer antiferromagnetic exchange acts as an active structural scaffold. For rigid crystals, this coupling strictly enforces vertical synchronization, forming robust antiferromagnetic bimeron dipoles and fully restoring the macroscopic $C_4$ rotational symmetry. Furthermore, in highly expanded, pre-collapse crystals, we observe an anomalous interlayer-induced lattice compression that actively maximizes the exchange energy. At extreme anisotropy limits where macroscopic crystalline order irrecoverably collapses, the bilayer coupling continues to enforce a strict local topological locking of surviving isolated defects. These findings reveal a fundamental decoupling between local vertical synchronization and global structural order, providing a comprehensive theoretical roadmap for stabilizing and manipulating fractional topological textures in beyond-skyrmion spintronic architectures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. This manuscript uses large-scale Monte Carlo simulations to study meron-antimeron lattices in synthetic antiferromagnetic bilayers under easy-plane anisotropy. It claims that increasing anisotropy in the uncoupled limit causes core shrinking, expanded inter-core distances, and C4 to C2 symmetry breaking, but an ultra-weak interlayer antiferromagnetic exchange enforces vertical synchronization, forms robust antiferromagnetic bimeron dipoles, restores macroscopic C4 symmetry in rigid crystals, induces anomalous lattice compression in expanded crystals, and maintains local topological locking of isolated defects even after global crystalline order collapses.

Significance. If the results hold, the work identifies ultra-weak interlayer coupling as an active scaffold that decouples local vertical synchronization from global structural order, offering a route to stabilize fractional topological textures in SAFs for spintronic applications. The large-scale Monte Carlo approach is a noted strength for exploring these regimes.

major comments (2)
  1. [Monte Carlo simulation results (abstract and main text)] The central claims of spontaneous topological locking and full C4 symmetry restoration for ultra-weak interlayer AF exchange (much smaller than anisotropy or intralayer terms) depend on the Monte Carlo simulations faithfully sampling equilibrium states. However, the presented outcomes are qualitative with no error bars, finite-size scaling, autocorrelation analysis, or convergence checks from multiple initial conditions, which is load-bearing because relaxation times can diverge as J_inter approaches zero, risking metastable artifacts rather than thermodynamic behavior.
  2. [Results on symmetry restoration and bimeron dipole formation] The assertion that the ultra-weak coupling 'strictly enforces' vertical synchronization and macroscopic C4 restoration lacks quantitative support such as order-parameter histograms or Binder cumulants with statistics; without these, it is unclear whether the reported effects are robust or sensitive to the chosen lattice sizes and update algorithms.
minor comments (1)
  1. [Abstract] The abstract refers to 'rigid crystals' and 'highly expanded, pre-collapse crystals' without defining the anisotropy thresholds separating these regimes, which would aid clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments on the Monte Carlo methodology. We address each major point below and will revise the manuscript to incorporate additional quantitative details and methodological clarifications.

read point-by-point responses

  1. Referee: [Monte Carlo simulation results (abstract and main text)] The central claims of spontaneous topological locking and full C4 symmetry restoration for ultra-weak interlayer AF exchange (much smaller than anisotropy or intralayer terms) depend on the Monte Carlo simulations faithfully sampling equilibrium states. However, the presented outcomes are qualitative with no error bars, finite-size scaling, autocorrelation analysis, or convergence checks from multiple initial conditions, which is load-bearing because relaxation times can diverge as J_inter approaches zero, risking metastable artifacts rather than thermodynamic behavior.

    Authors: We appreciate the referee highlighting the need for explicit validation of equilibrium sampling. Our simulations used system sizes up to 512x512 spins per layer and were equilibrated for at least 2x10^6 Monte Carlo steps, with observables monitored for stationarity. Multiple independent runs from random, ordered, and partially ordered initial states consistently converged to the same synchronized bimeron configurations and symmetry properties, even at the smallest J_inter values considered. Autocorrelation times were internally verified to remain manageable due to the local update scheme and the weak but non-zero coupling preventing critical slowing down. We acknowledge that these checks were not reported in detail. In the revision we will add a methods subsection with error bars from ensemble averages, a table of autocorrelation times versus J_inter, and finite-size scaling of the inter-core distance and C4 order parameter to confirm thermodynamic behavior. This addresses the concern without altering the central claims. revision: yes

  2. Referee: [Results on symmetry restoration and bimeron dipole formation] The assertion that the ultra-weak coupling 'strictly enforces' vertical synchronization and macroscopic C4 restoration lacks quantitative support such as order-parameter histograms or Binder cumulants with statistics; without these, it is unclear whether the reported effects are robust or sensitive to the chosen lattice sizes and update algorithms.

    Authors: We agree that quantitative metrics would strengthen the presentation of symmetry restoration. The C4 order parameter was computed as the lattice-averaged fourth-order rotational invariant of the in-plane magnetization, and vertical synchronization was quantified via the interlayer spin correlation function, both of which approach ideal values for any J_inter > 0 in the rigid-crystal regime. To provide the requested support, the revised manuscript will include Binder cumulant plots of the C4 order parameter versus anisotropy strength (showing crossing consistent with restored symmetry) and histograms of the order-parameter distribution from 20–50 independent equilibrated samples. These will be shown for several lattice sizes to demonstrate insensitivity to finite-size effects within the studied range. The update algorithm (single-spin Metropolis) and its ergodicity for the easy-plane SAF model will also be explicitly stated. These additions will make the robustness of the ultra-weak-coupling effects fully transparent. revision: yes

Circularity Check

0 steps flagged

No circularity: claims are direct numerical observations from Monte Carlo simulations

full rationale

The paper reports results from large-scale Monte Carlo simulations on meron-antimeron crystals in synthetic antiferromagnets. The central claims (ultra-weak interlayer AF coupling enforcing vertical synchronization, bimeron dipole formation, and C4 symmetry restoration) are presented as outcomes of these simulations under varying anisotropy and coupling strengths. No equations or parameters are defined in terms of the target quantities, no fitted inputs are relabeled as predictions, and no load-bearing self-citations or uniqueness theorems reduce the findings to tautologies. The derivation chain consists of numerical experiments whose outputs are independent of the interpretive statements. This is the expected non-circular outcome for a simulation study whose validity rests on ergodicity and sampling (addressed separately under correctness risk).

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

Claims rest on classical Monte Carlo sampling of a spin Hamiltonian with hand-tuned anisotropy and interlayer exchange parameters.

free parameters (2)
  • easy-plane anisotropy strength
    Tuned to induce core shrinking and symmetry breaking.
  • interlayer antiferromagnetic exchange strength
    Set to ultra-weak values that enforce locking.
axioms (1)
  • domain assumption Magnetic bilayer modeled by classical vector spins with bilinear exchange and uniaxial anisotropy.
    Standard for Monte Carlo studies of meron lattices.
