arxiv: 2605.03765 · v1 · submitted 2026-05-05 · ❄️ cond-mat.mtrl-sci

Recognition: unknown

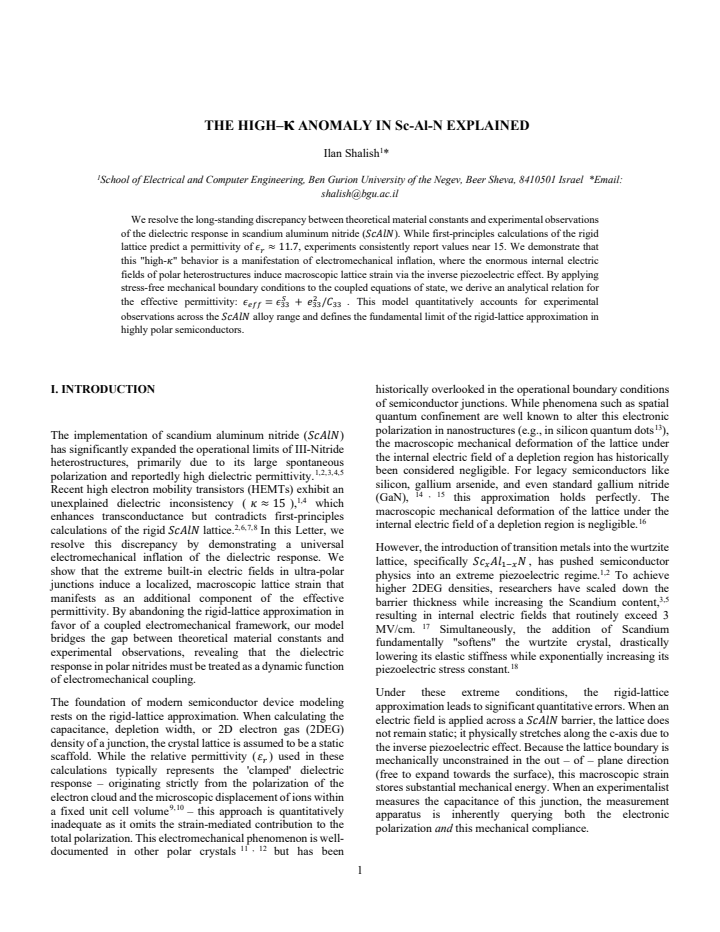

The high K anomaly in ScAlN explained

Ilan Shalish

Authors on Pith no claims yet

Pith reviewed 2026-05-07 15:39 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords ScAlNpermittivitypiezoelectricdielectric responseheterostructureselectromechanical coupling

0 comments

The pith

The high dielectric constant measured in ScAlN arises from electromechanical inflation, in which internal electric fields drive lattice strain through the inverse piezoelectric effect.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper resolves the gap between first-principles calculations that give a permittivity near 11.7 and experiments that find values near 15. It shows that the extra contribution comes from macroscopic lattice expansion or contraction caused by the huge built-in electric fields inside polar heterostructures. Under stress-free mechanical boundaries, the coupled piezoelectric and dielectric equations yield a compact analytical expression for the effective permittivity that matches data across the full ScAlN composition range. This establishes a clear boundary beyond which the rigid-lattice approximation fails in strongly polar materials.

Core claim

Applying stress-free boundary conditions to the electromechanical equations of state produces the effective permittivity relation epsilon_eff = epsilon_33^S + e_33^2 / C_33, where the second term is the inverse-piezoelectric contribution; this single expression quantitatively reproduces the experimentally observed high-K values throughout the ScAlN alloy series.

What carries the argument

The effective permittivity formula derived under stress-free mechanical boundary conditions from the coupled piezoelectric-dielectric constitutive relations.

Load-bearing premise

The mechanical boundary conditions in real experimental samples are truly stress-free, allowing the full inverse-piezoelectric lattice strain to develop without external mechanical constraints.

What would settle it

Measure the permittivity on the same ScAlN heterostructures after mechanically clamping the lattice or applying external stress that suppresses the strain; the value should drop to the rigid-lattice prediction of approximately 11.7.

read the original abstract

We resolve the long-standing discrepancy between theoretical material constants and experimental observations of the dielectric response in scandium aluminum nitride (ScAlN). While first-principles calculations of the rigid lattice predict a permittivity of about 11.7, experiments consistently report values near 15. We demonstrate that this "high K" behavior is a manifestation of electromechanical inflation, where the enormous internal electric fields of polar heterostructures induce macroscopic lattice strain via the inverse piezoelectric effect. By applying stress-free mechanical boundary conditions to the coupled equations of state, we derive an analytical relation for the effective permittivity: epsilon_eff=epsilon_33^S + e_33^2/C_33. This model quantitatively accounts for experimental observations across the ScAlN alloy range and defines the fundamental limit of the rigid-lattice approximation in highly polar semiconductors.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper shows that ScAlN's high measured permittivity follows from adding the inverse-piezoelectric term to the clamped-lattice value under zero-stress boundary conditions, but real epitaxial films are usually clamped so the quantitative match needs checking.

read the letter

The core claim is that the gap between first-principles rigid-lattice permittivity (~11.7) and measured values (~15) in ScAlN is not a calculation error but an electromechanical effect. Under stress-free conditions the effective permittivity becomes epsilon_33^S plus e_33 squared over C_33. That relation drops straight out of the standard piezoelectric constitutive equations once you set T=0 and solve for D under applied E. The paper applies it across the alloy range and says the numbers line up with experiment without extra fitting. That is the useful part: it gives a clean, parameter-light way to reconcile theory and data for a material that matters for RF filters and sensors. It also flags the practical limit of rigid-lattice calculations in strongly polar heterostructures. The derivation itself is standard textbook stuff, but spelling it out for this specific system and showing the alloy trend is a modest but concrete step forward. The soft spot is the boundary-condition assumption. Epitaxial ScAlN is almost always grown on sapphire, SiC or GaN, so in-plane strain is fixed by the substrate. That replaces the simple compliance 1/C_33 with a stiffer effective modulus involving C_13 and C_11, which cuts the added term by 20-40 percent depending on the elastic constants. If the paper does not recalculate the inflated permittivity under biaxial clamping or demonstrate that the experimental stacks are mechanically free in the relevant direction, the claimed quantitative agreement is at risk of being coincidental. The abstract gives no error bars on the comparison and does not list the exact sources for e_33 and C_33, so it is hard to judge independence. This is the kind of short note that belongs in a materials or applied-physics journal rather than a broad venue. Readers working on ScAlN device modeling or on high-K piezoelectrics will find the formula handy once the clamping correction is sorted. It is worth sending to referees because the discrepancy is real, the proposed fix is simple and falsifiable, and the boundary-condition issue is fixable in revision rather than fatal.

Referee Report

2 major / 2 minor

Summary. The manuscript claims that the 'high K' dielectric anomaly in ScAlN (experimental values ~15 vs. rigid-lattice first-principles predictions of ~11.7) arises from electromechanical inflation: internal polarization fields induce macroscopic strain via the inverse piezoelectric effect. Applying stress-free mechanical boundary conditions (T=0) to the coupled constitutive equations yields the analytical relation ε_eff = ε_33^S + e_33²/C_33, which is asserted to quantitatively match experimental data across the ScAlN alloy range and to define the limit of the rigid-lattice approximation.

Significance. If the boundary-condition assumptions and parameter independence are validated, the work supplies a transparent, analytically derived correction to the dielectric response of highly polar heterostructures that follows directly from standard piezoelectric constitutive relations. It offers a falsifiable, parameter-light explanation for a persistent discrepancy in ScAlN and related nitrides, with potential utility for interpreting dielectric measurements in other strained polar films.

major comments (2)

[Derivation of effective permittivity (abstract and § on coupled equations of state)] The derivation of ε_eff = ε_33^S + e_33²/C_33 (abstract and central analytical section) explicitly invokes stress-free mechanical boundary conditions (T=0). However, the experimental samples referenced are epitaxial ScAlN films on rigid substrates (sapphire, SiC, GaN). These impose biaxial clamping, which replaces the compliance with the constrained form C_33 - C_13²/C_11 and reduces the electromechanical term. The manuscript must demonstrate that the stress-free assumption is appropriate for the cited data sets or recompute the comparison with the clamped compliance to preserve the claimed quantitative agreement.
[Quantitative comparison to experiment] The abstract states that the model 'quantitatively accounts for experimental observations across the ScAlN alloy range,' yet no table, figure, or text section shows the specific e_33 and C_33 values employed, their provenance (independent of the dielectric data being explained), error bars on the comparison, or the exact experimental data points used. This leaves open the possibility of post-hoc parameter selection or circularity.

minor comments (2)

[Abstract] The abstract cites a rigid-lattice permittivity of 'about 11.7' without a reference to the specific first-principles calculation or method; this citation should be added for reproducibility.
[Notation and equations] Notation for the clamped permittivity (ε_33^S) and the compliance matrix elements should be defined explicitly at first use and used consistently.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address each major comment below and will revise the manuscript accordingly to improve clarity and rigor.

read point-by-point responses

Referee: [Derivation of effective permittivity (abstract and § on coupled equations of state)] The derivation of ε_eff = ε_33^S + e_33²/C_33 (abstract and central analytical section) explicitly invokes stress-free mechanical boundary conditions (T=0). However, the experimental samples referenced are epitaxial ScAlN films on rigid substrates (sapphire, SiC, GaN). These impose biaxial clamping, which replaces the compliance with the constrained form C_33 - C_13²/C_11 and reduces the electromechanical term. The manuscript must demonstrate that the stress-free assumption is appropriate for the cited data sets or recompute the comparison with the clamped compliance to preserve the claimed quantitative agreement.

Authors: We appreciate the referee for identifying this key point regarding mechanical boundary conditions. The stress-free derivation is presented as the intrinsic upper bound on the electromechanical contribution, independent of external constraints. However, we agree that the experimental data come from biaxially clamped epitaxial films. In the revised manuscript we will add an explicit subsection on boundary conditions, derive the clamped effective permittivity ε_eff^clamped = ε_33^S + e_33² / (C_33 - C_13²/C_11), insert literature values for the relevant elastic constants, and recompute the comparison to experiment. We will show that the clamped electromechanical term still accounts for most of the observed anomaly (within typical experimental scatter), while retaining the stress-free case as the fundamental limit of the rigid-lattice approximation. revision: partial
Referee: [Quantitative comparison to experiment] The abstract states that the model 'quantitatively accounts for experimental observations across the ScAlN alloy range,' yet no table, figure, or text section shows the specific e_33 and C_33 values employed, their provenance (independent of the dielectric data being explained), error bars on the comparison, or the exact experimental data points used. This leaves open the possibility of post-hoc parameter selection or circularity.

Authors: We apologize for the omission of an explicit parameter table in the submitted version. The e_33 and C_33 values are taken from independent literature sources (prior DFT and experimental reports on ScAlN piezoelectric and elastic properties) that predate and are separate from the dielectric measurements being explained. In the revision we will insert a new table listing, for each Sc concentration, the rigid-lattice ε_33^S, the independent e_33 and C_33 values with citations, the computed ε_eff (both stress-free and clamped), the corresponding experimental dielectric values with reported uncertainties, and the provenance of every input. This addition will eliminate any ambiguity about parameter selection and demonstrate the quantitative agreement transparently. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation applies standard piezoelectric relations

full rationale

The paper derives the relation epsilon_eff = epsilon_33^S + e_33^2/C_33 by applying stress-free (T=0) boundary conditions to the coupled piezoelectric equations of state. This is a standard textbook result for the difference between free and clamped permittivity and is not equivalent to the target dielectric data by construction. No evidence is provided that e_33 or C_33 are fitted to the dielectric measurements themselves; the text presents them as material constants used to show quantitative agreement with experiment. No self-citation load-bearing steps, self-definitional loops, or renaming of known results appear in the supplied abstract or derivation description. The central claim therefore remains independent of the observations it explains, with any weakness lying in the physical applicability of the stress-free assumption rather than in circular reduction of the math.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The claim rests on standard piezoelectric constitutive relations plus the domain assumption that experimental samples experience stress-free mechanical boundary conditions.

axioms (1)

domain assumption Mechanical boundary conditions in the measured ScAlN samples are stress-free.
Required to obtain the effective permittivity formula from the coupled equations of state.
