Scattering-Induced Loss in Ferroelectric Photonic Devices

Jonah Townsend , Enzo Concei\c{c}\~ao Picinini , Rog\'erio de Sousa This is my paper

Pith reviewed 2026-05-08 16:46 UTC · model grok-4.3

classification ⚛️ physics.optics cond-mat.mtrl-sciquant-ph
keywords ferroelectricphotonic waveguidescattering lossdomain disorderinterface roughnessattenuation coefficientspectral densityMie scattering
0
0 comments X

The pith

A perturbative theory calculates scattering loss in ferroelectric waveguides from the spectral density of permittivity fluctuations, showing peak loss when mean domain length matches the light wavelength.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a general first-order perturbative expression for elastic scattering loss that depends only on the spectral density of spatial permittivity variations, without requiring special symmetry assumptions about the disorder. This functional is applied to slab waveguides to compute the attenuation coefficient α separately for interface roughness and for ferroelectric domain walls. Electron microscopy images of real domains are used to construct the spectral density and obtain numerical values of α. The calculations reveal that loss reaches a maximum in the Mie regime when the average domain length is comparable to the optical wavelength. For telecom wavelengths this implies that either sub-micron domains or perfectly single-domain waveguides are equally effective routes to low loss.

Core claim

Non-absorptive photon loss is expressed as a functional of the spectral density of permittivity fluctuations; when this functional is evaluated for ferroelectric domain disorder in slab waveguides, the attenuation coefficient α is largest when the mean domain length is comparable to the wavelength of the guided light.

What carries the argument

The first-order perturbative formula that maps the spectral density of permittivity fluctuations directly to the scattering attenuation coefficient α in a waveguide geometry.

If this is right

  • Realistic interface roughness can be incorporated without assuming any particular symmetry of the roughness profile.
  • Electron-microscopy images of ferroelectric domains can be converted into quantitative predictions for waveguide loss.
  • Loss is maximized when domain length matches the optical wavelength (Mie regime) and falls off for both much smaller and much larger domains.
  • At telecom wavelengths, sub-micron domains and single-domain structures produce equivalent low-loss performance.
  • The same spectral-density approach allows direct numerical comparison of loss from roughness versus loss from domain walls.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Fabrication strategies could deliberately target either uniform single-domain poling or controlled sub-micron domain sizes depending on which is easier to achieve for a given wavelength.
  • The same functional could be used to estimate loss in other classes of disordered dielectric waveguides once their permittivity spectral density is known.
  • If the perturbative assumption breaks down at high index contrast, the predicted loss peak would shift or broaden, offering a testable signature in strongly scattering samples.

Load-bearing premise

Scattering is weak enough that first-order perturbation theory captures the loss without needing higher-order multiple-scattering corrections.

What would settle it

Measure the attenuation coefficient in a set of ferroelectric waveguides whose mean domain lengths are systematically varied through the sub-micron to several-micron range and compare the observed peak loss wavelength against the value predicted from the measured spectral density.

Figures

Figures reproduced from arXiv: 2605.04353 by Enzo Concei\c{c}\~ao Picinini, Jonah Townsend, Rog\'erio de Sousa.

Figure 1
Figure 1. Figure 1: FIG. 1. Diagram of a barium titanate (BTO) on silicon dioxide view at source ↗
Figure 2

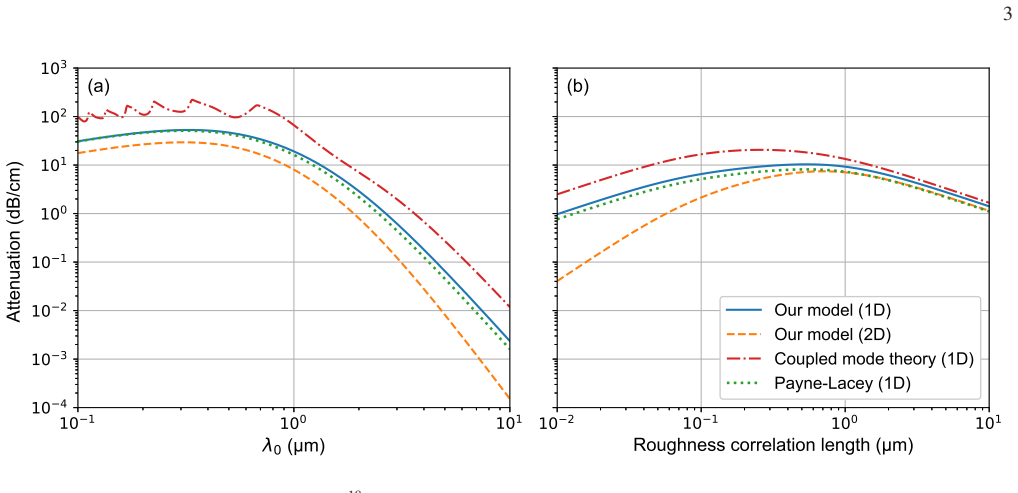

Figure 2. Figure 2: FIG. 2. Attenuation view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Spectral density view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Attenuation view at source ↗
read the original abstract

Ferroelectric materials have colossal optical nonlinearities, but their integration into quantum photonic chips is made challenging by the additional loss mechanisms that they introduce. Here we present a perturbative theory that expresses non-absorptive (elastic) photon scattering-induced loss as a functional of a general spectral density for spatial fluctuations of electric permittivity. We apply the theory to calculations of attenuation coefficients $\alpha$ in slab waveguides in order to compare two distinct loss mechanisms: Interface roughness and ferroelectric domain disorder. our theory can account for realistic roughness without special symmetry considerations, and it demonstrates how to use electron microscoopy images of ferroelectric domains to obtain explicit numerical predictions for $\alpha$. Loss is maximum when the mean domain length is comparable to the wavelength of light (Mie regime), indicating that, for telecom wavelengths, sub-micron domains (Rayleigh regime) or single domain waveguides provide equivalent strategies for reducing loss.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper presents a perturbative theory expressing non-absorptive elastic photon scattering loss as a functional of a general spectral density for spatial fluctuations of electric permittivity. It applies the theory to attenuation coefficients α in slab waveguides, comparing interface roughness and ferroelectric domain disorder. The approach uses electron microscopy images of ferroelectric domains to generate explicit numerical predictions for α, with the key result that loss peaks when mean domain length is comparable to the wavelength (Mie regime), implying that sub-micron domains (Rayleigh regime) or single-domain waveguides provide equivalent loss-reduction strategies for telecom wavelengths.

Significance. If the central predictions hold, the work supplies a practical, general framework for forecasting scattering losses from measurable structural data (e.g., microscopy images) without requiring special symmetry assumptions or free parameters. This could meaningfully aid the design of low-loss ferroelectric photonic devices for quantum applications by identifying domain-size engineering as a viable mitigation route.

major comments (2)
  1. [Theory section deriving the attenuation coefficient α] The first-order perturbative expression for the loss (derived from the spectral density of permittivity fluctuations) assumes weak scattering. However, the headline claim that loss maximizes in the Mie regime (mean domain length ≈ wavelength) and that sub-micron vs. single-domain strategies are equivalent for telecom wavelengths rests on this approximation remaining accurate precisely where resonant scattering cross-sections become order-1. Higher-order multiple-scattering corrections may alter the predicted peak and the quantitative comparison.
  2. [Application to ferroelectric domain disorder] The manuscript demonstrates extraction of the spectral density from electron microscopy images to obtain concrete α values, but provides insufficient detail on the numerical procedure (e.g., Fourier transform implementation, image preprocessing, or handling of finite image size). This is load-bearing for the explicit predictions that support the domain-disorder vs. roughness comparison.
minor comments (3)
  1. [Abstract] Typographical error: 'microscoopy' should be 'microscopy'.
  2. [Abstract] The sentence beginning 'our theory can account...' should be capitalized ('Our theory...') for grammatical consistency.
  3. [Abstract] The abstract states the theory 'can account for realistic roughness without special symmetry considerations' but does not cite prior roughness models; a brief comparison sentence would clarify novelty.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the constructive comments. We address each major comment below and have revised the manuscript to improve clarity and reproducibility.

read point-by-point responses

  1. Referee: [Theory section deriving the attenuation coefficient α] The first-order perturbative expression for the loss (derived from the spectral density of permittivity fluctuations) assumes weak scattering. However, the headline claim that loss maximizes in the Mie regime (mean domain length ≈ wavelength) and that sub-micron vs. single-domain strategies are equivalent for telecom wavelengths rests on this approximation remaining accurate precisely where resonant scattering cross-sections become order-1. Higher-order multiple-scattering corrections may alter the predicted peak and the quantitative comparison.

    Authors: We acknowledge that the first-order perturbative expression assumes weak scattering and that the Mie regime (domain size comparable to wavelength) can involve stronger scattering where higher-order effects become relevant. The headline claims in the manuscript are presented within this perturbative framework, and we agree that quantitative details of the peak position and height could shift under multiple-scattering corrections. In the revised manuscript we have added a dedicated paragraph in the Discussion section that (i) states the validity condition (scattering mean free path much larger than wavelength), (ii) provides order-of-magnitude estimates of α from our calculations to indicate where the approximation remains reasonable, and (iii) notes that the qualitative recommendation—avoiding the Mie regime by using either sub-micron or single-domain structures—serves as a design guideline whose precise numbers would benefit from full-wave simulations in strong-scattering cases. We have not performed higher-order calculations, as they lie outside the scope of the present perturbative approach. revision: partial

  2. Referee: [Application to ferroelectric domain disorder] The manuscript demonstrates extraction of the spectral density from electron microscopy images to obtain concrete α values, but provides insufficient detail on the numerical procedure (e.g., Fourier transform implementation, image preprocessing, or handling of finite image size). This is load-bearing for the explicit predictions that support the domain-disorder vs. roughness comparison.

    Authors: We agree that additional detail on the numerical extraction procedure is required for reproducibility. In the revised manuscript we have expanded the Methods section with a new subsection that describes: (1) image preprocessing steps, including contrast normalization, domain segmentation via thresholding, and conversion to physical length units using the microscope scale bar; (2) the discrete Fourier-transform implementation, including zero-padding, use of a Hann window to reduce edge artifacts from finite image size, and normalization conventions; and (3) the averaging over multiple independent images and the conversion of the resulting power spectrum into the permittivity-fluctuation spectral density. We have also added a supplementary figure that illustrates the procedure on a representative image together with the extracted spectral density. These changes make the numerical predictions for α fully traceable. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation uses independent external inputs

full rationale

The paper derives a general perturbative functional for elastic scattering loss α in terms of an arbitrary spectral density of permittivity fluctuations. This functional is then evaluated on spectral densities extracted from independent electron microscopy images of ferroelectric domains (or from roughness profiles). No equation reduces by construction to a fitted parameter, self-citation, or ansatz internal to the paper; the output α is a direct numerical integral over externally supplied data. The central claims therefore remain falsifiable against separate measurements and do not collapse to the theory's own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the validity of the perturbative scattering theory and the use of a general spectral density derived from material characterization.

axioms (1)
  • domain assumption The scattering-induced loss can be treated perturbatively for small permittivity fluctuations.
    The paper presents a perturbative theory, implying this approximation holds.
