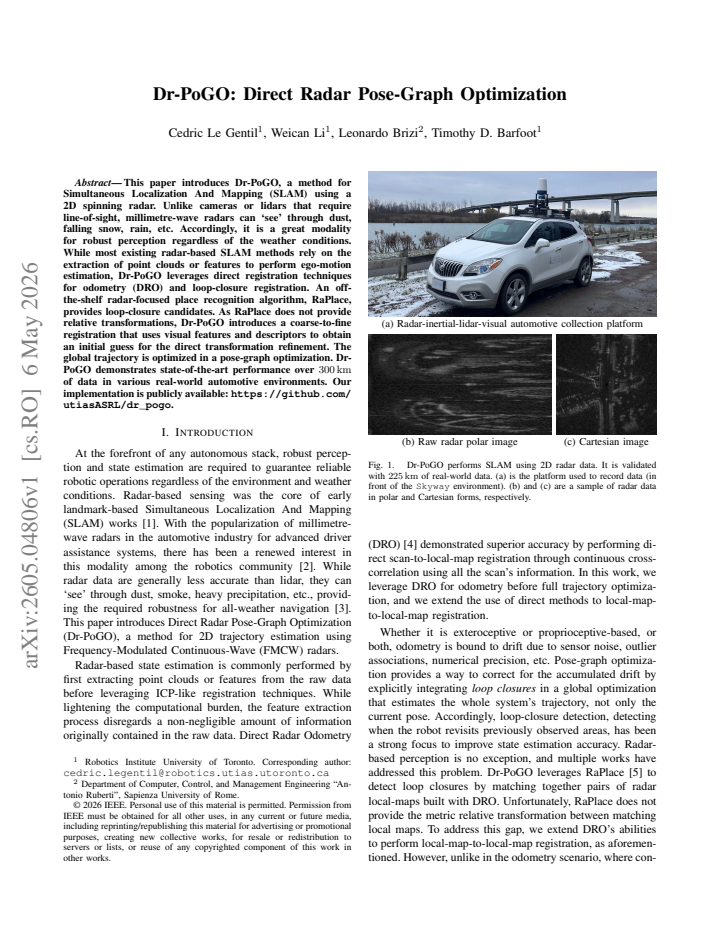

Dr-PoGO: Direct Radar Pose-Graph Optimization

Cedric Le Gentil , Weican Li , Leonardo Brizi , Timothy D. Barfoot This is my paper

Pith reviewed 2026-05-08 17:12 UTC · model grok-4.3

classification 💻 cs.RO
keywords radar SLAMdirect registrationpose graph optimizationodometryloop closureadverse weather perception
0
0 comments X

The pith

A direct radar pose-graph optimization method delivers state-of-the-art SLAM performance over 300 km of real-world data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Dr-PoGO as a SLAM method for 2D spinning radar that performs direct registration of radar data for both odometry and loop closures. It uses an off-the-shelf place recognition to find loops and a coarse-to-fine approach with visual features to initialize the direct radar transform refinement. These are then used in a global pose-graph optimization to build the map and trajectory. This approach is designed to work reliably in poor visibility conditions like dust, snow, and rain where other sensors struggle. It reports superior results compared to existing methods on over 300 kilometers of real automotive data.

Core claim

Dr-PoGO leverages direct registration techniques for radar odometry and loop-closure registration, initialized via visual features for the latter, and optimizes the global trajectory in a pose-graph to enable robust SLAM in adverse weather.

What carries the argument

Direct radar registration combined with coarse-to-fine loop closure using visual initial guesses, embedded in pose-graph optimization.

If this is right

  • Provides ego-motion estimation without needing to extract point clouds or features from radar scans.
  • Allows loop closures even when place recognition does not output transformations.
  • Supports reliable mapping and localization regardless of weather conditions.
  • Demonstrates improved performance on long-term real-world automotive datasets.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method may allow radar to serve as a primary sensor in SLAM systems for all-weather autonomy.
  • Future work could explore integrating this direct approach with other sensor types for multi-modal fusion.
  • Testing on datasets with more severe occlusions could further validate the convergence of the direct refinement step.

Load-bearing premise

The visual feature-based initial guess for loop closures is sufficiently close to the true transformation for the direct radar registration to converge to the global optimum.

What would settle it

Observing a case where the radar direct registration converges to an incorrect alignment despite the visual initial guess, leading to inconsistent loop closures and trajectory errors.

Figures

Figures reproduced from arXiv: 2605.04806 by Cedric Le Gentil, Leonardo Brizi, Timothy D. Barfoot, Weican Li.

Figure 1
Figure 1. Figure 1: Dr-PoGO performs SLAM using 2D radar data. It is validated view at source ↗
Figure 2

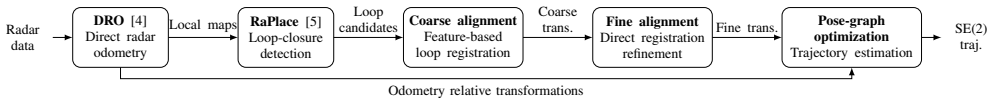

Figure 2. Figure 2: Block-diagram overview of Dr-PoGO. First, DRO processes the raw radar data (and optional yaw-gyroscope measurements) to generate per-scan view at source ↗
Figure 3
Figure 3. Figure 3: Example of local-map registration. Alone, the cross-correlation view at source ↗
Figure 4
Figure 4. Figure 4: Illustration of the challenging conditions in Boreas-RT view at source ↗
Figure 5
Figure 5. Figure 5: Absolute Trajectory Error and End-Pose Error (log scale) for each view at source ↗
Figure 6
Figure 6. Figure 6: Trajectory examples over the three environment types of the self view at source ↗
Figure 7
Figure 7. Figure 7: Strip plots of the position (left column) and rotation (right column) view at source ↗
read the original abstract

This paper introduces Dr-PoGO, a method for Simultaneous Localization And Mapping (SLAM) using a 2D spinning radar. Unlike cameras or lidars that require line-of-sight, millimetre-wave radars can `see' through dust, falling snow, rain, etc. Accordingly, it is a great modality for robust perception regardless of the weather conditions. While most existing radar-based SLAM methods rely on the extraction of point clouds or features to perform ego-motion estimation, Dr-PoGO leverages direct registration techniques for odometry (DRO) and loop-closure registration. An off-the-shelf radar-focused place recognition algorithm, RaPlace, provides loop-closure candidates. As RaPlace does not provide relative transformations, Dr-PoGO introduces a coarse-to-fine registration that uses visual features and descriptors to obtain an initial guess for the direct transformation refinement. The global trajectory is optimized in a pose-graph optimization. Dr-PoGO demonstrates state-of-the-art performance over 300km of data in various real-world automotive environments. Our implementation is publicly available: https://github.com/utiasASRL/dr_pogo.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper introduces Dr-PoGO, a radar SLAM system for 2D spinning radar that performs direct radar odometry (DRO), obtains loop-closure candidates via the off-the-shelf RaPlace place-recognition algorithm, applies a coarse-to-fine registration that first uses visual features and descriptors to seed an initial guess before direct radar refinement, and finally optimizes the trajectory in a pose-graph framework. It reports state-of-the-art performance across 300 km of real-world automotive sequences in varied environments and releases the implementation publicly.

Significance. If the empirical results hold, the work advances radar-based SLAM by showing that direct registration can be applied successfully to both odometry and loop closure without intermediate feature extraction, exploiting radar's robustness to weather and occlusion. The scale of the evaluation (300 km) and the public code release are concrete strengths that support reproducibility and further research in adverse-condition perception.

minor comments (2)
  1. Abstract: the SOTA claim would be more informative if it named the primary competing methods and the quantitative metrics (e.g., absolute trajectory error) on which superiority is asserted.
  2. The coarse-to-fine registration paragraph does not specify which visual feature detector and descriptor are employed, limiting immediate reproducibility of the initial-guess stage.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of Dr-PoGO, including the recognition of our 300 km evaluation and public code release. The recommendation for minor revision is noted, and we will incorporate any editorial improvements in the revised version.

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper describes an engineering pipeline that chains external modules (RaPlace place recognition, direct radar odometry/refinement, visual-feature coarse alignment, and standard pose-graph optimization) without reducing any claimed performance metric or transformation to a fitted parameter or self-referential equation. The 300 km SOTA result is presented as an empirical outcome of the integrated system rather than a mathematical consequence of its own definitions. Any self-citations for prior direct-registration components are not load-bearing for the uniqueness or correctness of the central claims.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach rests on domain assumptions about the applicability of direct registration to radar scans and the reliability of RaPlace candidates; no new entities are postulated and no numerical parameters are fitted inside the abstract description.

axioms (2)
  • domain assumption Direct registration techniques developed for radar data can produce accurate ego-motion estimates without explicit feature extraction.
    Invoked for both DRO and loop-closure refinement.
  • domain assumption RaPlace supplies loop-closure candidates of sufficient quality that the subsequent coarse-to-fine registration succeeds.
    Used to trigger the registration pipeline.
