Error Mitigation in Dynamic Circuits for Hamiltonian Simulation

Sumeet Shirgure , Siyuan Niu
Authors on Pith no claims yet

Pith reviewed 2026-05-15 06:33 UTC · model grok-4.3

classification 🪐 quant-ph
keywords dynamic quantum circuitserror mitigationdynamical decouplingzero-noise extrapolationHamiltonian simulationIsing modelHeisenberg modelground state estimation
0
0 comments X

The pith

Combining dynamical decoupling and zero-noise extrapolation mitigates errors from mid-circuit measurements in dynamic quantum circuits for Hamiltonian simulation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that dynamic quantum circuits, which rely on mid-circuit measurements and classical feed-forward for resource-efficient Hamiltonian simulation, suffer from decoherence and measurement errors during idle periods but can have those errors suppressed by applying dynamical decoupling pulses during waits and zero-noise extrapolation to the results. Experiments on IBM hardware for the Ising and Heisenberg models show this combination yields clearer ground-state energy gaps and more accurate time-evolved states than unmitigated dynamic circuits. A sympathetic reader would care because dynamic circuits are promoted for lowering gate counts in algorithms such as error correction and simulation, yet their practical value hinges on whether the added errors can be controlled without losing the resource advantage.

Core claim

We demonstrate that a combination of DD and ZNE is effective in mitigating the errors introduced during mid-circuit measurements and feed-forward operations, as well as the errors arising from faulty measurements. This approach yields a energy gap improvement of at least 60% in ground state estimation and reduces observed error of time-evolved states by up to 99% for the Ising model and up to 20% for the Heisenberg model.

What carries the argument

Dynamical decoupling (DD) sequences applied during idle windows created by mid-circuit measurements and feed-forward delays, paired with zero-noise extrapolation (ZNE) performed on the noisy measurement outcomes to estimate zero-noise observables.

If this is right

  • Ground-state energy gap estimates improve by at least 60 percent when the combined mitigation is applied to dynamic-circuit variational algorithms.
  • Observed errors in time-evolved states drop by up to 99 percent for the Ising model under the mitigated dynamic circuits.
  • Observed errors in time-evolved states drop by up to 20 percent for the Heisenberg model under the mitigated dynamic circuits.
  • Errors originating from mid-circuit measurements, feed-forward delays, and faulty readouts are simultaneously suppressed.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same DD-plus-ZNE protocol could be tested on dynamic circuits used for quantum error correction to check whether logical error rates decrease.
  • Resource savings claimed for dynamic circuits might only become net-positive once mitigation overhead is included in the total gate count.
  • Hardware-specific tuning of DD pulse timings may be required to maintain the reported gains when moving to different quantum processors.

Load-bearing premise

The measured improvements in energy gaps and error rates arise specifically from the DD and ZNE protocols rather than from unaccounted hardware variations, post-selection effects, or differences in how the baseline dynamic circuits were calibrated.

What would settle it

Re-running the identical dynamic circuits for the Ising and Heisenberg models on the same IBM hardware without DD pulses or ZNE extrapolation and observing no improvement in energy gap accuracy or reduction in state errors would falsify the effectiveness claim.

Figures

Figures reproduced from arXiv: 2605.05256 by Siyuan Niu, Sumeet Shirgure.

Figure 1
Figure 1. Figure 1: (a) Hardware efficient ansatz with two entangling layers. Each Pauli rotation has a dedicated parameter view at source ↗
Figure 2

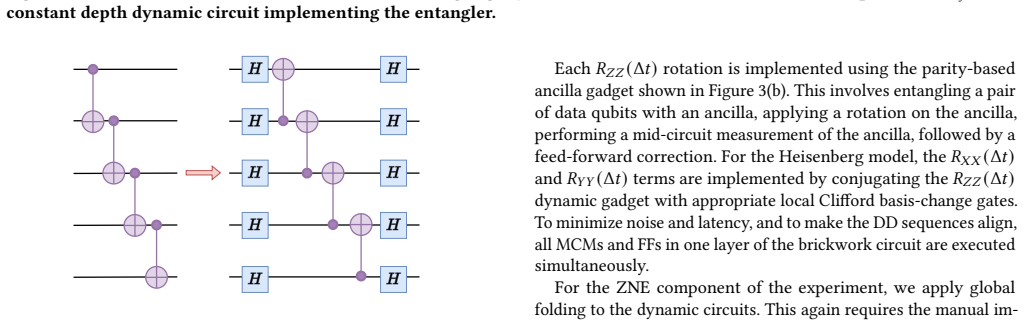

Figure 2. Figure 2: Inverse of the entangler needed in the Hardware view at source ↗
Figure 3
Figure 3. Figure 3: 3(a) A "brickwork" circuit for a Trotter step in Heisenberg Hamiltonian simulation. The structure for the Ising view at source ↗
Figure 4
Figure 4. Figure 4: Percentage improvements in energy gap for Heisenberg model ground state estimation. view at source ↗
Figure 5
Figure 5. Figure 5: Percentage improvements in energy gap for Ising model ground state estimation. view at source ↗
Figure 6
Figure 6. Figure 6: Percentage improvements in the energy difference after time evolution for Heisenberg model 6(a) and Ising model 6(b). view at source ↗
read the original abstract

Dynamic quantum circuits integrate mid-circuit measurements and feed-forward operations to enable real-time classical processing and conditional quantum logic. These capabilities are central to key quantum protocols such as quantum error correction, and have recently demonstrated significant potential for reducing quantum resources, including circuit depth and gate count, across a range of applications. However, executing dynamic circuits on real quantum hardware introduces a critical trade-off: while resource requirements decrease, circuit fidelity degrades due to high error rates of mid-circuit measurements, as well as the decoherence errors accumulated during the extended idle periods introduced by both mid-circuit measurements and feed-forward operations. In this paper, we systematically investigate the impact of standard error mitigation techniques on dynamic circuit applications pertaining to Hamiltonian simulation and ground state estimation of physically relevant systems like the Heisenberg model. We explore dynamical decoupling (DD) as a strategy to suppress decoherence and crosstalk errors during idle windows introduced by mid-circuit measurements and feed-forward delays, and also examine error mitigation via zero-noise extrapolation (ZNE). Through experiments conducted on IBM quantum hardware, we benchmark effective combinations of these strategies that maximize the practical benefits of dynamic quantum circuits in these applications. We demonstrate that a combination of DD and ZNE is effective in mitigating the errors introduced during mid-circuit measurements and feed-forward operations, as well as the errors arising from faulty measurements. This approach yields a energy gap improvement of at least 60% in ground state estimation and reduces observed error of time-evolved states by up to 99% for the Ising model and up to 20% for the Heisenberg model.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript experimentally investigates error mitigation for dynamic quantum circuits in Hamiltonian simulation of Ising and Heisenberg models. It applies dynamical decoupling (DD) during idle windows from mid-circuit measurements and feed-forward, combined with zero-noise extrapolation (ZNE), and reports that this yields at least 60% improvement in energy gap for ground-state estimation plus error reductions up to 99% (Ising) and 20% (Heisenberg) on IBM hardware.

Significance. If the reported gains can be unambiguously attributed to the mitigation protocols, the work would be significant for near-term dynamic-circuit applications, including quantum error correction and resource-efficient simulation. The quantitative improvements are large enough to be practically relevant, and the direct hardware benchmarks constitute a concrete contribution.

major comments (2)
  1. [Results section] Results section (experimental benchmarks): the headline improvements (60% energy-gap gain, 99%/20% error reductions) are presented as direct evidence that DD+ZNE mitigates mid-circuit measurement and idle-time errors, yet the text provides no description of controls ensuring baseline and mitigated circuits were executed under identical conditions (same calibration epoch, randomized interleaving, identical transpilation, matched post-selection). Without these, the differences cannot be confidently assigned to the protocols rather than hardware drift or recalibration.
  2. [Abstract] Abstract and experimental description: the manuscript states clear quantitative gains but omits essential details on shot counts, error-bar methodology, and how faulty mid-circuit measurements were treated in post-processing. These omissions make it impossible to evaluate whether the reported percentages are statistically robust or sensitive to analysis choices.
minor comments (1)
  1. [Abstract] The abstract refers to 'the Ising model' and 'the Heisenberg model' without specifying the number of qubits or the precise Hamiltonian parameters used in the benchmarks; adding these would improve reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive feedback on our manuscript. We address each of the major comments point by point below and have revised the manuscript accordingly to enhance the description of our experimental procedures and statistical methods.

read point-by-point responses

  1. Referee: [Results section] Results section (experimental benchmarks): the headline improvements (60% energy-gap gain, 99%/20% error reductions) are presented as direct evidence that DD+ZNE mitigates mid-circuit measurement and idle-time errors, yet the text provides no description of controls ensuring baseline and mitigated circuits were executed under identical conditions (same calibration epoch, randomized interleaving, identical transpilation, matched post-selection). Without these, the differences cannot be confidently assigned to the protocols rather than hardware drift or recalibration.

    Authors: We agree that a clear description of the experimental controls is crucial for confidently attributing the improvements to DD and ZNE. In our experiments, the baseline and mitigated circuits were executed during the same calibration epoch on the IBM quantum hardware. The different circuit variants were randomly interleaved during execution to mitigate the effects of temporal drift. Identical transpilation parameters were applied to all circuits, and post-selection was performed using the same criteria for all variants. We have now included a dedicated paragraph in the Results section detailing these controls to address this concern. revision: yes

  2. Referee: [Abstract] Abstract and experimental description: the manuscript states clear quantitative gains but omits essential details on shot counts, error-bar methodology, and how faulty mid-circuit measurements were treated in post-processing. These omissions make it impossible to evaluate whether the reported percentages are statistically robust or sensitive to analysis choices.

    Authors: We acknowledge that the abstract and main text omitted key details on the experimental statistics and post-processing. We have revised the manuscript to specify the shot counts employed, the methodology used to compute error bars, and how faulty mid-circuit measurements were handled through post-processing. These details have been added to the experimental description section, enabling readers to assess the robustness of the quantitative gains reported. revision: yes

Circularity Check

0 steps flagged

No circularity; results are direct experimental benchmarks with no derivation chain

full rationale

The paper reports empirical results from IBM hardware experiments applying DD and ZNE to dynamic circuits for Ising and Heisenberg Hamiltonian simulation and ground-state estimation. No equations, fitted parameters, predictions, or uniqueness theorems are presented that could reduce to self-definition, self-citation, or ansatz smuggling. The claimed improvements (60% energy-gap gain, up to 99%/20% error reduction) are stated as measured outcomes, not derived quantities. The central claim therefore remains externally falsifiable via hardware replication and does not contain any load-bearing circular step.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work is purely experimental and introduces no new free parameters, axioms beyond standard quantum error models, or invented entities.

axioms (1)
  • domain assumption Standard models of decoherence, crosstalk, and measurement errors on superconducting qubits during idle periods and mid-circuit operations.
    Invoked to justify why DD suppresses idle-time errors and why ZNE can extrapolate measurement outcomes.
