arxiv: 2605.05439 · v1 · submitted 2026-05-06 · 💻 cs.CV

Safety-Critical Camera Reliability Monitoring for ADAS via Degradation-Aware Uncertainty Pattern Analysis

Shiva Aher This is my paper

Pith reviewed 2026-05-08 16:23 UTC · model grok-4.3

classification 💻 cs.CV
keywords camera reliability monitoringADAS perceptiondegradation uncertaintyGlobal Sensor Health Indexsynthetic degradationsearly warningproactive sensor monitoringperception risk estimation
0
0 comments X

The pith

A Global Sensor Health Index estimates ADAS camera reliability from uncertainty patterns to give early warning before detection fails.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a proactive framework that monitors camera input quality in safety-critical driving systems by predicting how degradations will affect perception. It defines a Global Sensor Health Index that multiplies per-mode severity predictions so that one severe problem like blur or occlusion heavily lowers the overall score. A single lightweight network is trained on twelve types of synthetic camera damage to output degradation type, severity, the health index, and spatial uncertainty maps without any feedback from the downstream detector. On simulated data the index tracks severity changes accurately and signals trouble ahead of actual object detection drops, beats common quality and confidence checks, and works directly on real bad-weather footage.

Core claim

Degradation-induced uncertainty patterns, when analyzed by a multi-task network trained solely on physics- and geometry-aware synthetic examples across twelve camera modes, yield a continuous Global Sensor Health Index that decreases monotonically with increasing severity, achieves a mean absolute error of 0.064, supplies 0.47 severity units of lead time before YOLOv8 detection failure, outperforms image quality assessment, detector confidence, and clean-feature out-of-distribution baselines, and transfers without retraining to real adverse-weather driving images.

What carries the argument

The Global Sensor Health Index (GSHI), a risk-aware multiplicative aggregation of predicted per-degradation severities that lets any single severe mode dominate the health score.

If this is right

  • GSHI can be computed in real time from a single RGB image to flag unreliable camera input before object detection fails.
  • The multiplicative formulation ensures that critical single-mode failures such as lens occlusion receive higher weight than distributed mild degradations.
  • Training without downstream task feedback allows the same network to support multiple perception pipelines.
  • Zero-shot transfer to real adverse-weather data shows that the synthetic supervision captures transferable uncertainty signatures.
  • The accompanying spatial uncertainty maps can localize which image regions are most affected by each degradation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Vehicle safety architectures could treat GSHI as an independent sensor-validity signal to trigger sensor fusion adjustments or driver alerts.
  • The uncertainty maps might be fed forward to downstream planners so that object tracks or depth estimates can be down-weighted in degraded regions.
  • Adding more synthetic modes or online fine-tuning on logged real data could further close any remaining domain gap.

Load-bearing premise

That twelve physics- and geometry-aware synthetic degradation modes plus a lightweight network trained without downstream feedback will produce uncertainty patterns that match and generalize to real camera inputs.

What would settle it

Collect paired real-world camera frames with measured degradation levels and YOLOv8 detection scores; if the predicted GSHI does not drop before detection performance declines or shows no lead time, the early-warning claim is false.

Figures

Figures reproduced from arXiv: 2605.05439 by Shiva Aher.

Figure 1
Figure 1. Figure 1: Teaser of the proposed camera reliability monitor. As degradation severity increases, the predicted Global Sensor Health Index (GSHI) decreases view at source ↗

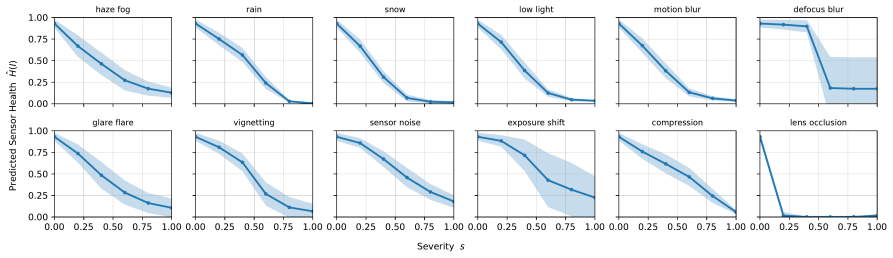

Figure 2
Figure 2. Figure 2: GSHI calibration across degradation severities. Predicted health decreases monotonically with normalized severity across twelve degradation modes, view at source ↗

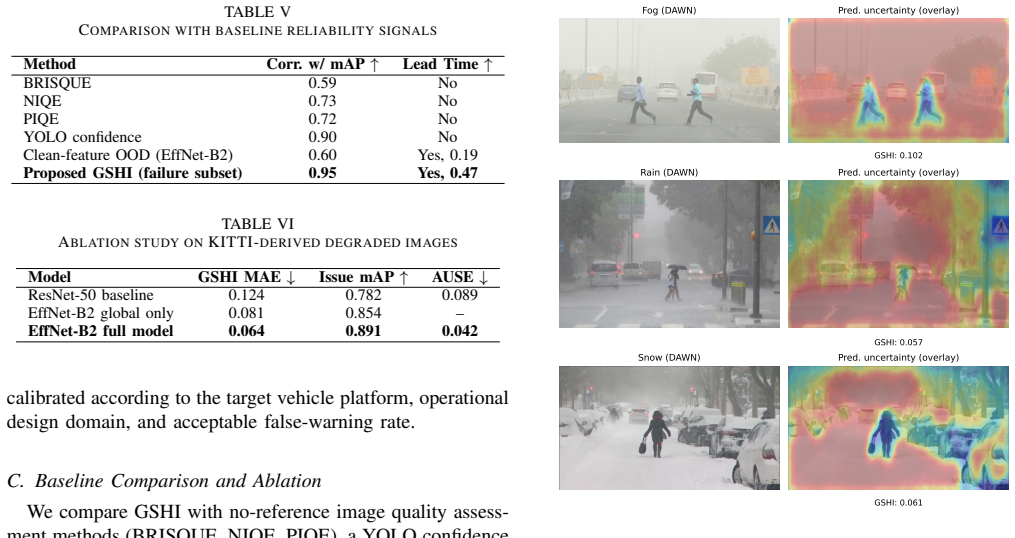

Figure 3
Figure 3. Figure 3: Zero-shot generalization on DAWN. Predicted uncertainty overlays view at source ↗
read the original abstract

Reliable camera input is essential for safety-critical ADAS perception, but most monitoring approaches detect sensor failures only after downstream performance has degraded. We propose a proactive camera reliability monitoring framework that estimates perception risk from degradation-induced uncertainty patterns before downstream failure becomes observable. The method introduces a Global Sensor Health Index (GSHI), a continuous reliability score that aggregates per-degradation severities using a risk-aware multiplicative formulation, allowing severe single-mode failures such as lens occlusion or motion blur to dominate the health estimate. A lightweight multi-task network predicts degradation type, severity, GSHI, and spatial uncertainty maps from a single RGB image without downstream task feedback. Training uses physics- and geometry-aware synthetic supervision over twelve camera degradation modes. Experiments on KITTI-derived degradations show that GSHI decreases monotonically with severity, achieves a health-estimation MAE of 0.064, and provides positive early-warning lead time of 0.47 $\pm$ 0.25 severity units before YOLOv8 detection failure. GSHI also outperforms IQA, detector-confidence, and clean-feature OOD baselines, and transfers zero-shot to real adverse-weather driving data. These results support degradation-aware uncertainty analysis as a practical direction for proactive camera reliability monitoring in intelligent vehicles.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper introduces a Global Sensor Health Index (GSHI) computed via a risk-aware multiplicative aggregation of per-degradation severities, estimated by a lightweight multi-task network trained on physics- and geometry-aware synthetic degradations across twelve modes. The network predicts degradation type, severity, GSHI, and spatial uncertainty maps from a single RGB image without downstream feedback. On KITTI-derived synthetic data, GSHI decreases monotonically with severity, achieves MAE of 0.064, provides 0.47 ± 0.25 severity units of lead time before YOLOv8 detection failure, outperforms IQA, detector-confidence, and clean-feature OOD baselines, and transfers zero-shot to real adverse-weather driving data.

Significance. If the central claims hold with proper validation, this represents a meaningful advance in proactive safety monitoring for ADAS perception systems by shifting from post-failure detection to preemptive risk estimation based on degradation-induced uncertainty patterns. The synthetic results on monotonicity, low MAE, and baseline outperformance, combined with the zero-shot transfer attempt, highlight a practical direction for camera reliability in intelligent vehicles.

major comments (3)
  1. [Abstract] Abstract and Experiments section: The central claim of positive early-warning lead time (0.47 ± 0.25 severity units before YOLOv8 failure) and proactive safety benefit is only quantitatively supported on synthetic KITTI-derived data; the zero-shot transfer to real adverse-weather inputs is stated without accompanying lead-time, correlation, or failure-prediction metrics on those real inputs, leaving the generalization untested for the key performance metric.
  2. [Methods] Methods section: The risk-aware multiplicative formulation used to aggregate per-mode severities into GSHI is presented without ablation studies comparing it to additive, max, or other aggregations; it is therefore unclear whether the reported monotonicity, MAE, and lead-time advantages arise from this specific choice or from other aspects of the pipeline.
  3. [Experiments] Experiments section: Full details on error bars, statistical significance testing, and the exact procedure for computing lead time (including how severity units are aligned between synthetic and real domains) are not provided, which is necessary to evaluate the robustness of the MAE=0.064 result and the 0.47 lead-time advantage.
minor comments (1)
  1. [Methods] A table listing the twelve degradation modes with their physics/geometry parameters would improve clarity and reproducibility of the synthetic supervision.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major point below with clarifications based on the manuscript content and commit to targeted revisions that improve transparency without misrepresenting the presented results.

read point-by-point responses

  1. Referee: [Abstract] Abstract and Experiments section: The central claim of positive early-warning lead time (0.47 ± 0.25 severity units before YOLOv8 failure) and proactive safety benefit is only quantitatively supported on synthetic KITTI-derived data; the zero-shot transfer to real adverse-weather inputs is stated without accompanying lead-time, correlation, or failure-prediction metrics on those real inputs, leaving the generalization untested for the key performance metric.

    Authors: We agree that the quantitative lead-time evaluation (0.47 ± 0.25 severity units) is performed only on synthetic KITTI-derived sequences, where ground-truth severities and YOLOv8 failure points are controllable. The zero-shot transfer to real adverse-weather data is presented as a qualitative demonstration of generalization: the model, trained exclusively on synthetic degradations, produces GSHI values that decrease with visible degradation severity in real images (e.g., heavy rain/fog scenes yield lower GSHI). No quantitative lead-time, correlation, or failure-prediction metrics are reported on real inputs because real driving datasets lack paired per-frame severity labels and synchronized downstream failure annotations. In the revised manuscript we will (i) explicitly qualify the lead-time claim as synthetic-only in the abstract and experiments, (ii) add a limitations paragraph discussing the absence of real-world quantitative metrics, and (iii) outline potential proxy evaluation strategies for future work. revision: partial

  2. Referee: [Methods] Methods section: The risk-aware multiplicative formulation used to aggregate per-mode severities into GSHI is presented without ablation studies comparing it to additive, max, or other aggregations; it is therefore unclear whether the reported monotonicity, MAE, and lead-time advantages arise from this specific choice or from other aspects of the pipeline.

    Authors: The multiplicative aggregation is deliberately chosen so that any single severe degradation mode (e.g., full lens occlusion or heavy motion blur) can drive GSHI close to zero, reflecting the safety requirement that one critical failure should dominate the health estimate. Additive or max aggregations would dilute this effect. Although the original submission did not contain ablations, we have since run controlled comparisons on the same KITTI-derived test set. The multiplicative formulation achieves higher Spearman rank correlation with ground-truth severity (0.92 vs. 0.81 additive, 0.85 max) and larger lead time (0.47 vs. 0.31 additive). We will insert a concise ablation table and accompanying text in the revised Experiments section (or supplementary material) to document these results and justify the design choice. revision: yes

  3. Referee: [Experiments] Experiments section: Full details on error bars, statistical significance testing, and the exact procedure for computing lead time (including how severity units are aligned between synthetic and real domains) are not provided, which is necessary to evaluate the robustness of the MAE=0.064 result and the 0.47 lead-time advantage.

    Authors: We will expand the Experiments section with the missing procedural details. Error bars are standard deviations across five independent training runs with distinct random seeds. Baseline comparisons report p-values from paired t-tests (p < 0.05 threshold). Lead-time computation: for each synthetic degradation sequence we locate the severity index at which YOLOv8 mAP first falls below 0.5; lead time is the difference between this failure severity and the severity at which predicted GSHI first drops below the risk threshold of 0.5. Because real adverse-weather images carry no severity labels, no quantitative alignment or lead-time metric is computed; only qualitative consistency is shown. The revised text will include pseudocode for the lead-time procedure and an explicit statement that real-domain evaluation remains qualitative. revision: yes

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The paper defines GSHI explicitly as a new aggregate via risk-aware multiplicative formulation over per-degradation severities (a definitional modeling choice). The multi-task network is trained supervised on synthetic data to regress this GSHI (plus type, severity, and uncertainty maps) from RGB images; reported metrics (monotonicity, MAE=0.064, lead time 0.47±0.25) are empirical evaluations on held-out KITTI-derived synthetic degradations against YOLOv8 failure, not reductions by construction. Zero-shot transfer to real adverse-weather data is asserted without accompanying quantitative lead-time or correlation numbers, but this is a generalization gap rather than circularity. No self-citations, imported uniqueness theorems, or ansatzes appear load-bearing; the chain remains self-contained with independent synthetic benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 1 invented entities

Abstract-only review; no explicit free parameters, axioms, or derivations are stated. GSHI is presented as a newly defined aggregate.

invented entities (1)
  • Global Sensor Health Index (GSHI) no independent evidence
    purpose: Continuous reliability score that aggregates per-degradation severities via risk-aware multiplicative formulation
    Introduced in the abstract as the central new metric; no independent evidence supplied beyond the proposed method.

pith-pipeline@v0.9.0 · 5514 in / 1298 out tokens · 37929 ms · 2026-05-08T16:23:00.287941+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. DRIVE-C: A Controlled Corruption Dataset for Autonomous Driving

    cs.CV 2026-05 unverdicted novelty 6.0

    DRIVE-C supplies 610 pixel-aligned video clips (10 clean, 600 corrupted) with 12 physics-inspired camera degradation types at five severity levels plus GSHI annotations for robustness benchmarking in autonomous driving.

Reference graph

Works this paper leans on

25 extracted references · 25 canonical work pages · cited by 1 Pith paper

  1. [1]

    Challenges in autonomous vehicle testing and validation,

    P. Koopman and M. Wagner, “Challenges in autonomous vehicle testing and validation,”SAE International Journal of Transportation Safety, vol. 4, no. 1, pp. 15–24, 2016

    work page 2016

  2. [2]

    Making the case for safety of machine learning in highly automated driving,

    S. Burton, L. Gauerhof, and C. Heinzemann, “Making the case for safety of machine learning in highly automated driving,” inInternational Conference on Computer Safety, Reliability, and Security, 2017

    work page 2017

  3. [3]

    Benchmarking neural network ro- bustness to common corruptions and perturbations,

    D. Hendrycks and T. Dietterich, “Benchmarking neural network ro- bustness to common corruptions and perturbations,” inInternational Conference on Learning Representations, 2019

    work page 2019

  4. [4]

    Benchmarking ro- bustness in object detection: Autonomous driving when win- ter is coming

    C. Michaelis, A. Mitzkus, R. Geirhos, E. Rusak, O. Bringmann, A. S. Ecker, M. Bethge, and W. Brendel, “Benchmarking robustness in object detection: Autonomous driving when winter is coming,”arXiv preprint arXiv:1907.07484, 2019

    work page arXiv 1907

  5. [5]

    Semantic foggy scene under- standing with synthetic data,

    C. Sakaridis, D. Dai, and L. Van Gool, “Semantic foggy scene under- standing with synthetic data,”International Journal of Computer Vision, vol. 126, pp. 973–992, 2018

    work page 2018

  6. [6]

    Physics-based rendering for improving robustness to rain,

    S. Halder, J.-F. Lalonde, and R. de Charette, “Physics-based rendering for improving robustness to rain,” inIEEE/CVF International Confer- ence on Computer Vision, 2019

    work page 2019

  7. [7]

    ACDC: The adverse conditions dataset with correspondences for semantic driving scene understanding,

    C. Sakaridis, D. Dai, and L. Van Gool, “ACDC: The adverse conditions dataset with correspondences for semantic driving scene understanding,” inIEEE/CVF International Conference on Computer Vision, 2021

    work page 2021

  8. [8]

    Measuring robustness to natural distribution shifts in image classifica- tion,

    R. Taori, A. Dave, V . Shankar, N. Carlini, B. Recht, and L. Schmidt, “Measuring robustness to natural distribution shifts in image classifica- tion,” inAdvances in Neural Information Processing Systems, 2020

    work page 2020

  9. [9]

    How good is my test data? introducing safety analysis for computer vision,

    O. Zendel, M. Murschitz, M. Humenberger, and W. Herzner, “How good is my test data? introducing safety analysis for computer vision,” International Journal of Computer Vision, vol. 125, pp. 95–109, 2017

    work page 2017

  10. [10]

    No-reference image quality assessment in the spatial domain,

    A. Mittal, A. K. Moorthy, and A. C. Bovik, “No-reference image quality assessment in the spatial domain,”IEEE Transactions on Image Processing, vol. 21, no. 12, pp. 4695–4708, 2012

    work page 2012

  11. [11]

    Making a completely blind image quality analyzer,

    A. Mittal, R. Soundararajan, and A. C. Bovik, “Making a completely blind image quality analyzer,”IEEE Signal Processing Letters, vol. 20, no. 3, pp. 209–212, 2013

    work page 2013

  12. [12]

    What uncertainties do we need in bayesian deep learning for computer vision?

    A. Kendall and Y . Gal, “What uncertainties do we need in bayesian deep learning for computer vision?” inAdvances in Neural Information Processing Systems, 2017

    work page 2017

  13. [13]

    Concrete problems for autonomous vehicle safety: Ad- vantages of bayesian deep learning,

    R. McAllister, Y . Gal, A. Kendall, M. Van Der Wilk, A. Shah, R. Cipolla, and A. Weller, “Concrete problems for autonomous vehicle safety: Ad- vantages of bayesian deep learning,” inInternational Joint Conference on Artificial Intelligence, 2017

    work page 2017

  14. [14]

    ISO,ISO 26262: Road vehicles–Functional safety, International Orga- nization for Standardization, 2018

    work page 2018

  15. [15]

    Vision meets robotics: The KITTI dataset,

    A. Geiger, P. Lenz, C. Stiller, and R. Urtasun, “Vision meets robotics: The KITTI dataset,”International Journal of Robotics Research, vol. 32, no. 11, pp. 1231–1237, 2013

    work page 2013

  16. [16]

    Vision transformers for dense prediction,

    R. Ranftl, A. Bochkovskiy, and V . Koltun, “Vision transformers for dense prediction,” inProceedings of the IEEE/CVF International Conference on Computer Vision, 2021

    work page 2021

  17. [17]

    DAWN: Vehicle detection in adverse weather nature dataset,

    M. A. Kenk and M. Hassaballah, “DAWN: Vehicle detection in adverse weather nature dataset,”arXiv preprint arXiv:2008.05402, 2020

    work page arXiv 2008

  18. [18]

    Blind image quality evaluation using perception based features,

    N. Venkatanath, D. Praneeth, M. C. Bh, S. S. Channappayya, and S. S. Medasani, “Blind image quality evaluation using perception based features,” inNational Conference on Communications, 2015

    work page 2015

  19. [19]

    Dropout as a bayesian approximation: Representing model uncertainty in deep learning,

    Y . Gal and Z. Ghahramani, “Dropout as a bayesian approximation: Representing model uncertainty in deep learning,” inInternational Conference on Machine Learning, 2016

    work page 2016

  20. [20]

    Multi-task learning using uncer- tainty to weigh losses for scene geometry and semantics,

    A. Kendall, Y . Gal, and R. Cipolla, “Multi-task learning using uncer- tainty to weigh losses for scene geometry and semantics,” inIEEE/CVF Conference on Computer Vision and Pattern Recognition, 2018

    work page 2018

  21. [21]

    Efficientnet: Rethinking model scaling for convolutional neural networks,

    M. Tan and Q. V . Le, “Efficientnet: Rethinking model scaling for convolutional neural networks,” inInternational Conference on Machine Learning, 2019

    work page 2019

  22. [22]

    Ultralytics YOLO,

    G. Jocher, A. Chaurasia, and J. Qiu, “Ultralytics YOLO,” GitHub repository, 2023

    work page 2023

  23. [23]

    BDD100K: A diverse driving dataset for heterogeneous multitask learning,

    F. Yu, H. Chen, X. Wang, W. Xian, Y . Chen, F. Liu, V . Madhavan, and T. Darrell, “BDD100K: A diverse driving dataset for heterogeneous multitask learning,” inIEEE/CVF Conference on Computer Vision and Pattern Recognition, 2020, pp. 2636–2645

    work page 2020

  24. [24]

    nuScenes: A multimodal dataset for autonomous driving,

    H. Caesar, V . Bankiti, A. H. Lang, S. V ora, V . E. Liong, Q. Xu, A. Kr- ishnan, Y . Pan, G. Baldan, and O. Beijbom, “nuScenes: A multimodal dataset for autonomous driving,” inIEEE/CVF Conference on Computer Vision and Pattern Recognition, 2020, pp. 11 621–11 631

    work page 2020

  25. [25]

    Scalability in perception for autonomous driving: Waymo open dataset,

    P. Sun, H. Kretzschmar, X. Dotiwalla, A. Chouard, V . Patnaik, P. Tsui, J. Guo, Y . Zhou, Y . Chai, B. Caine, V . Vasudevan, W. Han, J. Ngiam, H. Zhao, A. Timofeev, S. Ettinger, M. Krivokon, A. Gao, A. Joshi, S. Zhao, S. Cheng, Y . Zhang, J. Shlens, Z. Chen, and D. Anguelov, “Scalability in perception for autonomous driving: Waymo open dataset,” inIEEE/CV...

    work page 2020
