Recognition: unknown
Charmonium production in low energy nuclear collisions at SPS and FAIR: achievements \& prospects
Pith reviewed 2026-05-08 03:28 UTC · model grok-4.3
The pith
Charmonium production in low-energy nuclear collisions is shaped by the interplay of cold nuclear matter effects and hot medium suppression, with new near-threshold data expected to reduce model uncertainties.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that a detailed understanding of charmonium production at low collision energies requires considering the combined influence of cold and hot medium effects, and that measurements near the production threshold will be crucial for clarifying the remaining uncertainties in current models.
What carries the argument
The interplay of cold nuclear matter effects (such as absorption and shadowing) and hot medium effects (such as Debye screening and dissociation) on the production and survival of c c-bar bound states.
If this is right
- Current data can constrain the relative strengths of different suppression mechanisms in nuclear matter.
- Near-threshold measurements will test models in a regime where production is more sensitive to medium properties.
- This will improve the reliability of charmonium as a probe of the medium formed in low-energy nuclear collisions.
Where Pith is reading between the lines
- If confirmed, the interplay picture could strengthen the interpretation of charmonium data as indicators of medium formation across a wider energy range.
- These low-energy results may connect to observations at higher energies to build a unified description of quarkonium behavior.
- The approach could motivate similar threshold studies for other heavy quark bound states.
Load-bearing premise
The existing body of experimental data and theoretical models is sufficiently complete and unbiased to allow a reliable assessment of remaining uncertainties and the expected impact of planned near-threshold measurements.
What would settle it
If new measurements at the planned experiments show charmonium yields or ratios that deviate strongly from predictions of all current models combining cold and hot effects, without an explanation within those models, the assessment of the interplay would be challenged.

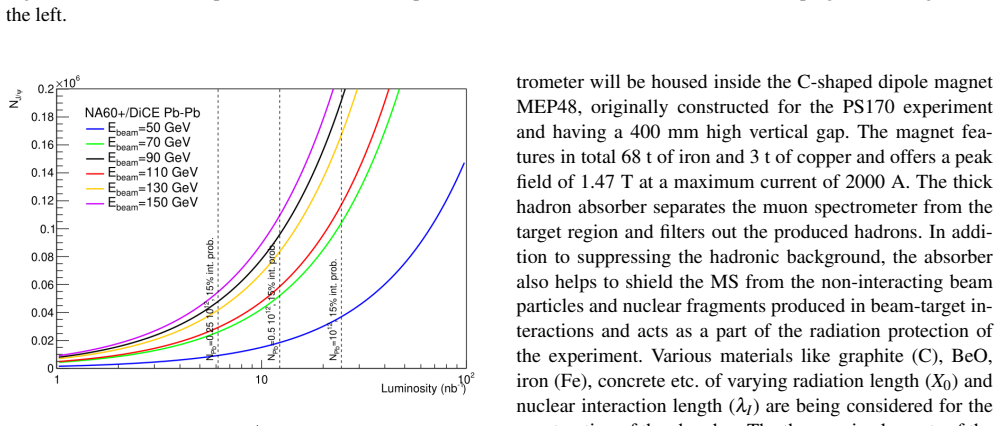

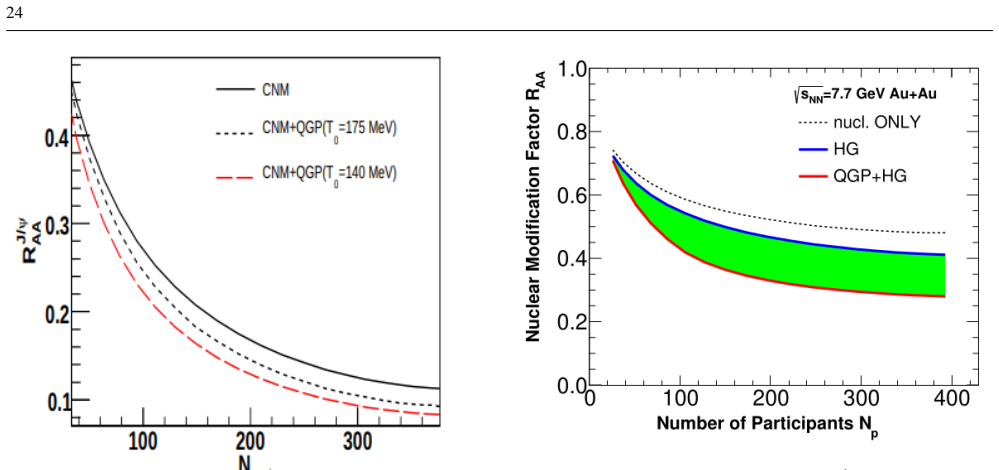

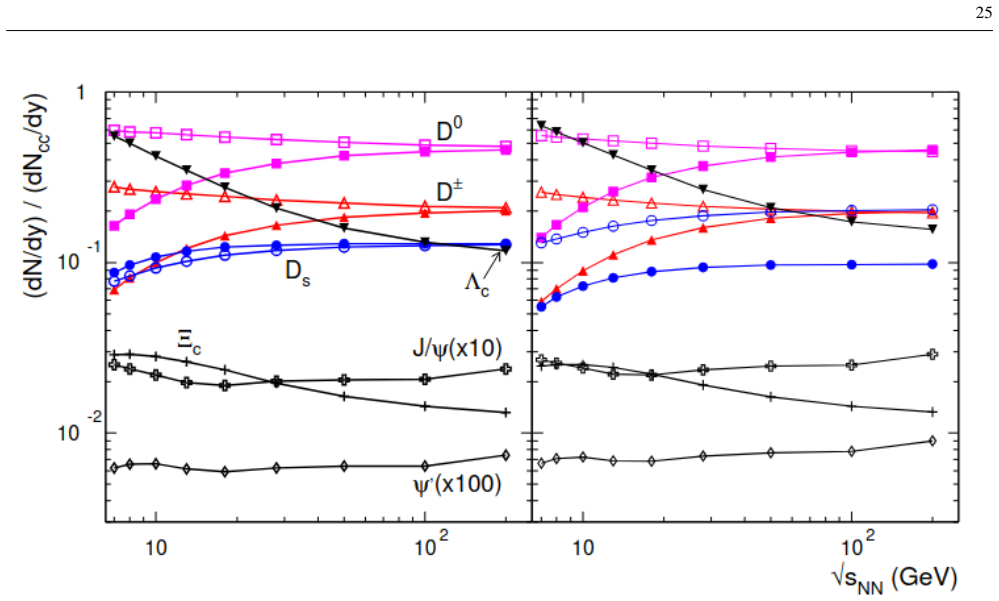

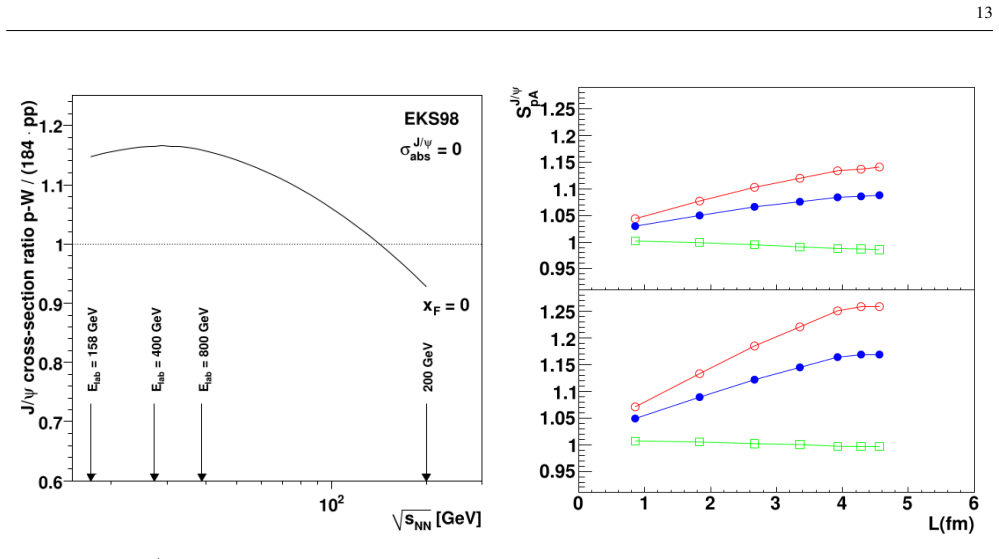

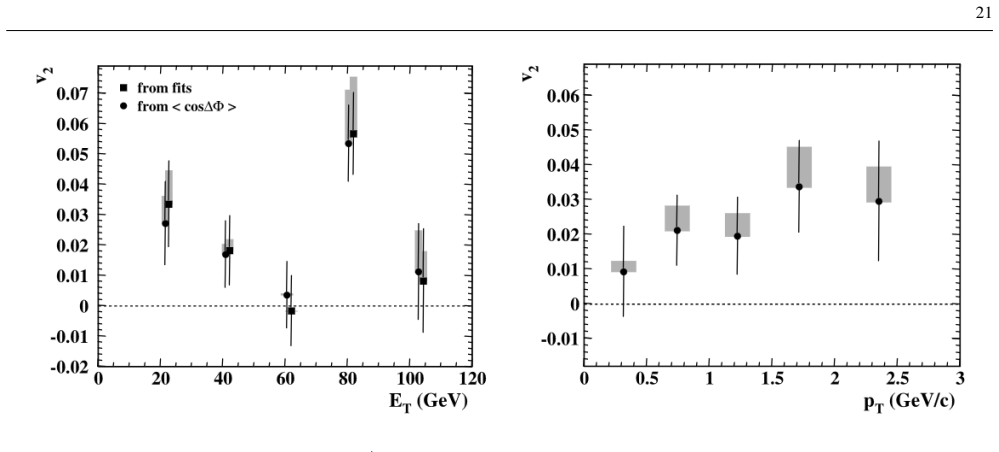

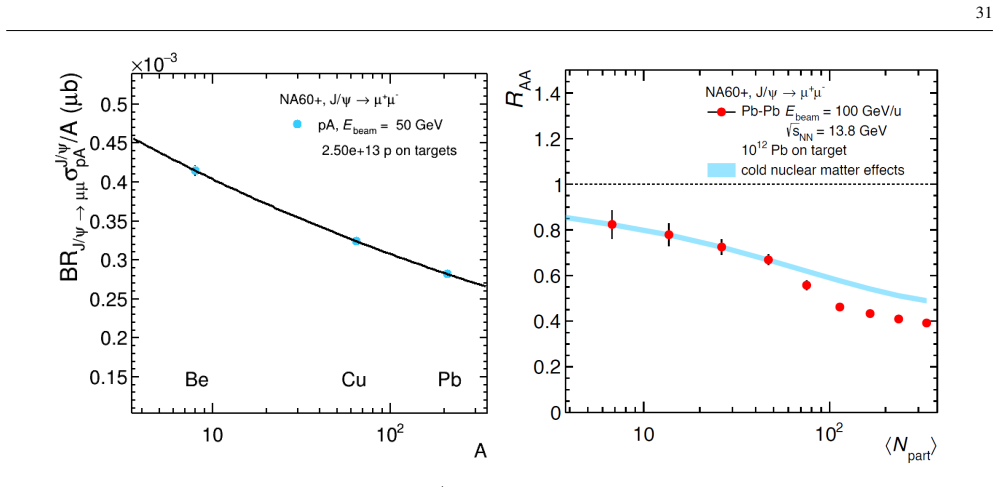

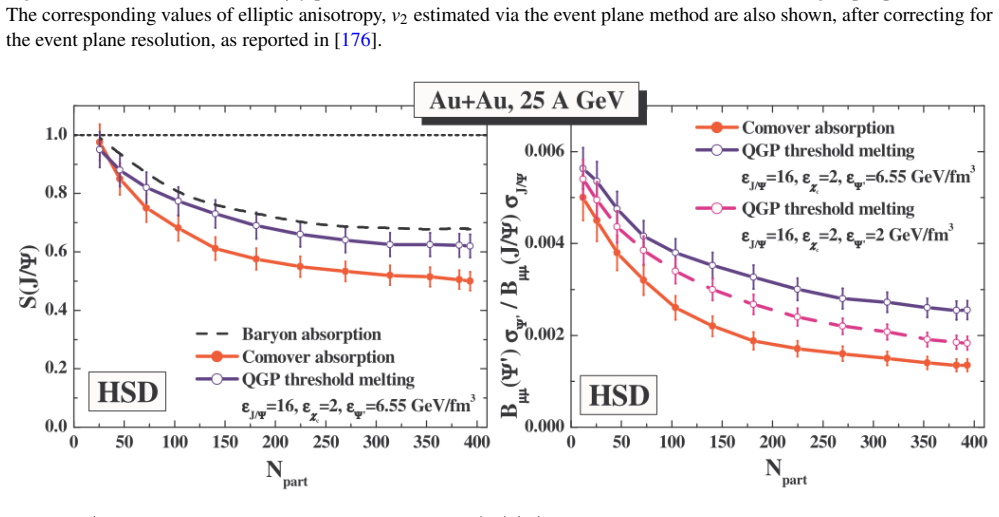

Figures

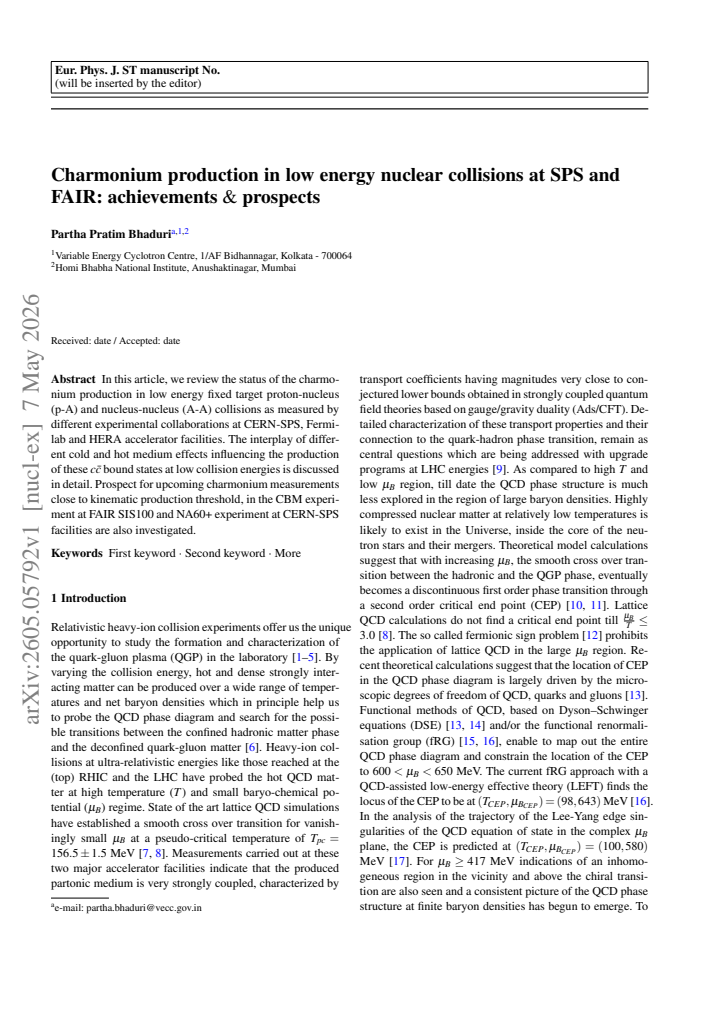

read the original abstract
In this article, we review the status of the charmonium production in low energy fixed target proton-nucleus (p-A) and nucleus-nucleus (A-A) collisions as measured by different experimental collaborations at CERN-SPS, Fermilab and HERA accelerator facilities. The interplay of different cold and hot medium effects influencing the production of these $c\bar{c}$ bound states at low collision energies is discussed in detail. Prospect for upcoming charmonium measurements close to kinematic production threshold, in the CBM experiment at FAIR SIS100 and NA60+ experiment at CERN-SPS facilities are also investigated.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript is a review of charmonium production in low-energy fixed-target p-A and A-A collisions at CERN-SPS, Fermilab, and HERA. It synthesizes published experimental results, outlines the standard cold-nuclear-matter effects (nuclear absorption, shadowing, Cronin broadening) and hot-medium effects (Debye screening, regeneration), and qualitatively sketches prospects for near-threshold measurements in the CBM experiment at FAIR SIS100 and the NA60+ experiment at CERN-SPS.
Significance. As a literature synthesis rather than an original derivation or model, the paper's value lies in its compilation of existing data sets and its forward-looking discussion of how threshold measurements can constrain the interplay of medium effects. If the cited body of work is represented accurately and without selection bias, the review can serve as a useful reference point for planning and interpreting results from the upcoming CBM and NA60+ programs.
minor comments (2)
- The abstract states that prospects are 'investigated' but the provided description indicates only qualitative sketches; a sentence clarifying the level of quantitative detail (or lack thereof) would help readers set expectations.
- The title uses an ampersand ('achievements & prospects'); spelling out 'and' would align with conventional journal title style.
Simulated Author's Rebuttal
We thank the referee for the careful review of our manuscript and for the positive recommendation to accept it. The referee's summary correctly identifies the paper as a literature synthesis of existing charmonium data from low-energy fixed-target experiments, together with a discussion of cold- and hot-medium effects and prospects for near-threshold measurements at CBM and NA60+.
Circularity Check
No significant circularity: review compiles external results only
full rationale
This is a literature review synthesizing published p-A and A-A data on charmonium production, standard cold-nuclear-matter effects (nuclear absorption, shadowing, Cronin broadening), and hot-medium effects (Debye screening, regeneration) from external experiments and models at SPS/Fermilab energies. No new model, quantitative prediction, derivation, or fitted parameter is advanced; all claims reduce to citations of independent prior work. The central statement that topics are discussed is satisfied by the compilation itself, with no self-definitional loops, fitted inputs renamed as predictions, or load-bearing self-citations. The paper is self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
R. S. Bhalerao, doi:10.5170/CERN-2014-001.219 [arXiv:1404.3294 [nucl-th]]
-
[2]
A. Andronic, Int. J. Mod. Phys. A29(2014), 1430047 doi:10.1142/S0217751X14300476 [arXiv:1407.5003 [nucl-ex]]
-
[3]
Properties of hot and dense matter from relativistic heavy ion collisions,
P. Braun-Munzinger, V . Koch, T. Sch ¨afer and J. Stachel, Phys. Rept.621(2016), 76-126 doi:10.1016/j.physrep.2015.12.003 [arXiv:1510.00442 [nucl-th]]
-
[4]
The exploration of hot and dense nuclear matter: introduction to relativistic heavy-ion physics.J
H. Elfner and B. M ¨uller, J. Phys. G50(2023) no.10, 103001 doi:10.1088/1361-6471/ace824 [arXiv:2210.12056 [nucl-th]]
-
[5]
J. W. Harris and B. M ¨uller, Eur. Phys. J. C84 (2024) no.3, 247 doi:10.1140/epjc/s10052-024-12533-y [arXiv:2308.05743 [hep-ph]]
-
[6]
H. Satz, Lect. Notes Phys.945(2018), pp.1-288 Springer, 2018, ISBN 978-3-319-71893-4, 978-3-319- 71894-1 doi:10.1007/978-3-319-71894-1
-
[7]
Chiral crossover in QCD at zero and non-zero chemical potentials.Phys
A. Bazavovet al.[HotQCD], Phys. Lett. B795 (2019), 15-21 doi:10.1016/j.physletb.2019.05.013 [arXiv:1812.08235 [hep-lat]]
-
[8]
H. T. Dinget al.[HotQCD], Phys. Rev. Lett.123(2019) no.6, 062002 doi:10.1103/PhysRevLett.123.062002 [arXiv:1903.04801 [hep-lat]]
-
[9]
Acharya, et al., The ALICE experiment: a journey through QCD, Eur
S. Acharyaet al.[ALICE], Eur. Phys. J. C84 (2024) no.8, 813 doi:10.1140/epjc/s10052-024-12935-y [arXiv:2211.04384 [nucl-ex]]
-
[10]
The phase diagram of dense QCD,
K. Fukushima and T. Hatsuda, Rept. Prog. Phys. 74(2011), 014001 doi:10.1088/0034-4885/74/1/014001 [arXiv:1005.4814 [hep-ph]]
-
[11]
X. Luo, Q. Wang, N. Xu and P. Zhuang, Springer, 2022, ISBN 978-981-19-4440-6, 978-981-19-4443-7, 978-981- 19-4441-3 doi:10.1007/978-981-19-4441-3 35
-
[12]
Approaches to the sign problem in lattice field theory
C. Gattringer and K. Langfeld, Int. J. Mod. Phys. A31 (2016) no.22, 1643007 doi:10.1142/S0217751X16430077 [arXiv:1603.09517 [hep-lat]]
-
[13]
P. J. Gunkel and C. S. Fischer, Phys. Rev. D104 (2021) no.5, 054022 doi:10.1103/PhysRevD.104.054022 [arXiv:2106.08356 [hep-ph]]
-
[14]
F. Gao and J. M. Pawlowski, Phys. Lett. B820 (2021), 136584 doi:10.1016/j.physletb.2021.136584 [arXiv:2010.13705 [hep-ph]]
-
[15]
W. j. Fu, J. M. Pawlowski and F. Ren- necke, Phys. Rev. D101(2020) no.5, 054032 doi:10.1103/PhysRevD.101.054032 [arXiv:1909.02991 [hep-ph]]
-
[16]
W. j. Fu, X. Luo, J. M. Pawlowski, F. Rennecke and S. Yin, Phys. Rev. D111(2025) no.3, L031502 doi:10.1103/PhysRevD.111.L031502 [arXiv:2308.15508 [hep-ph]]
-
[17]
QCD critical point, Lee-Yang edge singularities, and Padé resummations
G. Basar, Phys. Rev. C110(2024) no.1, 015203 doi:10.1103/PhysRevC.110.015203 [arXiv:2312.06952 [hep-th]]
-
[18]
T. Galatyuk, Nucl. Phys. A982(2019), 163-169 doi:10.1016/j.nuclphysa.2018.11.025
-
[19]
E. Eichten, K. Gottfried, T. Kinoshita, K. D. Lane and T. M. Yan, Phys. Rev. D17(1978), 3090 [erratum: Phys. Rev. D21(1980), 313] doi:10.1103/PhysRevD.17.3090
-
[20]
J. J. Aubertet al.[E598], Phys. Rev. Lett.33(1974), 1404-1406 doi:10.1103/PhysRevLett.33.1404
-
[21]
J. E. Augustinet al.[SLAC-SP-017], Phys. Rev. Lett. 33(1974), 1406-1408 doi:10.1103/PhysRevLett.33.1406
-
[22]
Heavy quarkonium: progress, puzzles, and opportunities
N. Brambilla, S. Eidelman, B. K. Heltsley, R. V ogt, G. T. Bodwin, E. Eichten, A. D. Frawley, A. B. Meyer, R. E. Mitchell and V . Papadimitriou,et al.Eur. Phys. J. C71(2011), 1534 doi:10.1140/epjc/s10052-010-1534-9 [arXiv:1010.5827 [hep-ph]]
- [23]
-
[24]
A. P. Chen, Y . Q. Ma and H. Zhang, Adv. High Energy Phys.2022(2022), 7475923 doi:10.1155/2022/7475923 [arXiv:2109.04028 [hep-ph]]
-
[25]
G. A. Schuler, [arXiv:hep-ph/9403387 [hep-ph]]
work page internal anchor Pith review arXiv
-
[26]
Quarkonium production in hadronic collisions
R. Gavai, D. Kharzeev, H. Satz, G. A. Schuler, K. Sridhar and R. V ogt, Int. J. Mod. Phys. A 10(1995), 3043-3070 doi:10.1142/S0217751X95001443 [arXiv:hep-ph/9502270 [hep-ph]]
-
[27]
G. A. Schuler and R. V ogt, Phys. Lett. B387(1996), 181-186 doi:10.1016/0370-2693(96)00999-9 [arXiv:hep- ph/9606410 [hep-ph]]
-
[28]
J. P. Lansberg, [arXiv:hep-ph/0201111 [hep-ph]]
work page internal anchor Pith review arXiv
-
[29]
H. Fritzsch, Phys. Lett. B67(1977), 217-221 doi:10.1016/0370-2693(77)90108-3
-
[30]
M. Gluck, J. F. Owens and E. Reya, Phys. Rev. D17 (1978), 2324 doi:10.1103/PhysRevD.17.2324
-
[31]
Y . Q. Ma and R. V ogt, Phys. Rev. D94(2016) no.11, 114029 doi:10.1103/PhysRevD.94.114029 [arXiv:1609.06042 [hep-ph]]
-
[32]
S. D. Ellis, M. B. Einhorn and C. Quigg, Phys. Rev. Lett.36(1976), 1263 doi:10.1103/PhysRevLett.36.1263
-
[33]
C. E. Carlson and R. Suaya, Phys. Rev. D14(1976), 3115 doi:10.1103/PhysRevD.14.3115
-
[34]
G. T. Bodwin, E. Braaten and G. P. Lepage, Phys. Rev. D51(1995), 1125-1171 [erratum: Phys. Rev. D55(1997), 5853] doi:10.1103/PhysRevD.55.5853 [arXiv:hep-ph/9407339 [hep-ph]]
-
[35]
Conformal four point functions and the operator product expansion
N. Brambilla, A. Pineda, J. Soto and A. Vairo, Nucl. Phys. B566(2000), 275 doi:10.1016/S0550- 3213(99)00693-8 [arXiv:hep-ph/9907240 [hep-ph]]
-
[36]
Schub et al
M.H. Schub et al. [E789 Collaboration], Phys. Rev. D 52, 1307 (1995)
1995
-
[37]
Abe et al
F. Abe et al. [CDF Collaboration], Phys. Rev. Lett. 79, 572 (1997)
1997
-
[38]
Abe et al., [CDF Collaboration], Phys
F. Abe et al., [CDF Collaboration], Phys. Rev. Lett. 79, 572 (1997)
1997
-
[39]
Affolder et al., [CDF Collaboration], Phys
T. Affolder et al., [CDF Collaboration], Phys. Rev. Lett. 84, 2094 (2000)
2094
-
[40]
Abachi et al., [D0 Collaboration], Phys
S. Abachi et al., [D0 Collaboration], Phys. Lett. B 370, 239 (1996)
1996
-
[41]
U. A. Acharya et al., [PHENIX Collaboration], Phys. Rev. D 101, 052006 (2020)
2020
-
[42]
Adam et al., [STAR Collaboration], Phys
J. Adam et al., [STAR Collaboration], Phys. Rev. D 100, 052009 (2019)
2019
-
[43]
Trzeciak, [STAR Collaboration], J
B. Trzeciak, [STAR Collaboration], J. Phys. Conf. Ser. 612, 012038 (2015)
2015
-
[44]
Acharyaetal., [ALICE Collaboration], Eur
S. Acharyaetal., [ALICE Collaboration], Eur. Phys. J. C 77, 392 (2017)
2017
-
[45]
Acharyaetal., [ALICE Collaboration], JHEP 10, 084 (2019)
S. Acharyaetal., [ALICE Collaboration], JHEP 10, 084 (2019)
2019
-
[46]
Adametal., [ALICE Collaboration], Eur
J. Adametal., [ALICE Collaboration], Eur. Phys. J. C 76, 184 (2016)
2016
-
[47]
Aaijetal., [LHCb Collaboration], JHEP 10, 172 (2015); [erratum: JHEP 05, 063 (2017)]
R. Aaijetal., [LHCb Collaboration], JHEP 10, 172 (2015); [erratum: JHEP 05, 063 (2017)]
2015
-
[48]
Aaijetal., [LHCb Collaboration], JHEP 07, 134 (2018); [erratum: JHEP 05, 076 (2019).]
R. Aaijetal., [LHCb Collaboration], JHEP 07, 134 (2018); [erratum: JHEP 05, 076 (2019).]
2018
-
[49]
A. M. Sirunyanetal., [CMS Collaboration], Phys. Lett. B 780, 251 (2018)
2018
-
[50]
Aadetal., [ATLAS Collaboration], Eur
G. Aadetal., [ATLAS Collaboration], Eur. Phys. J. C 76, 283 (2016)
2016
-
[51]
Aadetal., [ATLAS Collaboration], Phys
G. Aadetal., [ATLAS Collaboration], Phys. Rev. D 87, 052004 (2013)
2013
-
[52]
N. Brambillaet al.[Quarkonium Working Group], doi:10.5170/CERN-2005-005 [arXiv:hep-ph/0412158 [hep-ph]]
-
[53]
A. Andronic, F. Arleo, R. Arnaldi, A. Beraudo, E. Bruna, D. Caffarri, Z. Conesa del Valle, J. G. Con- treras, T. Dahms and A. Dainese,et al.Eur. Phys. J. C 76(2016) no.3, 107 doi:10.1140/epjc/s10052-015-3819-5 [arXiv:1506.03981 [nucl-ex]]. 36
-
[54]
J/ψ production and suppression
R. V ogt, Phys. Rept.310(1999), 197-260 doi:10.1016/S0370-1573(98)00074-X
-
[55]
L. Kluberg and H. Satz, doi:10.1007/978-3-642-01539- 7 13 [arXiv:0901.3831 [hep-ph]]
-
[56]
A. Andronic, Nucl. Phys. A931(2014), 135-144 doi:10.1016/j.nuclphysa.2014.10.009 [arXiv:1409.5778 [nucl-ex]]
-
[57]
Arnaldi, EPJ Web Conf.66(2014), 04001 doi:10.1051/epjconf/20146604001
R. Arnaldi, EPJ Web Conf.66(2014), 04001 doi:10.1051/epjconf/20146604001
-
[58]
Arnaldi, EPJ Web Conf.97(2015), 00002 doi:10.1051/epjconf/20159700002
R. Arnaldi, EPJ Web Conf.97(2015), 00002 doi:10.1051/epjconf/20159700002
-
[59]
Scomparin, PoSCHARM2016(2016), 008 doi:10.22323/1.289.0008 [arXiv:1611.02557 [nucl-ex]]
E. Scomparin, PoSCHARM2016(2016), 008 doi:10.22323/1.289.0008 [arXiv:1611.02557 [nucl-ex]]
-
[60]
R. Arnaldi, Nucl. Phys. A956(2016), 128-135 doi:10.1016/j.nuclphysa.2016.03.033 [arXiv:1604.03139 [hep-ex]]
-
[61]
Arnaldi, PoSEPS-HEP2017(2017), 574 doi:10.22323/1.314.0574
R. Arnaldi, PoSEPS-HEP2017(2017), 574 doi:10.22323/1.314.0574
-
[62]
P. P. Bhaduri, AAPPS Bull.30(2020) no.5, 14-18 doi:10.22661/AAPPSBL.2020.30.5.14
-
[63]
R. Arnaldi, Springer Proc. Phys.250(2020), 121-127 doi:10.1007/978-3-030-53448-6 17
-
[64]
Arnaldi, PoSHardProbes2020(2021), 029 doi:10.22323/1.387.0029
R. Arnaldi, PoSHardProbes2020(2021), 029 doi:10.22323/1.387.0029
-
[65]
A. Andronic and R. Arnaldi, Ann. Rev. Nucl. Part. Sci.75(2025) no.1, 351-375 doi:10.1146/annurev-nucl- 121423-101041 [arXiv:2501.08290 [nucl-ex]]
-
[66]
J/ψ suppression by quark-gluon plasma formation
T. Matsui and H. Satz, Phys. Lett. B178, 416-422 (1986) doi:10.1016/0370-2693(86)91404-8
-
[67]
S. Digal, P. Petreczky and H. Satz, Phys. Rev. D64(2001), 094015 doi:10.1103/PhysRevD.64.094015 [arXiv:hep-ph/0106017 [hep-ph]]
-
[68]
F. Karsch, D. Kharzeev and H. Satz, Phys. Lett. B637(2006), 75-80 doi:10.1016/j.physletb.2006.03.078 [arXiv:hep-ph/0512239 [hep-ph]]
-
[69]
and Mukherjee, Swagato and Petreczky, Peter and Rothkopf, Alexander and Weber, Johannes Heinrich
A. Bazavovet al.[HotQCD], Phys. Rev. D109 (2024) no.7, 074504 doi:10.1103/PhysRevD.109.074504 [arXiv:2308.16587 [hep-lat]]
-
[70]
S. Duari, N. Chaudhuri, S. Sarkar and P. Roy, Eur. Phys. J. A61(2025) no.7, 174 doi:10.1140/epja/s10050-025- 01628-z [arXiv:2506.23646 [hep-ph]]
-
[71]
P. Braun-Munzinger and J. Stachel, Phys. Lett. B 490(2000), 196-202 doi:10.1016/S0370-2693(00)00991- 6 [arXiv:nucl-th/0007059 [nucl-th]]
-
[72]
A. Andronic, P. Braun-Munzinger, K. Redlich and J. Stachel, Nucl. Phys. A789(2007), 334-356 doi:10.1016/j.nuclphysa.2007.02.013 [arXiv:nucl- th/0611023 [nucl-th]]
-
[73]
A. Andronic, P. Braun-Munzinger, K. Redlich and J. Stachel, J. Phys. G35(2008), 104155 doi:10.1088/0954-3899/35/10/104155 [arXiv:0805.4781 [nucl-th]]
-
[74]
A. Andronic, P. Braun-Munzinger, M. K. K ¨ohler, A. Mazeliauskas, K. Redlich, J. Stachel and V . Vislavi- cius, JHEP07(2021), 035 doi:10.1007/JHEP07(2021)035 [arXiv:2104.12754 [hep-ph]]
-
[75]
R. L. Thews, M. Schroedter and J. Rafelski, Phys. Rev. C63(2001), 054905 doi:10.1103/PhysRevC.63.054905 [arXiv:hep-ph/0007323 [hep-ph]]
-
[76]
L. Grandchamp and R. Rapp, Phys. Lett. B523(2001), 60-66 doi:10.1016/S0370-2693(01)01311-9 [arXiv:hep- ph/0103124 [hep-ph]]
-
[77]
B. Wu and R. Rapp, Universe10(2024) no.6, 244 doi:10.3390/universe10060244 [arXiv:2404.09881 [nucl- th]]
-
[78]
R. Rapp and X. Du, Nucl. Phys. A967(2017), 216-224 doi:10.1016/j.nuclphysa.2017.05.097 [arXiv:1704.07923 [hep-ph]]
-
[79]
X. Du and R. Rapp, Phys. Lett. B834(2022), 137414 doi:10.1016/j.physletb.2022.137414 [arXiv:2207.00065 [nucl-th]]
-
[80]
Y . Akamatsu, Prog. Part. Nucl. Phys.123 (2022), 103932 doi:10.1016/j.ppnp.2021.103932 [arXiv:2009.10559 [nucl-th]]
