From Drops to Grid: Noise-Aware Spatio-Temporal Neural Process for Rainfall Estimation

Rafael Pablos Sarabia , Joachim Nyborg , Morten Birk , Ira Assent This is my paper

Pith reviewed 2026-05-08 15:06 UTC · model grok-4.3

classification 💻 cs.LG cs.CV
keywords rainfall estimationneural processesspatio-temporal modelinguncertainty quantificationradar fusionweather station datadeep learning for environmental data
0
0 comments X

The pith

A neural process fuses noisy sparse station readings with radar to generate accurate high-resolution rainfall maps and calibrated uncertainty estimates.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents DropsToGrid, a neural-process model that turns limited, noisy data from irregularly placed private weather stations into dense rainfall fields by also incorporating radar spatial context. It handles rainfall's uneven local patterns and measurement errors through multi-scale feature extraction, attention across time steps, and fusion of the two data sources, while producing probabilistic outputs that include explicit uncertainty. This matters for improving weather forecasts, water management, and hazard warnings, because traditional measurements are too coarse and biased for local detail, and existing deep-learning approaches struggle with the same data limitations. The model is shown to beat both operational baselines and other deep-learning methods on real datasets, including when stations are scarce or the test region differs from training data.

Core claim

DropsToGrid generates stochastic, continuous rainfall estimates by fusing temporal sequences from noisy, irregularly distributed private weather stations with spatial context from radar, leveraging multi-scale feature extraction, temporal attention, and multi-modal fusion inside a neural process framework, and it explicitly quantifies uncertainty; evaluations on real-world datasets show it outperforms operational and deep-learning baselines, producing accurate high-resolution maps with well-calibrated uncertainty even with few stations and in cross-regional scenarios.

What carries the argument

Neural process framework that performs multi-scale feature extraction, temporal attention, and multi-modal fusion to integrate noisy station time series with radar spatial information while outputting probabilistic rainfall fields.

If this is right

  • High-resolution rainfall maps become feasible from sparse private station networks that would otherwise be too noisy or incomplete for operational use.
  • Explicit uncertainty estimates allow downstream applications such as flood risk modeling to account for varying reliability across locations and times.
  • The same architecture supports transfer across regions, reducing the need for extensive new labeled data when deploying in different climates.
  • Continuous stochastic rainfall fields can be sampled for ensemble hydrological simulations rather than relying on deterministic point estimates.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could be adapted to densify other environmental fields such as air quality or soil moisture from similarly sparse sensor networks.
  • Real-time updating of the model as new station readings arrive might enable nowcasting systems that improve on static radar interpolation.
  • Reduced dependence on dense radar coverage could lower infrastructure costs in regions where only basic station networks exist.

Load-bearing premise

The multi-scale features, temporal attention, and multi-modal fusion inside the neural process can reliably manage rainfall's skewed localized distribution and station noise without overfitting or failing under domain shift when moving to new regions.

What would settle it

Measuring whether the model's reported uncertainty intervals contain the true rainfall values at the claimed rate on a held-out set of sparse stations in a geographic region never seen during training.

Figures

Figures reproduced from arXiv: 2605.05912 by Ira Assent, Joachim Nyborg, Morten Birk, Rafael Pablos Sarabia.

Figure 1
Figure 1. Figure 1: Precipitation estimates. Top: rainfall data from SYNOP view at source ↗
Figure 2
Figure 2. Figure 2: Overview of the DropsToGrid architecture. Sparse, temporally evolving rainfall measurements from private weather stations view at source ↗
Figure 3
Figure 3. Figure 3: Hourly rainfall accummulation estimates vs test stations view at source ↗
Figure 4
Figure 4. Figure 4: Overall model uncertainty (left) vs PWS stations (right). view at source ↗
Figure 5
Figure 5. Figure 5: Comparison of rainfall estimators against research-quality SYNOP stations. view at source ↗
Figure 6

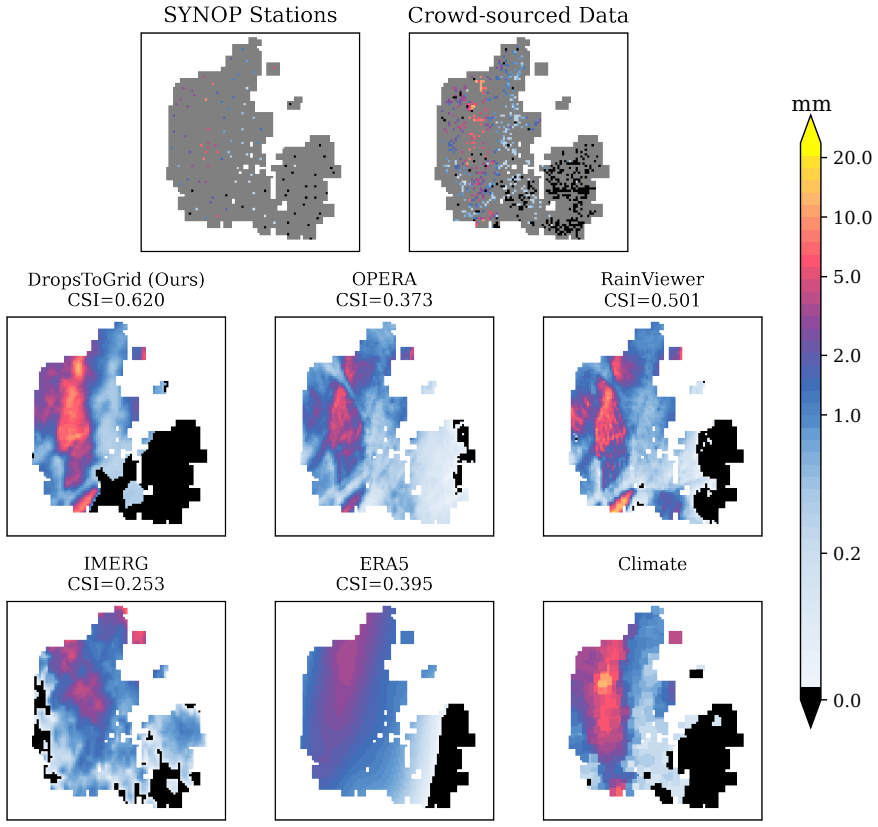

Figure 6. Figure 6: Comparison of rainfall estimators against research-quality SYNOP stations. view at source ↗
Figure 7
Figure 7. Figure 7: Comparison of rainfall estimators against research-quality SYNOP stations. view at source ↗
Figure 8
Figure 8. Figure 8: Comparison of rainfall estimators against research-quality SYNOP stations. view at source ↗
Figure 10
Figure 10. Figure 10: Qualitative example of station masked inputs, radar view at source ↗
Figure 9
Figure 9. Figure 9: Average performance across station density levels. view at source ↗
Figure 11

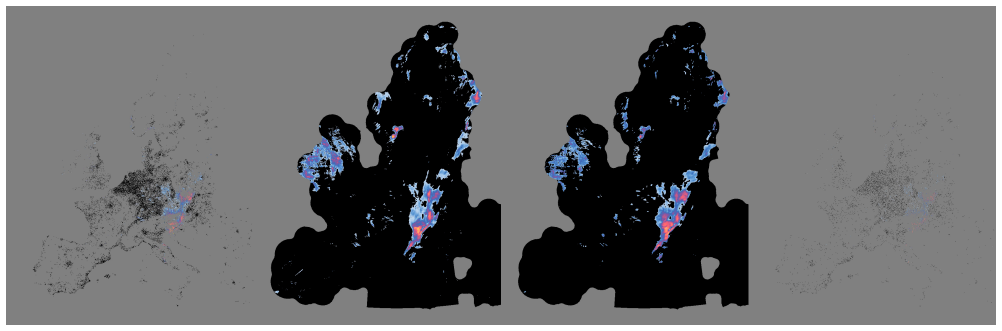

Figure 11. Figure 11: Sample EU densification. From left to right: input PWS stations, input radar, DropsToGrid prediction, and PWS holdout view at source ↗
Figure 12

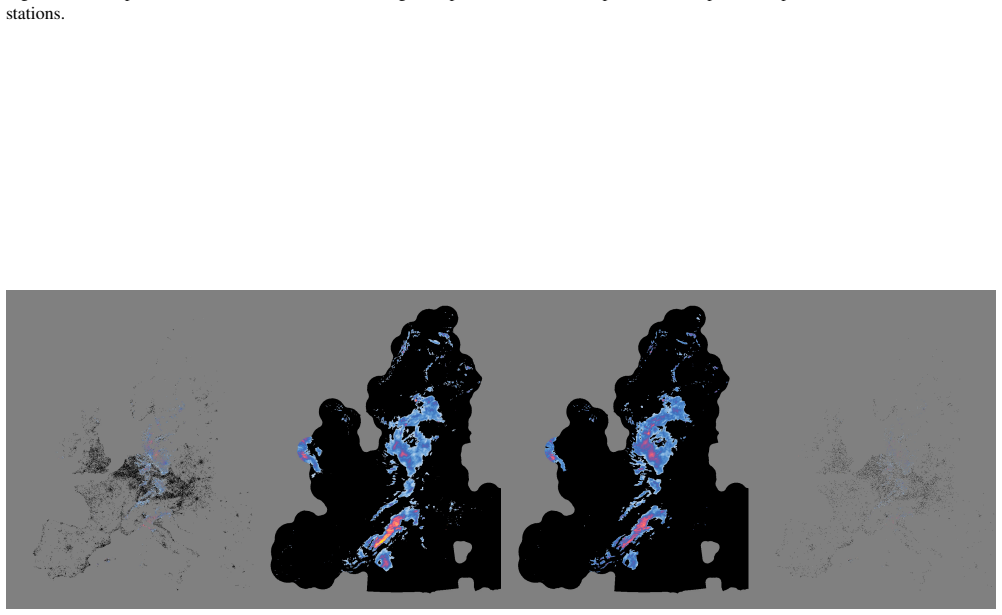

Figure 12. Figure 12: Sample EU densification. From left to right: input PWS stations, input radar, DropsToGrid prediction, and PWS holdout view at source ↗
read the original abstract

High-resolution rainfall observations are crucial for weather forecasting, water management, and hazard mitigation. Traditional operational measurements are often biased and low-resolution, limiting their ability to capture local rainfall. Accurate high-resolution rainfall maps require integrating sparse surface observations, yet existing deep learning densification methods are hindered by rainfall's skewed, localized nature, noise, and limited spatio-temporal fusion. We present DropsToGrid, a Neural Process-based method that generates dense rainfall fields by fusing temporal sequences from noisy, irregularly distributed private weather stations with spatial context from radar. Leveraging multi-scale feature extraction, temporal attention, and multi-modal fusion, the model produces stochastic, continuous rainfall estimates and explicitly quantifies uncertainty. Evaluations on real-world datasets demonstrate that DropsToGrid outperforms both operational and deep learning baselines, generating accurate high-resolution rainfall maps with well-calibrated uncertainty, even when only few stations are available and in cross-regional scenarios.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces DropsToGrid, a Neural Process-based architecture for high-resolution rainfall estimation that fuses temporal sequences from noisy, irregularly spaced private weather stations with spatial radar context. It employs multi-scale feature extraction, temporal attention, and multi-modal fusion to produce stochastic continuous rainfall fields while quantifying uncertainty. The central claim is that the method outperforms both operational and deep-learning baselines on real-world datasets, including under sparse station availability and in cross-regional transfer settings.

Significance. If the reported gains and uncertainty calibration hold under rigorous scrutiny, the work would offer a practical advance for integrating heterogeneous sensor data in meteorology and hydrology. The neural-process framing for continuous stochastic fields with explicit uncertainty is a methodological strength that could generalize beyond rainfall to other sparse spatio-temporal phenomena.

major comments (2)
  1. [§4 (Experiments, cross-regional subsection)] The cross-regional generalization claim (abstract and §4) is load-bearing for the paper's novelty yet lacks supporting analysis: no ablation that removes the multi-modal fusion module on cross-region train/test splits is reported, and no quantitative measure of distribution shift (e.g., Wasserstein distance between rainfall histograms or station-density statistics) across regions is provided. Without these, it remains possible that reported improvements arise from regional similarity rather than the claimed robustness to skew, noise, and domain shift.
  2. [§4 (Evaluation metrics and tables)] The abstract and experimental sections assert outperformance and well-calibrated uncertainty, but the manuscript does not report statistical significance tests (e.g., paired t-tests or Wilcoxon tests) on the metric improvements versus baselines, nor does it include confidence intervals on the reported scores. This weakens the strength of the empirical conclusions.
minor comments (2)
  1. [§3 (Method)] Notation for the neural-process latent variable and the multi-scale encoder outputs could be clarified with an explicit diagram or table of variable definitions to aid readers unfamiliar with neural processes.
  2. [Abstract] The abstract would be strengthened by including one or two key quantitative results (e.g., RMSE or CRPS improvement percentages) rather than qualitative statements of outperformance.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive feedback on the cross-regional claims and evaluation rigor. We address each major comment below and commit to revisions that strengthen the manuscript without altering its core contributions.

read point-by-point responses

  1. Referee: [§4 (Experiments, cross-regional subsection)] The cross-regional generalization claim (abstract and §4) is load-bearing for the paper's novelty yet lacks supporting analysis: no ablation that removes the multi-modal fusion module on cross-region train/test splits is reported, and no quantitative measure of distribution shift (e.g., Wasserstein distance between rainfall histograms or station-density statistics) across regions is provided. Without these, it remains possible that reported improvements arise from regional similarity rather than the claimed robustness to skew, noise, and domain shift.

    Authors: We agree that the cross-regional results would benefit from explicit supporting analysis. In the revised manuscript we will add an ablation that disables the multi-modal fusion module and reports performance on the same cross-region train/test splits used in the original experiments. We will also compute and tabulate quantitative distribution-shift measures, including Wasserstein distances on rainfall histograms and summary statistics on station density and noise levels across regions. These additions will clarify whether gains stem from the architecture's handling of skew, noise, and domain shift rather than incidental regional similarity. revision: yes

  2. Referee: [§4 (Evaluation metrics and tables)] The abstract and experimental sections assert outperformance and well-calibrated uncertainty, but the manuscript does not report statistical significance tests (e.g., paired t-tests or Wilcoxon tests) on the metric improvements versus baselines, nor does it include confidence intervals on the reported scores. This weakens the strength of the empirical conclusions.

    Authors: We concur that statistical significance testing and confidence intervals would increase the robustness of the empirical claims. We will augment the experimental tables with paired t-tests (or Wilcoxon signed-rank tests where normality assumptions are violated) comparing DropsToGrid against each baseline on the primary metrics, and we will report 95% confidence intervals obtained via bootstrapping or repeated runs. These results will be included in the revised §4 and associated tables. revision: yes

Circularity Check

0 steps flagged

No circularity: model architecture and claims are independent of fitted inputs or self-referential definitions.

full rationale

The paper introduces DropsToGrid as a Neural Process variant that fuses multi-scale features, temporal attention, and multi-modal inputs to produce stochastic rainfall estimates. No equations or derivations reduce a claimed prediction to a fitted parameter by construction, nor does any uniqueness theorem or ansatz rely on self-citation chains. The central claims rest on empirical evaluations against baselines on real datasets, including cross-regional tests, without the target metrics being statistically forced by the training procedure itself. The architecture choices (attention, fusion) are presented as design decisions rather than derived necessities that loop back to the inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no equations, hyperparameters, or explicit assumptions; the approach is described as leveraging existing neural process techniques without introducing new postulated entities or ad-hoc axioms visible here.
