Mean Mode Screaming: Mean--Variance Split Residuals for 1000-Layer Diffusion Transformers

Pengqi Lu This is my paper

Pith reviewed 2026-05-08 13:32 UTC · model grok-4.3

classification 💻 cs.LG cs.CV
keywords diffusion transformersdeep residual networksmean mode screamingmean-variance split residualsgradient decompositionstable trainingscaling depthgenerative models
0
0 comments X

The pith

Mean-Variance Split residuals stop mean-mode collapse and let Diffusion Transformers train stably at 1000 layers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper identifies Mean Mode Screaming as the trigger for a silent collapse in deep Diffusion Transformers, where residual branches become mean-dominated and suppress centered token variation even while training metrics look stable. It isolates this through an exact gradient decomposition into mean-coherent and centered parts, worsened by the null space of the softmax Jacobian once values homogenize. To counter it, the authors introduce Mean-Variance Split residuals that apply a separately gained centered update together with a leaky trunk-mean replacement. On a 400-layer single-stream DiT this prevents the crash that hits the baseline while staying close to the pre-crash path and beating LayerScale. The same fix is then shown to keep a 1000-layer model trainable at extreme depth.

Core claim

Networks enter a mean-dominated collapse state called Mean Mode Screaming when an exact decomposition of gradients into mean-coherent backward shocks and centered components interacts with structural suppression of attention-logit gradients through the null space of the Softmax Jacobian; Mean-Variance Split residuals counteract the collapse by combining a separately gained centered residual update with a leaky trunk-mean replacement, so that a 400-layer DiT avoids divergent failure and a 1000-layer DiT remains stably trainable.

What carries the argument

Mean-Variance Split (MV-Split) Residuals, which combine a separately gained centered residual update with a leaky trunk-mean replacement to preserve both mean and variance dynamics.

If this is right

  • A 400-layer single-stream DiT avoids the divergent collapse that crashes the baseline.
  • The stabilized model tracks the baseline trajectory up to the crash point while outperforming token-isotropic methods like LayerScale over the full schedule.
  • A 1000-layer DiT remains stably trainable, confirming the architecture works at boundary scales.
  • MMS can be detected and blocked even when training initially appears stable.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same split-residual pattern could be tested in other residual-heavy generative architectures to see whether mean-mode collapse is a general depth limit.
  • Scaling studies for diffusion models could now treat extreme depth as a controllable variable once MMS is mitigated.
  • If MV-Split preserves variance flow, it may also improve sample diversity in very deep models compared with mean-only stabilizations.

Load-bearing premise

The stability seen in the 1000-layer run is produced by the MV-Split residuals rather than other unstated training choices or baseline stabilizations.

What would settle it

Train the identical 1000-layer DiT without MV-Split residuals and check whether it enters the same mean-dominated collapse and crashes as the unstabilized baseline.

Figures

Figures reproduced from arXiv: 2605.06169 by Pengqi Lu.

Figure 1

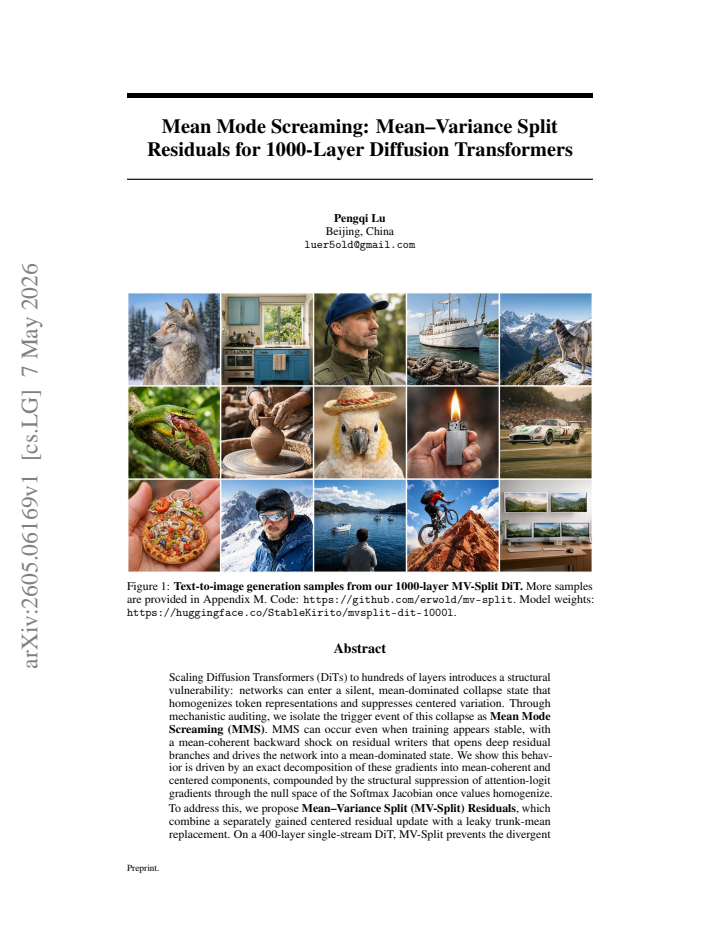

Figure 1. Figure 1: Text-to-image generation samples from our 1000-layer MV-Split DiT. More samples are provided in Appendix M. Code: https://github.com/erwold/mv-split. Model weights: https://huggingface.co/StableKirito/mvsplit-dit-1000l. Abstract Scaling Diffusion Transformers (DiTs) to hundreds of layers introduces a structural vulnerability: networks can enter a silent, mean-dominated collapse state that homogenizes token… view at source ↗
Figure 2

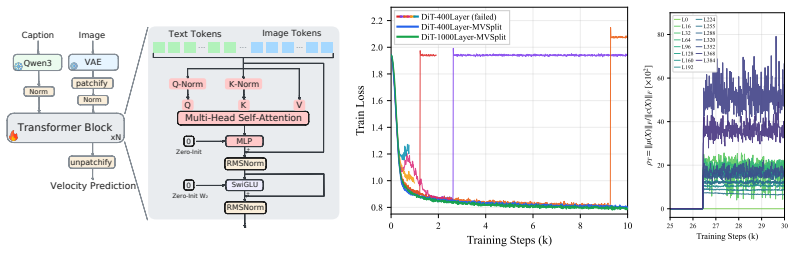

Figure 2. Figure 2: Baseline DiT and representative training diagnostics. (Left) Single-stream DiT backbone. (Middle) Training loss over the first 10k steps for the un-stabilized 400-layer baseline and the MV￾Split 400-/1000-layer runs. (Right) Per-layer energy ratio ρT = ∥µ(X)∥F /∥c(X)∥F (Appendix A) across L0–L384 in a baseline run. 2.1 Minimal Single-Stream Multi-Modal Diffusion Transformer We use a deliberately stripped-d… view at source ↗
Figure 3

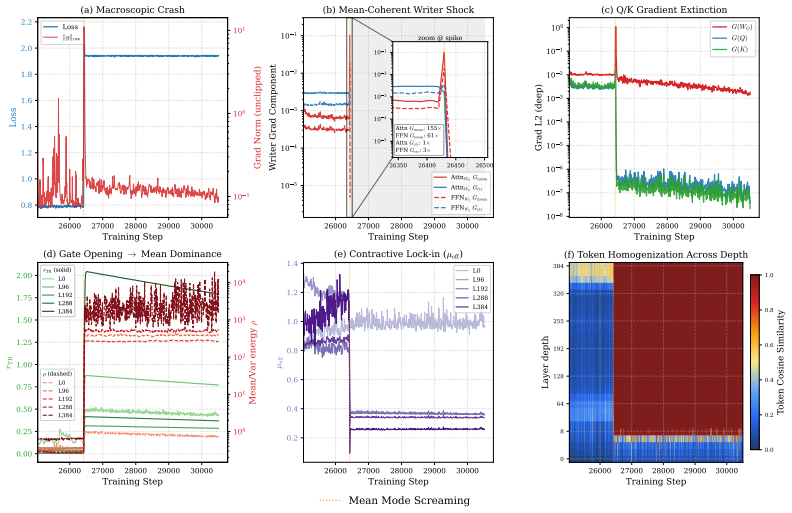

Figure 3. Figure 3: Empirical trajectory of a representative divergence event (400-layer). The vertical dashed line marks the divergence step. (a–c) Backward trigger: The global gradient norm spikes (a). The spike is concentrated in the mean-coherent gradient component Gmean, while the centered component Gctr shows no comparable amplification (b). After the spike, Q/K gradients drop by roughly four orders of magnitude while W… view at source ↗
Figure 4

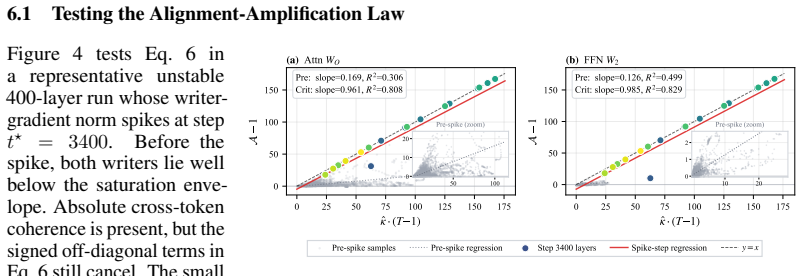

Figure 4. Figure 4: Writer amplification at the gradient spike (400-layer Base η run, t ⋆=3400, measured on the T=256 image-token segment). Each point plots A − 1 against the equal-magnitude absolute-coherence upper-envelope proxy (T − 1)ˆκ for (a) Attn_WO and (b) FFN_W2. Gray points are pre-spike layer-step samples; colored points are active layers at t ⋆ (A − 1 > 0.5). The dashed line is the absolute-coherence saturation en… view at source ↗
Figure 5

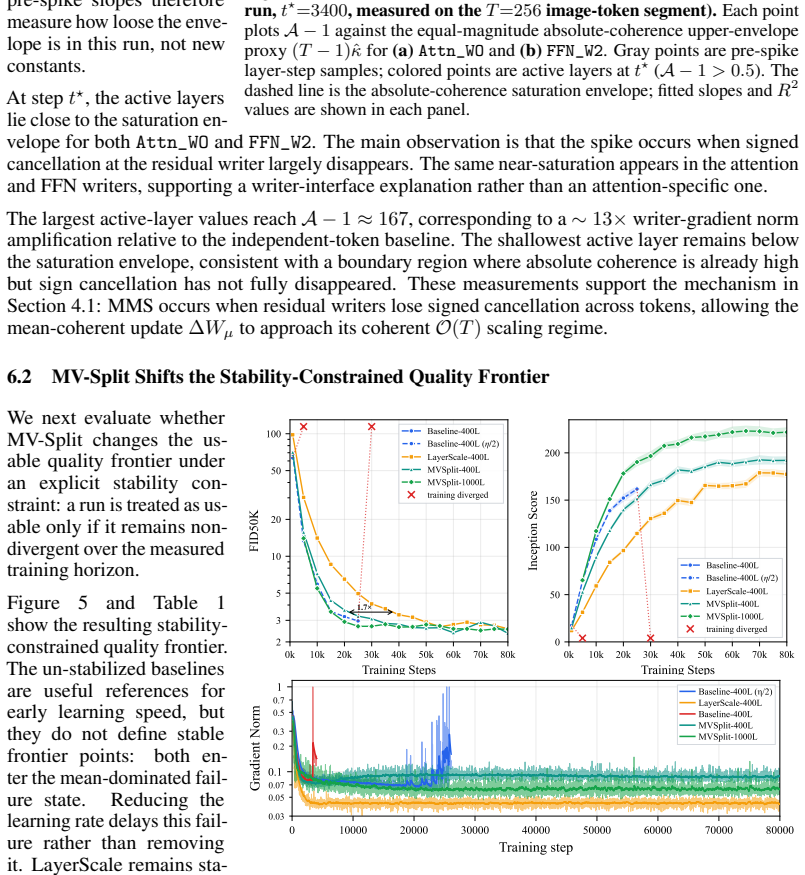

Figure 5. Figure 5: Quality and optimizer stability over 80k steps (ImageNet 256×256). (Top) FID-50K and Inception Score. (Bottom) Post-clipping global gradient norm. The 400-layer curves define the controlled comparison: among the non-divergent 400-layer runs, MV-Split preserves a higher bounded gradient band than LayerScale while avoiding the spikes of the un-stabilized baselines. The 1000-layer MV-Split trace is included a… view at source ↗
Figure 6

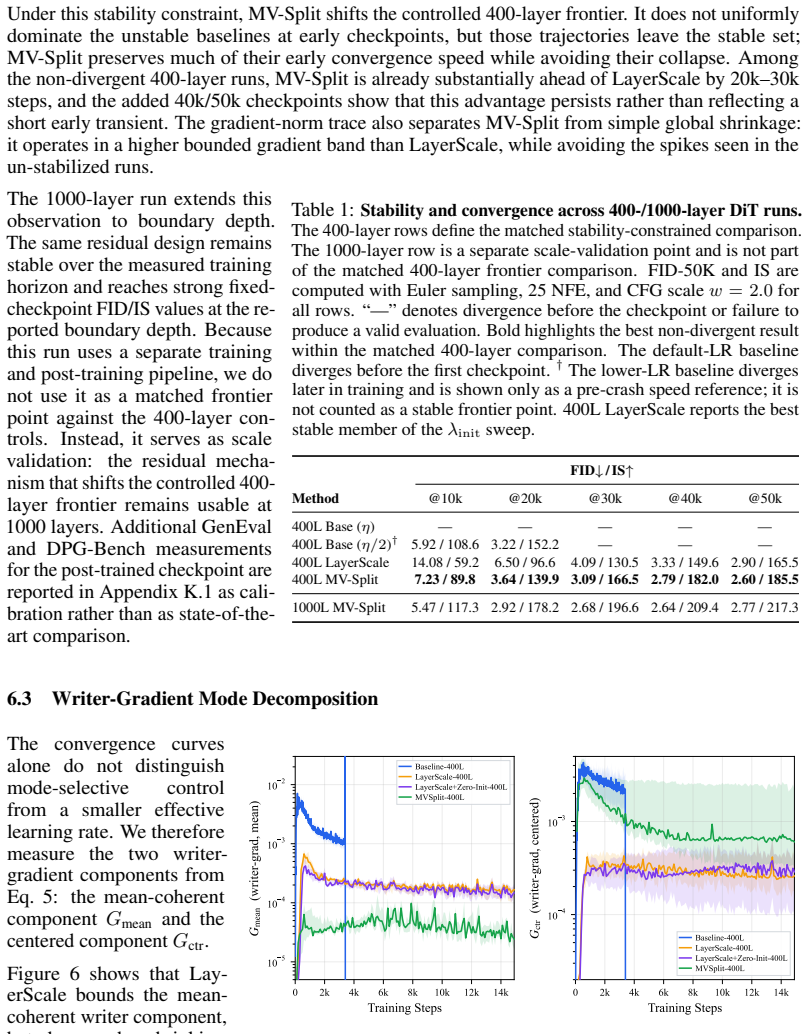

Figure 6. Figure 6: Residual-writer gradient mode decomposition. Per-step median across depth of the mean-coherent (Gmean, left) and centered (Gctr, right) writer￾gradient magnitudes; shaded regions denote the interquartile range (IQR; 25– 75% across depth). Token-isotropic per-channel gating compresses both modes; MV-Split bounds the mean-coherent component while preserving a higher, stable centered band. The convergence cur… view at source ↗
Figure 7

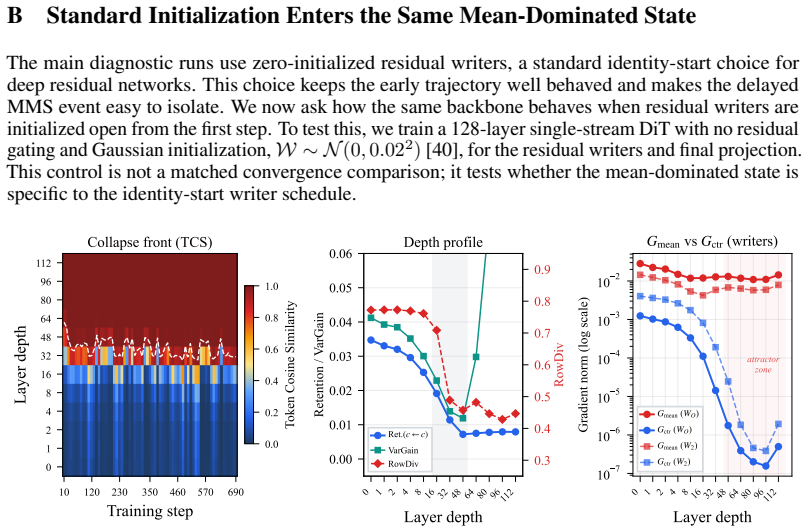

Figure 7. Figure 7: Standard-initialization control for a 128-layer DiT. (a) Token cosine similarity (TCS) over training steps and layer depth. The dashed white contour marks TCS = 0.9. (b) Depth profiles of centered retention Ret(c←c), centered branch replenishment VarGain, and attention row diversity RowDiv; curves report the median over diagnostic checkpoints from steps 10–690. (c) Median writer-gradient decomposition for … view at source ↗
Figure 8
Figure 8. Figure 8: Step-level gradient trace pipeline. A global-norm threshold (1) triggers a per-family top-K ranking of distributed gradient norms (2) and a cross-rank exclusion audit (3) that checks per-rank loss agreement, final-output-gradient RMS, and NaN/Inf in stored parameters. When all three exclusions pass, the dominant top-K parameter family at the detected step (4) is recorded for the gradient-mode audit and sub… view at source ↗
Figure 9

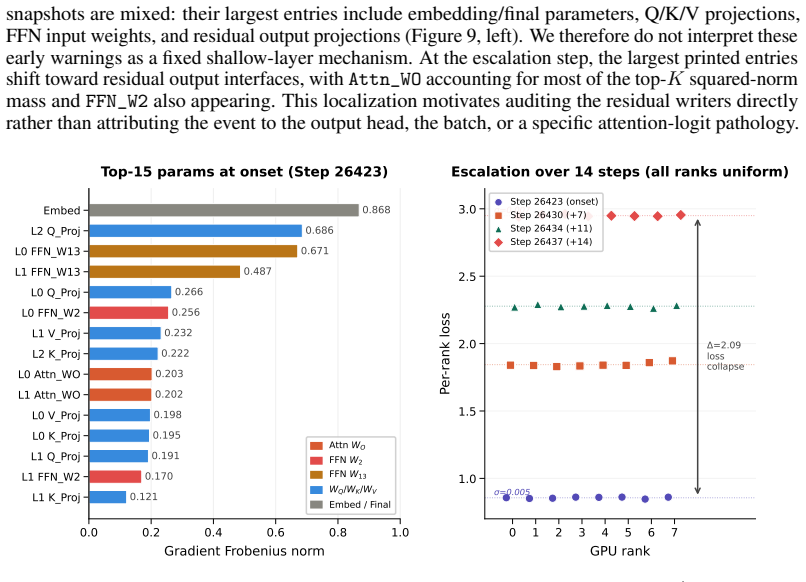

Figure 9. Figure 9: Step-level gradient trace at a representative spike (400 layers, Base η/2). (Left) Top parameter-family gradient norms Gl,τ at one detected step (Step 26423). The top-K entries span embedding/final parameters, Q/K/V projections, FFN input weights, and residual output projections. (Right) Per-rank loss across four snapshots (Steps 26423, 26430, 26434, 26437). The eight ranks stay tightly clustered (σ ∈ [0.0… view at source ↗
Figure 10
Figure 10. Figure 10: Attention-branch-only MV-Split control (1000 layers). (Left) Top parameter-family gradient norms at the detected step (Step 7415). With the attention output branch protected, no Attn_WO entries appear in the top-K; the largest printed entries are FFN_W2. (Right) Per-rank loss over four consecutive steps (7415–7419). Cross-rank losses stay tightly clustered (σ ∈ [0.011, 0.023]) while the loss rises uniform… view at source ↗
Figure 11

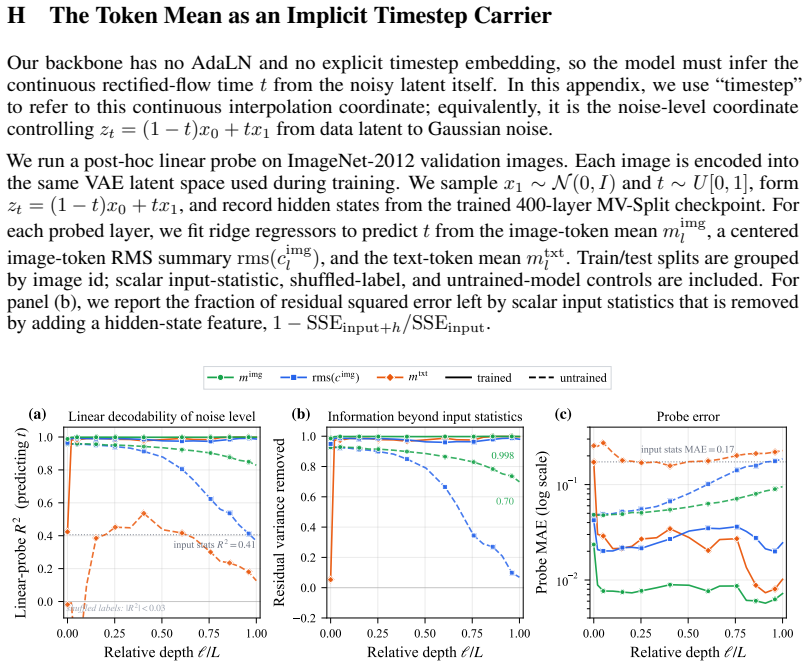

Figure 11. Figure 11: Real-image timestep linear probe. The backbone has no explicit timestep embedding or AdaLN modulation. (a) The trained image-token mean mimg predicts t with near-perfect linear R2 across depth. The text-token mean mtxt becomes predictive after a few single-stream layers, indicating that the trained model routes image-derived timestep information into the text-token side. (b) Adding hidden-state summaries … view at source ↗
Figure 12

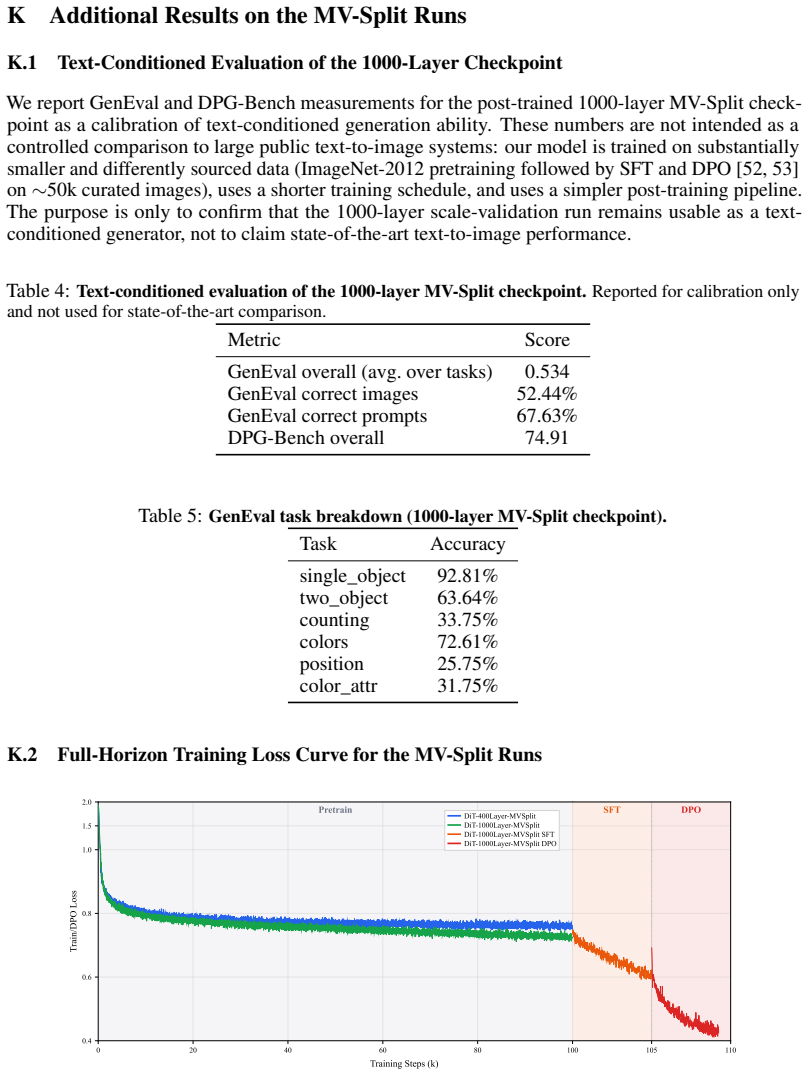

Figure 12. Figure 12: Full-horizon training loss for the MV-Split 400-layer and 1000-layer runs. Note that the SFT and DPO stages use a separately curated ∼50k image set rather than the ImageNet-2012 pre-training distribution; since loss values are data-dependent, the curves are shown for reference only. 28 view at source ↗
Figure 13

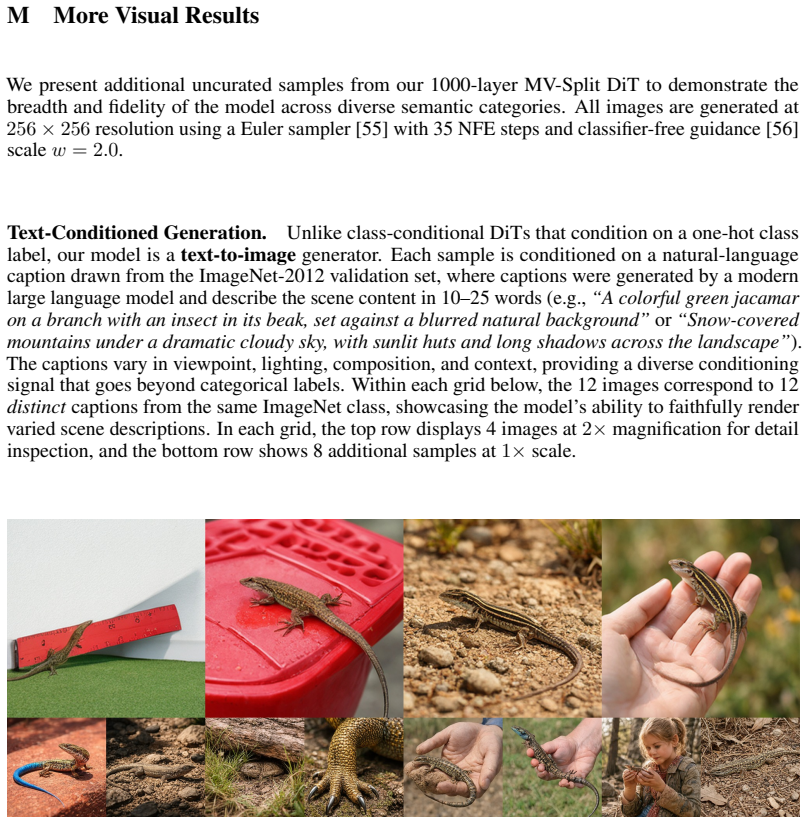

Figure 13. Figure 13: Class “Alligator lizard” (044). Euler sampler, 35 NFE, CFG view at source ↗
Figure 14
Figure 14. Figure 14: Class “Scorpion” (071). Euler sampler, 35 NFE, CFG view at source ↗
Figure 15
Figure 15. Figure 15: Class “Jacamar” (095). Euler sampler, 35 NFE, CFG view at source ↗
Figure 16
Figure 16. Figure 16: Class “Rhodesian ridgeback” (159). Euler sampler, 35 NFE, CFG view at source ↗
Figure 17
Figure 17. Figure 17: Class “Bloodhound” (163). Euler sampler, 35 NFE, CFG view at source ↗
Figure 18
Figure 18. Figure 18: Class “Bouvier des Flandres” (233). Euler sampler, 35 NFE, CFG view at source ↗
Figure 19
Figure 19. Figure 19: Class “White wolf” (270). Euler sampler, 35 NFE, CFG view at source ↗
Figure 20
Figure 20. Figure 20: Class “Chimpanzee” (367). Euler sampler, 35 NFE, CFG view at source ↗
Figure 21
Figure 21. Figure 21: Class “Giant panda” (388). Euler sampler, 35 NFE, CFG view at source ↗
Figure 22
Figure 22. Figure 22: Class “Beaker” (438). Euler sampler, 35 NFE, CFG view at source ↗
Figure 23
Figure 23. Figure 23: Class “Caldron” (469). Euler sampler, 35 NFE, CFG view at source ↗
Figure 24
Figure 24. Figure 24: Class “Candle” (470). Euler sampler, 35 NFE, CFG view at source ↗
Figure 25
Figure 25. Figure 25: Class “Car wheel” (479). Euler sampler, 35 NFE, CFG view at source ↗
Figure 26
Figure 26. Figure 26: Class “Coffeepot” (505). Euler sampler, 35 NFE, CFG view at source ↗
Figure 27
Figure 27. Figure 27: Class “Convertible” (511). Euler sampler, 35 NFE, CFG view at source ↗
Figure 28
Figure 28. Figure 28: Class “Crock Pot” (521). Euler sampler, 35 NFE, CFG view at source ↗
Figure 29
Figure 29. Figure 29: Class “Drum” (541). Euler sampler, 35 NFE, CFG view at source ↗
Figure 30
Figure 30. Figure 30: Class “Envelope” (549). Euler sampler, 35 NFE, CFG view at source ↗
Figure 31
Figure 31. Figure 31: Class “Flute” (558). Euler sampler, 35 NFE, CFG view at source ↗
Figure 32
Figure 32. Figure 32: Class “Freight car” (565). Euler sampler, 35 NFE, CFG view at source ↗
Figure 33
Figure 33. Figure 33: Class “French horn” (566). Euler sampler, 35 NFE, CFG view at source ↗
Figure 34
Figure 34. Figure 34: Class “Greenhouse” (580). Euler sampler, 35 NFE, CFG view at source ↗
Figure 35
Figure 35. Figure 35: Class “Horse cart” (603). Euler sampler, 35 NFE, CFG view at source ↗
Figure 36
Figure 36. Figure 36: Class “Knot” (616). Euler sampler, 35 NFE, CFG view at source ↗
Figure 37
Figure 37. Figure 37: Class “Loupe” (633). Euler sampler, 35 NFE, CFG view at source ↗
Figure 38
Figure 38. Figure 38: Class “Mask” (643). Euler sampler, 35 NFE, CFG view at source ↗
Figure 39
Figure 39. Figure 39: Class “Minivan” (656). Euler sampler, 35 NFE, CFG view at source ↗
Figure 40
Figure 40. Figure 40: Class “Mitten” (658). Euler sampler, 35 NFE, CFG view at source ↗
Figure 41
Figure 41. Figure 41: Class “Monastery” (663). Euler sampler, 35 NFE, CFG view at source ↗
Figure 42
Figure 42. Figure 42: Class “Mountain bike” (671). Euler sampler, 35 NFE, CFG view at source ↗
Figure 43
Figure 43. Figure 43: Class “Pool table” (736). Euler sampler, 35 NFE, CFG view at source ↗
Figure 44
Figure 44. Figure 44: Class “Pot” (738). Euler sampler, 35 NFE, CFG view at source ↗
Figure 45
Figure 45. Figure 45: Class “Rugby ball” (768). Euler sampler, 35 NFE, CFG view at source ↗
Figure 46
Figure 46. Figure 46: Class “Scoreboard” (781). Euler sampler, 35 NFE, CFG view at source ↗
Figure 47
Figure 47. Figure 47: Class “Sweatshirt” (841). Euler sampler, 35 NFE, CFG view at source ↗
Figure 48
Figure 48. Figure 48: Class “Teapot” (849). Euler sampler, 35 NFE, CFG view at source ↗
Figure 49
Figure 49. Figure 49: Class “Trombone” (875). Euler sampler, 35 NFE, CFG view at source ↗
Figure 50
Figure 50. Figure 50: Class “Windsor tie” (906). Euler sampler, 35 NFE, CFG view at source ↗
Figure 51
Figure 51. Figure 51: Class “Alp” (970). Euler sampler, 35 NFE, CFG view at source ↗
Figure 52
Figure 52. Figure 52: Class “Groom” (982). Euler sampler, 35 NFE, CFG view at source ↗
read the original abstract

Scaling Diffusion Transformers (DiTs) to hundreds of layers introduces a structural vulnerability: networks can enter a silent, mean-dominated collapse state that homogenizes token representations and suppresses centered variation. Through mechanistic auditing, we isolate the trigger event of this collapse as Mean Mode Screaming (MMS). MMS can occur even when training appears stable, with a mean-coherent backward shock on residual writers that opens deep residual branches and drives the network into a mean-dominated state. We show this behavior is driven by an exact decomposition of these gradients into mean-coherent and centered components, compounded by the structural suppression of attention-logit gradients through the null space of the Softmax Jacobian once values homogenize. To address this, we propose Mean-Variance Split (MV-Split) Residuals, which combine a separately gained centered residual update with a leaky trunk-mean replacement. On a 400-layer single-stream DiT, MV-Split prevents the divergent collapse that crashes the un-stabilized baseline; it tracks close to the baseline's pre-crash trajectory while remaining substantially better than token-isotropic gating methods such as LayerScale across the full schedule. Finally, we present a 1000-layer DiT as a scale-validation run at boundary scales, establishing that the architecture remains stably trainable at extreme depth.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper identifies Mean Mode Screaming (MMS) as a collapse mechanism in deep Diffusion Transformers driven by mean-coherent gradient shocks and attention-logit suppression. It proposes Mean-Variance Split (MV-Split) residuals that separate centered updates from a leaky mean trunk. On 400-layer single-stream DiTs, MV-Split prevents the divergent collapse seen in the baseline while outperforming LayerScale; a single 1000-layer DiT run is presented as scale validation showing stable training at extreme depth.

Significance. If the causal role of MV-Split holds, the work could meaningfully aid scaling of DiT architectures by targeting a specific residual-stream instability. The 400-layer controlled comparisons and the gradient decomposition provide concrete empirical and mechanistic grounding; the 1000-layer run, while ambitious, remains preliminary.

major comments (2)
  1. [1000-layer scale-validation run (final paragraph of abstract and results)] The 1000-layer DiT scale-validation run reports only a single successful MV-Split training trajectory. No matched 1000-layer baseline without MV-Split (or with only other stabilizations) is shown, so the claim that MV-Split enables stable training at boundary scales rests on extrapolation from the 400-layer regime rather than direct isolation of the effect.
  2. [Mechanistic auditing and gradient decomposition section] The mechanistic decomposition of MMS gradients into mean-coherent and centered components is central to motivating MV-Split, yet the manuscript provides no quantitative verification (e.g., measured gradient norms or ablation of the null-space suppression) that this decomposition fully accounts for the observed collapse independent of other training dynamics.
minor comments (2)
  1. The precise definition and measurement of 'mean-coherent backward shock' and 'silent collapse' should be stated explicitly with equations or pseudocode so readers can reproduce the auditing procedure.
  2. Hyperparameter schedules, initialization details, and any additional stabilization tricks used in the 1000-layer run are not listed; adding them would improve reproducibility even if the primary contribution is the residual modification.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review. We address each major comment below, indicating planned revisions where the manuscript can be strengthened without misrepresenting the presented results.

read point-by-point responses

  1. Referee: [1000-layer scale-validation run (final paragraph of abstract and results)] The 1000-layer DiT scale-validation run reports only a single successful MV-Split training trajectory. No matched 1000-layer baseline without MV-Split (or with only other stabilizations) is shown, so the claim that MV-Split enables stable training at boundary scales rests on extrapolation from the 400-layer regime rather than direct isolation of the effect.

    Authors: We acknowledge that the 1000-layer result is a single successful MV-Split trajectory with no matched baseline at that depth. The computational cost of 1000-layer DiT training makes controlled ablations at this scale impractical. The run is presented strictly as scale validation to demonstrate that stable training remains feasible at extreme depth once the 400-layer collapse is mitigated, rather than as direct causal isolation. We will revise the abstract and results to clarify this distinction and avoid any implication of a controlled comparison at 1000 layers. revision: partial

  2. Referee: [Mechanistic auditing and gradient decomposition section] The mechanistic decomposition of MMS gradients into mean-coherent and centered components is central to motivating MV-Split, yet the manuscript provides no quantitative verification (e.g., measured gradient norms or ablation of the null-space suppression) that this decomposition fully accounts for the observed collapse independent of other training dynamics.

    Authors: The decomposition into mean-coherent and centered gradient components follows directly from the residual-stream algebra and is exact under the stated assumptions. The 400-layer controlled experiments provide empirical corroboration by showing that isolating the centered component prevents collapse. We agree that explicit quantitative checks—such as measured norms of the mean versus centered gradient components and a targeted ablation of the Softmax null-space suppression—would strengthen the mechanistic section. These analyses will be added to the revised manuscript. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical architecture proposal and scale validation

full rationale

The paper's core contribution is an empirical identification of Mean Mode Screaming via gradient auditing, followed by the MV-Split residual proposal and training runs at 400 and 1000 layers. No derivation chain exists that reduces a claimed prediction or first-principles result to quantities defined by the paper's own fitted parameters, self-citations, or ansatzes; the stability claim at extreme depth is presented as an observed outcome of the architectural change rather than a mathematically forced equivalence. The work is self-contained against external benchmarks of training stability and does not invoke load-bearing self-citations or uniqueness theorems.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no explicit free parameters, axioms, or invented entities are identifiable. The MV-Split is introduced as a new architectural component whose precise formulation and any associated constants are not detailed here.
