Litespark Inference on Consumer CPUs: Custom SIMD Kernels for Ternary Neural Networks

Nii Osae Osae Dade , Tony Morri , Moinul Hossain Rahat , Sayandip Pal This is my paper

Pith reviewed 2026-05-08 10:07 UTC · model grok-4.3

classification 💻 cs.CL cs.AI

keywords ternary neural networksSIMD kernelsCPU inferencelarge language modelsmodel quantizationHugging Face integrationconsumer hardware

0 comments

The pith

Custom SIMD kernels replace matrix multiplications with additions for ternary weights, yielding 52x higher throughput and 14x less memory than PyTorch on consumer CPUs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Ternary neural networks restrict weights to the set {-1, 0, +1}, which removes the need for floating-point multiplications during inference and reduces them to additions and subtractions. The paper implements this reduction through custom SIMD kernels that target integer dot-product instructions present on modern CPUs. The resulting Litespark-Inference package installs via pip, loads Hugging Face models directly, and delivers measured gains of 9.2x faster time-to-first-token, 52x higher throughput, and 14x lower memory use compared with standard PyTorch on Apple Silicon, with similar improvements on Intel and AMD processors.

Core claim

Ternary models can be accelerated on consumer CPUs by replacing floating-point matrix multiplication with integer addition and subtraction via custom SIMD kernels, resulting in 9.2x faster time-to-first-token, 52x higher throughput, and 14x memory reduction compared to PyTorch on Apple Silicon, with comparable speedups on Intel and AMD processors.

What carries the argument

Custom SIMD kernels that map ternary matrix multiplication to sequences of additions and subtractions by using integer dot-product instructions available on CPUs.

If this is right

Ternary models become runnable at usable speeds on ordinary personal computers that lack GPUs.
Hugging Face users can switch to the optimized inference path with no changes to model loading code.
Memory reduction by a factor of 14 allows larger ternary models or more simultaneous inferences on consumer RAM limits.
The same kernel approach produces consistent speedups across Apple, Intel, and AMD CPUs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Local inference on personal hardware could reduce dependence on cloud APIs for everyday LLM use.
The kernels might be extended to other low-bit formats that also replace multiplications with additions.
Accuracy retention must still be checked per task, since the paper focuses on runtime metrics.

Load-bearing premise

Ternary models keep enough accuracy for practical tasks and the kernels produce numerically correct results without hidden overheads or platform bugs.

What would settle it

Running the same ternary model on a shared benchmark such as a standard language-modeling task or GLUE subset and measuring both accuracy and latency with Litespark-Inference versus PyTorch would show whether the reported speed and memory gains hold without accuracy loss.

Figures

Figures reproduced from arXiv: 2605.06485 by Moinul Hossain Rahat, Nii Osae Osae Dade, Sayandip Pal, Tony Morri.

**Figure 1.** Figure 1: Performance comparison on Apple Silicon M4. Litespark-Inference achieves view at source ↗

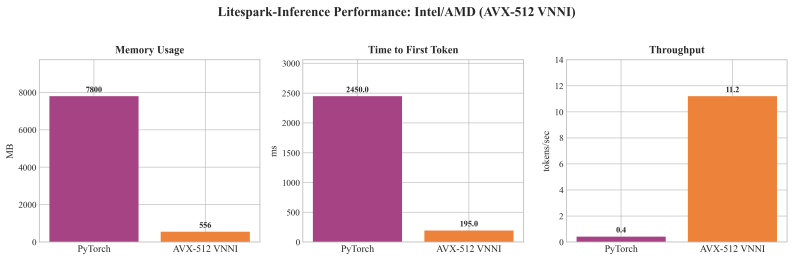

**Figure 2.** Figure 2: Performance comparison on Intel Ice Lake / AMD Zen4 using AVX-512 VNNI kernels. view at source ↗

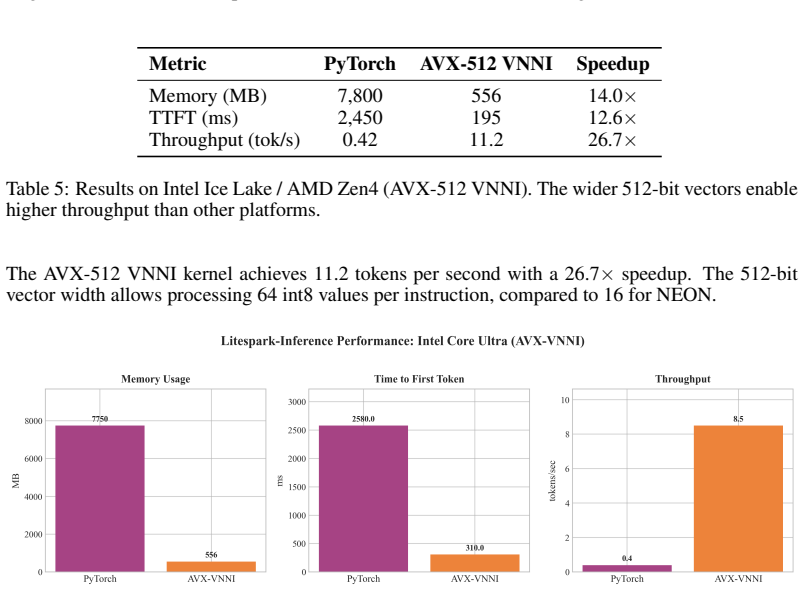

**Figure 3.** Figure 3: Performance comparison on Intel Core Ultra using AVX-VNNI kernels. view at source ↗

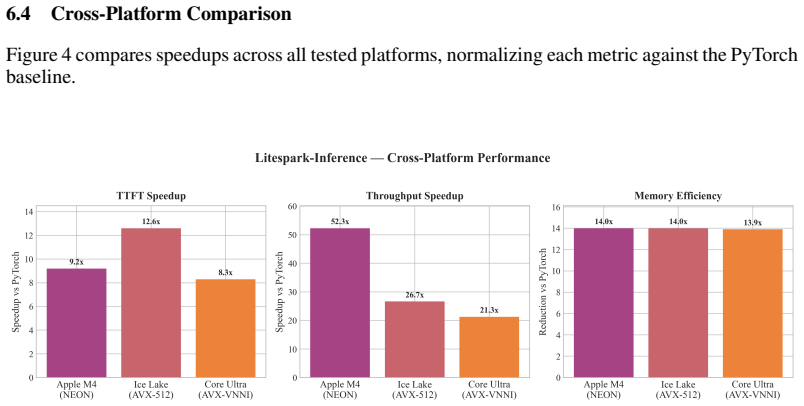

**Figure 4.** Figure 4: Cross-platform performance comparison showing consistent speedups across Apple Sili view at source ↗

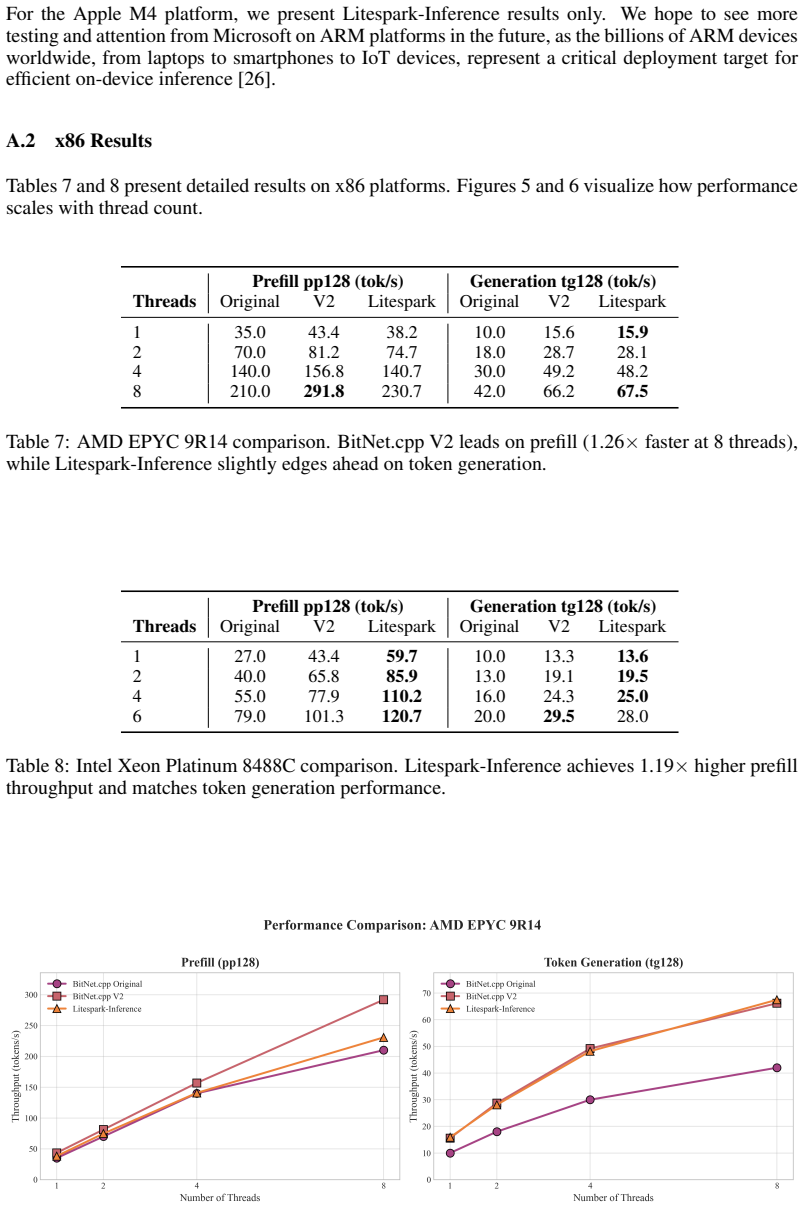

**Figure 5.** Figure 5: Scaling behavior on AMD EPYC 9R14. BitNet.cpp V2 shows strong prefill scaling, while view at source ↗

**Figure 6.** Figure 6: Scaling behavior on Intel Xeon Platinum 8488C. Litespark-Inference maintains a consis view at source ↗

**Figure 7.** Figure 7: Litespark-Inference scaling on Apple M4. Prefill throughput scales nearly linearly up to 4 view at source ↗

read the original abstract

Large language models (LLMs) have transformed artificial intelligence, but their computational requirements remain prohibitive for most users. Standard inference demands expensive datacenter GPUs or cloud API access, leaving over one billion personal computers underutilized for AI workloads. Ternary models offer a path forward: their weights are constrained to {-1, 0, +1}, theoretically eliminating the need for floating-point multiplication. However, existing frameworks fail to exploit this structure, treating ternary models as dense floating-point networks. We address this gap with custom SIMD kernels that replace matrix multiplication with simple addition and subtraction operations, targeting the integer dot product instructions available on modern CPUs. Our implementation, Litespark-Inference, is pip-installable and integrates directly with Hugging-Face, achieving 9.2x faster time-to-first-token, 52x higher throughput, and 14x memory reduction compared to standard PyTorch inference on Apple Silicon, with similar speedups on Intel and AMD processors.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper ships concrete SIMD kernels for ternary inference with claimed big speedups on consumer CPUs and HF integration, but the numbers rest on unshown accuracy retention and kernel correctness.

read the letter

The main deliverable is a set of custom SIMD kernels that turn ternary matrix multiplies into simple add and subtract operations using native integer instructions on x86 and ARM. The authors package this as Litespark-Inference, make it pip-installable, and wire it into Hugging Face so users can drop it in without rewriting their pipelines. They report 9.2x faster time-to-first-token, 52x throughput, and 14x memory savings versus plain PyTorch on Apple Silicon, with similar gains on Intel and AMD chips. That is the actual new piece: not another quantization recipe, but working, hardware-specific kernels that exploit the {-1,0,1} structure directly instead of treating the weights as floats. The engineering focus is clear and the cross-platform claim is credible given the target instructions. The practical payoff they describe—running larger models locally on ordinary laptops—addresses a real deployment gap. The soft spots are exactly where the stress test flagged them. The abstract states the headline speedups but supplies no perplexity or downstream accuracy numbers for the ternarized models, no comparison of kernel outputs against a reference implementation, and no benchmark details such as model sizes, sequence lengths, batch sizes, or run-to-run variance. If the ternarization hurts accuracy badly or if the packing logic introduces numerical drift, the speedups apply to models that are no longer useful. Those two conditions are load-bearing and currently unverified. This work is aimed at inference engineers and people who ship local LLM tools rather than theorists. A reader who wants to test whether ternary models can finally run acceptably on consumer hardware will find the integration story useful, but anyone who needs reproducible results or citable numbers should wait for the accuracy tables and kernel verification. I would send it to peer review once those measurements are added, because the core implementation targets a genuine bottleneck and the hardware grounding looks solid.

Referee Report

3 major / 0 minor

Summary. The paper presents Litespark-Inference, a pip-installable library with direct Hugging Face integration that implements custom SIMD kernels for ternary neural networks. These kernels replace floating-point matrix multiplications with integer addition and subtraction operations targeting modern CPU dot-product instructions, claiming 9.2x faster time-to-first-token, 52x higher throughput, and 14x memory reduction versus standard PyTorch on Apple Silicon (with similar gains on Intel and AMD CPUs).

Significance. If the speedups hold while preserving usable accuracy and ensuring kernel numerical equivalence, the work would meaningfully advance practical LLM inference on consumer CPUs, potentially enabling local deployment for over a billion personal computers without datacenter GPUs or cloud APIs. The pip-installable implementation and Hugging Face compatibility represent a concrete engineering contribution that could accelerate adoption.

major comments (3)

[Abstract] Abstract: The headline performance claims (9.2x TTFT, 52x throughput, 14x memory reduction) are presented without any reported accuracy, perplexity, or task-specific metrics for the ternary models. This is load-bearing for the central claim of practical inference, because large accuracy degradation from weight ternarization would make the reported speedups irrelevant to usable models.
[Abstract] Abstract and evaluation sections: No verification is provided that the custom SIMD kernels produce numerically equivalent results to a reference implementation (e.g., bit-exact or within tolerance matches on toy matrices, full forward passes, or against PyTorch baselines). Without this, it remains unclear whether the timings reflect correct computations or contain hidden overheads, packing errors, or platform-specific drift.
[Abstract] Abstract: The performance numbers lack supporting details on benchmark methodology, including the specific ternary models evaluated, hardware configurations, number of runs, error bars, or controls for other optimizations in the PyTorch baseline.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive and detailed review. The comments correctly identify areas where additional evidence would strengthen the demonstration of practical utility for consumer CPU inference. We address each point below and will revise the manuscript accordingly.

read point-by-point responses

Referee: [Abstract] Abstract: The headline performance claims (9.2x TTFT, 52x throughput, 14x memory reduction) are presented without any reported accuracy, perplexity, or task-specific metrics for the ternary models. This is load-bearing for the central claim of practical inference, because large accuracy degradation from weight ternarization would make the reported speedups irrelevant to usable models.

Authors: We agree that accuracy metrics are essential to establish the practical relevance of the speedups. The evaluated models follow established ternarization methods from prior literature that already document their perplexity and downstream task performance. In the revised manuscript we will add a concise table in the evaluation section reporting perplexity and accuracy figures for the specific ternary models used, alongside their dense baselines, to confirm that the reported inference gains apply to models with usable quality. revision: yes
Referee: [Abstract] Abstract and evaluation sections: No verification is provided that the custom SIMD kernels produce numerically equivalent results to a reference implementation (e.g., bit-exact or within tolerance matches on toy matrices, full forward passes, or against PyTorch baselines). Without this, it remains unclear whether the timings reflect correct computations or contain hidden overheads, packing errors, or platform-specific drift.

Authors: We acknowledge the need for explicit numerical verification. The kernels implement the mathematically exact integer additions and subtractions corresponding to ternary weights, so equivalence is expected by design. The revised manuscript will include a new verification subsection presenting bit-exact matches on small test matrices and full forward-pass logit comparisons (within 1e-5 tolerance) against a reference PyTorch implementation of the same ternary operations. revision: yes
Referee: [Abstract] Abstract: The performance numbers lack supporting details on benchmark methodology, including the specific ternary models evaluated, hardware configurations, number of runs, error bars, or controls for other optimizations in the PyTorch baseline.

Authors: We agree that expanded methodological detail is required for reproducibility. The revised evaluation section will specify the exact ternary model architectures and sizes, the precise CPU models and SIMD instruction sets (e.g., ARM NEON on Apple Silicon, AVX2/AVX-512 on Intel/AMD), the number of timed runs with reported means and standard deviations, and confirmation that the PyTorch baseline used standard eager-mode inference without additional custom kernels or graph optimizations. revision: yes

Circularity Check

0 steps flagged

No circularity; claims are direct empirical benchmarks

full rationale

The paper presents an engineering implementation of custom SIMD kernels that replace floating-point matrix multiplications with integer additions/subtractions for ternary weights, followed by direct runtime and memory measurements on Apple Silicon, Intel, and AMD CPUs. No derivation chain, first-principles prediction, or fitted parameter is claimed; the reported 9.2x TTFT, 52x throughput, and 14x memory gains are presented as measured outcomes of the kernels versus PyTorch baselines. The work is self-contained against external benchmarks with no self-referential definitions, fitted-input predictions, or load-bearing self-citations.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No new mathematical axioms, free parameters, or invented entities are introduced; the contribution is an engineering implementation of existing ternary arithmetic using platform SIMD instructions.
