Criticality and Saturation in Orthogonal Neural Networks

Max Guillen , Jan E. Gerken
Authors on Pith no claims yet

Pith reviewed 2026-05-08 12:22 UTC · model grok-4.3

classification 💻 cs.LG hep-th
keywords orthogonal initializationfinite-width expansionneural network statisticsrecursion relationstensor stabilityactivation functionscriticalitysaturation
0
0 comments X

The pith

Orthogonal weight initializations stabilize the finite-width correction tensors of neural networks as depth increases.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives explicit recursion relations that track the evolution of finite-width correction tensors layer by layer when weights are initialized orthogonally. These relations show that the tensors reach a stable value after sufficiently many layers for common activation functions, in contrast to the growth seen with independent random weights. A reader would care because the recursions supply a direct mathematical reason for the empirical advantage of orthogonal initializations in deep training. The same relations also extend diagrammatic techniques to all orders of the inverse-width expansion.

Core claim

We derive explicit layer-wise recursion relations for the tensors appearing in the finite-width expansion of the network statistics in the case of orthogonal initializations. We also provide an extension of Feynman diagrams for the corresponding recursions which are valid to all orders in 1/width. We show explicitly that the recursions reproduce the stability of the finite-width tensors observed for activation functions with vanishing fixed point. Numerical solutions of the recursions and their large-depth expansions agree with Monte-Carlo estimates from network ensembles.

What carries the argument

Layer-wise recursion relations for the tensors in the 1/width expansion of network statistics under orthogonal initialization, which track moment evolution across layers and produce saturation at large depth.

If this is right

  • The recursions allow computation of network statistics at arbitrary depth without full ensemble simulation.
  • Stability of the tensors holds specifically when the activation function has a vanishing fixed point.
  • The diagrammatic extension covers all orders in the inverse-width expansion for the orthogonal case.
  • The derived relations close the theoretical account of why orthogonal weights prevent divergence of finite-width corrections in deep networks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The recursions could be solved analytically to predict the depth at which saturation begins for given width and activation.
  • Similar recursion structures might appear under other structured initializations that preserve norm.
  • The method supplies a route to study how criticality conditions interact with finite-width effects in deeper architectures.

Load-bearing premise

The leading terms of the inverse-width power series continue to dominate the network behavior even when depth becomes large.

What would settle it

Numerical iteration of the derived recursions yields tensors that grow without bound as depth increases, while direct Monte-Carlo sampling from finite-width orthogonal networks produces saturating tensors.

Figures

Figures reproduced from arXiv: 2605.06563 by Jan E. Gerken, Max Guillen.

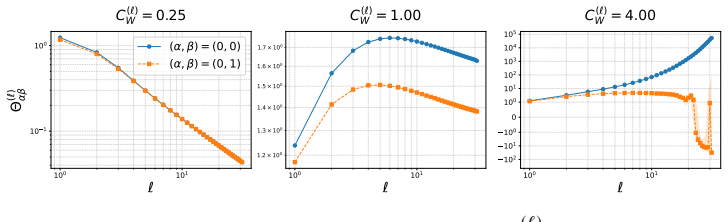

Figure 1
Figure 1. Figure 1: Gradient stability. Monte Carlo estimates of the NTK Θ (ℓ ) 𝛼𝛽 for a tanh orthogonal network (𝑛 = 50, 𝐿 = 30) across varying 𝐶𝑊, with the critical case 𝐶𝑊 = 1 shown in the center. Means are computed over 600 initializations; shaded regions denote standard errors (typically not visible). Results are consistent with Theorem 5.1. 2 4 6 8 10 0.5 0.4 0.3 0.2 0.1 0.0 0.1 Normalized NTK Tensors Experimental Predi… view at source ↗
Figure 2
Figure 2. Figure 2: Orthogonal saturation. (a) Normalized NTK tensors from Monte Carlo simulations of tanh orthogonal networks (𝑛 = 50, 𝐿 = 10) at criticality, compared with theoretical predictions. Means are computed over 600 initializations; shaded regions denote standard deviations (typically not visible), showing quantitative agreement. (b) Large-ℓ expansions of the NNGP and quartic vertex 𝑉, compared with exact solutions… view at source ↗
Figure 3
Figure 3. Figure 3: The NNGP and NTK. Solution of the single-input recursion relations (6) and (11). We consider a tanh network of width 𝑛 = 50 and depth 𝐿 = 10 with inputs drawn from (0, 1). Blue points denote the exact solutions of (141) and (11), while orange boxes represent the large-ℓ expansions (157) and (159), evaluated at integer ℓ. The tensor magnitudes remain smaller than their Gaussian counterparts and exhibit earl… view at source ↗
Figure 4
Figure 4. Figure 4: The NTK mixed tensors. Solution of the single-input recursion relations (86) and (87). We consider a tanh network of width 𝑛 = 50 and depth 𝐿 = 10 with inputs drawn from (0, 1). Blue points denote the exact solutions of (86) and (87), while orange boxes represent the large-ℓ expansions (160) and (161), evaluated at integer ℓ. The tensor magnitudes remain smaller than their Gaussian counterparts and exhibit… view at source ↗
Figure 5
Figure 5. Figure 5: The NTK variance tensors. Solution of the single-input recursion relations (88) and (89). We consider a tanh network of width 𝑛 = 50 and depth 𝐿 = 10 with inputs drawn from (0, 1). Blue points denote the exact solutions of (88) and (89), while orange boxes represent the large-ℓ expansion (162) and (163), evaluated at integer ℓ. The magnitude of the tensors remains smaller than its Gaussian counterpart and … view at source ↗
Figure 6
Figure 6. Figure 6: The dNTK tensors. Solutions of the single-input recursion relations (90) and 91. We consider a tanh network of width 𝑛 = 50 and depth 𝐿 = 10 with inputs drawn from (0, 1). Blue points denote the exact solution of (90) and 91, while orange boxes represent the large-ℓ expansions (164) and (165), evaluated at integer ℓ. The magnitude of the tensors remains smaller than its Gaussian counterpart and exhibits ea… view at source ↗
Figure 7
Figure 7. Figure 7: The dINTK tensor. Solution of the single-input recursion relation (92). We consider a tanh network of width 𝑛 = 50 and depth 𝐿 = 10 with inputs drawn from (0, 1). Blue points denote the exact solution of (92), while orange boxes represent the large-ℓ expansion (166), evaluated at integer ℓ. The magnitude of the tensor remains smaller than its Gaussian counterpart and exhibits early-layer saturation. 1 2 3 … view at source ↗
Figure 8
Figure 8. Figure 8: The ddIINTK tensors. Solutions to the single-input recursion relations (93), (94), and (95). We consider a tanh network with width 𝑛 = 50 and depth 𝐿 = 10, with inputs drawn from (0, 1). Blue points show the exact solutions of (93), (94), and (95), while orange boxes represent the corresponding large-ℓ expansions (167), (168), and (169), evaluated at integer ℓ. The tensor magnitude remains below its Gaussi… view at source ↗

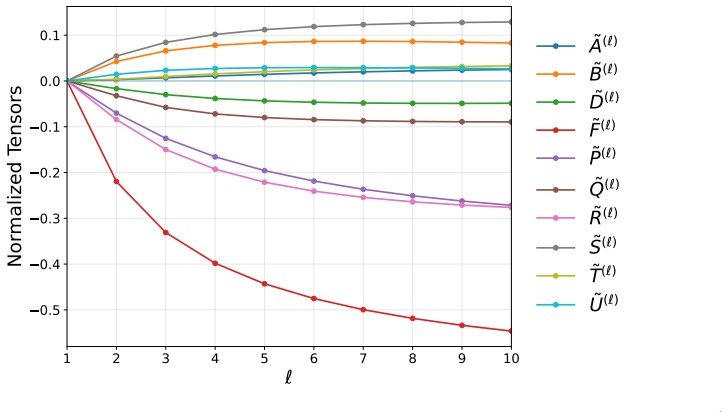

Figure 9
Figure 9. Figure 9: Orthogonal saturation. Exact solutions of the single-input recursion relations at order 1/𝑛 (see Theorems 4.1 and 4.2). We consider a tanh network of width 𝑛 = 50 with inputs drawn from the real interval (0, 1). All tensors attain smaller values than their Gaussian counterparts and exhibit early-layer saturation. These predictions are consistent with the empirical results of [25]. where Δc𝐺 (ℓ ) 𝛼𝛽 = 𝜎 (ℓ … view at source ↗
Figure 10
Figure 10. Figure 10: The sextic vertex. Solution to the single-input recursion relation (133) at order 1/𝑛 2 . We consider a tanh network with width 𝑛 = 50 and depth 𝐿 = 30, with inputs drawn from (0, 1). Blue points show the exact solution of (133), while orange boxes represent the large-ℓ expansion (170), evaluated at integer ℓ. The tensor magnitude remains below its Gaussian counterpart and exhibits early-layer saturation,… view at source ↗

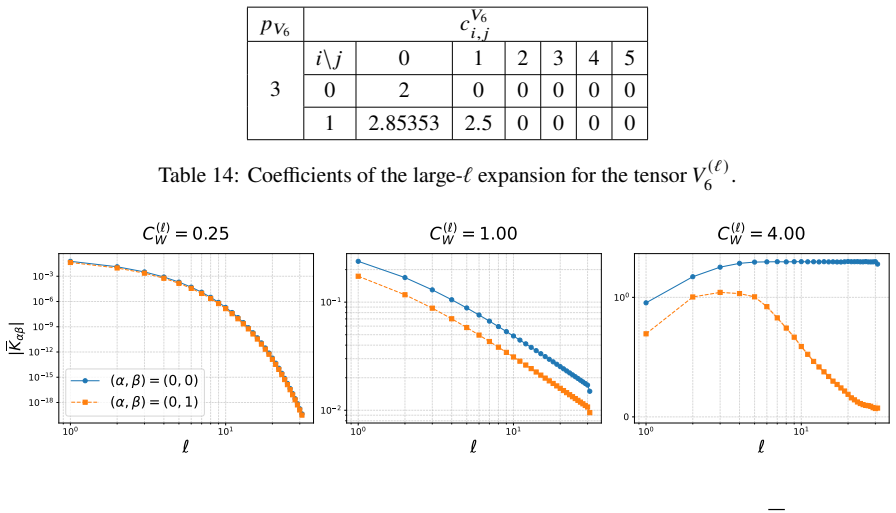

Figure 11
Figure 11. Figure 11: Variance stability. Components of the Monte Carlo estimate of the NNGP 𝐾𝛼𝛽 for a tanh MLP, shown as a function of layer depth ℓ for identical and distinct inputs, across three values of 𝐶 (ℓ ) 𝑊 . Hidden layers have width 50. Means are computed over 600 initializations for both non-critical (left, right) and critical (middle) cases. Error bars are shown in all panels (see text). Θ (ℓ ) 𝛼𝛽 = 1 𝑁net ∑︁ 𝑁net… view at source ↗

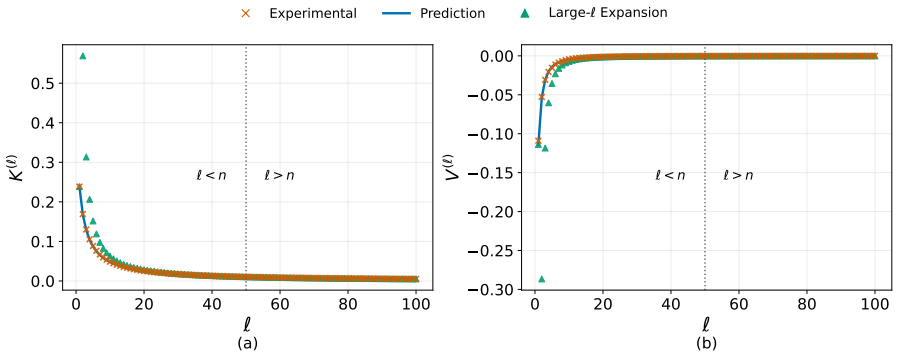

Figure 12
Figure 12. Figure 12: Stability beyond the perturbative regime. Comparison of the diagonal components of the Monte Carlo estimate, single-input exact solution, and large-ℓ expansion for the NNGP 𝐾 and quartic vertex 𝑉 in a tanh MLP with orthogonal initialization. Hidden layers have width 50; means are computed over 600 initializations. (a) The NNGP estimates are in quantitative agreement with the exact solution at both small a… view at source ↗
Figure 13
Figure 13. Figure 13: Stability of the four-point cumulant 𝑉4 at criticality. Selected components of the Monte Carlo estimate 𝑉4 for a tanh MLP are shown as a function of layer depth ℓ at the critical value 𝐶 (ℓ ) 𝑊 = 1. Hidden layers have width 50. An asymptotic power-law fit is shown in orange, with the fit starting at ℓstart. Estimates are obtained from 𝑁net = 600 initializations, with means and error bars computed over 𝑁st… view at source ↗
Figure 14
Figure 14. Figure 14: Instability of the four-point cumulant 𝑉4 away from criticality.Selected components of the Monte Carlo estimate 𝑉4 are shown for 𝐶 (ℓ ) 𝑊 < 1 (left) and 𝐶 (ℓ ) 𝑊 > 1 (right). Estimates are computed from 𝑁net = 600 initializations, with means and error bars obtained from 𝑁stats = 10 repetitions (see text). 10 4 10 3 10 2 Dj 0 0 0 0j y = 0:064` ¡1:45 `start = 10 10 6 10 5 10 4 10 3 10 2 10 1 Dj 0101j y = 3`… view at source ↗
Figure 15
Figure 15. Figure 15: Stability of the 𝐷 tensor at criticality. Selected components of the Monte Carlo estimate 𝐷 for a tanh MLP are shown as a function of layer depth ℓ at the critical value 𝐶 (ℓ ) 𝑊 = 1. Hidden layers have width 50. An asymptotic power-law fit is shown in orange, with the fit starting at ℓstart. Estimates are obtained from 𝑁net = 600 initializations, with means and error bars computed over 𝑁stats = 10 repeti… view at source ↗
Figure 16
Figure 16. Figure 16: Instability of the 𝐷 tensor away from criticality. Selected components of the Monte Carlo estimate 𝐷 are shown for 𝐶 (ℓ ) 𝑊 < 1 (left) and 𝐶 (ℓ ) 𝑊 > 1 (right). Estimates are computed from 𝑁net = 600 initializations, with means and error bars obtained from 𝑁stats = 10 repetitions (see text). 10 1 Fj 0 0 0 0j y = 0:37` ¡0:89 `start = 10 10 2 Fj 0101j y = 0:12` ¡0:88 `start = 10 10 2 10 1 Fj 0 0 2 2j y = 0:… view at source ↗
Figure 17
Figure 17. Figure 17: Stability of the 𝐹 tensor at criticality. Selected components of the Monte Carlo estimate 𝐹 for a tanh MLP are shown as a function of layer depth ℓ at the critical value 𝐶 (ℓ ) 𝑊 = 1. Hidden layers have width 50. An asymptotic power-law fit is shown in orange, with the fit starting at ℓstart. Estimates are obtained from 𝑁net = 600 initializations, with means and error bars computed over 𝑁stats = 10 repeti… view at source ↗
Figure 18
Figure 18. Figure 18: Instability of the 𝐹 tensor away from criticality. Selected components of the Monte Carlo estimate 𝐹 are shown for 𝐶 (ℓ ) 𝑊 < 1 (left) and 𝐶 (ℓ ) 𝑊 > 1 (right). Estimates are computed from 𝑁net = 600 initializations, with means and error bars obtained from 𝑁stats = 10 repetitions (see text). 10 2 10 1 Aj 0 0 0 0j y = 0:096` ¡0:08 `start = 10 10 2 Aj 0101j y = 0:054` ¡0:06 `start = 10 10 2 Aj 0 0 2 2j y = … view at source ↗
Figure 19
Figure 19. Figure 19: Stability of the 𝐴 tensor at criticality. Selected components of the Monte Carlo estimate 𝐴 for a tanh MLP are shown as a function of layer depth ℓ at the critical value 𝐶 (ℓ ) 𝑊 = 1. Hidden layers have width 50. An asymptotic power-law fit is shown in orange, with the fit starting at ℓstart. Estimates are obtained from 𝑁net = 600 initializations, with means and error bars computed over 𝑁stats = 10 repeti… view at source ↗

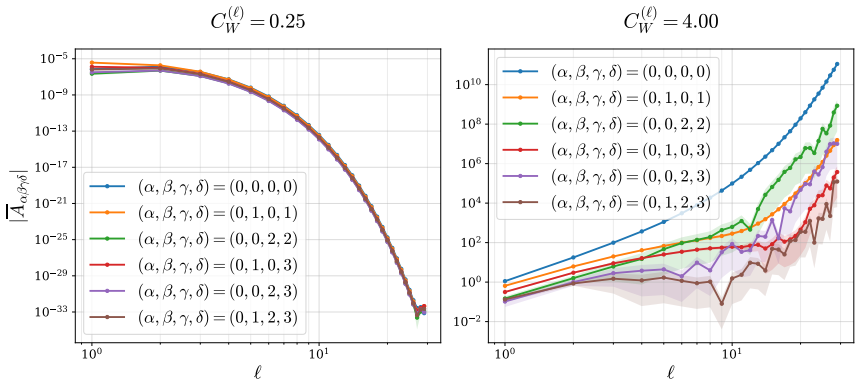

Figure 20
Figure 20. Figure 20: Instability of the 𝐴 tensor away from criticality. Selected components of the Monte Carlo estimate 𝐴 are shown for 𝐶 (ℓ ) 𝑊 < 1 (left) and 𝐶 (ℓ ) 𝑊 > 1 (right). Estimates are computed from 𝑁net = 600 initializations, with means and error bars obtained from 𝑁stats = 10 repetitions (see text). 10 1 2 × 10 1 3 × 10 1 4 × 10 1 6 × 10 1 Bj 0 0 0 0j y = 0:94` ¡0:54 `start = 10 10 1 4 × 10 2 6 × 10 2 2 × 10 1 Bj… view at source ↗
Figure 21
Figure 21. Figure 21: Stability of the 𝐵 tensor at criticality. Selected components of the Monte Carlo estimate 𝐵 for a tanh MLP are shown as a function of layer depth ℓ at the critical value 𝐶 (ℓ ) 𝑊 = 1. Hidden layers have width 50. An asymptotic power-law fit is shown in orange, with the fit starting at ℓstart. Estimates are obtained from 𝑁net = 600 initializations, with means and error bars computed over 𝑁stats = 10 repeti… view at source ↗

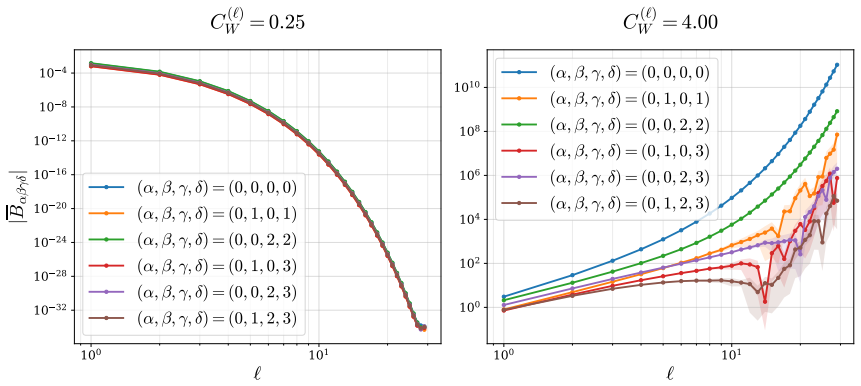

Figure 22
Figure 22. Figure 22: Instability of the 𝐵 tensor away from criticality. Selected components of the Monte Carlo estimate 𝐵 are shown for 𝐶 (ℓ ) 𝑊 < 1 (left) and 𝐶 (ℓ ) 𝑊 > 1 (right). Estimates are computed from 𝑁net = 600 initializations, with means and error bars obtained from 𝑁stats = 10 repetitions (see text). 0 20 40 60 80 100 0.30 0.25 0.20 0.15 0.10 0.05 0.00 D( ) < n > n (a) 0 20 40 60 80 100 0.1 0.0 0.1 0.2 0.3 0.4 0.5… view at source ↗
Figure 23
Figure 23. Figure 23: Stability beyond the perturbative regime. Comparison of the diagonal components of the Monte Carlo estimate, single-input exact solution, and large-ℓ expansion for the NTK tensors 𝐷 and 𝐹 in a tanh MLP with orthogonal initialization. Hidden layers have width 50; means are computed over 600 initializations. (a) The tensor 𝐷 estimates are in quantitative agreement with the exact solution at both small and l… view at source ↗
read the original abstract

It has been known for a long time that initializing weight matrices to be orthogonal instead of having i.i.d. Gaussian components can improve training performance. This phenomenon can be analyzed using finite-width corrections, where the infinite-width statistics are supplemented by a power series in $1/\mathrm{width}$. In particular, recent empirical results by Day et al. show that the tensors appearing in this treatment stabilize for large depth, as opposed to the tensors of i.i.d.-initialized networks. In this article, we derive explicit layer-wise recursion relations for the tensors appearing in the finite-width expansion of the network statistics in the case of orthogonal initializations. We also provide an extension of recently-introduced Feynman diagrams for the corresponding recursions in the i.i.d.-case which are valid to all orders in $1/\mathrm{width}$. Finally, we show explicitly that the recursions we derive reproduce the stability of the finite-width tensors which was observed for activation functions with vanishing fixed point. This work therefore provides a theoretical explanation for the stability of nonlinear networks of finite width initialized with orthogonal weights, closing a long-standing gap in the literature. We validate our theoretical results experimentally by showing that numerical solutions of our recursion relations and their analytical large-depth expansions agree excellently with Monte-Carlo estimates from network ensembles.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper derives explicit layer-wise recursion relations for the leading finite-width correction tensors in the statistics of deep neural networks initialized with orthogonal weights. It extends Feynman diagram techniques (previously for i.i.d. Gaussian weights) to the orthogonal case to all orders in 1/width, obtains closed recursions for the tensors, and shows that these recursions reproduce the large-depth stability of the tensors observed empirically for activations with vanishing fixed points. The theoretical predictions are validated by agreement between numerical solutions of the recursions (and their large-depth analytic expansions) and Monte-Carlo estimates from finite-width network ensembles.

Significance. If the derivations and perturbative control hold, the work supplies the missing theoretical account for why orthogonal initialization stabilizes finite-width corrections at large depth (in contrast to i.i.d. Gaussian initialization), thereby closing a documented gap. The explicit recursions and diagram extension are reusable tools; the Monte-Carlo match provides direct empirical support for the central claim.

major comments (2)
  1. [large-depth expansions and validation sections] The central claim that the derived recursions explain the observed stability rests on the assumption that the leading 1/width tensors remain dominant as depth L grows large. No explicit remainder bound or uniform-in-L control on the truncation error of the finite-width expansion is provided (see the large-depth analysis and the statement that 'the recursions reproduce the stability'). If higher-order terms accumulate or the effective expansion parameter grows with L via diagram combinatorics, the leading-tensor stability would not suffice to explain the finite-width behavior.
  2. [derivation of recursion relations] The recursion relations are stated to close at leading order after incorporating the orthogonal constraint. However, it is not shown whether orthogonality-induced correlations at finite width can feed back into the leading tensors at depths where the expansion parameter is no longer parametrically small (see the derivation of the layer-wise recursions and the diagram extension).
minor comments (2)
  1. [preliminaries] Notation for the tensors (e.g., the precise definition of the leading correction objects) should be introduced once with an explicit equation reference rather than relying on prior diagram papers.
  2. [experimental validation] The Monte-Carlo validation would benefit from reporting the range of widths and depths tested and the number of independent network realizations per point to allow assessment of statistical error.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for their careful reading of the manuscript and for the constructive major comments. We address each point below, providing clarifications on the scope of our perturbative analysis and indicating revisions where they strengthen the presentation without altering the central claims.

read point-by-point responses

  1. Referee: [large-depth expansions and validation sections] The central claim that the derived recursions explain the observed stability rests on the assumption that the leading 1/width tensors remain dominant as depth L grows large. No explicit remainder bound or uniform-in-L control on the truncation error of the finite-width expansion is provided (see the large-depth analysis and the statement that 'the recursions reproduce the stability'). If higher-order terms accumulate or the effective expansion parameter grows with L via diagram combinatorics, the leading-tensor stability would not suffice to explain the finite-width behavior.

    Authors: We agree that the analysis is perturbative in 1/width and that an explicit uniform-in-L remainder bound is not derived. The manuscript establishes closed recursions for the leading-order tensors, obtains their large-depth analytic expansions, and demonstrates quantitative agreement with Monte-Carlo estimates from finite-width ensembles. This agreement holds across the depths examined, indicating that higher-order contributions do not destabilize the leading tensors in practice. In the revised version we will add an explicit caveat in the large-depth section acknowledging the absence of a rigorous truncation bound and clarifying that the explanatory power for observed stability rests on the combination of exact leading-order closure and empirical validation. revision: partial

  2. Referee: [derivation of recursion relations] The recursion relations are stated to close at leading order after incorporating the orthogonal constraint. However, it is not shown whether orthogonality-induced correlations at finite width can feed back into the leading tensors at depths where the expansion parameter is no longer parametrically small (see the derivation of the layer-wise recursions and the diagram extension).

    Authors: The Feynman-diagram extension incorporates the orthogonal constraints order by order in 1/width. At leading order the diagram rules ensure that orthogonality-induced correlations are absorbed into the recursion kernels without introducing feedback from higher-order diagrams into the leading tensors. This decoupling follows from the structure of the orthogonal ensemble and holds at every depth because the recursion is derived by collecting all diagrams that contribute at O(1/width). We will insert a short clarifying paragraph in the derivation section that explicitly states this decoupling and references the diagram rules that prevent higher-order leakage into the leading tensors. revision: yes

standing simulated objections not resolved
  • Absence of an explicit remainder bound or uniform-in-L control on the truncation error of the finite-width expansion

Circularity Check

0 steps flagged

Derivation of orthogonal recursions independent of stability observation; minor self-citation to prior diagrams

full rationale

The paper derives explicit layer-wise recursion relations for the finite-width tensors directly from the orthogonal weight initialization constraint combined with the 1/width perturbative expansion. These recursions are then solved to reproduce the large-depth stability previously observed for activations with vanishing fixed points, with results matching Monte-Carlo ensemble estimates. This chain does not reduce to a fitted input or self-definition by the paper's equations. A self-citation exists to recently-introduced Feynman diagrams for the i.i.d. case, which is extended here, but the orthogonal recursions constitute new independent content and are externally validated against simulations rather than relying on the citation as load-bearing support.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The work rests on the validity of the 1/width perturbative expansion around infinite width and on the assumption that the leading correction tensors dominate the depth-dependent behavior. No new free parameters or invented entities are introduced; the recursions follow from the orthogonal constraint applied to the existing expansion.

axioms (2)
  • domain assumption The finite-width expansion in powers of 1/width is a valid asymptotic description of network statistics for large but finite width.
    Invoked when claiming the recursions capture the observed stability.
  • domain assumption Activation functions have a vanishing fixed point (average output zero when input is zero).
    Required for the stability result; stated as the case where stability holds.
