arxiv: 2605.07336 · v1 · submitted 2026-05-08 · ❄️ cond-mat.supr-con

Recognition: 2 theorem links

· Lean Theorem

Breaking the Trade-off: Bulk 2D Ising Superconductivity with High Tc and Giant Interlayer Spacing via a Unique Chain Intercalation in (BaS)1/3TaS2

Ziyi Zhu , Leiming Chen , Xiangqi Liu , Haonan Wang , Chen Xu , Ze Yan , Zhengyang Li , Wei Xia

show 6 more authors

Jiawei Luo Na Yu Xia Wang Ke Qu Zhenzhong Yang Yanfeng Guo

Authors on Pith no claims yet

Pith reviewed 2026-05-11 01:35 UTC · model grok-4.3

classification ❄️ cond-mat.supr-con

keywords Ising superconductivityintercalationTaS22D superconductivitytransition metal dichalcogenidessuperconducting transition temperatureanisotropy

0 comments

The pith

The compound (BaS)1/3TaS2 achieves higher superconducting Tc with exceptionally large interlayer spacing through Ba-S-S-Ba chain intercalation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports synthesis of a new TaS2 polymorph in which Ba-S-S-Ba chains are inserted between TaS2 bilayers. This creates an inter-bilayer spacing of 12.75 angstroms, more than three times larger than in pristine 2H-TaS2. The chains suppress electronic coupling between layers and break the bulk c-axis mirror symmetry. Local inversion symmetry breaking inside each TaS2 layer then dominates, preventing compensation of Ising spin-orbit fields and supporting robust 2D Ising superconductivity. The result is an enhanced Tc that does not require sacrificing the large spacing or the strong 2D character.

Core claim

Inserting distinctive Ba-S-S-Ba chains between TaS2 bilayers in (BaS)1/3TaS2 suppresses interlayer coupling while breaking the c-axis mirror symmetry. This allows local inversion symmetry breaking within the TaS2 layers to produce uncompensated Ising spin-orbit fields. The material therefore exhibits bulk 2D Ising superconductivity with both an enhanced transition temperature and an inter-bilayer spacing of 12.75 angstroms, breaking the conventional trade-off between large spacing and high Tc.

What carries the argument

The unique Ba-S-S-Ba chain intercalation between TaS2 bilayers, which decouples layers electronically and breaks mirror symmetry to preserve uncompensated Ising spin-orbit coupling.

If this is right

Bulk crystals can display the full characteristics of 2D Ising superconductivity without exfoliation.
The usual compromise between high Tc and large interlayer spacing is removed.
A general intercalation route exists for creating bulk-like 2D Ising superconductors from other TMDs.
Transport, magnetic, and thermodynamic data together confirm the superconducting state is robust.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same chain-intercalation approach could be tested in other transition-metal dichalcogenides to produce similar decoupling and symmetry breaking.
Varying the chain composition might allow even larger spacings while retaining or further increasing Tc.
Bulk crystals made this way could simplify fabrication of devices that need both high Tc and strong two-dimensional anisotropy.

Load-bearing premise

The chain intercalation is assumed to suppress interlayer electronic coupling sufficiently that local inversion symmetry breaking inside the TaS2 layers is not compensated by effects from adjacent layers.

What would settle it

Observation that the Ising spin-orbit fields from neighboring layers compensate each other, or that the superconducting transition temperature is not higher than in compounds with smaller interlayer spacing.

Figures

Figures reproduced from arXiv: 2605.07336 by Chen Xu, Haonan Wang, Jiawei Luo, Ke Qu, Leiming Chen, Na Yu, Wei Xia, Xiangqi Liu, Xia Wang, Yanfeng Guo, Ze Yan, Zhengyang Li, Zhenzhong Yang, Ziyi Zhu.

**Figure 1.** Figure 1: Symmetry breaking, SOC, and intercalation in TMDs. (a) Top view of the H-MX2 structure (M: blue; X: red). Inversion symmetry is broken within each layer due to missing inversion-related X-atom sites. (b) The broken c-axis mirror symmetry induces an out-of-plane [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗

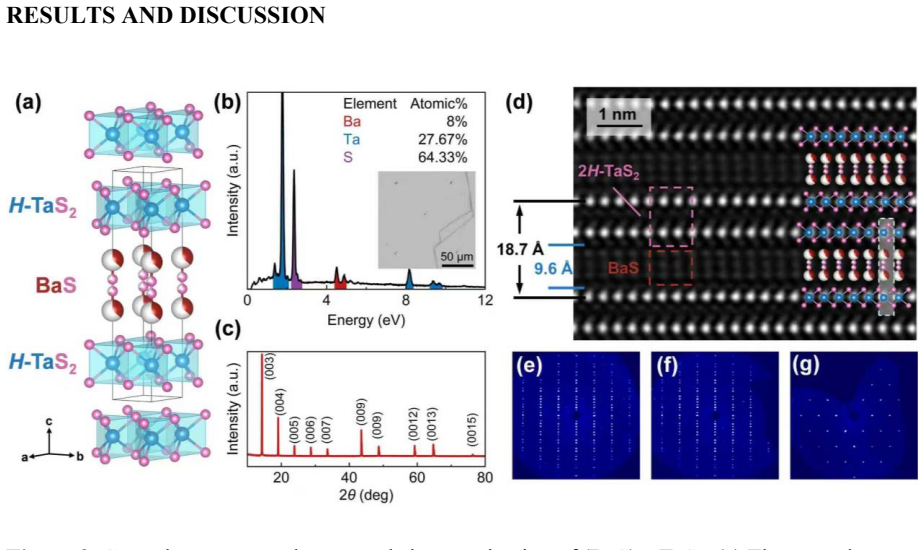

**Figure 2.** Figure 2: Crystal structure and structural characterization of (BaS)1/3TaS2. (a) The crystal structure of (BaS)1/3TaS2, distinct from pristine 2H-TaS2. Ba-S-S-Ba chains are intercalated with a two-layer periodicity, forming locally decoupled TaS2 bilayers. (b) EDS spectrum confirming the stoichiometric molar ratio Ba:Ta:S ~ 0.33:1:2.33. (c) XRD pattern exhibiting sharp (00l) reflections, consistent with high crystal… view at source ↗

**Figure 3.** Figure 3: Transport properties and upper critical field of (BaS)1/3TaS2 single crystal. (a) Temperature dependence of resistivity of (BaS)1/3TaS2. High-temperature (300-50 K) behavior follows R(T) = cT α + R0 with α = 0.93 (strange-metal-like), transitioning to Fermi-liquid-like behavior (α = 1.55) at 10-50 K, and a superconducting transition at Tc0 = 3.1 K. (b) Resistivity anisotropy ρzz/ρxx increasing to 4×103 at … view at source ↗

**Figure 4.** Figure 4: Magnetic properties of (BaS)1/3TaS2 single crystal. (a) ZFC and FC magnetic susceptibility curves, with separation arising from vortex pinning. (b) Superconducting magnetization hysteresis loops at different temperatures; critical current density Jc (calculated via Bean model) reaches 1.2 × 104 A/cm2 at 1.8 K, comparable to pristine TMD superconductors. (c) Field dependence of magnetization with field perp… view at source ↗

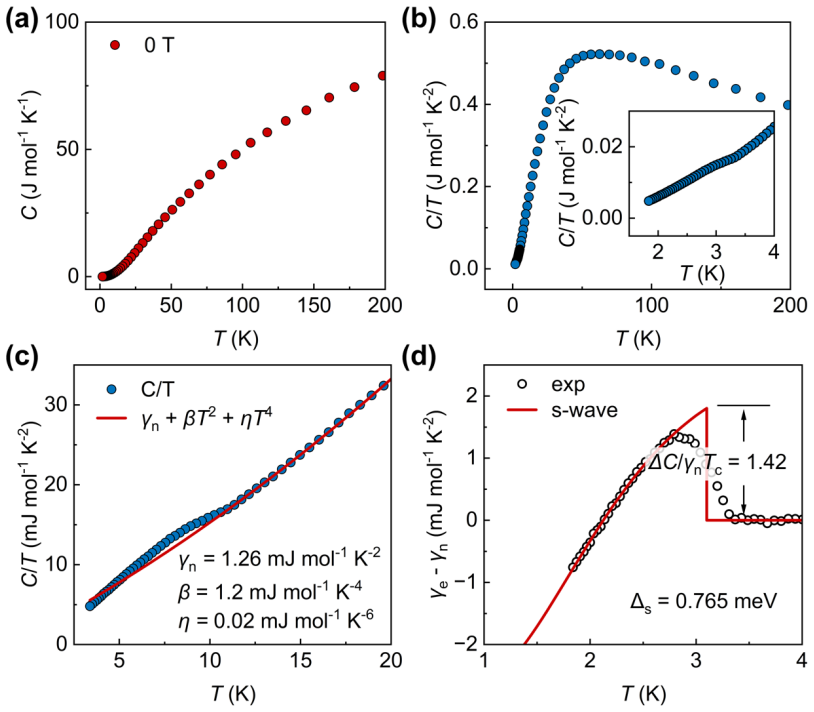

**Figure 5.** Figure 5: Specific heat of (BaS)1/3TaS2. (a) Raw data of C(T) for (BaS)1/3TaS2 single crystals at 0 T. (b) Temperature-dependent heat capacity data. The superconducting transition is demonstrated by the inset of low-temperature data. (c) The normal state fitting curve by using the formula C/T = γn + βT2 + ηT4 . The obtained parameters are γn = 1.26 mJ mol-1 K -2 , β = 1.2 mJ mol-1K -4 and η = 0.02 mJ mol-1K -6 . (d)… view at source ↗

**Figure 6.** Figure 6: Correlations between key parameters of TMD-based superconducting systems. (a) Tc versus Bc2∥ . Most TMD systems show a positive correlation between these two quantities. (b) Inter- [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗

read the original abstract

Two-dimensional (2D) transition metal dichalcogenides (TMDs) are promising platforms for low dimensional superconductivity. However, in conventional intercalated systems, achieving a high superconducting transition temperature (Tc) often comes at the expense of reduced interlayer spacing and weakened 2D character. Here, we overcome this long-standing compromise through a unique chain-like intercalation strategy. We report the synthesis and properties of a new polymorph, (BaS)1/3TaS2, in which a distinctive Ba-S-S-Ba chain structure is inserted between TaS2 bilayers. This unique configuration breaks the bulk c axis mirror symmetry while achieving exceptional interlayer decoupling, with an inter-bilayer spacing of 12.75 {\AA}-more than three times that of pristine 2H-TaS2. By suppressing interlayer electronic coupling, this structural evolution allows local inversion symmetry breaking within individual TaS2 layers to dominate. This prevents compensation of the Ising spin-orbit fields typical of centrosymmetric bulk phases, enabling robust 2D Ising superconductivity. Remarkably, the compound exhibits an enhanced Tc without sacrificing its large interlayer spacing, thereby breaking the conventional trade-off between large spacing/high anisotropy and high Tc. Comprehensive transport, magnetic, and thermodynamic measurements confirm its robust superconducting state. Our work establishes a versatile intercalation framework for designing bulk-like 2D Ising superconductors, providing a new route to reconcile competing material demands and expanding the scope of Ising superconductivity research.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

New chain-intercalated TaS2 polymorph gives giant spacing plus higher Tc, but the uncompensated Ising claim rests on geometry without shown anisotropy or band data.

read the letter

The main result is a new (BaS)1/3TaS2 polymorph made by inserting Ba-S-S-Ba chains between TaS2 bilayers. This produces 12.75 Å inter-bilayer spacing, more than triple the pristine value, while the reported Tc is higher than what is usual for such widely spaced intercalates. The synthesis and the structural identification of the chain motif are the genuinely new pieces; prior intercalated TMDs used different spacers that either kept layers closer or lowered Tc more sharply. They follow up with transport, magnetization, and specific-heat data that establish a bulk superconducting transition, which is the standard minimum for claiming a new superconductor. That part looks straightforward and reproducible in principle. The softer part is the central interpretation. The paper argues that the chain geometry and large spacing suppress kz dispersion enough for local inversion-symmetry breaking inside each TaS2 layer to produce a net Ising field instead of cancellation. The abstract and stress-test note give no DFT bands, no kz Fermi-velocity estimates, and no Hc2 anisotropy or Pauli-limit data to quantify the decoupling. Without those, the mechanism stays an inference from the crystal structure alone. If the full manuscript contains those measurements, the claim strengthens; if not, the Ising part is under-supported relative to the structural novelty. This is a materials-discovery paper aimed at the TMD superconductivity community. Readers working on intercalation routes or bulk realizations of 2D-like pairing will find the new polymorph and the spacing-Tc combination useful to know about, even if they treat the SOC mechanism as provisional. It is solid enough on the experimental side to merit peer review; referees can ask for the missing anisotropy or calculation data in revision.

Referee Report

2 major / 2 minor

Summary. The manuscript reports synthesis of the new polymorph (BaS)1/3TaS2 featuring distinctive Ba-S-S-Ba chain intercalation between TaS2 bilayers. This yields an inter-bilayer spacing of 12.75 Å (more than three times that of pristine 2H-TaS2), breaks bulk c-axis mirror symmetry, and is claimed to suppress interlayer electronic coupling so that local inversion symmetry breaking within each TaS2 layer produces uncompensated Ising spin-orbit fields. The result is asserted to be bulk 2D Ising superconductivity with enhanced Tc while preserving large spacing and high anisotropy, thereby breaking the conventional trade-off. The superconducting state is stated to be confirmed by comprehensive transport, magnetic, and thermodynamic measurements.

Significance. If the decoupling mechanism is verified, the work would be significant as it introduces a chain-intercalation strategy that reconciles high Tc with strong 2D character in a bulk crystal, expanding the design space for Ising superconductors beyond conventional intercalants. The approach could be generalizable and would provide a concrete materials example of geometry-controlled uncompensation of SOC fields.

major comments (2)

[Abstract and discussion of the Ising mechanism] Abstract and discussion of the Ising mechanism: the central assertion that the Ba-S-S-Ba chains 'sufficiently suppress interlayer electronic coupling' so that local ISB 'prevents compensation of the Ising spin-orbit fields' is load-bearing for the title claim and the 'breaking the trade-off' narrative, yet no band-structure calculations, kz Fermi-velocity estimates, or upper-critical-field anisotropy data (e.g., Hc2(θ) or Pauli-limit violation) are supplied to quantify the decoupling or demonstrate net Ising protection.
[Results section on superconductivity characterization] Results section on superconductivity characterization: while transport, magnetic, and thermodynamic data are said to confirm the superconducting state, the manuscript provides no quantitative comparison of Tc to pristine or conventionally intercalated TaS2, nor any evidence (such as angular magnetoresistance or specific-heat jump analysis) that the observed superconductivity is Ising-type rather than conventional.

minor comments (2)

[Abstract] Abstract: the numerical value of Tc and a brief quantitative comparison to other TaS2-based superconductors are omitted; adding these would strengthen the 'enhanced Tc' claim.
[Structural characterization] Notation: the inter-bilayer spacing is given as 12.75 Å but the corresponding c-axis lattice parameter and its relation to the bilayer thickness are not explicitly stated, which would aid structural clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. We address each major comment below and describe the revisions that will be incorporated.

read point-by-point responses

Referee: [Abstract and discussion of the Ising mechanism] Abstract and discussion of the Ising mechanism: the central assertion that the Ba-S-S-Ba chains 'sufficiently suppress interlayer electronic coupling' so that local ISB 'prevents compensation of the Ising spin-orbit fields' is load-bearing for the title claim and the 'breaking the trade-off' narrative, yet no band-structure calculations, kz Fermi-velocity estimates, or upper-critical-field anisotropy data (e.g., Hc2(θ) or Pauli-limit violation) are supplied to quantify the decoupling or demonstrate net Ising protection.

Authors: We agree that the current manuscript does not contain band-structure calculations, explicit kz Fermi-velocity estimates, or angular Hc2 data to directly quantify the interlayer decoupling. The structural results establish the 12.75 Å spacing and broken mirror symmetry, while transport measurements show high anisotropy, but these do not substitute for the requested electronic-structure analysis. In the revised manuscript we will add DFT calculations of the band dispersion along kz together with estimates of interlayer hopping and Fermi velocity, as well as new angular-dependent upper-critical-field measurements to demonstrate Pauli-limit violation consistent with net Ising protection. revision: yes
Referee: [Results section on superconductivity characterization] Results section on superconductivity characterization: while transport, magnetic, and thermodynamic data are said to confirm the superconducting state, the manuscript provides no quantitative comparison of Tc to pristine or conventionally intercalated TaS2, nor any evidence (such as angular magnetoresistance or specific-heat jump analysis) that the observed superconductivity is Ising-type rather than conventional.

Authors: We acknowledge that the manuscript lacks a direct side-by-side Tc comparison with pristine 2H-TaS2 and other intercalated phases, as well as explicit angular magnetoresistance or specific-heat-jump analysis to establish the Ising character. The reported Tc is stated to be enhanced relative to the large spacing, but this is not quantified against reference compounds. In the revision we will insert a comparative table of Tc values and add angular magnetoresistance data plus specific-heat analysis to confirm the 2D Ising nature through anisotropy and Pauli-limit violation. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental report with no derivation chain

full rationale

This is a materials synthesis and characterization paper reporting the preparation of (BaS)1/3TaS2, its crystal structure (including the 12.75 Å inter-bilayer spacing), and measured superconducting properties (Tc, transport, magnetic, and thermodynamic data). No equations, models, fitted parameters, or predictions appear in the abstract or described content. The mechanistic interpretation (chain intercalation suppressing interlayer coupling to enable net Ising SOC) is presented as a qualitative structural argument drawing on established TMD literature, not as a derivation that reduces to the paper's own inputs or self-citations by construction. The central claim of breaking the spacing-Tc trade-off is directly evidenced by the reported measurements rather than inferred from any internal loop. No load-bearing self-citations, ansatzes, or uniqueness theorems are invoked. The work is therefore self-contained as an experimental study.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on experimental synthesis and standard characterization techniques; no free parameters, ad-hoc axioms, or new postulated entities are introduced beyond the reported crystal structure.

axioms (1)

standard math Standard assumptions of crystal structure determination and superconductivity theory (e.g., interpretation of Tc and Ising spin-orbit coupling)
Invoked implicitly when linking measured properties to 2D Ising superconductivity.

pith-pipeline@v0.9.0 · 5628 in / 1138 out tokens · 33593 ms · 2026-05-11T01:35:44.583415+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/RealityFromDistinction.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

unique chain-like intercalation strategy... Ba-S-S-Ba chain structure... inter-bilayer spacing of 12.75 Å... prevents compensation of the Ising spin-orbit fields
IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Bc2∥(0) = 20.4 T... surpasses the weak-coupling Pauli limit... anisotropy of 34

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

2 extracted references · 2 canonical work pages

[1]

(1) Wan, P., Zheliuk, O., Yuan, N.F.Q. et al. Orbital Fulde–Ferrell–Larkin–Ovchinnikov state in an Ising superconductor. Nature 2023, 619, 46–51. (2) Zhang, H. X.; Rousuli, A.; Zhang, K.; Luo, L.; Guo, C.; Cong, X.; Lin, Z.; Bao, C.; Zhang, H.; Xu, S.; Feng, R.; Shen, S.; Zhao, K.; Yao, W.; Wu, Y.; Ji, S.; Chen, X.; Tan, P.; Xue, Q. -K

work page 2023
[2]

Tailored Ising superconductivity in intercalated bulk NbSe2

Xu, Y.; Duan, W.; Yu, P.; Zhou, S. Tailored Ising superconductivity in intercalated bulk NbSe2. Nat. Phys. 2022, 18, 1425

work page 2022
