arxiv: 2605.07662 · v1 · submitted 2026-05-08 · 💻 cs.LG · cs.NA· math.NA

Direction-Preserving Number Representations

Bardia Zadeh , George A. Constantinides This is my paper

Pith reviewed 2026-05-11 02:16 UTC · model grok-4.3

classification 💻 cs.LG cs.NAmath.NA

keywords low-precision arithmeticdirectional coverageproduct codesspherical codesnumber formatsmachine learningfloating-pointvector representation

0 comments p. Extension

The pith

Standard low-precision number formats are suboptimal for preserving vector directions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces a geometric framework to assess how well product-structured codes preserve vector directions when every scalar component is selected from one shared finite alphabet. It proves analytically that these codes fall short of ideal spherical codes, which pick the best direction for the full vector, and quantifies the gap in both small and large dimensions. Within the product class the paper further shows that two's complement, fixed-point, and floating-point representations are themselves suboptimal, again with a measurable gap. Optimized alphabets are derived for several block sizes, including the four-bit dimension used in NVIDIA's NVFP4 format, where the E2M1 choice is shown to lie close to the optimum.

Core claim

A geometric framework is introduced for analyzing the directional coverage of such product-structured codes. This work analytically quantifies the suboptimality gap between such product-structured codes and spherical codes for the vector as a whole, in both low and asymptotically high dimensions. Furthermore, within the product code class, it is proven that the standard formats of two's complement, fixed-point, and floating-point are suboptimal, again with quantified gap, pointing to the potential to develop new scalar number formats.

What carries the argument

The geometric directional-coverage metric for product-structured codes, in which every vector element is drawn from the same finite scalar alphabet, compared against full spherical codes.

Load-bearing premise

That the geometric directional coverage metric accurately predicts performance gains in actual machine-learning workloads, which may also depend on magnitude preservation and the specific arithmetic operations used.

What would settle it

Train or evaluate a neural-network model on a standard benchmark while swapping a conventional low-precision format for one of the paper's optimized alphabets and measure whether accuracy rises in proportion to the reported directional-coverage improvement.

Figures

Figures reproduced from arXiv: 2605.07662 by Bardia Zadeh, George A. Constantinides.

**Figure 2.** Figure 2: Sampled worst-case angular error with increasing [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗

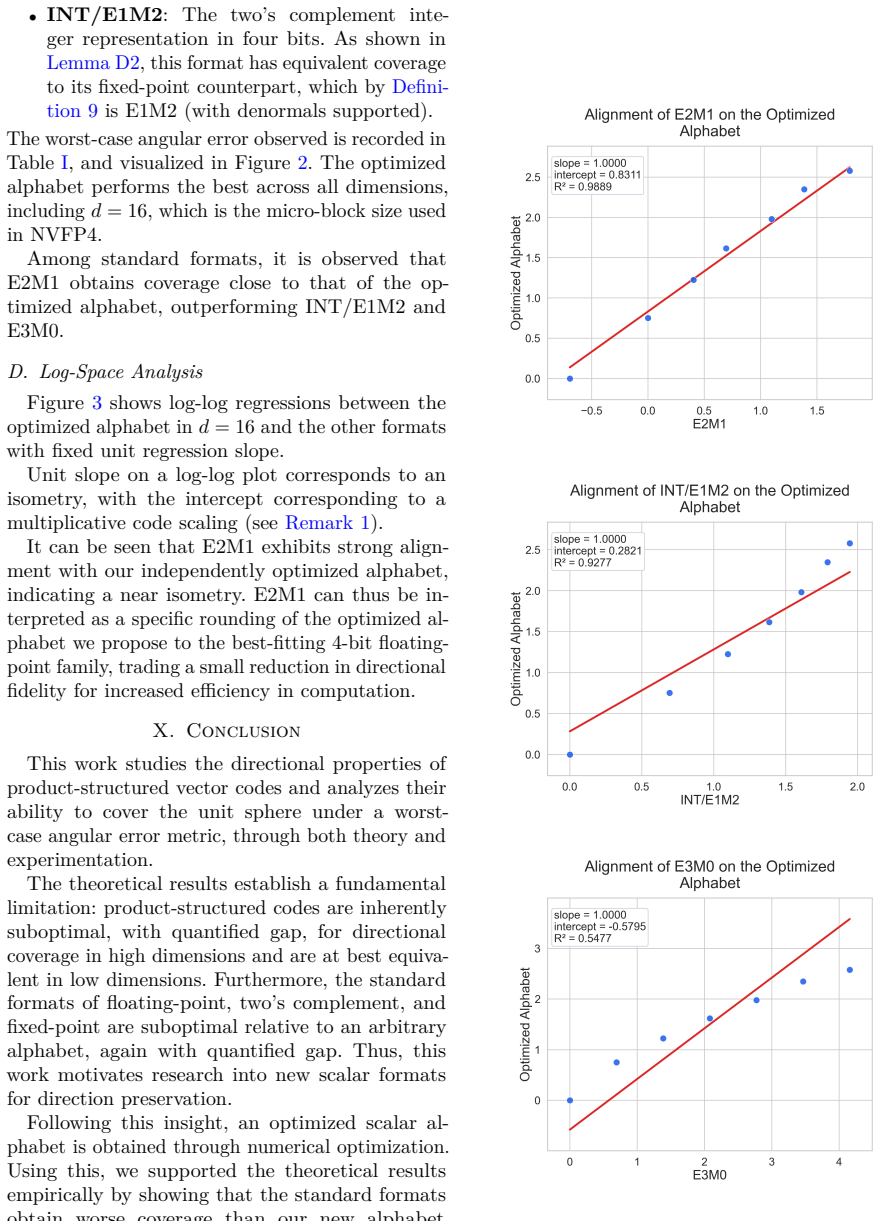

**Figure 3.** Figure 3: Log-log regressions of various alphabets versus our [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

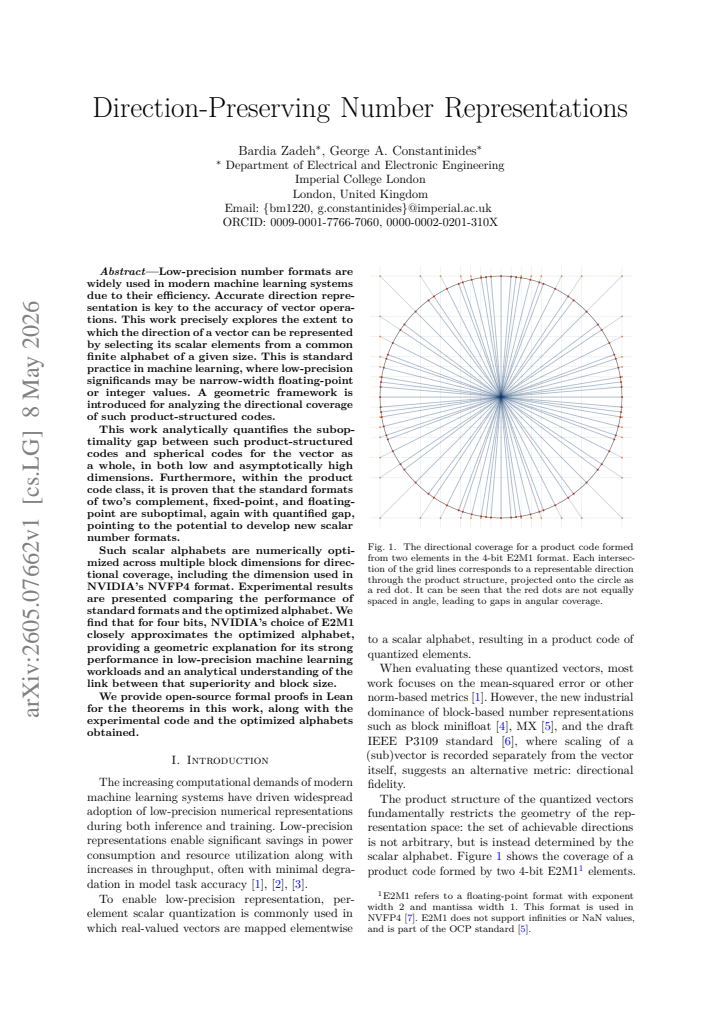

read the original abstract

Low-precision number formats are widely used in modern machine learning systems due to their efficiency. Accurate direction representation is key to the accuracy of vector operations. This work precisely explores the extent to which the direction of a vector can be represented by selecting its scalar elements from a common finite alphabet of a given size. This is standard practice in machine learning, where low-precision significands may be narrow-width floating-point or integer values. A geometric framework is introduced for analyzing the directional coverage of such product-structured codes. This work analytically quantifies the suboptimality gap between such product-structured codes and spherical codes for the vector as a whole, in both low and asymptotically high dimensions. Furthermore, within the product code class, it is proven that the standard formats of two's complement, fixed-point, and floating-point are suboptimal, again with quantified gap, pointing to the potential to develop new scalar number formats. Such scalar alphabets are numerically optimized across multiple block dimensions for directional coverage, including the dimension used in NVIDIA's NVFP4 format. Experimental results are presented comparing the performance of standard formats and the optimized alphabet. We find that for four bits, NVIDIA's choice of E2M1 closely approximates the optimized alphabet, providing a geometric explanation for its strong performance in low-precision machine learning workloads and an analytical understanding of the link between that superiority and block size. We provide open-source formal proofs in Lean for the theorems in this work, along with the experimental code and the optimized alphabets obtained.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper proves standard low-precision formats are suboptimal for vector directions under a geometric coverage metric, with Lean proofs and optimized alphabets as the main deliverables.

read the letter

The main point is that product codes using a shared finite alphabet for vector components have a measurable gap to the best directional coverage possible, and the usual formats sit inside that gap. The authors set up a geometric framework around directional coverage, prove analytically that two's complement, fixed-point, and floating-point are suboptimal within the product class, and quantify the gaps to spherical codes in low and high dimensions. They back the suboptimality theorems with Lean formal proofs. They also run numerical optimizations to find better alphabets for various block sizes, including the dimension for NVIDIA's NVFP4, and show that E2M1 is nearly optimal for four bits. The formal proofs and open code are the strongest parts. They make the claims checkable and reproducible, which is rare in this area. The experiments give direct comparisons that explain why some existing formats work well. The softer spot is the connection to downstream ML performance. Directional coverage is optimized and compared on its own terms, with workload accuracy treated as supporting motivation rather than a core result. That keeps the claims tight but means hardware designers will still need to test the new alphabets in practice. This is useful for anyone working on low-precision arithmetic for machine learning hardware or custom number formats. Readers who care about geometric analysis of codes or formal verification of numerical properties will get the most out of it. The work has enough substance and verification to go to peer review. I would send it for review. The core geometric and proof contributions stand on their own.

Referee Report

1 major / 3 minor

Summary. The paper introduces a geometric framework for directional coverage of product-structured codes, where each vector component is drawn from a shared finite alphabet. It analytically quantifies the gap between these codes and optimal spherical codes in low and high dimensions, proves that two's complement, fixed-point, and floating-point alphabets are strictly suboptimal within the product class (with quantified gaps), numerically optimizes alphabets for several block dimensions (including that of NVIDIA's E2M1), and provides supporting experiments plus machine-checked Lean proofs.

Significance. If the directional-coverage metric is predictive of ML workload accuracy, the results could guide design of improved low-precision formats. The machine-checked Lean proofs, open experimental code, and optimized alphabets are clear strengths that enhance verifiability. The geometric explanation for E2M1's performance is a useful contribution to understanding existing formats.

major comments (1)

[§4.2, Theorem 3] §4.2, Theorem 3: the suboptimality claim for floating-point alphabets is proven only inside the fixed shared-alphabet product class; the quantified gap may change if the more general class of per-dimension alphabets is considered, which is common in mixed-precision practice.

minor comments (3)

[Figure 4] Figure 4: the error bars on the directional-coverage plots are difficult to distinguish; adding a table of numerical values would improve readability.
[§5.4] §5.4: the high-dimensional asymptotic result is stated clearly, but a short remark on the dimension at which the gap approaches its limit would help readers assess practical relevance.
[§6] The experimental section compares only to a subset of standard formats; including bfloat16 or other common low-precision baselines would make the performance claims more comprehensive.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for highlighting the scope of Theorem 3. We address the comment below and have incorporated a clarification in the revised version.

read point-by-point responses

Referee: [§4.2, Theorem 3] §4.2, Theorem 3: the suboptimality claim for floating-point alphabets is proven only inside the fixed shared-alphabet product class; the quantified gap may change if the more general class of per-dimension alphabets is considered, which is common in mixed-precision practice.

Authors: We agree that Theorem 3 establishes the suboptimality of standard formats (including floating-point alphabets) strictly within the shared-alphabet product-structured code class defined in the paper. This class models the common hardware practice of applying a single low-precision format uniformly across vector dimensions. The quantified gaps are therefore specific to this setting. Allowing independent alphabets per dimension would indeed define a broader class, potentially altering the gaps, but such per-component optimization is not the focus of the current work and would require a substantially different analysis. We have added a clarifying sentence in §4.2 to make the scope of the theorem explicit and to note that extensions to per-dimension alphabets remain future work. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's core results consist of a geometric definition of directional coverage for product-structured codes, analytic quantification of the gap to spherical codes in low and high dimensions, and formal Lean proofs establishing strict suboptimality of standard formats (two's complement, fixed-point, floating-point) within the product-code class. These theorems operate internally on the defined metric and are machine-checked, with open experimental code for numerical optimization of alphabets and external benchmarking against spherical codes. The connection to ML workload performance is presented only as empirical motivation and observation, not as a premise or fitted input for the proofs. No load-bearing step reduces by construction to a self-citation, fitted parameter renamed as prediction, or ansatz smuggled via prior work; the derivation chain is self-contained against the stated geometric definitions and external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The claims rest on the product-structured code model as standard practice and the use of spherical codes as an optimality benchmark, with numerical optimization introducing fitted alphabet values; no new physical entities are postulated.

free parameters (1)

optimized scalar alphabet values = numerically optimized per block dimension
The alphabets are obtained via numerical optimization to maximize directional coverage for given dimensions.

axioms (2)

domain assumption Vector direction is represented via product of scalar elements chosen independently from a finite alphabet
This matches the standard practice in low-precision ML as described in the abstract.
domain assumption Spherical codes provide the optimal directional coverage benchmark for comparison
Used to quantify the suboptimality gap of product codes in the analysis.

pith-pipeline@v0.9.0 · 5568 in / 1607 out tokens · 76474 ms · 2026-05-11T02:16:31.583019+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Foundation/RealityFromDistinction.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Theorem 2 (Sign-count bound). ... Fn(A) ≥ arccos(min{1, 2√m(A)/Hn})

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
