arxiv: 2605.08172 · v1 · submitted 2026-05-04 · 💻 cs.CV · cs.LG

Recognition: no theorem link

Augmented Equivariant Mesh Networks for Anatomical Segmentation

Daniel Saragih

Authors on Pith no claims yet

Pith reviewed 2026-05-12 01:21 UTC · model grok-4.3

classification 💻 cs.CV cs.LG

keywords mesh segmentationequivariant networksanatomical segmentationmedical imagingrotation robustnessPCA-derived frameslightweight modelssurface geometry

0 comments

The pith

A lightweight equivariant mesh network delivers robust anatomical segmentation across poses and supervision types without task-specific designs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces EAMS to segment irregular anatomical surface meshes that must remain accurate despite arbitrary patient poses and varying resolutions. It extends equivariant mesh neural networks by adding intrinsic descriptors, PCA-derived frames for specific structures like dental arches, and augmented message passing for global context. The goal is competitive performance on aligned inputs paired with stability when inputs are rotated or perturbed, all inside a model under two million parameters. Tests span intracranial aneurysm, intraoral, and liver tasks using edge, vertex, or face supervision. A reader would care because real medical scans rarely arrive in perfect alignment and existing non-equivariant methods lose substantial accuracy under tilt.

Core claim

EAMS, an Equivariant Anatomical Mesh Segmentor built on Equivariant Mesh Neural Networks (EMNN), combines intrinsic mesh descriptors with anatomy-aware priors including PCA-derived frames and augments message passing for lightweight global context. Across intracranial aneurysm and intraoral segmentation, EAMS variants match specialized baselines on unperturbed inputs while remaining stable under geometric perturbations; on liver surfaces the approach shows a favorable trade-off between canonical-pose accuracy and rotation robustness. These results establish that a lightweight framework under two million parameters can handle robust anatomical mesh segmentation across diverse supervision with

What carries the argument

Equivariant Mesh Neural Networks (EMNN) augmented with intrinsic descriptors, PCA-derived frames, and message passing that supplies global context while preserving equivariance.

If this is right

Maintains competitive IoU on unperturbed aneurysm and intraoral data while avoiding the 25-26 point drops observed in baselines at 40-degree tilt.
Applies uniformly to edge-, vertex-, and face-level supervision without architecture changes.
Exposes a usable accuracy-versus-rotation-robustness trade-off on liver surface segmentation.
Operates with fewer than 2 million parameters across all evaluated clinical tasks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same combination of intrinsic descriptors and PCA frames could be tested on other irregular 3D medical surfaces such as vessel trees or bone fragments.
Eliminating the need for explicit pose normalization during preprocessing could simplify clinical pipelines.
The observed stability under perturbation suggests the framework may reduce reliance on heavy data augmentation during training.

Load-bearing premise

Combining intrinsic descriptors, PCA-derived frames, and augmented message passing preserves full equivariance and global context without accuracy loss on canonical-pose inputs.

What would settle it

A controlled test in which EAMS accuracy on 40-degree-tilted intraoral meshes drops by more than 10 IoU points, matching the degradation seen in non-equivariant baselines.

Figures

Figures reproduced from arXiv: 2605.08172 by Daniel Saragih.

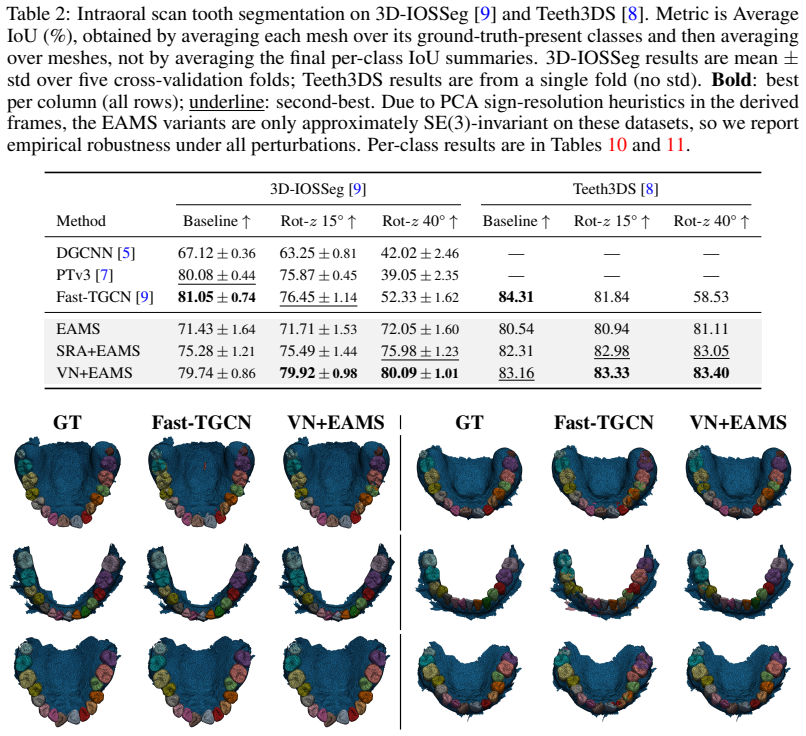

**Figure 2.** Figure 2: Qualitative tooth-segmentation comparisons, with the left half showing the canonical [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗

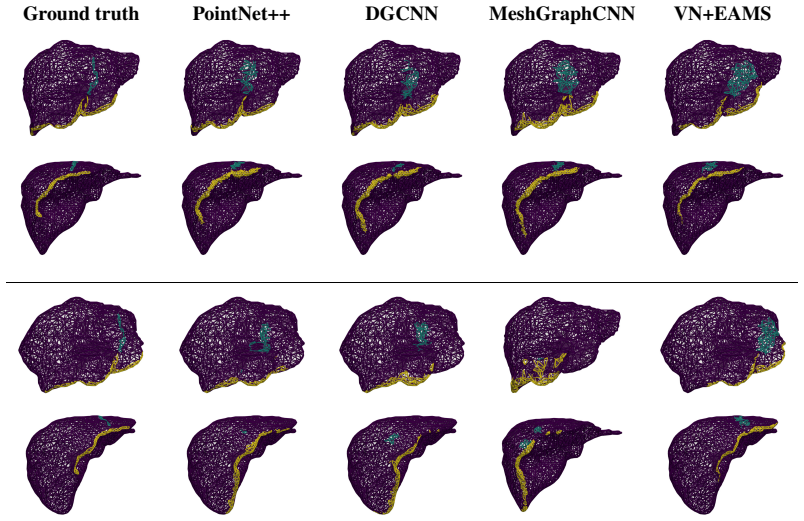

**Figure 3.** Figure 3: Qualitative liver-surface comparisons on two representative meshes, with the top half in the [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

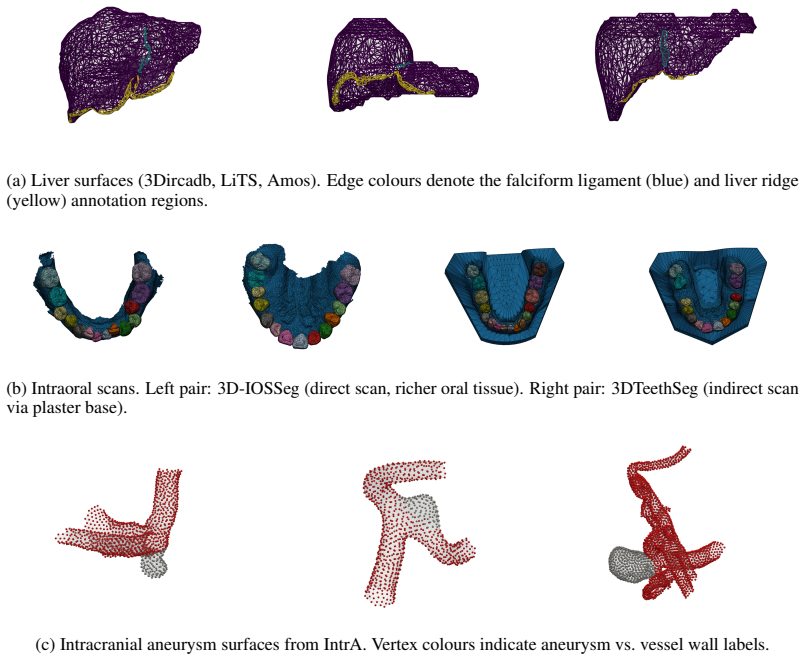

**Figure 4.** Figure 4: Representative ground-truth segmentations from the three benchmark datasets used in our [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗

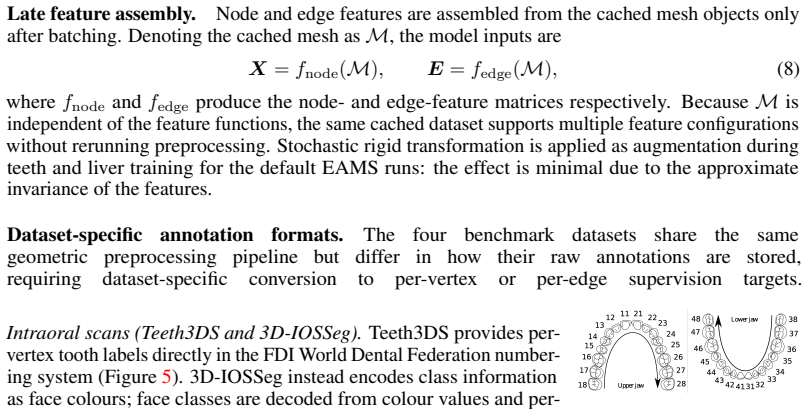

**Figure 5.** Figure 5: FDI World Dental Federation numbering system for tooth labelling, adapted from [8] under CC BY-SA 4.0. Intraoral scans (Teeth3DS and 3D-IOSSeg). Teeth3DS provides pervertex tooth labels directly in the FDI World Dental Federation numbering system ( [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗

**Figure 6.** Figure 6: Additional qualitative IntrA comparison for the invariant mesh variants on the same cases [PITH_FULL_IMAGE:figures/full_fig_p018_6.png] view at source ↗

**Figure 7.** Figure 7: Additional qualitative liver comparison for the EAMS-family methods on two representative [PITH_FULL_IMAGE:figures/full_fig_p019_7.png] view at source ↗

read the original abstract

Anatomical mesh segmentation requires models that operate directly on irregular surface geometry while remaining robust to arbitrary patient pose and mesh resolution variation. Existing task-specific mesh and point-cloud methods are not equivariant, and can degrade sharply under test-time perturbation, for example dropping by 25-26 IoU points on intraoral scan segmentation at $40^\circ$ tilt. We present EAMS, an Equivariant Anatomical Mesh Segmentor built on Equivariant Mesh Neural Networks (EMNN), and evaluate it across four clinically distinct tasks spanning edge-, vertex-, and face-level supervision. We combine intrinsic mesh descriptors with anatomy-aware priors, including PCA-derived frames for dental arches and liver surfaces, and augment message passing to provide lightweight global context. Across intracranial aneurysm and intraoral segmentation, EAMS variants are competitive with specialized baselines on unperturbed inputs while remaining stable under geometric perturbations, and on liver surfaces they expose a favorable trade-off between canonical-pose accuracy and rotation robustness. These results show that a lightweight ($<2$M parameters) equivariant framework can deliver robust anatomical mesh segmentation across diverse supervision types without task-specific architectures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

EAMS adds PCA-derived anatomy frames and global message passing to equivariant mesh networks for rotation-robust segmentation across supervision types, but the abstract withholds the numbers needed to judge whether the gains are real.

read the letter

The paper's main contribution is a concrete way to make equivariant mesh networks more useful for anatomical data by injecting PCA-derived local frames for structures like dental arches and livers, plus a tweak to message passing that brings in lightweight global context. This single architecture under 2M parameters is tested on edge, vertex, and face supervision for tasks including intracranial aneurysms and intraoral scans, and it reportedly holds steady under 40-degree tilts where ordinary mesh methods lose 25-26 IoU points while staying competitive on clean inputs. On liver surfaces it shows a usable accuracy-robustness trade-off. That combination of priors is the actual new piece; prior EMNN work is cited as the base, and the additions are framed as anatomy-aware without breaking equivariance. If the full experiments include proper ablations and multiple datasets, this could be a practical option for clinical mesh pipelines where pose and resolution vary. The construction itself looks internally consistent: the PCA frames and augmented passing are described as preserving the equivariant property, and the reported behavior matches that premise without obvious self-contradiction. The soft spots are the missing details. The abstract supplies no dataset sizes, no error bars, no exact baseline scores, and no ablation tables, so it is impossible to tell how large the robustness improvement actually is or whether the additions cost anything on canonical poses. The methods section presumably spells out the equivariance proof and the exact augmentation, but without those numbers the central claim stays hard to evaluate. This is for people working on medical mesh segmentation who already know equivariant networks and want a drop-in way to handle real-world orientation changes. A reader in that niche would get a clear recipe and some empirical hints, even if they have to wait for the full tables. I would send it to peer review; the direction is worth referee time and the architecture choices are specific enough to critique constructively.

Referee Report

0 major / 4 minor

Summary. The manuscript introduces EAMS, an Equivariant Anatomical Mesh Segmentor built on Equivariant Mesh Neural Networks (EMNN). It augments the base architecture with intrinsic mesh descriptors, PCA-derived local frames for anatomy-specific structures (e.g., dental arches, liver surfaces), and modified message passing to inject lightweight global context while preserving equivariance. The model is tested across four tasks with edge-, vertex-, and face-level supervision (intracranial aneurysm, intraoral scans, liver surfaces), claiming competitive accuracy versus task-specific baselines on unperturbed inputs together with stability under 40° geometric perturbations, all within a <2 M parameter budget.

Significance. If the quantitative results and ablations hold, the work offers a practical advance for clinical mesh segmentation by demonstrating that a single lightweight equivariant architecture can handle diverse supervision types and pose variation without per-task redesign. The emphasis on intrinsic descriptors plus anatomy-aware priors that remain equivariant addresses a real deployment pain point in medical imaging where patient pose is uncontrolled.

minor comments (4)

Abstract: the claims of 'competitive' performance and 'stable' behavior under tilt would be stronger if the abstract itself reported the key IoU/Dice deltas versus baselines and the exact perturbation protocol rather than leaving all numbers to the body.
[Methods] The description of how PCA frames are computed and aligned with the mesh should include a short verification that the resulting local coordinate system is equivariant under the group actions considered (rotations, reflections).
[Experiments] Experiments: include at least one ablation that isolates the contribution of the augmented message-passing module versus the PCA frames alone, with the same random seeds and data splits, to substantiate the claim that both components are necessary for the reported robustness-accuracy trade-off.
Table captions and axis labels should explicitly state the number of test meshes, the range of mesh resolutions, and whether the reported metrics are mean ± std over multiple runs or folds.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary of the EAMS framework, its significance for clinical mesh segmentation under pose variation, and the recommendation of minor revision. No specific major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity in claimed derivation

full rationale

The paper presents EAMS as an empirical architecture extending EMNN via intrinsic descriptors, PCA-derived frames, and augmented message passing. All central claims rest on experimental comparisons (accuracy under canonical pose and 40° perturbations across supervision types) rather than any first-principles derivation, fitted parameter renamed as prediction, or self-referential definition. Equivariance is inherited from the cited base model and asserted to be preserved by the additions; no equation or result is shown to reduce to its own inputs by construction. Self-citations, if present for EMNN, are not load-bearing for the reported performance numbers.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no explicit free parameters, axioms, or invented entities are detailed beyond the high-level mention of PCA-derived frames treated as anatomy-aware priors.
