Recognition: no theorem link

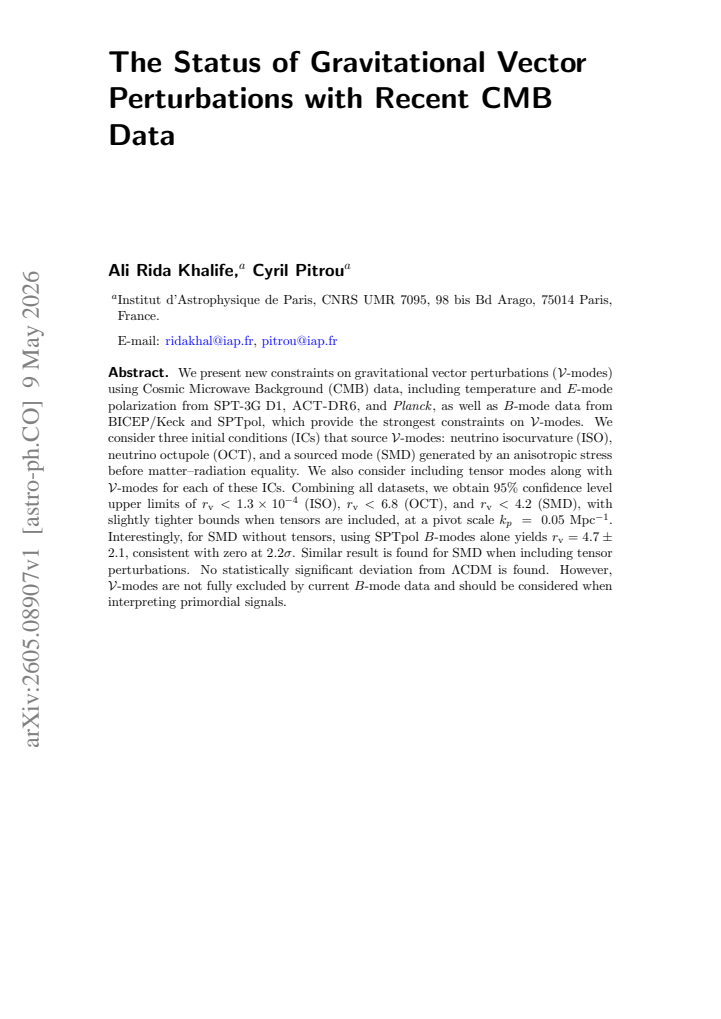

The Status of Gravitational Vector Perturbations with Recent CMB Data
Pith reviewed 2026-05-12 02:11 UTC · model grok-4.3
The pith
Recent CMB data place upper limits as tight as 1.3×10^{-4} on gravitational vector perturbations.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that combining data from SPT-3G, ACT-DR6, Planck, BICEP/Keck, and SPTpol gives 95% CL upper limits r_v < 1.3×10^{-4} (ISO), r_v < 6.8 (OCT), and r_v < 4.2 (SMD) at k_p = 0.05 Mpc^{-1}, with slightly tighter bounds when tensors are added. For the SMD case without tensors, SPTpol B-modes alone give r_v = 4.7 ± 2.1 at 2.2 sigma, but overall the data are consistent with no vector modes. The paper concludes that vector modes are not fully excluded by current B-mode data and must be kept in mind when interpreting primordial signals.
What carries the argument
The vector-to-scalar ratio r_v at the pivot scale, computed for three initial conditions (neutrino isocurvature ISO, neutrino octupole OCT, and sourced mode SMD from pre-equality anisotropic stress), and constrained by their predicted contributions to CMB power spectra.
Load-bearing premise
The analysis assumes the three initial conditions cover the relevant generation mechanisms for vector modes and that B-mode data systematics do not produce false vector signals.
What would settle it
Observation of B-mode polarization power spectra exceeding the levels implied by r_v = 1.3×10^{-4} for isocurvature initial conditions at greater than 3 sigma would falsify the current constraints.
read the original abstract
We present new constraints on gravitational vector perturbations ($\mathcal{V}$-modes) using Cosmic Microwave Background (CMB) data, including temperature and $E$-mode polarization from SPT-3G D1, ACT-DR6, and $Planck$, as well as $B$-mode data from BICEP/Keck and SPTpol, which provide the strongest constraints on $\mathcal{V}$-modes. We consider three initial conditions (ICs) that source $\mathcal{V}$-modes: neutrino isocurvature (ISO), neutrino octupole (OCT), and a sourced mode (SMD) generated by an anisotropic stress before matter-radiation equality. We also consider including tensor modes along with $\mathcal{V}$-modes for each of these ICs. Combining all datasets, we obtain 95\% confidence level upper limits of $r_\mathrm{v} < 1.3\times10^{-4}$ (ISO), $r_\mathrm{v} < 6.8$ (OCT), and $r_\mathrm{v} < 4.2$ (SMD), with slightly tighter bounds when tensors are included, at a pivot scale $k_p\ =\ 0.05$ Mpc$^{-1}$. Interestingly, for SMD without tensors, using SPTpol $B$-modes alone yields $r_\mathrm{v} = 4.7 \pm 2.1$, consistent with zero at $2.2\sigma$. Similar result is found for SMD when including tensor perturbations. No statistically significant deviation from $\Lambda$CDM is found. However, $\mathcal{V}$-modes are not fully excluded by current $B$-mode data and should be considered when interpreting primordial signals.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper reports new constraints on gravitational vector perturbations (V-modes) using CMB temperature and E-mode data from SPT-3G D1, ACT-DR6, and Planck, together with B-mode data from BICEP/Keck and SPTpol. Three initial conditions are considered for sourcing V-modes: neutrino isocurvature (ISO), neutrino octupole (OCT), and a sourced anisotropic-stress mode (SMD). Combining all datasets yields 95% CL upper limits r_v < 1.3×10^{-4} (ISO), r_v < 6.8 (OCT), and r_v < 4.2 (SMD) at the pivot scale k_p = 0.05 Mpc^{-1}, with modestly tighter bounds when tensor modes are included simultaneously. A marginal 2.2σ preference for non-zero r_v appears in the SMD case from SPTpol B-modes alone (r_v = 4.7 ± 2.1), but the combined analysis finds no statistically significant deviation from ΛCDM. The authors conclude that V-modes remain relevant for interpreting future primordial B-mode signals.
Significance. If the analysis holds, the work supplies updated, observationally grounded bounds on vector-mode amplitudes that can be used to test early-universe scenarios involving neutrino isocurvature or pre-equality anisotropic stress. The tight ISO limit is especially useful, and the joint treatment of vectors plus tensors adds value. The marginal SPTpol hint illustrates the sensitivity of current B-mode data and the need for continued scrutiny of systematics. The paper thereby contributes a concrete reference point for model-building and data-interpretation pipelines that must now account for possible vector contributions.
major comments (2)
- [Abstract] Abstract: The reported 95% CL limits rest on the premise that the three chosen initial conditions (ISO, OCT, SMD) exhaust the relevant linear vector-mode sources at k_p = 0.05 Mpc^{-1}. The manuscript provides no derivation or reference demonstrating that other possible sources (e.g., vector fields, modified gravity, or higher-order stress tensors) are either absent or sub-dominant; this assumption is load-bearing for the generality of the quoted bounds.
- [Abstract] Abstract: For the SMD case the SPTpol-only posterior yields r_v = 4.7 ± 2.1 (2.2σ). Because vector modes source B-modes directly, any unmodeled leakage or foreground residual at the few-μK level can shift the posterior by O(1). The paper does not quantify how the combined limits change under alternative SPTpol systematic templates or data splits, leaving open the possibility that the marginal hint is spurious.
minor comments (2)
- [Abstract] The abstract states that bounds become 'slightly tighter' when tensors are included but does not specify whether this holds for all three ICs or only a subset; a one-sentence clarification would improve readability.
- [Abstract] The pivot scale k_p = 0.05 Mpc^{-1} is given without explicit motivation relative to the conventional scalar pivot; a brief parenthetical note would aid readers.
Simulated Author's Rebuttal
We thank the referee for their careful reading and constructive comments. We address each major comment below, providing clarifications on the scope of our analysis and noting revisions made to improve the manuscript. The work focuses on specific, representative initial conditions for vector modes, and the combined dataset shows no significant detection.
read point-by-point responses
-
Referee: [Abstract] Abstract: The reported 95% CL limits rest on the premise that the three chosen initial conditions (ISO, OCT, SMD) exhaust the relevant linear vector-mode sources at k_p = 0.05 Mpc^{-1}. The manuscript provides no derivation or reference demonstrating that other possible sources (e.g., vector fields, modified gravity, or higher-order stress tensors) are either absent or sub-dominant; this assumption is load-bearing for the generality of the quoted bounds.
Authors: We agree that the bounds are derived specifically for the three initial conditions (ISO, OCT, SMD) considered in the analysis. These were selected as they represent standard, physically motivated sources of vector perturbations discussed in the existing literature on neutrino isocurvature and pre-equality anisotropic stress. We do not claim or demonstrate that these exhaust all possible linear vector-mode sources, such as those arising from vector fields or modified gravity. The quoted 95% CL limits therefore apply to the models we have analyzed. To clarify the scope, we have revised the abstract to state that the constraints are for the considered initial conditions and have added references to prior vector-mode studies in the introduction. This constitutes a partial revision, as the core results and methodology are unchanged. revision: partial
-
Referee: [Abstract] Abstract: For the SMD case the SPTpol-only posterior yields r_v = 4.7 ± 2.1 (2.2σ). Because vector modes source B-modes directly, any unmodeled leakage or foreground residual at the few-μK level can shift the posterior by O(1). The paper does not quantify how the combined limits change under alternative SPTpol systematic templates or data splits, leaving open the possibility that the marginal hint is spurious.
Authors: We acknowledge that the marginal 2.2σ preference for non-zero r_v in the SPTpol-only SMD analysis could be influenced by unmodeled systematics, given the direct sourcing of B-modes by vector modes. The manuscript already reports that this preference is not statistically significant in the full combined dataset (which includes SPT-3G, ACT-DR6, Planck, and BICEP/Keck), yielding no deviation from ΛCDM. However, we did not perform additional runs with alternative SPTpol systematic templates or data splits. We have added a discussion in the results section noting this limitation and the need for caution in interpreting marginal signals from individual datasets. The combined constraints remain the primary result. revision: partial
- Quantification of how the combined limits change under alternative SPTpol systematic templates or data splits for the SMD case.
Circularity Check
No significant circularity in data-driven constraints
full rationale
The paper reports 95% CL upper limits on the vector-mode amplitude r_v by performing standard likelihood fits of three specified initial conditions (ISO, OCT, SMD) to external CMB temperature, E-mode, and B-mode datasets. These limits are direct observational posteriors; r_v is a free amplitude parameter whose posterior is not forced to equal any input by construction. The derivation chain consists of standard Boltzmann evolution plus likelihood evaluation against independent maps, with no self-definitional reparameterization, fitted-input-as-prediction, or load-bearing self-citation chain that reduces the central result to the paper's own inputs. The analysis is therefore self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
free parameters (1)
- r_v
axioms (1)
- domain assumption Standard LambdaCDM expansion history and linear perturbation theory remain valid when vector modes are added.
Forward citations
Cited by 1 Pith paper
-
Revisiting constraints on primordial vector modes and implications for sourced magnetic fields and observed $EB$ power spectrum
Updated constraints on neutrino-sustained primordial vector modes imply magnetic fields too weak to seed observations and cannot reproduce the EB power spectrum while satisfying parity-even limits.
Reference graph
Works this paper leans on
-
[1]
Patrick Peter and Jean-Philippe Uzan, Primordial Cosmology. Oxford Graduate Texts. Oxford University Press, 2, 2013
work page 2013
-
[2]
Scott Dodelson and Fabian Schmidt, Modern Cosmology, 2nd edition . Academic Press, April, 2020
work page 2020
-
[3]
Bardeen, Gauge Invariant Cosmological Perturbations , Phys
James M. Bardeen, Gauge Invariant Cosmological Perturbations , Phys. Rev. D 22 (1980) 1882–1905
work page 1980
-
[4]
Hideo Kodama and Misao Sasaki, Cosmological Perturbation Theory, Prog. Theor. Phys. Suppl. 78 (1984) 1–166
work page 1984
-
[5]
Viatcheslav F. Mukhanov, H. A. Feldman, and Robert H. Brandenberger, Theory of cosmological perturbations. Part 1. Classical perturbations. Part 2. Quantum theory of perturbations. Part 3. Extensions , Phys. Rept. 215 (1992) 203–333
work page 1992
-
[6]
White, CMB anisotropies: Total angular momentum method , Phys
Wayne Hu and Martin J. White, CMB anisotropies: Total angular momentum method , Phys. Rev. D 56 (1997) 596–615, [ astro-ph/9702170]
-
[7]
Cyril Pitrou and Thiago S. Pereira, Beyond scalar, vector and tensor harmonics in maximally symmetric three-dimensional spaces , Phys. Rev. D 100 (2019), no. 12 123535, [arXiv:1909.13687]
- [8]
-
[9]
Wayne Hu, Weak lensing of the CMB: A harmonic approach , Phys. Rev. D 62 (2000) 043007, [astro-ph/0001303]
work page Pith review arXiv 2000
-
[10]
Battefeld and Robert Brandenberger, Vector perturbations in a contracting universe, Phys
Thorsten J. Battefeld and Robert Brandenberger, Vector perturbations in a contracting universe, Phys. Rev. D 70 (2004) 121302, [ hep-th/0406180]
work page internal anchor Pith review arXiv 2004
- [11]
- [12]
- [13]
-
[14]
The full contribution of a stochastic background of magnetic fields to CMB anisotropies
D. Paoletti, F. Finelli, and F. Paci, The scalar, vector and tensor contributions of a stochastic background of magnetic fields to cosmic microwave background anisotropies , MNRAS 396 (June, 2009) 523–534, [ arXiv:0811.0230]
work page Pith review arXiv 2009
-
[15]
Yamazaki, Kiyotomo Ichiki, Toshitaka Kajino, and Grant J
Dai G. Yamazaki, Kiyotomo Ichiki, Toshitaka Kajino, and Grant J. Mathews, Effects of a Primordial Magnetic Field on Low and High Multipoles of the CMB , Phys. Rev. D 77 (2008) 043005, [ arXiv:0801.2572]
- [16]
- [17]
-
[18]
Tina Kahniashvili and Bharat Ratra, Effects of Cosmological Magnetic Helicity on the Cosmic Microwave Background, Phys. Rev. D 71 (2005) 103006, [ astro-ph/0503709]. – 13 –
work page Pith review arXiv 2005
-
[19]
D. Paoletti, J. Chluba, F. Finelli, and J. A. Rubi˜ no Martin, Constraints on Primordial Magnetic Fields from their impact on the ionization history with Planck 2018 , arXiv:2204.06302
- [20]
- [21]
- [22]
- [23]
-
[24]
SPT-3G Collaboration, E. Camphuis et al., SPT-3G D1: CMB temperature and polarization power spectra and cosmology from 2019 and 2020 observations of the SPT-3G Main field, arXiv:2506.20707
work page internal anchor Pith review arXiv 2019
-
[25]
SPT-3G Collaboration, W. Quan et al., SPT-3G D1: Maps of the millimeter-wave sky from 2019 and 2020 observations of the SPT-3G Main field , arXiv:2603.20163
-
[26]
ACT Collaboration, Thibaut Louis et al., The Atacama Cosmology Telescope: DR6 Power Spectra, Likelihoods and ΛCDM Parameters, arXiv:2503.14452
work page internal anchor Pith review arXiv
-
[27]
ACT Collaboration, Erminia Calabrese et al., The Atacama Cosmology Telescope: DR6 Constraints on Extended Cosmological Models , arXiv:2503.14454
work page internal anchor Pith review arXiv
- [28]
-
[29]
Planck 2018 results. VI. Cosmological parameters
Planck Collaboration, N. Aghanim et al., Planck 2018 results. VI. Cosmological parameters, Astron. Astrophys. 641 (2020) A6, [ arXiv:1807.06209]
work page internal anchor Pith review Pith/arXiv arXiv 2018
-
[30]
Planck Collaboration, N. Aghanim et al., Planck 2018 results. I. Overview and the cosmological legacy of Planck, Astron. Astrophys. 641 (2020) A1, [ arXiv:1807.06205]
- [31]
-
[32]
L. Balkenhol, A. Coerver, C. L. Reichardt, and J. A. Zebrowski, Probing Anisotropic Cosmic Birefringence with Foreground-Marginalised SPT B-mode Likelihoods, Open J. Astrophys. 8 (2025) 147459, [ arXiv:2510.07928]
- [33]
-
[34]
James E. Lidsey, Andrew R. Liddle, Edward W. Kolb, et al., Reconstructing the inflation potential : An overview , Rev. Mod. Phys. 69 (1997) 373–410, [ astro-ph/9508078]
-
[35]
Antony Lewis, Observable primordial vector modes , Phys. Rev. D 70 (2004) 043518, [astro-ph/0403583]
work page internal anchor Pith review arXiv 2004
-
[36]
Kiyotomo Ichiki, Keitaro Takahashi, and Naoshi Sugiyama, Constraint on the primordial vector mode and its magnetic field generation from seven-year Wilkinson Microwave Anisotropy Probe observations, Phys. Rev. D 85 (Feb., 2012) 043009, [arXiv:1112.4705]
work page Pith review arXiv 2012
-
[37]
Anton Rebhan, Large scale rotational perturbations of a Friedmann universe with collisionless matter and primordial magnetic fields , Astrophys. J. 392 (1992) 385–393
work page 1992
-
[38]
Anton K. Rebhan and Dominik J. Schwarz, Kinetic versus thermal field theory approach to cosmological perturbations, Phys. Rev. D 50 (1994) 2541–2559, [ gr-qc/9403032]
- [39]
-
[40]
Planck Collaboration, N. Aghanim et al., Planck 2018 results. V. CMB power spectra and likelihoods, Astron. Astrophys. 641 (2020) A5, [ arXiv:1907.12875]
-
[41]
J., et al., Planck intermediate results - LVII
Planck Collaboration, Akrami, Y., Andersen, K. J., et al., Planck intermediate results - LVII. Joint Planck LFI and HFI data processing , A&A 643 (2020) A42
work page 2020
-
[42]
L. Balkenhol, C. Trendafilova, K. Benabed, and S. Galli, candl: cosmic microwave background analysis with a differentiable likelihood , Astron. Astrophys. 686 (2024) A10, [arXiv:2401.13433]
-
[43]
J. Dunkley et al., The Atacama Cosmology Telescope: likelihood for small-scale CMB data, JCAP 07 (2013) 025, [ arXiv:1301.0776]
-
[44]
Balkenhol, Compressed ’CMB-lite’ Likelihoods Using Automatic Differentiation , arXiv:2412.00826
L. Balkenhol, Compressed ’CMB-lite’ Likelihoods Using Automatic Differentiation , arXiv:2412.00826
-
[45]
Julien Lesgourgues, The Cosmic Linear Anisotropy Solving System (CLASS) I: Overview , arXiv e-prints (Apr., 2011) arXiv:1104.2932, [ arXiv:1104.2932]
work page Pith review arXiv 2011
-
[46]
The Cosmic Linear Anisotropy Solving System (CLASS) II: Approximation schemes
Diego Blas, Julien Lesgourgues, and Thomas Tram, The Cosmic Linear Anisotropy Solving System (CLASS). Part II: Approximation schemes , JCAP 2011 (July, 2011) 034, [arXiv:1104.2933]
work page internal anchor Pith review arXiv 2011
-
[48]
Jes´ us Torrado and Antony Lewis,Cobaya: code for Bayesian analysis of hierarchical physical models, JCAP 2021 (May, 2021) 057, [arXiv:2005.05290]
work page internal anchor Pith review arXiv 2021
-
[49]
Cobaya: Bayesian analysis in cosmology
Jes´ us Torrado and Antony Lewis, “Cobaya: Bayesian analysis in cosmology.” Astrophysics Source Code Library, record ascl:1910.019, Oct., 2019
work page 1910
-
[50]
Andrew Gelman and Donald B. Rubin, Inference from iterative simulation using multiple sequences, Statistical Science 7 (1992), no. 4 457–472
work page 1992
-
[51]
Coralia Cartis, Jan Fiala, Benjamin Marteau, and Lindon Roberts, Improving the Flexibility and Robustness of Model-Based Derivative-Free Optimization Solvers , arXiv e-prints (Mar., 2018) arXiv:1804.00154, [ arXiv:1804.00154]
work page Pith review arXiv 2018
- [52]
- [53]
-
[54]
Shohei Saga, Maresuke Shiraishi, and Kiyotomo Ichiki, Constraining primordial vector mode from B-mode polarization, JCAP 10 (2014) 004, [ arXiv:1405.4810]
work page Pith review arXiv 2014
-
[55]
Jerome Martin, Christophe Ringeval, and Vincent Vennin, Shortcomings of New Parametrizations of Inflation , Phys. Rev. D 94 (2016), no. 12 123521, [arXiv:1609.04739]
work page Pith review arXiv 2016
- [56]
-
[57]
LiteBIRD Collaboration, M. Hazumi et al., LiteBIRD: JAXA’s new strategic L-class mission for all-sky surveys of cosmic microwave background polarization , Proc. SPIE Int. Soc. Opt. Eng. 11443 (2020) 114432F, [ arXiv:2101.12449]
-
[58]
Allyset al.(LiteBIRD), PTEP2023, 042F01 (2023), arXiv:2202.02773 [astro-ph.IM]
LiteBIRD Collaboration, E. Allys et al., Probing Cosmic Inflation with the LiteBIRD Cosmic Microwave Background Polarization Survey , PTEP 2023 (2023), no. 4 042F01, [arXiv:2202.02773]
-
[59]
L. Moncelsi et al., Receiver development for BICEP Array, a next-generation CMB polarimeter at the South Pole , Proc. SPIE Int. Soc. Opt. Eng. 11453 (2020) 1145314, [arXiv:2012.04047]. – 15 –
- [60]
- [61]
- [62]
- [63]
- [64]
