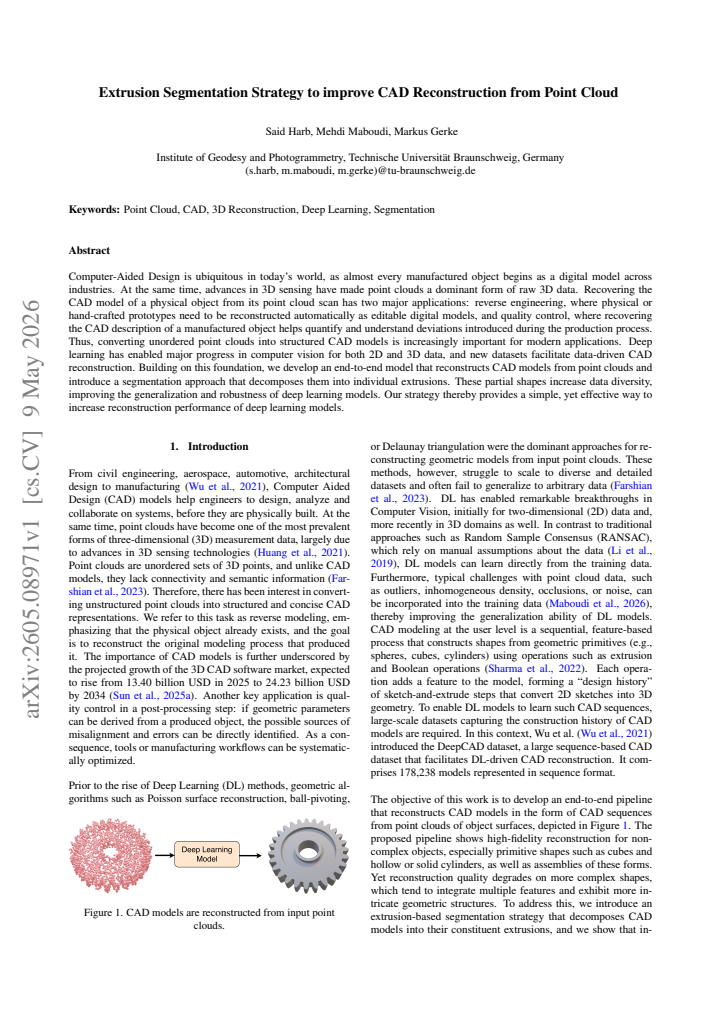

Extrusion Segmentation Strategy to improve CAD Reconstruction from Point Cloud

Said Harb , Mehdi Maboudi , Markus Gerke This is my paper

Pith reviewed 2026-05-12 01:46 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords CAD reconstructionpoint cloudextrusion segmentationdeep learning3D reconstructiondata augmentationreverse engineering
0
0 comments X

The pith

Segmenting CAD models into extrusions enhances deep learning reconstruction from point clouds.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents a strategy for improving the reconstruction of CAD models from point cloud data using deep learning. The key idea is to segment the CAD models into individual extrusions, creating a set of partial shapes. These partial shapes add diversity to the training data. As a result, the deep learning models achieve better generalization and robustness. This provides a straightforward approach to boosting performance in tasks such as reverse engineering and quality control.

Core claim

By decomposing CAD models into individual extrusions, the resulting partial shapes increase data diversity, which in turn improves the generalization and robustness of deep learning models for reconstructing CAD models from point clouds.

What carries the argument

The extrusion segmentation strategy, which decomposes full CAD models into partial extrusion-based shapes to augment training data.

Load-bearing premise

That breaking CAD models into extrusion segments produces useful partial shapes that boost data diversity and model performance without introducing segmentation errors or omitting important features.

What would settle it

An experiment where a deep learning model is trained with and without the extrusion segmentation augmentation on identical point cloud datasets, then evaluated on reconstruction metrics like chamfer distance or IoU on a test set of real scans.

Figures

Figures reproduced from arXiv: 2605.08971 by Markus Gerke, Mehdi Maboudi, Said Harb.

Figure 1
Figure 1. Figure 1: CAD models are reconstructed from input point [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Surface reconstruction challenges. Adapted from [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗
Figure 4

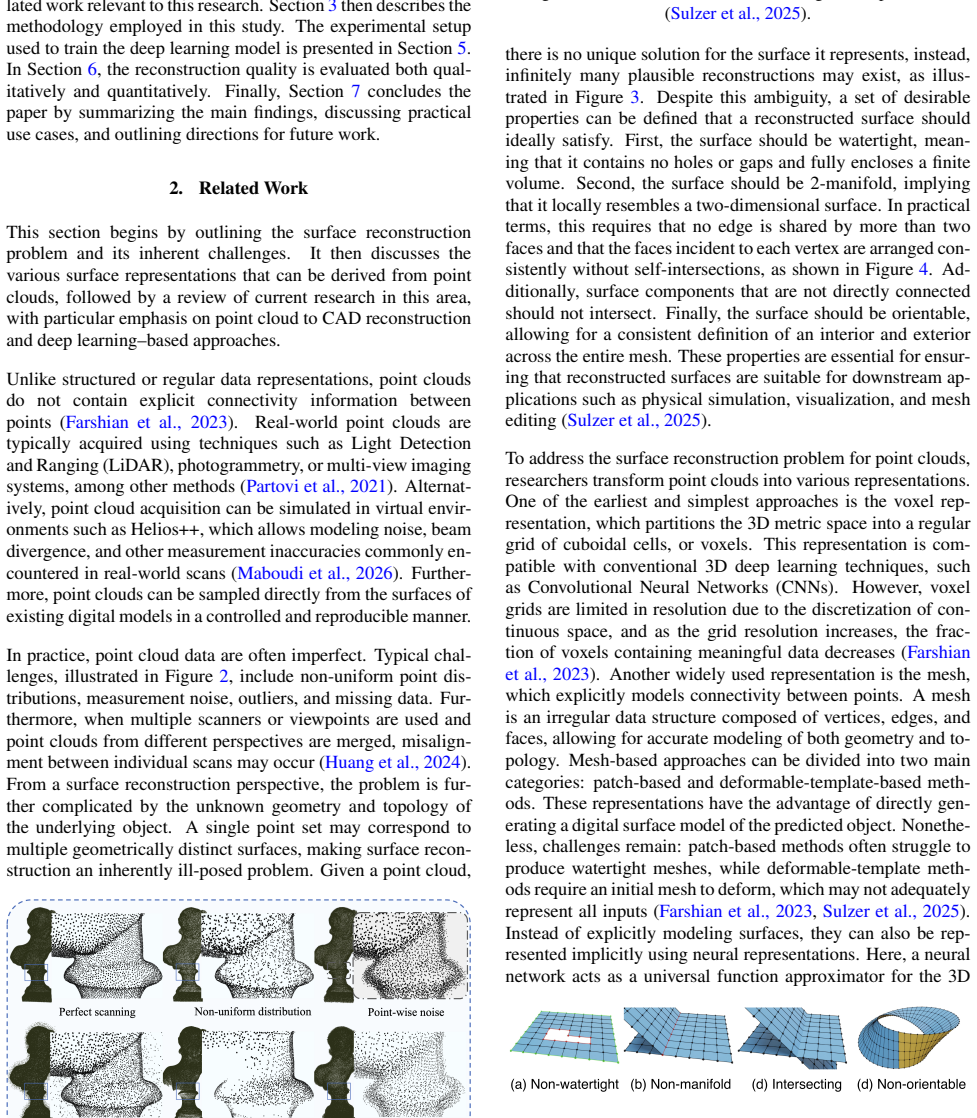

Figure 4. Figure 4: Examples of undesired properties in reconstructed [PITH_FULL_IMAGE:figures/full_fig_p002_4.png] view at source ↗
Figure 5

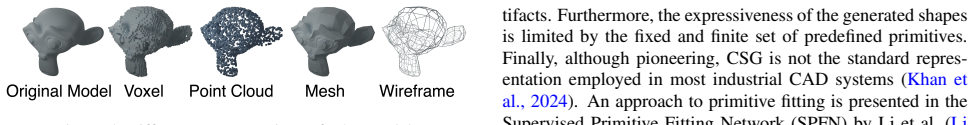

Figure 5. Figure 5: Different representations of a 3D model. [PITH_FULL_IMAGE:figures/full_fig_p003_5.png] view at source ↗
Figure 6

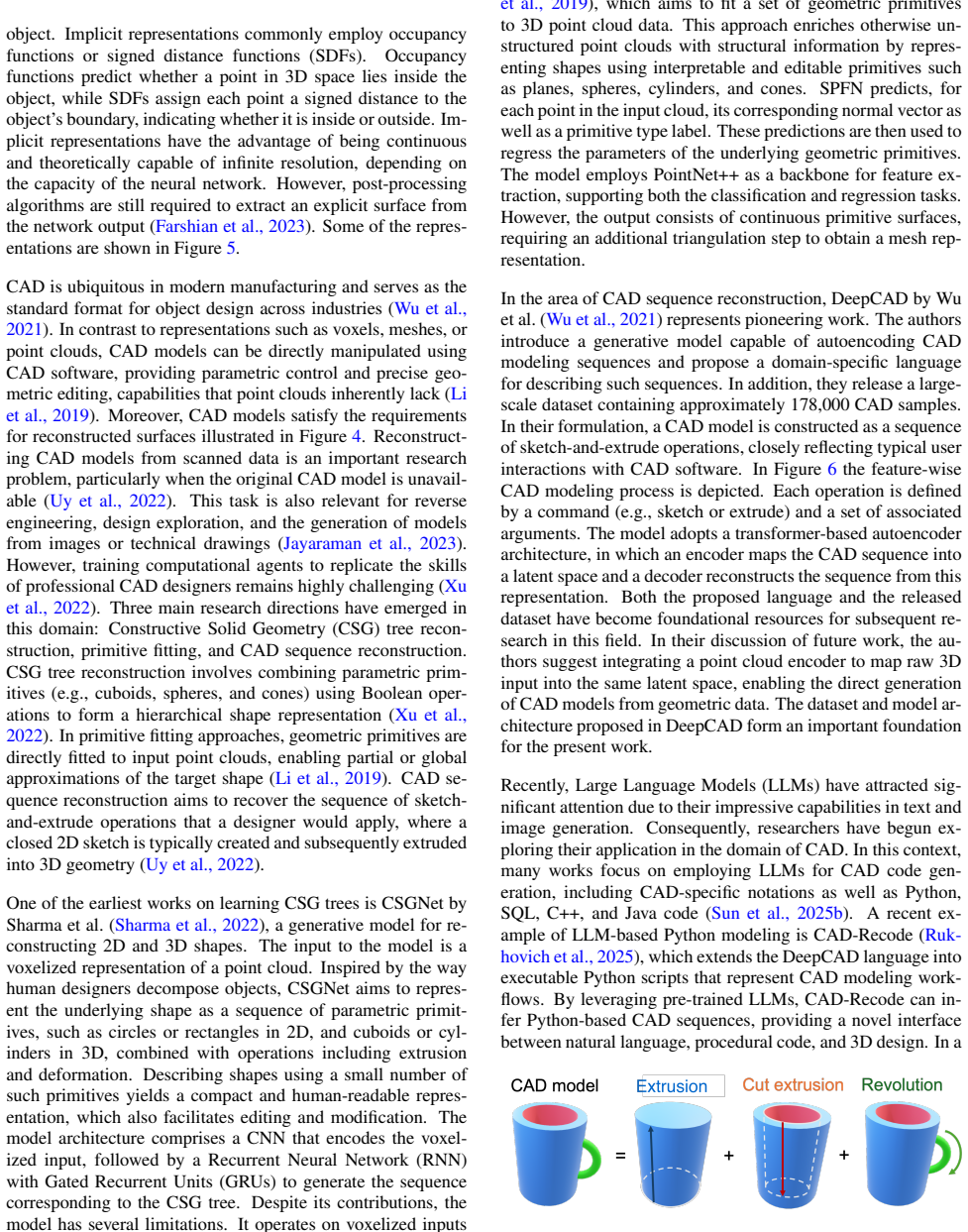

Figure 6. Figure 6: CAD modeling is a feature-based process [PITH_FULL_IMAGE:figures/full_fig_p003_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Difference between complex, simple and primitive [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 8

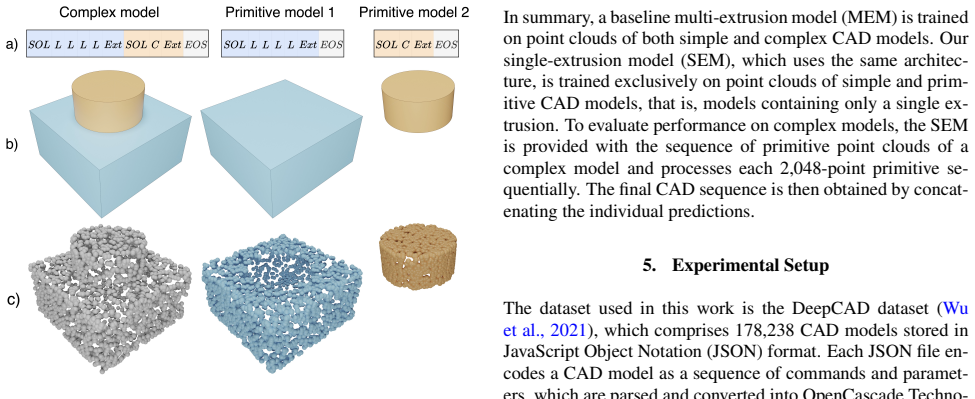

Figure 8. Figure 8: (a) CAD sequences (b) GT CAD models. (c) Input [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
