Continuum Robot Modeling with Action Conditioned Flow Matching

Jiong Lin , Jinchen Ruan , Hod Lipson

Authors on Pith no claims yet

Pith reviewed 2026-05-12 02:13 UTC · model grok-4.3

classification 💻 cs.RO

keywords continuum robotstendon-driven continuum robotsflow matchingpoint cloud modelingself-modelingshape predictionrobot kinematics

0 comments

The pith

A flow matching model maps motor actuation states to the settled 3D geometry of tendon-driven continuum robots.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tackles the problem of predicting the final settled shape of tendon-driven continuum robots from their motor commands, a task made difficult by continuous deformation, friction, and fabrication differences. It introduces a data-driven method that trains a model on point clouds collected from randomly sampled quasi-static configurations using a custom multi-camera RGB-D setup on 3D-printed hardware. The central technique learns a conditional flow that transforms noise into the target robot geometry given the current motor states. Tests in simulation across 2-, 3-, and 5-module designs and on physical 2- and 3-module robots show lower errors than earlier deformable-object and self-modeling baselines when measured by Chamfer Distance and Earth Mover's Distance. The same conditional structure also accepts tip payload as an extra input in simulation, broadening the prediction task without changing the core architecture.

Core claim

We learn a point cloud flow matching model that maps motor actuation states to the robot's settled 3D geometry. The model is trained from randomly sampled quasi static configurations and evaluated on test motor commands within the same TDCR design family and actuation range, showing improved shape prediction accuracy under CD and EMD metrics compared to prior 3D deformable object and robot self modeling approaches.

What carries the argument

The action-conditioned point cloud flow matching model, which learns a probability flow from a base noise distribution to the target settled geometry distribution while taking motor states as conditioning input.

If this is right

The model delivers higher shape prediction accuracy for simulated 2-, 3-, and 5-module TDCRs than prior methods.
It also improves accuracy on real 2- and 3-module physical robots under the same metrics.
The conditional formulation extends directly to tip payload as an additional input, enabling payload-aware steady-state predictions in simulation.
The framework supplies a complete data-driven self-modeling pipeline for quasi-static TDCR geometry that requires only motor commands at inference time.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Accurate shape prediction from actions alone could allow closed-loop controllers to compensate for unmodeled compliance without extra sensors.
The same conditioning pattern may transfer to other soft or continuum robots by swapping the input variables while keeping the flow matching backbone.
Collecting data only from quasi-static poses leaves open the question of whether the model can be fine-tuned online to handle slow drifts in tendon tension or temperature.

Load-bearing premise

Randomly sampled quasi-static configurations provide sufficient coverage for the model to generalize to unseen test motor commands within the same TDCR design family and actuation range.

What would settle it

Evaluate the trained model on motor commands drawn from a TDCR with a different module count or actuation values outside the original sampling range, then measure whether the predicted point clouds still achieve the reported CD and EMD accuracy on the actual settled geometry.

Figures

Figures reproduced from arXiv: 2605.09216 by Hod Lipson, Jinchen Ruan, Jiong Lin.

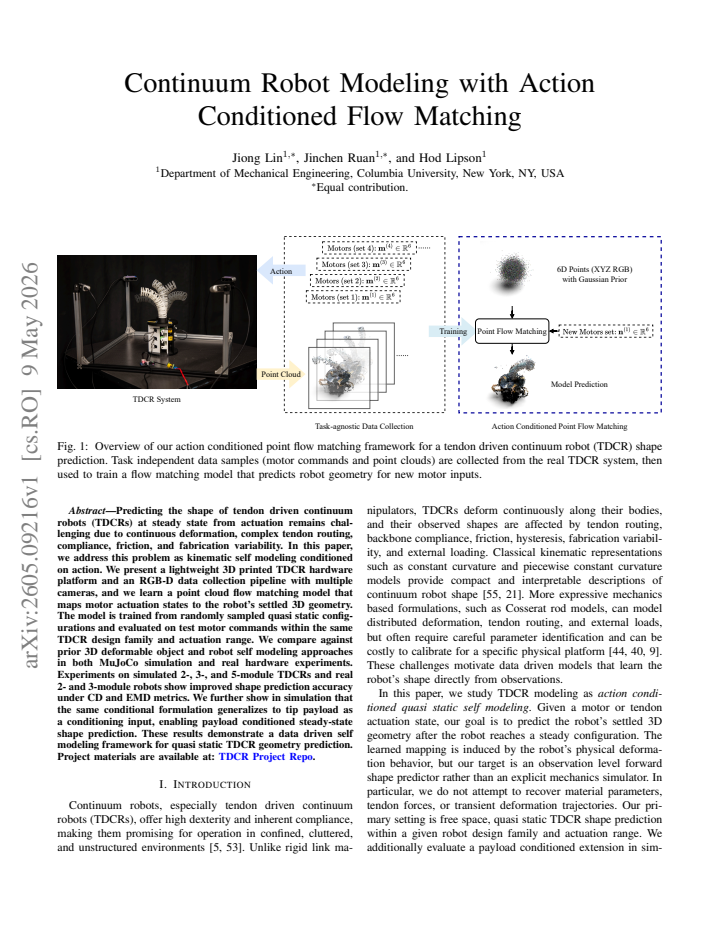

**Figure 1.** Figure 1: Overview of our action conditioned point flow matching framework for a tendon driven continuum robot (TDCR) shape [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

**Figure 2.** Figure 2: Action conditioned flow matching framework. (A) [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 3.** Figure 3: TDCR hardware platform and real hardware data capture. (a) Three module CAD rendering. (b) Support design for [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

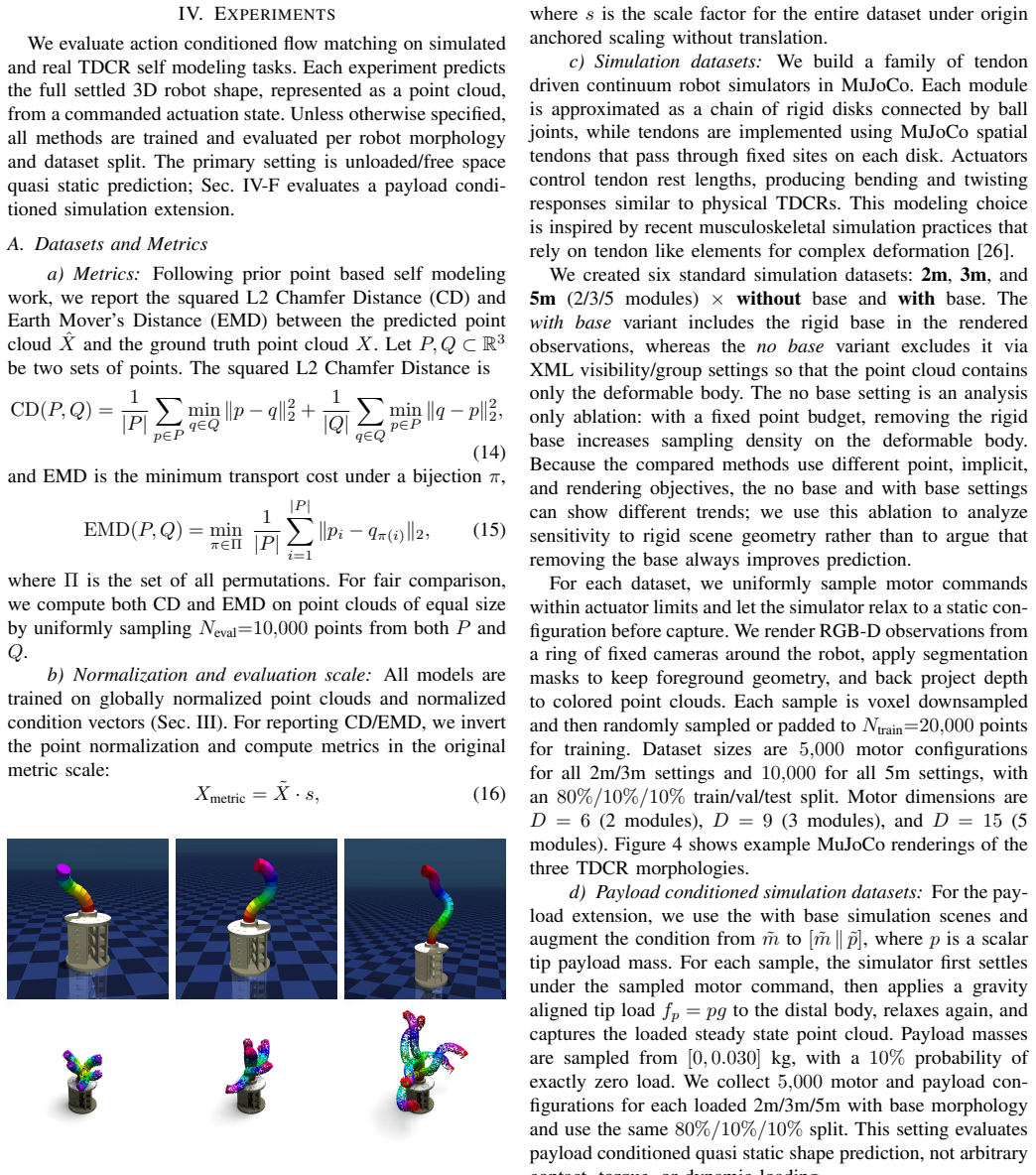

**Figure 4.** Figure 4: MuJoCo renderings of our tendon driven continuum [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

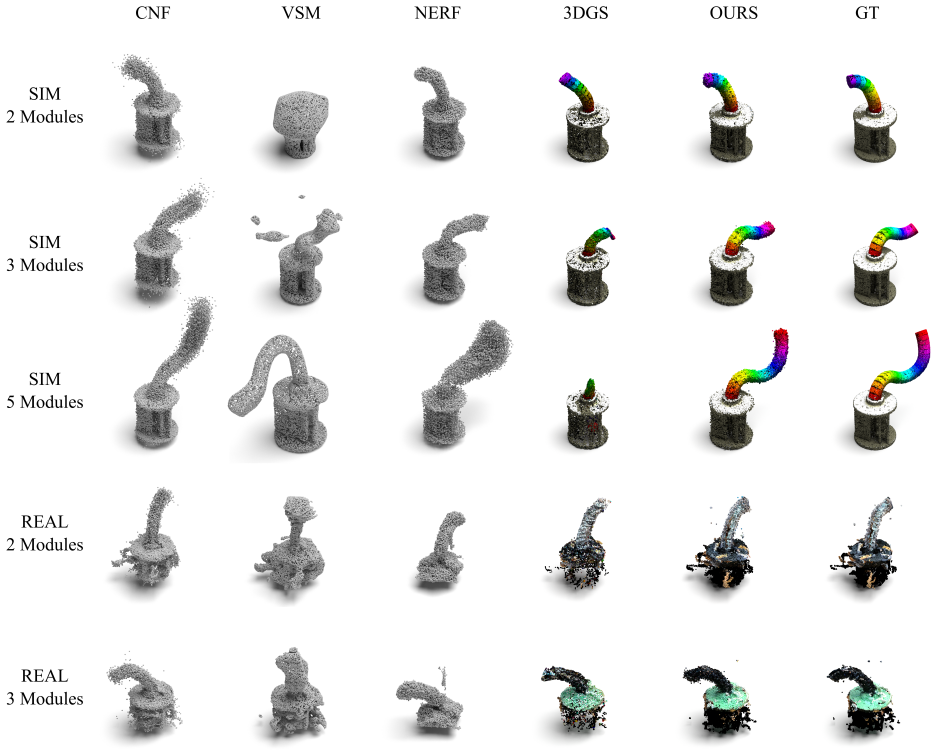

**Figure 5.** Figure 5: Qualitative comparison on simulated and real TDCR datasets. Rows show simulated 2-/3-/5-module with base settings [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

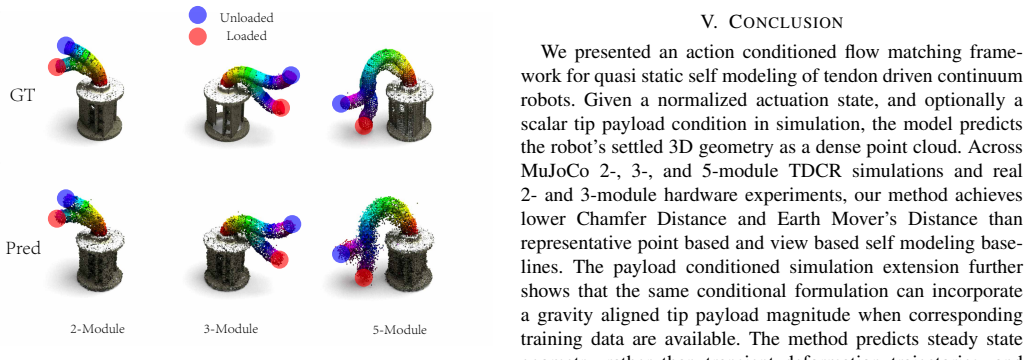

**Figure 6.** Figure 6: Payload conditioned prediction in simulation. Blue/red [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗

**Figure 7.** Figure 7: Qualitative comparison on simulated no base datasets (2/3/5 modules). Columns show CNF (PointFlow), VSM, NeRF (FFKSM), 3DGS, our method, and the ground truth (GT). For our method, we visualize both MLP and Hybrid velocity networks. VI. QUALITATIVE COMPARISON ON no base DATASETS As shown in [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗

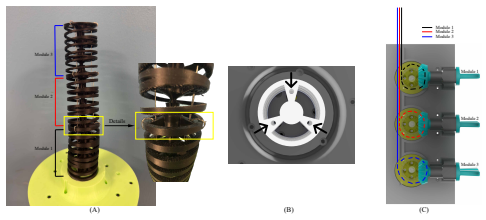

**Figure 8.** Figure 8: Tendon routing overview. (A) Assembled 3-module [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗

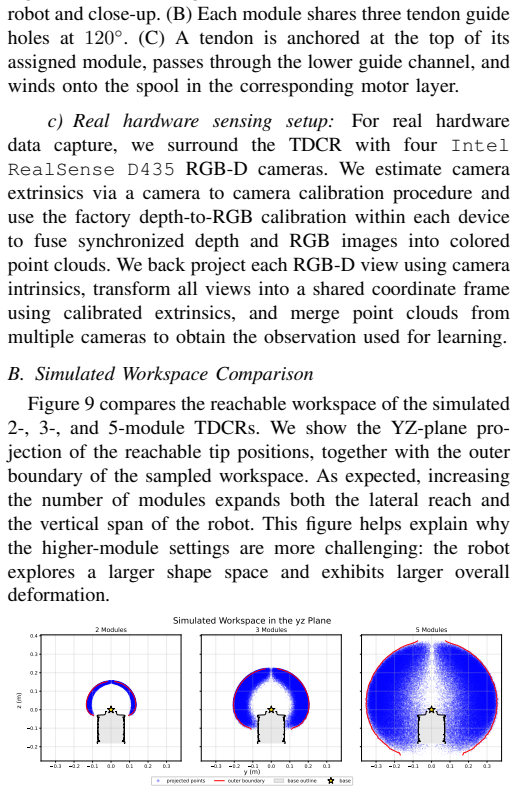

**Figure 9.** Figure 9: YZ-plane workspace comparison for the simulated 2-, [PITH_FULL_IMAGE:figures/full_fig_p014_9.png] view at source ↗

read the original abstract

Predicting the shape of tendon driven continuum robots (TDCRs) at steady state from actuation remains challenging due to continuous deformation, complex tendon routing, compliance, friction, and fabrication variability. In this paper, we address this problem as kinematic self modeling conditioned on action. We present a lightweight 3D printed TDCR hardware platform and an RGB-D data collection pipeline with multiple cameras, and we learn a point cloud flow matching model that maps motor actuation states to the robot's settled 3D geometry. The model is trained from randomly sampled quasi static configurations and evaluated on test motor commands within the same TDCR design family and actuation range. We compare against prior 3D deformable object and robot self modeling approaches in both MuJoCo simulation and real hardware experiments. Experiments on simulated 2-, 3-, and 5-module TDCRs and real 2- and 3-module robots show improved shape prediction accuracy under CD and EMD metrics. We further show in simulation that the same conditional formulation generalizes to tip payload as a conditioning input, enabling payload conditioned steady-state shape prediction. These results demonstrate a data driven self modeling framework for quasi static TDCR geometry prediction.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Flow matching from motor states to TDCR point clouds beats the cited baselines on CD and EMD in sim and hardware, but the random-sampling coverage claim is untested and load-bearing.

read the letter

The main point is that the authors train an action-conditioned flow matching model to map motor commands to settled 3D point-cloud geometry for tendon-driven continuum robots. They report better Chamfer and Earth Mover distances than prior deformable-object and robot-modeling baselines, first in MuJoCo for 2-, 3-, and 5-module versions and then on real 2- and 3-module hardware. They also show the same conditioning trick works for tip payload in simulation. The hardware side is straightforward: a lightweight 3D-printed platform plus a multi-camera RGB-D collection pipeline that gathers quasi-static poses. That combination is new for this robot class and gives a usable data-driven alternative where first-principles models struggle with friction and variability. The formulation itself is clean and the comparisons are direct. The soft spot is exactly the one the stress-test flagged. Random sampling in a 4-to-10-dimensional actuation space for multi-module TDCRs is unlikely to fill the manifold densely, yet the paper supplies no coverage metric, density check, or extrapolation test. All reported gains are on held-out commands drawn from the same bounded range, so the numbers could reflect interpolation inside well-sampled pockets rather than a reliable mapping. Without that analysis the central claim stays provisional. The work is aimed at continuum-robotics groups that need practical shape prediction for medical or inspection tasks. A reader already working on learned models for soft or deformable systems will find the pipeline and the payload extension worth looking at. It deserves peer review because the hardware validation and baseline comparisons are concrete enough for referees to assess, even though they will almost certainly request coverage diagnostics and fuller numerical results.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a data-driven self-modeling approach for tendon-driven continuum robots (TDCRs) using action-conditioned flow matching to predict steady-state 3D point cloud geometry from motor actuation states. It describes a 3D-printed hardware platform and RGB-D multi-camera data collection for randomly sampled quasi-static configurations. The conditional flow matching model is trained and evaluated on held-out commands in simulation for 2-, 3-, and 5-module TDCRs and on real 2- and 3-module robots, claiming improved Chamfer Distance and Earth Mover's Distance metrics compared to prior methods. It also demonstrates generalization to tip payload conditioning in simulation.

Significance. If the empirical results hold, the work offers a practical alternative to physics-based modeling for TDCRs, which suffer from complex nonlinear behaviors. The lightweight hardware and data pipeline are valuable contributions for reproducible experiments. The flow matching formulation for point clouds conditioned on actions is a timely application of generative models to robotics. Explicit credit is due for extending the model to payload-conditioned prediction and for providing both simulation and hardware validation across multiple module counts. This could influence self-modeling techniques in soft and continuum robotics.

major comments (2)

[Data Collection] Data Collection section: The central generalization claim requires that random quasi-static sampling densely covers the motor actuation manifold (typically 4–10+ dimensions). No coverage metric, density analysis, or extrapolation test is provided, so the reported CD/EMD gains on the test split could reflect interpolation within well-sampled pockets rather than robust mapping. This assumption is load-bearing for the entire data-driven pipeline.
[§5 (Results)] §5 (Results) and abstract: The claim of 'improved shape prediction accuracy under CD and EMD metrics' is not supported by any numerical values, error bars, or statistical tests in the evaluation summary. Without these, the strength of the comparison to prior 3D deformable object and robot self-modeling baselines cannot be assessed.

minor comments (2)

[§3 (Method)] The point-cloud flow matching architecture diagram would benefit from explicit notation for the conditioning input (motor states) and the time-step embedding.
[Tables] Table captions should include the exact number of training and test samples per module count to allow reproducibility assessment.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment of our contributions and for the constructive feedback on the data collection and evaluation aspects. We address each major comment below and are prepared to revise the manuscript accordingly to strengthen the presentation of our results.

read point-by-point responses

Referee: [Data Collection] Data Collection section: The central generalization claim requires that random quasi-static sampling densely covers the motor actuation manifold (typically 4–10+ dimensions). No coverage metric, density analysis, or extrapolation test is provided, so the reported CD/EMD gains on the test split could reflect interpolation within well-sampled pockets rather than robust mapping. This assumption is load-bearing for the entire data-driven pipeline.

Authors: We agree that the density of coverage in the actuation space is important for supporting generalization claims in a data-driven model. Our pipeline collects a large number of randomly sampled quasi-static configurations within the full operational range of each TDCR (2-, 3-, and 5-module designs), with the test commands drawn from held-out samples in the identical range. While an explicit coverage metric or density analysis was not included in the original submission, the consistent outperformance on held-out test sets across simulation and real hardware provides empirical support that the sampling captures the relevant manifold sufficiently for the reported task. In revision, we will add a description of the total sample counts, the sampling procedure, and a qualitative visualization of actuation-space coverage (e.g., projected histograms or pairwise scatter plots) to make this assumption more transparent. Full quantitative density estimation in 4–10+ dimensions remains challenging without additional experiments, but we believe the current held-out evaluation already addresses the core concern. revision: partial
Referee: [§5 (Results)] §5 (Results) and abstract: The claim of 'improved shape prediction accuracy under CD and EMD metrics' is not supported by any numerical values, error bars, or statistical tests in the evaluation summary. Without these, the strength of the comparison to prior 3D deformable object and robot self-modeling baselines cannot be assessed.

Authors: We thank the referee for highlighting this presentational issue. The quantitative CD and EMD values for our method versus the baselines, together with error bars derived from multiple independent trials, are already reported in the tables and figures of Section 5 for all simulated and real-robot experiments. To address the concern directly, we will revise both the abstract and the opening paragraph of Section 5 to explicitly quote the key numerical improvements (including the magnitude of gains) and to reference the supporting tables/figures. We can additionally incorporate basic statistical significance tests (e.g., paired t-tests) on the metric differences if the referee considers them necessary for the final version. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper presents a standard data-driven pipeline: collect random quasi-static motor commands and corresponding 3D point clouds via RGB-D, train a conditional flow-matching model to map actuation states to geometry, and report CD/EMD metrics on a held-out test set of motor commands drawn from the same range. No equations or claims reduce a prediction to a fitted parameter by construction, no self-citations are invoked as load-bearing uniqueness theorems, and the central result (improved test-set accuracy versus baselines) is independently falsifiable on separate data. The approach is self-contained empirical modeling with no self-definitional or renaming steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that a neural flow-matching network trained on quasi-static point-cloud data can capture the steady-state mapping without explicit physics terms. No new physical constants or entities are introduced.

axioms (1)

domain assumption Quasi-static configurations are representative of the settled steady-state geometry under the tested actuation ranges
Invoked in the data-collection and evaluation protocol described in the abstract.
