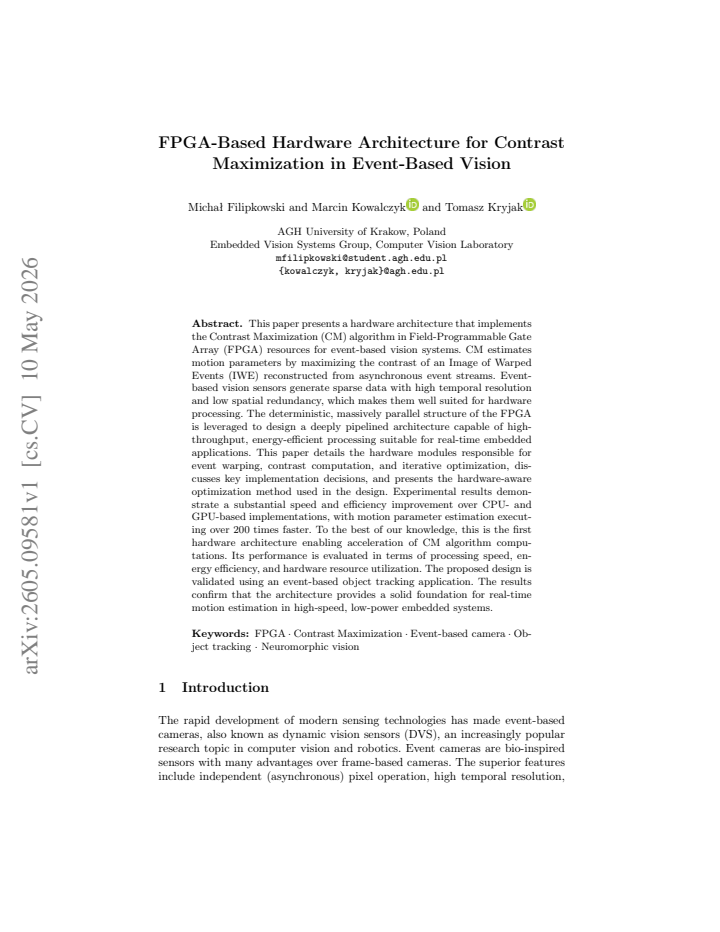

FPGA-Based Hardware Architecture for Contrast Maximization in Event-Based Vision

Michal Filipkowski , Marcin Kowalczyk , Tomasz Kryjak This is my paper

Pith reviewed 2026-05-12 03:34 UTC · model grok-4.3

classification 💻 cs.CV
keywords event-based visioncontrast maximizationFPGA architecturemotion estimationevent warpingembedded real-time systemshardware acceleration
0
0 comments X

The pith

An FPGA architecture accelerates contrast maximization for event-based vision over 200 times faster than CPU or GPU versions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents the first hardware implementation of the contrast maximization algorithm on an FPGA to estimate motion parameters from streams of events produced by event-based cameras. Event data arrives sparsely and at high temporal rates, making it hard for conventional processors to deliver real-time performance in compact systems. By mapping the warping, contrast evaluation, and iterative search steps into deeply pipelined hardware modules and applying hardware-aware tuning, the design claims to retain the original algorithm's behavior while delivering large gains in speed and power efficiency. If the claim holds, embedded platforms could run event-based motion estimation continuously without external accelerators.

Core claim

The authors built a dedicated FPGA circuit that performs event warping to form an image of warped events, computes its contrast, and runs an iterative optimizer to recover motion parameters. The architecture is validated on an object-tracking task and reported to execute the full estimation more than 200 times faster than equivalent software running on CPU or GPU while using the same underlying algorithm.

What carries the argument

A deeply pipelined collection of FPGA modules that perform event warping into an image of warped events, contrast evaluation, and gradient-based iterative optimization of motion parameters.

If this is right

  • Motion parameter estimation becomes feasible at frame rates suitable for real-time control in embedded platforms.
  • Power consumption drops enough to support battery-operated or thermally constrained devices.
  • The same architecture can serve as a building block for other event-based vision tasks that rely on contrast or sharpness measures.
  • Object tracking applications can run entirely on the FPGA fabric without offloading to a host processor.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Designs like this open a path to combining event sensors directly with FPGA co-processors for closed-loop control loops measured in microseconds.
  • Similar pipelining techniques could be applied to other iterative event-based algorithms such as optical flow or feature tracking.
  • Once accuracy is verified on additional datasets, the architecture could be turned into a reusable IP block for commercial vision systems.

Load-bearing premise

The hardware-aware changes and fixed-point or reduced-precision arithmetic preserve the numerical accuracy and convergence behavior of the original floating-point software algorithm.

What would settle it

Run the same set of event sequences through both the FPGA design and the reference software implementation and measure whether the recovered motion parameters differ by more than a few percent or whether the optimizer fails to reach the same final contrast value.

Figures

Figures reproduced from arXiv: 2605.09581 by Marcin Kowalczyk, Michal Filipkowski, Tomasz Kryjak.

Figure 1
Figure 1. Figure 1: Visualization of bilinear voting operation approach is used in which each of the four neighboring pixels receives a con￾tribution proportional to its distance from the warped event. In practice, this is achieved by extracting the fractional parts of the event coordinates ∀(xk, yk) and using them to compute the weights that determine how the event value is distributed among the surrounding pixels, as in Eq.… view at source ↗
Figure 2
Figure 2. Figure 2: Sequence of event frames from DAVIS 240C datasets [11] demonstrating the CM-based tracking and ROI update process. FPGA Event Stream Filtering events with ROI Reference time calculation BRAM ROI update 100 Iterations Bilinear voting IWE and IWE derivations accumulation BRAM Reading events in ROI BRAM BRAM BRAM BRAM BRAM BRAM BRAM BRAM BRAM BRAM BRAM Events warping Gradient calculation Flow update 100 Itera… view at source ↗
Figure 3
Figure 3. Figure 3: Hardware architecture diagram of an application for object tracking using CM 4 FPGA Architecture Design We designed hardware architecture to realize the CM algorithm for an example application of event-based object tracking. Its diagram is shown in [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Visualization of memory management for bilinear voting weights Once the accumulation of pixel values in all memory blocks is complete, the gradient is computed according to Eq. (10). An important implementation detail is that a true hardware reset of the BRAM is not possible. Therefore, one cycle after reading the value required for gradient evaluation at a given address, a zero is written back to this loc… view at source ↗
read the original abstract

This paper presents a hardware architecture that implements the Contrast Maximization (CM) algorithm in Field-Programmable Gate Array (FPGA) resources for event-based vision systems. CM estimates motion parameters by maximizing the contrast of an Image of Warped Events (IWE) reconstructed from asynchronous event streams. Event-based vision sensors generate sparse data with high temporal resolution and low spatial redundancy, which makes them well suited for hardware processing. The deterministic, massively parallel structure of the FPGA is leveraged to design a deeply pipelined architecture capable of high-throughput, energy-efficient processing suitable for real-time embedded applications. This paper details the hardware modules responsible for event warping, contrast computation, and iterative optimization, discusses key implementation decisions, and presents the hardware-aware optimization method used in the design. Experimental results demonstrate a substantial speed and efficiency improvement over CPU- and GPU-based implementations, with motion parameter estimation executing over 200 times faster. To the best of our knowledge, this is the first hardware architecture enabling acceleration of CM algorithm computations. Its performance is evaluated in terms of processing speed, energy efficiency, and hardware resource utilization. The proposed design is validated using an event-based object tracking application. The results confirm that the architecture provides a solid foundation for real-time motion estimation in high-speed, low-power embedded systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents an FPGA-based hardware architecture implementing the Contrast Maximization (CM) algorithm for event-based vision. It details deeply pipelined modules for event warping, Image of Warped Events (IWE) contrast computation, and iterative optimization, along with a hardware-aware optimization method. The work claims to be the first such hardware accelerator, reporting over 200x speedup in motion parameter estimation versus CPU/GPU baselines, with evaluations of processing speed, energy efficiency, resource utilization, and validation via an event-based object tracking application.

Significance. If the hardware design preserves the numerical accuracy and convergence of the original floating-point CM algorithm, the architecture would offer a practical foundation for real-time, low-power embedded event-based systems. The explicit hardware modules and pipelined structure provide reusable building blocks for sparse asynchronous data processing, strengthening the case for hardware acceleration in high-speed vision tasks.

major comments (2)
  1. [§5 (Experimental Results)] §5 (Experimental Results): The claimed >200x speedup and 'substantial speed and efficiency improvement' are presented without tabulated quantitative metrics, error bars, exact baseline comparisons (e.g., execution times, power draw, or frames per second on specific CPU/GPU platforms), or statistical significance, undermining assessment of the performance claims.
  2. [§4 (Hardware Modules) and §5.2 (Object Tracking Validation)] §4 (Hardware Modules) and §5.2 (Object Tracking Validation): The hardware-aware optimization and presumed fixed-point/pipelined approximations in warping and contrast summation are not accompanied by direct numerical equivalence checks (e.g., side-by-side motion parameter vectors or final IWE contrast values versus the original software CM). This leaves open whether the argmax location or convergence behavior is preserved, which is load-bearing for the real-time embedded utility claim.
minor comments (2)
  1. [Abstract] Abstract: The phrase 'to the best of our knowledge, this is the first...' would benefit from a short parenthetical reference to the original CM papers to contextualize novelty.
  2. [Notation] Notation: Define all acronyms (IWE, CM) on first use in the main text and ensure consistent use of symbols for motion parameters across equations and figures.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and the opportunity to improve the manuscript. We will address the concerns regarding quantitative presentation and numerical validation by expanding the experimental results section with additional data and comparisons.

read point-by-point responses

  1. Referee: [§5 (Experimental Results)] §5 (Experimental Results): The claimed >200x speedup and 'substantial speed and efficiency improvement' are presented without tabulated quantitative metrics, error bars, exact baseline comparisons (e.g., execution times, power draw, or frames per second on specific CPU/GPU platforms), or statistical significance, undermining assessment of the performance claims.

    Authors: We agree that the performance claims would be more rigorously supported with explicit tabulated data. In the revised manuscript, we will add tables detailing exact execution times, power draw, and FPS on specific platforms (e.g., Intel Xeon CPU and NVIDIA RTX GPU), include error bars from repeated trials, and provide basic statistical analysis. The >200x figure is based on our measured baselines, which we will now present in full detail for transparent comparison. revision: yes

  2. Referee: [§4 (Hardware Modules) and §5.2 (Object Tracking Validation)] §4 (Hardware Modules) and §5.2 (Object Tracking Validation): The hardware-aware optimization and presumed fixed-point/pipelined approximations in warping and contrast summation are not accompanied by direct numerical equivalence checks (e.g., side-by-side motion parameter vectors or final IWE contrast values versus the original software CM). This leaves open whether the argmax location or convergence behavior is preserved, which is load-bearing for the real-time embedded utility claim.

    Authors: We recognize that confirming numerical equivalence is essential to substantiate the hardware design's fidelity. In the revision, we will incorporate direct side-by-side comparisons of motion parameter vectors and final IWE contrast values between the FPGA implementation and the original floating-point software CM. These will demonstrate that the fixed-point approximations and pipelining preserve argmax location and convergence behavior. revision: yes

Circularity Check

0 steps flagged

No significant circularity in hardware implementation paper

full rationale

This is a hardware implementation paper describing an FPGA architecture for the known Contrast Maximization (CM) algorithm from prior literature. No mathematical derivation chain, fitted parameters, or predictions exist that could reduce to inputs by construction. Claims rest on standard pipelined FPGA design, resource utilization measurements, and experimental throughput comparisons to CPU/GPU baselines. The object-tracking validation is external to any self-referential loop. Potential accuracy differences from fixed-point arithmetic are a correctness concern, not circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper is an engineering implementation of an existing algorithm; it introduces no new free parameters, mathematical axioms, or postulated entities beyond standard FPGA design practices.

axioms (1)
  • domain assumption FPGA resources can be configured into a deeply pipelined architecture that maintains functional equivalence to the software CM algorithm.
    Invoked when claiming hardware acceleration without accuracy loss.
