Sketch-based Access Control: A Multimodal Interface for Translating User Preferences into Intent-Aligned Policies

Kyzyl Monteiro , Sauvik Das
Authors on Pith no claims yet

Pith reviewed 2026-05-12 03:46 UTC · model grok-4.3

classification 💻 cs.HC cs.CR
keywords access controlsketching interfacesmultimodal AIusable securitypolicy authoringhuman-AI collaborationiterative refinement
0
0 comments X

The pith

A sketch-and-AI system lets users turn rough access preferences into complete, validated policies by iteratively specifying, analyzing, and testing them.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents Sketch-based Access Control (SBAC), which pairs free-form sketching with multimodal large language models to let ordinary users build access-control policies. A formative study produced three design requirements that shaped a three-stage workflow: users sketch their rules, the system analyzes them for gaps and ambiguities, and users test the resulting policy against concrete scenarios. In an evaluation with 14 participants using their own real-world scenarios, the workflow guided people from vague initial ideas to fuller, clearer policies while surfacing overlooked conditions and confirming behavior through dialogue and simulation. The central claim is that this human-AI loop reduces the classic difficulty of writing precise yet usable access rules.

Core claim

The SBAC system and its Specify-Analyze-Test workflow enabled participants to progressively refine initially underspecified preferences into more complete and precise policies by surfacing unanticipated gaps, resolving ambiguities through dialogue, and validating policy behavior through concrete scenarios.

What carries the argument

The three-stage human-AI workflow (Specify, Analyze, Test) that maintains and interprets an evolving access-control specification expressed through sketches and natural-language dialogue.

If this is right

  • Users can discover policy gaps they did not anticipate when they began sketching.
  • Dialogue with the system can resolve ambiguities that remain after an initial sketch.
  • Concrete scenario testing allows users to check whether the generated policy behaves as intended.
  • The resulting policies are both more complete and more precise than the starting preferences.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same sketch-plus-dialogue pattern could be applied to other domains that require users to state conditional rules, such as privacy settings or smart-home automation.
  • If the AI interpretation step is reliable, organizations could reduce the number of access-control misconfigurations that arise from users' difficulty in articulating precise conditions.
  • A next step would be to measure whether policies created this way produce fewer security incidents when deployed in real systems.

Load-bearing premise

The multimodal models will correctly interpret changing sketches and conversation turns without systematically misunderstanding or inventing user preferences.

What would settle it

A controlled test in which users repeatedly draw the same access rule and the system produces policies that contradict the users' stated intent in more than a small fraction of cases.

Figures

Figures reproduced from arXiv: 2605.10012 by Kyzyl Monteiro, Sauvik Das.

Figure 1
Figure 1. Figure 1: Sketch-Based Access Control helps users translate broad and ambiguous access control preferences into structured, [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Positioning Sketch-Based Access Control relative to [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

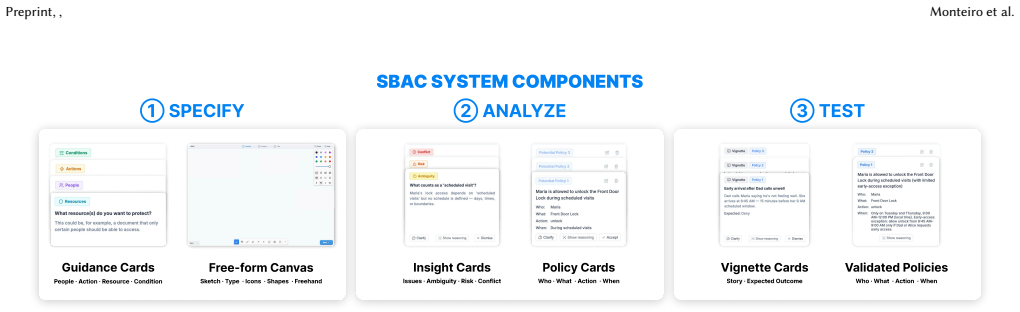

Figure 3. Figure 3: SBAC user-facing components: Each workflow stage surfaces card-based artifacts—guidance cards scaffold preference [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: SBAC processing pipeline. Preference Analysis interprets a sketch into structured policies and surfaces issues via CI [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

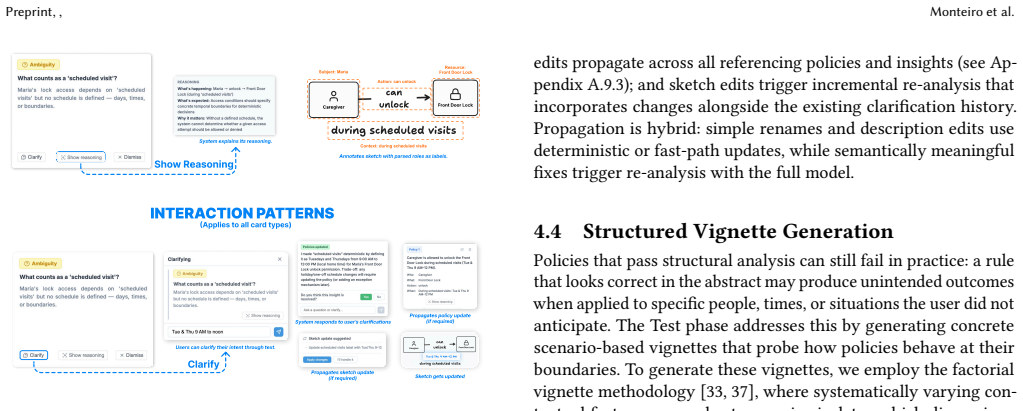

Figure 5. Figure 5: Interaction patterns shared across all card types. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

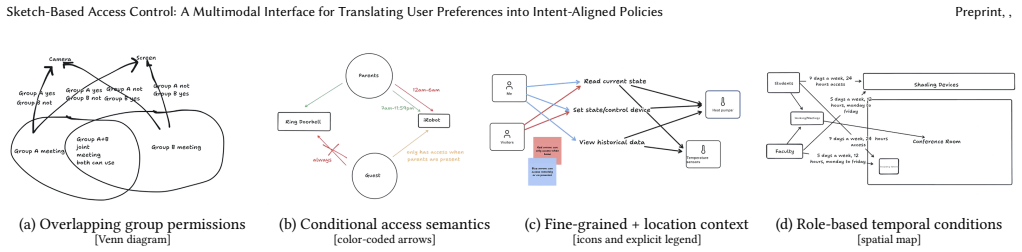

Figure 6. Figure 6: Participant sketches from the evaluation, illustrating the diversity of preferences and visual languages the system [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: System Usability Scale (SUS) responses across 14 [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: NASA-TLX responses across 14 participants (7-point [PITH_FULL_IMAGE:figures/full_fig_p015_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Custom questionnaire responses by construct (5- [PITH_FULL_IMAGE:figures/full_fig_p016_9.png] view at source ↗
read the original abstract

Developing simple and expressive access controls -- interfaces to specify policies that define who should have access to resources and under what circumstances -- is a longstanding challenge in usable security. We present Sketch-based Access Control (SBAC), a sketch-based, AI-assisted access control authoring system that combines the expressive power of sketching with the interpretive capabilities of multimodal large language models (MLLMs) to support the interpretation and validation of policy specifications as they are iteratively refined. Through a formative study with 14 participants, we identified three design requirements and developed a human-AI collaborative workflow composed of three stages -- Specify, Analyze, and Test -- enabled by the system's ability to maintain and interpret evolving access control specifications. In a user evaluation with 14 participants grounded in their real-world access control scenarios, we found the system and the workflow helped participants progressively refine initially underspecified preferences into more complete and precise policies -- surfacing gaps they had not anticipated, resolving ambiguities through dialogue, and validating policy behavior through concrete scenarios.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces Sketch-based Access Control (SBAC), a multimodal system that integrates user sketching with MLLM interpretation to support iterative policy authoring via a Specify-Analyze-Test workflow. A formative study (n=14) derives three design requirements; a subsequent evaluation (n=14) using participants' real-world scenarios reports that the system helps refine underspecified preferences into more complete policies by surfacing gaps, resolving ambiguities through dialogue, and validating behaviors via concrete scenarios.

Significance. If the central claim holds, the work advances usable security and human-AI collaboration by demonstrating how sketching plus MLLM dialogue can bridge the gap between vague user intent and precise access-control policies. The grounding in participants' actual scenarios and the emphasis on progressive refinement provide ecological validity and practical insight for AI-assisted authoring tools. The approach is novel in combining expressive sketching with iterative validation, though its impact would be strengthened by more rigorous verification of alignment.

major comments (2)
  1. [User Evaluation] User Evaluation section: the claim that the workflow produces intent-aligned policies rests on qualitative participant feedback from n=14 without quantitative metrics (e.g., policy correctness rates, LLM interpretation accuracy, or inter-rater agreement on final policies). This is load-bearing because subjective validation can miss subtle logical deviations in access-control rules, leaving the weakest assumption (reliable MLLM translation without systematic hallucination) untested.
  2. [Specify-Analyze-Test Workflow] The description of the Specify-Analyze-Test workflow does not include logged error analysis or independent checks that separate genuine user underspecification from MLLM misinterpretation of sketches or dialogue; without this, progressive refinement cannot be confidently attributed to the system rather than participant self-correction.
minor comments (1)
  1. [Abstract] Abstract: states positive qualitative outcomes but omits any mention of the specific analysis methods or limitations of the small-scale studies, which would better contextualize the results for readers.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed review. The comments identify important opportunities to strengthen the empirical grounding of our claims. We address each major comment below and commit to major revisions that incorporate additional quantitative analysis and error logging.

read point-by-point responses

  1. Referee: [User Evaluation] User Evaluation section: the claim that the workflow produces intent-aligned policies rests on qualitative participant feedback from n=14 without quantitative metrics (e.g., policy correctness rates, LLM interpretation accuracy, or inter-rater agreement on final policies). This is load-bearing because subjective validation can miss subtle logical deviations in access-control rules, leaving the weakest assumption (reliable MLLM translation without systematic hallucination) untested.

    Authors: We agree that the absence of quantitative metrics leaves the alignment claims more vulnerable to the critique that subjective feedback may overlook logical inconsistencies. The evaluation was intentionally qualitative to prioritize ecological validity with participants' own scenarios, but this does not substitute for objective verification. In the revised manuscript we will add expert-rated policy correctness scores (two independent raters scoring final policies against participant intent), report inter-rater agreement (Cohen's kappa), and include a post-hoc analysis of MLLM interpretation accuracy derived from the session logs. We will also expand the limitations section to discuss the risk of undetected hallucinations. revision: yes

  2. Referee: [Specify-Analyze-Test Workflow] The description of the Specify-Analyze-Test workflow does not include logged error analysis or independent checks that separate genuine user underspecification from MLLM misinterpretation of sketches or dialogue; without this, progressive refinement cannot be confidently attributed to the system rather than participant self-correction.

    Authors: We concur that the current workflow description attributes refinements to the system without disambiguating sources of change. The manuscript reports observed participant behavior but does not present a systematic error log breakdown. In the revision we will add a dedicated subsection that categorizes logged events into (a) user-initiated clarifications of underspecification and (b) MLLM misinterpretations of sketches or dialogue, with counts and examples. We will also include independent verification: a second researcher will review a random sample of 20% of sessions to confirm the categorization, with agreement statistics reported. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical claims rest on independent user studies

full rationale

The paper describes an HCI system (SBAC) and a Specify-Analyze-Test workflow, then reports outcomes from two separate user studies (formative n=14 and evaluation n=14) using participants' real-world scenarios. Central claims concern observed progressive refinement, gap-surfacing, and ambiguity resolution; these are presented as empirical findings from participant feedback and behavior, not as derivations, predictions, or fitted quantities that reduce to the inputs by construction. No equations, parameters, uniqueness theorems, or self-citations are invoked as load-bearing steps in any derivation chain. The evaluation design is independent of the system implementation in the required sense: results are not forced by re-labeling study inputs as outputs. This is the normal non-circular outcome for an empirical usability paper.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Empirical HCI paper with no mathematical derivations; relies on standard assumptions of user study validity and LLM interpretive capability.
