arxiv: 2605.11706 · v1 · submitted 2026-05-12 · 💻 cs.LG

Recognition: no theorem link

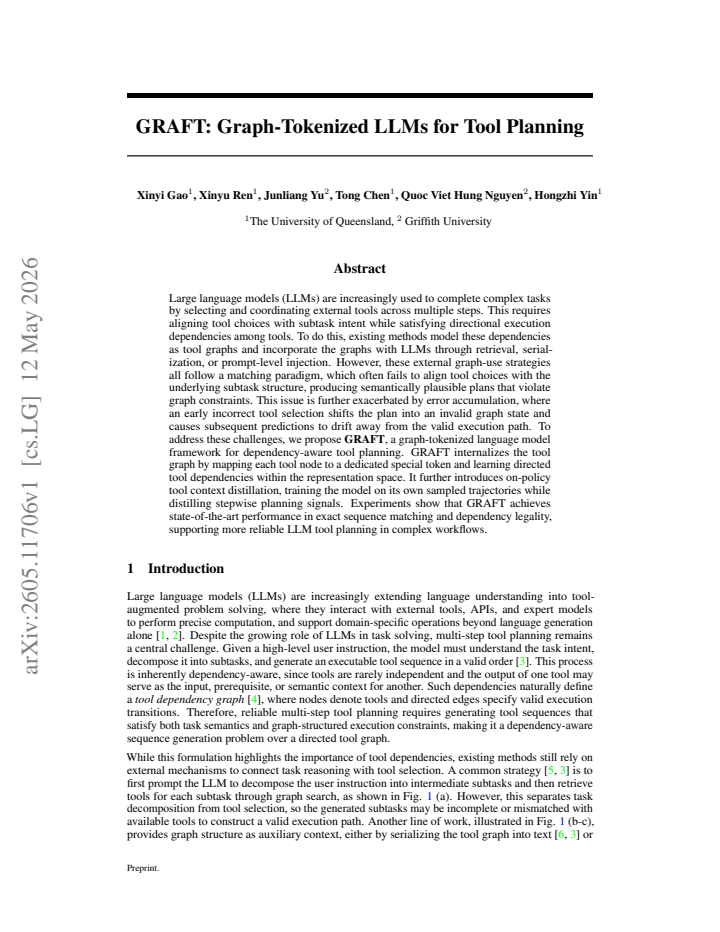

GRAFT: Graph-Tokenized LLMs for Tool Planning

Authors on Pith no claims yet

Pith reviewed 2026-05-13 07:17 UTC · model grok-4.3

classification 💻 cs.LG
keywords tool planningLLMgraph tokenizationdependency learningon-policy distillationsequence matchingtool graphs
0
0 comments X

The pith

Mapping each tool to a special token inside the LLM lets the model learn dependency graphs directly in its representations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Existing approaches feed tool graphs to LLMs through retrieval or prompts, but this external matching often produces sequences that violate the graph's directed edges and compounds mistakes from any early wrong choice. GRAFT instead assigns every tool a dedicated special token and trains the model to capture the directed dependencies among those tokens inside its own representation space. It adds on-policy distillation that lets the model learn from trajectories it generates itself, supplying step-by-step signals aligned with the underlying subtask structure. Experiments report gains in exact sequence match and dependency legality over prior methods.

Core claim

GRAFT internalizes the tool graph by mapping each tool node to a dedicated special token and learning directed tool dependencies within the representation space; it further introduces on-policy tool context distillation, training the model on its own sampled trajectories while distilling stepwise planning signals.

What carries the argument

Dedicated special tokens, one per tool node, whose embeddings are trained to encode the directed dependency relations of the tool graph.

If this is right

  • Exact sequence matching accuracy rises because the model no longer relies on post-hoc retrieval to enforce constraints.
  • Dependency legality improves since violations are penalized directly in the token embedding space rather than corrected after the fact.
  • Error accumulation is reduced because an early token choice already reflects the learned graph structure for subsequent steps.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same tokenization pattern could be tested on other graph-structured planning domains such as workflow orchestration or chemical reaction sequences.
  • Scaling the number of special tokens to thousands of tools would test whether the representation-space approach remains more efficient than retrieval as graph size grows.
  • Combining the internal tokens with lightweight external verification might further raise legality without losing the speed of fully internalized planning.

Load-bearing premise

Embedding tool dependencies as relations among special tokens inside the model will keep generated plans inside valid graph states even after an early choice.

What would settle it

Run GRAFT and a strong external-matching baseline on the same held-out tool graphs and count the fraction of generated plans that violate at least one directed dependency; if the fractions are statistically indistinguishable, the internalization benefit is not supported.

Figures

Figures reproduced from arXiv: 2605.11706 by Hongzhi Yin, Junliang Yu, Quoc Viet Hung Nguyen, Tong Chen, Xinyi Gao, Xinyu Ren.

Figure 1

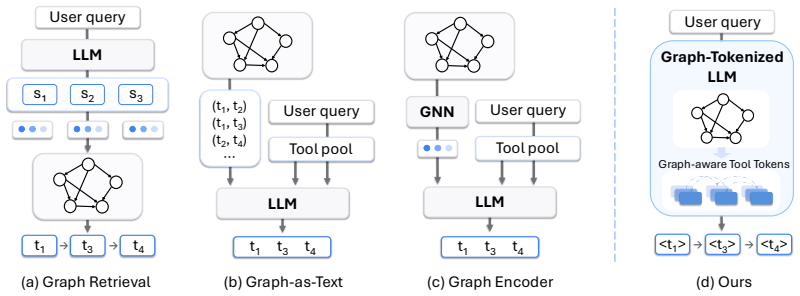

Figure 1. Figure 1: Existing methods use the tool graph externally: they retrieve tools [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

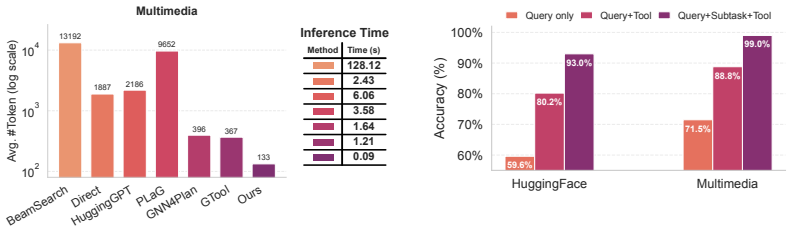

Figure 2. Figure 2: Efficiency and teacher prompt analysis. (a) compares total token cost and average inference [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Hallucination analysis and hyperparameter sensitivity analysis of different methods using [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: The distribution of tool sequence length for different datasets. [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Representative examples from the experimental datasets. [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗
read the original abstract

Large language models (LLMs) are increasingly used to complete complex tasks by selecting and coordinating external tools across multiple steps. This requires aligning tool choices with subtask intent while satisfying directional execution dependencies among tools. To do this, existing methods model these dependencies as tool graphs and incorporate the graphs with LLMs through retrieval, serialization, or prompt-level injection. However, these external graph-use strategies all follow a matching paradigm, which often fails to align tool choices with the underlying subtask structure, producing semantically plausible plans that violate graph constraints. This issue is further exacerbated by error accumulation, where an early incorrect tool selection shifts the plan into an invalid graph state and causes subsequent predictions to drift away from the valid execution path. To address these challenges, we propose GRAFT, a graph-tokenized language model framework for dependency-aware tool planning. GRAFT internalizes the tool graph by mapping each tool node to a dedicated special token and learning directed tool dependencies within the representation space. It further introduces on-policy tool context distillation, training the model on its own sampled trajectories while distilling stepwise planning signals. Experiments show that GRAFT achieves state-of-the-art performance in exact sequence matching and dependency legality, supporting more reliable LLM tool planning in complex workflows.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript introduces GRAFT, a framework that internalizes tool graphs into LLMs by mapping each tool to a dedicated special token and learning directed dependencies directly in the representation space, combined with on-policy tool context distillation on self-sampled trajectories. It claims this avoids the alignment failures and error accumulation of external retrieval/serialization approaches, achieving state-of-the-art results on exact sequence matching and dependency legality across tool-planning benchmarks, supported by ablations isolating the tokenization and distillation components.

Significance. If the reported gains hold under the provided experimental controls, the work offers a concrete mechanism for embedding graph constraints inside the LLM rather than relying on post-hoc matching, which could improve reliability for multi-step tool workflows. The use of on-policy distillation and explicit ablations on tokenization versus distillation stages are positive features that allow direct assessment of the proposed internalization hypothesis.

major comments (2)
  1. [§3.2] §3.2: The on-policy distillation loss is defined using stepwise planning signals from sampled trajectories, but the manuscript does not specify how the teacher distribution is constructed when the sampled plan enters an invalid state; this detail is load-bearing for the claim that distillation prevents drift relative to standard supervised fine-tuning.
  2. [§5.1] §5.1, Table 1: The exact-match and legality improvements are reported against retrieval and serialization baselines, yet the paper does not include a control that keeps vocabulary size fixed while removing the directed-dependency learning objective; without this, it is unclear whether the gains are attributable to the graph internalization or simply to the addition of special tokens.
minor comments (3)
  1. [Abstract] Abstract: The abstract asserts SOTA performance without any numerical values, dataset names, or baseline identifiers; adding one or two key numbers would improve readability.
  2. [§4.3] §4.3: The description of how tool nodes are mapped to special tokens does not state whether these tokens are initialized from existing embeddings or randomly; this should be clarified for reproducibility.
  3. [Figure 2] Figure 2: The architecture diagram would benefit from explicit arrows indicating the flow of the on-policy distillation loss back to the representation space.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive evaluation and the constructive major comments. We address each point below with clarifications and targeted revisions to the manuscript. Both comments can be resolved through additions to the text without requiring new experiments.

read point-by-point responses
  1. Referee: §3.2: The on-policy distillation loss is defined using stepwise planning signals from sampled trajectories, but the manuscript does not specify how the teacher distribution is constructed when the sampled plan enters an invalid state; this detail is load-bearing for the claim that distillation prevents drift relative to standard supervised fine-tuning.

    Authors: We agree this detail should be explicit for reproducibility. The original manuscript omitted the precise procedure for invalid states. In the revision, we will add to §3.2 that when a sampled trajectory reaches an invalid state, the teacher distribution is constructed from the last valid prefix by masking all actions that violate the internalized graph constraints (using the special token representations to enforce directed dependencies). Distillation then proceeds only over the legal next-token distribution at that prefix. This mechanism directly supports the claim that on-policy distillation reduces drift compared to standard SFT. We will include a short algorithmic description and update the loss equation accordingly. revision: yes

  2. Referee: §5.1, Table 1: The exact-match and legality improvements are reported against retrieval and serialization baselines, yet the paper does not include a control that keeps vocabulary size fixed while removing the directed-dependency learning objective; without this, it is unclear whether the gains are attributable to the graph internalization or simply to the addition of special tokens.

    Authors: This concern about isolating the source of gains is reasonable. Our §5.2 ablations already separate the effects of graph tokenization (which includes learning directed dependencies in representation space) from distillation, showing additive benefits. However, we acknowledge that an explicit control with identical vocabulary size but no dependency objective would further clarify attribution. Such a control would amount to adding unused special tokens without graph structure, which we view as less informative than the existing comparisons to non-tokenized baselines. In the revision we will add a paragraph in §5.1 explaining that the special tokens are not generic vocabulary additions but are tied to the graph internalization objective, and we will reference the ablation results to support that the observed improvements stem from dependency learning rather than token count alone. revision: partial

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper introduces GRAFT as an architectural framework that maps tools to special tokens and applies on-policy distillation, with all components defined independently of the reported performance metrics. The abstract and method description present the approach as a direct response to limitations in external graph-matching paradigms, without any equations or steps that reduce the claimed improvements to quantities fitted from the target results. Experimental claims rest on benchmark comparisons and ablations rather than self-referential definitions or self-citation chains that would force the outcomes by construction. This is a standard self-contained proposal with no load-bearing reductions to inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 1 invented entities

The central claim rests on the unproven premise that internal token-level learning of directed dependencies will outperform external graph matching and that on-policy distillation will mitigate error accumulation; these are introduced without independent evidence or prior validation in the abstract.

invented entities (1)
  • dedicated special tool tokens no independent evidence
    purpose: to internalize the tool graph directly into the LLM representation space
    Each tool node is mapped to a special token so that directed dependencies can be learned within the model's embeddings and attention patterns.

pith-pipeline@v0.9.0 · 5532 in / 1245 out tokens · 61024 ms · 2026-05-13T07:17:27.192066+00:00 · methodology
