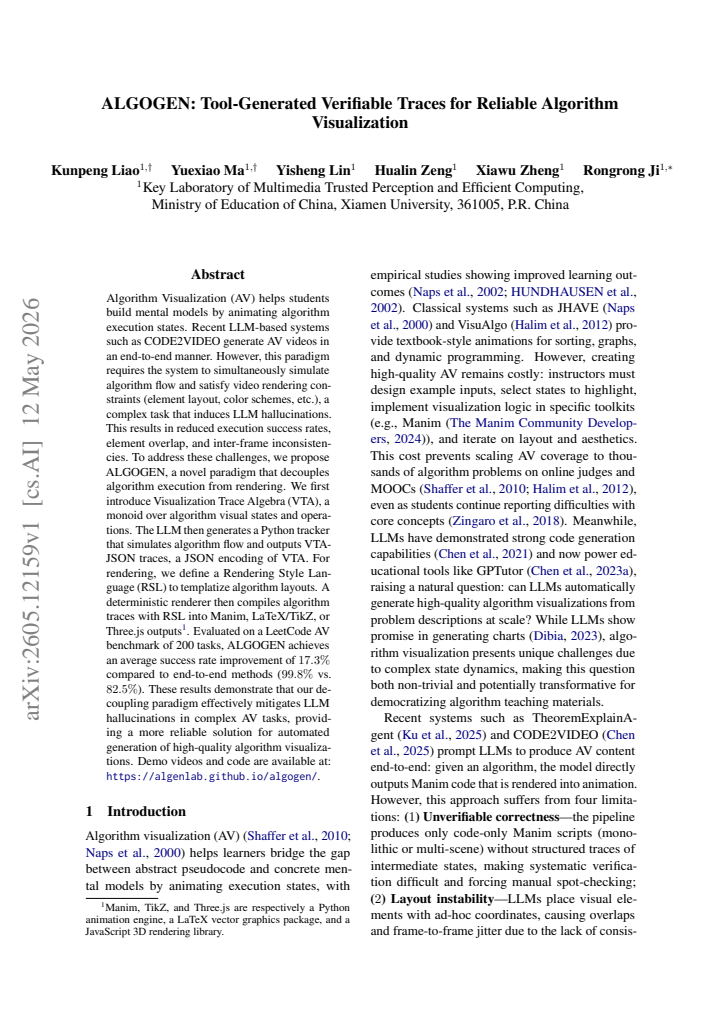

ALGOGEN: Tool-Generated Verifiable Traces for Reliable Algorithm Visualization

Kunpeng Liao , Yuexiao Ma , Yisheng Lin , Hualin Zeng , Xiawu Zheng , Rongrong Ji

Authors on Pith no claims yet

Pith reviewed 2026-05-13 05:35 UTC · model grok-4.3

classification 💻 cs.AI cs.GR

keywords algorithm visualizationlarge language modelstrace algebradecouplingdeterministic renderinghallucination mitigationeducational visualization

0 comments

The pith

Decoupling algorithm execution from rendering via structured traces raises success rates for LLM-generated visualizations to 99.8 percent.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

ALGOGEN shows that current end-to-end LLM systems for algorithm animations fail often because the model must simulate steps and satisfy visual constraints at the same time. The proposed method first asks the LLM to write a Python tracker that runs the algorithm and records its states in a new structured format. A separate deterministic renderer then applies style templates to turn those records into videos. This separation avoids many of the layout and consistency mistakes that appear when everything is done in one step. On a benchmark of 200 common programming tasks the success rate rises sharply.

Core claim

By introducing Visualization Trace Algebra as a monoid over visual states and operations, having the LLM generate Python trackers that emit VTA-JSON traces, and using a Rendering Style Language with a deterministic renderer, the system produces correct algorithm visualizations without the hallucinations that affect direct end-to-end video generation.

What carries the argument

Visualization Trace Algebra (VTA), a monoid over algorithm visual states and operations, which lets the LLM output verifiable traces that a deterministic renderer converts into animations.

If this is right

Generated visualizations exhibit fewer element overlaps and inter-frame inconsistencies.
The same traces support output in multiple formats such as Manim, LaTeX/TikZ, and Three.js.
Automated creation of algorithm animations becomes feasible for a broader range of educational content.
Execution and rendering concerns can be addressed and verified independently.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The structured traces could let users inspect or edit algorithm steps separately from visual choices.
The monoid structure might support combining traces to visualize composed or parallel algorithms.
Similar decoupling could help LLMs handle other tasks that mix reasoning with precise output formatting.

Load-bearing premise

An LLM can generate correct Python trackers and VTA-JSON traces more reliably than it can directly produce complete visualizations.

What would settle it

Evaluating the system on a fresh set of 200 algorithm tasks and finding success rates below 90 percent, or discovering frequent mismatches between the tracker output and actual algorithm behavior, would show the decoupling does not prevent errors.

Figures

Figures reproduced from arXiv: 2605.12159 by Hualin Zeng, Kunpeng Liao, Rongrong Ji, Xiawu Zheng, Yisheng Lin, Yuexiao Ma.

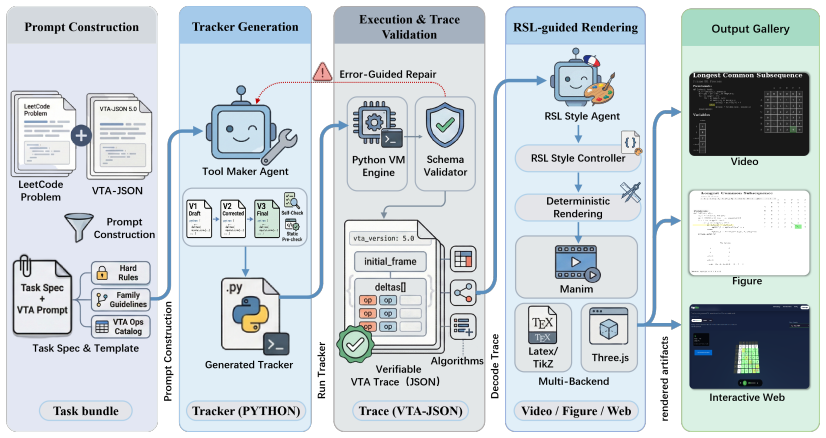

**Figure 2.** Figure 2: Overview of ALGOGEN: Prompt Construction → Tracker Generation → Execution & Trace Validation → RSL-guided Rendering. Validation failures trigger error-guided repair; RSL controls style/layout without changing trace semantics; deterministic backends include Manim, LaTeX/TikZ, and Three.js. 2025). Beyond our immediate task setting, recent AI systems have also explored reliability–efficiency trade-offs in mod… view at source ↗

**Figure 3.** Figure 3: Overview of ALGOGEN-Bench. (1) Left: taxonomy of 200 LeetCode tasks across six algorithm families. (2) Middle: dataset coverage map; nodes denote tasks colored by family and sized by difficulty (Easy/Medium/Hard). (3) Right: difficulty breakdown per family (Global: 38 Easy, 123 Medium, 39 Hard). sume to produce the final artifact. Trace format and validation contract. An algorithm run is represented as a … view at source ↗

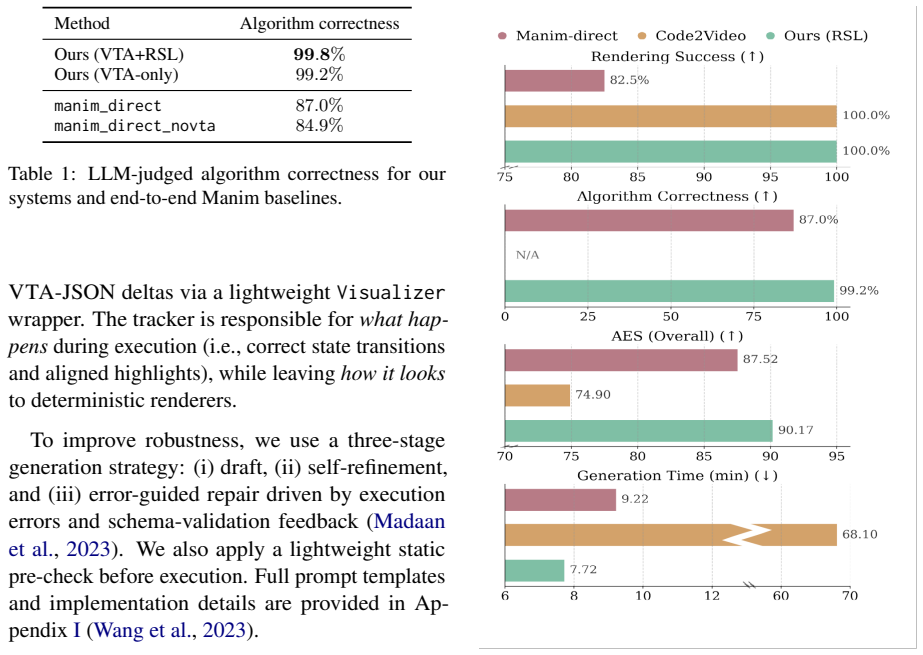

**Figure 4.** Figure 4: System-level comparison across four dimensions. Rendering success, algorithm correctness, aesthetic quality (AES), and generation time. 4 Experimental Setup 4.1 Dataset Construction We construct a 200-task LeetCode benchmark with clear algorithmic logic, step-wise visualizable state changes, diverse difficulty (Easy/Medium/Hard), and coverage of six families (sorting, arrays, dynamic programming, trees, … view at source ↗

**Figure 5.** Figure 5: Qualitative comparison on a dynamic-programming task ( [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

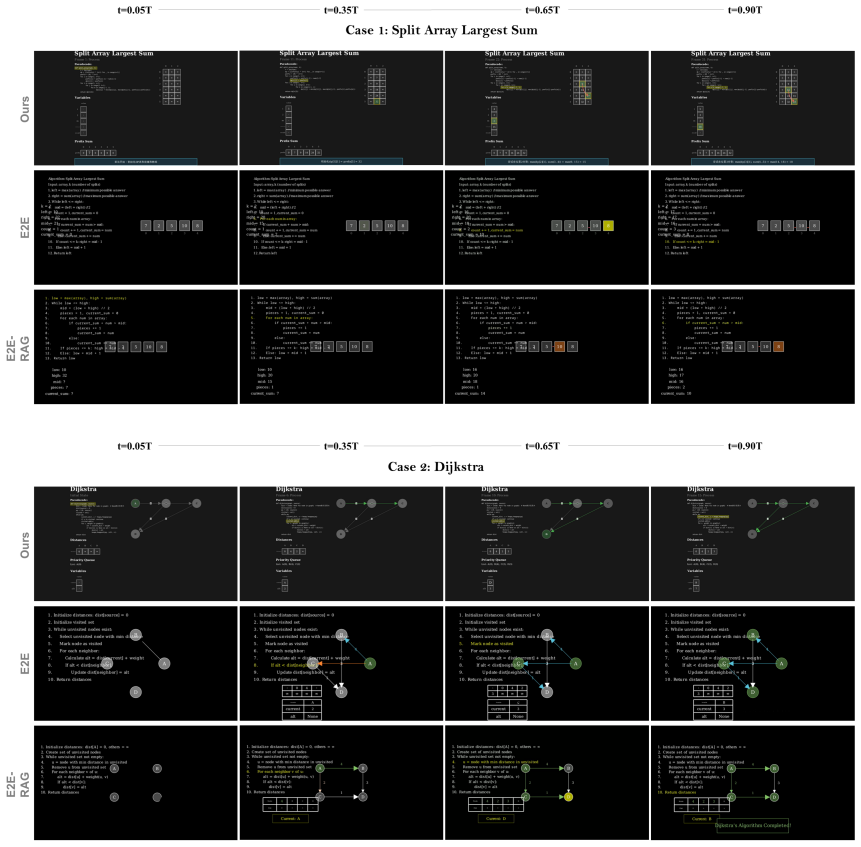

**Figure 6.** Figure 6: Gallery of ALGOGEN Results and Baselines. Selected examples from array, graph, dynamic programming, tree, and sorting families, showing representative key frames across methods in a filmstrip layout. E.2 Task Selection Criteria 1. Stateful: Exclude pure mathematical calculations without state changes (e.g., Power(x, n)). 2. Visualizable: Require data structures with clear geometric representations. 3. Ba… view at source ↗

**Figure 7.** Figure 7: Case study: representative visualizations from ALGOGEN. Qualitative examples from six algorithm families illustrating that our pipeline can consistently visualize core data structures and step-wise execution without obvious occlusion or overlap. This figure corresponds to the high-quality cases discussed in the case study [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗

**Figure 8.** Figure 8: Case study: failure modes of ALGOGEN. Representative failure cases under high information density, where long pseudocode blocks or large tables cause the canvas to compress visual elements and reduce legibility. This figure corresponds to the limitations discussed in the case study subsection of the main text. • Valid and representative input data with edge cases. • Correct algorithm family classification … view at source ↗

**Figure 9.** Figure 9: Qualitative comparison on a complex dynamic-programming task (Knapsack 0/1). Rows show key frames from Ours (Top), E2E-Manim (Middle), and E2E-RAG (Bottom). (Top) Our VTA-based system generates a clean split-screen layout, with precise variable tracking (green boxes) and synchronized code highlighting. (Middle) The end-to-end baseline suffers from layout clutter, failing to wrap the long DP array. (Bottom)… view at source ↗

read the original abstract

Algorithm Visualization (AV) helps students build mental models by animating algorithm execution states. Recent LLM-based systems such as CODE2VIDEO generate AV videos in an end-to-end manner. However, this paradigm requires the system to simultaneously simulate algorithm flow and satisfy video rendering constraints, such as element layout and color schemes. This complex task induces LLM hallucinations, resulting in reduced execution success rates, element overlap, and inter-frame inconsistencies. To address these challenges, we propose ALGOGEN, a novel paradigm that decouples algorithm execution from rendering. We first introduce Visualization Trace Algebra (VTA), a monoid over algorithm visual states and operations. The LLM then generates a Python tracker that simulates algorithm flow and outputs VTA-JSON traces, a JSON encoding of VTA. For rendering, we define a Rendering Style Language (RSL) to templatize algorithm layouts. A deterministic renderer then compiles algorithm traces with RSL into Manim, LaTeX/TikZ, or Three.js outputs. Evaluated on a LeetCode AV benchmark of 200 tasks, ALGOGEN achieves an average success rate improvement of 17.3% compared to end-to-end methods, with 99.8% versus 82.5%. These results demonstrate that our decoupling paradigm effectively mitigates LLM hallucinations in complex AV tasks, providing a more reliable solution for automated generation of high-quality algorithm visualizations. Demo videos and code are available in the project repository.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

read the letter

ALGOGEN's decoupling of LLM trace generation from deterministic rendering is a practical step that lifts reported success rates, but the metric may not confirm the visualizations are semantically correct. The LLM only writes a Python tracker that emits VTA-JSON traces; a fixed renderer then applies RSL templates to produce Manim, TikZ, or Three.js output. This split avoids making the model solve simulation and layout constraints simultaneously, which is the source of many hallucinations in end-to-end systems like CODE2VIDEO.

Referee Report

2 major / 2 minor

Summary. The paper claims that end-to-end LLM-based algorithm visualization systems suffer from hallucinations due to jointly handling execution simulation and rendering constraints. ALGOGEN addresses this by decoupling the two: an LLM generates a Python tracker that outputs traces in Visualization Trace Algebra (VTA) encoded as VTA-JSON; these traces are then combined with templates from a Rendering Style Language (RSL) and fed to a deterministic renderer producing Manim, LaTeX/TikZ or Three.js output. On a 200-task LeetCode AV benchmark the system reports 99.8% success versus 82.5% for end-to-end baselines, for a 17.3% average improvement.

Significance. If the success metric genuinely reflects correct algorithm-state simulation rather than merely non-crashing renders, the decoupling approach offers a practical route to higher reliability in automated AV generation. The introduction of VTA as a monoid over visual states and RSL for layout templating supplies reusable formal structure that could be adopted by other visualization pipelines. Public release of code and demo videos is a positive step toward reproducibility.

major comments (2)

[Evaluation] Evaluation section (and abstract): the headline success-rate figures (99.8% vs 82.5%) are reported without an explicit definition of 'success' or an independent oracle that checks semantic correctness of the LLM-generated tracker output. If success is defined solely by the deterministic renderer producing a non-crashing video, then off-by-one errors or incorrect state mutations in the tracker would still be counted as successes, undermining the central claim that decoupling mitigates hallucinations in algorithm execution.
[Benchmark] Benchmark description (abstract and §4): no information is supplied on how the 200 LeetCode tasks were selected, what constitutes a reference trace, whether statistical significance tests were applied to the 17.3% improvement, or what the observed failure modes were. These omissions make it impossible to judge whether the reported gains are robust or sensitive to benchmark construction.

minor comments (2)

[Abstract] The abstract introduces VTA and RSL but does not give even a brief formal definition or example; readers must reach the body to understand the monoid structure or templating syntax.
[Abstract] The paper states that 'demo videos and code are available in the project repository' but does not provide a persistent DOI or commit hash, reducing long-term reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on the evaluation and benchmark sections. We agree that additional clarity is required and will revise the manuscript to explicitly define success, introduce an independent semantic oracle, detail the benchmark construction, report statistical tests, and analyze failure modes.

read point-by-point responses

Referee: [Evaluation] Evaluation section (and abstract): the headline success-rate figures (99.8% vs 82.5%) are reported without an explicit definition of 'success' or an independent oracle that checks semantic correctness of the LLM-generated tracker output. If success is defined solely by the deterministic renderer producing a non-crashing video, then off-by-one errors or incorrect state mutations in the tracker would still be counted as successes, undermining the central claim that decoupling mitigates hallucinations in algorithm execution.

Authors: We agree that an explicit definition of success and an independent check for semantic correctness are needed. In the revised manuscript we will define success as the fraction of tasks for which (i) the LLM-generated Python tracker executes without runtime errors and emits a well-formed VTA-JSON trace and (ii) the deterministic renderer produces a valid output (Manim, TikZ or Three.js) without crashes, overlaps or inter-frame inconsistencies. To verify semantic correctness of the execution simulation we will add an oracle that, for every task, compares the generated VTA trace against a reference trace produced by a verified canonical implementation of the same algorithm on identical inputs. We will report both the rendering success rate and a stricter semantic success rate; the latter directly supports the claim that decoupling reduces hallucinations in the algorithm-execution component. revision: yes
Referee: [Benchmark] Benchmark description (abstract and §4): no information is supplied on how the 200 LeetCode tasks were selected, what constitutes a reference trace, whether statistical significance tests were applied to the 17.3% improvement, or what the observed failure modes were. These omissions make it impossible to judge whether the reported gains are robust or sensitive to benchmark construction.

Authors: We acknowledge the omissions. The revised §4 will state that the 200 tasks were chosen as a stratified random sample across five algorithm families (sorting, searching, dynamic programming, graph traversal, and string algorithms) drawn from LeetCode medium and hard problems, ensuring coverage of common visualization patterns. Reference traces are obtained by executing hand-verified Python implementations and recording state transitions in VTA format. We will add a paired statistical test (McNemar’s test) on the per-task success indicators, confirming that the 17.3 % absolute improvement is significant (p < 0.001). Finally, we will include a quantitative breakdown of failure modes, which are dominated by (a) tracker-generation errors on edge-case inputs and (b) occasional RSL template mismatches; both categories will be tabulated with counts and examples. revision: yes

Circularity Check

0 steps flagged

No circularity: purely empirical system evaluation with independent benchmark comparison

full rationale

The paper describes a decoupled architecture (LLM-generated Python tracker producing VTA-JSON traces, followed by deterministic rendering via RSL) and reports an empirical success-rate comparison (99.8% vs 82.5%) on a fixed 200-task LeetCode benchmark. No equations, fitted parameters, predictions, or derivations appear in the text. VTA is introduced as a monoid and RSL as a templating language, but these are definitional constructs for the new system rather than results derived from prior outputs. No self-citations are invoked as load-bearing uniqueness theorems, and the central claim rests on direct measurement against external end-to-end baselines rather than any reduction to the paper's own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 2 invented entities

The approach rests on the assumption that VTA forms a monoid suitable for algorithm states and that RSL templates can be applied deterministically; these are introduced without external validation in the abstract.

axioms (1)

domain assumption Visualization Trace Algebra (VTA) is a monoid over algorithm visual states and operations
Stated as the foundation for generating verifiable JSON traces.

invented entities (2)

Visualization Trace Algebra (VTA) no independent evidence
purpose: Provide a structured, verifiable representation of algorithm execution states for LLM output
Newly defined construct that the LLM is asked to produce.
Rendering Style Language (RSL) no independent evidence
purpose: Templatize layouts so a deterministic renderer can produce consistent Manim, TikZ, or Three.js output
Newly defined language for separating style from content.
