Dark photon searches in the photon channel

D. Aristizabal Sierra , A. Betancur , K. Pohl , J. Velez

Authors on Pith no claims yet

Pith reviewed 2026-05-14 17:49 UTC · model grok-4.3

classification ✦ hep-ph hep-exnucl-ex

keywords dark photonphoton channelpion decayinvisible decaysGEANT4spectral shapeparameter spaceproton beam

0 comments

The pith

Spectral shape differences in photons from neutral pion decays can probe new regions of dark photon parameter space for invisible decay models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes using differences in the energy spectra of photons produced in neutral pion decays as a search channel for dark photons. In the usual two-photon decay the spectrum has a known shape, but the alternative decay to a photon plus dark photon produces a different distribution that can be distinguished. A GEANT4 model of 70 micrometer tungsten foils separated by 200 micrometers and struck by a 1 GeV proton beam shows that multiple runs at 10 to 50 microampere beam current would reach previously unexplored parameter space in models where the dark photon decays mostly invisibly. The method relies only on the decay kinematics and is therefore largely model independent. A sympathetic reader would care because it offers a concrete experimental path to test dark-sector models using photon detection alone.

Core claim

The central claim is that the spectral shape differences between photons produced in π⁰→γγ and π⁰→γ+A_D decays can be exploited for dark photon searches. A GEANT4 model assuming 70 μm thick tungsten foils separated by 200 μm and a 1 GeV proton beam shows that multiple campaign runs with a 10-50 μA beam could probe previously unexplored regions of parameter space in models where the dark photon has predominantly invisible decays. The results are highly model independent.

What carries the argument

The difference in photon energy spectra arising from two-body versus three-body kinematics in neutral pion decays, modeled for production, detection, and backgrounds in a thin tungsten foil target.

If this is right

Multiple runs with 10-50 μA proton beams can access new parameter space for dark photons with invisible decays.
The search works for models in which the dark photon decays predominantly invisibly.
The approach is highly model independent beyond the assumed decay mode.
Photon detection in the foil setup distinguishes the signal spectrum from standard backgrounds.
The chosen foil thickness and separation provide the spectral resolution needed for the distinction.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

This spectral method could be combined with other dark photon searches to cover both visible and invisible decay modes.
Calibration data from a real beam test would be required to confirm the GEANT4 predictions before scaling to full campaigns.
Similar kinematic differences in pion decays might allow searches for other light dark-sector particles beyond the dark photon.

Load-bearing premise

The GEANT4 model accurately captures photon production, detection efficiencies, and all relevant backgrounds for the chosen foil thickness, separation, and beam energy without significant unmodeled systematics.

What would settle it

An actual experiment with the described 70 μm tungsten foils, 200 μm separation, and 1 GeV proton beam at 10-50 μA that records photon spectra matching only standard pion decays and showing no shape deviations beyond background would demonstrate that the proposed search cannot reach the claimed new parameter space.

Figures

Figures reproduced from arXiv: 2605.13696 by A. Betancur, D. Aristizabal Sierra, J. Velez, K. Pohl.

**Figure 1.** Figure 1: FIG. 1. Photon energy distribution at production before [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

**Figure 2.** Figure 2: FIG. 2. Photon mean free path in tungsten [32]. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

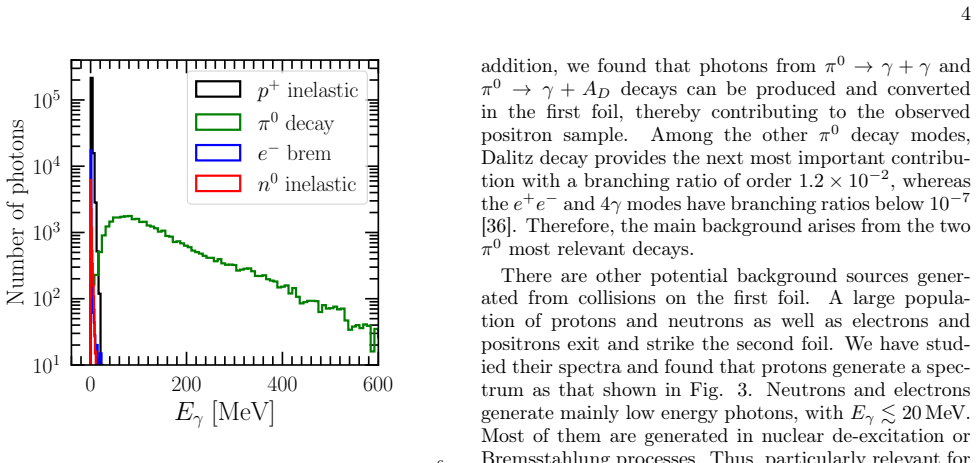

**Figure 3.** Figure 3: FIG. 3. Photons generated in a [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: FIG. 4. Positrons spectra (before weighting by branching [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

**Figure 5.** Figure 5: FIG. 5. 90% CL limits on the kinetic mixing parameter and [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

read the original abstract

Spectral shape differences between photons produced in $\pi^0\to\gamma+\gamma$ and $\pi^0\to\gamma+A_D$ may provide a new avenue for dark photon searches. Assuming 70 $\mu$m thick tungsten foils separated by 200 $\mu$m and a 1 GeV proton beam, we developed a GEANT4 model to estimate photon production and detection including background. Our results demonstrate that multiple campaign runs with a 10-50 $\mu$A beam could probe previously unexplored regions of parameter space in models where the dark photon has predominantly invisible decays. The results are highly model independent.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

GEANT4 photon spectrum simulation for 70 μm W foils at 1 GeV lacks data validation, so the projected reach for invisible dark photons is still speculative.

read the letter

The paper's core idea is to exploit small differences in the photon energy spectrum from π⁰ → γγ versus π⁰ → γA_D (with A_D invisible) in a thin tungsten target. They model 70 μm foils spaced 200 μm apart under a 1 GeV proton beam in GEANT4 and conclude that a few runs at 10-50 μA could reach new parameter space for invisible decays. That specific geometry-plus-beam combination and the spectral-shape approach in the photon channel is the new element; prior work has used missing energy or displaced vertices, so this is a genuine complementary handle if it holds up. The claim of model independence is also reasonable on its face because the method relies on shape rather than absolute rate. The obvious limitation is that the entire sensitivity estimate rests on an unvalidated simulation. The abstract and stress-test note give no comparison of the simulated π⁰ → γγ spectrum to existing thin-target data, no analytic cross-check on photon conversion or multiple scattering, and no error budget for foil edge effects or electromagnetic shower modeling. Any systematic offset in those pieces directly moves the projected exclusion contour. Because this is a forward simulation rather than a fit to real data, the result is only as strong as the GEANT4 physics list. For experimentalists already running or planning beam-dump or fixed-target dark-photon searches this could be worth a look once the simulation is anchored. It is not yet ready for a strong citation, but the setup is concrete enough that a serious referee could usefully ask for the missing validation steps and background-rejection details. I would send it to review rather than desk-reject.

Referee Report

2 major / 1 minor

Summary. The paper proposes using spectral shape differences between photons from π⁰→γγ and π⁰→γA_D (with A_D decaying invisibly) as a new search channel for dark photons. It describes a GEANT4 simulation of a setup with 70 μm tungsten foils separated by 200 μm, a 1 GeV proton beam, and estimates that multiple runs at 10-50 μA beam current could reach previously unexplored regions of parameter space in a largely model-independent manner.

Significance. If validated, the approach would provide a novel, model-independent probe of dark photon parameter space via photon-channel spectral differences, complementing existing searches. The simulation-based reach estimate is a strength in its specificity to the proposed foil geometry and beam parameters, but the absence of any data anchoring or uncertainty quantification limits its immediate utility for guiding experiments.

major comments (2)

[GEANT4 model and results] The GEANT4 model (described in the methods and results sections) for photon production, conversion, and detection in 70 μm W foils at 200 μm separation provides the sole basis for the sensitivity projections, yet no comparison is made to thin-target π⁰ data, analytic benchmarks, or independent calculations of the π⁰→γγ spectrum; this directly undermines the reliability of background subtraction and efficiency estimates.
[Abstract and results] The headline claim that multiple 10-50 μA runs probe new invisible-decay parameter space (abstract and conclusion) rests on simulated spectral differences without reported error budgets, sensitivity to foil thickness or beam energy variations, or assessment of unmodeled effects such as multiple scattering and edge effects, making the quantitative reach estimate unanchored.

minor comments (1)

[Abstract] The abstract states the results are 'highly model independent,' but the simulation depends on specific choices for foil thickness, separation, and beam energy; clarifying the sense in which the method is model-independent would improve clarity.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the careful and constructive review of our manuscript. We have taken the major comments seriously and will revise the paper to strengthen the validation of the GEANT4 model and to provide a more detailed assessment of uncertainties in the sensitivity projections. Our point-by-point responses are given below.

read point-by-point responses

Referee: The GEANT4 model (described in the methods and results sections) for photon production, conversion, and detection in 70 μm W foils at 200 μm separation provides the sole basis for the sensitivity projections, yet no comparison is made to thin-target π⁰ data, analytic benchmarks, or independent calculations of the π⁰→γγ spectrum; this directly undermines the reliability of background subtraction and efficiency estimates.

Authors: We agree that explicit validation against benchmarks would improve the manuscript. In the revised version we will add a dedicated subsection in the methods comparing the simulated π⁰→γγ photon spectrum to the analytic two-body decay distribution and to published thin-target cross-section data from the literature. These comparisons will be used to quantify the accuracy of the background modeling and detection efficiencies. revision: yes
Referee: The headline claim that multiple 10-50 μA runs probe new invisible-decay parameter space (abstract and conclusion) rests on simulated spectral differences without reported error budgets, sensitivity to foil thickness or beam energy variations, or assessment of unmodeled effects such as multiple scattering and edge effects, making the quantitative reach estimate unanchored.

Authors: We acknowledge that the current sensitivity estimates would benefit from a fuller uncertainty treatment. The revised manuscript will include an error budget, additional GEANT4 runs exploring ±10–20% variations in foil thickness and beam energy, and explicit discussion of multiple scattering and edge effects. These additions will better quantify the robustness of the projected reach. Because the work is a simulation-based proposal rather than an analysis of existing data, a complete experimental calibration is outside the present scope. revision: partial

standing simulated objections not resolved

Direct experimental data anchoring of the GEANT4 model, since the manuscript presents a simulation study for a proposed experiment and does not include new measurements.

Circularity Check

0 steps flagged

No circularity: forward GEANT4 simulation of proposed experiment

full rationale

The paper's central result is a sensitivity projection obtained by running a GEANT4 Monte Carlo simulation of photon production, propagation, and detection in a specific foil-and-detector geometry. This is a forward calculation whose outputs (event rates, background rejection efficiencies) are determined by the input physics models and geometry parameters, not by fitting to the target observable and then re-deriving it. No equations are presented that would make the projected reach tautological with the simulation inputs. Self-citations, if any, are not used to justify uniqueness or to close a logical loop. The derivation chain is therefore self-contained and non-circular.

Axiom & Free-Parameter Ledger

4 free parameters · 2 axioms · 0 invented entities

The central claim rests on the accuracy of the GEANT4 model for electromagnetic processes in tungsten and the assumption that dark photons decay predominantly into invisible final states.

free parameters (4)

Tungsten foil thickness = 70 μm
Assumed value of 70 μm used in the GEANT4 geometry
Foil separation = 200 μm
Assumed value of 200 μm used in the GEANT4 geometry
Proton beam energy = 1 GeV
Assumed value of 1 GeV used in the simulation
Beam current range = 10-50 μA
Assumed 10-50 μA for estimating experimental reach

axioms (2)

domain assumption GEANT4 accurately models photon production, transport, and detection including backgrounds in this geometry
Invoked to estimate signal and background rates
domain assumption Dark photon has predominantly invisible decays
Required for the models in which the search is claimed to be effective
