Mechanistic Interpretability of EEG Foundation Models via Sparse Autoencoders

Authors on Pith no claims yet

Pith reviewed 2026-05-15 05:09 UTC · model grok-4.3

classification 💻 cs.LG cs.HCcs.NE
keywords sparse autoencodersEEG foundation modelsconcept steeringmonosemanticityclinical entanglementspectral decodermechanistic interpretability
0
0 comments X

The pith

Sparse autoencoders extract steerable clinical features from EEG foundation models while exposing age-pathology entanglements and wrecking-ball failures.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper trains TopK sparse autoencoders on embeddings from three different EEG transformer models and grounds the resulting features in a clinical taxonomy covering abnormality, age, sex, and medication. It then uses concept steering to introduce a target-versus-off-target probe area metric that measures how selectively changing one feature affects model outputs. This metric divides the discovered features into three regimes: selectively steerable, encoded but entangled with other concepts, and not encoded at all. The same procedure also maps steered changes back through a spectral decoder to show concrete effects on the EEG amplitude spectrum, such as suppression of slow waves or restoration of alpha activity. If these claims hold, the work supplies a concrete way to diagnose why current EEG models cannot manipulate one clinical variable without corrupting another.

Core claim

TopK SAEs applied to the embeddings of SleepFM, REVE, and LaBraM yield sparse dictionaries whose individual directions can be steered; a probe-area metric on these directions reveals three regimes of selectivity and directly identifies representational failures such as global performance collapse after intervention and irreducible confounding between age and pathology labels.

What carries the argument

The target-versus-off-target probe area metric computed from concept steering on SAE-derived features, which quantifies how narrowly an intervention on one clinical concept affects model predictions.

If this is right

  • Some clinical concepts can be independently adjusted in model outputs without collapsing overall accuracy.
  • Certain pairs of concepts, such as age and pathology, remain entangled so that suppressing one necessarily corrupts the other.
  • Interventions that are not selective produce wrecking-ball effects that degrade performance across many downstream tasks.
  • Spectral decoding converts each steered feature into a concrete change in frequency-band amplitudes that clinicians can inspect.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same SAE-plus-steering pipeline could be applied to other biosignal foundation models to test whether the three-regime pattern is general.
  • Non-encoded concepts identified by the metric indicate specific gaps in the original training data that future collection efforts could target.
  • Clinicians could use selective steering to generate counterfactual EEG traces that simulate the effect of removing a medication or correcting for age.

Load-bearing premise

The assumption that SAE features grounded in the clinical taxonomy actually correspond to causally active internal variables rather than mere correlations in the training data.

What would settle it

If steering an SAE feature labeled as abnormality changes the model's abnormality predictions on held-out EEG recordings but also shifts age or sex predictions by a comparable amount, the claim of selective steerability collapses.

Figures

Figures reproduced from arXiv: 2605.13930 by Anton Storgaard Mosquera, James Zou, Lars Kai Hansen, Magnus Guldberg Pedersen, Magnus Ruud Kj{\ae}r, Nick Williams, Radu Gatej, Rahul Thapa, Sadasivan Puthusserypady, S\'andor Beniczky, Tue Lehn-Schi{\o}ler, William Lehn-Schi{\o}ler.

Figure 1
Figure 1. Figure 1: Pipeline overview. Starting from a frozen EEG foundation model: (Stage I) A shallow MLP spectral decoder translates token embeddings back into a human interpretable space. (Stage II) For each transformer layer, a TopK SAE recovers a sparse, over-complete feature dictionary from normalized encoder activations. (Stage III) SAE features are mapped to known clinical concepts using TCAV. (Stage IV) Concept stee… view at source ↗
Figure 2

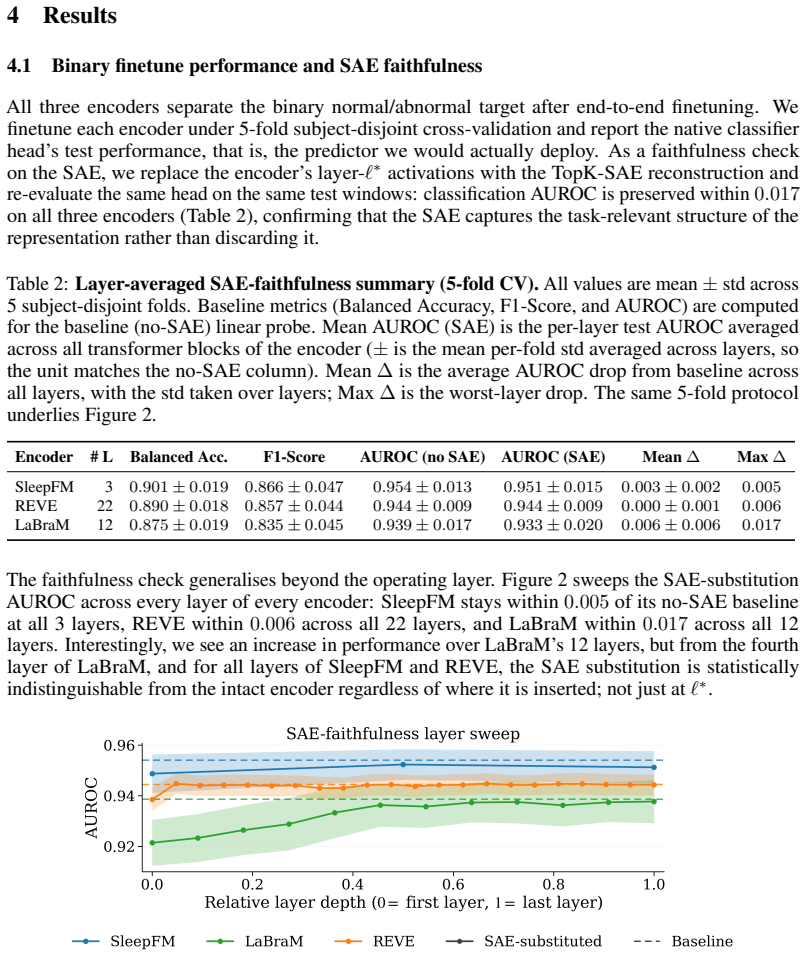

Figure 2. Figure 2: SAE-faithfulness layer sweep. Test AUROC of a linear probe trained via 5-fold cross￾validation on mean-pooled embeddings of each finetuned encoder. During inference, layer-ℓ activa￾tions are replaced by their TopK-SAE reconstructions as ℓ sweeps through every transformer block. Shaded bands represent 95% confidence intervals across the CV folds; the dotted horizontal lines indicate the no-SAE baseline mean… view at source ↗
Figure 3
Figure 3. Figure 3: Monosemanticity taxonomy across SAE expansion and encoder depth. Each cell reports the fraction of concept-enriched SAE features in one of three taxonomy classes (Separable: monosemantic; Entangled: polysemantic co-activations; Dead: semantically uninformative/inactive). Columns represent encoders (SleepFM, LaBraM, REVE), with x-axes indexing the encoder layer and y-axes indexing expansion factor E ∈ {1, 2… view at source ↗
Figure 4
Figure 4. Figure 4: Concept encoding strength and steering selectivity. Top: Encoding strength (AUROC0) measured via per-layer linear probes fit to the clean SAE-decoded reconstructions. Bottom: Excess selectivity (∆˜ ), quantifying the integrated asymmetry between target and off-target probe degradation under TCAV-ranked clamping (Section 3.5). For abnormality as target, we use age as off-target. For all other targets, we us… view at source ↗
Figure 5
Figure 5. Figure 5: Steering sweeps across the encoding–selectivity landscape. Nine representative configu￾rations from [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: grounds the abstract selectivity metrics ( [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: SAE dictionary size across encoders and expansion rates. Each cell gives the number of learned SAE features, which equals the encoder’s embedding dimension (denc = 128 for SleepFM, 200 for LaBraM, 512 for REVE) times the expansion rate E. Because REVE is 4× wider than SleepFM, an E=1 REVE SAE already exceeds the size of an E=4 SleepFM SAE, and the E=64 REVE configuration spans 32,768 features. This asymmet… view at source ↗
read the original abstract

EEG foundation models achieve state-of-the-art clinical performance, yet the internal computations driving their predictions remain opaque: a barrier to clinical trust. We apply TopK Sparse Autoencoders (SAEs) across three architecturally distinct EEG transformers: SleepFM, REVE, and LaBraM to extract sparse feature dictionaries from their embeddings. By grounding these features in a clinical taxonomy (abnormality, age, sex, and medication), we benchmark monosemanticity and entanglement across architectures. A single hyperparameter procedure, driven by an intrinsic dictionary health audit, transfers robustly across all three architectures. Via concept steering, we introduce a "target vs. off-target" probe area metric to quantify steering selectivity and reveal three operational regimes: selectively steerable, encoded but entangled, and non-encoded. This framework exposes critical representational failures: "wrecking-ball" interventions that collapse global model performance, and clinical entanglements, such as age-pathology confounding, where it is impossible to suppress one concept without corrupting the other. Finally, a spectral decoder maps these interventions back to the amplitude spectrum, translating latent manipulations into physiologically interpretable frequency signatures, such as pathological slow-wave suppression and $\alpha$-band restoration.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper applies TopK Sparse Autoencoders to the embeddings of three EEG foundation models (SleepFM, REVE, LaBraM) to extract sparse feature dictionaries. Features are grounded in a clinical taxonomy (abnormality, age, sex, medication) to benchmark monosemanticity and entanglement. Concept steering is performed with a new 'target vs. off-target' probe-area metric that identifies three operational regimes (selectively steerable, encoded but entangled, non-encoded). The framework is used to surface representational failures such as wrecking-ball interventions and age-pathology confounding, with a spectral decoder translating interventions into frequency-domain signatures.

Significance. If the central claims are supported by rigorous validation, the work supplies the first systematic mechanistic-interpretability pipeline for EEG transformers, including transferable SAE training, a quantitative steering-selectivity metric, and physiologically grounded failure modes. These contributions could materially improve clinical trust and debugging of high-stakes EEG models.

major comments (3)
  1. [§4.2] §4.2 (probe-area metric definition): the metric is computed directly from the steered activations that also define the three regimes; without an ablation that steers on random or permuted SAE features, it is impossible to rule out that reported selectivity scores are artifacts of the TopK dictionary rather than genuine causal structure.
  2. [§3.1–3.3] §3.1–3.3 (feature grounding procedure): the assignment of SAE features to the supplied clinical taxonomy is presented without an independent validation set or inter-rater reliability measure; any label leakage would propagate directly into the entanglement and regime classifications.
  3. [§5.1] §5.1 (wrecking-ball and age-pathology examples): the reported performance collapse and confounding effects are shown for single interventions only; no quantitative comparison to baseline random steering or to an SAE trained with a different sparsity penalty is provided, weakening the claim that these are intrinsic representational failures.
minor comments (2)
  1. [Figure 3] Figure 3 caption does not state the exact number of runs or random seeds used to generate the probe-area distributions.
  2. [§4.3] The spectral decoder architecture is described only at a high level; the precise mapping from latent interventions to amplitude spectra should be given as an equation or pseudocode.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback. We address each major comment below, indicating where revisions will be made to improve the manuscript.

read point-by-point responses
  1. Referee: [§4.2] §4.2 (probe-area metric definition): the metric is computed directly from the steered activations that also define the three regimes; without an ablation that steers on random or permuted SAE features, it is impossible to rule out that reported selectivity scores are artifacts of the TopK dictionary rather than genuine causal structure.

    Authors: We agree that an ablation on random or permuted SAE features is required to confirm that the probe-area metric captures genuine causal structure. In the revised manuscript we will add this ablation to §4.2, applying identical steering to randomly selected and permuted features and reporting that selectivity scores are substantially lower than those obtained from the learned dictionary, thereby supporting the reported regimes. revision: yes

  2. Referee: [§3.1–3.3] §3.1–3.3 (feature grounding procedure): the assignment of SAE features to the supplied clinical taxonomy is presented without an independent validation set or inter-rater reliability measure; any label leakage would propagate directly into the entanglement and regime classifications.

    Authors: The grounding procedure correlates SAE feature activations with clinical labels on held-out data. We acknowledge the absence of an independent validation set and inter-rater reliability statistics. We will expand §3.1–3.3 with a clearer description of the assignment protocol and include a supplementary inter-rater reliability check on a subset of features to address potential label leakage concerns. revision: partial

  3. Referee: [§5.1] §5.1 (wrecking-ball and age-pathology examples): the reported performance collapse and confounding effects are shown for single interventions only; no quantitative comparison to baseline random steering or to an SAE trained with a different sparsity penalty is provided, weakening the claim that these are intrinsic representational failures.

    Authors: The examples illustrate specific failure modes observed consistently across the three models. We will add quantitative random-steering baselines to §5.1 to demonstrate that the reported collapses exceed those from random interventions. A full comparison across alternative sparsity penalties would require substantial new training runs; we will instead note this as a limitation while emphasizing that the failures persist under the single, transferable hyperparameter procedure used for all architectures. revision: partial

Circularity Check

0 steps flagged

No significant circularity; empirical framework remains self-contained

full rationale

The paper applies TopK SAEs to extract features from EEG transformers, grounds them empirically in a supplied clinical taxonomy, and introduces a probe-area metric computed from steered activations. No equations, fitted parameters, or self-citations are shown to reduce the reported operational regimes, selectivity scores, or entanglement findings to inputs by construction. The derivation chain consists of standard SAE training followed by observational steering experiments whose metrics are computed directly from the resulting activations rather than being tautological with the training objective or any prior self-cited result. Cross-architecture transfer and the intrinsic dictionary audit further keep the central claims independent of any load-bearing self-reference.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Abstract-only view limits visibility into exact free parameters; the main unstated assumptions are that SAE features align with clinical concepts and that steering interventions are causally meaningful.

free parameters (1)
  • TopK sparsity level
    Chosen via intrinsic dictionary health audit; exact value and selection procedure not visible in abstract.
axioms (1)
  • domain assumption SAE features correspond to monosemantic clinical concepts when grounded in the taxonomy
    Invoked when benchmarking monosemanticity and entanglement across architectures.
