A two-layered mixed subgrid model combining AMD with the Gradient model matches DNS most closely in thermal large-eddy simulations of solar-receiver channel flows.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · grok-4.3

2026-06-26 21:57 UTC pith:SYKQ3I65

load-bearing objection The paper ranks twelve AMD-based T-LES models against DNS for anisothermal solar-receiver channel flow and flags one two-layer mixed variant as best, but the ranking rests entirely on the unshown quality of that DNS reference. the 2 major comments →

arxiv 2606.17596 v1 pith:SYKQ3I65 submitted 2026-06-16 physics.class-ph physics.flu-dyn

A posteriori study of Thermal-Large Eddy Simulation in solar receiver operating conditions

Yanis Zatout (PROMES , DATAFLOT , LISN) , Fran\c{c}oise Bataille , Adrien Toutant (UPVD , PROMES) This is my paper
classification physics.class-ph physics.flu-dyn
keywords thermal large-eddy simulationanisothermal channel flowsubgrid-scale modelingAMD modelsolar receivera posteriori evaluationmixed modellow-Mach Navier-Stokes
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper evaluates twelve subgrid-scale models, all derived from the Anisotropic Minimum Dissipation approach, inside low-Mach-number thermal large-eddy simulations of anisothermal turbulent channel flow at conditions typical of solar receivers. It computes a global error rate against existing direct numerical simulation data, then examines four models in greater detail under changes in mesh resolution and numerical scheme. The central finding is that a two-layered mixed formulation that adds the Gradient model on top of AMD for both momentum and scalar transport produces the smallest deviations from the reference DNS across the tested quantities.

Core claim

Under solar-receiver operating conditions, a two-layered mixed model that combines the AMD/AMD-scalar formulation with the Gradient model yields the best agreement with DNS data among the twelve AMD-based closures examined.

What carries the argument

The two-layered mixed AMD/AMD-scalar plus Gradient model, which supplies the subgrid stresses and scalar fluxes in the filtered low-Mach Navier-Stokes equations.

Load-bearing premise

The DNS data set provides an accurate and complete ground truth for every quantity compared in the a-posteriori tests.

What would settle it

A new direct numerical simulation at the same Reynolds and Prandtl numbers but with a different numerical method or domain size that produces mean profiles or fluctuation statistics differing from the reference DNS used here.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • The mixed model can be adopted directly for production T-LES of solar-receiver geometries at the tested resolution.
  • Coarser meshes remain usable provided the mixed model is retained, because the global error rate stays lower than for the other closures.
  • Both convective and diffusive numerical schemes interact with the model choice, so the mixed formulation should be paired with the same schemes used in the evaluation.
  • The advantage of the mixed model appears in both velocity and temperature statistics, indicating consistent improvement for the coupled thermal problem.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same mixed closure could be tested in geometries that include the actual absorber tubes or windows of a solar receiver rather than a periodic channel.
  • If the model remains superior when the flow includes radiation or variable properties, it would reduce the need for finer grids in engineering calculations of receiver efficiency.
  • Running the identical model set on an independent experimental data set at comparable conditions would confirm whether the ranking holds outside the DNS reference.
  • Extending the two-layer mixing strategy to other base models besides AMD might produce further gains at higher Reynolds numbers.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 1 minor

Summary. The manuscript presents an a posteriori evaluation of 12 subgrid-scale models for Thermal Large Eddy Simulation (T-LES) of anisothermal turbulent channel flows representative of solar receiver conditions. All models are variants of the Anisotropic Minimum Dissipation (AMD) model. The authors compute a global error rate to rank the models against Direct Numerical Simulation (DNS) data and select four for detailed analysis on mesh resolution, numerical schemes, and formulations. They conclude that a two-layered mixed model combining AMD/AMD-scalar with the Gradient model provides the best agreement with DNS.

Significance. If the DNS benchmark is a converged reference solution, the work supplies concrete guidance on SGS model selection for T-LES under high temperature-ratio conditions relevant to concentrated solar power. The systematic ranking of AMD-based variants and the identification of a specific mixed formulation constitute a falsifiable contribution to the literature on thermal turbulence modeling.

major comments (2)
  1. [Abstract] Abstract: The central claim that the two-layered mixed AMD/Gradient model yields the best agreement is established entirely via a posteriori comparison to DNS. The abstract supplies no information on DNS grid resolution, temporal convergence, or validation against known channel-flow statistics at the target Re, Pr, and temperature ratios. This assumption is load-bearing for the model ranking and must be documented with quantitative evidence.
  2. [Abstract] Abstract: The definition and normalization of the 'global error rate' used to evaluate and select among the 12 models are not stated. Without this, the quantitative basis for declaring one model superior cannot be assessed or reproduced.
minor comments (1)
  1. The abstract refers to 'solar receivers operating conditions' without listing the specific non-dimensional parameters (Re, Pr, temperature ratio) employed in the simulations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major comment below and will revise the abstract to improve clarity and self-containment.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that the two-layered mixed AMD/Gradient model yields the best agreement is established entirely via a posteriori comparison to DNS. The abstract supplies no information on DNS grid resolution, temporal convergence, or validation against known channel-flow statistics at the target Re, Pr, and temperature ratios. This assumption is load-bearing for the model ranking and must be documented with quantitative evidence.

    Authors: We agree that the abstract should include key quantitative details on the DNS to support the model ranking. In the revised manuscript we will add concise information on the DNS grid resolution (number of points and wall-normal spacing), temporal averaging period and convergence criteria, and confirmation that the DNS reproduces established channel-flow statistics at the target Re, Pr and temperature ratio. revision: yes

  2. Referee: [Abstract] Abstract: The definition and normalization of the 'global error rate' used to evaluate and select among the 12 models are not stated. Without this, the quantitative basis for declaring one model superior cannot be assessed or reproduced.

    Authors: The global error rate is defined in the body of the manuscript (Section 3) as a normalized aggregate L2 error across mean and rms profiles of velocity and temperature. To make the abstract self-contained we will insert a brief clause stating its definition and normalization while respecting length constraints. revision: yes

Circularity Check

0 steps flagged

No significant circularity: model ranking derived from external DNS comparison

full rationale

The paper conducts an a posteriori assessment of 12 T-LES subgrid-scale models (all variants of AMD) by direct numerical comparison to independent DNS data under solar-receiver conditions. Model selection and ranking rest on computed global error rates and detailed statistics against this external benchmark, with no parameter fitting, self-definitional equations, or load-bearing self-citations that reduce the central claim to its own inputs. The derivation chain consists of standard LES filtering, model implementation, and error quantification; none of these steps are equivalent to the reported best-model result by construction. DNS serves as an external reference, satisfying the criterion for non-circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no information on free parameters, axioms, or invented entities; assessment limited to high-level description.

pith-pipeline@v0.9.1-grok · 5669 in / 1095 out tokens · 28013 ms · 2026-06-26T21:57:44.667104+00:00 · methodology

0 comments
read the original abstract

This study investigates Thermal-Large Eddy Simulations (T-LES) of anisothermal and turbulent channel flows under physical conditions representative of solar receivers. Solving the low-Mach number Navier-Stokes equations, T-LES results are evaluated a posteriori against Direct Numerical Simulation (DNS) data. We assess 12 subgrid-scale models. All models are based on the Anisotropic Minimum Dissipation (AMD) model. After computing a global error rate to evaluate all models, we select four for a detailed analysis regarding the effects of mesh resolution, numerical schemes, and model formulations. Results demonstrate that a two-layered mixed model combining the AMD/AMD-scalar with the Gradient model yields the best agreement with DNS.

Figures

Figures reproduced from arXiv: 2606.17596 by Adrien Toutant (UPVD, DATAFLOT, Fran\c{c}oise Bataille, LISN), PROMES), Yanis Zatout (PROMES.

Figure 1
Figure 1. Figure 1: Representation of the simulation domain 2.1. Geometry and mesh To model flows inside next-generation solar receivers, we use a bi-periodic channel, which represents the simplest possible geometry. Because the streamwise (x) and spanwise (z) directions are periodic, the grid spacing along these axes is uniform. In the wall-normal direction, the mesh is finer at the wall and coarser at the center of the chan… view at source ↗
Figure 2
Figure 2. Figure 2: Functional constant evolution as a function of the height in the channel. [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Normalized errors for the 12 tested models. The top panel represents the mean error, the middle one, the RMS error, and [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Relative error on first-order statistics ( [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Mean streamwise velocity ⟨U⟩ +, wall-normal velocity ⟨V⟩ +, and temperature ⟨T⟩ + profiles for the selected simulations. Coarser mesh resolutions are represented by lighter line shades. 15 [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗
Figure 6

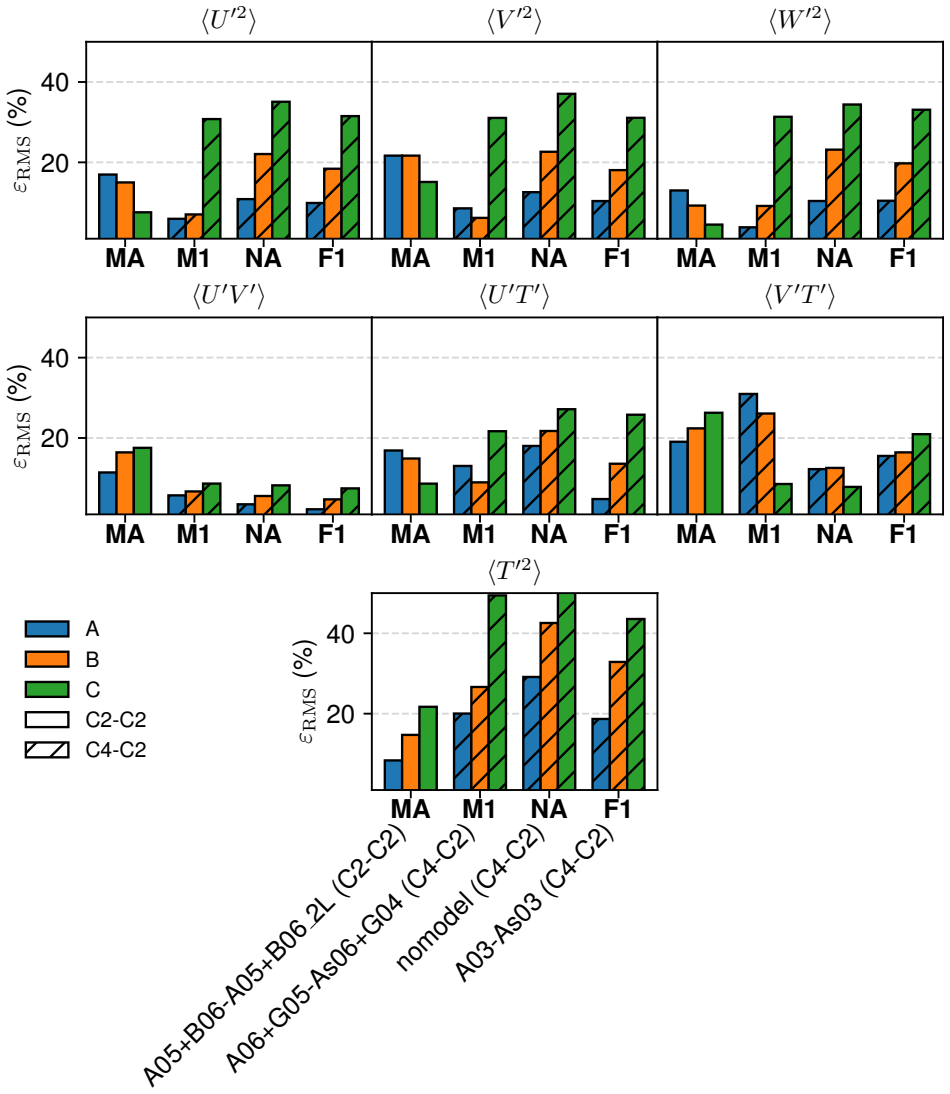

Figure 6. Figure 6: Relative error on second-order statistics for the selected models (MA, M1, NA, F1). [PITH_FULL_IMAGE:figures/full_fig_p017_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Second-order statistics for the diagonal components of the deviatoric Reynolds stress tensor ( [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Streamwise wall-normal Reynolds shear stress [PITH_FULL_IMAGE:figures/full_fig_p019_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Temperature transport terms (⟨U ′T ′ ⟩ +, ⟨V ′T ′ ⟩ +) and temperature variance (⟨T ′2 ⟩ +), alongside their corresponding subgrid-scale closure terms, for the selected models. 20 [PITH_FULL_IMAGE:figures/full_fig_p020_9.png] view at source ↗
