REVIEW 3 major objections 5 minor 2 references
Layer- and Field-Dependent Magnetic Order in 2D CrSBr Revealed by Pulsed Nanocalorimetry
T0 review · 3 major / 5 minor · reviewed 2026-08-03 · deepseek-v4-flash
Pith's one-line read Pulsed nanocalorimetry measures heat capacity and magnetic entropy of individual CrSBr flakes down to one monolayer, showing that interlayer antiferromagnetic order weakens with thickness while intralayer correlations persist.
desk verdict First calorimetric data on few-layer CrSBr; the raw anomalies look real and the layer-parity effect is new, but the entropy numbers are residuals of a phonon/hBN subtraction and need stronger support. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The central object is the heat-capacity anomaly of a femtogram-scale exfoliated flake, measured by microsecond pulse-heating nanocalorimetry: a suspended Pt strip on a SiN membrane acts as both heater and thermometer, and a differential reference subtracts the addenda. Magnetic entropy is obtained by integrating ΔCp/T after subtracting a Debye-type phonon background fitted above the magnetic anomaly and extrapolated through it; transition temperatures are taken as inflection points of the Cp(T) curves. The layer-parity argument uses the A-type stacking: even-layer stacks are magnetically compensated, odd-layer stacks carry a net moment, which the paper says enhances the calorimetric visibili
What would settle it
Fit the phonon background with the magnetic anomaly region included and with different fitting windows; if the recovered magnetic entropy changes by more than the stated uncertainty or no longer approaches the spin-only entropy of Cr³⁺, the entropy analysis is a fitting artifact. A cleaner test is to measure a non-magnetic isostructural compound or bulk CrSBr by conventional calorimetry and check that the excess heat capacity and entropy agree with the nanocalorimetric result.
Extended reading notes
Core claim
In CrSBr—an A-type antiferromagnet with ferromagnetic layers aligned along the easy b-axis and weak antiferromagnetic coupling between layers—the paper claims that magnetic order remains thermodynamically active down to a single monolayer, and that the character of the order changes with layer count. The interlayer antiferromagnetic transition temperature T*inter falls from about 140.6 K in bulk-like flakes to about 133.3 K in two-layer flakes, while a separate feature near 145 K, attributed to intralayer ferromagnetic correlations, persists in odd-layer flakes and in the monolayer. Odd-layer flakes show a sharper high-temperature anomaly than even-layer flakes, which the authors tie to the
Load-bearing premise
The load-bearing premise is that the Debye-type phonon background, fitted to the heat capacity above the magnetic anomaly and extrapolated through it, captures the lattice contribution exactly; if that fit instead absorbs or fabricates magnetic entropy, the entropy-derived effective moments and fluctuation-regime conclusions would shift.
Editorial extensions
If this is right
- Interlayer antiferromagnetic coupling weakens as thickness decreases: T*inter drops from about 140.6 K in bulk-like flakes to about 133.3 K in bilayers, and the field needed to suppress the antiferromagnetic entropy falls from about 85 mT in six layers to about 40 mT in the bilayer.
- Layer parity is observable in the specific heat: odd-layer flakes show an additional near-145 K anomaly from uncompensated ferromagnetic layers, while even layers show only a broad, weak contribution in that range.
- A single monolayer of CrSBr still shows a heat-capacity feature near 145 K, meaning intralayer ferromagnetic correlations survive without long-range interlayer order.
- Substantial magnetic entropy is released well above T*inter, so the calorimetric transition marks the onset of interlayer coherence in a state that already contains local magnetic correlations.
- In-plane fields suppress the interlayer anomaly and entropy through a continuous crossover, with T*inter decreasing linearly in H², consistent with a collinear antiferromagnet near its ordering temperature.
Reading between the lines
- Beyond the paper: the layer-parity heat-capacity signature could serve as a generic thermodynamic probe of uncompensated moments in other A-type van der Waals antiferromagnets, complementing local magnetometry on the same flakes.
- Beyond the paper: because the measurements stop at 100 mT, the model predicts that higher in-plane fields near the ordering temperature should drive the system through a spin-flop or spin-flip and recover the full spin-only entropy k_B ln4 per Cr³⁺; that prediction is directly testable with a stronger coil.
- Beyond the paper: the entropy-derived effective moment per layer, which rises toward about 36 μB/nm², could be used as a quantitative target for microscopic spin models of CrSBr, though no such model is fitted here.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper reports microsecond pulsed-heating nanocalorimetry (µs-PHnC) measurements of the heat capacity of exfoliated CrSBr flakes with thicknesses from monolayer to bulk, encapsulated in hBN. Well-defined Cp anomalies are observed around 134–141 K and attributed to the interlayer antiferromagnetic transition, with a monotonic decrease of T*inter with decreasing thickness; odd-layer flakes show an additional anomaly near 145 K attributed to intralayer ferromagnetic correlations enhanced by an uncompensated moment. In-plane easy-axis fields suppress the low-temperature anomaly, and T*inter decreases linearly with H^2. From the field dependence the authors extract characteristic suppression fields of 40–85 mT. By subtracting a Debye phonon background, they obtain excess heat capacity and magnetic entropy ΔS, finding a broad entropy release above T*inter, field-dependent entropy suppression, and an entropy-derived effective moment per layer that increases with thickness toward the spin-only value.
Significance. The work is significant as a claimed first direct calorimetric thermodynamic probe of individual atomically thin van der Waals magnets. The raw heat-capacity anomalies and their field evolution are plausible, and the within-device field comparisons are relatively model-independent. The paper is transparent about its methods and includes a Python snippet for inflection-point extraction. However, the quantitative entropy-related conclusions (fluctuation regime, effective moment, thickness-dependent entropy redistribution) rest on a background subtraction whose sensitivity is not quantified. If substantiated with hBN-only controls and a systematic background-variation analysis, the conclusions would represent an important advance; in the present form the entropy analysis is not robust enough to support the quantitative claims.
major comments (3)
- [Methods Eq. (5), SI S3–S4 and Table S2] The entropy-derived claims (Fig. 3) are residuals of a Debye phonon fit with adjustable scaling factor A and Debye temperature Θ_D and of a constant hBN offset. Table S2 lists hBN offsets of 1.63–21.4 pJ/K, while a monolayer CrSBr flake contributes only ~0.1 pJ/K; a single constant offset cannot capture the T-dependent hBN heat capacity, and the residual curvature is absorbed into the effective Debye background fitted above the anomaly and extrapolated through it. This procedure can fabricate or remove magnetic entropy, directly affecting the extended fluctuation regime, ΔS values, and the effective moments in Fig. 3. The paper’s statement that these quantities 'depend slightly' on the background is not quantified. Please provide an hBN-only control and a systematic sensitivity analysis (varying A, Θ_D, the hBN offset, and the fitting range) with the resulting spread in ΔS and effective
- [Figs. 3e and 2e; Methods entropy integration] The integration limits for ΔS and the 'maximum accumulated entropy' used for ΔS(H)/ΔS(0) are not explicitly defined; if the window or the zero-entropy reference is chosen per sample/field, the layer- and field-dependent entropy trends could be artifacts of the choice. Similarly, the T*(H)=T*(0)-a H^2 fits in Fig. 2e have only 5–8 points per device with R^2 0.90–0.95, but the data and residuals are not shown. Please define the integration protocol precisely and report the fit with residuals and confidence intervals on a.
- [Figs. 1d–e and 2; SI S1] The central thickness and parity trends rest on a single device per layer number (1, 2, 3, 6 ML and bulk). Moreover, the 1ML and 2ML layer counts are assigned by optical contrast and deterministic transfer, not by AFM, because encapsulation prevented height resolution. A single misassignment would break the monotonic T*inter trend and the parity pattern. Please provide replicate devices per layer number and independent layer-count verification (e.g., post-measurement AFM/Raman) for the thinnest flakes.
minor comments (5)
- [Throughout] Mathematical typesetting is corrupted in places (e.g., '𝑇!~132 K', '𝑇∗%&'()', the Debye integral in Eq. (5), and Eq. (4)). These should be corrected for a published version.
- [Table S1] The field-series rows for 2ML and 3ML are difficult to parse due to inconsistent decimal separators and missing column alignment; please reformat.
- [Fig. 2e] The caption does not identify which symbol corresponds to 2ML, 3ML, or 6ML; add a legend.
- [Fig. 3f / abstract] The entropy-derived effective moment is an areal density (μ_B/nm^2), not a per-atom moment; the text and abstract should state this more explicitly.
- [Methods / Ref. [36]] Ref. [36] is an arXiv preprint; since the measurement method is central, please include the full derivation of Eq. (4) in the Methods or provide the published reference if available.
Circularity Check
No significant circularity: the magnetic anomalies are measured directly; entropy and effective-moment quantities are explicitly defined from the measured excess heat capacity rather than used to generate the results.
full rationale
The paper's central results rest on raw heat-capacity anomalies, not on quantities that are inserted into the analysis. Transition temperatures are extracted from inflection points of Cp(T) directly, before any phonon-background subtraction, as described in SI S2. The Debye phonon background of Eq. (5) is fitted in temperature regions that exclude the magnetic anomaly: SI S4 states 'The fitting was performed over the extended 80–300 K range, with the magnetic-anomaly region excluded from the fit,' so the excess ΔCp and the derived ΔS are not forced by construction. The entropy-derived effective moment in Eqs. (1)–(3) is explicitly a rescaling of the recovered spin entropy, and the paper cautions: 'This estimate should not be interpreted as a direct magnetometry measurement, but as the spin density whose full (S=3/2) entropy would correspond to the entropy recovered within the selected temperature window.' That is a defined interpretive quantity, not a hidden fit relabeled as a prediction. The field dependence T*(H)=T*(0)−aH² is an empirical fit to the measured inflection points, and the characteristic suppression fields are extracted from a sigmoidal fit of the measured ΔS(H)/ΔS(0); neither is a fitted parameter disguised as an independent prediction. The self-citation to Ref. [36] supplies the calorimetric measurement framework (Eq. (4)) and is appropriate methodological support, but the CrSBr-specific anomalies, thickness trends, and field responses are independent data presented in this paper. The paper's own caveat that absolute entropy values 'depend slightly on the chosen phonon background and hBN baseline correction' is an honest model-dependence/uncertainty statement, not circularity; the relative trends and within-device field comparisons are claimed to be robust. No load-bearing step reduces by construction to its own input.
Assumptions & free parameters
free parameters (6)
- Debye phonon scaling factor A =
not disclosed
- Debye temperature (Theta_D) =
not disclosed
- hBN constant heat-capacity offset per device =
1.63, 4.88, 13.9, 2.01, 21.4 pJ/K for 1ML, 2ML, 3ML, 6ML, bulk
- Linear suppression coefficient a in T*(H) = T*(0) - a H^2 =
6ML: 1.05e-3 K/mT^2; 3ML: 1.08e-3; 2ML: 1.14e-3
- Sigmoid characteristic field H_c from S(H)/S(0) =
~40 mT (2ML) to ~85 mT (6ML)
- Temperature integration window for S =
chosen per sample, not fully specified
assumptions (8)
- domain assumption CrSBr is an A-type antiferromagnet with ferromagnetic intralayer order along the b-axis and antiferromagnetic interlayer coupling.
- domain assumption Cr3+ moments are localized with S = 3/2 and spin-only entropy k_B ln(4) per ion.
- domain assumption Debye model with adjustable A and Theta_D accurately represents the phonon heat capacity in the studied temperature range and flake thicknesses.
- domain assumption Landau-type quadratic suppression T*(H) = T*(0) - a H^2 applies to the interlayer antiferromagnetic transition.
- domain assumption hBN encapsulation provides a smooth, non-magnetic, approximately constant heat-capacity offset over the measurement window.
- domain assumption The inflection point of the smoothed Cp(T) curve identifies the magnetic transition temperature.
- domain assumption The differential microsecond-pulse nanocalorimetry formula (Eq. 4) yields the sample heat capacity as derived in the authors' prior method paper (Ref 36).
- domain assumption Entropy recovered in the chosen integration window is attributable to Cr3+ spin degrees of freedom.
Cite this review
Pith. "Pith review of Layer- and Field-Dependent Magnetic Order in 2D CrSBr Revealed by Pulsed Nanocalorimetry." pith.science (2026). https://pith.science/paper/SIOFOWYT
@misc{pith2026260729395,
author = {Pith},
title = {Pith review of: Layer- and Field-Dependent Magnetic Order in 2D CrSBr Revealed by Pulsed Nanocalorimetry},
year = {2026},
howpublished = {\url{https://pith.science/paper/SIOFOWYT}},
note = {Machine review of arXiv:2607.29395}
}
read the original abstract

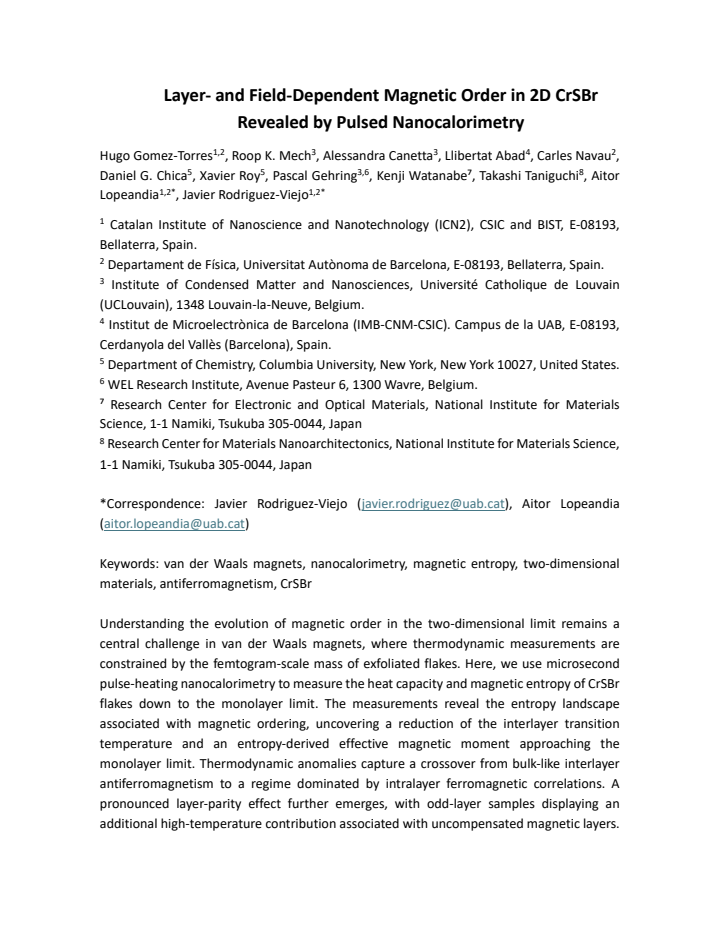

Understanding the evolution of magnetic order in the two-dimensional limit remains a central challenge in van der Waals magnets, where thermodynamic measurements are constrained by the femtogram-scale mass of exfoliated flakes. Here, we use microsecond pulse-heating nanocalorimetry to measure the heat capacity and magnetic entropy of CrSBr flakes down to the monolayer limit. The measurements reveal the entropy landscape associated with magnetic ordering, uncovering a reduction of the interlayer transition temperature and an entropy-derived effective magnetic moment approaching the monolayer limit. Thermodynamic anomalies capture a crossover from bulk-like interlayer antiferromagnetism to a regime dominated by intralayer ferromagnetic correlations. A pronounced layer-parity effect further emerges, with odd-layer samples displaying an additional high-temperature contribution associated with uncompensated magnetic layers. Under in-plane magnetic fields applied along the easy axis, antiferromagnetic order is progressively suppressed, allowing extraction of a thickness-dependent critical field reflecting weakened interlayer exchange coupling. Entropy analysis further reveals an extended regime of magnetic fluctuations persisting well above the interlayer ordering transition. Together, these results establish nanocalorimetry as a powerful thermodynamic probe of low-dimensional magnetism, providing direct access to magnetic entropy, exchange interactions, and dimensional crossover in atomically thin van der Waals magnets.
Reference graph
Works this paper leans on
-
[15]
Scheie, M
A. Scheie, M. Ziebel, D. G. Chica, Y . J. Bae, X. Wang, A. I. Kolesnikov, X. Zhu, X. Roy, Adv. Sci. 2022, 9, 2202467. [16] F. Marques-Moros, C. Boix-Constant, S. Mañas-Valero, J. Canet-Ferrer, E. Coronado, ACS Nano 2023, 17, 13224. [17] J. Klein, F. M. Ross, J. Mater. Res. 2024, 39, 3045. [18] S. A. López-Paz, Z. Guguchia, V. Y . Pomjakushin, C. Witteveen...
2022
-
[34]
(𝑇) curve, defined as the temperature at which the second derivative vanishes: 𝑑#𝐶
A. Canetta, S. Volosheniuk, S. Satheesh, J. P . Alvarinhas Batista, A. Castellano, R. Conte, D. G. Chica, K. Watanabe, T. Taniguchi, X. Roy, H. S. J. van der Zant, M. Burghard, M. J. Verstraete, P . Gehring, Nano Lett. 2024, 24, 6513. [35] W. Liu, X. Guo, J. Schwartz, H. Xie, N. U. Dhale, S. H. Sung, A. L. N. Kondusamy, X. Wang, H. Zhao, D. Berman, R. Hov...
Reviewed August 3, 2026 · model on record in the stance chip above.
Discussion (0). Continue with ORCID to comment.
