Compositional Cross-Modality Translation via Whole-Volume Multitask Latent Flow Matching

T0 review · 3 major / 5 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A single model trained jointly across MRI-to-CT, CBCT-to-CT, and MRI-to-MRI translation matches task-specific baselines while replacing N networks with one.

desk verdict Genuinely new compositional chaining, but the whole-volume-vs-patch comparison is confounded by the VAE prior and the generalization results are thinner than advertised. read the letter →

arxiv 2608.08135 v1 pith:EVYXQDKX submitted 2026-08-08 cs.CV cs.AI

Daniele Molino , Alessio Zoboli , Camillo Maria Caruso , Valerio Guarrasi , Paolo Soda This is my paper · ORCID
classification cs.CVcs.AI
keywords medicalimagesynthesiscross-modalitytranslationlatentflowmatchingmultitasklearningwhole-volumegenerationzero-shotgeneralizationcompositional3Dautoencoder
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper argues that medical image translation has been held back by two coupled limitations—models work on 2D slices or 3D patches and one network is trained per task. It traces both to a single cause: the absence of a strong enough volumetric prior, which forces a model to learn anatomy and modality mapping together. The solution is to compress whole volumes into a compact latent space using a large pretrained 3D autoencoder, then train a single conditional flow-matching model jointly across all tasks in that space. The result is one model that matches task-specific baselines, beats patch-based processing by a wide margin, zero-shot generalizes to anatomical regions never seen during training, and composes translation paths never directly supervised.

What carries the argument

The machinery is a frozen 3D variational autoencoder pretrained on more than fifty-five thousand CT and MRI volumes, which compresses each whole scan into a compact latent code. Translation is learned as a conditional flow-matching problem in this latent space: a 3D convolutional network predicts the velocity field that carries a latent sample from noise to the target latent, conditioned on the source latent and a target-modality token. A bucketed sampling strategy crops or zero-pads volumes to multiples of 128 without resampling, so each mini-batch contains volumes of identical tensor shape at their native voxel spacing. This setup makes whole-volume processing tractable and lets a single model see heterogeneous regions, modalities, and datasets during training.

What would settle it

Train the same pipeline on a paired dataset whose anatomy or modality is absent from the autoencoder's pretraining corpus—such as PET-to-CT or a novel MRI sequence—and check whether translation quality degrades by much more than the reported 0.15 SSIM gap for held-out regions.

Watch

Extended reading notes

Core claim

The central claim is that decoupling volumetric representation learning from cross-modality mapping makes whole-volume translation tractable and unlocks capabilities that task-specific models structurally cannot have. With the encoder frozen, translation becomes conditional flow matching in a compact latent space, where a single 3D convolutional network approximates the velocity field between source and target latents, conditioned on a target-modality token. Experimental results across three multi-center datasets show that whole-volume latent processing outperforms its patch-based counterpart on every task, that the multitask model is never significantly worse than task-specific baselines and is sometimes better, and that joint training enables zero-shot generalization to held-out anatomical regions within 0.15 SSIM of full supervision. Compositional inference also works: chaining T1w to T2w to CT, a path never co-supervised, keeps SSIM at 0.84 on brain and 0.80 on head-and-neck, where chained single-task models collapse to 0.15 and 0.31.

Load-bearing premise

The entire method depends on the frozen autoencoder's latent space, pretrained on a fixed corpus of CT and MRI volumes, being rich enough to represent any anatomical region or acquisition appearance the model later encounters; the paper itself acknowledges it inherits that prior's coverage.

Editorial extensions

If this is right

  • Whole-volume latent flow matching improves over patch-based inference on every evaluated task, with SSIM gains from +0.12 to +0.37 and PSNR gains from +2.8 to +8.4 dB.
  • A single multitask model matches or improves on task-specific baselines across all evaluated translation settings, so N networks can be replaced by one.
  • Leave-one-region-out experiments show zero-shot anatomical generalization with an average SSIM of 0.72 versus 0.87 for the fully supervised model, a gap of 0.15.
  • Compositional cross-dataset translation along a never-supervised path (T1w to T2w to CT) succeeds with the multitask model while chained task-specific models collapse.
  • Joint training appears to act as a regularizer, sharing information across overlapping tasks and anatomical regions.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The shared latent vocabulary is the likely source of compositionality, so the same architecture should be able to chain any modalities that map into the same autoencoder space, not just the three tested here.
  • The bucketed native-resolution sampling recipe is a transferable idea for other whole-volume generative tasks, including segmentation or super-resolution, that currently resample to a canonical grid.
  • The 0.15 SSIM gap for unseen regions suggests a cheaper path to broader anatomical coverage: extend or fine-tune the autoencoder prior rather than retrain the whole translation model.
  • Pixel-level metrics may not capture clinical utility; an expert-reader or downstream planning study would be the natural next step to see whether the compositional outputs are actually usable.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes a whole-volume multitask latent flow-matching framework for cross-modality medical image translation. A frozen 3D VAE (MAISI) compresses whole volumes into a compact latent space, on top of which a conditional flow-matching U-Net is trained jointly on MRI-to-CT, CBCT-to-CT, and MRI-to-MRI tasks from SynthRad2023, SynthRad2025, and BraTS2023. The authors claim three contributions: whole-volume latent processing outperforms patch-based processing; a single multitask model matches task-specific models across all tasks; and joint training enables zero-shot anatomical generalization and compositional cross-dataset translation along paths never directly supervised.

Significance. If the central claims hold, the paper makes a practical case for replacing N task-specific networks with one shared model and for using a strong volumetric prior to make whole-volume synthesis tractable. The evaluation design has notable strengths: comparisons against SRGAN and a patch-based flow-matching baseline, significance testing for the multitask-versus-single-task comparison, and an autoencoder reconstruction upper bound (PSNR 39.93 dB, SSIM 0.972) that contextualizes achievable fidelity. The release of code is also a positive element. However, the two headline generalization claims (zero-shot LORO and compositional cross-dataset translation) rest on thin statistical evidence, and the whole-volume-versus-patch comparison is confounded by the simultaneous presence of the VAE prior, so the significance of the first contribution is not yet established at the level claimed.

major comments (3)
  1. [Section 3, Experimental configuration; Table 1] The comparison between FM-ST Whole-Vol. and FM-ST Patch does not isolate whole-volume processing. FM-ST Patch is described as a patch-based flow-matching baseline 'without a strong volumetric prior,' while the whole-volume model operates on latents from the frozen MAISI VAE. Thus two factors vary at once: patch versus whole-volume processing and the presence versus absence of the pretrained VAE. The reported +0.12 to +0.37 SSIM and +2.8 to +8.4 dB gains could be attributable to the VAE's representational power rather than to global context. A proper control would apply the same VAE to a patch-based variant, for example by training on overlapping latent patches and reconstructing with sliding-window blending. As written, the claim in Section 4 that these results 'empirically validate the central claim' is not supported.
  2. [Section 4, Table 2 (Leave-One-Region-Out)] The abstract's claim of zero-shot region generalization 'within 0.15 SSIM of the fully supervised model' is based on a mean over five regions with no standard deviations, confidence intervals, or statistical tests. The per-region deltas range from -0.12 to -0.17, so the average '0.15' is not representative of any single region. Moreover, the table reports only SSIM averaged over T1w-to-CT and CBCT-to-CT, with no breakdown per task. The conclusion that 'the limited degradation across all regions confirms' a shared latent geometry is therefore not quantitatively supported. Reporting per-region error bars and paired significance tests comparing LORO to the full model on the same held-out test set is necessary.
  3. [Section 4.1, Table 4 (cross-dataset chaining)] The cross-dataset compositional result is demonstrated on only two regions (brain and head-and-neck) and without significance tests or error bars. The FM-ST chained baseline is expected to collapse because the SynthRad-only model has never encountered T2w inputs, so this comparison does not isolate the compositional capability of the multitask model. A stronger control would be a multitask model trained on the same data but without the specific chained path, or a model sharing the VAE latent but not trained jointly; this would clarify whether the benefit comes from joint training as such or simply from exposure to both modalities. As presented, the claim that joint training 'unlocks' compositional translation is plausible but not conclusively demonstrated.
minor comments (5)
  1. [Section 2, Eq. (2)] The probability path in Eq. (2) interpolates from the target latent z_tar to noise, which is unusual for a rectified flow formulation; typically the source is z_src and the target is noise for generation. Please clarify the direction convention and how it relates to the ODE integration from t=1 to t=0 described in the text.
  2. [Section 3, Preprocessing] The shared T1w token for SynthRad and BraTS is a strong assumption, since the two datasets have different acquisition protocols and appearances. This is mentioned indirectly in Section 5, but the text should explicitly discuss the risk that the token conflates distinct distributions and how this was validated.
  3. [Section 3, Experimental configuration; Table 1] For entries marked with a dagger, the paper states they were 'retrained under the protocol of [21]' but does not provide details on the retraining procedure or the number of seeds. Please specify the retraining setup or state clearly which results are directly taken from [21].
  4. [Figure 2] The figure caption lists 'Input Ground Truth Prediction' three times, but the individual panels are not labeled with the task names in the figure itself; adding subfigure labels or a legend would improve readability.
  5. [Author affiliations] The email address 'alessio.zoboli@alcampus.it' appears to contain a possible typo; please check that the author's email is correct.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity: multitask and compositional claims rest on held-out external evaluation, not on fitted inputs or self-citations.

full rationale

The paper's central claims — whole-volume latent flow matching outperforms patch-based translation, a single multitask model matches task-specific baselines, and joint training enables zero-shot anatomical generalization and compositional cross-dataset translation — are all evaluated against held-out test sets and external baselines (SRGAN, FM-ST Patch, task-specific FM-ST Whole-Vol. models). No parameter is fitted to the target generalization metrics and then reported as a prediction: the LORO experiment excludes a region during training and evaluates on that region, and the compositional path T1w→T2w→CT is a chaining of supervised mappings evaluated on a never-supervised route. The method's use of the frozen MAISI VAE is an adopted external prior, explicitly acknowledged as inherited coverage, not a result derived from itself. The self-citations ([15]–[18]) appear in background and motivation statements about patch artifacts and the benefits of joint training; these statements are contextual and the experimental results carry the argument independently. The whole-volume versus patch comparison is confounded because FM-ST Patch does not use the same frozen VAE prior, but a confounded benchmark is a validity concern, not circular reasoning: the comparison does not reduce to an equation that assumes its own conclusion. Overall, the derivation is self-contained with respect to the claimed capabilities, and no load-bearing step reduces to its own inputs.

Assumptions & free parameters 3 free parameters · 5 assumptions · 0 invented entities

The method rests on the frozen MAISI VAE prior and on several modeling choices (target token conditioning, shared T1w token, bucketed sampling) that are stated but not independently validated. No additional free parameters are fitted to the target metrics beyond standard network training; the reported generalization results are not obtained from fitted constants. Invented entities: none.

free parameters (3)
  • Bucketing grid step = 128 voxels
    Spatial dimensions are cropped or zero-padded to multiples of 128 before batching. This is a hand-selected hyperparameter, not fitted to outcomes.
  • Maximum volume extent = 512x512x256
    Whole volumes are capped at this size; larger volumes would be affected. Chosen for memory constraints, not derived.
  • Number of inference steps = 30
    ODE integration steps at inference; fixed by the authors, not varied. Standard flow matching practice.
assumptions (5)
  • domain assumption MAISI 3D VAE, pretrained on over 55,000 CT and MRI volumes, provides a latent space that preserves anatomy sufficiently for translation.
    Invoked in Section 2 ('we adopt the frozen encoder E of MAISI'); all translation happens in this frozen space, and the reported reconstruction upper bound (PSNR 39.93, SSIM 0.972) is the only support.
  • standard math Linear interpolation between noise and target latent with velocity epsilon minus target latent is a valid conditional flow matching path.
    Equations (2)-(3), grounded in Lipman et al. [14].
  • domain assumption The target modality token is sufficient to disambiguate target modality across datasets, including the shared T1w token used for both SynthRad T1 and BraTS native T1.
    Section 2; if same-token T1 distributions differ across datasets, the model must resolve the ambiguity internally.
  • domain assumption Bucketed sampling via cropping and zero-padding to multiples of 128 preserves native anatomical scale without harmful distribution shift.
    Section 2, 'Native-resolution training via bucketed sampling'; the claim that native voxel spacing is preserved while tensor extents are standardized is an assumption about the effect of padding and cropping.
  • domain assumption Source latent encodes all necessary source-modality and anatomy information, so no source token is required.
    Section 2, 'No source-modality token is used'; if source latent alone is ambiguous, conditioning is incomplete.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Compositional Cross-Modality Translation via Whole-Volume Multitask Latent Flow Matching." pith.science (2026). https://pith.science/paper/EVYXQDKX

@misc{pith2026260808135,
  author       = {Pith},
  title        = {Pith review of: Compositional Cross-Modality Translation via Whole-Volume Multitask Latent Flow Matching},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/EVYXQDKX}},
  note         = {Machine review of arXiv:2608.08135}
}
abstract

Cross-modality medical image translation can reduce the burden of multi-modal acquisitions, yet the field remains constrained by two coupled limitations: methods operate on 2D slices or 3D patches rather than whole volumes, and train a separate model for each translation task. Both stem from a single cause, the absence of a sufficiently strong volumetric prior, which forces generative models to learn anatomical appearance and cross-modality mapping simultaneously, an ill-posed problem at the scale of available paired datasets. We propose to decouple these objectives. A large-scale pretrained 3D variational autoencoder provides a compact latent representation of volumetric appearance, reducing translation to a conditional flow-matching problem. This compression makes whole-volume processing tractable, while a resolution-aware sampling strategy preserves native anatomical scale. We train a single model jointly across inter-modality (MRI$\to$CT, CBCT$\to$CT) and intra-modality (MRI$\to$MRI) tasks over three multi-center datasets. Across all tasks, whole-volume processing outperforms its patch-based counterpart, and the multi-task model matches task-specific baselines while replacing $N$ networks with one. Crucially, joint training unlocks capabilities inaccessible to task-specific approaches: zero-shot generalization to anatomical regions unseen during training, within 0.15 SSIM of the fully supervised model, and compositional cross-dataset translation along paths never directly supervised. These results suggest that combining a strong volumetric prior with multitask training is a scalable route toward synthesis systems that generalize beyond their training distribution. Code is available at https://github.com/arco-group/Whole-Volume-Latent-FM.

Figures

Figures reproduced from arXiv: 2608.08135 by the authors.

Figure 1
Figure 1. Overview of the proposed multitask whole-volume framework. Native-resolution volumes are processed through bucketed sampling and encoded by a frozen pretrained 3D VAE into a compact latent space. A target-modality token conditions the latent flow-matching model, enabling both direct cross-modality translation and compositional inference through chained translation steps. joint training across datasets unlocks capabi… view at source ↗
Figure 2
Figure 2. Representative qualitative results across inter-modality and intra-modality translation tasks. For each example, input, ground truth, and prediction are shown [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

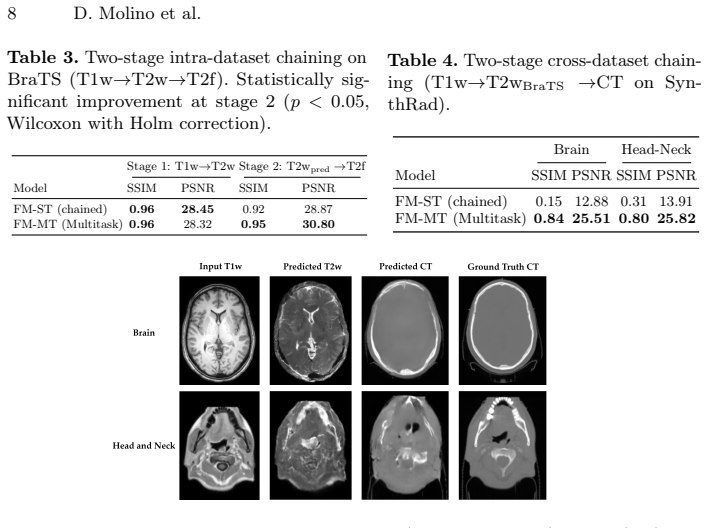

Figure 3. Cross-dataset compositional translation (T1w→T2w→CT). Brain (top) and head-and-neck (bottom). step targets SynthRad CT synthesis. This path is never directly supervised, since no T2w→CT pairs are available. We report results on brain and head-and-neck, the regions with the closest anatomical overlap with BraTS. As shown in [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

25 extracted references · 17 canonical work pages

  1. [1]

    arXiv preprint arXiv:2107.02314 (2021)

    Baid, U., et al.: The RSNA-ASNR-MICCAI BraTS 2021 benchmark on brain tumor segmentation and radiogenomic classification. arXiv preprint arXiv:2107.02314 (2021)

    arXiv 2021

  2. [2]

    Medical Image Analysis103, 103605 (2025)

    Chen, J., et al.: Medical image translation with deep learning: Advances, datasets and perspectives. Medical Image Analysis103, 103605 (2025)

    work page 2025

  3. [3]

    Medical Image Analysis92, 103046 (2024)

    Dayarathna, S., et al.: Deep learning based synthesis of MRI, CT and PET: Review and analysis. Medical Image Analysis92, 103046 (2024)

    work page 2024

  4. [4]

    In: 2025 International Joint Conference on Neural Networks (IJCNN)

    Di Feola, F., Pompilio, L., Assolito, C., Guarrasi, V., Soda, P.: Texture-Aware StarGAN for CT data harmonization. In: 2025 International Joint Conference on Neural Networks (IJCNN). pp. 1–8. IEEE (2025)

    work page 2025

  5. [5]

    arXiv preprint arXiv:1910.04597 (2019)

    Glocker, B., Robinson, R., Castro, D.C., Dou, Q., Konukoglu, E.: Machine learning with multi-site imaging data: An empirical study on the impact of scanner effects. arXiv preprint arXiv:1910.04597 (2019)

    arXiv 2019

  6. [6]

    Communications of the ACM63(11), 139–144 (2020)

    Goodfellow, I., et al.: Generative adversarial networks. Communications of the ACM63(11), 139–144 (2020)

    work page 2020

  7. [7]

    In: Proceedings of the IEEE/CVF Winter Conference on Applications of Computer Vision

    Guo, P., et al.: MAISI: Medical AI for synthetic imaging. In: Proceedings of the IEEE/CVF Winter Conference on Applications of Computer Vision. pp. 4430–4441 (2025)

    work page 2025

  8. [8]

    In: 2025 IEEE/CVF Winter Conference on Applications of Computer Vision (WACV)

    Ha, J., Park, J.S., Crandall, D., Garyfallidis, E., Zhang, X.: Multi-Resolution Guided 3D GANs for Medical Image Translation. In: 2025 IEEE/CVF Winter Conference on Applications of Computer Vision (WACV). pp. 4342–4351. IEEE (2025)

    work page 2025

Show all 25 references
  1. [9]

    In: Advances in Neural Information Processing Systems

    Ho, J., Jain, A., Abbeel, P.: Denoising diffusion probabilistic models. In: Advances in Neural Information Processing Systems. vol. 33, pp. 6840–6851 (2020)

    2020

  2. [10]

    arXiv preprint arXiv:2508.00766 (2025)

    Iele, I., Di Feola, F., Guarrasi, V., Soda, P.: Sample-Aware Test-Time Adaptation for Medical Image-to-Image Translation. arXiv preprint arXiv:2508.00766 (2025)

    2025

  3. [11]

    In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition

    Isola, P., Zhu, J.Y., Zhou, T., Efros, A.A.: Image-to-image translation with condi- tional adversarial networks. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. pp. 1125–1134 (2017)

    2017

  4. [12]

    Nature Machine Intelligence 2(6), 305–311 (2020)

    Kaissis,G.A.,Makowski,M.R.,Rückert,D.,Braren,R.F.:Secure,privacy-preserving and federated machine learning in medical imaging. Nature Machine Intelligence 2(6), 305–311 (2020)

    2020

  5. [13]

    arXiv preprint arXiv:2211.07804 (2022)

    Kazerouni, A., et al.: Diffusion models for medical image analysis: A comprehensive survey. arXiv preprint arXiv:2211.07804 (2022)

    2022 arXiv

  6. [14]

    arXiv preprint arXiv:2210.02747 (2022)

    Lipman, Y., Chen, R.T.Q., Ben-Hamu, H., Nickel, M., Le, M.: Flow matching for generative modeling. arXiv preprint arXiv:2210.02747 (2022)

    2022 arXiv

  7. [15]

    arXiv preprint arXiv:2506.00633 (2025)

    Molino, D., Caruso, C.M., Ruffini, F., Soda, P., Guarrasi, V.: Text-to-CT Generation via 3D Latent Diffusion Model with Contrastive Vision-Language Pretraining. arXiv preprint arXiv:2506.00633 (2025)

    2025 arXiv

  8. [16]

    arXiv preprint arXiv:2603.08305 (2026)

    Molino, D., Caruso, C.M., Soda, P., Guarrasi, V.: Retrieval-augmented anatomical guidance for text-to-ct generation. arXiv preprint arXiv:2603.08305 (2026)

    2026 arXiv

  9. [17]

    Computerized Medical Imaging and Graphics p

    Molino, D., Di Feola, F., Faiella, E., Fazzini, D., Santucci, D., Shen, L., Guarrasi, V., Soda, P.: XGeM: A multi-prompt foundation model for multimodal medical data generation. Computerized Medical Imaging and Graphics p. 102718 (2026)

    2026

  10. [18]

    In: 2025 International Joint Conference on Neural Networks (IJCNN)

    Molino, D., Di Feola, F., Shen, L., Soda, P., Guarrasi, V.: Any-to-any vision- language model for multimodal x-ray imaging and radiological report generation. In: 2025 International Joint Conference on Neural Networks (IJCNN). pp. 1–8. IEEE (2025) 10 D. Molino et al

    2025

  11. [19]

    Neurocomputing493, 397–413 (2022)

    Niyas, S., Pawan, S., Kumar, M.A., Rajan, J.: Medical image segmentation with 3D convolutional neural networks: A survey. Neurocomputing493, 397–413 (2022)

    2022

  12. [20]

    In: Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition

    Rombach, R., Blattmann, A., Lorenz, D., Esser, P., Ommer, B.: High-resolution image synthesis with latent diffusion models. In: Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition. pp. 10684–10695 (2022)

    2022

  13. [21]

    arXiv preprint arXiv:2605.13686 (2026)

    Romoli, G., et al.: Cross modality image translation in medical imaging using generative frameworks. arXiv preprint arXiv:2605.13686 (2026)

    2026 arXiv

  14. [22]

    In: Medical Image Computing and Computer-Assisted Intervention – MICCAI 2015

    Ronneberger, O., Fischer, P., Brox, T.: U-Net: Convolutional networks for biomed- ical image segmentation. In: Medical Image Computing and Computer-Assisted Intervention – MICCAI 2015. Lecture Notes in Computer Science, vol. 9351, pp. 234–241. Springer (2015)

    2015

  15. [23]

    Medical Physics50(7), 4664–4674 (2023)

    Thummerer, A., et al.: SynthRad2023 grand challenge dataset: Generating synthetic CT for radiotherapy. Medical Physics50(7), 4664–4674 (2023)

    2023

  16. [24]

    Medical Physics52(7), e17981 (2025)

    Thummerer, A., et al.: SynthRad2025 grand challenge dataset: Generating synthetic CTs for radiotherapy from head to abdomen. Medical Physics52(7), e17981 (2025)

    2025

  17. [25]

    In: Proceedings of the IEEE International Conference on Computer Vision

    Zhu, J.Y., Park, T., Isola, P., Efros, A.A.: Unpaired image-to-image translation using cycle-consistent adversarial networks. In: Proceedings of the IEEE International Conference on Computer Vision. pp. 2223–2232 (2017)

    2017
