arxiv: 2602.20210 · v3 · pith:2L6XKEGQnew · submitted 2026-02-23 · 💻 cs.LG · cs.AI

Multimodal Crystal Flow: Any-to-Any Modality Generation for Unified Crystal Modeling

Kiyoung Seong , Sungsoo Ahn , Sehui Han , Changyoung Park This is my paper

Pith reviewed 2026-05-25 07:06 UTC · model grok-4.3

classification 💻 cs.LG cs.AI
keywords crystal structure predictionde novo generationmultimodal flowunified generative modelatom orderingflow matchingmaterials generationtransformer
0
0 comments X

The pith

A single flow model unifies crystal structure prediction, de novo generation, and atom-type tasks by routing them through separate time variables.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Crystal modeling has relied on separate models for different generation tasks such as predicting structures from composition or generating new crystals from scratch. The paper presents Multimodal Crystal Flow as one model that treats these tasks as distinct inference trajectories inside a shared flow-matching setup. A composition- and symmetry-aware atom ordering scheme plus hierarchical permutation augmentation supplies the necessary priors so that a plain transformer can manage the multimodal flow without hand-crafted structural templates. Experiments on the MP-20 and MPTS-52 benchmarks show the single model reaches performance levels comparable to task-specific baselines across the three evaluated tasks.

Core claim

By assigning independent time variables to atom types and crystal structures, the MCFlow model converts multiple conditional and unconditional crystal generation problems into separate inference paths within one flow model; the composition- and symmetry-aware atom ordering together with hierarchical permutation augmentation lets a standard transformer carry out these paths without explicit structural templates, and the resulting single model remains competitive with dedicated baselines on CSP, DNG, and structure-conditioned atom-type generation.

What carries the argument

Composition- and symmetry-aware atom ordering with hierarchical permutation augmentation, which injects compositional and crystallographic priors to enable multimodal flow in a standard transformer.

If this is right

  • One architecture can replace several task-specific models for the family of crystal generation problems.
  • Conditional and unconditional tasks share the same learned representations when routed through independent time variables.
  • Priors for composition and symmetry can be supplied by ordering and augmentation rather than by explicit templates.
  • The same model can be queried in any-to-any modality direction by choosing the appropriate starting and ending time variables.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The ordering technique could be tested on related domains such as molecular or protein structure generation to check whether the same unification benefit appears.
  • If the approach scales, the number of specialized models maintained in materials discovery pipelines could be reduced.
  • Adding further modalities such as formation energy or electronic properties as additional time variables would be a direct next experiment.
  • Performance on larger or more chemically diverse datasets would indicate whether the current augmentation scheme continues to suffice.

Load-bearing premise

That a composition- and symmetry-aware atom ordering together with hierarchical permutation augmentation is enough for a standard transformer to perform effective multimodal flow without explicit structural templates.

What would settle it

If the single MCFlow model underperforms a task-specific baseline by a clear margin on any of CSP, DNG, or structure-conditioned atom-type generation when both are evaluated on the same MP-20 or MPTS-52 splits.

Figures

Figures reproduced from arXiv: 2602.20210 by ChangYoung Park, Kiyoung Seong, Sehui Han, Sungsoo Ahn.

Figure 1

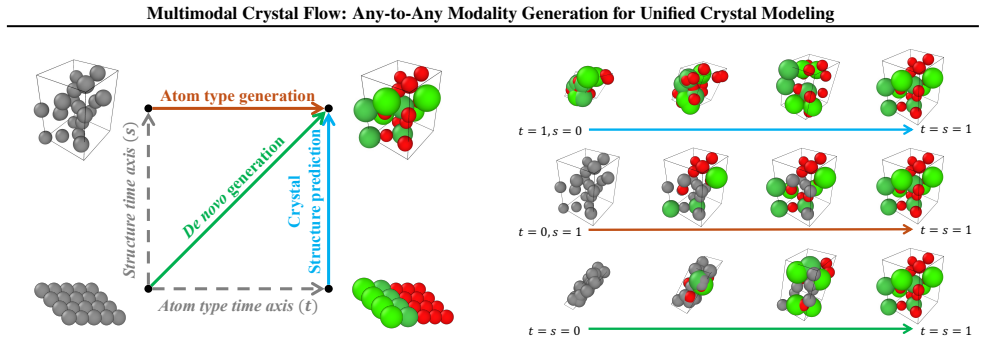

Figure 1. Figure 1: Overview of multimodal crystal flow with any-to-any modality generation. MCFlow trains a flow model with two independent time variables corresponding to atom types (t) and structures (s). By selecting task-specific inference trajectories in the (t, s) space, a single model performs crystal structure prediction, atom type generation, and de novo generation. equivalent orbits, providing a structured inductiv… view at source ↗
Figure 2
Figure 2. Figure 2: Composition- and symmetry-aware atom ordering with hierarchical permutation augmentation. Atoms in the primitive unit cell are lexicographically ordered by Pauling electronegativity and Wyckoff position (denoted by letter a, b, c, . . .) to expose compositional and crystallographic structure. The ordering and augmentation are illustrated on a Th5C crystal in the R¯3m space group. Inter-orbit permutation re… view at source ↗
Figure 3
Figure 3. Figure 3: Effect of the number of integration steps on perfor￾mance. Crystal structure prediction (CSP) match rate and de novo generation (DNG) validity rate (both structural and compositional) evaluated at different integration steps. model sizes, as detailed in Appendix H.3. Noisy guidance (NG) further improves single-sample generation accuracy, as demonstrated by the ablation study in Appendix E. Fur￾ther qualita… view at source ↗
Figure 4
Figure 4. Figure 4: Distributions of crystallographic symmetry properties. Distributions of generated structures on MP-20. From left to right, panels show the distributions of space groups (P1, Fm¯3m, C2/m, P63/mmc, I4/mmm, Pnma, R¯3m, Cmcm, Pm¯3m, P4/mmm, P¯1, . . .), Wyckoff multiplicity (1, 2, 3, 4, 6), and Wyckoff dimensionality (0, 1, 2, 3). Space groups and Wyckoff positions are determined using the SpaceGroupAnalyzer m… view at source ↗
Figure 5
Figure 5. Figure 5: Distributions of relaxed structures. Distributions of convergence steps, RMSE between initial and relaxed structures, and Ehull along CHGNet geometry optimization trajectories, compared to ADiT and FlowMM. The convergence rates are 99.73/60.79/87.65/99.54% for MCFlow/FlowMM/ADiT/ADiT Joint [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Permutation space reduction. Logarithmic scale comparison of full permutation space N! and reduced space Q i |Wi |! Q j |O i j |! across unit cell sizes N = 1 to 20. Permutation space reduction analysis. To quantify the impact of our hierarchical permutation augmentation, we evaluate search space com￾plexity in the MP-20 training dataset. For each crystal structure, we calculate the size of the reduced per… view at source ↗
Figure 7
Figure 7. Figure 7: Sensitivity analysis of noisy guidance. Single￾sample CSP performance on MP-20 depending on the atom type noise level σ and guidance scale ω. Sensitivity to noise level and guidance scale [PITH_FULL_IMAGE:figures/full_fig_p020_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Scaling behavior of MCFlow across model sizes. Training loss, DNG valid rate and CSP match rate over training epochs for small, base, and large models (left). Correlation between model size and training loss, validity, and CSP match rate at epoch 4000 (right). H.3. Scaling Behavior Across Model Sizes [PITH_FULL_IMAGE:figures/full_fig_p024_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Crystal structure prediction. Given only the alloy composition AlFe3 (top-left, target crystal), MCFlow generates diverse crystal structures with different space groups. This illustrates the model’s ability to explore multiple structures. Ca4Ni4O12 Ni4O12Yb4 Ca2Mn4O12SmY Cr4Nd4O12 Mn4O12Yb4 Al4Ho4O12 Ca2Ni4O12Pr2 Ca4Fe4O12 Gd2Na2O12Ti4 Ca4O12Ti4 Ca2Mn4O12Sm2 Ca4Fe4O12 Al2Fe2O12Sm4 Cr4La2O12Pr2 Co4Nd4O12 Nd… view at source ↗
Figure 10
Figure 10. Figure 10: Atom type generation. Given a perovskite structure of Ca4Ni4O12 (top-left, target crystal), MCFlow generates diverse compositions. This demonstrates the model’s ability to capture multimodal compositional distributions conditioned on a structure. 25 [PITH_FULL_IMAGE:figures/full_fig_p025_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: De novo generation. MCFlow jointly generates diverse atom types and crystal structures. 26 [PITH_FULL_IMAGE:figures/full_fig_p026_11.png] view at source ↗
read the original abstract

Crystal modeling spans a family of conditional and unconditional generation tasks, including crystal structure prediction (CSP) and de novo generation (DNG). While recent deep generative models have shown promising performance, they remain largely task-specific, lacking a unified framework that shares crystal representations across tasks. To address this limitation, we propose Multimodal Crystal Flow (MCFlow), a unified multimodal flow model that realizes multiple crystal generation tasks as distinct inference trajectories via independent time variables for atom types and crystal structures. To enable multimodal flow in a standard transformer model, we introduce a composition- and symmetry-aware atom ordering with hierarchical permutation augmentation, injecting compositional and crystallographic priors without explicit structural templates. Experiments on the MP-20 and MPTS-52 benchmarks show that a single MCFlow model is competitive with task-specific baselines across CSP, DNG, and structure-conditioned atom type generation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript proposes Multimodal Crystal Flow (MCFlow), a single transformer-based flow model that unifies crystal structure prediction (CSP), de novo generation (DNG), and structure-conditioned atom-type generation. It achieves this via independent time variables per modality and a composition- and symmetry-aware atom ordering scheme with hierarchical permutation augmentation that injects crystallographic priors without explicit structural templates. Experiments on the MP-20 and MPTS-52 benchmarks are claimed to show that one MCFlow model is competitive with task-specific baselines across the three tasks.

Significance. If the empirical claims hold with rigorous quantitative support, the work would represent a meaningful step toward unified crystal modeling, reducing the proliferation of task-specific architectures in materials informatics. The symmetry-aware ordering mechanism, if shown to be effective, could serve as a reusable prior for other geometric generative models.

major comments (1)
  1. [Abstract] Abstract: the central claim that 'a single MCFlow model is competitive with task-specific baselines' is stated without any numerical metrics, tables, ablation results, or error bars. This absence makes it impossible to evaluate whether the ordering/augmentation scheme actually enables effective multimodal flow or merely reproduces baseline performance.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed review and constructive feedback. We address the single major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that 'a single MCFlow model is competitive with task-specific baselines' is stated without any numerical metrics, tables, ablation results, or error bars. This absence makes it impossible to evaluate whether the ordering/augmentation scheme actually enables effective multimodal flow or merely reproduces baseline performance.

    Authors: We agree that the abstract would be strengthened by the inclusion of key quantitative metrics to support the competitiveness claim. The experiments section of the manuscript reports detailed results (including match rates, validity, and other metrics on MP-20 and MPTS-52) with comparisons to task-specific baselines, but these are not summarized numerically in the abstract. In the revised version we will update the abstract to incorporate representative performance numbers (with references to the corresponding tables) so that the central claim can be evaluated directly from the abstract. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper introduces MCFlow as a new construction using independent time variables per modality and a composition- and symmetry-aware atom ordering with hierarchical permutation augmentation to enable a standard transformer for multiple tasks. No equations, fitted parameters renamed as predictions, self-citations, or uniqueness theorems appear in the abstract or description. The central claims rest on empirical competitiveness with task-specific baselines on MP-20 and MPTS-52, without any reduction of outputs to inputs by definition or self-reference. The derivation chain is therefore self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 1 invented entities

Review performed on abstract only; no explicit free parameters, mathematical axioms, or invented physical entities are stated. The model itself is the primary new construct.

invented entities (1)
  • Multimodal Crystal Flow (MCFlow) no independent evidence
    purpose: unified model realizing multiple crystal generation tasks via independent time variables
    Introduced as the central contribution of the work.
