SimProcess: High Fidelity Simulation of Noisy ICS Physical Processes

T0 review · 3 major / 6 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A new framework benchmarks how realistically simulations mimic the noise of real power grids and reaches perfect recall on real samples

desk verdict SimProcess is a plausible new benchmarking pipeline for ICS simulation noise, but its central metric rests on an unvalidated Kalman residual and in-sample tuning, so the specific noise ranking is conditional, not established. read the letter →

arxiv 2505.22638 v1 pith:2NRHN43T submitted 2025-05-28 cs.CR cs.LG

Denis Donadel , Gabriele Crestanello , Giulio Morandini , Daniele Antonioli , Mauro Conti , Massimo Merro This is my paper
classification cs.CRcs.LG
keywords industrialcontrolsystemshoneypotsphysicalprocesssimulationnoiseestimationKalmanfilterpowergridmachinelearningclassificationfidelity
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

SimProcess is a framework for judging how closely a simulated industrial-control-system (ICS) physical process resembles a real one by comparing their noise, using only a time series of real measurements and no differential equations. The framework subtracts a Kalman-filtered version of each signal to estimate the noise, splits the signals into overlapping windows, discards windows with transients, extracts noise-oriented features, and trains a binary classifier to tell real windows from simulated ones. On an electric power-grid testbed case study, the classifier identifies real samples with recall up to 1.0 and ranks Gaussian, Gaussian mixture, and autoencoder-generated noise as the most realistic ways to add noise to a simulation. The value, if the claim holds, is that honeypot developers can select and tune noise models per signal to make decoys less fingerprintable.

What carries the argument

The load-bearing mechanism is the seven-stage pipeline: collect the noisy signal $\hat{x}(t)$; estimate noise by $\tilde{n}(t)=\hat{x}(t)-f(\hat{x}(t))$ with a Kalman filter as $f$; slide overlapping windows; prune windows whose values deviate more than $\epsilon$ from the window mean, so transient events do not masquerade as noise; extract features that characterize variation rather than level (approximate entropy, Lempel-Ziv complexity, standard-deviation and variance ratios, and other automatically selected statistical and spectral features); classify each window as real or simulated with a random forest or comparable model; and average the per-window predicted probability of being real into a fidelity score for each candidate simulation. The design avoids mean-like features on raw signals that would encode the process level, forcing the classifier to work from noise character.

What would settle it

Take a clean simulated power-grid trace, add noise of a known distribution, and feed real EPIC traces plus both simulated traces through SimProcess; the claim predicts the noise-added trace is ranked closer to the real traces and real-sample recall stays near 1.0, and it also predicts that replacing the Kalman filter with a deliberately mismatched filter does not flip the ranking. If either prediction fails, the residual-based noise estimate is not faithfully measuring noise fidelity.

Watch

Extended reading notes

Core claim

The paper's central claim is that the fidelity of an ICS physical-process simulation can be benchmarked by the statistical profile of its noise, estimated without access to the underlying physics. For the EPIC power-grid testbed, the paper shows that binary classifiers trained on features of the noise-estimation residual separate real windows from simulated windows with recall up to 1.0, and that the resulting fidelity scores identify Gaussian noise as the best match for current measurements, Gaussian mixture noise and an autoencoder-generated noise as best for voltages, and the Gaussian mixture best overall when all measurements are pooled. The paper presents this as evidence that a noise-centric, model-free benchmark can tell a honeypot developer which simulated process would be hardest for an attacker to distinguish from the real plant.

Load-bearing premise

The framework assumes that subtracting a filtered version of the measured signal leaves the true noise; if the filter's model does not match the real physical process, what remains is process dynamics, not noise, and every downstream score reflects that artifact.

Editorial extensions

If this is right

  • A honeypot developer can rank candidate noise models without knowing the plant's equations, using only a recording from the real system.
  • The same fingerprinting signal that classifies real versus simulated windows can be applied in real time, so high-interaction honeypots that change state (for example, a switch opening) can still be scored; the paper's dynamic-scenario tests show the ranking is mostly preserved.
  • Because similar measurements share their best noise (currents cluster around Gaussian, voltages around GMM and autoencoder), a faithful honeypot should apply different noise per signal rather than a single distribution to everything.
  • The framework's ground truth is only the real data used for training, so it can be applied to any ICS domain where a trustworthy measurement series exists, including nonlinear time-invariant processes.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the noise estimate is obtained with a filter that does not match the real process, the ranking may reflect the filter's modeling error instead of true noise fidelity; a testable consequence is that the best-noise ranking would shift when the Kalman filter is replaced by another filter.
  • Read backwards, the same machinery gives an attacker a honeypot-fingerprinting tool: collect sensor readings from an unknown device, extract the noise profile, and compare it against known simulation noise signatures.
  • The noise-residual method could also serve as a data-quality diagnostic for public ICS datasets: traces whose residual fails to separate from simulated noise are either extremely clean or contain process dynamics that the filter failed to remove.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper proposes SimProcess, a seven-stage pipeline for ranking the fidelity of ICS physical-process simulations without requiring differential equations. The pipeline estimates the noise component of a measured time series by subtracting a filtered version (Kalman filter, Eq. 1), extracts windowed features from both the raw signal and the noise estimate, trains a binary classifier on real versus simulated windows, and converts the classifier's probabilities into an averaged fidelity score per simulation. The EPIC power-grid case study compares two simulators (Pandapower and Mosaik) with several static noise distributions and a variational recurrent autoencoder, reporting recall up to 1.0 and identifying GMM, Gaussian, and autoencoder noise as the best matches. A dynamic load-switch experiment is used to show that the ranking is stable under process changes.

Significance. If the methodology is sound, SimProcess addresses a real gap: it offers a model-free, data-only way to benchmark how closely a simulated ICS physical process resembles a real one in terms of noise, which is directly relevant to building harder-to-detect ICS honeypots. The paper's strengths include public code and data, the use of real EPIC measurements, two independent simulators, a broad set of candidate noise models, and a dynamic test that goes beyond static classification. The central quantitative claims are not yet fully established, however, because the fidelity score depends on an unvalidated noise-estimation step and on classifier and hyperparameter choices made on the same EPIC dataset used for the final evaluation.

major comments (3)
  1. [Section 4.1.2, Eq. (1)] The noise estimate n_tilde(t) = x_hat(t) - f(x_hat(t)) is the foundation of the entire pipeline, but the Kalman filter's state-space model is never specified, and the residual is never validated as noise. If the filter's internal model does not match the EPIC process, the residual contains process dynamics and filter tracking error rather than sensor/process noise, and those artifacts propagate into the windowed features (Section 4.1.5), the VRAE training (Section 5.1.3), and the final fidelity ranking (Section 5.3.2). The paper should provide the filter equations and parameters, and it should validate the residual with, for example, whiteness and stationarity tests, synthetic experiments with known injected noise, or a sensitivity analysis across filter settings. This is load-bearing because the framework's central quantity is defined by this residual.
  2. [Sections 5.2.1-5.2.4 and 5.3.2] The balancing ratio, window size (N=20), number of features (11), and model choice are all selected on the same EPIC dataset that is later used to produce the fidelity scores and the 'best noise' conclusions. No nested cross-validation or a fully independent held-out set for model selection is described. The dynamic load-switch experiment in Section 5.3.3 is a useful stability check, but it does not test generalization to unseen noise families or new operating conditions. The paper should report the ranking under a proper train/validation/test protocol, or at minimum explicitly state which choices were made on training data only and quantify the sensitivity of the ranking to those choices.
  3. [Section 4.1.7 and Figure 10] The fidelity score is defined as the average probability assigned by a binary classifier trained to separate real windows from simulated windows. As such, the score measures separability under that particular classifier and feature set, not an absolute 'distance' between the simulation and the real process. The paper should state this limitation explicitly and provide an external check that the ranking reflects perceptual or statistical fidelity rather than only the classifier's decision boundary. For instance, a leave-one-simulation-out evaluation, an analysis of which noise properties drive the ranking, or a comparison with a non-ML statistical distance would strengthen the central claim.
minor comments (6)
  1. [Section 1] The text contains a typo: 'High interaction honepots' should be 'honeypots'.
  2. [Section 4.1.2] The notation uses x_hat(t) for the measured noisy signal and also for the filtered signal inside f(x_hat(t)); this should be clarified to avoid confusion between the noisy observation and the filtered estimate.
  3. [Section 5.2] The Kalman filter is introduced only as 'a Kalman filter [33]' with epsilon values 'based on our tests'; the exact filter configuration, state matrices, and parameter values should be given in the appendix or in the public repository for reproducibility.
  4. [Figure 4] The caption states that simulations without noise are 'almost flat and, for the most part, superimposed by others,' but this is difficult to see in the figure; using distinct line styles or a zoomed panel would improve readability.
  5. [Section 5.3.3] The description of the load change ('connecting a load requesting 4 A or disconnecting a load absorbing 3 A') would benefit from stating the direction and magnitude of the resulting current step, since the dynamic experiment's interpretation depends on it.
  6. [Appendix A.1] The list of hand-picked features is useful, but the paper should clarify which of these features were used for all measurements and whether the same feature set was applied to both the raw signal and the noise estimate.

Circularity Check

2 steps flagged · score 6.0 of 10

The fidelity ranking is a fitted classifier's own confidence, and the VRAE candidate is trained on the same Kalman residual later used for scoring, so the 'best noise' result is partly by construction.

  1. fitted input called prediction [Section 5.1.3 (Noise Simulation) with Section 4.1.2 (Noise Estimation), Eq. 1]
    "We trained our VRAE employing the same architecture of Chung et al. [14] on the noise estimation generated as depicted in Section 4.1.2."

    Section 4.1.2 defines the noise estimate as n_tilde(t) = x_hat(t) - f(x_hat(t)), with f a Kalman filter. The VRAE is trained to reproduce that residual. In the evaluation pipeline, the same Eq. 1 is applied to the VRAE-generated signal, and the classifier's most important features (Figure 9) are extracted from this same residual. Hence the VRAE's high fidelity scores (0.265 for V1; best for V2 and V3 in Table 2) measure how well it regenerates the filter residual it was trained on, not an independently validated match to the true process noise. The paper never validates that the Kalman residual is actual noise, so this link is circular by construction.

  2. fitted input called prediction [Sections 4.1.6-4.1.7 and 5.3.2]
    "The features extracted in this pipeline are then fed to a ML model trained to differentiate between real physical processes and simulations. ... The final score for each data source (and, therefore, on each noise) is computed by averaging the probabilities on every window associated with it."

    The fidelity score is by definition the mean posterior probability of the 'real' class assigned by a classifier trained on real-vs-simulated windows and on the same candidate noises that it later ranks. A noise is ranked high exactly when the trained classifier is uncertain, so the ranking is the classifier's own separability/calibration re-labeled as a fidelity score. The held-out test split and the dynamic-scenario experiment provide partial out-of-sample support, preventing a fully forced identity; but the headline result that GMM, Gaussian2, and the autoencoder are the best noises is the classifier's output on data of the same type used to fit it, not an independent fidelity measurement.

full rationale

The paper does not rely on a load-bearing self-citation chain; self-citations appear in background and related work and are not used to forbid alternatives. The central issue is operational circularity in the pipeline. Eq. 1 defines the noise estimate as a Kalman residual without independent validation; the VRAE is trained on that residual, and then the framework's classifier scores the VRAE using features extracted from the same residual. In addition, the 'fidelity score' is literally the trained classifier's averaged probability on windows from each candidate noise, so the ranking of noises is a re-description of how separable the trained classifier finds them. The dynamic load-switch experiment (Section 5.3.3) is a genuinely out-of-sample test and shows ranking stability, which is why the score is 6 rather than 8 or 10. The remaining difficulty is that the residual's status as true noise is assumed, not proven, so the whole ranking is conditional on an unverified filter model. This is a correctness risk as well as a partial circularity, but the paper's contribution is still a concrete, reproducible pipeline with real EPIC data, so it is not entirely vacuous.

Assumptions & free parameters 7 free parameters · 6 assumptions · 0 invented entities

The paper contributes a methodology, not new physical constants or entities. The load-bearing numerical inputs are the filter, the windowing and filtering thresholds, the feature count, the noise parameters, and the base values, all chosen or tuned on the EPIC case study. No independent external benchmark is used for the fidelity ranking.

free parameters (7)
  • Window filtering epsilon values = 0.1 for individual value filter, 0.3 for all-value filter
    Equation 2 pruning thresholds chosen based on tests in Section 5.2; they determine how much of the signal is treated as noise versus transient event.
  • Window size N = 20 samples
    Chosen in Section 5.2.2 from recall experiments on the EPIC data; affects every feature and score.
  • Number of tsfresh features = 11
    Chosen in Section 5.2.3 based on feature importance ranking on the same data used for final results.
  • Dataset balancing ratio = not explicitly stated (high ratio preferred)
    Section 5.2.1 tunes the balance between real and simulated data; recall increases with balancing ratio.
  • Noise standard deviations = gaussian1 sigma=0.01, gaussian2 sigma=0.05, GMM sigma=0.02, Poisson lambda=1.5, etc.
    Table 1 lists hand-selected noise parameters from literature ranges; the ranking of best noise is conditional on these specific parameter values.
  • VRAE input weight and training epochs = input_weight=0.99, 11 epochs
    Section 5.1.3; hand-chosen to make the autoencoder output mostly follow the clean input signal.
  • EPIC base values = base current 20 A, base voltage 240 V, base frequency 50 Hz
    Section 5.1.2; estimated from the EPIC dataset because documentation lacks base values; used to generate simulations.
assumptions (6)
  • domain assumption The measured signal is the sum of a clean process signal and noise: x_hat(t)=x(t)+n(t).
    Section 4.1.1; the paper never observes x(t) or n(t) separately.
  • domain assumption The Kalman filter residual is a valid estimate of the true noise.
    Equation 1, Section 4.1.2; if the filter model mismatches the process, the residual mixes noise and dynamics.
  • domain assumption EPIC testbed measurements are a suitable real-world representative of an ICS physical process.
    Section 5.1.1; EPIC is a testbed that emulates a power grid, not an operating plant, despite the abstract calling it real-world.
  • ad hoc to paper Pruning windows with Equation 2 removes only transient process events and preserves all relevant noise.
    Section 4.1.4; the epsilon tradeoff is a modeling choice with no independent evidence that removed windows lack useful noise information.
  • ad hoc to paper The hand-picked nine features plus tsfresh-selected features capture noise statistics without profiling the underlying process.
    Section 4.1.5 and Appendix A.1; the feature set is chosen by the authors and validated only on this case study.
  • domain assumption Classifier probabilities can be averaged across windows to produce a meaningful fidelity score.
    Section 4.1.7; no calibration or reliability analysis is provided.

how reviews work

0 comments
Cite this review

Pith. "Pith review of SimProcess: High Fidelity Simulation of Noisy ICS Physical Processes." pith.science (2026). https://pith.science/paper/2NRHN43T

@misc{pith2026250522638,
  author       = {Pith},
  title        = {Pith review of: SimProcess: High Fidelity Simulation of Noisy ICS Physical Processes},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/2NRHN43T}},
  note         = {Machine review of arXiv:2505.22638}
}
read the original abstract

Industrial Control Systems (ICS) manage critical infrastructures like power grids and water treatment plants. Cyberattacks on ICSs can disrupt operations, causing severe economic, environmental, and safety issues. For example, undetected pollution in a water plant can put the lives of thousands at stake. ICS researchers have increasingly turned to honeypots -- decoy systems designed to attract attackers, study their behaviors, and eventually improve defensive mechanisms. However, existing ICS honeypots struggle to replicate the ICS physical process, making them susceptible to detection. Accurately simulating the noise in ICS physical processes is challenging because different factors produce it, including sensor imperfections and external interferences. In this paper, we propose SimProcess, a novel framework to rank the fidelity of ICS simulations by evaluating how closely they resemble real-world and noisy physical processes. It measures the simulation distance from a target system by estimating the noise distribution with machine learning models like Random Forest. Unlike existing solutions that require detailed mathematical models or are limited to simple systems, SimProcess operates with only a timeseries of measurements from the real system, making it applicable to a broader range of complex dynamic systems. We demonstrate the framework's effectiveness through a case study using real-world power grid data from the EPIC testbed. We compare the performance of various simulation methods, including static and generative noise techniques. Our model correctly classifies real samples with a recall of up to 1.0. It also identifies Gaussian and Gaussian Mixture as the best distribution to simulate our power systems, together with a generative solution provided by an autoencoder, thereby helping developers to improve honeypot fidelity. Additionally, we make our code publicly available.

Figures

Figures reproduced from arXiv: 2505.22638 by the authors.

Figure 1
Figure 1. Threat model. ① represents passive collection of data, while ② requires the attacker to request values to a PLC. The developer can access a timeseries of physical process mea￾surements from the ICS PLC or HMI. Such timeseries could be obtained from one-time access to the plant or by employing a pub￾lic measurement dataset. However, the developer is not required to access the ICS plant after the data collection, whic… view at source ↗
Figure 2
Figure 2. SimProcess seven-stage pipeline. 4.1.6 Classification. The features extracted in this pipeline are then fed to a ML model trained to differentiate between real physical processes and simulations. The task can be formulated as a binary classification problem, where data are labeled as real or simulated based on their origin. The models take into account a feature set related to a single window and output a prediction… view at source ↗
Figure 3
Figure 3. EPIC testbed visual description. sources, and dynamic load management. It utilizes PLCs for control and supervision, while a SCADA system ensures centralized mon￾itoring. This characterizes flexibility, making it a realistic system for analysis and comparison. Among the many case studies, EPIC has been used to study the impacts of power supply interruption and cyberattacks [26]. Since the EPIC dataset contains a sma… view at source ↗
Figures from the paper (5 more)
Figure 5
Figure 5. Figure 5: Recall while varying the balance ratio. A higher [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6

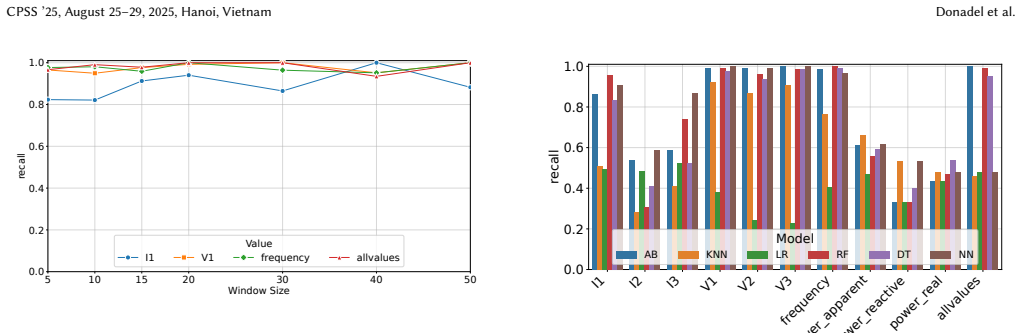

Figure 6. Figure 6: Recall when changing the window size. 1 2 3 4 5 6 7 8 9 10 11 Features Length 0.0 0.2 0.4 0.6 0.8 1.0 recall Value I1 V1 frequency allvalues [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 7
Figure 7. Figure 7: Recall when adding one feature at a time ordered [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 9
Figure 9. Figure 9: Most important features for V1. Features beginning [PITH_FULL_IMAGE:figures/full_fig_p009_9.png]
Figure 10
Figure 10. Figure 10: Resemblance of a real system of each simulation [PITH_FULL_IMAGE:figures/full_fig_p009_10.png]
