Separate recurrence from pruning, get hand-tuned speed

2026-07-08 12:36 UTC pith:2PITUO5C

load-bearing objection FILTR separates recurrence, scheduling, and pruning into three composable languages for bioinformatics DP — the pruning language with dynamic domain recurrences and the search transformation are the real contributions. the 3 major comments →

arxiv 2607.06225 v1 pith:2PITUO5C submitted 2026-07-07 cs.PL q-bio.QM

Compiling Bioinformatics Recurrences

Bala Vinaithirthan , Shiv Sundram , Sneha Goenka , Fredrik Kjolstad This is my paper
classification cs.PL q-bio.QM
keywords filtrmatrixbioinformaticscellspruningalgorithmsbiologicalimplementations
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

FILTR is a compiler that takes bioinformatics algorithms written as dynamic programming recurrences and generates C++ code matching or exceeding the performance of hand-optimized libraries. The core idea is a three-way separation: the mathematical recurrence (what to compute), the iteration schedule (in what order), and the pruning strategy (what to skip) are each specified independently in their own mini-languages, then combined and lowered to efficient code. The compiler handles coordinate transformations (like rewriting row-major traversal into antidiagonal order for parallelism), score-indexed search (inverting position and cost so the algorithm explores by edit count rather than matrix position), and dynamic pruning where runtime values feed back to contract the active computation region. The paper claims this separation is expressive enough to capture the full spectrum of real bioinformatics heuristics—banded alignment, X-drop, Z-drop, WFA-Adapt, and search—while producing code that runs 0.95x to 30x faster than hand-tuned libraries across benchmarks. The key mechanism enabling this is the Recurrence IR, an intermediate representation that allows domain bounds to be defined by their own recurrences (domain recurrences), creating a feedback loop where computed values determine which cells are evaluated next.

Core claim

The central technical discovery is that the optimization strategies used in production bioinformatics—reordering matrix traversal, pruning unpromising regions, and searching by score rather than position—can each be expressed as independent rewrites on a shared recurrence intermediate representation, and that these rewrites compose freely. Specifically, the paper shows that shearing (a coordinate transformation that makes antidiagonals contiguous in memory), search (inverting the roles of score and position so the algorithm sweeps through costs and discovers reachable positions), and dynamic pruning (where domain recurrences narrow the active region based on computed scores) are all expresss

What carries the argument

The Recurrence IR (RIR) with domain recurrences: an intermediate representation where the bounds of the iteration space are themselves defined by recurrences that depend on previously computed values, enabling data-dependent pruning feedback loops. Three input languages feed it: a recurrence language for the mathematical model, an iteration ordering language for traversal transforms (loop reordering, shearing, search), and a pruning language for static and dynamic region restriction.

Load-bearing premise

The pruning language assumes that at each step there is a single contiguous active region and that pruning decisions depend only on currently available information, not on future values. This means any bioinformatics heuristic requiring non-contiguous active regions or lookahead-dependent pruning cannot be expressed without extending the language.

What would settle it

A real-world bioinformatics heuristic that requires either non-contiguous active regions (multiple disjoint bands) or pruning decisions that depend on values not yet computed at the current step would not be expressible in FILTR, undermining the claim that the three-language separation captures the full spectrum of production heuristics.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • A pruning heuristic developed for one alignment algorithm (e.g., X-drop) can be directly applied to a different recurrence (e.g., RNA folding) without rewriting the algorithm, enabling rapid cross-domain heuristic transfer.
  • The best optimization strategy depends on input data characteristics: search traversal is 97-300x faster than antidiagonal for 1% divergence but slower at 30% divergence, meaning no single configuration is optimal and the composable design enables per-dataset tuning.
  • The search transformation converts position-indexed DP matrices into score-indexed ones automatically, deriving wavefront-algorithm-style implementations from standard recurrences without manual algorithm redesign.
  • FILTR-generated code outperforms hand-vectorized libraries partly because the shearing transformation reorganizes memory layout to make antidiagonal traversal cache-contiguous, a property the hand-tuned libraries lack.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

3 major / 7 minor

Summary. This paper introduces FILTR, a DSL and compiler for bioinformatics dynamic programming recurrences. FILTR separates the specification into three languages: a recurrence language for the mathematical model, an iteration ordering language for traversal/storage (loop reordering, shearing, search), and a pruning language for semantics-breaking approximations (static banding, dynamic X-drop/Z-drop). The compiler lowers these into a Recurrence IR and generates C++ code. The evaluation compares FILTR-generated kernels against Recuma, Bellman's Gap, and hand-optimized libraries (Ksw2, Parasail, SeqAn, WFA2) across four recurrence classes, reporting speedups from 0.95x to 30x.

Significance. The three-language separation (recurrence, scheduling, pruning) is a well-motivated design contribution that addresses a real problem: bioinformatics practitioners routinely reimplement entire algorithms when changing pruning heuristics or traversal strategies. The search transformation (Section 6.3)—automatically converting a position-indexed recurrence into a score-indexed one—is a notable technical contribution that non-trivially automates a transformation previously done by hand. The composability demonstration in Section 9.5, where X-drop pruning is transferred from alignment to RNA folding recurrences, effectively showcases the value of the separation. The staged code generation for mutually recursive data/domain recurrences (Figure 14) is technically sound. The artifact commitment (Section 12) is appropriate.

major comments (3)
  1. §9.1–9.3, Figures 19–20: All library comparisons for dynamic pruning methods (X-drop, Z-drop, WFA-Adapt) use synthetic sequences at 90% similarity. This is the regime where these heuristics prune most aggressively—the alignment path stays near the main diagonal, few cells exceed the score threshold, and the active region contracts rapidly. Table 1 already demonstrates that the search transformation's advantage collapses at higher divergence (0.45–0.72x at 30% divergence vs. 97–300x at 1%). The paper does not test library comparisons at multiple divergence levels, so we cannot assess whether the 1–2 order-of-magnitude speedups in Figures 19–20 persist at 10%, 15%, or 30% divergence. Since the headline claim ('0.95x to 30x faster across biological benchmarks') draws substantially from these dynamic pruning results, this gap is load-bearing. Adding at least one additional divergence level (
  2. §9.3, Figures 19–20: No accuracy comparison is reported for the library benchmarks. X-drop, Z-drop, and WFA-Adapt are approximate methods—different implementations may prune different cells and produce different alignments. If FILTR's X-drop variant produces lower-quality alignments than Ksw2's X-drop at the same threshold, the speed comparison is not like-for-like. The paper reports accuracy for the design-space exploration (Section 9.4, Figure 21) and heuristic transfer (Section 9.5, Figure 22) but not for the library comparisons where the headline performance claims are made. Reporting alignment accuracy (or at least confirming identical results) for the library comparisons would close this gap.
  3. Abstract and §1: The headline range '0.95x to 30x faster' appears inconsistent with Figures 19–20, which show speedups of 1–2 orders of magnitude (10–100x) over Ksw2 and SeqAn for dynamic pruning. If the 30x figure refers only to comparisons against the best-in-class library for each benchmark (e.g., WFA2 in Figure 20, where FILTR is roughly comparable), this should be stated explicitly. If the larger speedups in Figure 19 are valid, the abstract understates the results. Either way, the relationship between the headline range and the figure data needs clarification.
minor comments (7)
  1. §9.1: The paper runs each benchmark 10 times, discards the top 2 and bottom 2, and reports the mean of 6. No error bars or confidence intervals are shown in any figure. Given the log-scale plots, adding error bars (or at least noting variance) would strengthen the comparisons, especially for cases where FILTR is close to a baseline (e.g., Figure 20).
  2. Figure 14 (center): The generated C++ uses array indices 0 and 1 as double-buffer slots (diag_lo[0] = previous, diag_lo[1] = current) rather than as antidiagonal indices. While functionally correct, this is confusing to read. A comment or renaming would help readers verify the code generation.
  3. §7, paragraph beginning 'The pruning model focuses on supporting real-world heuristics': The assumption of a single contiguous active region per antidiagonal is acknowledged but its implications are not fully explored. For instance, some adaptive banding methods (e.g., abPOA [16]) maintain non-contiguous active regions. A brief discussion of what classes of algorithms fall outside the current model would help readers assess applicability.
  4. §6.3: The search transformation requires that all zero-cost transitions preserve the chosen index variable. The paper states the compiler verifies this automatically, but does not describe what happens when the check fails (error message? fallback?). A sentence clarifying the failure mode would help.
  5. Figure 18 caption: 'Spike is due to a cache line boundary' — it would help to annotate which spike is meant, as several curves are shown.
  6. §9.2: The paper states sequences are '90% similar and representative of many real genomic datasets [22].' Reference [22] (Jain et al. 2018) discusses ANI analysis of prokaryotic genomes. The 90% figure may be appropriate for within-species comparisons but is less representative for cross-species or long-read error correction scenarios. This should be qualified.
  7. §5.1: The domain recurrence mechanism is introduced with diag_lo and diag_hi as the primary example. It would help to briefly state whether domain recurrences can be arbitrary (any recurrence over the iteration domain) or are restricted to the min/max set-builder form shown in the examples.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for a careful and constructive review. The three major comments all identify genuine gaps in the evaluation that we will address in revision. Below we respond to each point.

read point-by-point responses

  1. Referee: §9.1–9.3, Figures 19–20: All library comparisons for dynamic pruning methods use synthetic sequences at 90% similarity. This is the regime where heuristics prune most aggressively. Table 1 shows search advantage collapses at higher divergence. Need additional divergence levels for library comparisons.

    Authors: The referee is correct that the dynamic pruning library comparisons (Figures 19–20) are evaluated only at 90% similarity, and that this is the regime where X-drop, Z-drop, and WFA-Adapt prune most aggressively. We agree that this gap is load-bearing for the headline claims, since the speedups in Figures 19–20 are driven largely by how much of the matrix is pruned, which in turn depends on sequence divergence. We will add at least two additional divergence levels (10% and 30%) to the library comparisons in Section 9.3. We expect speedups to narrow at higher divergence, consistent with the trend shown in Table 1 for the search transformation. We will update the figures and discussion accordingly, and will qualify the headline performance claims to specify the divergence regime in which each speedup range holds. revision: yes

  2. Referee: §9.3, Figures 19–20: No accuracy comparison reported for library benchmarks. X-drop, Z-drop, and WFA-Adapt are approximate methods; different implementations may produce different alignments. Need to confirm like-for-like comparison.

    Authors: This is a valid concern. We report accuracy for the design-space exploration (Section 9.4, Figure 21) and heuristic transfer (Section 9.5, Figure 22) but not for the library comparisons where the headline performance claims are made. We will add accuracy comparisons for the dynamic pruning library benchmarks (X-drop vs. Ksw2/SeqAn, Z-drop vs. SeqAn, WFA-Adapt vs. WFA2). For X-drop and Z-drop, we will verify that FILTR and the library implementations produce identical alignment scores and paths when using the same drop threshold, since these heuristics are defined by the same pruning condition. If any discrepancies arise (e.g., due to differences in tie-breaking or floating-point scoring), we will report them explicitly. For WFA-Adapt, we will confirm that FILTR's generated code produces the same alignment as WFA2's adaptive heuristic at the same pruning parameters. revision: yes

  3. Referee: Abstract and §1: The headline range '0.95x to 30x faster' appears inconsistent with Figures 19–20, which show speedups of 1–2 orders of magnitude (10–100x) over Ksw2 and SeqAn for dynamic pruning. Need clarification of the relationship between the headline range and the figure data.

    Authors: The referee has identified a genuine inconsistency in how we present our results. The '0.95x to 30x' range in the abstract is drawn from the unpruned and static-pruning library comparisons (Figures 16–18), where the maximum speedup over the best library baseline is approximately 30x (antidiagonal edit distance vs. SeqAn/Parasail at large sizes) and the minimum is approximately 0.95x (FILTR row-wise banded vs. Parasail at certain sizes). However, Figures 19–20 show larger speedups (up to ~100x) for dynamic pruning against Ksw2 and SeqAn, which are not reflected in the abstract's range. Conversely, the WFA-Adapt comparison (Figure 20) shows FILTR is roughly comparable to WFA2, which is consistent with the lower end of the range. We will revise the abstract and introduction to clarify that the '0.95x to 30x' range refers specifically to unpruned and static-pruning comparisons, and that dynamic pruning comparisons yield larger speedups (up to two orders of magnitude) over Ksw2 and SeqAn. We will also note that against the best-in-class library for each benchmark (e.g., WFA2 for search-based methods), FILTR is competitive rather than dramatically faster. This will make the relationship between the headline claims and the figure data explicit. revision: yes

Circularity Check

0 steps flagged

No significant circularity; one minor self-citation to Recuma for code generation infrastructure, not load-bearing for the paper's central claims

full rationale

The paper's derivation chain is self-contained. The three novel contributions—pruning language (Section 7), search transformation (Section 6.3), and shearing (Section 6.2)—each have explicit before/after RIR rewrites shown in the paper, with no step reducing to its own inputs by construction. The search transformation is a genuine index-value inversion with compiler-verified constraints (zero-cost transitions must preserve the chosen coordinate). The pruning language lowers user-facing specifications into domain recurrences via a compilation step (Figure 13 → Figure 7 right), not by renaming. The only self-citation is to Recuma [57] (Sundram, Kjolstad) for the code generation lowering strategy (Section 8: 'We adopt the general approach of the Recuma recurrence compiler'), but this provides infrastructure, not the paper's central claims. All performance claims are validated against external libraries (Parasail, SeqAn, Ksw2, WFA2) with no author overlap, and the Recuma comparison on basic traversals confirms no overhead rather than asserting superiority. The skeptic's concern about 90% similarity test data is an experimental methodology issue, not circularity. Score 1 reflects the minor, non-load-bearing self-citation.

Axiom & Free-Parameter Ledger

3 free parameters · 4 axioms · 0 invented entities

No new physical entities, particles, or forces are introduced. The paper introduces compiler constructs (prune axis, domain recurrence, search transformation) but these are language abstractions, not postulated physical entities.

free parameters (3)
  • X-drop threshold X = user-specified (e.g., 48, 96 in benchmarks)
    Controls when cells are pruned in X-drop alignment; not fitted by the paper but chosen by the user per dataset.
  • Band width B = user-specified (e.g., 16, 32, 64 in benchmarks)
    Controls static pruning band width; user-specified, not fitted.
  • Z-drop threshold Z = user-specified
    Controls Z-drop pruning; user-specified.
axioms (4)
  • domain assumption Bioinformatics recurrences have regular dependency patterns (neighbors along rows, columns, diagonals, antidiagonals)
    Section 3, paragraph describing structural properties of recurrences in Figure 4. Enables the shearing and search transformations.
  • domain assumption Pruning decisions can be based on a single contiguous active region per step
    Section 7: 'The pruning model focuses on supporting real-world heuristics but does not allow for arbitrary pruning... it targets pruning techniques over contiguous geometric regions, assuming that at each step there is a single continuous active region.'
  • domain assumption Search transformation requires all costly transitions to have strictly positive weights (for min) and free transitions to preserve the chosen index variable
    Section 6.3: 'all costly transitions have strictly positive weights (for min)... ensuring that scores change monotonically along any path' and 'transitions of cost zero must preserve whatever indexing variable is chosen.'
  • standard math Recuma's dependency-based code lowering is correct
    Section 8: 'We adopt the general approach of the Recuma recurrence compiler [57], which constructs a dependency graph from recurrence definitions and lowers it into loop code.'

pith-pipeline@v1.1.0-glm · 32328 in / 3506 out tokens · 295868 ms · 2026-07-08T12:36:40.245855+00:00 · methodology

0 comments
read the original abstract

Many bioinformatics algorithms, such as sequence alignment and structure prediction, can be expressed as recurrence equations over a dynamic programming matrix. Efficient implementations of these algorithms for large-scale biological data often require changing the order in which matrix cells are calculated and pruning ineffectual regions of the matrix from consideration altogether, but these techniques typically complicate implementation. We introduce FILTR, a domain-specific language (DSL) and compiler framework for bioinformatics recurrences. FILTR keeps the core recurrence rules separate from the pruning and scheduling strategies, where pruning acts as an approximation to limit where in the DP matrix cells are computed, and scheduling determines the iteration order for how cells are explored. FILTR compiles these high-level descriptions into optimized C++ code that matches the performance of hand-tuned implementations while enabling rapid exploration of new heuristics. FILTR is competitive with hand-optimized sequence-alignment libraries, ranging from 0.95x to 30x faster across biological benchmarks.

Figures

Figures reproduced from arXiv: 2607.06225 by Bala Vinaithirthan, Fredrik Kjolstad, Shiv Sundram, Sneha Goenka.

Figure 1
Figure 1. Figure 1: Edit distance example [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Three edit distance alignment variants that differ in where cells are computed and in what order. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 5
Figure 5. Figure 5: The recurrence language is lowered to a Recurrence [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 4
Figure 4. Figure 4: Example recurrences for different biology problems. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: Grammar of Recurrence IR, extending the Recurrence Language ( [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Progressive refinement of the edit distance Recurrence IR. (Left) The original Cartesian formulation [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Grammar of Iteration Ordering Language. loopOrd, antidiag, and diag are abbreviations. Ordering commands are named rewrites on the RIR and leave the recurrence’s traceback and final value unchanged, i.e. are correctness preserving. Each transformation takes an RIR as input and pro￾duces a rewritten RIR in a new coordinate system. loopOrd, the simplest case, swaps the nesting of in￾dex variables. Shearing i… view at source ↗
Figure 9
Figure 9. Figure 9: (a, left) Cells on the same antidiagonal (constant i+j) [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Search iteration for edit distance. Each [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
Figure 11

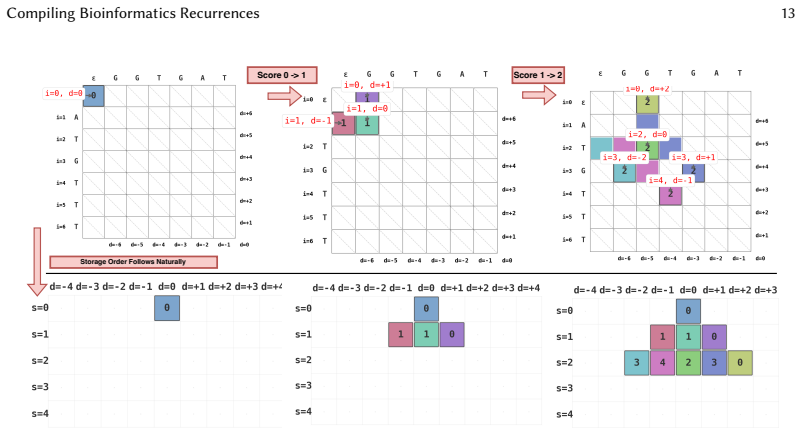

Figure 11. Figure 11: Step-by-step search expansion. Each panel shows one score level’s frontier over the original [PITH_FULL_IMAGE:figures/full_fig_p013_11.png] view at source ↗
Figure 12

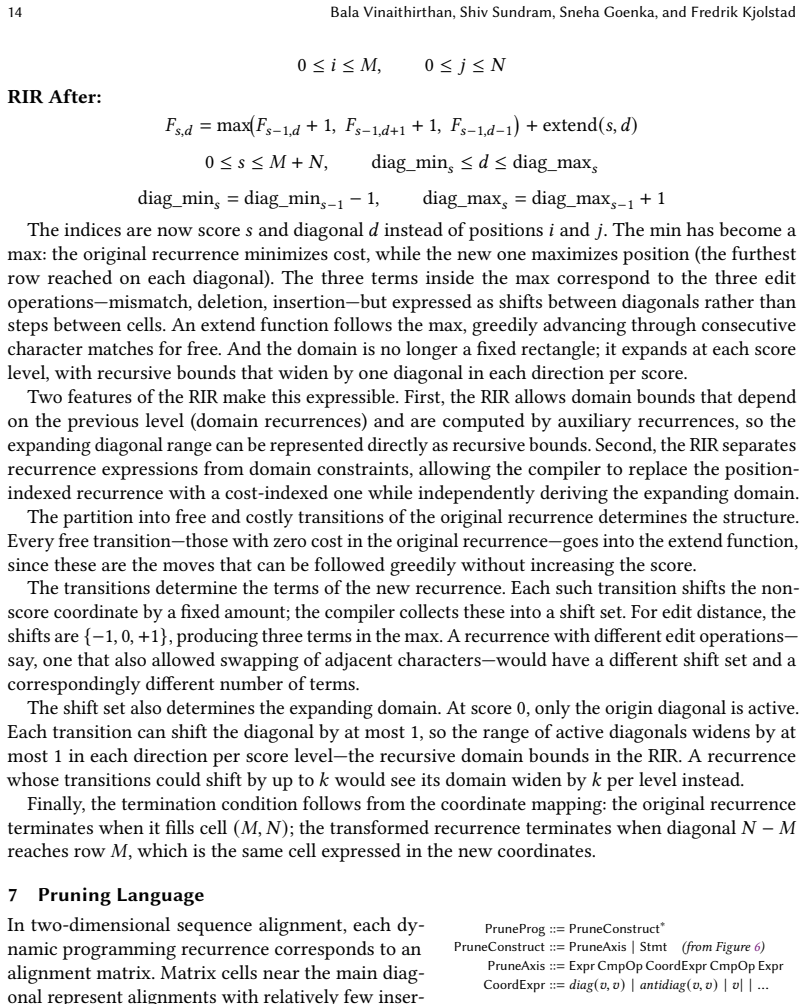

Figure 12. Figure 12: Grammar of the Pruning Language. Pruning-language is syntactically RIR statements but written in user coordinates and compiled into loop order coordinates by the compiler. In two-dimensional sequence alignment, each dy￾namic programming recurrence corresponds to an alignment matrix. Matrix cells near the main diag￾onal represent alignments with relatively few inser￾tions or deletions, while cells far from… view at source ↗
Figure 13
Figure 13. Figure 13: Pruning specification for X-drop. Other pruning programs follow a similar structure. Z-drop, for instance, replaces the X-drop conditional with one that measures distance in addition to score and is described in Section 9.3. Similarly, after applying a search transformation to a recurrence, the user can derive a pruned version of the result￾ing search algorithm, such as WFA-Adapt, which prunes diagonals b… view at source ↗
Figure 14
Figure 14. Figure 14: End-to-end example of FILTR compiling X-drop edit distance, showing the user-facing input specifi [PITH_FULL_IMAGE:figures/full_fig_p017_14.png] view at source ↗
Figure 15

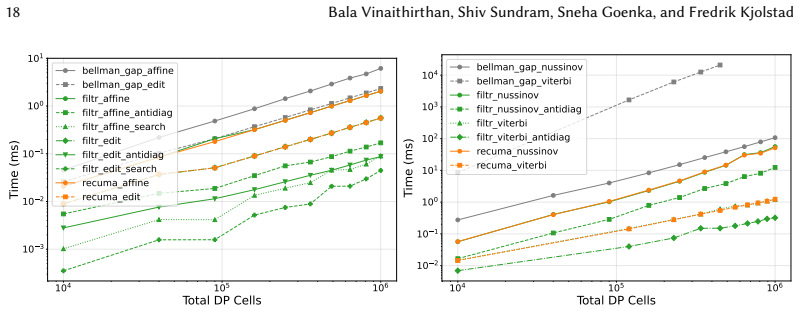

Figure 15. Figure 15: FILTR versus Recuma runtime (log-log) across four recurrences: edit distance, affine gap penalty [PITH_FULL_IMAGE:figures/full_fig_p018_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: FILTR versus hand-optimized unpruned align [PITH_FULL_IMAGE:figures/full_fig_p019_16.png] view at source ↗
Figure 18
Figure 18. Figure 18: FILTR vs. banded alignment libraries and com [PITH_FULL_IMAGE:figures/full_fig_p020_18.png] view at source ↗
Figure 20
Figure 20. Figure 20: FILTR vs. WFA-Adapt. Log scale. We also compare against dynamic pruning strategies applied to search. The WFA-Adapt al￾gorithm [38] employs a heuristic that, at each score level, discards diagonals that fall too far from the leading diagonal (the diagonal repre￾senting the most progress through the alignment matrix). FILTR can express this data-dependent pruning and achieves performance comparable to this… view at source ↗
Figure 21
Figure 21. Figure 21: Accuracy vs. runtime for three biological conditions: resequencing (Human vs. Mouse Cytochrome [PITH_FULL_IMAGE:figures/full_fig_p021_21.png] view at source ↗
Figure 22
Figure 22. Figure 22: Each subplot shows a recurrence evaluated on four RNA sequences. Points represent different X-drop [PITH_FULL_IMAGE:figures/full_fig_p022_22.png] view at source ↗
