T2SG: Traffic Topology Scene Graph for Topology Reasoning in Autonomous Driving

T0 review · 3 major / 6 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A unified traffic topology scene graph, generated by a geometry- and counterfactual-guided transformer, sets a new OpenLane-V2 state of the art at 46.3 OLS.

desk verdict A plausible lane-topology method with a real SOTA claim on OpenLane-V2, but the lane-to-signal 'topology' is a class-equality shortcut, so the headline TOPlt gain is not yet convincing. read the letter →

arxiv 2411.18894 v2 pith:3C55BFBP submitted 2024-11-28 cs.CV

Changsheng Lv , Mengshi Qi , Liang Liu , Huadong Ma This is my paper · ORCID
classification cs.CV
keywords traffictopologyscenegraphautonomousdrivingHDmapconstructionlanereasoninggenerationcounterfactualinterventiontransformerOpenLane-V2
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that traffic scene understanding for autonomous driving is best cast as generating a Traffic Topology Scene Graph (T2SG), a unified directed graph whose nodes are lanes and road-sign elements and whose edges record which signal controls or guides which lane and which lanes connect. To build this graph, the paper introduces TopoFormer, a transformer that aggregates lane features by geometric proximity and applies a counterfactual intervention to encourage the model to learn reasonable road structures such as intersections and straight roads. The paper reports that TopoFormer outperforms prior scene-graph generation methods on the T2SG task and raises the OpenLane-V2 topology reasoning score to 46.3 OLS on subsetA, above the previous 44.1. A careful reader should care because the representation turns two separately evaluated tasks, lane-to-lane connectivity and lane-to-signal control, into one joint learning problem, and the reported gains suggest that geometry- and structure-aware attention is a path to better HD-map reasoning.

What carries the argument

The load-bearing object is the T2SG graph itself, together with two attention mechanisms inside TopoFormer. Lane Aggregation Layer (LAL) adds a spatial proximity matrix, whose entries are normalized inverse distances from the end point of one predicted centerline to the start point of another, directly into the softmax attention, so global lane features are aggregated according to geometric plausibility. Counterfactual Intervention Layer (CIL) forms a counterfactual attention map by zeroing the learned attention weights while keeping lane features and the spatial proximity matrix unchanged, then trains the edge predictor to be sensitive to the difference between factual and counterfactual structure (the total indirect effect); at inference the factual attention alone is used. These two layers are what carry the argument that geometry and road-structure priors, rather than more parameters, are what improve topology reasoning.

What would settle it

Use the ground-truth lane and traffic-element categories from OpenLane-V2 in Eq. (16) instead of the predicted classes, and re-measure TOPlt. If the score stays near 29.5, the lane-to-signal topology is genuinely structural; if it falls toward the classification baseline, the OLS gain of TopoFormer is an artifact of the class-equality rule rather than evidence of learned control relationships.

Watch

Extended reading notes

Core claim

The central claim is that a single scene graph, T2SG, can carry the full topological structure of a traffic scene: each lane node carries a centerline and a category drawn from ten classes that include road-sign semantics (go straight, turn left, no right turn, and so on), and each directed edge is a binary connectivity indicator. The paper's TopoFormer learns this graph in one stage: it first detects lane centerlines with a DETR-style detector, then passes the lane queries through Lane Aggregation Layers whose self-attention is biased by a spatial-proximity matrix built from inverse distances between lane endpoints, and then through a Counterfactual Intervention Layer that trains the model to maximize the total indirect effect of learned attention on edge predictions while using the factual attention at inference. On OpenLane-V2 subsetA the method reaches 46.3 OLS, with lane-to-lane topology at 24.1 and lane-to-traffic-element topology at 29.5, and on subsetB it reaches 47.5 OLS, both above the prior published results.

Load-bearing premise

The load-bearing premise is that matching a lane's predicted category to a traffic element's predicted category is a trustworthy substitute for the true 'this signal controls this lane' relationship; if that premise fails, the topology gain mostly reflects classification accuracy.

Editorial extensions

If this is right

  • Lane detection, road-sign understanding, and topology reasoning can be trained jointly as one scene-graph generation task instead of as separate detection-plus-matching pipelines.
  • Geometry-guided global attention yields better lane centerline detection (DETl 34.7 on subsetA, up 4.8 over the prior best) as well as better connectivity, so spatial priors help perception itself, not just relation reasoning.
  • Counterfactual training on road structure transfers to inference, because the model uses only factual attention at test time yet still improves TOPll and TOPlt over the no-intervention baselines.
  • The same T2SG output can feed downstream tasks directly: a planner or predictor can query the graph for which signal controls a lane and which lane follows which, instead of recomputing topology from raw detections.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial inference: because Eq. (16) declares a lane-to-traffic-element connection whenever the predicted lane class equals the predicted traffic-element class, the reported TOPlt of 29.5 probably borrows much of its signal from classification accuracy; a variant that matches signals to lanes by geometric proximity or by a learned edge head would separate structural reasoning from class predictio
  • Editorial inference: the counterfactual intervention could be acting largely as a regularizer that prevents attention from latching onto spurious feature correlations; an equal-parameter baseline with random attention masking or dropout would test whether the causal framing adds anything beyond regularization.
  • Editorial inference: the T2SG node vocabulary could be extended to traffic lights, speed limits, and crosswalks, and the counterfactual layer could then model the effect of signal state (red/green) on lane availability, which would make the graph directly useful for motion planning rather than mapping only.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. The paper proposes a Traffic Topology Scene Graph (T2SG) representation for autonomous driving scenes, where nodes are lanes with maneuver categories and edges encode lane-to-lane connectivity. The authors introduce TopoFormer, a one-stage transformer with a Lane Aggregation Layer (LAL) using geometry-guided self-attention and a Counterfactual Intervention Layer (CIL) that encourages the learned attention to have a positive total indirect effect on edge prediction. They evaluate on OpenLane-V2 subsetA and subsetB, reporting 46.3 and 47.5 OLS respectively, outperforming prior work (TopoLogic 44.1 and 42.3). They also construct a T2SG generation task and report improvements over scene-graph baselines.

Significance. If the results hold, T2SG would be a useful unified representation for HD mapping and topology reasoning, and the geometric attention and counterfactual intervention are interesting architectural ideas. The paper introduces a new benchmark task and provides quantitative comparisons. However, the claimed advantage in traffic topology reasoning is weakened because the lane-to-traffic-element topology for road signs is not learned; Eq. (16) sets it by class equality. Consequently, the reported TOPlt and the OLS margin are not a valid demonstration of improved structural reasoning. The lane-lane topology component is genuinely learned, but it improves only modestly over the strongest baseline.

major comments (3)
  1. [3.6, Eq. (16)] The lane-to-traffic-element topology Elt(i,j) is defined as 1 whenever the predicted lane class v̂c_i equals the predicted traffic element class t̂c_j. This rule is hardcoded and independent of the learned TopoFormer model for road signs; the lane-light relations are handled separately with an MLP borrowed from [13]. As a result, the reported TOPlt of 29.5 on subsetA (Table 2) and the +3.6 gain over TopoLogic (25.4) can be explained by improved lane and traffic-element classification (DETl 34.7 vs 29.9, DETt 48.2 vs 47.2) rather than by any learned topology reasoning. The manuscript currently provides no oracle experiment using ground-truth classes in Eq. (16), no precision/recall breakdown, and no learned baseline for the sign-to-lane edges. Without these, the state-of-the-art OLS claim in the abstract is not supported as a claim about topology reasoning.
  2. [4.4, Table 3] The ablation study selects the best configuration ('w/ Add SPM' and 'CIL-Zero') by comparing OLS on the same subsetA benchmark that is later reported as the final result. This is a form of test-set model selection; the reported 46.3 OLS is therefore an optimistically biased estimate. The authors should either use a held-out validation set for choosing hyperparameters and variants, or report the mean and standard deviation over multiple seeds and a paired significance test for the comparison with TopoLogic. As written, the 2.2 OLS advantage over TopoLogic cannot be assessed for statistical reliability.
  3. [Abstract and Introduction] The paper states that T2SG 'explicitly model[s] the lane, controlled and guided by different road signals... and topology relationships among them' and that TopoFormer 'significantly enhances traffic topology reasoning.' However, in the actual system, the lane-to-sign edges are produced by the class-equality lookup of Eq. (16) and the lane-to-traffic-light edges by an independent MLP; the only edges learned by TopoFormer are lane-to-lane (Ell in Sec. 3.6). The claims should be scoped to lane-to-lane topology reasoning and the T2SG generation task, or the model should be extended to learn lane-to-sign relations. This is necessary to avoid misleading the reader about what is actually learned.
minor comments (6)
  1. [Related Work] The reference to 'TopoLogits [7]' should be 'TopoLogic' to match the name used in Table 2 and the published paper.
  2. [Eq. (12)] The notation uses A both as the learned attention matrix and as the counterfactual intervention value; this is confusing and should be clarified, for instance by writing the intervention as do(A = Ā) and using a distinct symbol for the counterfactual attention.
  3. [Table 1] The baseline 'Baseline' appears to be a detector without any scene graph model, yet GCN-based methods such as 3DSSG and EdgeGCN drop to 0.4 A@1.0 compared with 8.0 for the baseline; this large degradation is surprising and should be explained, for example by describing how the baselines are adapted and trained on the T2SG task.
  4. [4.1, Datasets] The construction of the T2SG dataset from OpenLane-V2 is described in a single sentence; the authors should specify how the lane maneuver categories and the lane-lane ground-truth edges are derived from the OpenLane-V2 annotations, and how the graph is used for the scene graph generation experiments.
  5. [3.6, Traffic topology reasoning] The sentence 'since our generated T2SG focuses solely on the road itself, the category Clc includes road signals' is confusing because Clc was defined in Sec. 3.1 as the set of lane categories; the authors should rephrase to distinguish between lane maneuver classes and traffic-element classes.
  6. [Abstract and Sec. 1] The promise of source code release at the given GitHub URL should be verified and a license should be stated at publication time; the current text says 'We will release' in the abstract but the footnote says 'available', which is inconsistent.

Circularity Check

1 steps flagged · score 6.0 of 10

Eq. (16) defines the lane-traffic-element topology as equality of predicted class labels, so the reported TOPlt and the OLS advantage are partly a renamed classification result.

  1. fitted input called prediction [Section 3.6, Eq. (16)]
    "for Elt, traffic elements and lanes that share the same class indicate connectivity. This connectivity is expressed as follows: Elt(i, j) = 1, if vc_i = tc_j, 0, otherwise. (16) where vc_i and tc_j represent the categories of the lane v_i and traffic element t_j, respectively, as obtained from Eq. (1) and Eq. (15)."

    The lane-traffic-element topology is not output by the learned edge head (Eq. 10), which is only applied to lane-lane pairs; instead, Elt is a deterministic equality test on the predicted class labels v_c and t_c, which are themselves fitted outputs of the lane and traffic-element classifiers trained by the classification losses in Eqs. (11)-(14). Therefore TOPlt, and through OLS the headline 46.3 score, partly measures classification accuracy rather than structural topology reasoning. The paper presents this as a topology-reasoning result without a learned baseline or precision/recall analysis for Eq. (16), so the TOPlt gain is, by construction, a renamed classification output.

full rationale

The paper contains one genuinely learned and independently grounded component: the lane-lane topology, which is predicted by the edge head (Eq. 10) on top of the Lane Aggregation Layer and Counterfactual Intervention Layer, and it is evaluated against external OpenLane-V2 ground truth. That branch is not circular. However, the claim of state-of-the-art traffic topology reasoning rests on the OpenLane-V2 score, which includes TOPlt. The paper's Eq. (16) defines TOPlt's lane-traffic-element edges as the equality of two independently predicted semantic class labels. This is not a learned structural relation; it is a deterministic function of the outputs of the two detection classifiers. If the classifiers are accurate, TOPlt will be high even if the model has learned no control/guide relationships. The paper provides no oracle study, no precision/recall decomposition, and no learned comparison for Eq. (16), so the reader cannot separate topology reasoning from classification accuracy. This makes the core 'topology reasoning SOTA' claim partially circular, while the lane-lane reasoning contribution retains independent content. No load-bearing self-citation circularity was found; the self-cited SGformer is used as a baseline, not as a justification for the central claim. Score 6 reflects that a major reported prediction component reduces by construction, while the remaining contributions are independent.

Assumptions & free parameters 3 free parameters · 4 assumptions · 0 invented entities

The central performance claims depend on the constructed lane-category labels, the class-equality proxy for lane-signal edges, and a counterfactual baseline that is not given a formal causal justification. These are the main uncharged assumptions.

free parameters (3)
  • Loss coefficients λcls and λreg = not reported
    Weights for classification and regression losses in Eq. (11); chosen by hand and not reported, so the training balance is not reproducible from the text.
  • Number of LAL and CIL layers = 2 LAL, 1 CIL (Figure 2)
    Layer depths are fixed without an ablation, so the architecture depth is an untested design choice.
  • epsilon in SPM (Eq. 2) = unspecified small constant
    Stabilizes the inverse distance; value not given, but changes normalization slightly.
assumptions (4)
  • domain assumption The 10 lane categories in the constructed T2SG dataset are annotated consistently and match the road-sign control semantics claimed.
    Section 4.1 introduces the categories but gives no annotation protocol, inter-annotator statistics, or label quality analysis.
  • ad hoc to paper Class equality in Eq. (16) is a valid proxy for lane-to-traffic-element control relationships.
    The model hardcodes Elt=1 when lane class equals traffic element class, so the lane-signal topology metric is reduced to a classification metric.
  • ad hoc to paper Zero-attention counterfactual isolates the causal contribution of learned road structure.
    The Counterfactual Intervention Layer uses zeros as the baseline attention without a causal identifiability argument or comparison to an intervention that preserves geometry.
  • domain assumption Published comparison scores from prior methods were produced under the same evaluation protocol.
    Table 2 relies on numbers from prior papers; no shared code is provided to confirm identical post-processing and matching.

how reviews work

0 comments
Cite this review

Pith. "Pith review of T2SG: Traffic Topology Scene Graph for Topology Reasoning in Autonomous Driving." pith.science (2026). https://pith.science/paper/3C55BFBP

@misc{pith2026241118894,
  author       = {Pith},
  title        = {Pith review of: T2SG: Traffic Topology Scene Graph for Topology Reasoning in Autonomous Driving},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/3C55BFBP}},
  note         = {Machine review of arXiv:2411.18894}
}
read the original abstract

Understanding the traffic scenes and then generating high-definition (HD) maps present significant challenges in autonomous driving. In this paper, we defined a novel Traffic Topology Scene Graph, a unified scene graph explicitly modeling the lane, controlled and guided by different road signals (e.g., right turn), and topology relationships among them, which is always ignored by previous high-definition (HD) mapping methods. For the generation of T2SG, we propose TopoFormer, a novel one-stage Topology Scene Graph TransFormer with two newly designed layers. Specifically, TopoFormer incorporates a Lane Aggregation Layer (LAL) that leverages the geometric distance among the centerline of lanes to guide the aggregation of global information. Furthermore, we proposed a Counterfactual Intervention Layer (CIL) to model the reasonable road structure ( e.g., intersection, straight) among lanes under counterfactual intervention. Then the generated T2SG can provide a more accurate and explainable description of the topological structure in traffic scenes. Experimental results demonstrate that TopoFormer outperforms existing methods on the T2SG generation task, and the generated T2SG significantly enhances traffic topology reasoning in downstream tasks, achieving a state-of-the-art performance of 46.3 OLS on the OpenLane-V2 benchmark. We will release our source code and model.

Figures

Figures reproduced from arXiv: 2411.18894 by the authors.

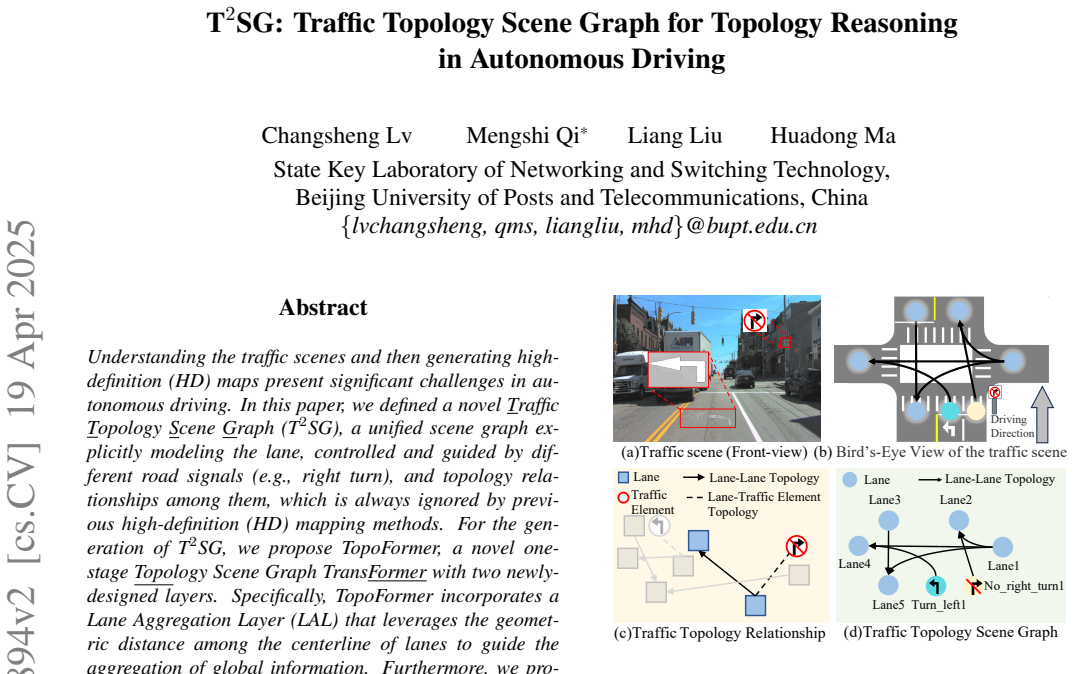

Figure 1
Figure 1. An example of a traffic scene understanding is illustrated [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. The overview of our proposed TopoFormer. Given the input multi-view images, we employ a DETR-like detector to identify lane objects with corresponding class and centerline coordinates. Subsequently, TopoFormer infers the relationships among these objects, which, along with the objects themselves, constitute the T2 SG. The main components of TopoFormer include two newly designed layers: (a) the Counterfactual Interve… view at source ↗
Figure 3
Figure 3. Qualitative results of the T2 SG generation task and the lane topology reasoning, comparing the performance of TopoNet [13] and our proposed TopoFormer. The first row represents multi-view inputs. The second row illustrates the results of lane detection and lane topology reasoning. The third row visualizes our defined T2 SG, with TopoNet’s results converted to the same format for comparison. In these visualizations,… view at source ↗
