arxiv: 2606.08980 · v1 · pith:3GORSWOLnew · submitted 2026-06-08 · 💻 cs.CV

EPS3D: End-to-End Feed-Forward 3D Panoptic Segmentation

Runsong Zhu , Jiaxin Guo , Xiaoyang Guo , Zhengzhe Liu , Ka-Hei Hui , Wei Yin , Kai Chen , Wei Chen
show 4 more authors
Weiqiang Ren Yunhui Liu Pheng-Ann Heng Chi-Wing Fu
This is my paper

Pith reviewed 2026-06-27 17:13 UTC · model grok-4.3

classification 💻 cs.CV
keywords 3D panoptic segmentationend-to-end frameworkopen-vocabularymulti-view imagesdistillation trainingmutual enhancementsemantic-instance consistencyfeed-forward
0
0 comments X

The pith

EPS3D performs open-vocabulary 3D panoptic segmentation end-to-end from multi-view images via distillation training and mutual semantic-instance enhancement.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to show that an end-to-end feed-forward network can produce coherent 3D semantic and instance labels directly from multi-view images. Existing approaches insert separate preprocessing stages that accumulate errors and break 3D consistency; EPS3D replaces those stages with distillation on varied 3D scenes plus a module that repeatedly aligns semantics inside instances and refines instances using semantic cues. If the claim holds, 3D panoptic segmentation becomes a single forward pass that is both more accurate and fast enough for downstream robotics or editing tasks.

Core claim

EPS3D is an end-to-end architecture that trains on diverse 3D scenes with a distillation objective to extract 3D-aware semantic and instance features from multi-view images, then applies a mutual enhancement module (Ins2Sem and Sem2Ins) to enforce inherent semantic-instance consistency, yielding higher benchmark scores than prior methods while running at roughly one second per scene.

What carries the argument

Mutual enhancement module (Ins2Sem alignment of semantics within instances plus Sem2Ins refinement of instance features by semantic guidance) together with the distillation-based training strategy.

If this is right

  • Outperforms prior methods by +13 percent mIoU on semantics for the Replica benchmark.
  • Runs at approximately one second per scene, supporting real-time downstream uses.
  • Produces inherent semantic-instance consistency that improves 3D scene understanding.
  • Enables direct application to robotic manipulation and 3D scene editing without extra lifting steps.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The removal of explicit preprocessing stages could simplify integration into live multi-view capture systems.
  • Open-vocabulary output may allow the same trained model to label novel object categories encountered after deployment.
  • The same distillation-plus-mutual-enhancement pattern could be tested on related tasks such as 3D instance tracking or dense reconstruction.

Load-bearing premise

Distillation training on diverse 3D scenes plus the mutual enhancement steps are sufficient to produce 3D-aware features and semantic-instance consistency without any preprocessing pipeline.

What would settle it

An ablation on Replica or ScanNet that removes the mutual enhancement module and still reports the same +13 percent mIoU gain, or a preprocessing pipeline that matches EPS3D accuracy and consistency metrics on the same test scenes.

Figures

Figures reproduced from arXiv: 2606.08980 by Chi-Wing Fu, Jiaxin Guo, Ka-Hei Hui, Kai Chen, Pheng-Ann Heng, Runsong Zhu, Wei Chen, Weiqiang Ren, Wei Yin, Xiaoyang Guo, Yunhui Liu, Zhengzhe Liu.

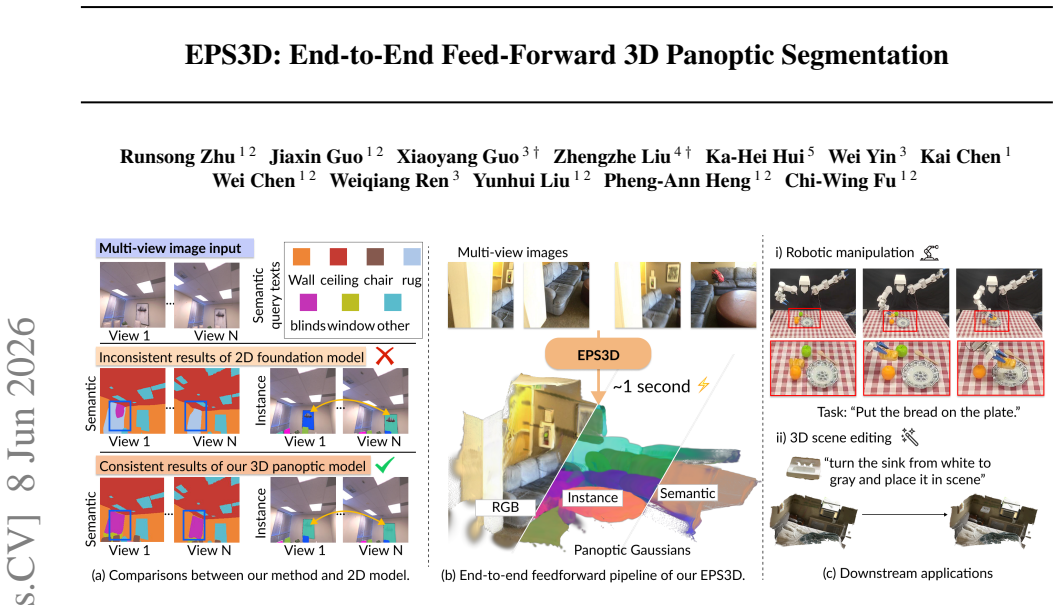

Figure 1
Figure 1. Figure 1: (a) While 2D foundation models struggle with view inconsistency, our method, EPS3D, can provide effective 3D open￾vocabulary panoptic segmentation and can render accurate and view-consistent 2D segmentation across views. (We visualize only “chair” and “paint” instance masks for simplicity.) (b) From multi-view images, we rapidly provide 3D panoptic segmentation via 3D panoptic Gaussian reconstruction. (c) … view at source ↗

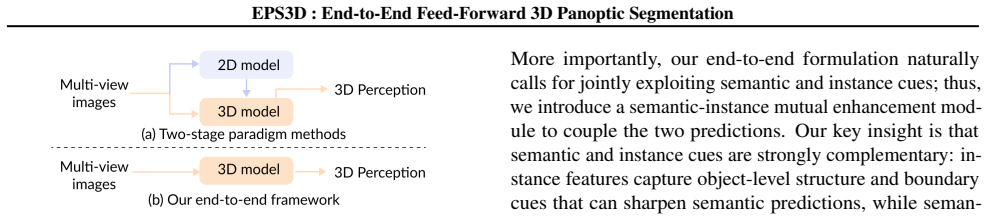

Figure 2
Figure 2. Figure 2: Comparisons between recent SOTA methods (Fan et al., 2024; Sun et al., 2025) and our method, EPS3D. into a 3D scene (e.g., 3D radiance field). Yet, 2D results inferred from individual views typically suffer from view imperfection and inconsistent semantic predictions. Also, 2D instance segmentation often fails to maintain consistent object identities across views; see [PITH_FULL_IMAGE:figures/full_fig_p00… view at source ↗

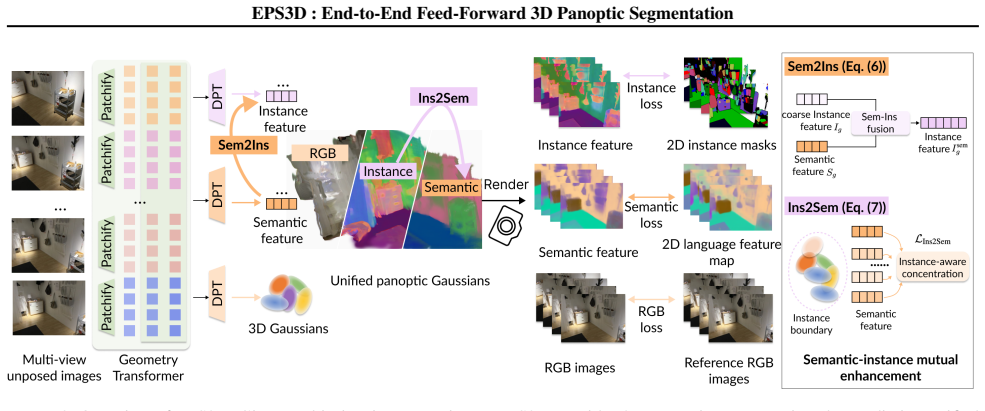

Figure 3
Figure 3. Figure 3: Overview of EPS3D. Given multi-view images as input, EPS3D provides 3D panoptic segmentations by predicting unified panoptic 3D Gaussians in a feed-forward pass, supporting novel view RGB, semantic and instance feature map rendering. With our end-to￾end framework, we further introduce semantic-instance mutual enhancement learning module (i.e., Semantic2Instance (Sem2Ins) learning and Instance2Semantic (Ins… view at source ↗

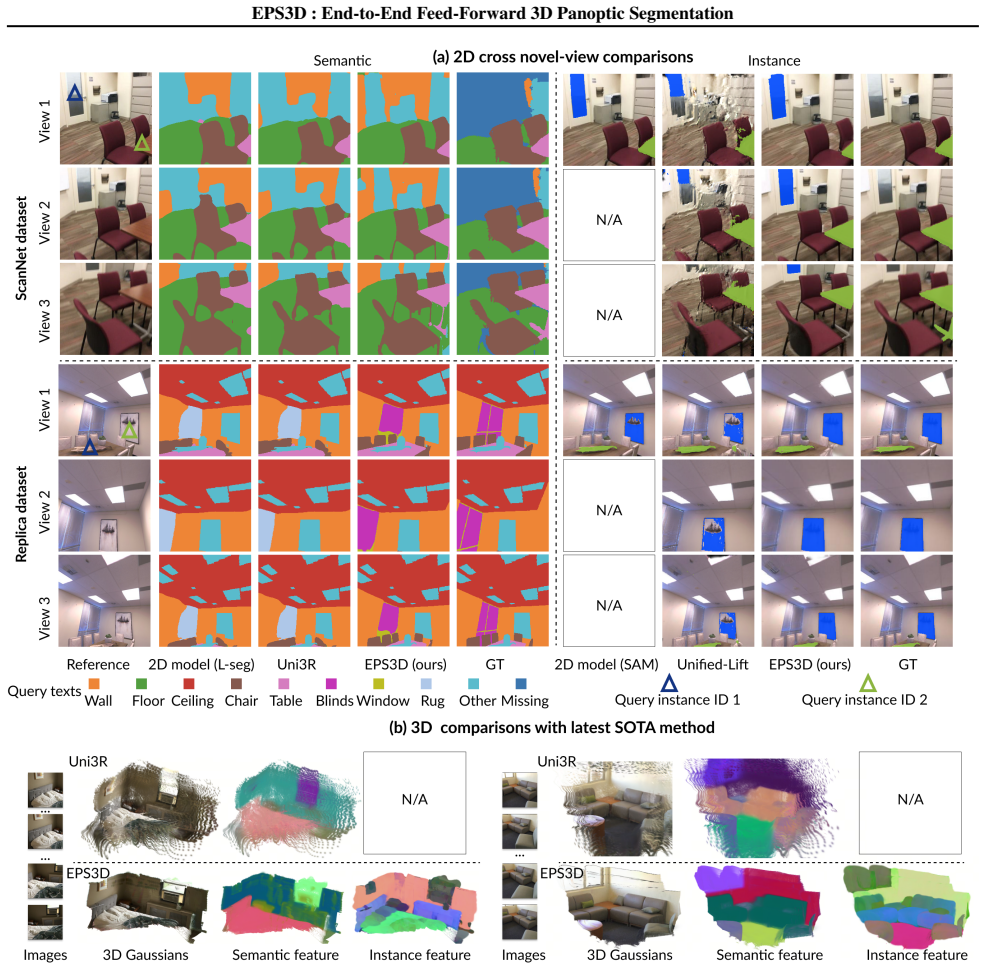

Figure 4
Figure 4. Figure 4: (a) Visual comparisons of novel views between our EPS3D and baselines on ScanNet (Dai et al., 2017) and Replica (Straub et al., 2019). For semantic understanding, we directly visualize the semantic segmentation maps according to the text queries across views. For instance-level understanding, we use the first novel view to select the 3D segmentation ID and visualize the corresponding segmentation across di… view at source ↗

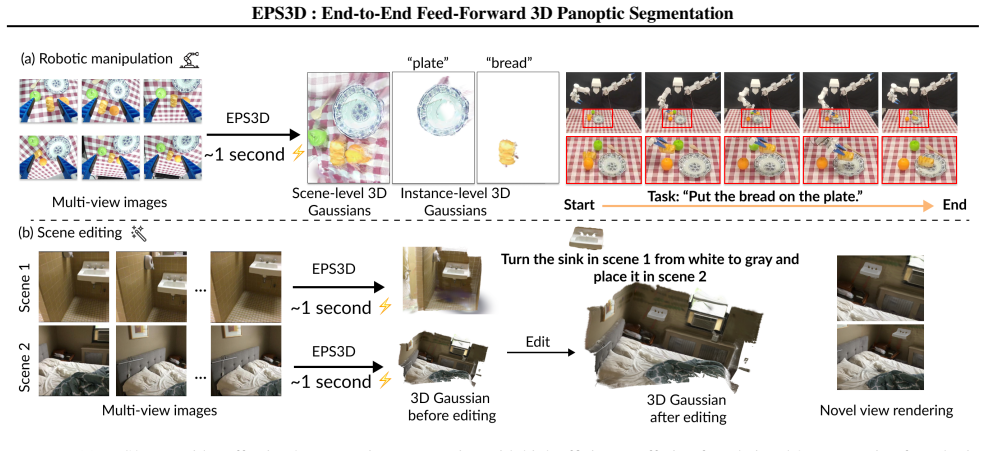

Figure 5
Figure 5. Figure 5: (a) EPS3D provides effective 3D panoptic segmentation with high efficiency, offering foundational 3D perception for robotic manipulation tasks. (b) Our EPS3D can recover both scene-level and instance-level Gaussians, which facilitates 3D scene editing (e.g., “Turn the sink in scene 1 from white to gray and place it in scene 2”) [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗

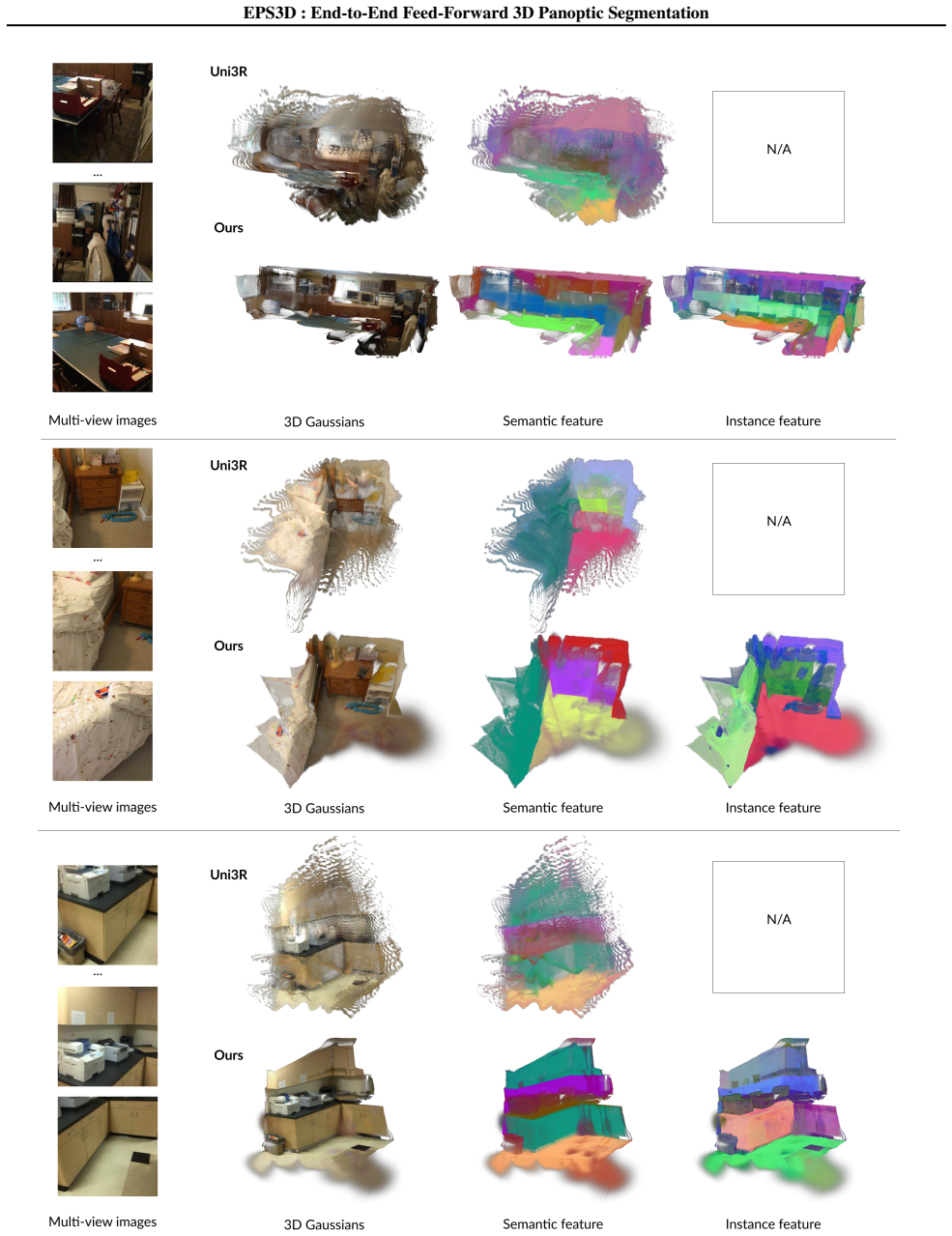

Figure 6
Figure 6. Figure 6: 3D comparisons between our method and the latest SOTA method (Sun et al., 2025). We mark ‘N/A’ to indicate that the method does not support such predictions. 17 [PITH_FULL_IMAGE:figures/full_fig_p017_6.png] view at source ↗

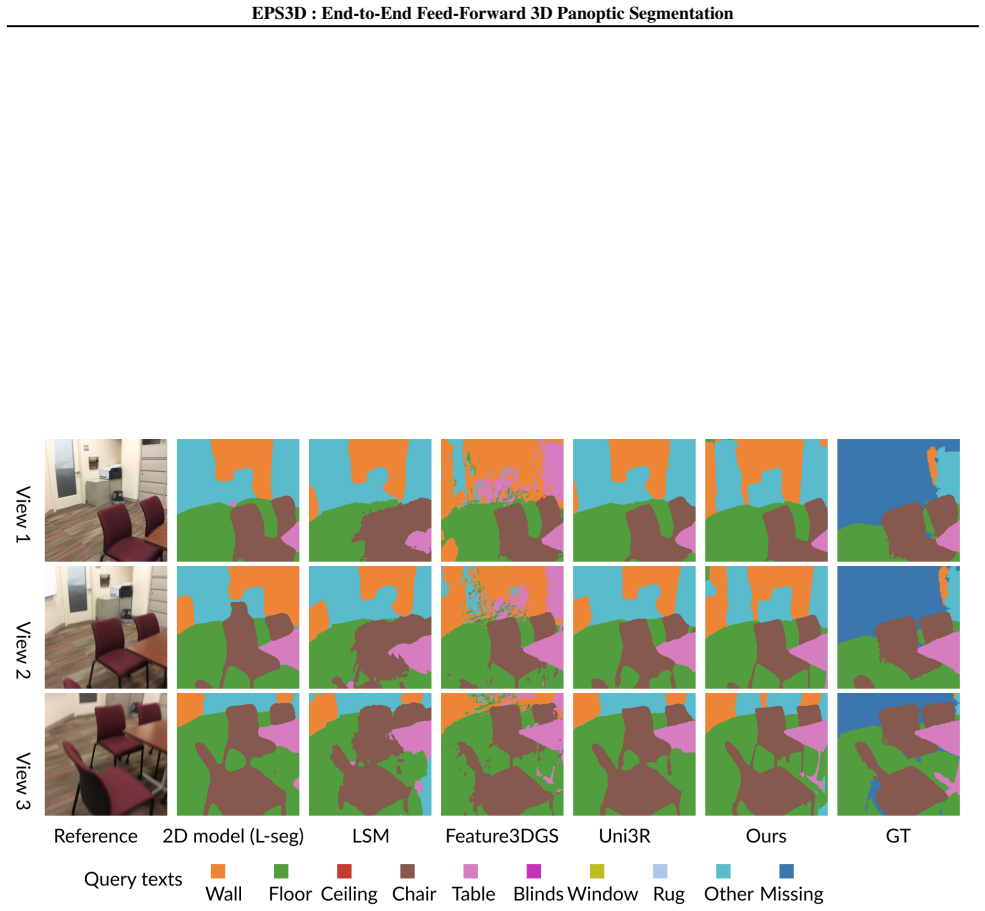

Figure 7
Figure 7. Figure 7: More visual comparisons with broader baselines (Feature-3DGS (Zhou et al., 2024), LSM (Fan et al., 2024)). 18 [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
read the original abstract

This paper introduces EPS3D, a new end-to-end feed-forward framework for open-vocabulary 3D panoptic segmentation. Unlike existing methods relying on additional preprocessing, we design an end-to-end architecture, with a distillation-based training strategy on diverse 3D scenes to predict 3D-aware semantic and instance features from multi-view images, improving 3D consistency and avoiding error accumulation. We further propose a mutual enhancement module to enforce inherent semantic-instance consistency. By aligning semantics within instances (Ins2Sem) and refining instance features with semantic guidance (Sem2Ins), we achieve more coherent 3D scene understanding. Ultimately, EPS3D outperforms SOTA baselines on two benchmarks (e.g., +13% mIoU for semantics on Replica) with high efficiency (e.g., 1s per scene), supporting tasks like robotic manipulation and 3D scene editing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. This paper introduces EPS3D, an end-to-end feed-forward framework for open-vocabulary 3D panoptic segmentation. It proposes a distillation-based training strategy on diverse 3D scenes to predict 3D-aware semantic and instance features from multi-view images, and a mutual enhancement module (Ins2Sem and Sem2Ins) to enforce semantic-instance consistency. The method is claimed to outperform state-of-the-art baselines on two benchmarks, such as achieving +13% mIoU for semantics on Replica, while operating at high efficiency (1s per scene).

Significance. If the reported performance gains and efficiency are confirmed through rigorous experiments, this work could significantly impact the field by providing a preprocessing-free approach to 3D panoptic segmentation, facilitating applications in robotics and 3D scene editing. The mutual enhancement module addresses an important consistency issue in panoptic segmentation.

major comments (2)
  1. [Abstract] Abstract: The central claims of outperformance (+13% mIoU) and efficiency (1s per scene) are made without reference to any experimental results, tables, ablation studies, or error analysis in the provided manuscript text. This absence makes it impossible to verify the contribution of the proposed distillation strategy or the mutual enhancement module.
  2. [Abstract] Abstract: No details are provided on the specific benchmarks, the SOTA baselines compared against, the evaluation protocol, or how the open-vocabulary aspect is handled, which are load-bearing for the significance of the results.
minor comments (1)
  1. [Abstract] Abstract: The term 'diverse 3D scenes' is used without specifying the source or characteristics of the training data.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The comments focus on improving the abstract's clarity and verifiability, which we address point-by-point below. We agree that strengthening the abstract will better highlight the experimental support for our claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claims of outperformance (+13% mIoU) and efficiency (1s per scene) are made without reference to any experimental results, tables, ablation studies, or error analysis in the provided manuscript text. This absence makes it impossible to verify the contribution of the proposed distillation strategy or the mutual enhancement module.

    Authors: We agree that the abstract, as a high-level summary, would benefit from explicit pointers to the supporting experiments. The full manuscript includes these details in the Experiments section, with quantitative results in tables, ablations on the distillation and mutual enhancement components, and runtime analysis. We will revise the abstract to add references such as 'as demonstrated in Tables 2 and 3' and 'detailed in Section 4' to make the claims directly traceable. revision: yes

  2. Referee: [Abstract] Abstract: No details are provided on the specific benchmarks, the SOTA baselines compared against, the evaluation protocol, or how the open-vocabulary aspect is handled, which are load-bearing for the significance of the results.

    Authors: The abstract provides a concise overview and already references one benchmark (Replica) along with the open-vocabulary setting. However, we acknowledge that additional specificity would improve accessibility. The manuscript body details the two benchmarks, compared SOTA methods, evaluation metrics/protocol, and open-vocabulary handling via the distillation strategy. We will revise the abstract to briefly incorporate these elements (e.g., naming the second benchmark and noting the open-vocabulary mechanism) while respecting length limits, or ensure the introduction expands on them for context. revision: partial

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper presents an empirical end-to-end neural architecture for 3D panoptic segmentation trained via distillation on diverse scenes plus a mutual enhancement module (Ins2Sem/Sem2Ins). No equations, fitted parameters renamed as predictions, or self-citation chains appear in the provided abstract or description. The central claims rest on reported benchmark improvements (+13% mIoU, 1s/scene) treated as experimental outcomes rather than derivations that reduce to their own inputs by construction. This is the expected non-finding for an applied CV architecture paper whose load-bearing elements are architectural choices and training procedures, not mathematical self-definition.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no information on free parameters, background axioms, or new postulated entities; a full audit is impossible.
