Exact Boundary Enforcement Along Implicit Geometries for Physics-Informed, Deep Learning Problems in Continuum Mechanics

Cody Rucker , Brittany A. Erickson This is my paper

Pith reviewed 2026-06-29 14:09 UTC · model grok-4.3

classification ⚛️ physics.comp-ph math-phmath.MP
keywords physics-informed neural networksboundary enforcementelastodynamicsplane straincontinuum mechanicsimplicit geometriestraction conditions
0
0 comments X

The pith

PINNs achieve higher accuracy on first-order plane strain elastodynamics, but accuracy and training time trade off with the mix of hard versus soft boundary enforcement.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests how hard and soft enforcement of boundary conditions affects physics-informed neural network solutions to initial-boundary-value problems in continuum mechanics. Using interpolation over implicit representations to hard-enforce traction conditions on arbitrary domains, the work compares first- and second-order formulations of plane-strain elastodynamics. It finds first-order versions deliver higher relative accuracy overall, while the balance of hard and soft boundaries produces a clear tradeoff: more soft enforcement raises accuracy at the cost of longer training runs, and more hard enforcement shortens runs but lowers accuracy. This matters because forward models must be both reliable and efficient when used inside inversion techniques.

Core claim

PINNs achieve a higher relative accuracy when solving the first-order plane strain problem and a tradeoff exists between final relative error and total training runtime, characterized by the number of hard and soft boundaries, where all-soft enforcement yields greater accuracy with longer runtime and all-hard enforcement yields lesser accuracy with shorter runtime.

What carries the argument

Interpolation of boundary data over implicit boundary representations for hard-enforcement of traction conditions on arbitrary domains.

If this is right

  • First-order formulations of the governing equations produce higher relative accuracy than second-order formulations.
  • Raising the fraction of soft boundary enforcement improves final accuracy.
  • Raising the fraction of hard boundary enforcement reduces total training runtime.
  • The observed accuracy-runtime tradeoff is governed by the specific count of hard versus soft boundaries.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The tradeoff may guide selection of enforcement strategy when PINNs are embedded in larger optimization loops with limited compute.
  • The same hard/soft counting approach could be tested on time-dependent three-dimensional problems to see whether the pattern generalizes.
  • Pairing the method with adaptive collocation-point sampling might shift the observed accuracy-runtime curve.

Load-bearing premise

Interpolating boundary data over implicit boundary representations accurately captures the geometry and traction conditions for arbitrary domains without significant discretization or approximation error.

What would settle it

Solve the same plane-strain problem on a rectangular domain with a known analytical solution using varying ratios of hard and soft boundaries and check whether relative error indeed decreases and runtime increases as the fraction of soft boundaries rises.

Figures

Figures reproduced from arXiv: 2606.07579 by Brittany A. Erickson, Cody Rucker.

Figure 1

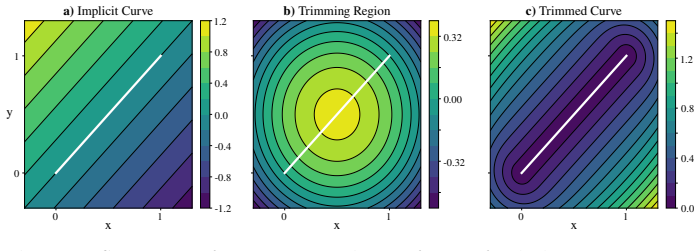

Figure 1. Figure 1: Construction of an approximate distance function for the line segment joining points A = (0, 0) and B = (1, 1). a) depicts the signed distance function (10) to the line AB; b) depicts the trimming function (11); and c) depicts the resulting approximate distance function (12) to line segment AB. 3.3. Approximate distance to a trimmed line segment The line segment joining points x1 = (x1, y1) and x2 = (x2, y… view at source ↗
Figure 2

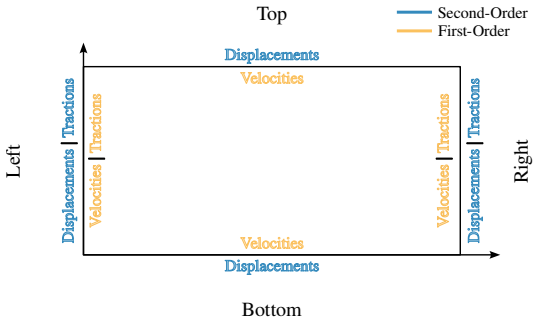

Figure 2. Figure 2: A domain schematic showing the types of boundary conditions considered at each boundary for first and second-order problems. Conditions at Left boundary are always chosen to be the same type as the conditions at the right boundary (e.g., Left and right both have displacement conditions or both have traction conditions when considering the second-order problem). employ the L 2−norm on a function space of ve… view at source ↗
Figure 3

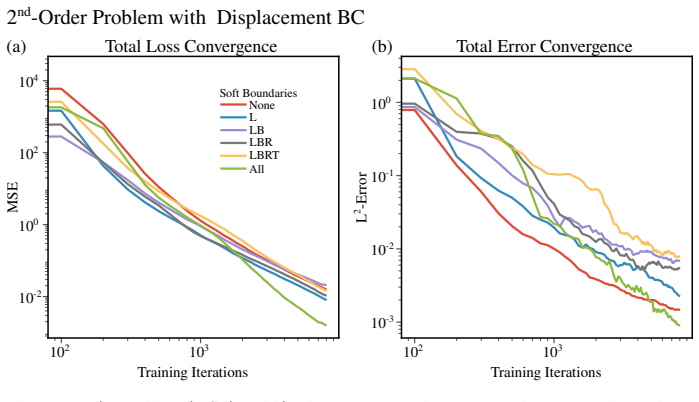

Figure 3. Figure 3: a) Total loss (MSE) and b) relative L2-error during network training when solving the Second-order plane strain problem with displacement conditions imposed at each spatial boundary. relative error, the case of all-hard enforcement shows superior relative accuracy over fewer training iterations. 5.1.2. Displacements and Tractions Now, we repeat the same simulation as in Section 5.1.1 but this time we speci… view at source ↗
Figure 4

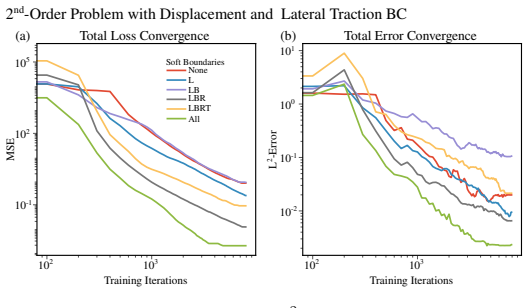

Figure 4. Figure 4: a) Total loss (MSE) and b) relative L2 -error during network training when solv￾ing the second-order plane strain problem with displacement conditions imposed at top and bottom boundaries and traction conditions imposed at left and right boundaries. which may not satisfy the governing equations and constitutive law (39) so we compute appropriate source terms for each and specify boundary data accord￾ingly.… view at source ↗
Figure 5

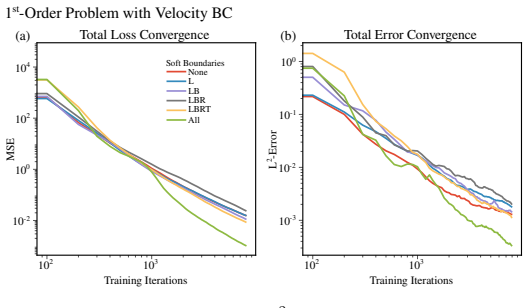

Figure 5. Figure 5: a) Total loss (MSE) and b) relative L2 -error during network training when solving the first-order plane strain problem with velocity conditions imposed at each spatial boundary. 5.2.1. All Velocities Continuing in a fashion similar to the second-order numerical tests, we will first consider the case where velocity is specified at every spatial boundary so that ΓD = ΓL ∪ ΓB ∪ ΓR ∪ ΓT while the traction bou… view at source ↗
Figure 6

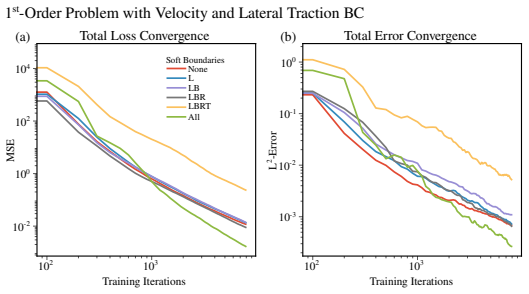

Figure 6. Figure 6: a) Total loss (MSE) and b) relative L2-error during network training when solv￾ing the first-order plane strain problem with velocity conditions imposed at top and bottom boundaries and traction conditions imposed on the stress variable at the left and right bound￾aries. nearly half that of implementing soft-enforcement at every boundary. Our findings highlight an important trade-off between the choice of … view at source ↗

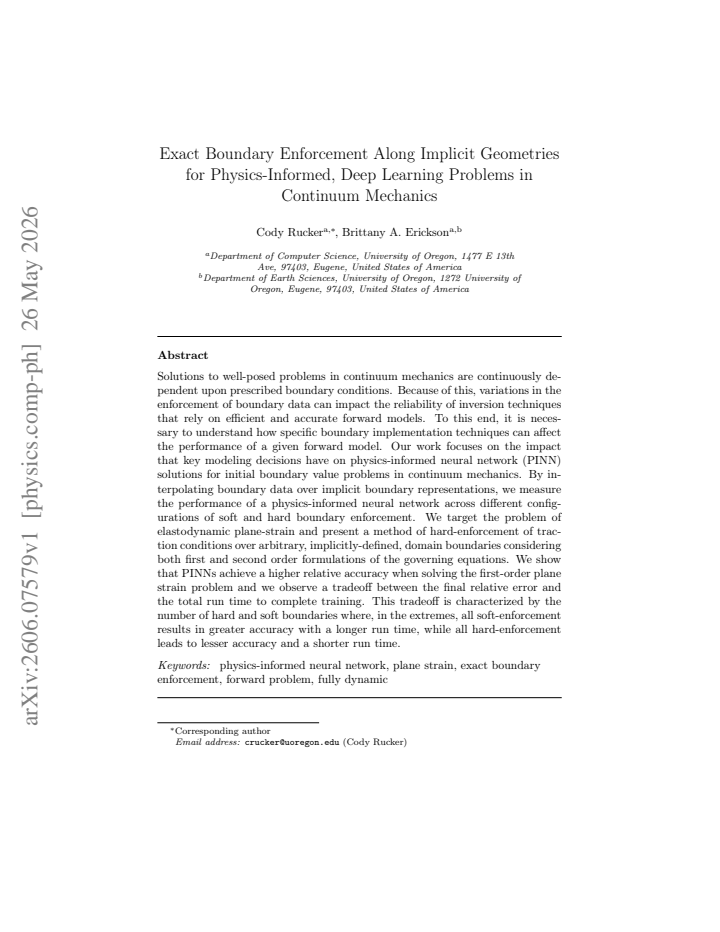

read the original abstract

Solutions to well-posed problems in continuum mechanics are continuously dependent upon prescribed boundary conditions. Because of this, variations in the enforcement of boundary data can impact the reliability of inversion techniques that rely on efficient and accurate forward models. To this end, it is necessary to understand how specific boundary implementation techniques can affect the performance of a given forward model. Our work focuses on the impact that key modeling decisions have on physics-informed neural network (PINN) solutions for initial boundary value problems in continuum mechanics. By interpolating boundary data over implicit boundary representations, we measure the performance of a physics-informed neural network across different configurations of soft and hard boundary enforcement. We target the problem of elastodynamic plane-strain and present a method of hard-enforcement of traction conditions over arbitrary, implicitly-defined, domain boundaries considering both first and second order formulations of the governing equations. We show that PINNs achieve a higher relative accuracy when solving the first-order plane strain problem and we observe a tradeoff between the final relative error and the total run time to complete training. This tradeoff is characterized by the number of hard and soft boundaries where, in the extremes, all soft-enforcement results in greater accuracy with a longer run time, while all hard-enforcement leads to lesser accuracy and a shorter run time.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript investigates the impact of soft versus hard boundary enforcement on PINN solutions to elastodynamic plane-strain problems. Using interpolation of boundary data over implicit representations, it compares first- and second-order formulations across mixed hard/soft configurations and reports that the first-order formulation yields higher relative accuracy while the number of hard versus soft boundaries produces an accuracy-runtime tradeoff (all-soft yields highest accuracy but longest training; all-hard yields lowest accuracy but shortest training).

Significance. If the interpolation-based hard enforcement can be shown to introduce negligible geometry/traction error relative to the reported residuals, the empirical comparison would usefully inform boundary-enforcement choices for PINN forward models in continuum mechanics. The work supplies a concrete method for hard-enforcing traction conditions on arbitrary implicit domains and documents a practical accuracy-runtime tradeoff, both of which could guide practitioners even if the quantitative bounds require strengthening.

major comments (1)
  1. [Abstract] Abstract, paragraph on method for hard-enforcement of traction conditions: the central accuracy-runtime tradeoff claim assumes the interpolation procedure enforces boundaries exactly. No a-priori error bound on the interpolation nor a quantitative check (e.g., boundary residual evaluated on a manufactured geometry) is supplied to demonstrate that the interpolation error remains orders of magnitude below the reported relative errors. Without this verification the 'hard' cases are not demonstrably stricter than the soft cases, undermining the tradeoff interpretation.
minor comments (2)
  1. [Abstract] The abstract asserts performance differences and a tradeoff but supplies no error bars, dataset sizes, convergence plots, or explicit description of how relative accuracy was computed.
  2. Consider adding a table or figure that reports the exact number of hard/soft boundaries, final relative errors, and wall-clock times for each configuration so the tradeoff can be inspected quantitatively.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading and constructive feedback. We address the single major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract, paragraph on method for hard-enforcement of traction conditions: the central accuracy-runtime tradeoff claim assumes the interpolation procedure enforces boundaries exactly. No a-priori error bound on the interpolation nor a quantitative check (e.g., boundary residual evaluated on a manufactured geometry) is supplied to demonstrate that the interpolation error remains orders of magnitude below the reported relative errors. Without this verification the 'hard' cases are not demonstrably stricter than the soft cases, undermining the tradeoff interpretation.

    Authors: We agree that the current manuscript lacks an explicit verification that the interpolation error is negligible relative to the reported residuals. In the revision we will add a quantitative check (boundary residual evaluated on a manufactured geometry) demonstrating that the interpolation error lies orders of magnitude below the relative errors shown in the results. This addition will confirm that the hard-enforcement cases are indeed stricter and will support the accuracy-runtime tradeoff interpretation. revision: yes

Circularity Check

0 steps flagged

No circularity; empirical measurement study with independent experimental results.

full rationale

The paper reports direct measurements of PINN training accuracy and runtime across hard/soft boundary configurations for elastodynamic plane-strain problems. No equations, derivations, or 'predictions' are presented that reduce reported quantities to fitted parameters by construction, nor does any load-bearing claim rest on self-citation chains. The central tradeoff observation follows from the experimental design itself and is not forced by redefinition or imported uniqueness results. The work is self-contained against external benchmarks as an empirical study.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no equations, no explicit free parameters, and no invented entities; ledger therefore empty.

pith-pipeline@v0.9.1-grok · 5762 in / 1133 out tokens · 28146 ms · 2026-06-29T14:09:07.052343+00:00 · methodology
