Wide-field NV magnetometry under simultaneous high-pressure and high-temperature conditions

Masahiro Ohkuma , Eikichi Kimura , Shumpei Ohyama , Miu Tezuka , Ryo Matsumoto , Shinobu Onoda , Yoshihiko Takano , Shintaro Azuma
show 2 more authors
Kenji Ohta Keigo Arai
This is my paper

Pith reviewed 2026-06-25 19:40 UTC · model grok-4.3

classification ⚛️ physics.app-ph cond-mat.mtrl-sciquant-ph
keywords NV centersODMRmagnetometryhigh pressurehigh temperaturewide-field imagingstray magnetic fieldpressure cell
0
0 comments X

The pith

NV centers allow wide-field ODMR and magnetic imaging at 7 GPa and 500 K.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that optically detected magnetic resonance using nitrogen-vacancy centers remains functional under simultaneous high pressure and high temperature. A sympathetic reader would care because prior NV magnetometry had been limited to milder conditions, leaving extreme environments inaccessible for spatially resolved magnetic studies. The work shows ODMR signals can still be observed at 5 GPa and 500 K, then applies the technique to produce wide-field images of the stray magnetic field from an iron sample at 7 GPa and 500 K viewed through the pressure cell. This demonstrates that NV spin readout can operate without prohibitive signal loss in combined extreme conditions.

Core claim

We demonstrate wide-field optically detected magnetic resonance (ODMR) under simultaneous high-pressure and high-temperature conditions using nitrogen-vacancy (NV) centers. We show that ODMR can be observed at 5 GPa and 500 K, demonstrating the feasibility of NV spin readout under such combined extreme conditions. We further perform wide-field ODMR of iron at 7 GPa and 500 K, where the stray magnetic field from the sample is spatially visualized through the pressure cell. These results establish NV-center magnetometry as a promising platform for imaging magnetic phenomena in materials under high-pressure and high-temperature environments.

What carries the argument

Optically detected magnetic resonance of NV centers, using spin-dependent fluorescence to report local magnetic fields while the centers remain inside or viewable through a pressure cell at elevated temperature.

If this is right

  • ODMR signals remain observable at 5 GPa and 500 K.
  • Wide-field imaging of stray magnetic fields becomes possible at 7 GPa and 500 K.
  • NV centers can serve as sensors for magnetic phenomena inside pressure cells at 500 K.
  • Materials such as iron can be examined for their magnetic response under combined high pressure and temperature.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could enable in-situ mapping of magnetic phase changes during compression and heating of samples.
  • Similar setups might be adapted to study magnetic behavior under conditions that mimic planetary interiors.
  • The technique opens a route to combine NV imaging with other high-pressure probes such as electrical transport measurements.

Load-bearing premise

Optical access, microwave delivery, and NV-center spin coherence remain sufficient for detectable ODMR signals inside the pressure cell at 5-7 GPa and 500 K without prohibitive background or signal loss.

What would settle it

No ODMR resonance contrast or detectable fluorescence signal appears when the same NV setup is tested at 5 GPa and 500 K.

Figures

Figures reproduced from arXiv: 2606.25378 by Eikichi Kimura, Keigo Arai, Kenji Ohta, Masahiro Ohkuma, Miu Tezuka, Ryo Matsumoto, Shinobu Onoda, Shintaro Azuma, Shumpei Ohyama, Yoshihiko Takano.

Figure 1

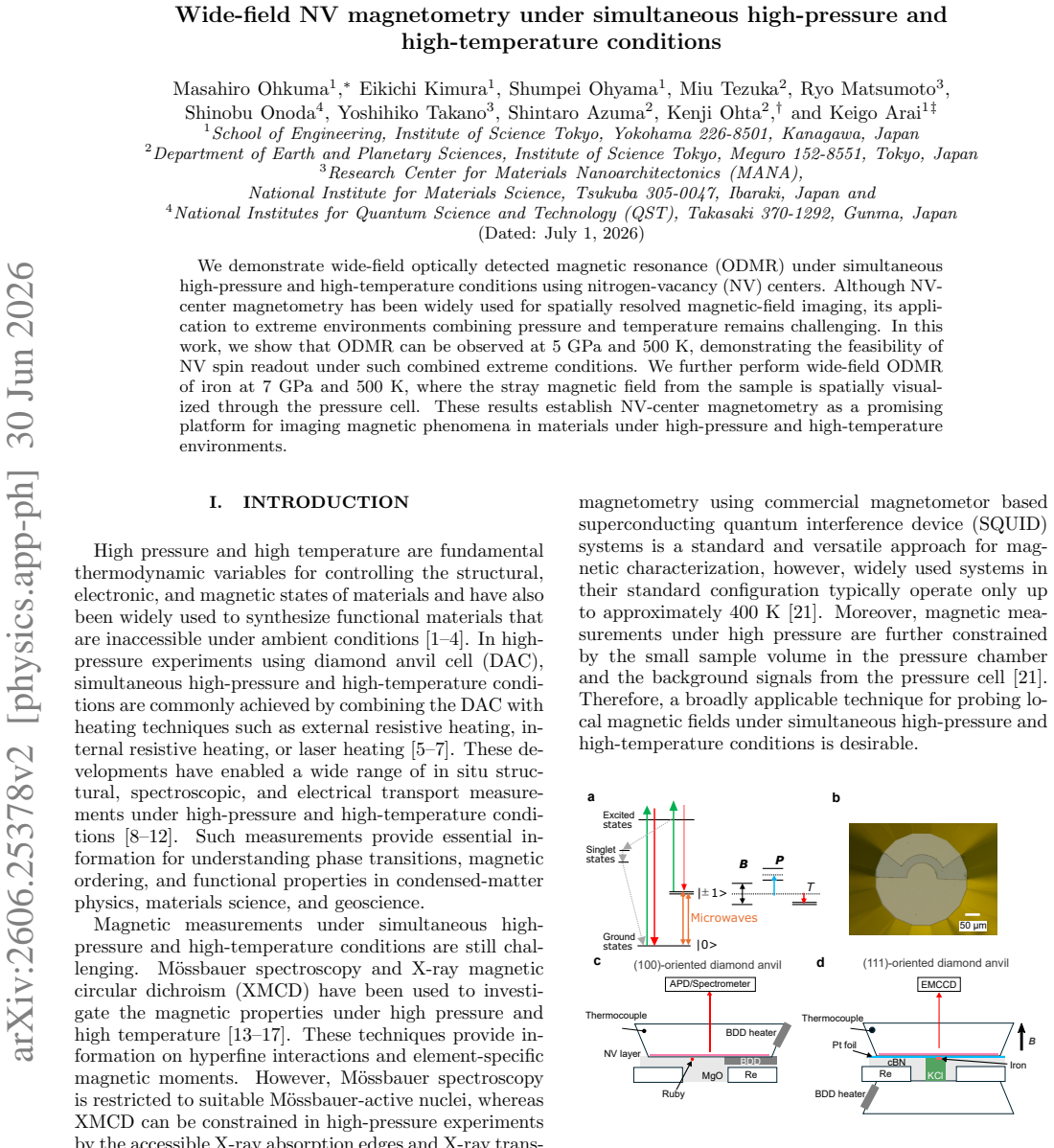

Figure 1. Figure 1: FIG. 1. Experimental configurations for ODMR measure [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

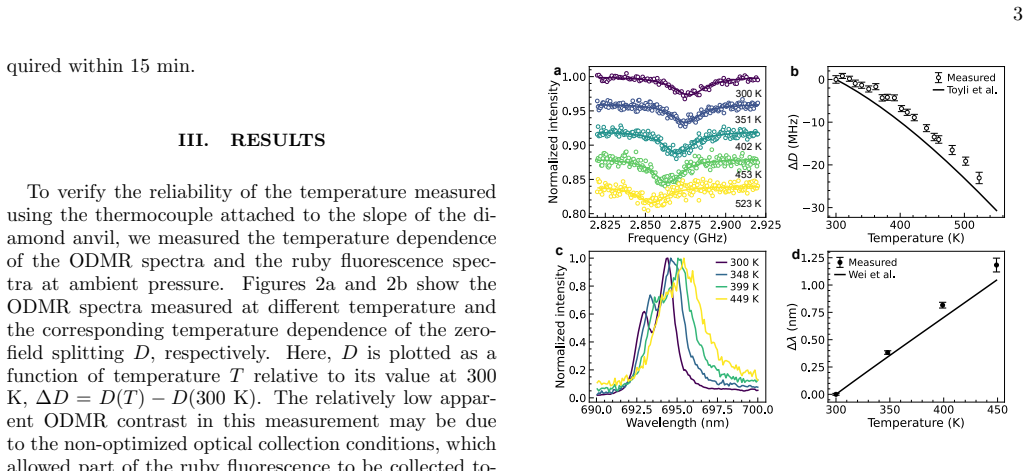

Figure 2. Figure 2: FIG. 2. (a) CW-ODMR spectra of NV centers measured [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

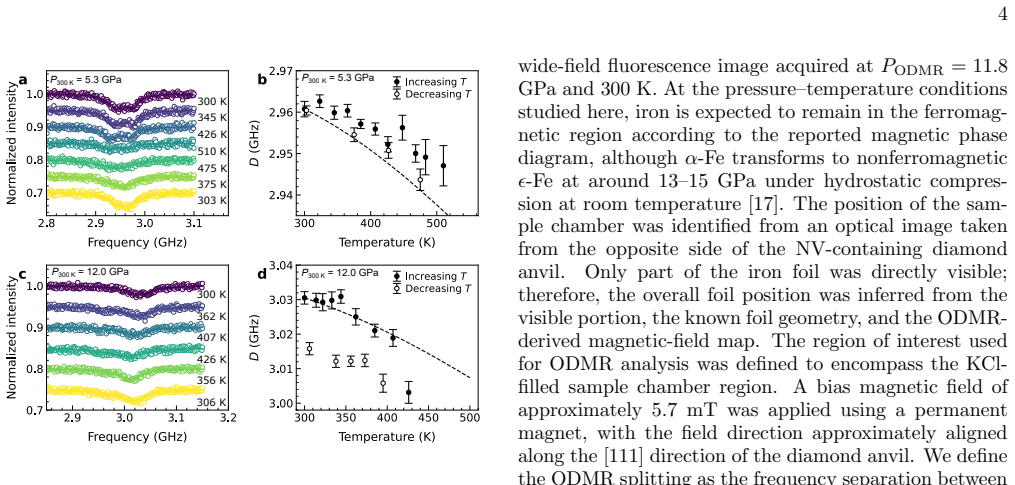

Figure 3. Figure 3: FIG. 3. ODMR measurements under simultaneous high [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

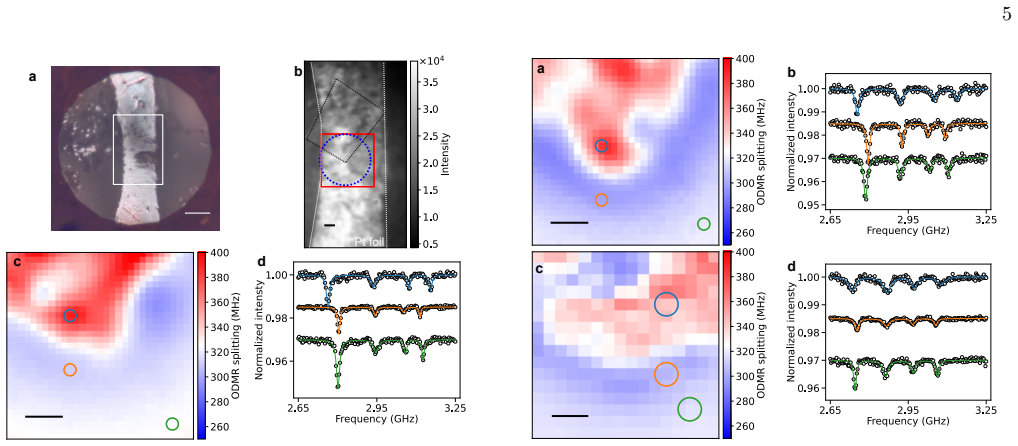

Figure 4. Figure 4: FIG. 4. Wide-field ODMR at [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 6

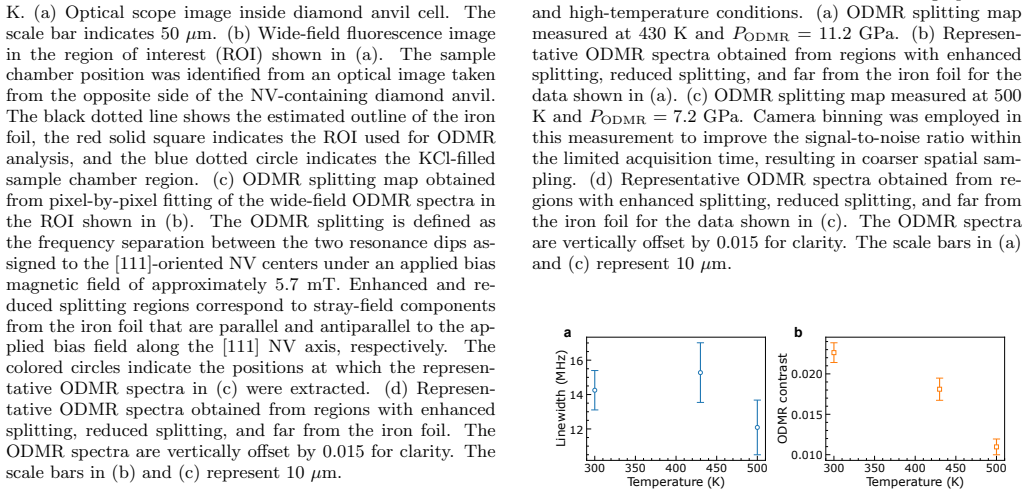

Figure 6. Figure 6: FIG. 6. Temperature dependence of ODMR spectral param [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
read the original abstract

We demonstrate wide-field optically detected magnetic resonance (ODMR) under simultaneous high-pressure and high-temperature conditions using nitrogen-vacancy (NV) centers. Although NV-center magnetometry has been widely used for spatially resolved magnetic-field imaging, its application to extreme environments combining pressure and temperature remains challenging. In this work, we show that ODMR can be observed at 5 GPa and 500 K, demonstrating the feasibility of NV spin readout under such combined extreme conditions. We further perform wide-field ODMR of iron at 7 GPa and 500 K, where the stray magnetic field from the sample is spatially visualized through the pressure cell. These results establish NV-center magnetometry as a promising platform for imaging magnetic phenomena in materials under high-pressure and high-temperature environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript demonstrates wide-field optically detected magnetic resonance (ODMR) using NV centers under simultaneous high-pressure and high-temperature conditions. It reports observation of ODMR signals at 5 GPa and 500 K to establish feasibility of NV spin readout, followed by wide-field ODMR imaging of stray magnetic fields from an iron sample at 7 GPa and 500 K through the pressure cell.

Significance. If the experimental results hold with adequate quantitative support, this work is significant because it extends NV-center magnetometry—a technique valued for its spatial resolution and sensitivity—to combined extreme P-T environments relevant to geophysics and high-pressure condensed-matter studies. The explicit demonstration of both detectable ODMR and spatially resolved imaging under these conditions, despite the technical hurdles of optical/MW access in a diamond anvil cell, is a concrete strength of the paper.

major comments (1)
  1. [Results section (and abstract)] The central experimental claim (ODMR detection at 5 GPa/500 K and imaging at 7 GPa/500 K) is load-bearing on the assumption that optical access, MW delivery, and NV coherence remain adequate; however, the manuscript provides no quantitative metrics (contrast, linewidth, SNR, or error bars on the reported pressures/temperatures) in the results to allow verification of this assumption.
minor comments (2)
  1. [Methods] The pressure calibration procedure at elevated temperature is not described in sufficient detail for reproducibility.
  2. [Figure captions] Figure captions for the wide-field images should explicitly state the spatial resolution and any background subtraction applied.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive evaluation of the significance of our work and for the constructive comment on strengthening the quantitative support for our experimental claims. We address the point below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Results section (and abstract)] The central experimental claim (ODMR detection at 5 GPa/500 K and imaging at 7 GPa/500 K) is load-bearing on the assumption that optical access, MW delivery, and NV coherence remain adequate; however, the manuscript provides no quantitative metrics (contrast, linewidth, SNR, or error bars on the reported pressures/temperatures) in the results to allow verification of this assumption.

    Authors: We agree that quantitative metrics are necessary to allow independent verification of the ODMR signals and imaging results under the stated conditions. In the revised manuscript, we will add explicit values for ODMR contrast, linewidth, and SNR extracted from the spectra at 5 GPa and 500 K. We will also include uncertainty estimates (error bars) on the reported pressures and temperatures, derived from our ruby fluorescence and thermocouple calibrations. These additions will appear in the Results section with appropriate discussion and will be referenced in the abstract where the central claims are stated. revision: yes

Circularity Check

0 steps flagged

No significant circularity; pure experimental demonstration

full rationale

This is an experimental feasibility paper whose central claims consist of direct observations of ODMR signals at 5 GPa/500 K and wide-field imaging at 7 GPa/500 K. No equations, derivations, fitted parameters, predictions, or ansatzes appear in the abstract or claim structure. The weakest assumption (sufficient optical/MW access and coherence) is precisely what the reported raw spectra and images are intended to establish, with no internal reduction to self-citation or self-definition. The work is therefore self-contained against external benchmarks and receives the default non-circularity score.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Experimental demonstration; no free parameters or invented entities are introduced. The central claim rests on the domain assumption that NV centers function under the stated conditions.

axioms (1)
  • domain assumption NV centers retain sufficient optical and spin properties for detectable ODMR at 5 GPa and 500 K inside a pressure cell
    The feasibility statement in the abstract depends on this holding.
