A chest X-ray classifier fed the same report text from which its labels were derived reaches AUROC 0.979, exposing what the authors call report-label circularity rather than independent reading of images.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · deepseek-v4-flash

2026-08-02 03:39 UTC pith:3OBY3BNT

load-bearing objection A careful leakage-control evaluation whose central 'prospective Indication' claim hinges on an unverified dataset property: no proof that stored Indication predates the report. the 2 major comments →

arxiv 2607.13800 v2 pith:3OBY3BNT submitted 2026-07-15 cs.CV cs.CV

Prospective clinical indication, post-hoc report leakage, and fusion design in multi-image chest radiograph classification: a patient-clustered evaluation

Kamran Shahid , Muhammad Munwar Iqbal This is my paper
classification cs.CV cs.CV
keywords chest radiographymultimodal learningclinical indicationreport-label circularityweak supervisionmulti-image fusionpatient-cluster bootstrap
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper evaluates how much of a chest X-ray classifier's performance comes from actually reading images versus from feeding it the same report text that produced the labels. Using 15,000 two-image studies, it separates inputs that exist before interpretation — the Clinical Indication and the images — from post-hoc report sections (Findings and Impression) that were written after image review and used by CheXbert to create the outcome labels. The central finding is that report-text-only models reach AUROC 0.979, and even after masking the five target disease names and synonyms they remain above 0.973, while the best prospective model reaches only about 0.787. The paper concludes that near-ceiling report-text performance is report-label circularity, not independent image interpretation, and that prospective Clinical Indication is strongly predictive (AUROC 0.749) but its added value over a second image was not isolated.

Core claim

On its own terms, the paper establishes that a classifier given only the Findings and Impression text of a chest X-ray report achieves macro AUROC 0.979 and AUPRC 0.836 when the prediction targets are CheXbert-derived labels extracted from that same text. Even after the five target disease names are masked exactly, AUROC stays above 0.974, and after an expanded synonym mask it is still above 0.973. In contrast, the best prospective model — which sees the two images and the Clinical Indication recorded before interpretation — reaches only 0.783–0.787 AUROC. The paper concludes that high report-text performance is dominated by report-label circularity: the model recovers the label source rathe

What carries the argument

The core mechanism is the temporal split between prospective text (Clinical Indication, written before image review) and post-hoc report text (Findings plus Impression, written after review and used to derive the CheXbert labels). To test leakage, the authors apply exact and expanded lexical masks removing target disease names and synonyms from the report, then measure residual performance. For fusion, they compare fixed-order multimodal input with random-swap training and a permutation-invariant DeepSets aggregator, using patient-cluster bootstrap with 2,000 replicates to account for repeated patients when computing confidence intervals and paired p-values. SectionGuard-MI is the proposed g

Load-bearing premise

The paper treats the stored Clinical Indication field as written before the radiologist interpreted the images, but it never verifies with timestamps or content audits that the indication was not edited or enriched after the report was produced.

What would settle it

Check the dataset's audit trail: if timestamps show that many Clinical Indication strings were created or modified after their paired report, or if a random sample of indications contains phrasing copied from the Findings section, the prospective-versus-post-hoc contrast collapses. More decisively, collect a fresh cohort where indications are captured at order-entry time and show whether the Indication-only AUROC of 0.749 holds.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • Report-only AUROC near 0.98 should be treated as evidence of label-source reuse; any chest X-ray model reporting such numbers without leakage controls is likely reconstructing the report, not reading images.
  • Removing the five target disease names and synonym dictionaries leaves report-only AUROC above 0.973, so simple lexical masking cannot establish independence; leakage diagnostics need more than keyword removal.
  • Clinical Indication carries substantial signal for report-derived labels (AUROC 0.749 vs 0.694 for two images), meaning pre-report referral context is a meaningful and exploitable input for triage or decision support.
  • Gated fusion with availability masking gives a small but statistically significant AUPRC gain over ordinary fusion (0.260 vs 0.231) with no AUROC gain and worse calibration, so improvements in ranking rare positives and probability calibration must be reported separately.
  • Uncertainty estimates over a test set with repeated patients should use patient-cluster resampling; study-level resampling would overstate precision.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The leakage pattern likely extends to other public chest X-ray datasets built from free-text reports, so published benchmarks may overstate true image-interpretation ability; a cross-dataset audit comparing report-only and image-only margins would reveal the size of the problem.
  • Because direct target terms almost never occurred in indications (seven mentions), the Indication signal must travel through symptoms, procedures, prior diagnoses, and context; a testable extension is to mask those semantic categories and measure how much AUROC remains.
  • The "fusion interference" result — adding images to full report text lowers AUROC — suggests feature-level concatenation can hurt rather than help when one modality already contains the answer; end-to-end learned representations might not show the same drop, which is testable by fine-tuning the image encoder.
  • In deployment, a model that uses only pre-report inputs (images + indication) is the only honest one to call "prospective"; the paper's framework gives a template for separating what a model can know before a report exists.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The paper evaluates multi-image chest radiograph classification on a 15,000-study subset of ReXGradient-160K, separating prospective inputs (images, Clinical Indication) from post-hoc report text (Findings, Impression). Using frozen DenseNet-121 and Bio+ClinicalBERT embeddings, it compares ordinary fusion, parameter-matched concatenation, random-swap training, DeepSets, and a proposed gated model (SectionGuard-MI) under patient-cluster bootstrap inference with 2,000 replicates. The headline results are that Indication-only achieves macro AUROC 0.749, above the two-image 0.694; SectionGuard-MI improves AUPRC over ordinary fusion by 0.0289 (adjusted p=0.004) but not AUROC (difference 0.0031, adjusted p=0.374); and full report text reaches AUROC 0.979, remaining above 0.973 after exact or expanded lexical masking, demonstrating substantial report-label circularity. The authors carefully hedge claims about incremental value, ranking, and calibration, and explicitly frame report-only results as leakage diagnostics. The central weakness is that the 'prospective' status of Clinical Indication is asserted from dataset conventions without a provenance or content audit, leaving the main prospective claim vulnerable to post-hoc contamination of the Indication field.

Significance. If the prospective/post-hoc distinction holds, the paper makes a useful methodological contribution: it quantifies report-label circularity with a clean leakage control, introduces component-matched fusion ablations under a patient-clustered bootstrap, and shows that permutation-aware fusion (DeepSets, random-swap) matches or exceeds fixed-order baselines without relying on file-order semantics. The statistical machinery — 2,000 patient-cluster replicates, paired contrasts on common clusters, FDR correction, fixed validation thresholds, unit tests for permutation invariance — is a strength. The paper is honest about the absence of AUROC advantage for SectionGuard-MI and the lack of incremental-Value isolation for Indication. However, the load-bearing assumption that the stored Indication predates the report is unverified; if this fails, the Indication-only AUROC (0.749) and the 'prospective' label attached to it become partly post-hoc, weakening the title claim and the contrast that organizes the paper.

major comments (2)
  1. The paper treats Clinical Indication as prospective because it 'is recorded before interpretation' (Section III.C), but no timestamp, provenance, or content audit is reported for the Indication field in ReXGradient-160K. The masking analysis in §IV.E only checks for direct target terms in Indication; it does not test whether the Indication text was copied, paraphrased, or enriched from the final Findings/Impression. Since the contrast between prospective and post-hoc inputs is the organizing principle of the paper and appears in the title and abstract, this is a load-bearing assumption. Without verification, the Indication-only AUROC (0.749) and the fusion results that include Indication could partially reflect post-hoc report information. The authors should either (a) audit a sample or use available metadata to establish temporal ordering, (b) explicitly weaken the claims to 'recorded I
  2. The Indication masking result (AUROC unchanged at 0.749 after exact/expanded masking) is presented as evidence that direct target terms are not responsible for Indication's predictive signal. This is fine as far as it goes, but it does not address the provenance concern: even if target names are absent, the Indication text could be a paraphrase of report content, or could have been automatically generated from the report. The paper acknowledges that 'symptoms, procedures, prior diagnoses, and clinical context can remain predictive' but does not consider whether the stored text itself could be post-hoc. A simple diagnostic would be to measure n-gram overlap or semantic similarity between Indication and Findings/Impression for a subset of studies; this would strengthen the prospective interpretation.
minor comments (5)
  1. The gate equation uses a dropout layer inside the gate network; the dropout probability is not specified for the gate itself. Please clarify whether the gate dropout is the same 0.30 used for modality dropout or a separate hyperparameter.
  2. The U-Zeros sensitivity results are reported as point estimates without confidence intervals or paired comparisons. The text appropriately labels them as sensitivity, but a brief note that the absence of CIs limits inference would improve precision.
  3. The U-Ones/U-Zeros sensitivity figure would benefit from error bars or at least a footnote that lines connect point estimates only. Currently the figure may visually imply paired statistical equivalence.
  4. The masking dictionaries are 'available upon request,' but to make the study reproducible, they should be included in a supplement or repository. This is a minor point given the code availability statement, but exact dictionary files would be valuable.
  5. The limitations list is thorough, but it omits the Indication provenance issue. Adding an explicit sentence acknowledging that the prospective designation relies on the dataset's intended field semantics would be appropriate.

Circularity Check

0 steps flagged

No significant circularity: the report-only result is circular by construction but is explicitly labeled a leakage diagnostic; prospective Indication and fusion claims are independent of the target-definition tautology.

full rationale

The only input-output pair that is definitionally tied is the report-only control: CheXbert labels were derived from the concatenated Findings+Impression (Section III.B), and the same text is then used as model input (Sections III.C and IV.F). This makes the near-ceiling AUROC 0.979 a construction rather than an independent prediction. The paper, however, explicitly frames this condition as a leakage diagnostic and does not build a prospective claim on it: 'Findings and Impression were used only as leakage controls' and 'these post-hoc models should be treated only as leakage diagnostics.' The prospective analyses (Indication-only, one/two images, multimodal fusion) use inputs not used to define the CheXbert targets, and the masking experiments quantify leakage rather than conceal it. The fusion comparisons are parameter-matched internal contrasts with patient-cluster bootstrap confidence intervals; they do not reduce to fitted values or to the target-definition text. There are no load-bearing self-citations; references to ReXGradient-160K, CheXbert, VisualCheXbert, Deep Sets, and other prior work are external. The main caveat is evidential rather than circular: Section III.C asserts Indication is prospective because it is 'recorded before interpretation,' but the paper reports no timestamp, provenance, or content audit to confirm that the stored indication predates the report. If the field were edited or enriched after reporting, the Indication-only and fusion results would be partly post-hoc. That is a data-provenance limitation, not a definitional equivalence, and the paper's Limitations section already concedes that all outcomes are report-derived rather than independently adjudicated.

Axiom & Free-Parameter Ledger

6 free parameters · 6 axioms · 0 invented entities

No new physical or conceptual entities are hypothesized. SectionGuard-MI is an architectural variant (gated fusion with availability masking), not an invented entity with independent evidence. The empirical claims rest on dataset semantics (Indication timing), frozen encoder choices, and CheXbert label derivation rather than on a derived theory.

free parameters (6)
  • SectionGuard-MI branch dropout probability = 0.30
    Chosen by hand for the partial-input forward pass (Section III.F); affects fusion robustness and calibration.
  • Consistency penalty weight = 0.20
    Hand-set loss weight in Eq. (4) for prediction consistency; ablation shows it worsens calibration when combined with ModDrop.
  • Projection dimension = 128
    LayerNorm-linear-ReLU projections use 128 dims (Section III.E); hand-selected.
  • Validation F1 threshold per label = one threshold per label
    Selected by maximizing validation macro F1 over five-seed ensemble probabilities; applied at test time (Section III.F).
  • Positive class weight cap = 20
    Class weights are train-set negative-to-positive ratio floored at 1 and capped at 20 (Section III.F); capping is a hand choice that changes the loss.
  • Learning rate / weight decay / batch size = 3e-4 / 1e-4 / 256
    Fixed AdamW hyperparameters (Section III.F); standard choices, not tuned to test.
axioms (6)
  • domain assumption CheXbert applied to Findings+Impression produces a valid operationalization of the target report observations.
    Section III.B defines the five endpoints via CheXbert; no independent radiologist adjudication is available.
  • domain assumption Clinical Indication is recorded before image interpretation and does not contain post-hoc report information.
    Section III.C states this as the basis for calling Indication prospective; no timestamp audit is provided.
  • domain assumption Frozen ImageNet-pretrained DenseNet-121 features retain sufficient image information for chest radiograph findings.
    Section III.D uses frozen DenseNet-121; no fine-tuning or chest-domain pretraining, so image features may be suboptimal.
  • domain assumption Bio+ClinicalBERT mean pooling adequately encodes clinical text semantics.
    Section III.D encodes Indication and report variants with frozen Bio+ClinicalBERT; truncation at 96/256 tokens.
  • standard math Patient-cluster bootstrap with 1,136 clusters yields valid confidence intervals for model metrics.
    Section III.G resamples patient clusters with replacement and rejects replicates with single-class labels; assumes cluster exchangeability.
  • domain assumption The official ReXGradient-160K train/validation/test partitions have no patient overlap and are correctly indexed.
    Section III.A relies on official partitions; no cross-split patient identifier was found, but exact provenance is not verified.

pith-pipeline@v1.3.0-alltime-deepseek · 11854 in / 16370 out tokens · 140450 ms · 2026-08-02T03:39:44.410069+00:00 · methodology

0 comments
read the original abstract

Chest radiograph datasets often combine multiple images with Clinical Indication, Findings, and Impression, although these inputs are produced at different stages of care. We evaluated 15,000 ReXGradient-160K studies with two readable images and five CheXbert-derived report observations. Frozen DenseNet-121 and Bio+ClinicalBERT encoders were used to compare image-only, Indication-only, fixed-order multimodal, random-swap, DeepSets, and SectionGuard-MI models. Findings and Impression were evaluated only as post-hoc leakage controls. Models were trained with five seeds, and public-test uncertainty was estimated with 2,000 patient-cluster bootstrap replicates. Under U-Ones, macro AUROC was 0.643 for the primary image, 0.694 for two images, 0.749 for Indication, and 0.780 for ordinary two-image-plus-Indication fusion. SectionGuard-MI achieved AUROC 0.783 and AUPRC 0.260. Relative to ordinary fusion, its paired AUROC difference was 0.0031 (95% CI, -0.0042 to 0.0104; adjusted p=0.374), while its AUPRC difference was 0.0289 (95% CI, 0.0095 to 0.0413; adjusted p=0.004). DeepSets had the highest prospective AUROC point estimate (0.787), and random-swap fusion had the highest prospective AUPRC point estimate (0.265) with better calibration than SectionGuard-MI. Full report text alone reached AUROC 0.979 and AUPRC 0.836; AUROC remained above 0.973 after exact or expanded masking. These results show that prospective Indication is strongly associated with report-derived targets, permutation-aware fusion is competitive, and post-hoc report text creates substantial report-label circularity.

Figures

Figures reproduced from arXiv: 2607.13800 by Kamran Shahid, Muhammad Munwar Iqbal.

Figure 1
Figure 1. Figure 1: Study workflow. The figure distinguishes prospective inputs from post-hoc report controls and shows that model uncertainty was estimated by patient-cluster [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: SectionGuard-MI feature-level architecture. Missing inputs are masked before and after projection. The gate network receives projected features and [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Prospective model discrimination under U-Ones. Points are five-seed ensemble estimates; horizontal lines are 95% patient-cluster bootstrap intervals. [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Selected paired effects. Confidence intervals are based on the same patient-cluster samples for both models. Calibration metrics have the opposite direction [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Text masking audit. Indication is prospective. Full report denotes Findings plus Impression and is post-hoc. Exact and expanded masks reduce report [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Per-label prospective performance under U-Ones. Each cell is a point estimate from the five-seed ensemble. The heatmaps show that label-specific [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗

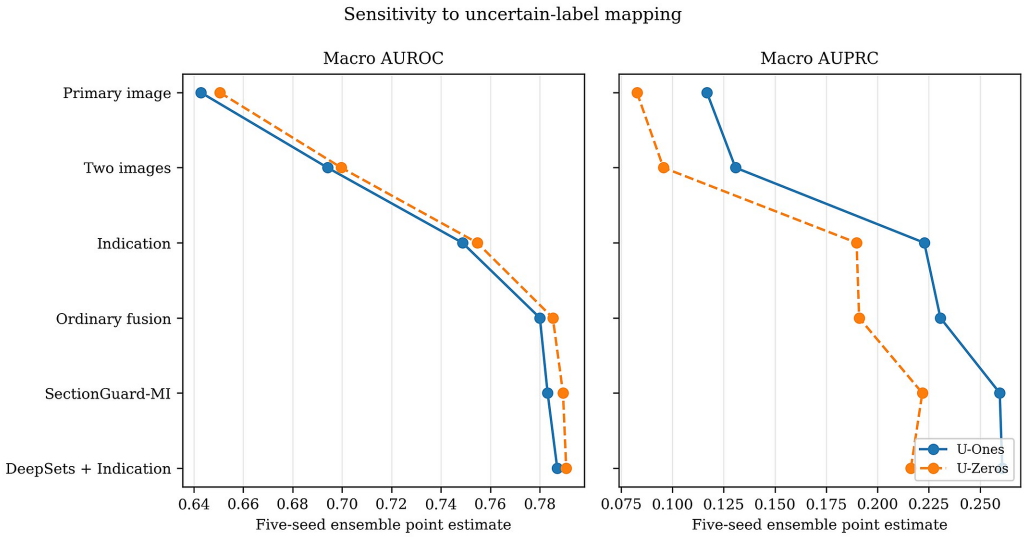

Figure 7
Figure 7. Figure 7: U-Ones and U-Zeros sensitivity. The two policies define different report-observation endpoints. Lines connect point estimates only and do not imply [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
