arxiv: 1907.10202 · v1 · pith:4GG2G2RYnew · submitted 2019-07-24 · 💻 cs.CV

Pose-variant 3D Facial Attribute Generation

Feng-Ju Chang , Xiang Yu , Ram Nevatia , Manmohan Chandraker This is my paper

Pith reviewed 2026-05-24 17:23 UTC · model grok-4.3

classification 💻 cs.CV
keywords facial attribute generationUV texture map3D face representationgenerative adversarial networkpose variationtexture completionidentity preservation
0
0 comments X

The pith

A GAN framework generates facial attributes directly in 3D UV space from single unconstrained-pose images.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to show that moving attribute generation from 2D frontal images to a dense 3D representation solves the pose problem. An initial UV texture map from standard reconstruction is completed by TC-GAN, after which 3DA-GAN applies the desired attribute while respecting the underlying geometry and keeping the original identity. If correct, this produces outputs that stay photorealistic and consistent under rotation, unlike 2D pipelines that distort or lose identity when the head turns. A sympathetic reader would care because everyday photos rarely show perfect frontal views, so a method that works on arbitrary poses would make attribute editing reliable for real data.

Core claim

Starting from a self-occluded UV texture map, the method uses a texture completion GAN (TC-GAN) followed by a 3D attribute generation GAN (3DA-GAN) that synthesizes the target attribute on UV texture and position maps; the resulting images are photorealistic, geometrically consistent with the 3D face, and preserve identity, with experiments on CelebA, LFW and IJB-A demonstrating higher attribute accuracy and better qualitative results than prior 2D methods.

What carries the argument

TC-GAN and 3DA-GAN operating on UV texture and position maps to complete partial textures and synthesize attributes while enforcing 3D geometric consistency.

If this is right

  • Attribute changes remain consistent when the output face is viewed from new angles.
  • Identity preservation holds across pose changes without explicit frontal alignment.
  • The two-stage pipeline separates texture completion from attribute synthesis, allowing each to be trained independently.
  • Results on three standard face datasets confirm measurable gains in accuracy and visual quality over 2D approaches.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the initial reconstruction step is replaced by a higher-resolution method, the downstream GAN outputs would inherit fewer artifacts without retraining.
  • Position maps could support attributes that alter facial shape, such as expression or age-related geometry changes, by feeding them directly into 3DA-GAN.
  • The completed UV textures might serve as input for other 3D tasks like relighting or animation without additional pose handling.

Load-bearing premise

The initial self-occluded UV texture map produced by an off-the-shelf 3D reconstruction method is accurate and consistent enough for the subsequent GAN stages to succeed.

What would settle it

On a held-out set of extreme-pose images, measure whether attribute classification accuracy or identity similarity scores fall below those of the best 2D baseline methods.

Figures

Figures reproduced from arXiv: 1907.10202 by Feng-Ju Chang, Manmohan Chandraker, Ram Nevatia, Xiang Yu.

Figure 1
Figure 1. Figure 1: Facial attributes generation under head pose variations, [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Illustration of image coordinate space and UV space. (a) [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The proposed framework of pose-variant 3D facial attribute generation. By 3D dense shape reconstruction, a pose-variant face [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Manually defined attribute related masks based on the [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Visualization of TC-GAN and other face frontalization [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Pose-variant qualitative results of our 3DA-GAN compared to StarGAN [ [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Visual results of applying our method to augment face images from CelebA [ [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Align a ground truth shape or an estimated shape from the existing 3D reconstruction method to the trimmed BFM shape. The [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Given an input image, conversion from the aligned BFM to the fixed UV coordinates, and the uv texture map rendering based on [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Pose-variant qualitative results of our 3DA-GAN compared to StarGAN [ [PITH_FULL_IMAGE:figures/full_fig_p012_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Pose-variant qualitative results of our 3DA-GAN compared to StarGAN [ [PITH_FULL_IMAGE:figures/full_fig_p012_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Pose-variant qualitative results of our 3DA-GAN compared to StarGAN [ [PITH_FULL_IMAGE:figures/full_fig_p013_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Pose-variant qualitative results of our 3DA-GAN compared to StarGAN [ [PITH_FULL_IMAGE:figures/full_fig_p013_14.png] view at source ↗
Figure 15

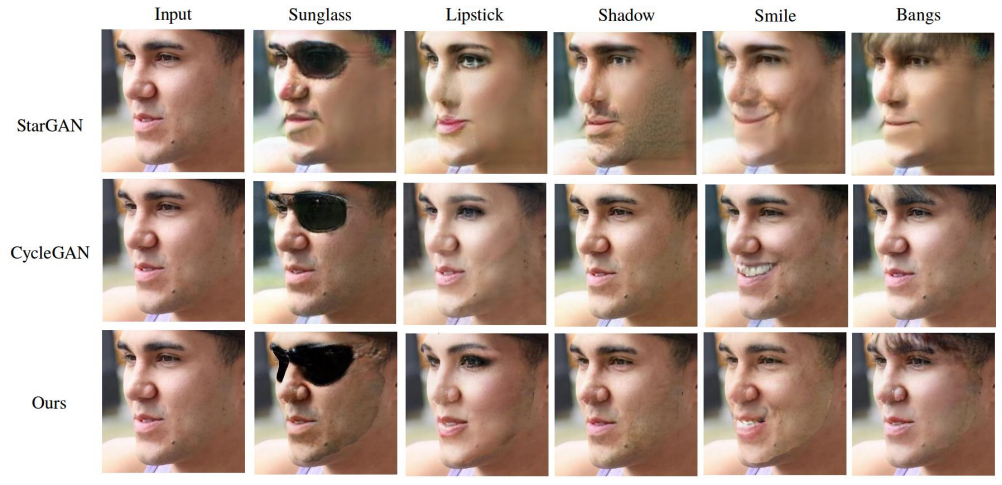

Figure 15. Figure 15: Pose-variant qualitative results of our 3DA-GAN compared to StarGAN [ [PITH_FULL_IMAGE:figures/full_fig_p014_15.png] view at source ↗
Figure 16

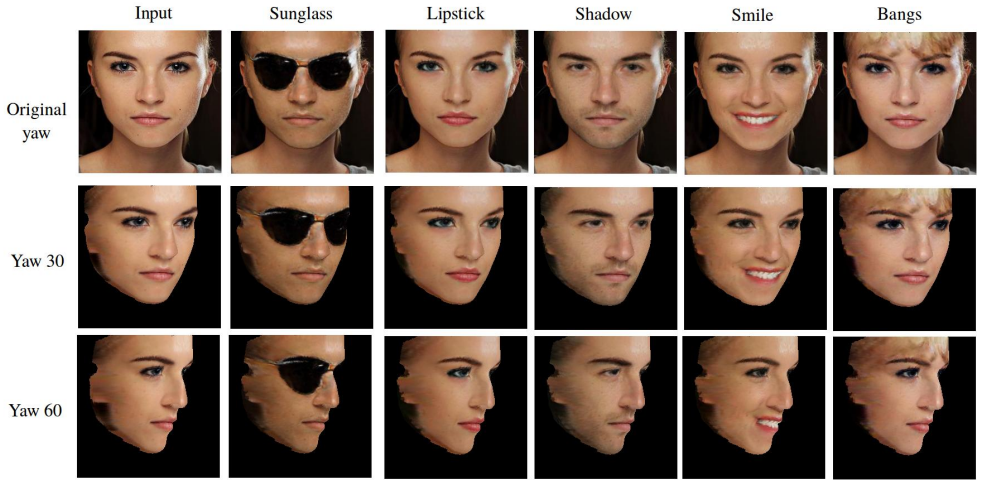

Figure 16. Figure 16: Visual results of applying our method to augment face images from CelebA [ [PITH_FULL_IMAGE:figures/full_fig_p014_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Visual results of applying our method to augment face images from CelebA [ [PITH_FULL_IMAGE:figures/full_fig_p015_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Visual results of applying our method to augment face images from CelebA [ [PITH_FULL_IMAGE:figures/full_fig_p015_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Visual results of applying our method to augment face images from CelebA [ [PITH_FULL_IMAGE:figures/full_fig_p016_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: Visual results of applying our method to augment face images from CelebA [ [PITH_FULL_IMAGE:figures/full_fig_p016_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: The effect of masked reconstruction loss on sunglasses, smile, and lipstick generation. From left to right: input images from [PITH_FULL_IMAGE:figures/full_fig_p018_21.png] view at source ↗
Figure 22

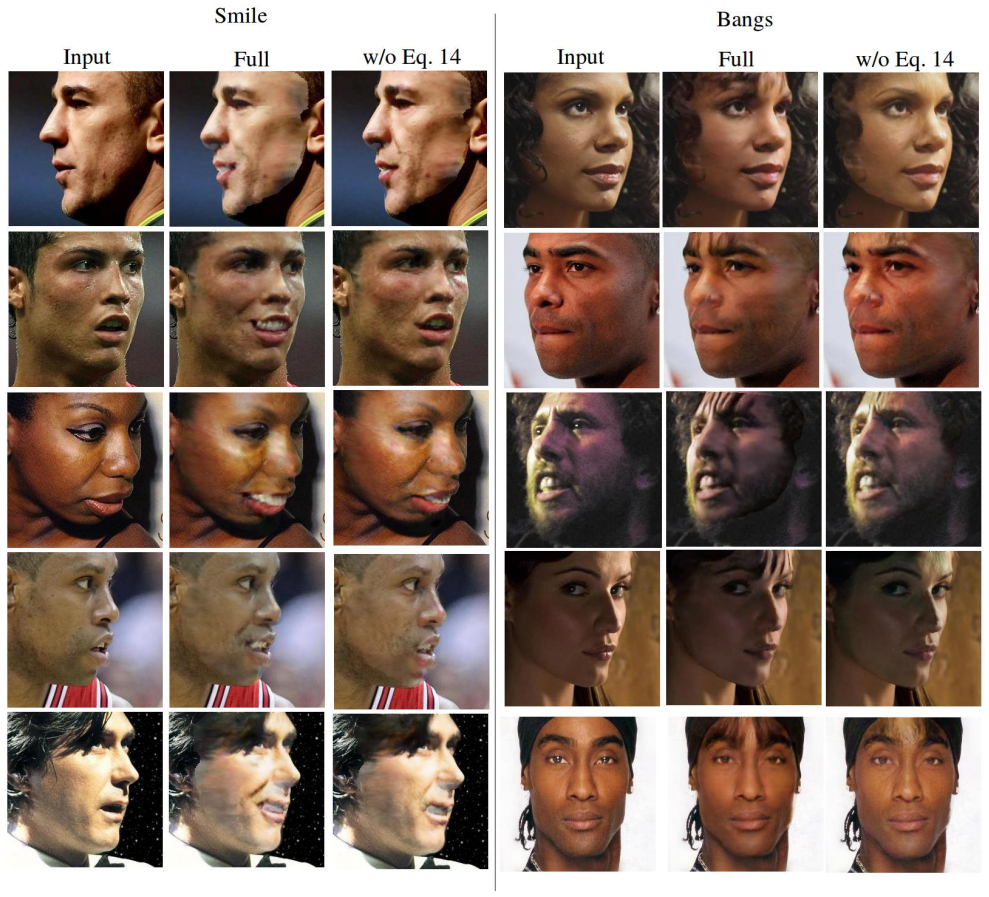

Figure 22. Figure 22: The effect of adversarial attribute loss on smile and bangs generation. From left to right: input images from CelebA dataset, using [PITH_FULL_IMAGE:figures/full_fig_p019_22.png] view at source ↗
Figure 23
Figure 23. Figure 23: The effect of cycle consistent loss and identity loss [PITH_FULL_IMAGE:figures/full_fig_p020_23.png] view at source ↗
read the original abstract

We address the challenging problem of generating facial attributes using a single image in an unconstrained pose. In contrast to prior works that largely consider generation on 2D near-frontal images, we propose a GAN-based framework to generate attributes directly on a dense 3D representation given by UV texture and position maps, resulting in photorealistic, geometrically-consistent and identity-preserving outputs. Starting from a self-occluded UV texture map obtained by applying an off-the-shelf 3D reconstruction method, we propose two novel components. First, a texture completion generative adversarial network (TC-GAN) completes the partial UV texture map. Second, a 3D attribute generation GAN (3DA-GAN) synthesizes the target attribute while obtaining an appearance consistent with 3D face geometry and preserving identity. Extensive experiments on CelebA, LFW and IJB-A show that our method achieves consistently better attribute generation accuracy than prior methods, a higher degree of qualitative photorealism and preserves face identity information.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper presents a GAN-based framework for generating facial attributes from a single unconstrained-pose image by operating directly on dense 3D UV texture and position maps. It begins with an off-the-shelf 3D reconstructor to produce a self-occluded UV texture map, then applies TC-GAN for texture completion and 3DA-GAN for attribute synthesis while enforcing geometric consistency and identity preservation. Experiments on CelebA, LFW and IJB-A are reported to show higher attribute accuracy, photorealism and identity preservation than prior 2D methods.

Significance. If the central claims hold, the work would advance pose-robust attribute editing by moving from 2D image space to a 3D UV representation, potentially improving geometric consistency. The modular separation of texture completion and attribute synthesis is a clear design choice that could be reusable.

major comments (2)
  1. [Abstract] Abstract: performance claims are stated without any quantitative numbers, error bars, dataset splits or baseline details, making it impossible to assess the magnitude or reliability of the reported accuracy gains.
  2. [Method] Method (pipeline description): the approach rests on the assumption that an off-the-shelf 3D reconstructor supplies sufficiently accurate visible-region texture and consistent geometry for large-pose inputs; no ablation isolating reconstruction error, no failure-rate statistics, and no robustness mechanism are described, which directly underpins the downstream claims of superior accuracy and identity preservation.
minor comments (1)
  1. [Abstract] Abstract: the phrase 'self-occluded UV texture map' is introduced without a short definition or citation to the specific reconstructor employed.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive review. We address each major comment below and have prepared revisions to strengthen the manuscript where appropriate.

read point-by-point responses

  1. Referee: [Abstract] Abstract: performance claims are stated without any quantitative numbers, error bars, dataset splits or baseline details, making it impossible to assess the magnitude or reliability of the reported accuracy gains.

    Authors: We agree that including concrete metrics in the abstract would improve clarity and allow readers to immediately gauge the scale of improvements. In the revised version we will add specific numbers (e.g., attribute classification accuracy on CelebA and identity preservation scores on LFW/IJB-A) together with a brief statement of the evaluation protocol and baselines. revision: yes

  2. Referee: [Method] Method (pipeline description): the approach rests on the assumption that an off-the-shelf 3D reconstructor supplies sufficiently accurate visible-region texture and consistent geometry for large-pose inputs; no ablation isolating reconstruction error, no failure-rate statistics, and no robustness mechanism are described, which directly underpins the downstream claims of superior accuracy and identity preservation.

    Authors: The core technical contributions are the TC-GAN texture-completion network and the 3DA-GAN attribute-synthesis network that operate on the UV representation; the off-the-shelf reconstructor is treated as a fixed preprocessing step. Our quantitative results on large-pose benchmarks (LFW, IJB-A) already show consistent gains over 2D baselines, indicating that reconstruction quality is sufficient for the claimed improvements. Nevertheless, we will add a dedicated paragraph in the method section discussing reconstruction limitations, include qualitative failure examples, and note that a full ablation of the reconstructor is left for future work. revision: partial

Circularity Check

0 steps flagged

No significant circularity; empirical claims rest on external datasets and off-the-shelf components

full rationale

The paper's pipeline begins with an external off-the-shelf 3D reconstructor to produce partial UV maps, then applies TC-GAN for texture completion and 3DA-GAN for attribute synthesis. All headline claims (superior attribute accuracy, photorealism, identity preservation) are justified solely by quantitative and qualitative comparisons against prior methods on the independent CelebA, LFW, and IJB-A benchmarks. No equations, parameters, or uniqueness results are defined in terms of the outputs they are said to predict, no self-citations supply load-bearing theorems, and no fitted inputs are relabeled as predictions. The derivation chain is therefore self-contained and externally falsifiable.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Review is abstract-only; ledger entries are limited to explicitly stated premises in the abstract.

axioms (1)
  • domain assumption An off-the-shelf 3D reconstruction method yields a usable self-occluded UV texture map as input.
    Abstract states the pipeline begins from this map.
