A Light-Driven Microgel Rotor

Hang Zhang , Lyndon Koens , Eric Lauga , Ahmed Mourran , Martin M\"oller This is my paper

Pith reviewed 2026-05-25 12:12 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.softphysics.flu-dyn
keywords hydrogel bilayerphotothermal heatingnon-reciprocal deformationmicro rotorstroboscopic irradiationresistive force theorymicroswimmer
0
0 comments X

The pith

Tethering a hydrogel spiral ribbon to a microsphere enables rotational motion under stroboscopic light.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows how a two-dimensional spiral made of a thermo-responsive hydrogel bilayer with gold nanorods can rotate through non-reciprocal curling. The bilayer heats locally with light, causing bending deformations that are not time-reversible. Tethering one end to a free microsphere lets the spiral turn as a whole. The design uses the low stiffness of the swollen hydrogel to allow large shape changes. Efficiency is calculated with resistive force theory for flows at low Reynolds number.

Core claim

A ribbon consisting of a thermo-responsive hydrogel bilayer with embedded plasmonic gold nanorods forms a spiral that acts as a tunable spring. Under non-equilibrium photothermal conditions from stroboscopic irradiation, it undergoes non-reciprocal bending. When tethered to a freely rotating microsphere, this produces net rotational motion of the spiral.

What carries the argument

The thermo-responsive hydrogel bilayer enabling fast local photothermal heating and non-reciprocal bending deformation.

If this is right

  • Rotational motion is achieved by stroboscopic irradiation of the tethered spiral.
  • The spiral's stiffness is tunable by hydrogel swelling degree and temperature.
  • Efficiency is estimated using resistive force theory for Stokes flow.
  • The system demonstrates microscopic locomotion by shape change of a spiral.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This approach could enable wireless control of microscale devices in fluid environments.
  • Similar bilayer designs might be adapted for translational locomotion.
  • Integration with microfluidic systems could allow light-triggered fluid mixing.

Load-bearing premise

The non-reciprocal bending of the bilayer under photothermal heating is strong enough to overcome viscous drag at low Reynolds number.

What would settle it

If the tethered microsphere shows no net rotation despite repeated curling of the spiral under stroboscopic light, the claim of rotational motion would be falsified.

Figures

Figures reproduced from arXiv: 1907.00764 by Ahmed Mourran, Eric Lauga, Hang Zhang, Lyndon Koens, Martin M\"oller.

Figure 1

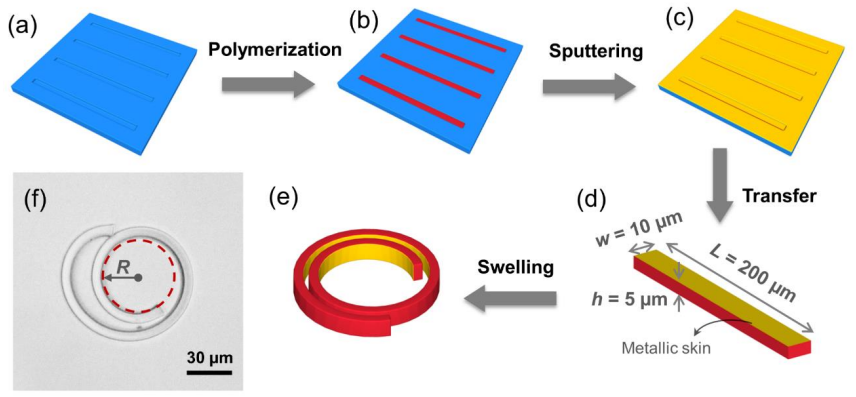

Figure 1. Figure 1: Fabrication of bilayer spiral microgels. (a) – (e) Schematic illustration of the fabrication of the hydrogel bilayer. (a) Perfluoropolyether (PFPE) mold replicated from a silicon master. (b) Microgels polymerized inside the mold. (c) Sputter-coating of a thin metallic skin on the microgel. (d) Dimension of the as-prepared microgel particle. (e) Microgel bilayer after swelling. (f) Optical micrograph of a s… view at source ↗
Figure 2

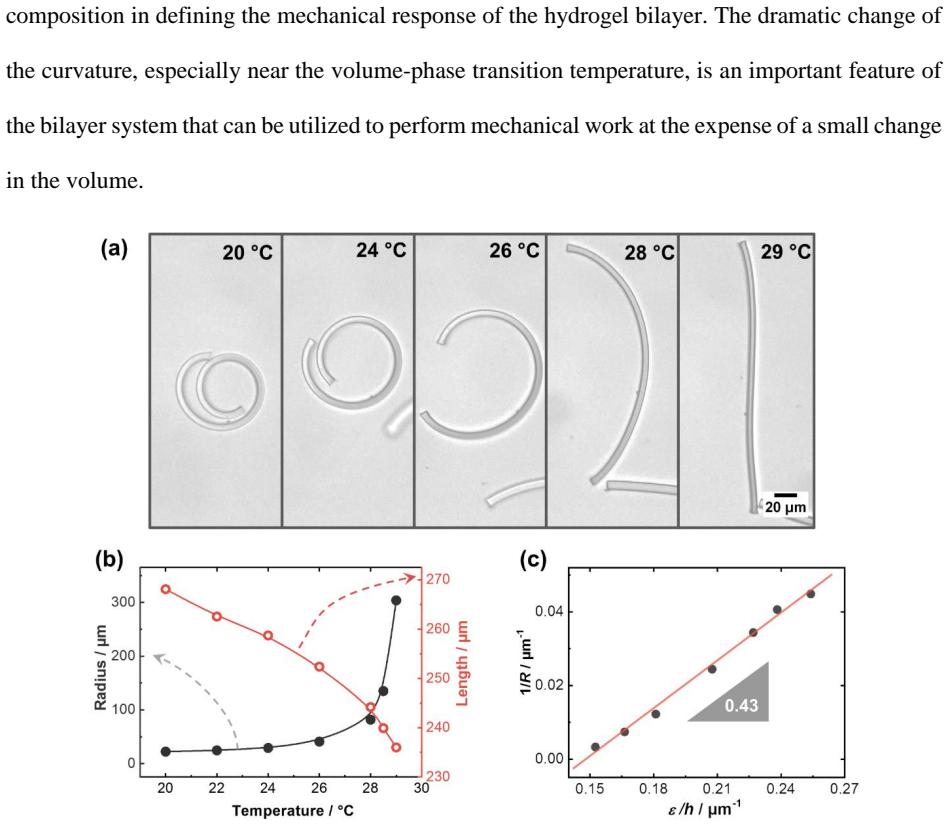

Figure 2. Figure 2: Characterization of the spiral microgel at different temperatures. (a) Optical images of the spiral at different temperatures. (b) The change of the spiral length and the radius with temperature. (c) Curvature (1/R) of the spiral versus strain  relative to the ribbon thickness h. 2.2. Non-reciprocal actuation via photothermal heating To fabricate the microgel rotor, a silica microsphere (diameter ~ 10 µm)… view at source ↗
Figure 3

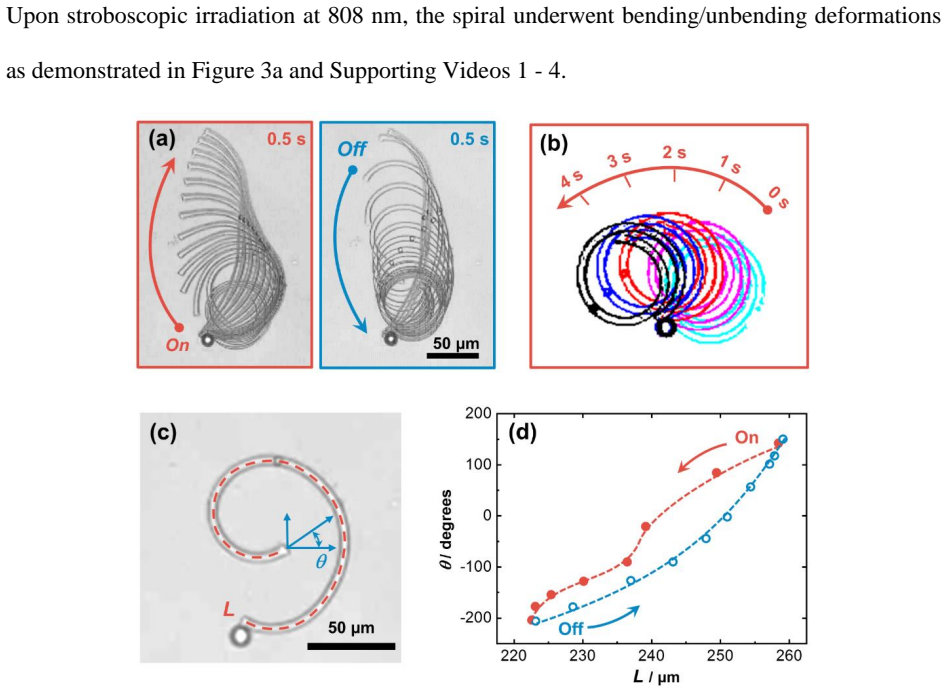

Figure 3. Figure 3: Photothermal actuation of a spiral rotor tethered to a freely rotating sphere. (a) Superimposed optical micrographs of the spiral rotor under stroboscopic irradiation. Left: on-time (0.5 s); right: off-time (0.5 s). Laser intensity: 1.7 W mm-2 at 808 nm. (b) Superimposition of the thresholded outline of the spiral rotor under stroboscopic irradiation (0.5 s – 0.5 s). From right to left: at 0 s, 1 s, 2 s, 3… view at source ↗
Figure 4

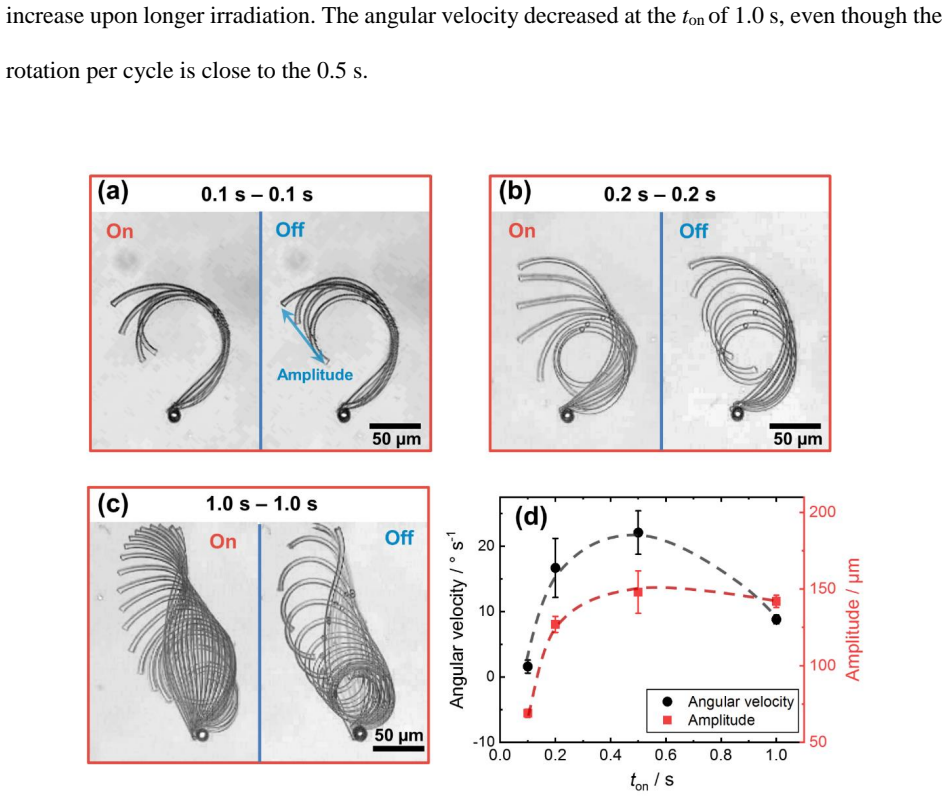

Figure 4. Figure 4: Spiral rotor at different modulation frequency. [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5

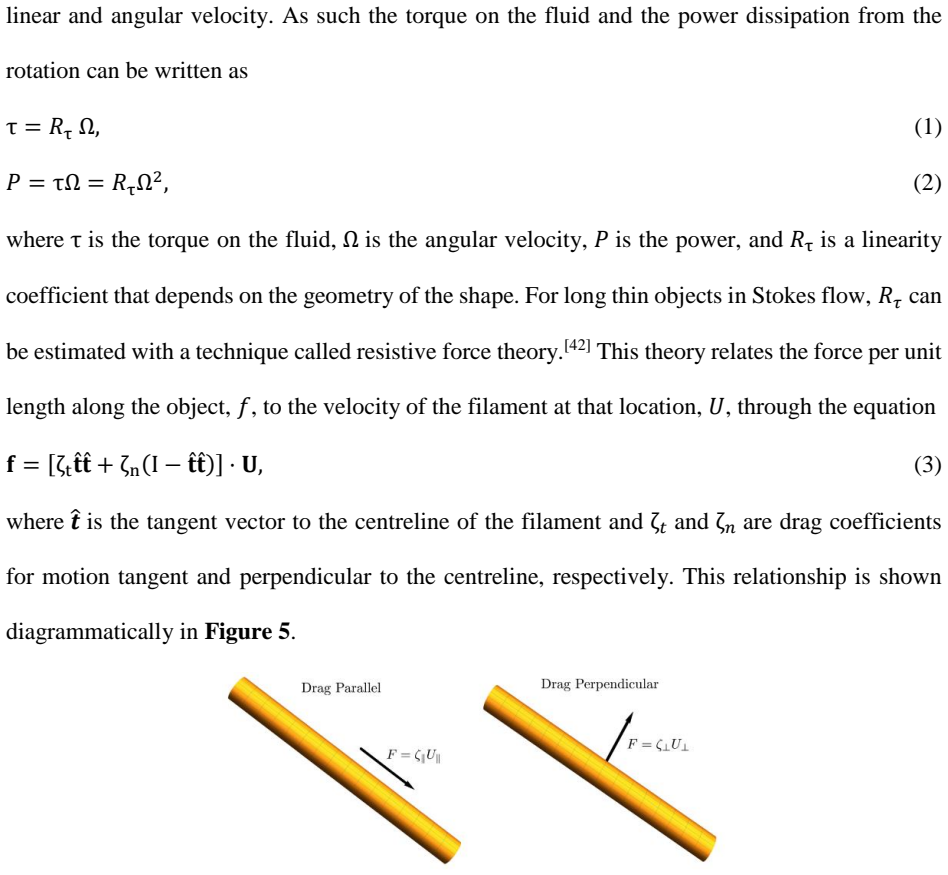

Figure 5. Figure 5: Diagrammatic illustration of the drag parallel and perpendicular to the filament. These drag coefficients increase significantly when very close to walls. In this limit the flow is known as the lubrication flow and is governed by steep gradients in the velocity. In this lubrication limit the drag per unit length on a cylinder, from a single wall, moving normal to the axis is given by [43] ζn,1wall = 2πμ√2r… view at source ↗

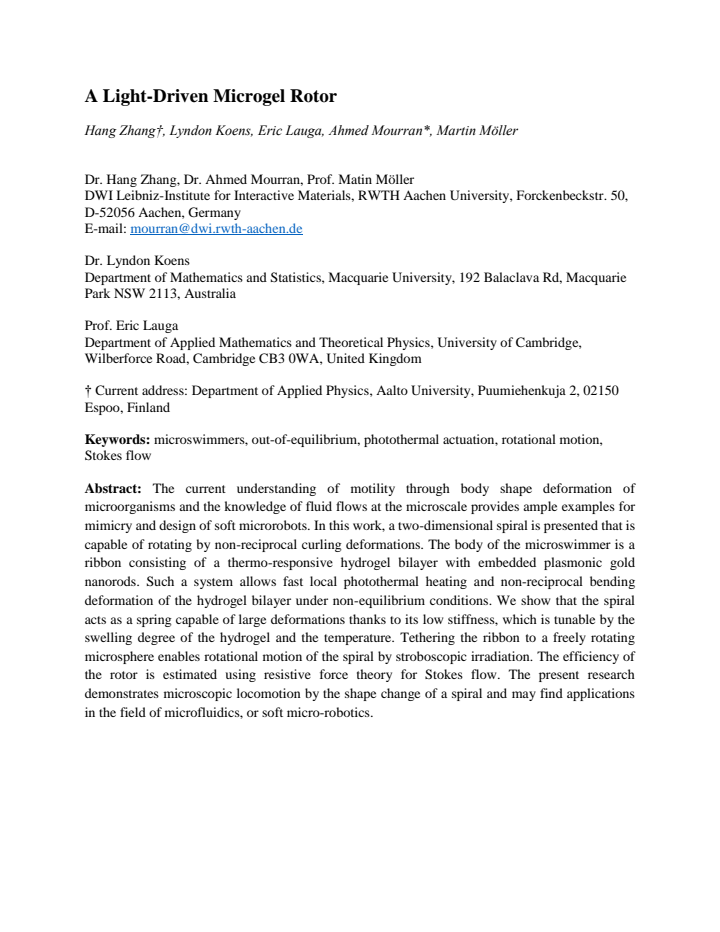

read the original abstract

The current understanding of motility through body shape deformation of microorganisms and the knowledge of fluid flows at the microscale provides ample examples for mimicry and design of soft microrobots. In this work, a two-dimensional spiral is presented that is capable of rotating by non-reciprocal curling deformations. The body of the microswimmer is a ribbon consisting of a thermo-responsive hydrogel bilayer with embedded plasmonic gold nanorods. Such a system allows fast local photothermal heating and non-reciprocal bending deformation of the hydrogel bilayer under non-equilibrium conditions. We show that the spiral acts as a spring capable of large deformations thanks to its low stiffness, which is tunable by the swelling degree of the hydrogel and the temperature. Tethering the ribbon to a freely rotating microsphere enables rotational motion of the spiral by stroboscopic irradiation. The efficiency of the rotor is estimated using resistive force theory for Stokes flow. The present research demonstrates microscopic locomotion by the shape change of a spiral and may find applications in the field of microfluidics, or soft micro-robotics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 0 minor

Summary. The manuscript presents a light-driven microgel rotor consisting of a two-dimensional spiral ribbon fabricated from a thermo-responsive hydrogel bilayer with embedded plasmonic gold nanorods. The central claim is that stroboscopic irradiation produces non-reciprocal curling deformations in the low-stiffness spiral, enabling net rotational motion when the ribbon is tethered to a freely rotating microsphere; efficiency is estimated via resistive force theory applied to Stokes flow.

Significance. If the non-reciprocal actuation and resulting rotation are rigorously demonstrated with quantitative data, the work would provide a concrete example of shape-change-based propulsion at low Reynolds number using photothermal control, with relevance to microfluidics and soft microrobotics. The tunable stiffness via hydrogel swelling and the use of gold-nanorod heating for localized actuation are conceptually attractive strengths.

major comments (3)
  1. [Abstract] Abstract: the assertion of rotational motion via 'non-reciprocal bending deformation ... under non-equilibrium conditions' is unsupported by any reported experimental data, rotation speeds, torque values, or error bars, leaving the central claim without quantitative grounding.
  2. [Abstract] Abstract: the claim of fast, non-reciprocal actuation requires an explicit comparison between the photothermal heating timescale (set by nanorod absorption, laser intensity, and pulse timing) and the hydrogel deswelling/swelling relaxation time; its absence leaves open the possibility that the response is quasi-static and reciprocal, in which case the scallop theorem implies zero net torque.
  3. [Abstract] Abstract: the efficiency estimate 'using resistive force theory for Stokes flow' is presented without the underlying force coefficients, geometry parameters, or any derivation showing how the observed (or modeled) shape changes translate into net rotation, rendering the estimate unverifiable.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their careful review and constructive comments on our manuscript. We address each major comment point by point below. We agree that the abstract would benefit from greater quantitative detail and have revised it to incorporate key experimental metrics, timescale comparisons, and a brief outline of the efficiency calculation while preserving its concise nature.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the assertion of rotational motion via 'non-reciprocal bending deformation ... under non-equilibrium conditions' is unsupported by any reported experimental data, rotation speeds, torque values, or error bars, leaving the central claim without quantitative grounding.

    Authors: The main text and associated figures report experimental observations of net rotation when the spiral is tethered to a microsphere under stroboscopic illumination, including measured angular displacements and supporting video data. We acknowledge that these quantitative values (rotation rates on the order of several degrees per second, with estimated torques derived from resistive force theory) were not summarized in the abstract. In the revised version we have added representative rotation speeds, torque estimates, and error bars drawn from the experimental results section to provide the requested quantitative grounding. revision: yes

  2. Referee: [Abstract] Abstract: the claim of fast, non-reciprocal actuation requires an explicit comparison between the photothermal heating timescale (set by nanorod absorption, laser intensity, and pulse timing) and the hydrogel deswelling/swelling relaxation time; its absence leaves open the possibility that the response is quasi-static and reciprocal, in which case the scallop theorem implies zero net torque.

    Authors: We agree that an explicit timescale comparison is necessary to substantiate the non-reciprocal, non-equilibrium character of the actuation. The manuscript already contains estimates of the photothermal heating time (nanorod absorption and laser pulse duration) versus the hydrogel deswelling/swelling relaxation time (measured via separate swelling kinetics experiments). We have now inserted a concise statement of this comparison into the revised abstract, noting that the heating timescale is substantially shorter than the mechanical relaxation time, thereby supporting the non-reciprocal deformation required for net rotation. revision: yes

  3. Referee: [Abstract] Abstract: the efficiency estimate 'using resistive force theory for Stokes flow' is presented without the underlying force coefficients, geometry parameters, or any derivation showing how the observed (or modeled) shape changes translate into net rotation, rendering the estimate unverifiable.

    Authors: The efficiency calculation is performed in the main text and supplementary material using resistive force theory with drag coefficients appropriate for a slender ribbon in Stokes flow and the measured spiral geometry. We accept that the abstract itself provides no parameters or derivation steps. The revised abstract now includes the key geometric parameters (ribbon width, length, and curvature) and states that the net rotation is obtained by integrating the local force contributions over the time-varying shape, with full details remaining in the methods and supplementary sections. revision: yes

Circularity Check

0 steps flagged

No significant circularity; experimental result relies on external standard theory

full rationale

The paper reports an experimental microgel rotor whose rotation arises from observed non-reciprocal photothermal actuation of a hydrogel bilayer spiral tethered to a microsphere. Efficiency is estimated via resistive force theory applied to Stokes flow, an established external framework with no indication that parameters are fitted to the target rotation data and then re-presented as predictions. No self-definitional equations, fitted-input predictions, load-bearing self-citations, imported uniqueness theorems, or ansatz smuggling appear in the provided abstract or description. The central claim is an empirical demonstration rather than a closed derivation chain, rendering the result self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Central claim depends on (1) the hydrogel bilayer producing non-reciprocal bending under local heating and (2) applicability of resistive force theory in the low-Re regime. No free parameters or new entities are introduced in the abstract.

axioms (2)
  • domain assumption Fluid flow around the microscale device obeys Stokes equations (resistive force theory applies).
    Invoked when efficiency is estimated using resistive force theory for Stokes flow.
  • domain assumption Photothermal heating of gold nanorods produces rapid, localized temperature changes sufficient to drive differential swelling in the bilayer.
    Required for the non-reciprocal curling deformation to occur under stroboscopic irradiation.
