ATLAS is a command-line tool that extracts aligned syntax, control-flow, and data-flow graphs from C/C++ source without a build, and the paper reports that its control-flow paths improve an LLM's unit-test line coverage by about 35 percenta

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · deepseek-v4-flash

2026-08-03 16:37 UTC pith:4KNBNPWG

load-bearing objection A genuinely useful no-build multi-view graph tool for C/C++, but the core correctness claim rests on self-inspection and the coverage experiment is under-specified. the 4 major comments →

arxiv 2512.12507 v5 pith:4KNBNPWG submitted 2025-12-14 cs.SE

ATLAS: Multi-View Code Representation Tool for C and C++ Source Programs

Jaid Monwar Chowdhury , Ahmad Farhan Shahriar Chowdhury , Humayra Binte Monwar , Mahmuda Naznin This is my paper
classification cs.SE
keywords C/C++ static analysiscontrol flow graphdata flow graphabstract syntax treemulti-view code representationLLM-based test generationnon-compilable code analysisbuild-free tool
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

ATLAS is a command-line tool that produces three aligned code graphs for C/C++ source files — an abstract syntax tree, a control flow graph, and a data flow graph — without needing a completed build or even compilable code. The paper reports that on a collection of 766 C/C++ files it generates correct graphs in roughly 91–97% of cases, with failures concentrated in constructs such as goto, pointer arithmetic, multi-threading, and operator overloading. When the tool's statement-level control flow paths are given to a large language model, one test per unique path, line coverage rises by an average of 34.71 percentage points and branch coverage by 32.66 percentage points over the same model without the paths, matching or surpassing a symbolic execution engine on several of the larger programs. If these claims hold, ATLAS gives machine-learning-for-software-engineering pipelines a build-free way to obtain structural context for C/C++, which has been a bottleneck for applying graph-aware models to real, partially buildable code.

Core claim

The central discovery is that aligned, source-level multi-view graphs can be produced directly from source text, without a compiler or build database, and that their statement-level control flow paths are quantitatively useful to an LLM for test generation. The authors report correct CFG generation for 96.80% of C files and 91.67% of C++ files, and correct DFG generation for 91.38% (C) and 90.56% (C++), with correctness established by the authors' own manual verification. When a large language model is given one execution path per unique control-flow path extracted from ATLAS's CFG, it achieves an average of 34.71% higher line coverage and 32.66% higher branch coverage than the same model wi

What carries the argument

The machine at the center is the aligned multi-view graph, where every AST, CFG, and DFG node carries one shared identity across all views and distinct edge classes distinguish syntax, control, and data flow. The CFG is statement-level and inter-procedural: calls become edges from the caller statement to the callee's first statement, indirect calls branch to all possible callees, and recursion appears as a self-loop. The DFG is built from reaching-definition analysis, tracking definitions that reach a use without being overwritten, and is extended across function boundaries through parameter aliasing and class-member state. The build-free operation rests on a preprocessing pass that consolid

Load-bearing premise

The tool's correctness rates come only from the authors checking their own output, with no independent ground truth or verification rubric, so every downstream coverage number inherits that unverified premise.

What would settle it

Take a set of C/C++ files whose correct CFGs and DFGs are established by an independent static analyzer or compiler-derived ground truth, run ATLAS on them, and compute exact node/edge match rates; if the match rates fall materially below the reported 90–97%, the central correctness claim is falsified.

Watch this falsifier. Get emailed when new claim-graph text bears on it.

If this is right

  • C/C++ code that currently cannot be analyzed because it fails to compile or lacks headers becomes analyzable; the authors report handling such partial projects directly.
  • An LLM given execution paths extracted from ATLAS's CFG generates one test per unique path, which the paper reports raises line coverage by an average of 34.71 percentage points and branch coverage by 32.66 percentage points compared to the same LLM without the CFG context.
  • The aligned multi-view graph means a single JSON output serves AST-only, CFG-only, and DFG-only consumers, and any view can be recovered by filtering edges in the shared namespace.
  • Graph optimization flags (variable collapsing, node blacklisting) let users shrink graphs to fit LLM context windows, trading detail against token budget.
  • The authors report polynomial scaling with median runtime under 7 seconds and memory under ~135 MB on the largest benchmark programs (up to ~300 LOC), suggesting per-file extraction is cheap enough for dataset generation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The 34.71-point coverage gain is measured only against the LLM with no CFG context; a baseline with random execution paths (or function signatures only) would be needed to confirm that the gain comes from control-flow structure rather than any extra tokens in the prompt.
  • Should the self-verified correctness rates survive independent ground-truth comparison, ATLAS would fill a genuine tooling gap: a single no-build extractor for aligned AST/CFG/DFG, replacing pipelines that stitch together separate parsers and analyzers. An independent re-run on a corpus with externally known-correct graphs would settle this.
  • The failure modes the authors list — goto, pointer arithmetic, multi-threading, operator overloading — are precisely the constructs that C/C++ machine-learning models handle worst, so even a successful ATLAS leaves a measurable accuracy gap on those patterns; a follow-up adding lightweight points-to or thread analysis is the natural next step.
  • The one-test-per-unique-path prompting recipe is transferable: any source of disambiguated execution paths (a symbolic executor, a tracer, or another CFG generator) could be dropped into the same LLM pipeline, which suggests the improvement may generalize beyond this specific tool.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. ATLAS is a Python command-line tool that claims to generate aligned abstract syntax trees (ASTs), statement-level inter-procedural control flow graphs (CFGs), and reaching-definition data flow graphs (DFGs) for C and C++ source files without requiring a build or compilation. The paper reports success rates on the TheAlgorithms corpus (406 C files, 360 C++ files): CFG 96.80% and 91.67%, DFG 91.38% and 90.56%, with failures attributed to goto, multi-threading, pointer arithmetic, operator overloading, and static variables. In a downstream experiment, using ATLAS-generated CFG paths as context for DeepSeek V3.2 during unit-test generation improved line coverage by 34.71 percentage points and branch coverage by 32.66 percentage points compared to the same LLM without CFG context, and was on par with or better than KLEE on several programs. The paper also reports polynomial scalability on 20 benchmark programs. The tool is presented as open-source with a Docker image and video demonstrations.

Significance. If the quantitative claims are upheld, ATLAS would fill a real gap: a no-build, source-level, multi-view graph generator for C/C++ that aligns AST, CFG, and DFG views, enabling ML4SE pipelines to consume rich structure without a resolved build environment. The downstream result, that statement-level CFG context materially improves LLM-based test coverage, is a meaningful and practically relevant finding. The paper's strengths include the candid failure analysis (Table 2), the use of established datasets, and the release of the tool as open source with Docker support, which makes independent verification possible. However, the central evidence—the graph correctness rates and the coverage improvement—currently relies on self-assessment and a small, non-representative benchmark, so the reported numbers should be treated as preliminary until external validation is added.

major comments (4)
  1. [Section 4.1] The graph success rates (CFG 96.80% C / 91.67% C++; DFG 91.38% C / 90.56% C++) are established only by the authors' manual verification of their own tool's output on 766 files. No verification rubric is defined, no second annotator/inter-annotator agreement is reported, and no external ground truth (e.g., Clang's source-level CFG, a gold-standard dataset, or a second static analyzer) is used. Since the downstream coverage claim in Table 1 inherits this premise, the paper must provide a precise correctness criterion, a comparison against an independent oracle on a sample, and per-file success/failure data. Without these, the headline numbers are not reproducible.
  2. [Section 4.1 / Section 3.1] The no-build capability is a core differentiator, described as 'accepts partial input such as a project with missing headers' and 'including files that do not compile.' Yet the paper never states how many of the 406 C and 360 C++ files are non-compilable, what 'non-compilable' means, or how ATLAS behaves when an #include or #define cannot be resolved (skip, stub, error?). This leaves the key differentiator empirically unverified. Please report the count of non-compilable files and a breakdown of the failure modes, or temper the claim.
  3. [Section 4.2 / Table 1] The 34.71 pp line / 32.66 pp branch coverage improvement is based on only 10 C programs, a single LLM (DeepSeek V3.2), and no statistical significance testing. The protocol does not report the number of generated tests per condition, token budget, or actual repair iterations consumed, so the comparison may be confounded: generating one test per CFG path could yield more tests for DS w/ CFG than the baseline. The 'test efficiency' metric (75% vs 67%) is also undefined—how is 'unique execution path' measured? Please report test counts, token usage, and use standard per-test coverage metrics.
  4. [Section 4.3 / Figure 3] The claim of 'polynomial scalability' is supported only by a 'best-fit polynomial curve' for 20 programs up to 309 LOC, with no fit degree, coefficients, R², or residual analysis. Given a median execution time of 6.89s on ~119-LOC programs, the Abstract's 'large-scale C/C++ projects' and the Conclusion's 'polynomial scalability' overstate the evidence. Report the fitted model and evaluate on a broader size range, or revise the wording to match the data.
minor comments (6)
  1. [General] The paper's title in the arXiv metadata ('Multi-View Code Representation Tool for C and C++ Source Programs') differs from the title inside the full text ('Automated Tree-based Language Analysis System for C and C++ Source Programs'). The two video links (abstract: youtu.be/50DvEbenp14; full text: youtu.be/QGuJZhj9CTA) also differ. Please make these consistent.
  2. [Section 4.1, 4.2] There are formatting/spacing errors: 'EvaluatingATLAS', 'ATLASbypasses' should be separated. Also 'TheAlgorithms' is one word, but references [27][28] are fine.
  3. [Table 1] The 'Total/Average' row mixes sums (Function/Line/Branch) with averages (coverage percentages). Label the row clearly, e.g., 'Total' for counts and 'Average' for percentages, or provide two rows.
  4. [Section 3.2.4] The claim of 'fifteen combination variants' is not enumerated. Either list the fifteen combinations or provide a reference to a figure/table that does so.
  5. [Section 4.2] The 'test efficiency' ratio is vaguely described. Define it operationally (e.g., using gcov traces or a coverage tool) and report the raw numbers behind the 75% and 67% figures.
  6. [Abstract / Availability] The full text shows 'Tool Github repository: ATLAS' without a clickable URL. Provide the actual repository link and the Docker image name so the tool is directly accessible.

Circularity Check

0 steps flagged

No circular derivation: the headline accuracy and coverage numbers are empirical measurements, not quantities derived by construction from their own inputs.

full rationale

ATLAS's central claims are empirical evaluations rather than derived predictions, so the circularity patterns do not apply. The graph-generation success rates (CFG 96.80%/91.67%, DFG 91.38%/90.56%) are counts of outputs that the authors manually inspected, not the result of fitting a parameter and then predicting it. The absence of an external ground truth, rubric, or inter-annotator agreement is a serious validity/reproducibility limitation, and the skeptic is right to flag it, but a self-assessed empirical measurement is not a circular derivation: the success rate is not an equation-level reduction of output to input. The coverage experiment is a controlled comparison (DS w/ CFG vs DS w/o CFG) with an external coverage metric; using ATLAS-generated CFGs as the intervention is the point of the experiment, and the outcome is not defined by the tool's own output. KLEE is an independent baseline from the literature. No load-bearing self-citations appear: the dataset references (TheAlgorithms) and the KLEE/DeepSeek citations are external, and no uniqueness theorem or prior work by the same authors is invoked to force the conclusion. The scalability measurements are also direct empirical observations. The paper does make unusually strong claims based on self-verification, but that is an evidence-quality problem, not a circularity problem.

Axiom & Free-Parameter Ledger

3 free parameters · 3 axioms · 0 invented entities

The accuracy claims are built on standard algorithms — reaching-definition analysis, CFG construction, tree-sitter parsing — so the ledger is light on theory. What the central claims actually rest on is three domain assumptions about the sufficiency of parse-tree-only analysis, the causal attribution of the coverage experiment, and the existence of an unstated coverage tool; plus two fitted or hand-set evaluation choices (the Fig. 3 trend lines and the PANTA-derived repair cap/discard rule). No invented entities. The load-bearing risk is the self-verified correctness premise, itemized in the axioms.

free parameters (3)
  • Polynomial trend-line fit (degree and coefficients) = unspecified (best-fit curves in Fig. 3)
    Fit to execution-time and memory measurements on 20 programs (61-309 LOC) and used to assert 'polynomial scalability' in §4.3; extrapolation beyond the fitted range is unsupported.
  • LLM test-repair iteration cap = 15
    max_iterations=15 is replicated from PANTA's architecture (§4.2); no ablation shows this value is appropriate for DeepSeek V3.2 or that results are stable around it.
  • Test discard rule = discard tests failing after 15 repair iterations
    Tests that still fail are dropped before coverage is computed (§4.2); the magnitude of the reported 34.71pp gain depends on this filtering rule.
axioms (3)
  • domain assumption Tree-sitter concrete syntax trees carry enough information for statement-level, 'type-aware' data-flow analysis without a C/C++ type resolver or build.
    Underlies the whole pipeline (§3.1-3.2.3). Table 2 shows where it breaks: operator overloading (24 C++ files), pointer arithmetic (22 C files), static variables, multi-threading.
  • domain assumption Adding ATLAS CFG paths as LLM context is the causal driver of the coverage gains.
    The intervention bundles CFG context with a one-test-per-unique-path protocol, a repair loop, and a discard rule (§4.2); the 34.71pp figure is attributed to the CFG alone.
  • domain assumption Line/branch coverage values in Table 1 were produced by an accurate, independent coverage tool.
    No coverage tool is named anywhere in the paper; the KLEE comparison also presupposes a fair harness-based setup that is not described.

pith-pipeline@v1.3.0-alltime-deepseek · 10500 in / 22037 out tokens · 202434 ms · 2026-08-03T16:37:42.746711+00:00 · methodology

0 comments
read the original abstract

Multi-view code graphs that align abstract syntax trees, control flow graphs, and data flow graphs are now central to machine-learning models for software engineering. For C and C++, no single tool produces these aligned views without a complete build. We present ATLAS, a command-line tool that takes one or more C or C++ source files and emits an AST, a source-level inter-procedural CFG, a reaching-definition DFG, or any combination. The output is available as JSON, DOT, or PNG. ATLAS runs directly on source code and accepts partial input such as a project with missing headers, so it needs no compilation or build database. All views share one node namespace, so a downstream consumer can recover any single view by filtering edges. Command-line flags select views, collapse variables, and blacklist node categories to resize the emitted graph. On the TheAlgorithms corpora, ATLAS produces a correct CFG for 96.80% of C files and 91.67% of C++ files, including files that do not compile. It already serves as the CFG front-end of an LLM-based unit-test generation framework for C. ATLAS is open source and ships as a Docker image with a screencast walkthrough. Demo link: https://youtu.be/50DvEbenp14.

Figures

Figures reproduced from arXiv: 2512.12507 by Ahmad Farhan Shahriar Chowdhury, Humayra Binte Monwar, Jaid Monwar Chowdhury, Mahmuda Naznin.

Figure 1
Figure 1. Figure 1: Architecture of ATLAS graphs via four modules: the AST, CFG, and DFG Drivers, and the Unified Multi-view Graph. Finally, ATLAS exports these repre￾sentations in JSON, DOT, or PNG, linking a program’s syntactic structure directly to its execution behavior. 3.1 Preprocessor and Parser The module generates a unified Parsed Code Model. The Prepro￾cessor normalizes the codebase by consolidating multi-file proje… view at source ↗
Figure 2
Figure 2. Figure 2: Visual representations of code analysis structures by ATLAS: (a) AST showing the hierarchical syntactic structure of [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Performance metrics of ATLAS across 20 bench [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: LLVM IR-based CFG generated by Clang for the [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

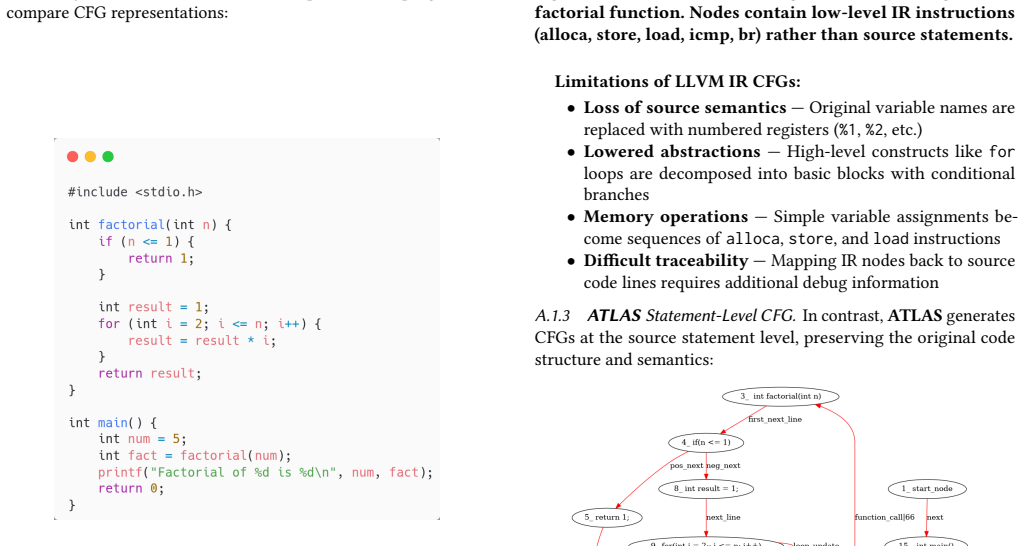

Figure 4
Figure 4. Figure 4: Source code of the factorial program used for CFG [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: ATLAS-generated CFG for the same factorial pro [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Control Flow Graph for factorial.cpp showing ex￾ecution paths through the factorial function and main func￾tion. Nodes represent statements, edges represent control flow transitions. The loop structure in the factorial function and the conditional branch are clearly visible. A.3.5 Interpretation. The CFG reveals: • Entry and exit points for each function (factorial and main) • Branching structure at the if… view at source ↗
Figure 7
Figure 7. Figure 7: Source code of factorial.cpp. A.3.2 Command. Run the following terminal command: docker run -- rm \ -v "$( pwd ):/ work " -w / work \ atlas -- lang cpp \ -- code - file factorial . cpp \ -- graphs cfg -- output all A.3.3 Output Files Generated. File Description factorial.json Graph data in JSON format factorial.dot GraphViz DOT representation factorial.png Visual graph rendering A.3.4 Generated Control Flo… view at source ↗
Figure 9
Figure 9. Figure 9: Source code of bubble_sort.c. A.4.2 Command. Run the following terminal command: docker run -- rm \ -v "$(pwd):/ work " -w / work \ atlas -- lang c \ -- code - file bubble_sort . c \ -- graphs cfg , dfg -- output all A.4.3 Generated Combined CFG+DFG Graph [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: Header file math_utils.h declaring the add, multiply, and factorial function prototypes [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Implementation file math_utils.c containing arithmetic operations [PITH_FULL_IMAGE:figures/full_fig_p009_12.png] view at source ↗
Figure 14
Figure 14. Figure 14: Combined Control Flow Graph spanning all func [PITH_FULL_IMAGE:figures/full_fig_p009_14.png] view at source ↗
Figure 13
Figure 13. Figure 13: Main file main.c demonstrating usage of the math utilities API. A.5.2 Command. Run the following terminal command: docker run -- rm \ -v "$(pwd):/ work " -w / work \ atlas -- lang c \ -- code - folder math_project \ -- combined - name math_analysis \ -- graphs cfg -- output all A.5.3 Output Files Generated. File Description math_analysis.json Combined graph data from all source files math_analysis.dot Gra… view at source ↗
