Inhomogeneous micro-strain in cylindrical semiconductor heterostructures and its influence on the adiabatic motion of electrons
Pith reviewed 2026-05-24 18:05 UTC · model grok-4.3
The pith
Layer thickness fluctuations on the micrometer scale in micro-tube quantum wells create strain variations that locally change carrier density.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Fluctuation of layer thicknesses on the 1 μm scale produces corresponding fluctuations of strain in the micro-tubes; the strain inhomogeneity creates a local variation of the chemical potential that results in a fluctuation of the carrier density; the estimated density fluctuation agrees with the energy fluctuation measured by cathodoluminescence of the free-electron transition; this density fluctuation causes phase cancellation of the Shubnikov-de-Haas oscillations and reduces the single-electron scattering time while the mobility stays high.
What carries the argument
Link from measured layer-thickness inhomogeneity to micro-strain variation to local chemical-potential shift to carrier-density fluctuation in the curved HM2DEG.
If this is right
- Carrier-density variations on the micrometer scale produce phase cancellation of Shubnikov-de-Haas oscillations in the curved two-dimensional electron gas.
- The single-electron scattering time is shortened while the overall mobility remains high.
- The effect is dominated by thickness inhomogeneities on the 1 μm scale rather than the much smaller roughness on the 0.01 μm scale.
- The magnitude of the carrier-density fluctuation can be estimated from the layer-thickness data and matches the cathodoluminescence energy spread.
Where Pith is reading between the lines
- Improving control of step bunching during epitaxial growth could reduce the amplitude of these carrier-density fluctuations and thereby extend the visibility of quantum oscillations in curved structures.
- The same thickness-to-strain-to-density chain may set a practical limit on coherence lengths in other cylindrical or rolled-up quantum devices.
- Mapping local cathodoluminescence energy shifts could serve as a non-contact probe of the strain-induced density landscape in similar heterostructures.
Load-bearing premise
The dominant source of the observed strain inhomogeneity and resulting carrier-density variation is the layer-thickness fluctuation measured on the 1 μm scale by AFM and x-ray diffraction, with negligible contributions from composition gradients or interface effects.
What would settle it
Direct comparison showing that the carrier-density fluctuation calculated from the measured thickness variations fails to match the energy fluctuation extracted from the cathodoluminescence spectra of the free-electron transition.
read the original abstract

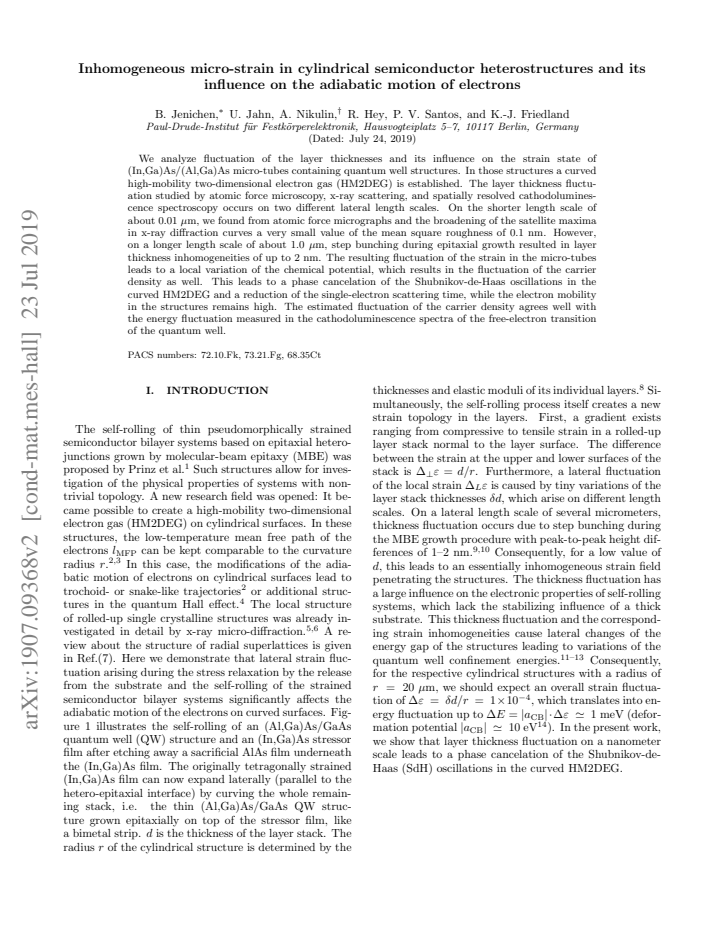

We analyze fluctuation of the layer thicknesses and its influence on the strain state of (In,Ga)As/(Al,Ga)As micro-tubes containing quantum well structures. In those structures a curved high-mobility two-dimensional electron gas (HM2DEG) is established. The layer thickness fluctuation studied by atomic force microscopy, x-ray scattering, and spatially resolved cathodoluminescence spectroscopy occurs on two different lateral length scales. On the shorter length scale of about 0.01~$\mu$m, we found from atomic force micrographs and the broadening of the satellite maxima in x-ray diffraction curves a very small value of the mean square roughness of 0.1~nm. However, on a longer length scale of about 1.0~$\mu$m, step bunching during epitaxial growth resulted in layer thickness inhomogeneities of up to 2~nm. The resulting fluctuation of the strain in the micro-tubes leads to a local variation of the chemical potential, which results in the fluctuation of the carrier density as well. This leads to a phase cancelation of the Shubnikov-de-Haas oscillations in the curved HM2DEG and a reduction of the single-electron scattering time, while the electron mobility in the structures remains high. The estimated fluctuation of the carrier density agrees well with the energy fluctuation measured in the cathodoluminescence spectra of the free-electron transition of the quantum well.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript analyzes layer thickness fluctuations in (In,Ga)As/(Al,Ga)As micro-tubes containing quantum wells on two lateral scales (~0.01 μm with 0.1 nm rms roughness from AFM/XRD and ~1 μm with up to 2 nm inhomogeneities from step bunching). These fluctuations induce local strain variations that alter the chemical potential and carrier density in the curved high-mobility 2DEG, leading to phase cancellation of Shubnikov-de-Haas oscillations, reduced single-electron scattering time, and high mobility. The estimated carrier-density fluctuation is reported to agree quantitatively with the energy fluctuation extracted from cathodoluminescence spectra of the quantum-well free-electron transition.
Significance. If the mapping from measured thickness inhomogeneities to carrier-density fluctuation holds, the work provides a concrete link between epitaxial growth morphology and transport properties in curved 2DEG systems, with relevance to adiabatic electron motion and micro-tube device performance. The multi-technique consistency (AFM, XRD, CL) is a positive feature, though the absence of error propagation and direct validation of the dominant mechanism limits the strength of the quantitative claim.
major comments (2)
- [Abstract] Abstract: The headline agreement between the estimated carrier-density fluctuation and the CL linewidth requires that 1 μm-scale thickness inhomogeneities (measured by AFM/XRD) are the dominant source of strain inhomogeneity. The manuscript does not report spatially resolved composition maps or interface statistics that would exclude local In-fraction variations of ~0.5 %, which would produce a comparable deformation-potential shift; this assumption is load-bearing for the central claim and needs either additional data or explicit justification.
- [Abstract] Estimation procedure (abstract and associated results): No error propagation, sample statistics, or exclusion criteria are described for the density-fluctuation estimate or the CL energy fluctuation; the reported agreement therefore cannot be assessed for statistical significance.
minor comments (2)
- The two length scales are contrasted in the abstract but would benefit from a single figure overlaying AFM topography at both magnifications to make the distinction visually immediate.
- Notation for the chemical-potential variation and its conversion to density fluctuation should be defined explicitly (e.g., via the 2D density of states) rather than left implicit.
Simulated Author's Rebuttal
We thank the referee for the careful reading of our manuscript and the constructive comments. We address the major points below.
read point-by-point responses
-
Referee: [Abstract] Abstract: The headline agreement between the estimated carrier-density fluctuation and the CL linewidth requires that 1 μm-scale thickness inhomogeneities (measured by AFM/XRD) are the dominant source of strain inhomogeneity. The manuscript does not report spatially resolved composition maps or interface statistics that would exclude local In-fraction variations of ~0.5 %, which would produce a comparable deformation-potential shift; this assumption is load-bearing for the central claim and needs either additional data or explicit justification.
Authors: We agree that the dominance of thickness inhomogeneities is central to the quantitative claim. Although spatially resolved composition maps are not available from the original experiments, the AFM and XRD data, combined with the known step-bunching morphology during epitaxial growth of these structures, indicate that the 1 μm-scale variations arise primarily from thickness fluctuations rather than In-fraction changes. We will add an explicit justification paragraph in the revised manuscript detailing why composition variations of the cited magnitude are inconsistent with the growth conditions and the multi-technique consistency (AFM/XRD/CL). revision: yes
-
Referee: [Abstract] Estimation procedure (abstract and associated results): No error propagation, sample statistics, or exclusion criteria are described for the density-fluctuation estimate or the CL energy fluctuation; the reported agreement therefore cannot be assessed for statistical significance.
Authors: We acknowledge that the estimation procedure in the abstract and results section lacks explicit error propagation and sample statistics. In the revision we will expand the relevant section to include (i) the standard deviation derived from multiple AFM line scans, (ii) a brief propagation of uncertainty through the strain-to-density conversion, and (iii) the number of CL spectra averaged. This will allow readers to evaluate the statistical significance of the reported agreement. revision: yes
Circularity Check
No significant circularity detected
full rationale
The paper measures layer-thickness inhomogeneities independently via AFM and x-ray diffraction on two length scales, computes the resulting strain and carrier-density fluctuations from those data, and compares the estimate to a separate cathodoluminescence observable. No equation reduces the reported agreement to a fitted parameter of the target quantity, no self-citation supplies a load-bearing uniqueness theorem, and the central comparison is between two distinct experimental channels. The derivation chain is therefore self-contained.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Layer thickness fluctuations observed by AFM and XRD directly determine the local strain state in the rolled-up geometry.
discussion (0)
Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.
