A Systematic Benchmark of Physics-Informed Neural Network Architectures for the Stiff Poisson-Nernst-Planck System: Adaptive LossWeighting and Multi-Scale Resolution

David Pankaczy , Conrard Giresse Tetsassi Feugmo This is my paper

Pith reviewed 2026-06-28 07:06 UTC · model grok-4.3

classification ⚛️ physics.app-ph math-phmath.MPphysics.comp-ph
keywords physics-informed neural networksPoisson-Nernst-Planckstiff systemsadaptive loss weightingneural tangent kernelbenchmarklithium symmetric cellelectric double layer
0
0 comments X

The pith

The balanced residual decay rate scheme matches neural tangent kernel accuracy on concentration fields for stiff Poisson-Nernst-Planck problems while cutting wall-clock time.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes the first systematic benchmark of eleven physics-informed neural network configurations grouped into four strategy families on a one-dimensional Poisson-Nernst-Planck model of a lithium symmetric cell. It reports that the balanced residual decay rate scheme reaches neural tangent kernel performance on concentration profiles yet requires less mean computation time, with loss-landscape geometry aligning with the root-mean-square error ordering. A sympathetic reader would care because the Poisson-Nernst-Planck system is a canonical stiff coupled problem whose extreme coefficient ratios and thin electric-double-layer boundary layers defeat both conventional meshes and standard neural training due to spectral bias and multi-task loss imbalance. The work supplies an open-source implementation inside PhysicsNeMo Sym for reuse on similar stiff electrokinetic systems.

Core claim

Among the tested architectures the balanced residual decay rate scheme matches neural tangent kernel performance for concentration fields while reducing mean wall-clock time, making it the preferable strategy under compute constraints; root-mean-square errors vary across the eleven configurations and loss-landscape geometry corroborates the ranking.

What carries the argument

The balanced residual decay rate (BRDR) scheme, which dynamically reweights individual loss terms according to the observed decay rates of their residuals to counteract multi-task imbalance during training of physics-informed networks on stiff coupled PDEs.

If this is right

  • BRDR becomes the strategy of choice when wall-clock time is the binding constraint for concentration-field accuracy.
  • Loss-landscape geometry supplies an independent diagnostic that tracks RMSE rankings across architectures.
  • The released PhysicsNeMo Sym implementation can be applied directly to other stiff coupled PDE problems in computational mechanics.
  • Adaptive loss-weighting strategies mitigate the multi-task imbalance that otherwise limits PINN accuracy on stiff PNP systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The time advantage of BRDR may extend to other multi-physics stiff systems whose loss terms decay at mismatched rates.
  • A two-dimensional or three-dimensional version of the same benchmark would test whether the observed ranking survives increased spatial complexity.
  • Open release of the code lowers the threshold for testing PINNs on electrokinetic transport in batteries, membranes, and biological ion channels.

Load-bearing premise

The eleven PINN configurations organized into four strategy groups, the one-dimensional physically parametrised PNP model for a lithium symmetric cell, and the finite volume method reference are representative enough to rank architectures for general stiff PNP problems.

What would settle it

A repeat of the eleven-configuration benchmark on a two-dimensional PNP geometry or a materially different physical parameter set in which the BRDR scheme no longer matches NTK accuracy on concentrations or loses its wall-clock advantage.

Figures

Figures reproduced from arXiv: 2606.04125 by Conrard Giresse Tetsassi Feugmo, David Pankaczy.

Figure 1

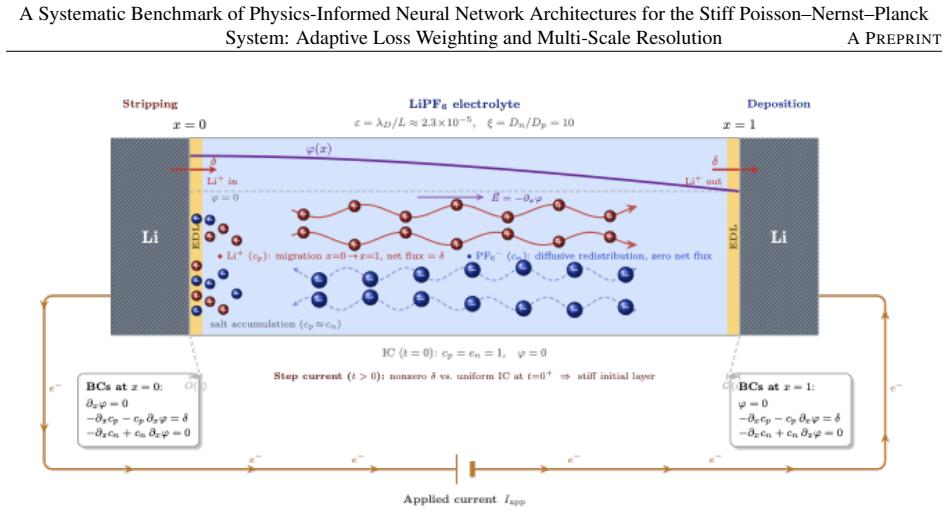

Figure 1. Figure 1: Schematic of the one-dimensional lithium symmetric cell. [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

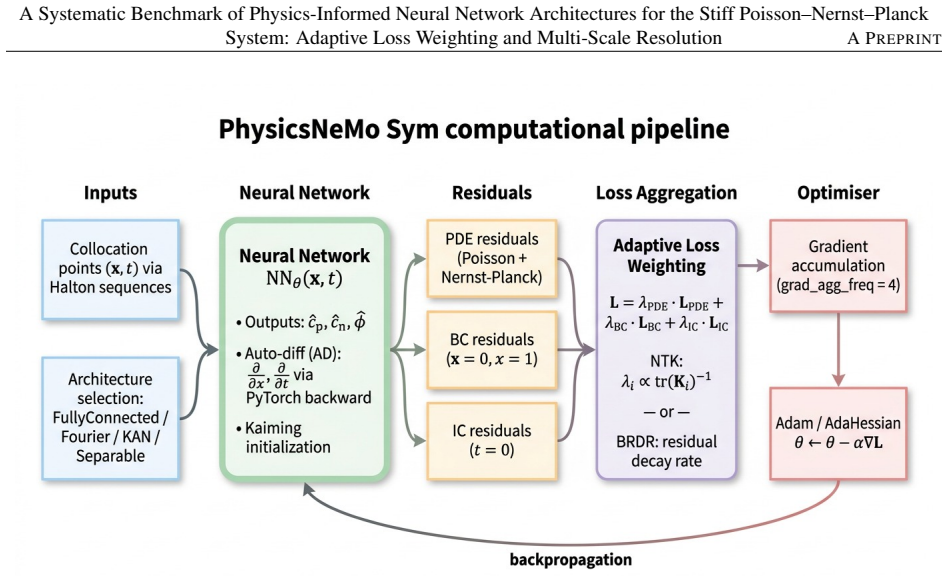

Figure 2. Figure 2: PhysicsNeMo Sym computational pipeline. Halton collocation points are fed to the neural network architecture (left); automatic differentiation (AD) through the Graph computes PDE, boundary condition (BC), and initial condition (IC) residuals (centre-left); Neural Tangent Kernel (NTK) or balanced residual decay rate (BRDR) adaptive weighting rescales individual loss components before aggregation to total lo… view at source ↗
Figure 3

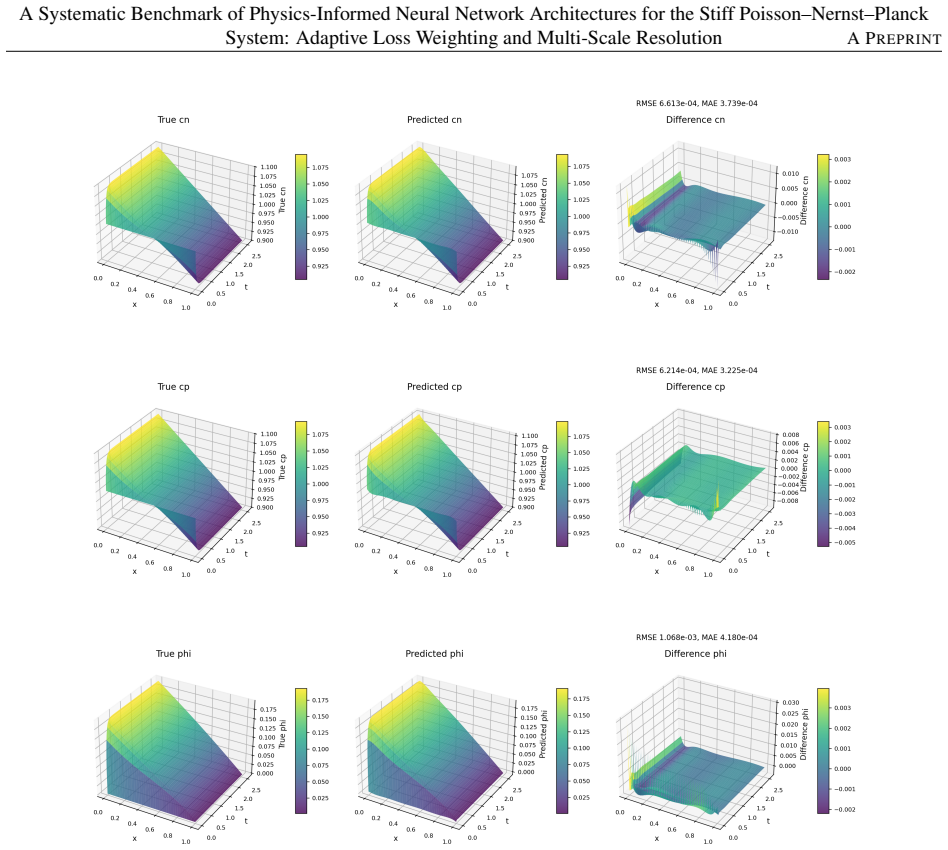

Figure 3. Figure 3: NTK-weighted PINN validation against the FVM reference. [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗
Figure 4

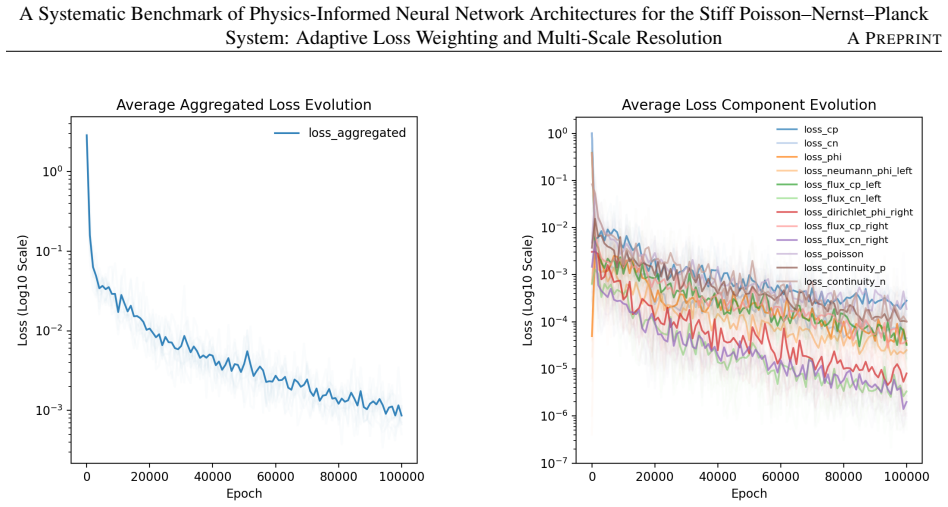

Figure 4. Figure 4: NTK-weighted PINN training loss. Total loss (left) and individual loss components (right), averaged over ten independent runs. Individual loss components (PDE: partial differential equation, BC: boundary condition, IC: initial condition) converge at comparable rates throughout training, consistent with the balanced weighting reported in Section 4.2 [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗
Figure 5

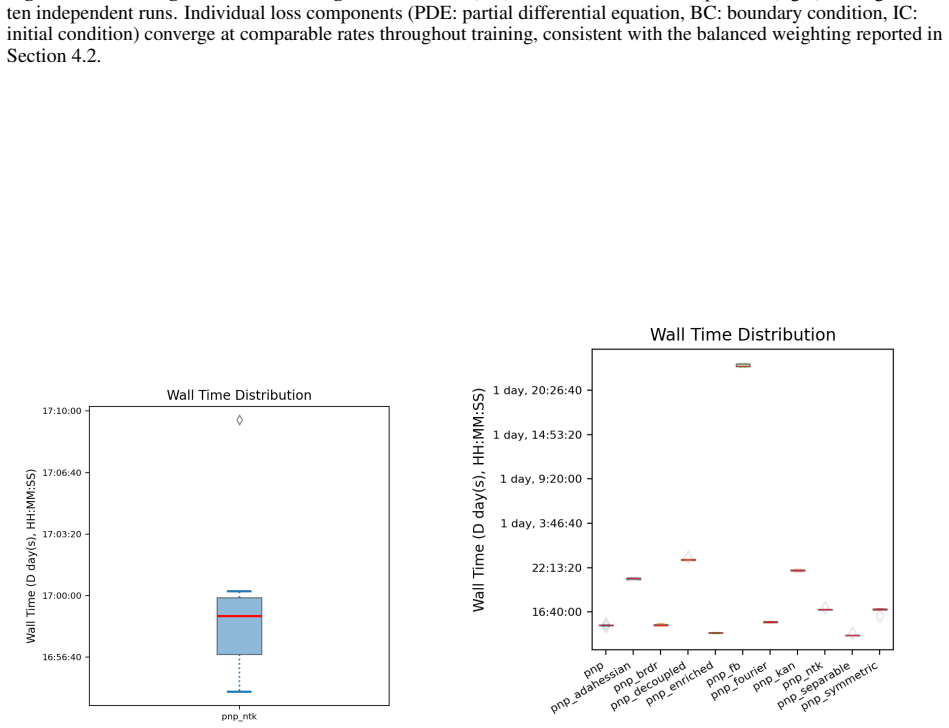

Figure 5. Figure 5: Wall-clock time distributions. Box plots of wall time for the NTK configuration over ten runs (left) and across all architectures (right). The red line marks the median; box edges denote the first and third quartiles; whiskers extend to 1.5× the interquartile range (IQR). All runs performed on one NVIDIA H100 GPU. 15 [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗
Figure 6

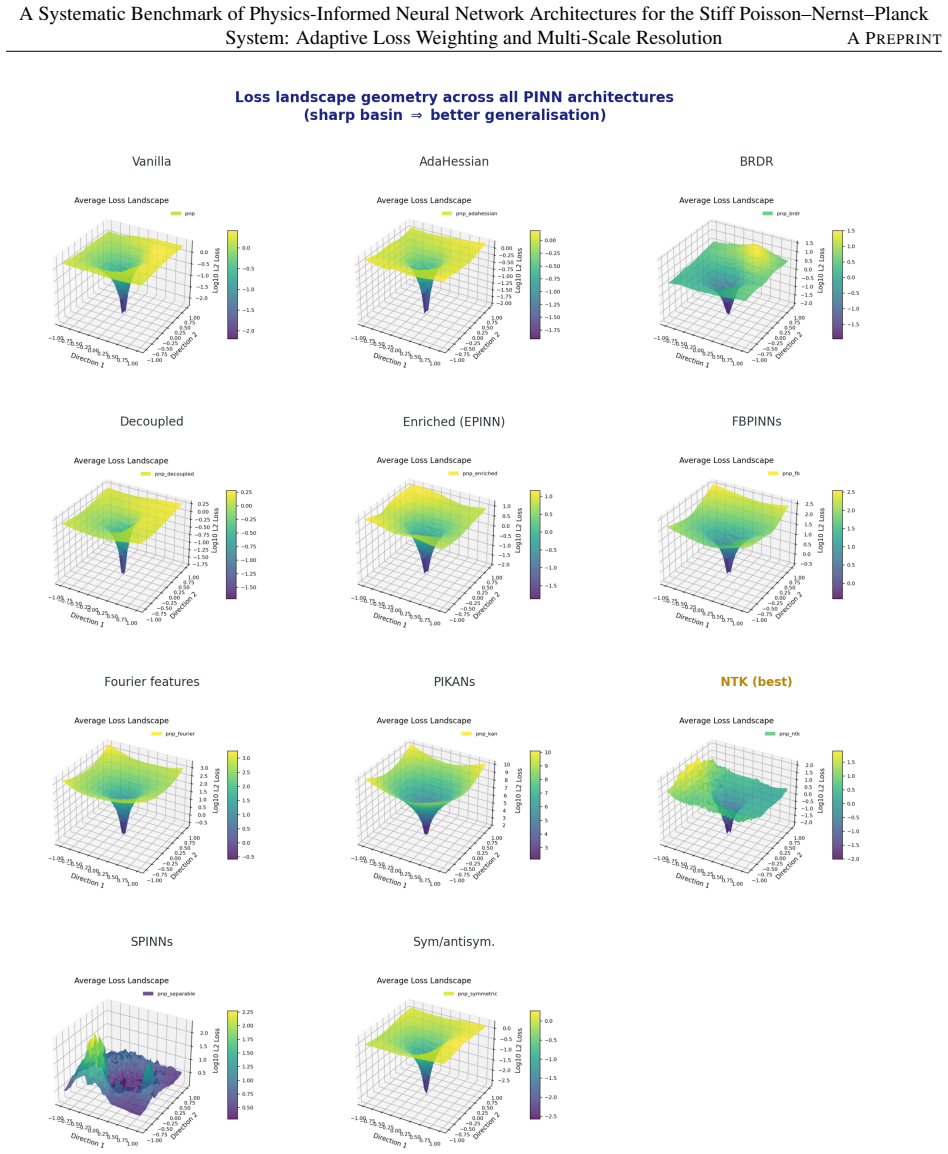

Figure 6. Figure 6: Loss landscape geometry for all PINN configurations. [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗
Figure 7

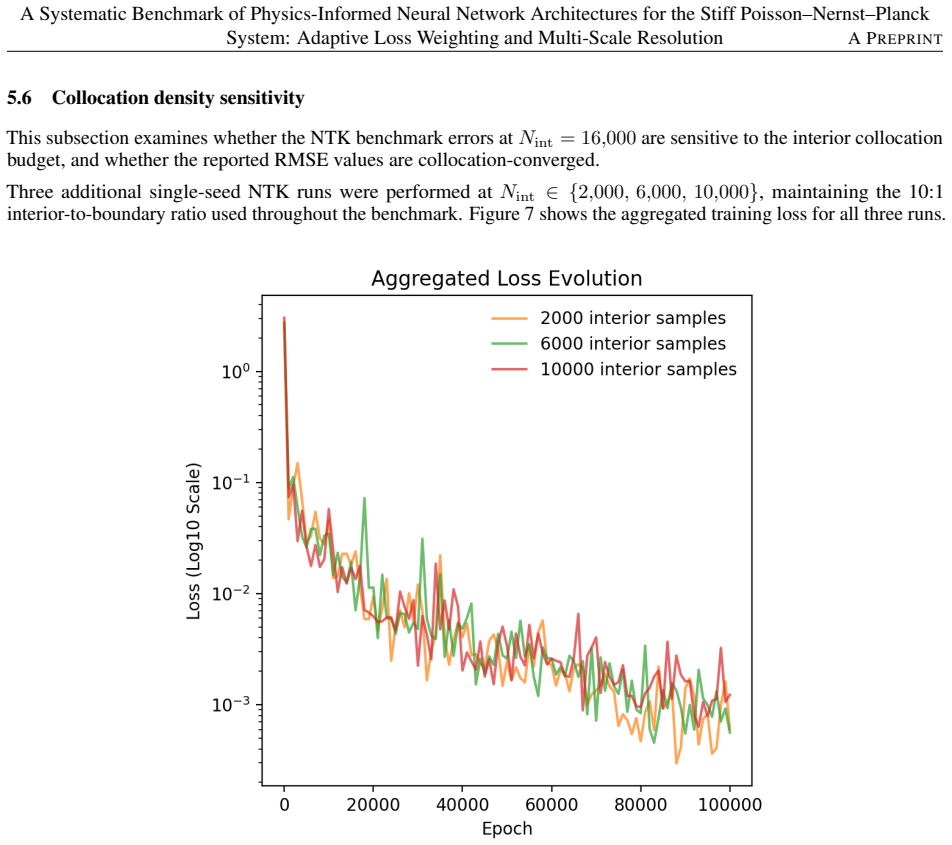

Figure 7. Figure 7: NTK training loss for three collocation densities. [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗
read the original abstract

The Poisson Nernst Planck PNP system constitutes a canonical stiff coupled PDE problem where the charge density prefactor produces extreme coefficient ratios and the electric double layer imposes sharp boundary layers. Physics informed neural networks PINNs are appealing here because they require no mesh and differentiate through the physics automatically. Spectral bias and multi task loss imbalance however have limited their accuracy on stiff PNP systems. We present the first systematic data free benchmark of eleven PINN configurations organised into four strategy groups on a physically parametrised one dimensional PNP model for a lithium symmetric cell implemented within NVIDIA PhysicsNeMo Sym and validated against a finite volume method FVM reference. Root mean square errors RMSE span across architectures. The balanced residual decay rate BRDR scheme matches Neural Tangent Kernel NTK performance for concentration fields while reducing mean wall clock time making it the preferable strategy under compute constraints. Loss landscape geometry corroborates the RMSE ranking. We release an open source PhysicsNeMo Sym implementation for reuse on stiff coupled PDE problems in computational mechanics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper conducts the first systematic benchmark of eleven PINN configurations grouped into four strategy groups for solving the stiff one-dimensional Poisson-Nernst-Planck equations modeling a lithium symmetric cell. Implemented in NVIDIA PhysicsNeMo Sym and validated against a finite volume method reference, the study concludes that the balanced residual decay rate (BRDR) scheme achieves performance comparable to the Neural Tangent Kernel (NTK) approach for concentration fields while reducing mean wall-clock time, making it preferable under compute constraints. Loss landscape analysis supports the RMSE rankings, and the code is released openly.

Significance. If the empirical findings hold, this work provides valuable guidance on loss-weighting and multi-scale strategies for PINNs applied to stiff coupled PDEs like PNP systems. The open-source PhysicsNeMo Sym implementation is a clear strength, enabling reproducibility and extension to other computational mechanics problems.

major comments (2)
  1. [Abstract] Abstract: The abstract states that RMSE spans architectures and that BRDR matches NTK while lowering wall-clock time, but supplies no numerical values, error bars, data exclusion criteria, or validation details against the FVM reference. This absence makes it impossible to assess the magnitude or statistical reliability of the claimed match.
  2. [Abstract] Abstract: The recommendation that BRDR is the preferable strategy under compute constraints rests entirely on results from a one-dimensional physically parametrized lithium symmetric cell. No experiments or discussion address whether the relative performance of BRDR versus NTK persists when the electric double layer becomes a surface in 2D/3D or when stiffness regimes and collocation requirements change.
minor comments (1)
  1. The four strategy groups and eleven configurations would benefit from an explicit summary table listing each architecture, its loss-weighting or multi-scale component, and key hyperparameters.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The abstract states that RMSE spans architectures and that BRDR matches NTK while lowering wall-clock time, but supplies no numerical values, error bars, data exclusion criteria, or validation details against the FVM reference. This absence makes it impossible to assess the magnitude or statistical reliability of the claimed match.

    Authors: The abstract is intended as a concise overview. The manuscript provides full numerical RMSE values, standard deviations across runs, explicit comparison criteria against the FVM reference, and loss-landscape diagnostics in the results section and supplementary tables. To improve standalone readability of the abstract we will insert representative quantitative values (e.g., mean RMSE for concentration fields under BRDR and NTK) together with a brief statement on the validation protocol. revision: yes

  2. Referee: [Abstract] Abstract: The recommendation that BRDR is the preferable strategy under compute constraints rests entirely on results from a one-dimensional physically parametrized lithium symmetric cell. No experiments or discussion address whether the relative performance of BRDR versus NTK persists when the electric double layer becomes a surface in 2D/3D or when stiffness regimes and collocation requirements change.

    Authors: The study is deliberately scoped to a canonical one-dimensional stiff PNP problem to enable a controlled, systematic comparison of eleven architectures. The manuscript makes no claim of dimensional generality; the recommendation is explicitly tied to the 1-D lithium-symmetric-cell setting under the reported stiffness and collocation conditions. Extending the benchmark to 2-D/3-D geometries constitutes a substantial separate investigation that lies outside the present scope. revision: no

Circularity Check

0 steps flagged

Empirical benchmark with independent FVM validation; no derivation reduces to inputs

full rationale

The manuscript reports a numerical benchmark of eleven PINN loss-weighting and multi-scale configurations on a fixed 1D lithium-symmetric-cell PNP problem. All performance claims (RMSE rankings, wall-clock times, loss-landscape geometry) are obtained by direct comparison against an external finite-volume reference solution. No equation is derived from first principles, no parameter is fitted and then relabeled as a prediction, and no uniqueness theorem or ansatz is imported via self-citation. The work is therefore self-contained against external benchmarks and receives the default non-circularity score.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work is a numerical benchmarking study and introduces no new physical parameters, axioms, or postulated entities.
