3D-LLaVA: Towards Generalist 3D LMMs with Omni Superpoint Transformer

T0 review · 4 major / 6 minor · reviewed 2026-08-10 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read One point-cloud module unifies 3D dialogue, prompting, and mask output.

desk verdict A clean point-cloud-only 3D LMM with a genuinely unified OST connector; strong results but overclaimed SOTA and two missing analyses (distillation ablation, token-selection recall on referring tasks). read the letter →

arxiv 2501.01163 v2 pith:5H7ZOZK6 submitted 2025-01-02 cs.CV

Jiajun Deng , Tianyu He , Li Jiang , Tianyu Wang , Feras Dayoub , Ian Reid This is my paper · ORCID
classification cs.CV
keywords 3Dlargemultimodalmodelspointcloudunderstandingreferringsegmentationvisualpromptencodingsuperpointtransformerinstructiontuningquestionansweringdensecaptioning
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

3D-LLaVA claims that a single module, the Omni Superpoint Transformer (OST), can act as visual feature selector, visual prompt encoder, and referring mask decoder for a 3D large multimodal model, removing the need for offline multi-view feature extraction and task-specific segmentation heads. The paper argues that a point-cloud-only pipeline built around this connector can match or beat substantially more complex systems across question answering, dense captioning, and referring segmentation. If the claim holds, an integrated connector is enough to give a 3D assistant both free-form dialogue and precise spatial grounding, which would make deployment simpler and more accessible.

What carries the argument

The Omni Superpoint Transformer (OST) is a superpoint-based transformer that deliberately omits cross-attention layers, using superpoint features as both queries and source features with distance-adaptive self-attention, and carries a mask head, classification head, and alignment head. It is pre-trained with a hybrid loss combining ScanNet200 instance segmentation and 2D-to-3D knowledge distillation from a 2D LMM's visual encoder, then frozen and reused at inference as the feature selector, visual prompt encoder, and mask decoder. A parameter-free visual sampler turns clicks, boxes, and masks into prompt features that OST projects into the same embedding space as visual tokens.

What would settle it

Compute, on ScanRefer or Multi3DRefer validation, the recall of the ground-truth target instance's superpoints among the top-100 objectness-ranked superpoints; if a large share of failed predictions correspond to targets that fall outside the top-100, the objectness-based selection assumption is the reason for the failure. A direct probe would feed the same scene with and without the target's superpoints forced into the top-100 and measure whether the model then answers or segments correctly.

Watch

Extended reading notes

Core claim

The discovery is that a transformer operating on superpoints, pre-trained with instance segmentation and 2D-to-3D feature distillation, can serve every visual role a 3D LMM needs: it selects which scene regions become LLM tokens, encodes any user-provided click, box, or mask prompt into the same token space, and, when the LLM emits a [SEG] token, decodes the hidden state into a 3D mask. With this one shared connector, 3D-LLaVA reports best results on the evaluated benchmarks among 3D LMMs trained jointly on multiple tasks: 43.3% mIoU on ScanRefer, 42.7% mIoU on Multi3DRefer, 92.6% CiDEr on ScanQA, and best-or-comparable scores on SQA3D and Scan2Cap, all with point clouds as the only input.

Load-bearing premise

The pipeline keeps only the 100 superpoints with the highest objectness score, where objectness is the max foreground-class logit from a classifier trained on ScanNet200 categories; everything rests on those 100 tokens containing the regions needed to answer the user's question or match the referring expression.

Editorial extensions

If this is right

  • Offline multi-view feature extraction and extra task-specific heads can be removed from 3D LMM pipelines without losing performance.
  • The same frozen OST can ground language to 3D masks and answer or describe scenes, so referring segmentation no longer requires a separate aligned segmentation network.
  • On the paper's benchmarks, the model improves referring segmentation over the previous best (1.6 mIoU on ScanRefer, 6.6 on Multi3DRefer) and raises ScanQA CiDEr by 4.9 absolute over the prior best.
  • Visual prompts of different forms (click, box, mask) are handled by one mechanism, including masks from any external proposer such as Mask3D, without retraining.
  • When a referred object is absent, the LLM can answer that it cannot find the object and skip mask decoding, avoiding false-positive masks.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A likely pressure point the paper leaves implicit is the objectness-based top-K selection: since only the 100 highest-scoring superpoints reach the LLM, making selection query-aware (for example, conditioned on the text or prompt) could improve recall of low-saliency but referenced objects.
  • The same architecture could be tested on open-vocabulary or zero-shot settings by replacing the fixed category classification head with a text-aligned feature space, which may let the connector ground expressions beyond ScanNet200 categories.
  • Because OST is frozen during instruction tuning, it may be feasible to swap the LLM for a stronger or lighter one later without retraining the visual connector, turning the 3D encoder into a reusable front end.
  • The unified prompting mechanism suggests an interactive point, box, or text control scheme for 3D assistants that could transfer to embodied tasks like robot manipulation, but the paper only benchmarks static ScanNet scenes.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. The paper introduces 3D-LLaVA, a 3D large multimodal model built around a single Omni Superpoint Transformer (OST) that serves as a visual feature selector, a visual prompt encoder, and a referring mask decoder. The model takes only point clouds as input, uses superpoint pooling and a top-K objectness-based token selection to obtain visual tokens for the LLM, and decodes a [SEG] token into a 3D mask through the frozen OST. The OST and the Sparse 3D U-Net are pretrained with instance segmentation plus 2D-to-3D feature distillation, and the whole system is instruction-tuned on ScanRefer, Nr3D, Multi3DRefer, ScanQA, SQA3D, and Scan2Cap. Experiments report results on ScanRefer, Multi3DRefer, ScanQA, SQA3D, and Scan2Cap, with the strongest gains on referring segmentation and ScanQA CiDEr.

Significance. If the central claim holds, the paper is a useful step toward unified 3D LMMs: a single point-cloud-based connector can replace offline multi-view feature extraction and task-specific heads for referring segmentation, visual prompting, and mask decoding. The architecture is clean, the code is released, and the evaluation protocol uses standard train/validation splits with held-out test sets, so I found no circularity in the evaluation. The strongest evidence is the referring-segmentation performance (43.3% mIoU on ScanRefer and 42.7% on Multi3DRefer) and the 92.6% CiDEr on ScanQA, obtained without the 2D instance features used by Chat-Scene. However, the query-blind top-100 objectness selection and the use of Mask3D proposals for dense captioning are not adequately validated, and the blanket SOTA claim is not supported by the paper's own table. These issues are fixable but need to be addressed before the central claims can be accepted.

major comments (4)
  1. [Section 3.3 (Visual Feature Selection) and Table 5] The top-K=100 superpoint selection is query-blind: the objectness score is the maximum foreground-class logit from a ScanNet200 classifier computed before the language instruction is seen, and any superpoint outside the top 100 is irrecoverable. This is a load-bearing bottleneck for referring segmentation because the LLM can never ground a [SEG] token to a discarded target, and Section 3.4 states that the Sparse 3D U-Net and OST are kept frozen during instruction tuning, so the selection cannot be adapted by the downstream data. Table 5 sweeps the token count only on ScanQA and Scan2Cap, where global scene statistics and large objects dominate; it does not measure target recall on ScanRefer or Multi3DRefer. I request a recall analysis (fraction of referred objects whose superpoints are among the top K) and a K-ablation on the referring-segmentation mIoU. Without this, the reported 43.3% and 42.7% mIoU are unverified upper bounds set by the selection step.
  2. [Section 4.3 (3D Dense Captioning)] The dense captioning experiment uses Mask3D-predicted mask proposals as visual prompts. This is an external task-specific proposal generator applied at inference, which is in tension with the paper's stated contribution of removing offline preprocessing and task-specific heads. The claim that the pipeline 'only takes point clouds as input' is technically true at the modality level, but it does not address the extra module. Please clarify whether Mask3D is part of the deployed system, report results without Mask3D (e.g., using ground-truth boxes or a simple unsupervised grouping), and discuss how the Scan2Cap comparison is affected for methods that do not use an external proposal generator.
  3. [Abstract, Introduction, and Table 2] The claim of state-of-the-art performance on all evaluated datasets is contradicted by Table 2. On SQA3D, Chat-Scene achieves EM 54.6 versus 54.5 for 3D-LLaVA; on Scan2Cap, Chat-Scene achieves METEOR 28.0 versus 27.1 and Rouge-L 58.1 versus 57.7. The text should report per-metric wins and losses rather than stating blanket SOTA, and the Figure 1 caption ('most of the benchmarks') should be aligned with the main text.
  4. [Section 3.4, Eq. (2)] The hybrid pretraining objective combines classification, mask, and 2D-to-3D distillation losses, and the distillation is motivated as a bridge for language alignment. Yet no experiment isolates L_KD: there is no ablation trained without distillation or without the instance-segmentation supervision. Given that the 2D teacher (CLIP-ViT-L via LLaVA-1.5) is an external component and a stated source of alignment, its contribution should be quantified. I consider this a missing experiment rather than a flaw in the derivation, but it is needed to support the design choice.
minor comments (6)
  1. [Section 3.3] The text says 'the objections score of each superpoint query'; this should be 'objectness score'.
  2. [Section 3.4] The subsection heading uses 'pre-training' but the text contains 'pretaining' (e.g., 'at the pertaining stage'); please correct the typo.
  3. [Table 4] The metric name 'Rough-L' should be 'Rouge-L' for consistency with Table 2 and the main text.
  4. [Section 4.3] The benchmark name 'Scanerfer' in the sentence 'the single-target setting (Scanerfer [7])' should be 'ScanRefer'.
  5. [Section 3.2, Eq. (1)] Please clarify the definition of D in Eq. (1): is it the Euclidean distance between superpoint centroids, and is the softmax computed over all superpoint queries? Also state how the learnable scale sigma is initialized.
  6. [Section 4.2] The implementation details do not report the number of training seeds or whether results are from a single run; adding error bars or at least an explicit statement about single-run results would help assess stability.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the central claims are supported by held-out benchmark evaluations, not by definitions or fitted predictions.

full rationale

The paper is an empirical systems paper: the claimed contribution is that a single Omni Superpoint Transformer (OST) can serve as visual feature selector, visual prompt encoder, and referring mask decoder, and this is validated on standard external benchmarks (ScanRefer, Multi3DRefer, ScanQA, SQA3D, Scan2Cap) using held-out validation/test splits and standard metrics. No derived quantity is defined in terms of the quantity it is said to predict: the top-K objectness-based token selection is a fixed architectural design choice, and the only related study (Table 5) is an ablation of token count, not a fit of test metrics. The mask decoding path uses the frozen OST with a [SEG] query, and its outputs are scored against external ground-truth masks. There is no fitted parameter that is later renamed as a prediction, no uniqueness theorem imported from the authors' own prior work, and no load-bearing self-citation: the cited prior work overlapping with the authors (e.g., Agent3D-Zero) appears only in related-work context and does not justify the paper's core claims. The known weakness of query-blind top-100 pruning is a potential correctness or generalization risk, not a circularity, because the benchmark numbers would still be independent evidence even if the selection rule is suboptimal. Accordingly, no circular step can be exhibited and the circularity score is 0.

Assumptions & free parameters 3 free parameters · 3 assumptions · 0 invented entities

The central results depend on a few hand-chosen hyperparameters and several domain assumptions about the quality of superpoint clustering, 2D-to-3D distillation, and objectness ranking. None of these are validated with ablations beyond the token-number study in Table 5.

free parameters (3)
  • Top-K visual tokens (K) = 100
    Number of superpoint features retained by objectness score, chosen by hand after ablating 50/100/200/400 tokens (Table 5). This directly controls what the LLM can see.
  • Mask loss coefficient = 0.1
    Weight of L_mask in the instruction tuning objective (Eq. 3), chosen by hand for loss balance and not ablated.
  • Pretraining epochs = 512
    Number of epochs for stage-1 pretraining of the 3D encoder and OST; hand-set without reported ablation or sensitivity analysis.
assumptions (3)
  • domain assumption CLIP-ViT-L features lifted from 2D to 3D via geometric correspondence provide reliable dense semantic supervision for superpoint pretraining.
    Section 3.4 Stage 1 uses L_KD with teacher features from LLaVA-1.5/CLIP; no ablation isolates this component, and CLIP patch features are not dense per-pixel semantic labels.
  • domain assumption Superpoint clustering (bottom-up algorithm from [38]) yields segments that align with object instances sufficiently for mask decoding.
    The whole pipeline operates on superpoints; if clustering straddles object boundaries, mask quality degrades. The paper relies on the prior method without validating on their data.
  • domain assumption Objectness scores from a classifier trained on ScanNet200 categories generalize to all objects queried by ScanRefer, Multi3DRefer, ScanQA, SQA3D, and Scan2Cap.
    Top-K selection (Section 3.3) keeps only the 100 highest-objectness superpoints; if a target object is not well-represented in ScanNet200, it may be discarded before the LLM sees it.

how reviews work

0 comments
Cite this review

Pith. "Pith review of 3D-LLaVA: Towards Generalist 3D LMMs with Omni Superpoint Transformer." pith.science (2026). https://pith.science/paper/5H7ZOZK6

@misc{pith2026250101163,
  author       = {Pith},
  title        = {Pith review of: 3D-LLaVA: Towards Generalist 3D LMMs with Omni Superpoint Transformer},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/5H7ZOZK6}},
  note         = {Machine review of arXiv:2501.01163}
}
read the original abstract

Current 3D Large Multimodal Models (3D LMMs) have shown tremendous potential in 3D-vision-based dialogue and reasoning. However, how to further enhance 3D LMMs to achieve fine-grained scene understanding and facilitate flexible human-agent interaction remains a challenging problem. In this work, we introduce 3D-LLaVA, a simple yet highly powerful 3D LMM designed to act as an intelligent assistant in comprehending, reasoning, and interacting with the 3D world. Unlike existing top-performing methods that rely on complicated pipelines-such as offline multi-view feature extraction or additional task-specific heads-3D-LLaVA adopts a minimalist design with integrated architecture and only takes point clouds as input. At the core of 3D-LLaVA is a new Omni Superpoint Transformer (OST), which integrates three functionalities: (1) a visual feature selector that converts and selects visual tokens, (2) a visual prompt encoder that embeds interactive visual prompts into the visual token space, and (3) a referring mask decoder that produces 3D masks based on text description. This versatile OST is empowered by the hybrid pretraining to obtain perception priors and leveraged as the visual connector that bridges the 3D data to the LLM. After performing unified instruction tuning, our 3D-LLaVA reports impressive results on various benchmarks.

Figures

Figures reproduced from arXiv: 2501.01163 by the authors.

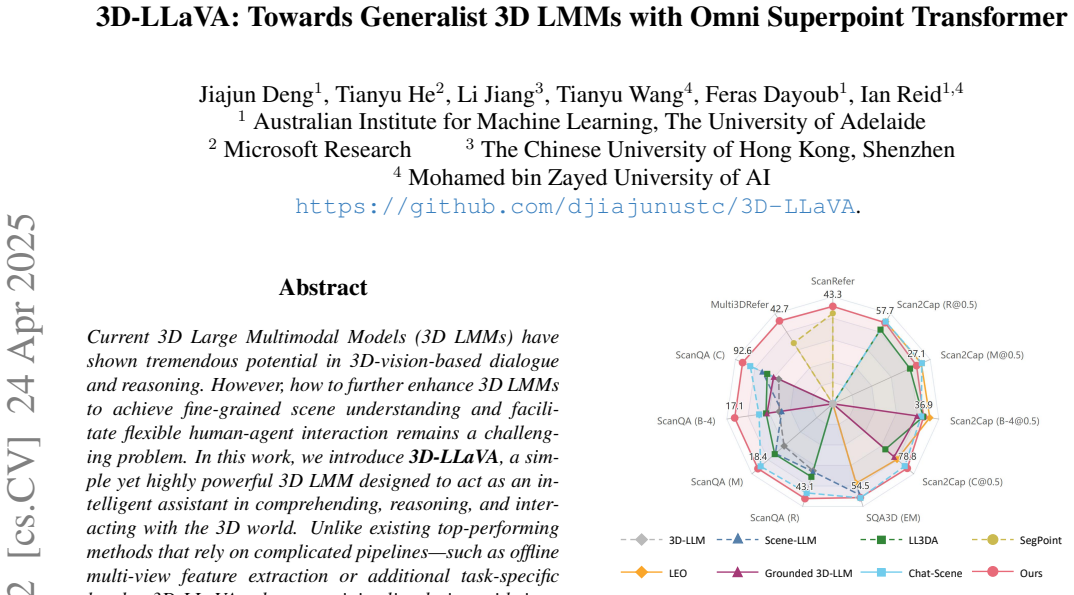

Figure 1
Figure 1. An intuitive comparison between 3D-LLaVA and other [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. An overview of 3D-LLaVA framework. Given input point cloud, language instruction, and optional visual prompt, 3D-LLaVA [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. An illustration of (a) the architecture of Omni Superpoint [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (2 more)
Figure 4
Figure 4. Figure 4: Different paradigms to produce visual prompt embed [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5
Figure 5. Figure 5: Visualization of 3D-LLaVA’s response on various tasks. [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
