Do VLMs Reason Like Engineers? A Benchmark and a Stage-wise Evaluation

T0 review · 2 major / 2 minor · reviewed 2026-06-27 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Vision-language models exhibit substantial limitations in engineering reasoning on the EngVQA benchmark.

desk verdict EngVQA adds a new engineering-focused benchmark and 8-stage scoring for VLMs, with good human agreement, but the stages' completeness is not independently checked. read the letter →

arxiv 2606.10833 v1 pith:5JEH3MVI submitted 2026-06-09 cs.AI

Syed Wasiq , Syed Mohamad Tawseeq , Yashwant Pravinrao Bangde , Debaditya Roy This is my paper · ORCID
classification cs.AI
keywords vision-languagemodelsengineeringreasoningmultimodalbenchmarkstage-wiseevaluationproblemsolvingtechnicaldiagramsartificialintelligence
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper introduces the EngVQA benchmark containing 696 problems across five engineering subjects to test how well vision-language models handle tasks that require reading technical diagrams, selecting physical principles, and producing physically consistent multi-step solutions. It pairs the benchmark with an 8-stage automatic evaluation framework that scores each part of a generated solution independently instead of checking only the final answer. A sympathetic reader would care because engineering applications in education and technical assistance can produce superficially plausible but physically invalid outputs when intermediate reasoning fails. The results demonstrate clear limitations in current models. Human graders agree strongly with the automated scores, with a Pearson correlation of 0.975.

What carries the argument

The 8-stage automatic evaluation framework that independently scores each phase of an engineering solution, from diagram interpretation through physical principle selection to final verification.

What would settle it

A large collection of VLM-generated solutions where the automated stage scores differ substantially from scores assigned by expert human graders would show the framework does not reliably capture engineering reasoning quality.

Watch

Extended reading notes

Core claim

The paper claims that state-of-the-art VLMs exhibit substantial limitations in engineering reasoning capabilities, as shown by their performance on the EngVQA benchmark using the 8-stage evaluation framework. The benchmark covers five engineering subjects and 696 problems, and the framework enables fine-grained analysis by evaluating each stage of the solution process separately.

Load-bearing premise

The 8-stage decomposition of engineering problem solving is both exhaustive and independently scorable by an automated system without requiring human judgment for each stage.

Editorial extensions

If this is right

  • Benchmarks that score only final answers miss the specific stages where VLMs break down in engineering tasks.
  • Process-oriented evaluation becomes necessary for any VLM system used in engineering education or technical decision support.
  • The 696-problem EngVQA set provides a concrete testbed for measuring progress on diagram interpretation and multi-step physical consistency.
  • High agreement between the automated framework and human graders supports scaling this evaluation method to larger model assessments.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same stage-wise approach could be adapted to evaluate reasoning in related technical fields such as physics problem solving or circuit design.
  • Models that fail early stages like diagram reading may require targeted training on technical visuals before attempting full solutions.
  • General multimodal benchmarks may systematically overestimate VLM readiness for domains that demand physically valid intermediate steps.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 2 minor

Summary. The paper introduces EngVQA, a multimodal benchmark with 696 engineering problems across 5 subjects, paired with a novel 8-stage automatic evaluation framework that scores VLM solutions stage-by-stage rather than solely on final answers. It benchmarks multiple open- and closed-source VLMs, reports substantial limitations in their engineering reasoning, and validates the automated framework via strong human agreement (Pearson 0.975, MAE 0.67 on a 10-point scale).

Significance. If the 8-stage framework proves both exhaustive and independently scorable, the work supplies a process-oriented diagnostic tool that could meaningfully advance evaluation of VLMs for technical domains where physically consistent multi-step reasoning matters. The emphasis on intermediate stages over final-answer accuracy is a clear methodological strength.

major comments (2)
  1. [§4] §4 (8-stage framework description): the central claim of 'substantial limitations' and the fine-grained failure analysis rest on the assumption that the chosen 8 stages are exhaustive and independently machine-scorable; the reported Pearson/MAE agreement is only with overall human grades and does not test coverage of omitted elements such as assumption checking, unit consistency, or iterative refinement, nor does it demonstrate that inter-stage dependencies permit truly independent scoring.
  2. [§3] §3 (benchmark construction): no details are supplied on how the 696 problems were generated or validated, nor on inter-rater reliability specifically for the stage labels themselves; without this, the soundness of the per-stage scores used to support the headline conclusion remains under-specified.
minor comments (2)
  1. [§5] The abstract and §5 report aggregate VLM scores but do not include per-stage breakdown tables or error bars; adding these would improve interpretability of the failure-mode claims.
  2. [§4] Notation for the automated scoring function (presumably defined in §4) should be made fully explicit so that the independence assumption can be directly inspected.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive comments. We provide point-by-point responses to the major comments and indicate the revisions we will make to address them.

read point-by-point responses

  1. Referee: [§4] §4 (8-stage framework description): the central claim of 'substantial limitations' and the fine-grained failure analysis rest on the assumption that the chosen 8 stages are exhaustive and independently machine-scorable; the reported Pearson/MAE agreement is only with overall human grades and does not test coverage of omitted elements such as assumption checking, unit consistency, or iterative refinement, nor does it demonstrate that inter-stage dependencies permit truly independent scoring.

    Authors: We appreciate the referee pointing out the need for stronger validation of the 8-stage framework. The stages were selected to represent a canonical engineering reasoning pipeline based on established problem-solving literature. The human evaluation agreement supports the reliability of the overall scores, but we acknowledge that it does not directly validate stage exhaustiveness or independence. In the revised manuscript, we will expand §4 to include: (1) a detailed rationale for the 8 stages with references to engineering education standards, (2) an analysis of inter-stage score correlations to assess independence, and (3) a discussion of potential omitted elements (e.g., assumption checking) with examples of how they might be incorporated in future extensions. We believe this will address the concern while maintaining the framework's utility as a diagnostic tool. revision: yes

  2. Referee: [§3] §3 (benchmark construction): no details are supplied on how the 696 problems were generated or validated, nor on inter-rater reliability specifically for the stage labels themselves; without this, the soundness of the per-stage scores used to support the headline conclusion remains under-specified.

    Authors: We agree that additional details on benchmark construction are necessary for reproducibility and to support the validity of the stage labels. The 696 problems were collected from publicly available engineering textbooks, homework sets, and exam questions across the five subjects, then filtered and adapted for multimodal format by the authors with input from engineering faculty. For stage labels, a subset of 100 problems was independently labeled by two domain experts, with disagreements resolved through discussion. We will add a new subsection in §3 describing the problem curation process, inclusion criteria, and inter-rater reliability (e.g., percentage agreement and Cohen's kappa for stage assignments). This information was omitted due to space constraints but will be included in the revision. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: new benchmark and framework are self-contained contributions

full rationale

The paper introduces EngVQA (696 problems across 5 subjects) and an 8-stage automatic evaluation framework as original contributions. Reported VLM limitations follow directly from applying this framework, with independent validation via human agreement (Pearson 0.975, MAE 0.67 on 10-point scale). No equations, fitted parameters, self-citations, or derivations reduce any result to prior inputs by construction. The framework is presented as a novel process-oriented method rather than derived from or equivalent to existing self-referential elements. The exhaustiveness concern raised in the skeptic note pertains to validity/coverage rather than circular reduction.

Assumptions & free parameters 0 free parameters · 1 assumptions · 0 invented entities

The work rests on the domain assumption that engineering reasoning can be usefully decomposed into eight independent, automatically scorable stages and that the 696 problems are representative of real engineering tasks.

assumptions (1)
  • domain assumption Engineering problem solving decomposes into eight independent stages that can be evaluated separately by an automated system.
    The 8-stage framework is presented as the core evaluation method without further justification in the abstract.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Do VLMs Reason Like Engineers? A Benchmark and a Stage-wise Evaluation." pith.science (2026). https://pith.science/paper/5JEH3MVI

@misc{pith2026260610833,
  author       = {Pith},
  title        = {Pith review of: Do VLMs Reason Like Engineers? A Benchmark and a Stage-wise Evaluation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/5JEH3MVI}},
  note         = {Machine review of arXiv:2606.10833}
}
read the original abstract

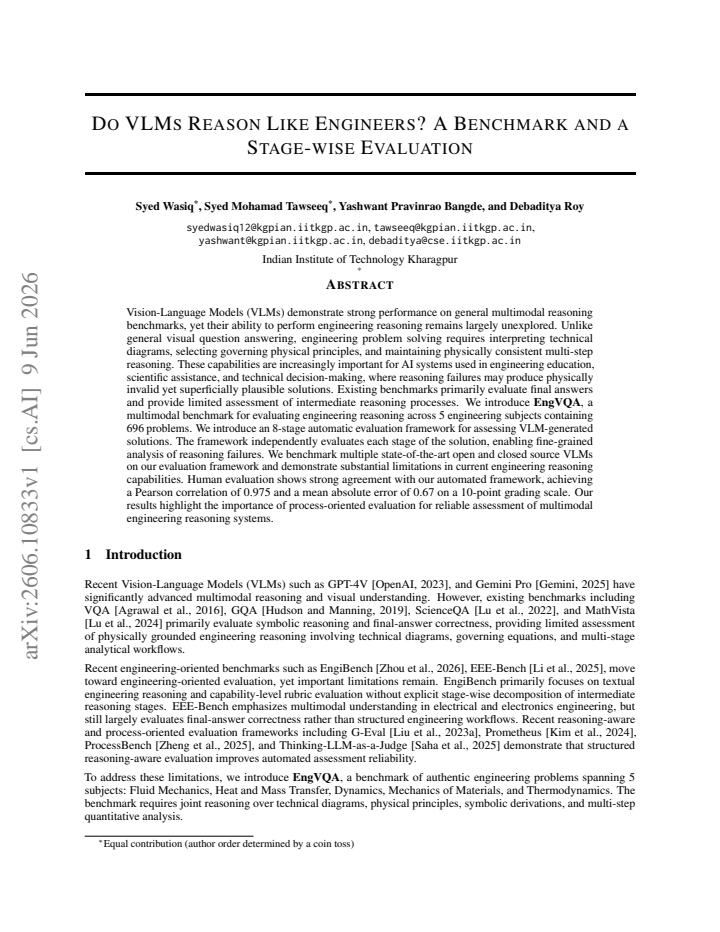

Vision-Language Models (VLMs) demonstrate strong performance on general multimodal reasoning benchmarks, yet their ability to perform engineering reasoning remains largely unexplored. Unlike general visual question answering, engineering problem solving requires interpreting technical diagrams, selecting governing physical principles, and maintaining physically consistent multi-step reasoning. These capabilities are increasingly important for AI systems used in engineering education, scientific assistance, and technical decision-making, where reasoning failures may produce physically invalid yet superficially plausible solutions. Existing benchmarks primarily evaluate final answers and provide limited assessment of intermediate reasoning processes. We introduce EngVQA, a multimodal benchmark for evaluating engineering reasoning across 5 engineering subjects containing 696 problems. We introduce an 8-stage automatic evaluation framework for assessing VLM-generated solutions. The framework independently evaluates each stage of the solution, enabling fine-grained analysis of reasoning failures. We benchmark multiple state-of-the-art open and closed source VLMs on our evaluation framework and demonstrate substantial limitations in current engineering reasoning capabilities. Human evaluation shows strong agreement with our automated framework, achieving a Pearson correlation of 0.975 and a mean absolute error of 0.67 on a 10-point grading scale. Our results highlight the importance of process-oriented evaluation for reliable assessment of multimodal engineering reasoning systems.

Figures

Figures reproduced from arXiv: 2606.10833 by the authors.

Figure 1

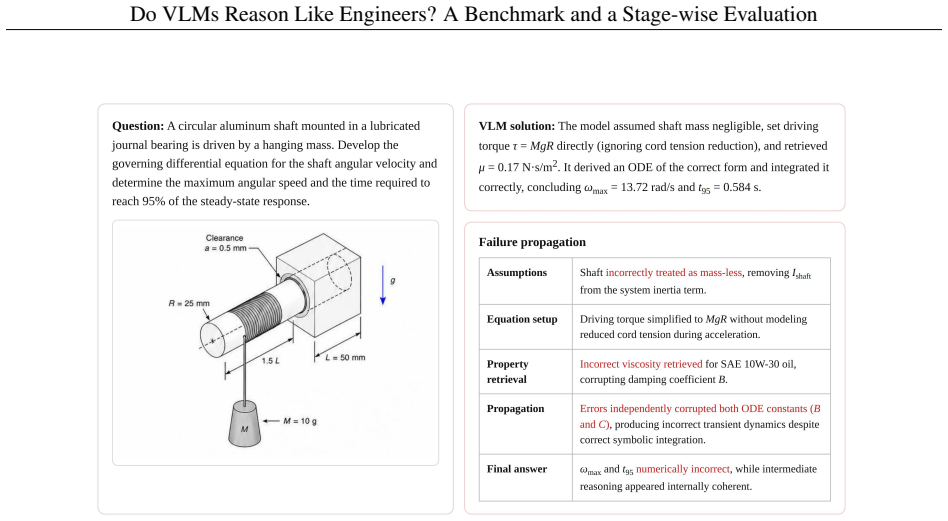

Figure 1. A representative example problem with LLM generated solution showing error propagation from incorrect [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

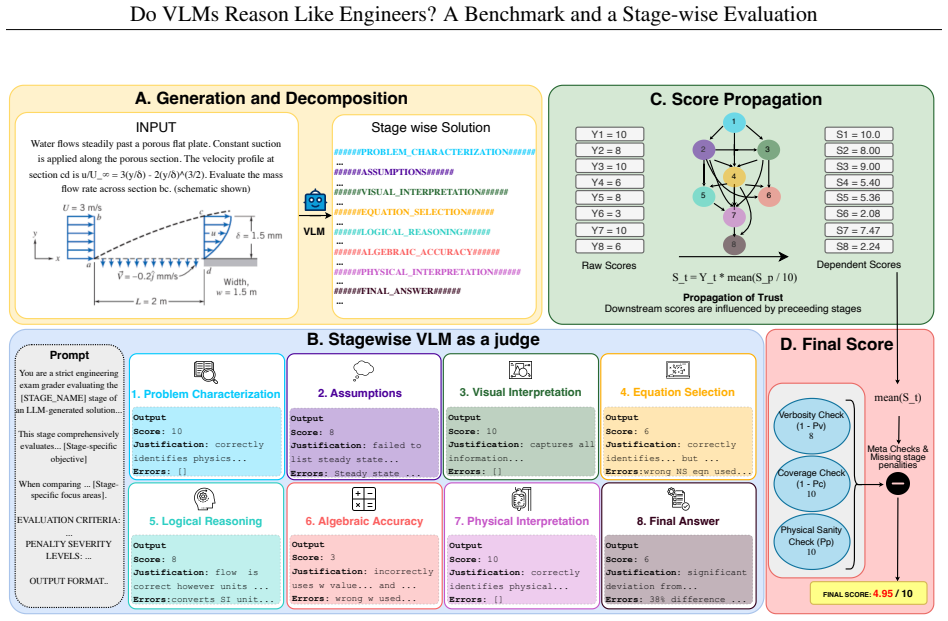

Figure 2. Overview of the proposed EngJudge evaluation framework. A. VLM generates a structured step-wise solution [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

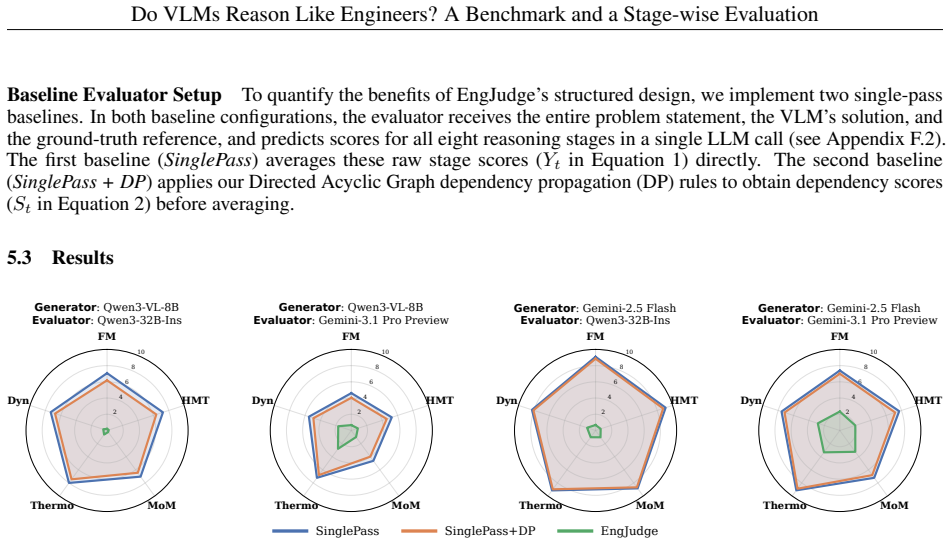

Figure 3
Figure 3. Cross-evaluator comparison across the five engineering subjects in EngVQA. Each radar plot represents a [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (18 more)

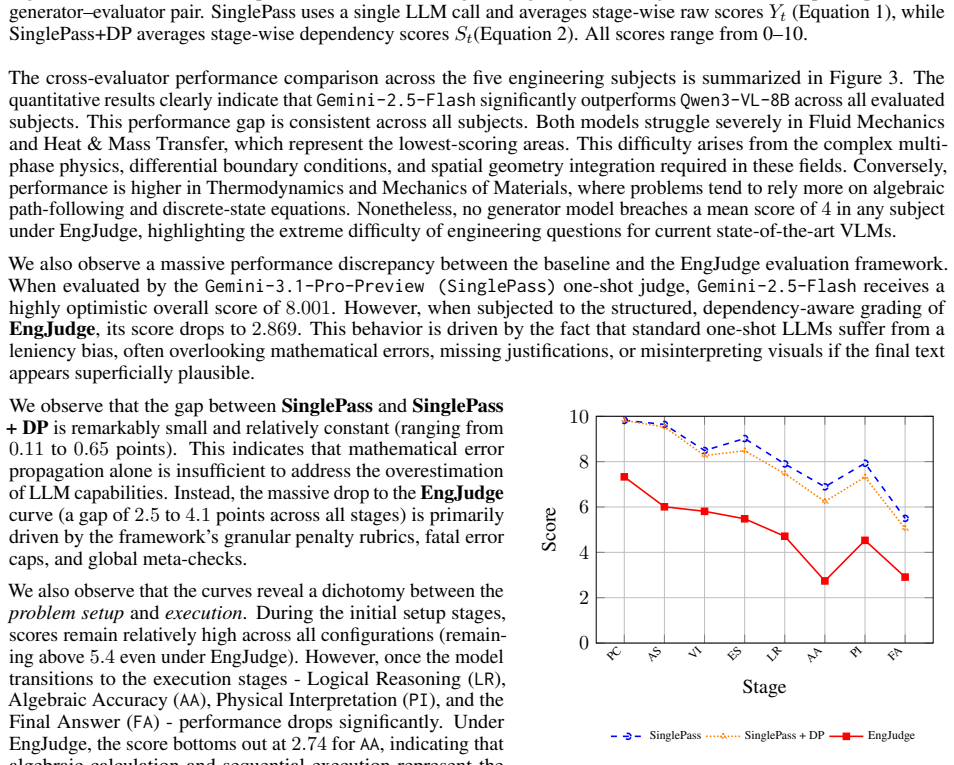

Figure 4
Figure 4. Figure 4: Stage-wise scores. We observe that the gap between SinglePass and SinglePass + DP is remarkably small and relatively constant (ranging from 0.11 to 0.65 points). This indicates that mathematical error propagation alone is insufficient to address the overestimation of L…

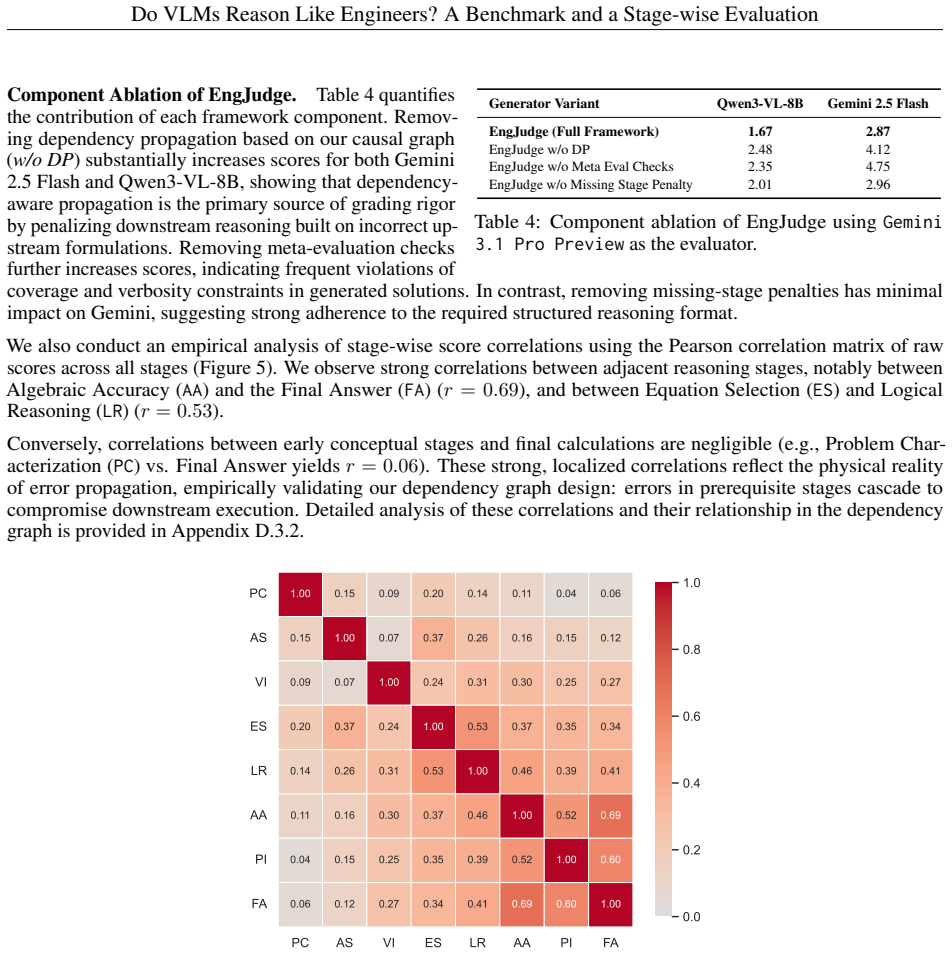

Figure 5
Figure 5. Figure 5: Pearson correlation matrix between stage-wise raw scores. [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6

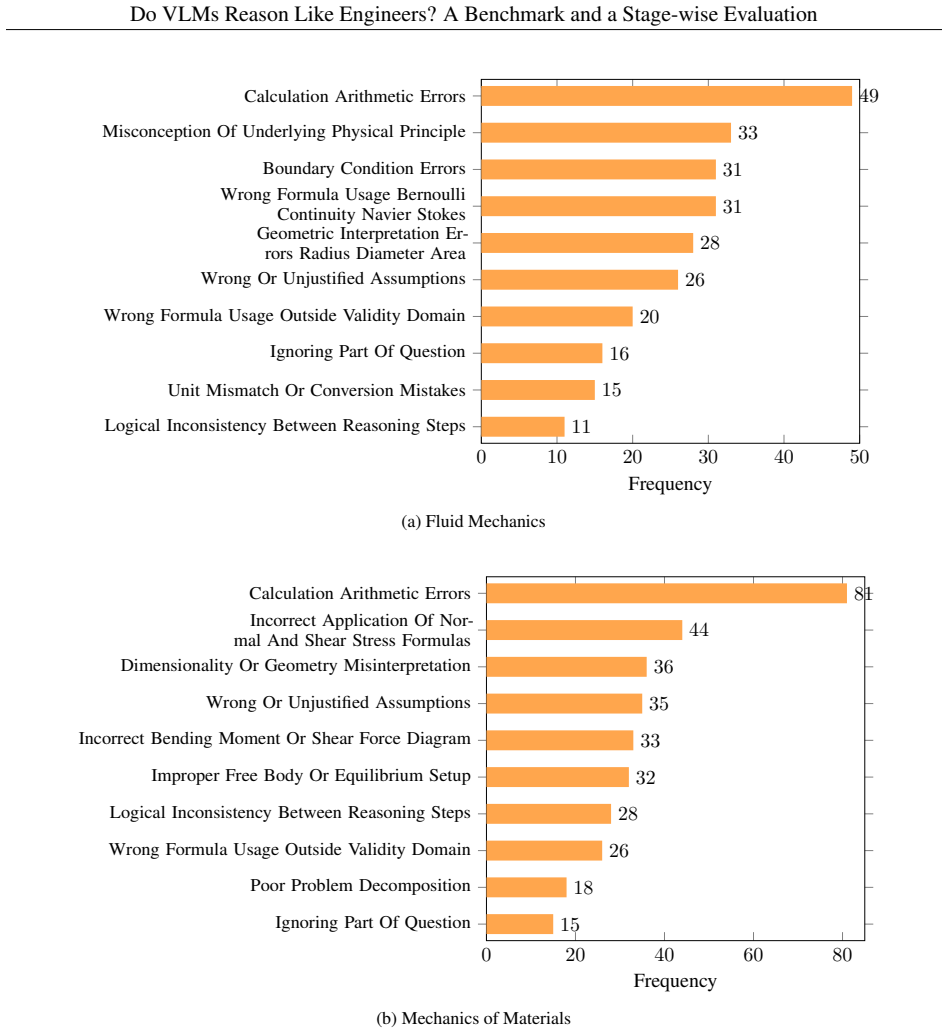

Figure 6. Figure 6: Most frequent error categories across representative engineering domains. Arithmetic-related failures are [PITH_FULL_IMAGE:figures/full_fig_p013_6.png]
Figure 7

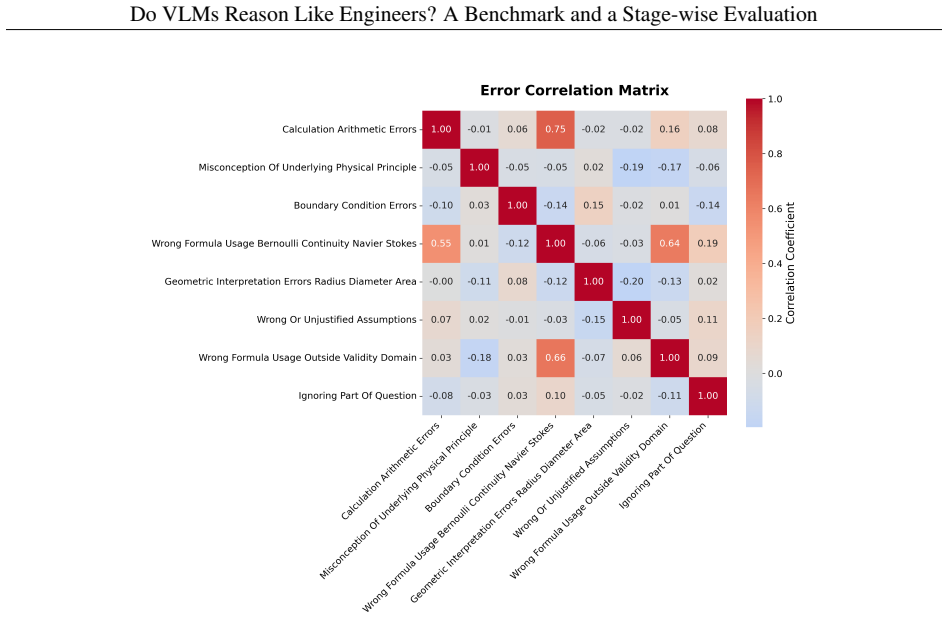

Figure 7. Figure 7: Error correlation matrix for Fluid Mechanics. Most off-diagonal entries are near zero, confirming step [PITH_FULL_IMAGE:figures/full_fig_p014_7.png]
Figure 8

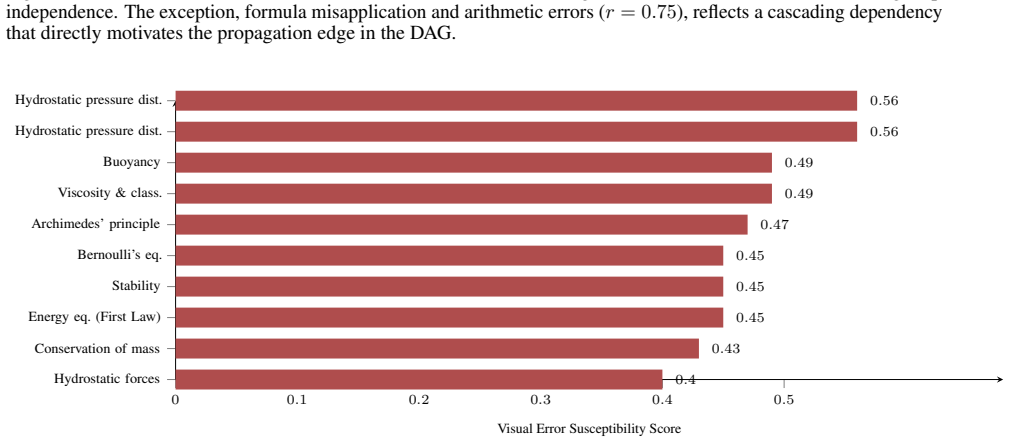

Figure 8. Figure 8: Topics with highest visual error susceptibility scores (Fluid Mechanics). Scores above [PITH_FULL_IMAGE:figures/full_fig_p014_8.png]
Figure 9

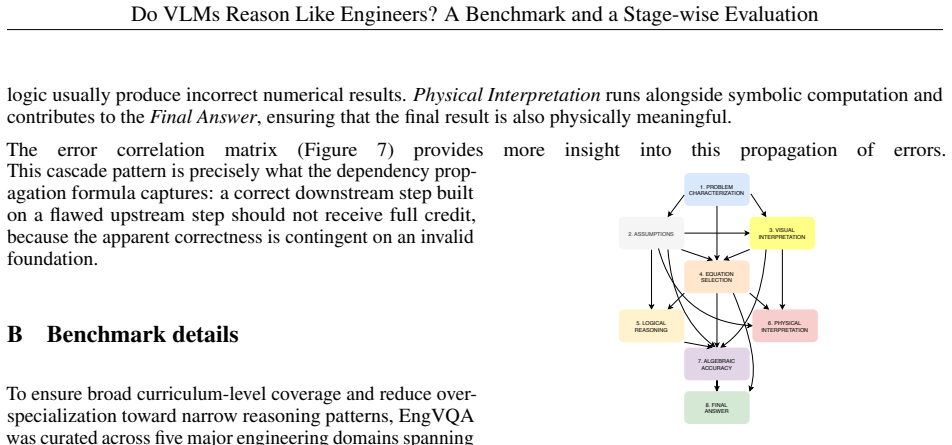

Figure 9. Figure 9: Dependency DAG structure used for trust prop [PITH_FULL_IMAGE:figures/full_fig_p015_9.png]
Figure 10

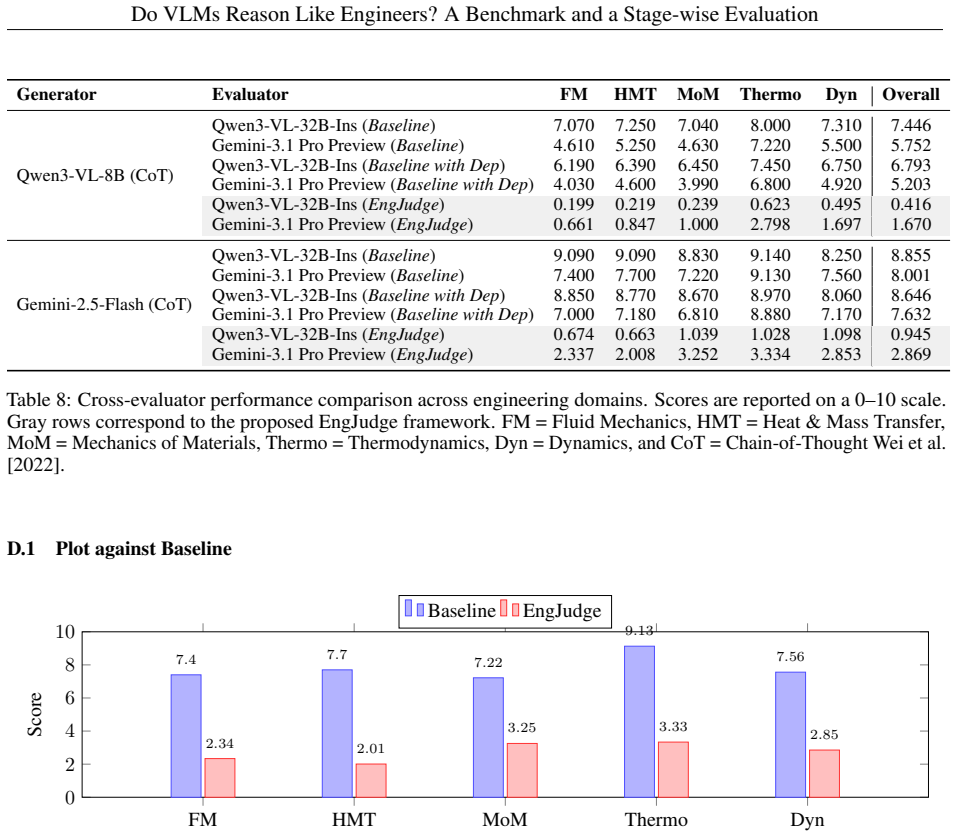

Figure 10. Figure 10: Comparison of baseline and EngJudge evaluation by [PITH_FULL_IMAGE:figures/full_fig_p020_10.png]
Figure 11

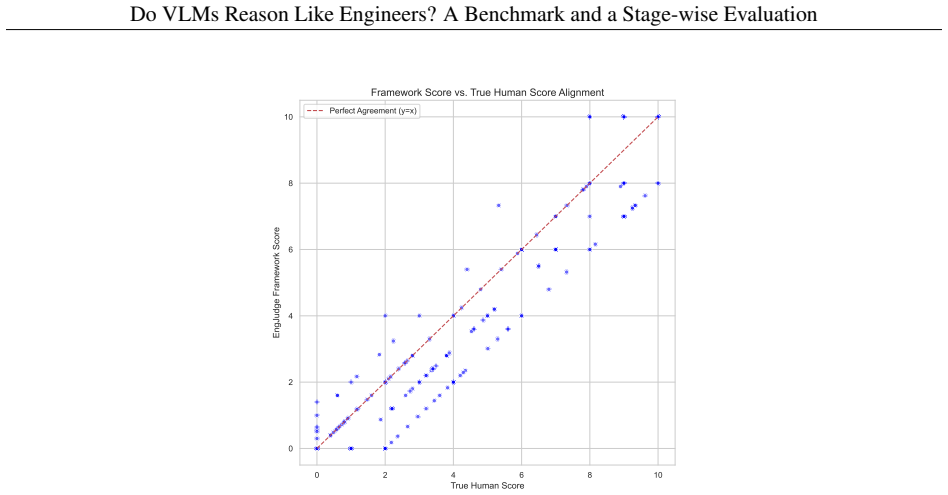

Figure 11. Figure 11: Alignment between synthetic human scores and automated our framework scores ( [PITH_FULL_IMAGE:figures/full_fig_p024_11.png]

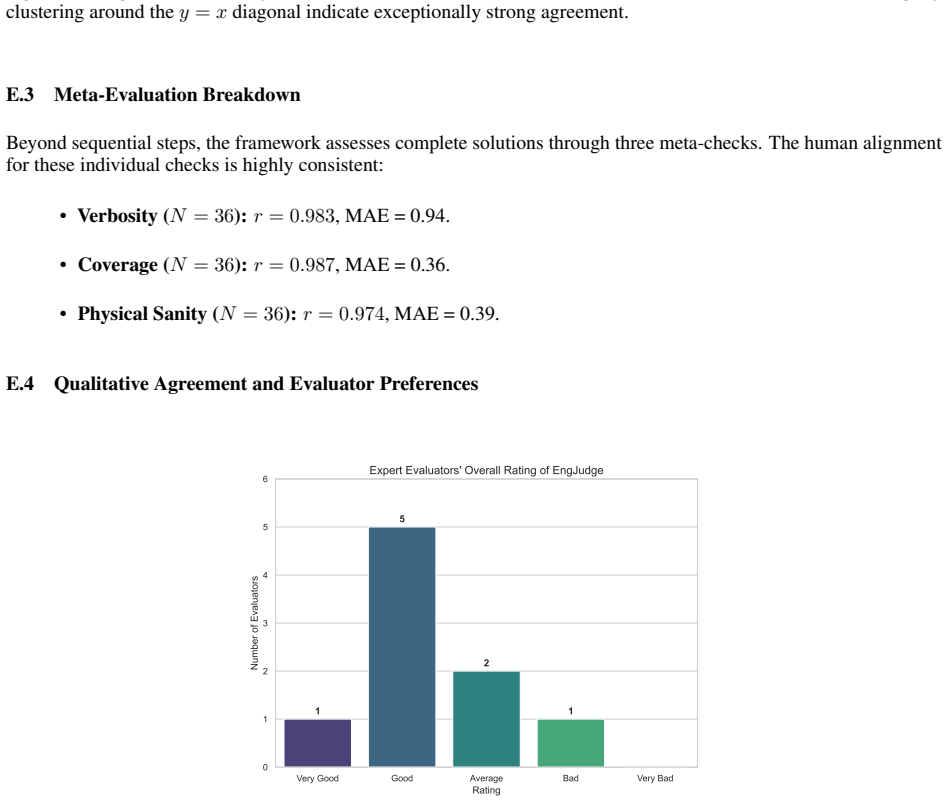

Figure 12
Figure 12. Figure 12: Distribution of overall framework ratings assigned by human expert evaluators. [PITH_FULL_IMAGE:figures/full_fig_p024_12.png]
Figure 13

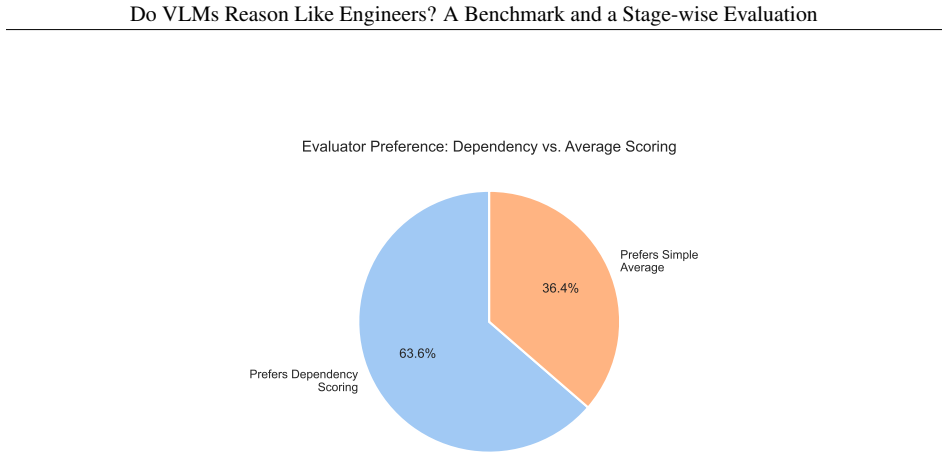

Figure 13. Figure 13: Evaluator preference for dependency-based scoring vs. a naive unweighted average. [PITH_FULL_IMAGE:figures/full_fig_p025_13.png]
Figure 14

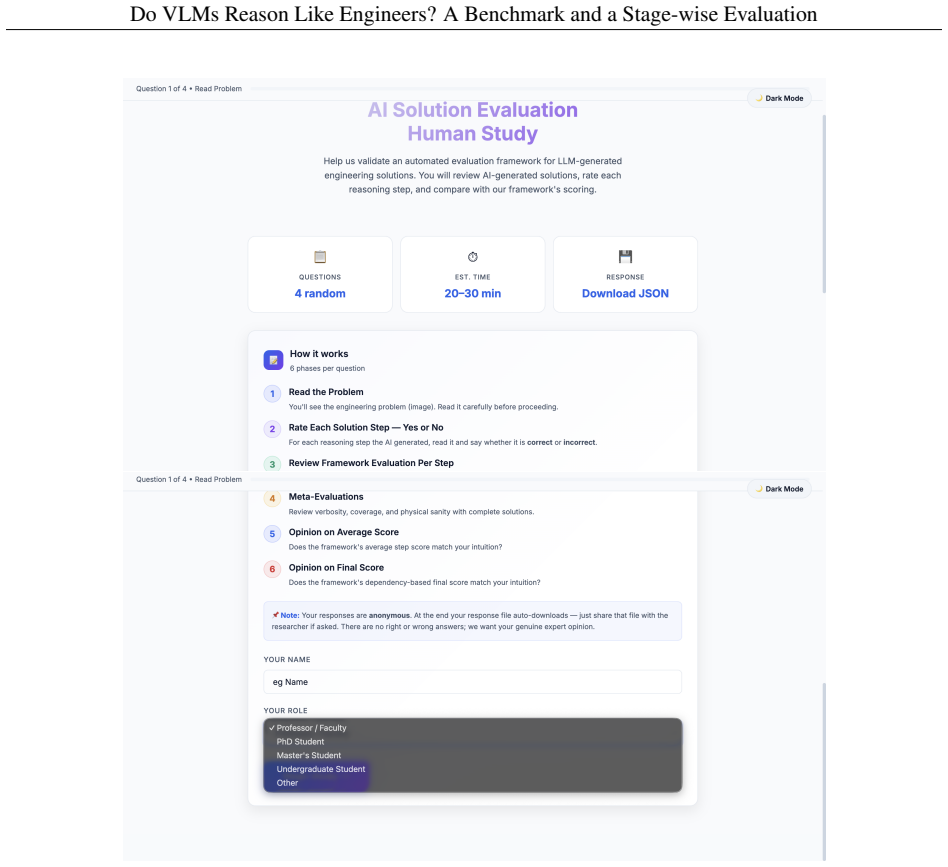

Figure 14. Figure 14: Introductory pages of annotation webpage. [PITH_FULL_IMAGE:figures/full_fig_p026_14.png]
Figure 15

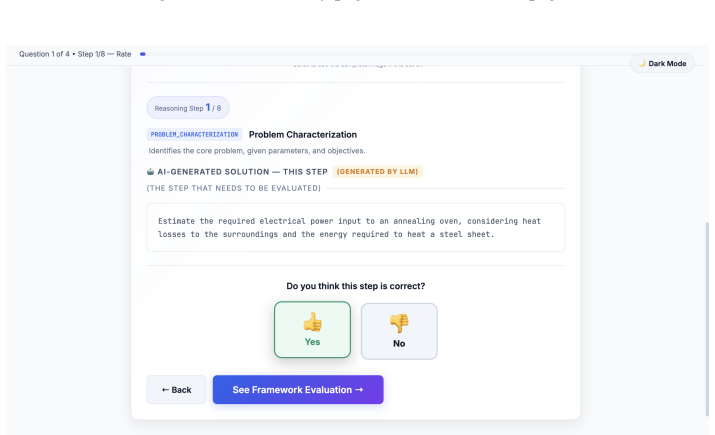

Figure 15. Figure 15: Users are asked to judge whether the LLM-generated solution step is correct or not for a given question. [PITH_FULL_IMAGE:figures/full_fig_p026_15.png]
Figure 16

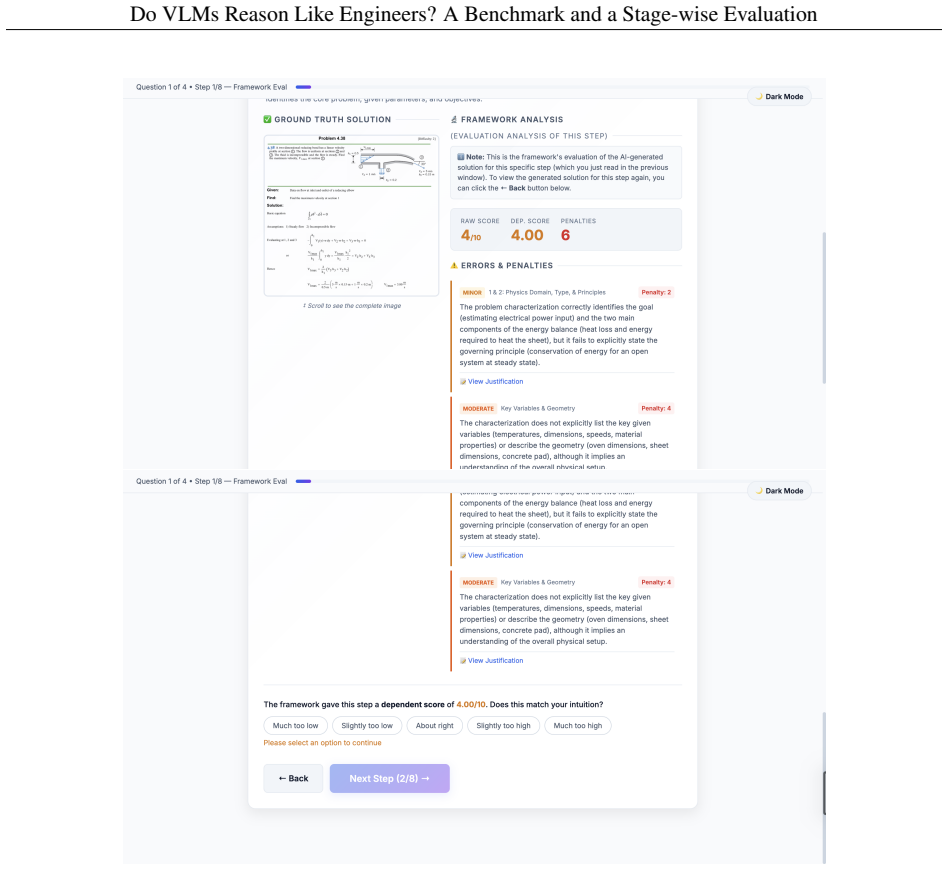

Figure 16. Figure 16: Users are shown the ground truth solution and the step evaluation of our framework. Users are required to [PITH_FULL_IMAGE:figures/full_fig_p027_16.png]

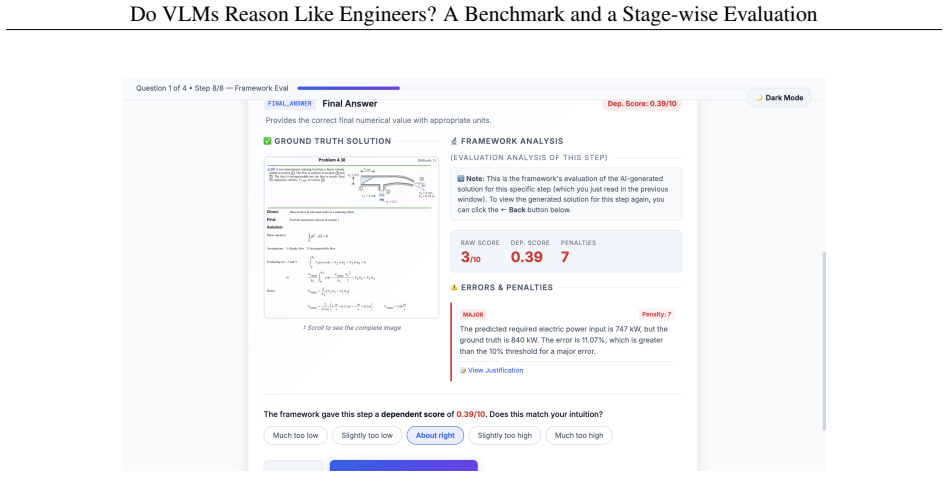

Figure 17
Figure 17. Figure 17: 8th stage (Final answer) and its evaluation is shown, and asked to rate. [PITH_FULL_IMAGE:figures/full_fig_p028_17.png]
Figure 18

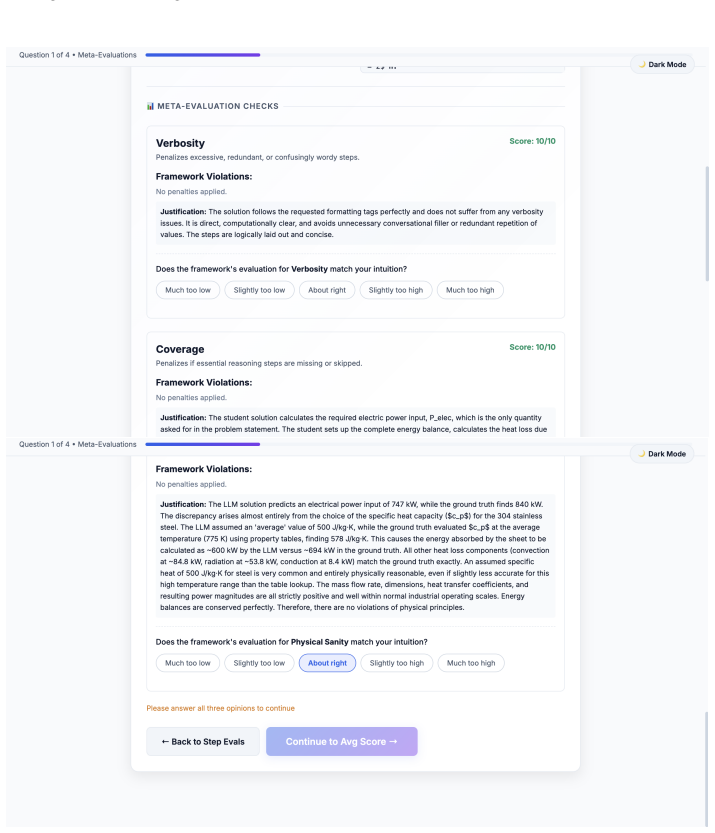

Figure 18. Figure 18: Meta evaluation checks are shown and asked to be rated. [PITH_FULL_IMAGE:figures/full_fig_p028_18.png]

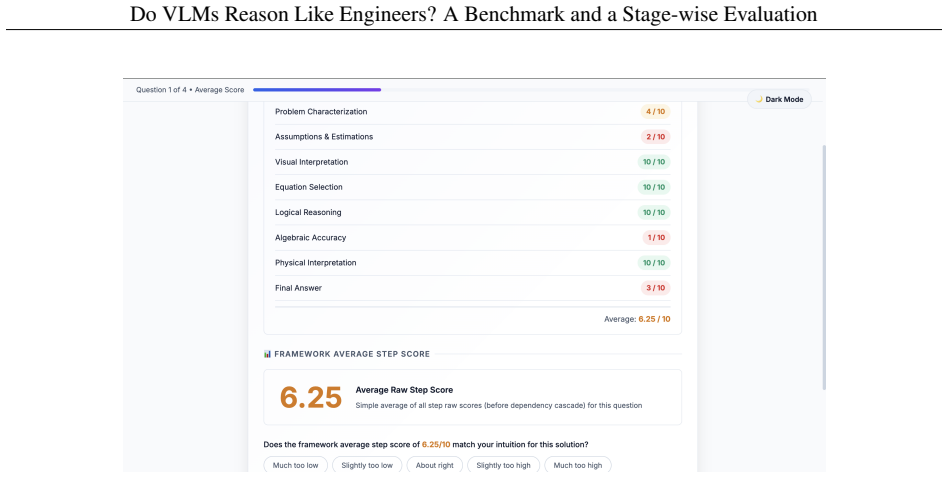

Figure 19
Figure 19. Figure 19: After 11 steps, final independent stage-wise scores are shown. Users are asked to choose if they feel that the [PITH_FULL_IMAGE:figures/full_fig_p029_19.png]

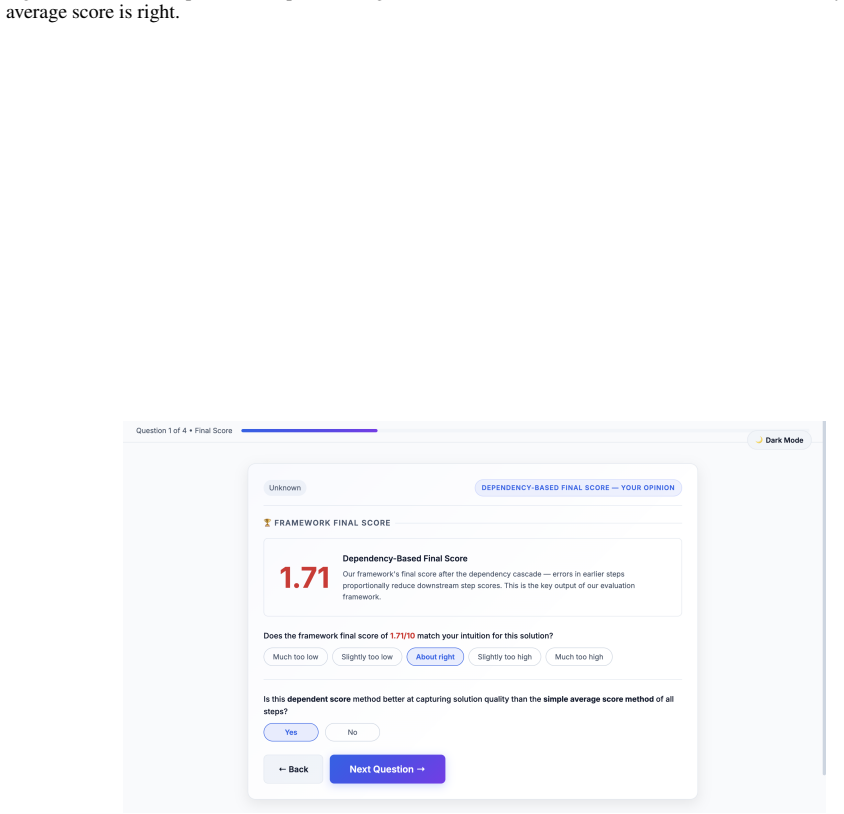

Figure 20
Figure 20. Figure 20: Users are asked their opinion about the dependency-based final score, and whether it is better than the simple [PITH_FULL_IMAGE:figures/full_fig_p029_20.png]
Figure 21

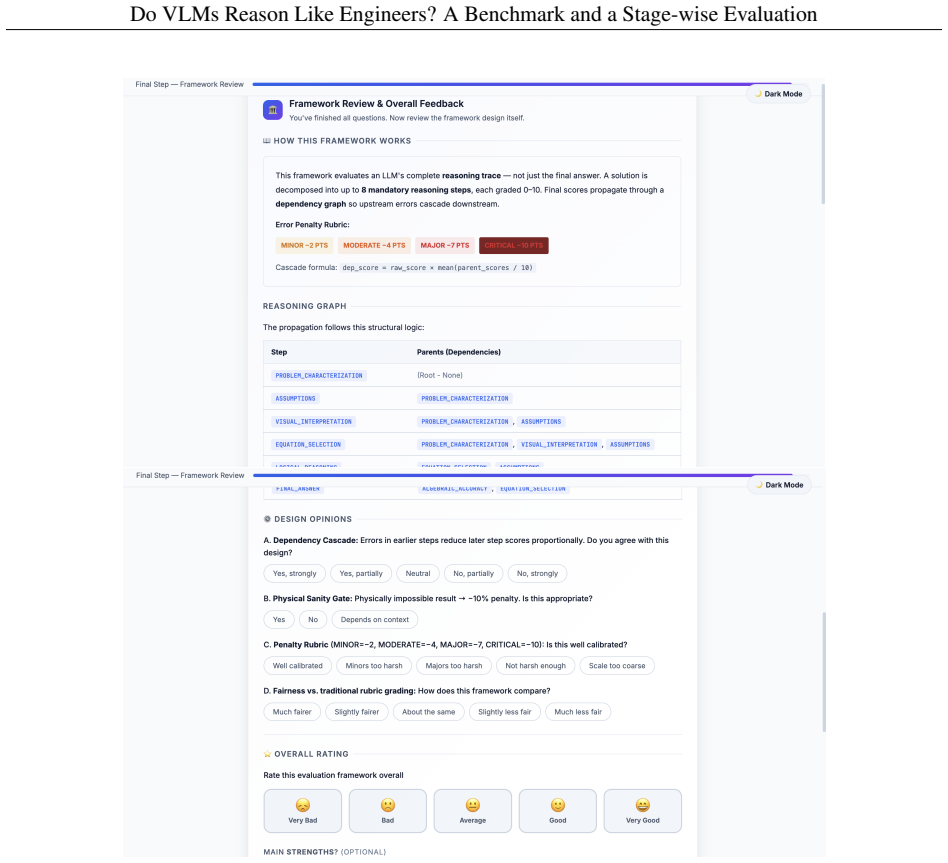

Figure 21. Figure 21: After all 4 questions, at the end, some framework-specific questions are asked. [PITH_FULL_IMAGE:figures/full_fig_p030_21.png]

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

48 extracted references · 1 canonical work pages

  1. [1]

    MathVista: Evaluating Mathematical Reasoning of Foundation Models in Visual Contexts

    URLhttps://arxiv.org/abs/2310.02255. Xiyuan Zhou, Xinlei Wang, Yirui He, Yang Wu, Ruixi Zou, Yuheng Cheng, Yulu Xie, Wenxuan Liu, Huan Zhao, Yan Xu, Jinjin Gu, and Junhua Zhao. Engibench: A benchmark for evaluating large language models on engineering problem solving, 2026. URLhttps://arxiv.org/abs/2509.17677. Ming Li, Jike Zhong, Tianle Chen, Yuxiang Lai...

    work page Pith review arXiv doi:10.1109/cvpr52734.2025.01245 2026

  2. [2]

    PROBLEM CHARACTERIZATION

  3. [3]

    VISUAL INTERPRETATION

    ASSUMPTIONS 3. VISUAL INTERPRETATION

  4. [4]

    PHYSICAL INTERPRETATION

  5. [5]

    LOGICAL REASONING Figure 9: Dependency DAG structure used for trust prop- agation across reasoning steps. This cascade pattern is precisely what the dependency prop- agation formula captures: a correct downstream step built on a flawed upstream step should not receive full credit, because the apparent correctness is contingent on an invalid foundation. B ...

  6. [6]

    The model was provided with the question statement, its master topic list, and the corresponding question diagram

  7. [7]

    The model selected all topics necessary to formulate or solve the problem

  8. [8]

    large surroundings

    To ensure data integrity and prevent hallucinated labels, the model’s output was processed by an automated validation script. The validator matched each output string against the master topic list using case-insensitive transformations and fuzzy string matching (with a similarity cutoff threshold of 0.85). Topics failing this validation check were discard...

    2023

Show all 48 references
  1. [9]

    Correlation:The DAG is designed to enforce direct, physical causal prerequisites

    Causality vs. Correlation:The DAG is designed to enforce direct, physical causal prerequisites. For example, a student can mathematically compute a correct final numerical answer (FA) via correct algebraic manipulation (AA) without necessarily understanding or explaining its p...

  2. [10]

    This shared dependency on common ancestors creates high statistical correlation (confounding) in the empirical data

    Confounding by Downstream Position:Later steps in the reasoning chain (such as AA, PI, and FA) are strongly correlated because they are co-dependent on the cumulative errors of early steps (likeAS and ES). This shared dependency on common ancestors creates high statistical cor...

  3. [11]

    Much too low

    Conceptual Independence in Rubrics:Conceptual reasoning (such as qualitative physical interpretation) and algebraic computation are graded as independent dimensions in standard engineering pedagogy. A model may fail the algebra but perform a correct physical limit check, or vi...

    1974

  4. [12]

    Steady state -- no time-dependent terms given

  5. [13]

    Constant k -- temperature range is small

  6. [14]

    ###### END_STEP ###### ###### VISUAL_INTERPRETATION ###### Extract from the diagram: dimensions, boundary conditions, material properties

    1D radial -- long pipe, neglect end effects Do NOT over-complicate. ###### END_STEP ###### ###### VISUAL_INTERPRETATION ###### Extract from the diagram: dimensions, boundary conditions, material properties. Be brief and factual. If no diagram, state geometry from the problem t...

  7. [15]

    PROBLEM_CHARACTERIZATION: Identifies the underlying physics, problem type, and governing principles

  8. [16]

    ASSUMPTIONS: Makes valid assumptions based on problem information with physical justification

  9. [17]

    VISUAL_INTERPRETATION: Correctly interprets diagrams, FBDs, geometric information, and visual constraints

  10. [18]

    EQUATION_SELECTION: Verifies correct governing equation, justified simplifications, appropriate coordinate system, correct BCs

  11. [19]

    LOGICAL_REASONING: Ensures logical validity and meaningful contribution of each reasoning step

  12. [20]

    ALGEBRAIC_ACCURACY: Evaluates derivation, numerical substitutions, algebraic manipulations, and expressions

  13. [21]

    PHYSICAL_INTERPRETATION: Evaluates whether the model interprets the final result physically

  14. [22]

    step_evaluations

    FINAL_ANSWER: Compares predicted answer with ground truth using strict numerical error thresholds. Compare the student's solution to the Ground Truth image provided. OUTPUT FORMAT: Your response MUST be a valid JSON object matching this exact structure: { "step_evaluations": [...

  15. [23]

    PHYSICS DOMAIN & PROBLEM TYPE - Is the correct branch of engineering/physics identified (e.g., heat transfer, fluid mechanics)? - Is the specific sub-topic correctly identified (e.g., forced vs natural convection)? - Is the problem type correctly identified (steady-state vs tr...

  16. [24]

    GOVERNING PRINCIPLES - Are the relevant physical laws mentioned (conservation of mass/energy/momentum)? - Are the governing principles appropriate for this problem?

  17. [25]

    errors": [ {{

    KEY VARIABLES & GEOMETRY - Are the important given quantities correctly identified? - Is it clear what quantity needs to be found? - Is the physical configuration and geometry correctly understood (pipe flow, cylinder, etc.)? --- GRADING RUBRIC MATRIX (PENALTIES): | Severity |...

  18. [26]

    VALIDITY & JUSTIFICATION - Is each assumption physically valid for this problem? - Is each assumption justified with a physical reason or standard practice? - Are any assumptions clearly wrong or too aggressive (e.g., removing essential physics)?

  19. [27]

    errors": [ {{

    COMPLETENESS & CONSISTENCY - Are all necessary assumptions stated (steady-state, 1D, incompressible, etc.)? - Are assumptions consistent with information given in the problem and diagrams? - Are any assumptions contradicted by the problem statement? --- GRADING RUBRIC MATRIX (...

  20. [28]

    DIMENSIONS & GEOMETRY - Are all dimensions correctly read from the diagram (lengths, radii, angles)? - Are geometric relationships (parallel, concentric) correctly identified?

  21. [29]

    BOUNDARY CONDITIONS & LOADING - Are applied forces, pressures, heat fluxes, or boundary temperatures correctly identified? - Are support conditions (fixed, pinned, free) correctly read? - Is flow direction or boundary layer type correctly noted from the visual?

  22. [30]

    errors": [ {{

    MATERIALS & COORDINATES - Are different materials or regions properly recognized? - Is the spatial orientation correctly understood? - Is the coordinate system consistent with the diagram? --- GRADING RUBRIC MATRIX (PENALTIES): | Severity | Points | Criterion 1 & 3: Dimensions...

  23. [31]

    GOVERNING EQUATION (Critical Axis) - Is the correct governing equation chosen for this physical system? - Is it the right form (differential vs integral, 1D vs 2D)? - If the governing equation is fundamentally wrong -> score = 0 immediately

  24. [32]

    BOUNDARY CONDITIONS & COORDINATES - Are the equations for boundary conditions correctly formulated? - Is the chosen coordinate system (Cartesian, cylindrical, spherical) appropriate? - Are vector quantities expressed correctly?

  25. [33]

    governing_equation_correct

    JUSTIFICATION & SIMPLIFICATION - Are simplifying assumptions justified in the equation form (e.g., dropping transient term)? - Are there any invalid, applicability-exceeded, or dimensionally inconsistent equations? --- GRADING RUBRIC MATRIX (PENALTIES): | Severity | Points | C...

  26. [34]

    LOGICAL VALIDITY & COMPLETENESS - Does each claim follow logically from the previous one? - Are there any non-sequiturs, circular arguments, or unjustified conclusions? - Are all necessary logical links present, or are there massive leaps? - Does the reasoning contribute meani...

  27. [35]

    errors": [ {{

    PHYSICS CAUSALITY & PROPORTIONALITY - Is the direction of physical causation correct (e.g., temperature gradient causes heat flow)? - Are proportional relationships stated correctly? - Do the logical claims align with physical reality? --- GRADING RUBRIC MATRIX (PENALTIES): 38...

  28. [36]

    RESULT & TREND INTERPRETATION - Does the model explain what the numerical result physically means? - Does the model correctly identify how the result depends on key parameters? - Are physical trends (increasing/decreasing with T, P, V) correct?

  29. [37]

    intense turbulent convection

    BENCHMARKS & LIMITING CASES - Does the model check whether the answer magnitude is physically reasonable? - Is it compared against known limiting cases (e.g., as k->inf)? - Are engineering or practical implications discussed? --- GRADING RUBRIC MATRIX (PENALTIES): | Severity |...

  30. [38]

    - Calculate: error = |predicted - ground_truth| / |ground_truth| - Multiple values? Evaluate each

    NUMERICAL CORRECTNESS (Primary) - Compare the predicted numerical value(s) with the ground truth. - Calculate: error = |predicted - ground_truth| / |ground_truth| - Multiple values? Evaluate each. The total penalty should reflect the overall accuracy. - If one part is perfect ...

  31. [39]

    UNITS & PRESENTATION - Are the correct SI or problem-specified units provided? - Is it clearly stated with reasonable significant figures?

  32. [40]

    predicted_values

    COMPLETENESS & PHYSICAL POSSIBILITY - Are ALL parts/values asked for actually provided? - Is the result physically impossible? (Negative absolute temp, negative density, etc.) - Sign errors that reverse the physical meaning are MAJOR. --- GRADING RUBRIC MATRIX (PENALTIES): | S...

  33. [41]

    boilerplate

    REPETITION & RESTATEMENT - Does the solution unnecessarily restate the entire question before starting? - Does it repeat the same conclusion multiple times across different steps? - Are equations written out repeatedly without any new substitution or derivation? - CRITICAL: Th...

  34. [42]

    As we can clearly see

    FILLER TEXT & OVER-EXPLANATION - Is there excessive conversational filler ("As we can clearly see...", "It is important to note that...")? - Are trivial algebraic steps over-explained in paragraphs of text? - Could the solution be significantly shorter without losing any techn...

  35. [43]

    Find T and Q

    ALL ASKED QUANTITIES - Does the solution compute every primary and secondary quantity requested? - If the question asks for multiple values (e.g., "Find T and Q"), are ALL of them computed?

  36. [44]

    SUB-QUESTIONS & SCOPE - If the question has parts (a), (b), (c), are ALL parts answered? - Does the solution address the full physically described scope (e.g., if there are two connected pipes, are both analyzed)?

  37. [45]

    comment on result

    RELEVANT ANALYSIS & RESULTS - Are requested diagrams/plots mentioned or described? - Are final numerical answers clearly provided rather than just symbolic equations? --- GRADING RUBRIC MATRIX (PENALTIES): | Severity | Points | Criterion 1: Asked Quantities | Criterion 2 & 3: ...

  38. [46]

    - Efficiency of heat engines must be <= Carnot efficiency

    SIGN CHECKS & LIMITS - Density, Mass, Absolute Temperature (> 0 K), Thermal conductivity, Viscosity must be positive. - Efficiency of heat engines must be <= Carnot efficiency. - Heat cannot spontaneously flow from cold to hot

  39. [47]

    - Stresses should not exceed ultimate strength of specified materials ridiculously

    MAGNITUDE REASONABLENESS - Velocities should not exceed speed of light for non-relativistic problems. - Stresses should not exceed ultimate strength of specified materials ridiculously. - Pressures should be physically meaningful

  40. [48]

    violations

    CONSERVATION LAWS - Mass, Energy, Momentum must be conserved. 47 Do VLMs Reason Like Engineers? A Benchmark and a Stage-wise Evaluation --- GRADING RUBRIC MATRIX (PENALTIES): | Severity | Points | Criterion 1: Signs & Limits | Criterion 2 & 3: Magnitudes & Conservation | | :--...
