Scalable Non-Equivariant 3D Molecule Generation via Rotational Alignment
T0 review · 1 major / 1 minor · reviewed 2026-08-07 · deepseek-v4-flash
Pith's one-line read This paper claims equivariant denoising is not required for high-quality 3D molecule generation: a learned per-molecule rotation in latent space lets a plain diffusion model match equivariant baselines while training and sampling faster.
desk verdict Genuinely new idea and strong results, but the ablation doesn't isolate the learned alignment; the missing identity-rotation control is the main weakness. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The load-bearing component is the learned rotational alignment. A vanilla GNN maps a molecule to an unconstrained matrix $M \in \mathbb{R}^{3\times 3}$, which is projected onto the rotation group by the SVD-based map $R = \mathrm{SVD}_+(M) = U\,\mathrm{diag}(1,1,\det(UV^\top))V^\top$; this sample-dependent rotation is applied to the atomic coordinates before encoding. The rotation network is trained jointly with the autoencoder using only the reconstruction loss, and the non-equivariance of the decoder is what makes the gradient informative — if both encoder and decoder were equivariant, the $L^2$ reconstruction error would be constant under rotation and the rotation network would have nothing to learn. The same fixed autoencoder feeds a latent diffusion model whose denoiser is either a vanilla GNN or a DiT-style transformer with attention masking for variable atom counts, leaving permutation equivariance as the only inductive bias.
What would settle it
Train the identical pipeline but freeze the rotation network's output to a per-molecule random $SO(3)$ rotation sampled once at encoding time, leaving every other component unchanged, and compare QM9 molecule stability: if the random-rotation variant stays near RADM-GNN's 85.8% instead of sliding toward GraphLDM's 70.5%, the learned alignment is not what drives the gain. A complementary check is to apply the trained rotation network to held-out molecules and measure whether the orientation of shared substructures, such as ring-plane normals, is significantly more concentrated than under random rotation — a uniform orientation distribution would show the alignment itself is vacuous.
Extended reading notes
Core claim
On the paper's own terms, the discovery is that the equivariance constraints built into state-of-the-art 3D molecule diffusion models can be relaxed without losing sample quality, provided the data is pre-aligned. A rotation network maps each molecule to an arbitrary $3\times 3$ matrix that is projected onto $SO(3)$ — the rotation group — by a singular value decomposition, and the resulting rotation is applied to the atomic coordinates before they enter the autoencoder. Because the decoder is deliberately non-equivariant, the reconstruction loss is sensitive to orientation, so the rotation network receives a gradient that pushes molecules toward orientations the encoder can represent compactly. The aligned latent space is then simple enough for a plain permutation-equivariant denoiser: on GEOM-Drugs, RADM-DiT-B reaches 85.0% atom stability against GeoLDM's 84.4% with equal 99.3% validity, and on QM9 it approaches GeoLDM's molecule stability (87.3% vs 89.4%) while exceeding its validity (94.1% vs 93.8%). The paper frames these results as evidence that a well-aligned representation, not equivariant layers, is what carries the performance.
Load-bearing premise
The load-bearing premise, stated by the paper itself as an intuition (Section 3.1), is that reconstruction-driven alignment genuinely helps: rotating each molecule into a learned orientation is what lets a plain diffusion network match equivariant models, and the paper offers no guarantee that this alignment transfers beyond the datasets and molecule sizes tested.
Editorial extensions
If this is right
- RADM-DiT-B matches the state-of-the-art equivariant GeoLDM on GEOM-Drugs atom stability (85.0% vs 84.4%) and validity (99.3% each), and exceeds it on QM9 validity (94.1% vs 93.8%), so non-equivariant generators can be practically competitive.
- Sampling 100 molecules takes 7 seconds with RADM-DiT-S and 19 seconds with RADM-DiT-B, versus 49 seconds for GeoLDM and 55 seconds for EDM, transferring the speed of parallel transformer architectures to molecule diffusion.
- Scaling the denoiser from DiT-S to DiT-B improves every quality metric on both datasets, indicating that non-equivariant molecule diffusion inherits the scaling behavior of standard deep learning models.
- In conditional generation, RADM-DiT-B achieves lower mean absolute error than both EDM and GeoLDM on all six QM9 properties tested.

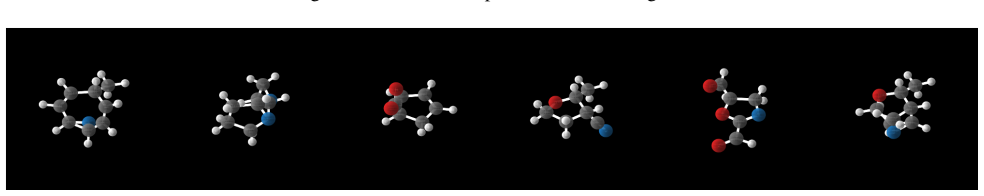

- The learned rotations are visually meaningful: after alignment, shared substructures such as rings appear in similar orientations across molecules, evidence that the autoencoder discovers chemically sensible frames without supervision.
Reading between the lines
- The same recipe — a learned transform that removes nuisance symmetries, followed by a symmetry-free generative model — should transfer to other structured generation problems such as point clouds, protein backbones, or crystal structures, though the paper does not test those settings.
- Because the alignment objective is purely reconstructive, nothing prevents task-aware alignment: coupling the rotation network to downstream objectives such as property prediction could produce frames even more favorable than the reconstruction-only ones reported here.
- A sharper ablation than the ones in the paper would train the autoencoder with fixed random rotations per molecule, isolating whether the gain comes from the learned consistency of the frames or merely from the autoencoder's denoising.
- The approach never requires the aligned frame to be canonical or consistent across re-samplings, treating alignment only as nuisance reduction; this weaker goal is what lets it sidestep known impossibility results for continuous canonicalization.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes RADM, a non-equivariant latent diffusion model for 3D molecule generation. A graph neural network predicts a per-molecule SO(3) rotation, the molecule is rotated accordingly, and an autoencoder with an equivariant encoder and a non-equivariant decoder maps the rotated molecule into a latent space. A non-equivariant GNN or DiT is then trained as the denoising network in this aligned latent space. Experiments on QM9 and GEOM-Drugs report atom stability, molecule stability, validity, and uniqueness numbers that are competitive with the equivariant baselines EDM and GeoLDM, along with improved training and sampling efficiency. Conditional property prediction on QM9 also shows lower MAE than the reported EDM and GeoLDM baselines.
Significance. If the central mechanism is confirmed, the paper would provide a practical alternative to SE(3)-equivariant denoising networks for 3D molecule generation, with the scalability and speed advantages of transformer-based non-equivariant architectures. The paper is clearly written, includes a code repository, and reports a same-backbone ablation that shows large gains over the non-equivariant baselines GraphLDM and GraphLDM-aug. The reported results, if reproducible, would be a meaningful advance in relaxing architectural equivariance constraints without losing sample quality. However, the attribution of these gains specifically to the learned rotational alignment is not yet cleanly established by the presented experiments, and the cross-paper baseline comparisons leave some uncertainty in the headline claims.
major comments (1)
- [Section 4.4, Table 2] Section 4.2 and 4.3, Table 1: Baseline numbers are copied from previous papers with different training setups, and no error bars are given for those baselines. The claim of comparability to state-of-the-art equivariant models would be substantially strengthened by re-evaluating EDM and GeoLDM with the same evaluation code and, if feasible, the same training budget. At minimum, the paper should state the training steps, batch sizes, and sampling protocols used by the baselines so that the comparison is transparent.
minor comments (1)
- [Section 4.5, Table 3] Section 4.2: The sentence 'RADM DiT-S improves the performance drastically compared with previous non-equivariant models' is informal; specify which metrics and which baselines are meant.
Circularity Check
No significant circularity: the learned rotation is trained by reconstruction loss and evaluated against external stability and validity metrics.
full rationale
The paper's derivation chain is not circular. The alignment network R_theta is trained jointly with the autoencoder to minimize reconstruction loss (Eq. 20, Algorithm 1), and the latent diffusion model is trained with the standard noise-prediction objective (Eq. 12). Neither objective contains the evaluation quantities (atom/molecule stability, RDKit validity, property MAE), so no fitted parameter is renamed as a prediction. Eq. 20 and Eq. 12 are independent objectives; no equation reduces to another by construction. Citations to GeoLDM, EDM, and DiT are code bases and baselines, not the present authors' prior work, and they supply architecture details rather than premises that assume the conclusion. The related learned-canonicalization literature (Kaba et al., Dym et al., Sareen et al.) is presented as background and is not invoked as a load-bearing uniqueness theorem. The PCA variant is an external ablation control, not a circular input. The absence of a theoretical guarantee that minimum-reconstruction alignments help diffusion is a limitation of the empirical argument, but it is not a circular reduction. The reviewer concern that Table 2 does not fully isolate the learned rotation from the new autoencoder is an experimental confounding issue, not circularity: it does not correspond to any quantity in the derivation being defined in terms of the target result. The central performance claims are validated by external metrics against independent baselines, so the derivation chain is self-contained.
Assumptions & free parameters
free parameters (3)
- Fixed latent variance sigma^2 =
not reported
- Rotation network depth =
2 layers on both datasets
- Autoencoder early stopping criterion =
unspecified
assumptions (4)
- domain assumption Molecular properties are invariant under SE(3) transformations
- standard math The SVD+ projection is differentiable and trainable via gradient descent where det(M) != 0
- standard math The diffusion training objective in Eq (12) is a valid surrogate for the ELBO
- domain assumption Early stopping on the autoencoder acts as sufficient regularization
Cite this review
Pith. "Pith review of Scalable Non-Equivariant 3D Molecule Generation via Rotational Alignment." pith.science (2026). https://pith.science/paper/6APGZEPJ
@misc{pith2026250610186,
author = {Pith},
title = {Pith review of: Scalable Non-Equivariant 3D Molecule Generation via Rotational Alignment},
year = {2026},
howpublished = {\url{https://pith.science/paper/6APGZEPJ}},
note = {Machine review of arXiv:2506.10186}
}
read the original abstract
Equivariant diffusion models have achieved impressive performance in 3D molecule generation. These models incorporate Euclidean symmetries of 3D molecules by utilizing an SE(3)-equivariant denoising network. However, specialized equivariant architectures limit the scalability and efficiency of diffusion models. In this paper, we propose an approach that relaxes such equivariance constraints. Specifically, our approach learns a sample-dependent SO(3) transformation for each molecule to construct an aligned latent space. A non-equivariant diffusion model is then trained over the aligned representations. Experimental results demonstrate that our approach performs significantly better than previously reported non-equivariant models. It yields sample quality comparable to state-of-the-art equivariant diffusion models and offers improved training and sampling efficiency. Our code is available at https://github.com/skeletondyh/RADM
