Uncertainty-aware Spatial-Frequency Registration and Fusion for Infrared and Visible Images
Pith reviewed 2026-05-14 20:28 UTC · model grok-4.3
The pith
SFRF uses uncertainty estimates and thermal consistency to prevent cumulative errors when registering and fusing unregistered infrared and visible images.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
SFRF constructs a Multi-scale Iterative Registration framework that iteratively refines the deformation field across scales while using uncertainty estimation to mitigate error accumulation, employs thermal radiation distribution consistency as a frequency-domain supervisory signal for global alignment, and then applies a Dual-branch Spatial-Frequency Fusion module to reconstruct images from the aligned spatial geometric features and frequency distribution information.
What carries the argument

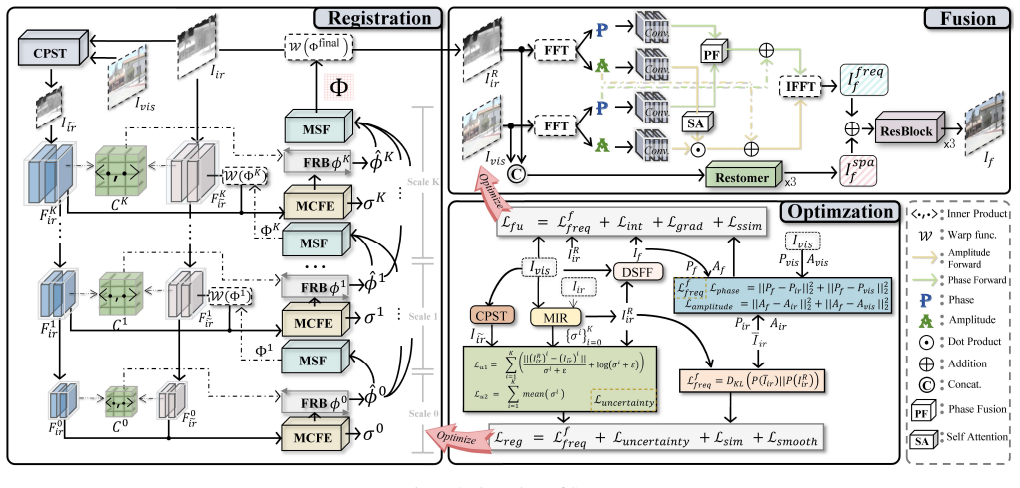

Multi-scale Iterative Registration (MIR) that refines deformation fields with per-stage uncertainty estimates, guided by thermal radiation distribution consistency in the frequency domain, followed by Dual-branch Spatial-Frequency Fusion (DSFF) that merges spatial and frequency cues.
If this is right
- Registration and fusion stages can operate jointly without separate coarse-to-fine steps that compound misalignment.
- Frequency-domain consistency supervision improves global thermal feature alignment beyond purely spatial methods.
- Fused outputs retain visual quality even when input images start with moderate geometric offsets.
Where Pith is reading between the lines
- The uncertainty-guided refinement pattern could extend to other multi-modal registration tasks such as medical CT-MRI fusion where error accumulation also occurs.
- Performance on datasets with controlled initial misalignment levels would directly test how well the dynamic error mitigation works.
- Real-time implementations might reduce preprocessing requirements in surveillance or night-vision systems.
Load-bearing premise
Uncertainty estimates generated at each registration stage can be trusted to block cumulative errors without creating new artifacts or demanding heavy parameter tuning.
What would settle it
Run the fusion pipeline on unregistered test pairs with the uncertainty branch disabled and measure whether alignment error and visual artifacts increase compared with the full model.
Figures
read the original abstract
Infrared and Visible Image Fusion (IVIF) has shown promise in visual tasks under challenging environments, but fusion under unregistered conditions faces inherent misalignments. Current studies to solve them either predict the deformation parameters coarse-to-fine (i.e., coarse registration and fine registration) or estimate the deformation fields in multi-scales for registration. Though straightforward, they overlook the cumulative errors in registration, which contaminate the fusion stage and severely deteriorate the resulting images. We introduce the Spatial-Frequency Registration and Fusion (SFRF) framework, which incorporates uncertainty estimation and infrared thermal radiation distribution consistency into a unified pipeline to handle the error accumulation for robust registration and fusion across both spatial and frequency domains. Specifically, SFRF constructs a Multi-scale Iterative Registration (MIR) framework that iteratively refines the deformation field across scales, leveraging uncertainty estimation at each stage to mitigate error accumulation and enhance alignment accuracy dynamically. To ensure the accurate alignment of infrared thermal distributions during registration, thermal radiation distribution consistency is employed as a frequency-domain supervisory signal, promoting global consistency in the frequency domain. Based on the spatial-frequency alignment, SFRF further adopts a Dual-branch Spatial-Frequency Fusion (DSFF) module, which incorporates spatial geometric features and frequency distribution information to reconstruct visually appealing images. SFRF achieves impressive performance across diverse datasets.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes the Spatial-Frequency Registration and Fusion (SFRF) framework to address misalignment in infrared-visible image fusion. It introduces a Multi-scale Iterative Registration (MIR) module that iteratively refines deformation fields while using per-stage uncertainty estimates to mitigate cumulative errors, employs infrared thermal radiation distribution consistency as a frequency-domain supervisory signal, and applies a Dual-branch Spatial-Frequency Fusion (DSFF) module to reconstruct the fused image from aligned spatial and frequency features. The abstract claims improved performance across diverse datasets.
Significance. If the central claims hold, the work offers a practical advance for unregistered IVIF by explicitly targeting error accumulation, a common failure mode in coarse-to-fine or multi-scale registration pipelines. The unified treatment of uncertainty, thermal-radiation consistency, and spatial-frequency fusion is a coherent design choice that could generalize to other multi-modal registration tasks. The absence of machine-checked proofs or fully parameter-free derivations is offset by the empirical focus, but reproducible code and detailed ablations would strengthen the contribution.
major comments (3)
- [Section 3.2] MIR module (Section 3.2): the claim that uncertainty estimation at each iteration mitigates error accumulation is load-bearing yet lacks an explicit integration rule. No equation is given for the uncertainty-weighted loss, masked gradient flow, or scale-specific gating; it is therefore unclear whether the estimator remains unbiased when fed misaligned inputs from the prior stage.
- [Section 3.3] Thermal radiation consistency (Section 3.3): the frequency-domain supervisory signal is introduced to enforce global alignment, but the manuscript provides no derivation or ablation showing that this term remains effective once registration errors have already propagated from earlier MIR stages.

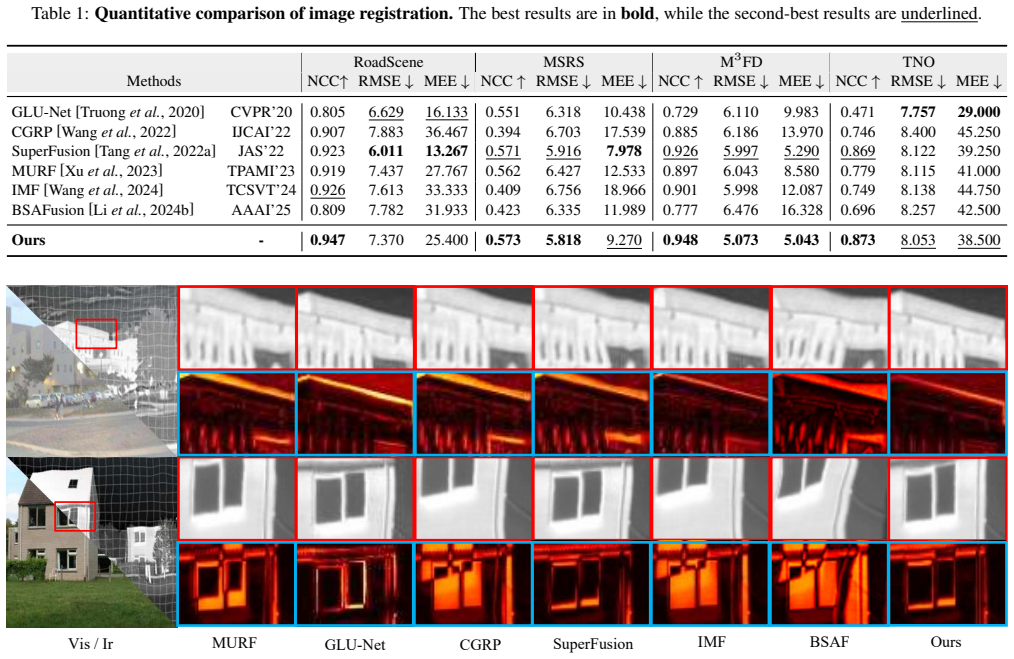

- [Section 4] Experimental validation (Section 4): the reported performance gains are presented without error bars, statistical significance tests, or ablations that isolate the contribution of the uncertainty mechanism versus the thermal consistency term; this weakens the causal link between the proposed modules and the claimed robustness.
minor comments (2)
- [Abstract] Abstract: the phrase 'impressive performance across diverse datasets' is unsupported by any quantitative numbers or dataset identifiers.
- [Section 3] Notation: the symbols for uncertainty maps and deformation fields are introduced without a consolidated table of definitions, making cross-section reading difficult.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed comments on our manuscript. We address each major comment point by point below and will incorporate the suggested clarifications and additional experiments in a major revision.
read point-by-point responses
-
Referee: [Section 3.2] MIR module (Section 3.2): the claim that uncertainty estimation at each iteration mitigates error accumulation is load-bearing yet lacks an explicit integration rule. No equation is given for the uncertainty-weighted loss, masked gradient flow, or scale-specific gating; it is therefore unclear whether the estimator remains unbiased when fed misaligned inputs from the prior stage.
Authors: We agree that the integration rule for uncertainty in the MIR module requires explicit formulation. In the revised manuscript we will add a new equation in Section 3.2 that defines the uncertainty-weighted registration loss at each scale, where the per-pixel uncertainty map modulates both the loss magnitude and the gradient flow to the deformation field update. We will also include a short analysis demonstrating that the estimator remains approximately unbiased under the coarse-to-fine schedule because uncertainty is recomputed from the current alignment residual at every iteration. revision: yes
-
Referee: [Section 3.3] Thermal radiation consistency (Section 3.3): the frequency-domain supervisory signal is introduced to enforce global alignment, but the manuscript provides no derivation or ablation showing that this term remains effective once registration errors have already propagated from earlier MIR stages.
Authors: We acknowledge the need for explicit validation of the thermal consistency term under residual misalignment. The revised version will contain a short derivation in Section 3.3 showing that the frequency-domain loss is computed on global spectral statistics and is therefore tolerant to small spatial residuals. We will also add an ablation study that injects controlled registration errors from the MIR stages and measures the incremental benefit of the consistency term on final fusion metrics. revision: yes
-
Referee: [Section 4] Experimental validation (Section 4): the reported performance gains are presented without error bars, statistical significance tests, or ablations that isolate the contribution of the uncertainty mechanism versus the thermal consistency term; this weakens the causal link between the proposed modules and the claimed robustness.
Authors: We agree that stronger statistical reporting is required. In the revision we will report mean and standard deviation (error bars) across five independent training runs for all quantitative metrics, perform paired t-tests to establish statistical significance of the reported gains, and provide expanded ablation tables that disable the uncertainty estimation, the thermal consistency term, and both components separately to isolate their individual contributions. revision: yes
Circularity Check
No significant circularity in SFRF derivation chain
full rationale
The paper introduces the SFRF framework with three distinct new modules: Multi-scale Iterative Registration (MIR) that applies uncertainty estimation to mitigate cumulative registration errors, thermal radiation distribution consistency as an external frequency-domain supervisory signal, and Dual-branch Spatial-Frequency Fusion (DSFF) that combines spatial and frequency features for reconstruction. None of these reduce to self-definition, fitted inputs renamed as predictions, or self-citation chains; the uncertainty estimator is presented as an added component rather than derived from the fusion output, and no equations or uniqueness theorems are shown to collapse by construction. The derivation remains additive and externally motivated by the problem of unregistered IVIF inputs.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Deformation fields can be iteratively refined across scales while uncertainty estimates remain meaningful at each scale
- domain assumption Infrared thermal radiation distributions provide a reliable global consistency signal in the frequency domain
invented entities (2)
-
Uncertainty estimation at each registration stage
no independent evidence
-
Dual-branch Spatial-Frequency Fusion module
no independent evidence
