One shared graph model can generate ready-to-run grasps for robot hands that differ in fingers, joints, and command spaces.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · grok-4.5

2026-07-14 07:31 UTC pith:77JLGUFM

load-bearing objection Solid multi-hand grasp systems paper: URDF graphs + dynamic world edges + executable-state flow matching beat DRO/TRO on success and latency, with real topology transfer; nearest-target training is a real but not fatal caveat. the 2 major comments →

arxiv 2607.11031 v1 pith:77JLGUFM submitted 2026-07-13 cs.RO

GraspGraphNet: Graph-Structured Multi-Embodiment Dexterous Grasp Generation

Yeonseo Lee , Taeyeop Lee , Hyosup Shin , Guebin Hwang , Sungho Jo This is my paper
classification cs.RO
keywords dexterous graspingmulti-embodimentkinematic graphsURDFconditional flow matchingmessage passingrobot-object interactiongrasp generation
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Dexterous robot hands do not share a common configuration space: they differ in how many fingers they have, how those fingers are connected, and what joint commands they accept. Prior multi-hand methods often predict contacts or distances and then convert them into actual palm poses and joint angles with extra optimization or inverse kinematics. GraspGraphNet instead builds a graph of each hand directly from its URDF description and learns a velocity field that moves an open-hand pose into a final executable grasp. Robot–object interaction edges are rebuilt at every step so the model tracks changing contact geometry. A single model trained on three standard hands reaches high success rates in simulation and still works, without retraining, when individual fingers are removed. The practical claim is that graph structure plus direct flow matching can make multi-hand grasp generation both faster and more transferable than intermediate-representation pipelines.

Core claim

A single shared GraspGraphNet, trained jointly on Barrett, Allegro, and Shadow hands, can generate executable palm poses and joint configurations that achieve 83.48 percent average success at roughly 40 ms per grasp on a 40-object Isaac Gym benchmark, and the same model, without retraining, still achieves 72.70 percent success on controlled finger-removal topology variants. The paper therefore claims that URDF-derived kinematic graphs with dynamic world-edge message passing and conditional flow matching in native grasp-state space are sufficient to support multi-embodiment dexterous grasp generation.

What carries the argument

GraspGraphNet: a URDF-derived kinematic graph of the hand (link nodes, joint edges) together with dynamic world-frame edges to nearby object surface points, on which conditional flow matching directly predicts palm-pose and joint velocities that are integrated into executable commands.

Load-bearing premise

The reported success rates rest on the claim that keeping object displacement under 2 cm under six simulated pushes, using grasps whose training targets were the nearest annotated open-hand-compatible examples, is a fair and unbiased measure of real multi-hand grasp quality and topology robustness.

What would settle it

Train and evaluate the identical architecture on the same three hands and 40 objects, but replace the nearest-target selection rule and the 2 cm six-direction Isaac Gym criterion with a stricter force-closure or real-robot drop test; if average success falls well below the claimed 83 percent / 72 percent figures, the central multi-embodiment claim is overstated.

Watch this falsifier — get emailed when new claim-graph text bears on it.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. GraspGraphNet is a multi-embodiment dexterous grasp generator that represents each robot hand as a URDF-derived kinematic graph (link nodes, joint edges) and directly predicts executable palm pose and actuated joint configuration via conditional flow matching. Hierarchical object surface features are fused with state-conditioned robot embeddings through coarse cross-attention and dynamic world-edge message passing that rebuilds kNN robot–object edges from differentiable FK at every flow step. A single shared model is trained on Barrett, Allegro, and Shadow hands from filtered CMapDataset and evaluated on a 40-object Isaac Gym benchmark (10 held-out CMap + 30 Google Scanned Objects), reporting 83.48% average success at 40 ms per grasp, outperforming GenDexGrasp, DRO-Grasp, and TRO-Grasp. Without retraining the same weights achieve 72.70% on controlled finger-removal topology variants; real-world Leap Hand trials after fine-tuning reach 91%. Ablations support dynamic edges, fusion modules, flow matching over direct regression, and K=3 Euler steps.

Significance. If the results hold under the stated protocol, the work is a clear advance for multi-embodiment dexterous grasping: a single parameter-sharing graph model produces native executable commands without contact-map optimization, IK, or retargeting, while remaining robust to modest topology edits. The combination of URDF graphs, dynamic world edges, and executable-state flow matching is technically coherent and yields both higher success and substantially lower latency than recent interaction-centric baselines on an expanded object set. Strengths include systematic ablations (Tables III–VI), a shared evaluation protocol with prior work, and a real-robot demonstration. These contributions are of practical interest to the robotics community even if absolute success numbers are protocol-dependent.

major comments (2)
  1. Sec. III-E.2 and the training objective: for each sampled open-hand initial x0 the target x1 is chosen as the nearest annotated CMapDataset grasp (palm translation + 0.5·rotation cost). This systematically trains short, easy trajectories rather than the full multi-modal distribution. At inference (same section) initials are sphere-uniform with no target available. Tables I–II therefore report success only on the modes the model actually reaches; if those modes are biased toward the preferentially paired easy targets, both the 83.48% multi-hand average and the 72.70% finger-removal figure overstate capability under a uniform or harder initial-state distribution. A controlled experiment that either (a) trains without nearest-target selection or (b) evaluates success stratified by initial-to-nearest-GT distance is needed to substantiate the central multi-embodiment and topology-robustness c
  2. Sec. IV-A success criterion and Sec. IV-C topology evaluation: success is defined solely as object displacement <2 cm under six directional perturbations in Isaac Gym. While this matches DRO/TRO protocol, it does not report contact quality, force closure, or joint-limit / collision feasibility of the final states. For finger-ablated hands (Fig. 6, Table II) the same criterion can credit grasps that succeed only because fewer fingers reduce the chance of self-collision or because the remaining fingers still realize an easy mode learned under nearest-target pairing. Adding at least one secondary metric (e.g., contact count, penetration depth, or success under a stricter force-closure check) would make the topology-robustness claim load-bearing rather than protocol-specific.
minor comments (5)
  1. Eq. (1) and Sec. III-A: the continuous 6D palm orientation is said to live in a “robot-independent canonical palm frame,” but the conversion back to robot-native wrist pose (Sec. III-F) is only described textually; a short equation or diagram would clarify the fixed palm-to-wrist offset.
  2. Fig. 2 overview is dense; the distinction between coarse cross-attention and dynamic world-edge MPNN is easier to follow once the reader reaches Sec. III-D, but a one-sentence caption note would help.

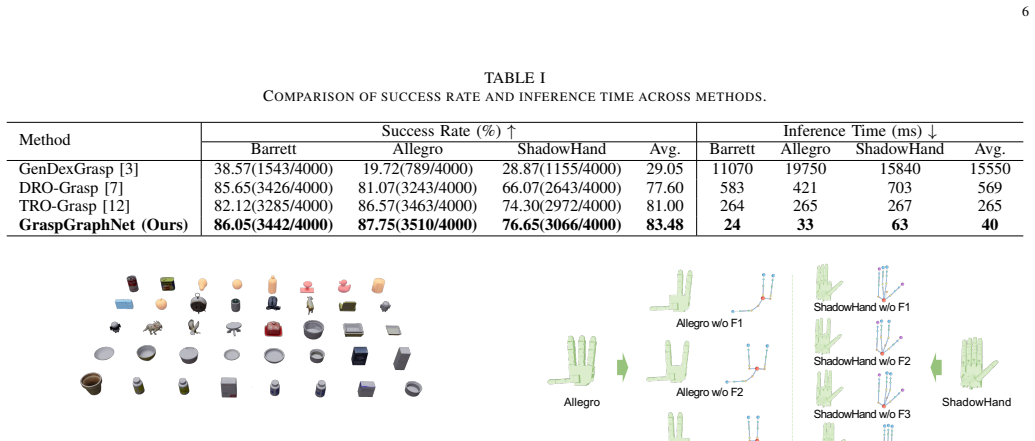

  3. Table I inference times: GenDexGrasp’s multi-second numbers are expected for particle optimization, yet a brief note on whether all methods were timed on identical hardware (stated only for GraspGraphNet) would strengthen the 6–14× speed-up claim.
  4. Real-world section (IV-D): fine-tuning on Leap Hand data from TRO-Grasp is acknowledged, but the number of fine-tuning epochs / data volume is not reported; a single sentence would improve reproducibility.
  5. Typographical consistency: “x (0)” / “x(k)” spacing and the occasional “T(r,o)” vs “TRO-Grasp” notation vary across sections; a light pass would clean presentation.

Circularity Check

0 steps flagged

No circularity: empirical multi-hand grasp model trained on public annotations and evaluated by independent Isaac Gym physics, not by construction from its inputs.

full rationale

GraspGraphNet’s central claims are architectural and empirical, not a first-principles derivation that reduces to its own definitions. The grasp state (Eq. 1), linear conditional path and velocity target (Eq. 4), MSE flow-matching loss (Eq. 5), and Euler integration (Eq. 6) are standard conditional flow matching applied to palm pose and joint angles; the learned velocity field is not algebraically identical to the training targets. Training uses filtered CMapDataset annotations with nearest-target pairing (Sec. III-E.2) as a sampling heuristic; evaluation is on held-out objects (10 CMap holdouts + 30 Google Scanned Objects), an external Isaac Gym success criterion (object displacement <2 cm under six perturbations), and finger-ablated URDFs never seen in training, with direct comparison to GenDexGrasp, DRO-Grasp, and TRO-Grasp under a shared protocol. No load-bearing uniqueness theorem, self-citation chain, or fitted constant is renamed as a prediction. Nearest-target pairing may bias which modes are learned (a correctness/evaluation concern), but it does not make reported success rates true by construction. Score 0 is therefore appropriate.

Axiom & Free-Parameter Ledger

6 free parameters · 5 axioms · 3 invented entities

The central claim is empirical and rests on standard robotics/ML background plus several design choices and hyperparameters that are not derived from first principles. Free parameters are the usual training and inference knobs; axioms are domain conventions (URDF graphs, linear CFM paths, Isaac Gym success definition); invented entities are the named modules of the proposed pipeline rather than new physical objects.

free parameters (6)
  • Euler integration steps K = 3
    Chosen by ablation (Table VI); main results fix K=3 as latency–success trade-off, not derived.
  • joint velocity loss weight λ_q = 1
    Set to 1 without theoretical derivation (Sec. IV-A).
  • world-edge kNN size k / K_W = 8
    Fixed at 8 nearest object points per robot link; controls interaction neighborhood.
  • initial palm approach cone angle = 30 degrees
    30° cone used for training initial-state sampling and target matching (Sec. IV-A).
  • hidden dimension / model capacity = 128
    Hidden size 128 (~1.58M parameters) chosen by authors; affects capacity and reported accuracy.
  • object hierarchy point counts = 1024,256,64,32
    1024/256/64/32 hierarchy levels are design choices for coarse/fine features.
axioms (5)
  • domain assumption A robot hand URDF can be faithfully represented as a link-node / joint-edge kinematic graph for message passing across embodiments.
    Invoked throughout Sec. III-B and Fig. 3; standard in articulated robotics but not proved optimal for grasp generation.
  • domain assumption Linear conditional flow matching in continuous 6D palm orientation and joint-limit-normalized joint space is an adequate generative model for multi-modal grasps.
    Sec. III-E; uses the standard CFM path x_t=(1-t)x_0+t x_1 without proving it covers all feasible grasp modes.
  • domain assumption Isaac Gym success = object displacement <2 cm under six directional perturbations is a valid comparative measure of grasp quality.
    Sec. IV-A protocol shared with DRO/TRO-Grasp; load-bearing for all reported percentages.
  • ad hoc to paper Nearest-ground-truth target selection given a sampled open-hand initial yields an unbiased training signal for inference-time sphere-sampled approaches.
    Sec. III-E.2 matching cost; training distribution of targets may not match inference initials.
  • domain assumption Message-passing neural networks with shared joint heads generalize across variable graph sizes and actuation dimensions.
    Sec. III-C/E; underpins the single-model multi-hand and finger-removal claims.
invented entities (3)
  • GraspGraphNet (URDF-graph + dynamic world-edge MPNN + executable-state CFM pipeline) no independent evidence
    purpose: Unified multi-embodiment generator of palm poses and joint commands without post-hoc IK/optimization.
    The named system is the paper’s contribution; components recombine known GNN, FK, and flow-matching ideas into a new pipeline.
  • Dynamic world-edge robot–object interaction graph E^t_W no independent evidence
    purpose: Rebuild local contact neighborhoods each flow step from current FK link positions (Eq. 2).
    Core mechanism claimed to track evolving geometry; evidence is only the paper’s ablation (Table V).
  • Palm-hub node (highest out-degree link for palm velocity head) no independent evidence
    purpose: Canonical attachment point for palm velocity prediction across different hand graphs.
    Heuristic designation in Sec. III-E.1; not independently validated outside this architecture.

pith-pipeline@v1.1.0-grok45 · 17241 in / 3673 out tokens · 40935 ms · 2026-07-14T07:31:25.857039+00:00 · methodology

0 comments
read the original abstract

Dexterous grasp generation across robot hands is challenging because hands differ in kinematic topology, actuation dimensions, and native command spaces. We introduce GraspGraphNet, a topology-aware grasp generation framework that represents each hand as a URDF-derived kinematic graph and directly generates executable palm poses and joint configurations. GraspGraphNet combines hierarchical object surface encoding, differentiable forward kinematics, and dynamic world-edge message passing to model evolving robot-object interactions. It applies conditional flow matching directly in executable palm-pose and joint-state space, avoiding post-processing optimization, inverse kinematics, and retargeting. Using a shared model trained on Barrett Hand, Allegro Hand, and Shadow Hand, GraspGraphNet achieves an average success rate of 83.48% with 40ms inference time per grasp on a 40-object benchmark. Without retraining, the same model achieves 72.70% success on controlled finger-removal variants, demonstrating robustness to hand-topology variations. These results suggest that graph-structured hand representations can effectively support dexterous grasp generation across robot hands with different kinematic structures. Project: https://lysees.github.io/graspgraphnet-page

Figures

Figures reproduced from arXiv: 2607.11031 by Guebin Hwang, Hyosup Shin, Sungho Jo, Taeyeop Lee, Yeonseo Lee.

Figure 1
Figure 1. Figure 1: GraspGraphNet represents different dexterous hands as URDF-derived [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Overview of GraspGraphNet. Given an object point cloud and a robot kinematic graph constructed from its URDF, GraspGraphNet generates an [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: URDF-derived robot hand representations. Physical links form graph [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: State-dependent grasp generation. The grasp state is iteratively refined [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Evaluation object set used in simulation. The set contains 40 unseen [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: Qualitative grasp results on topology-modified robot hands. [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Real-world experimental setup and test objects. (a) Experimental setup [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
