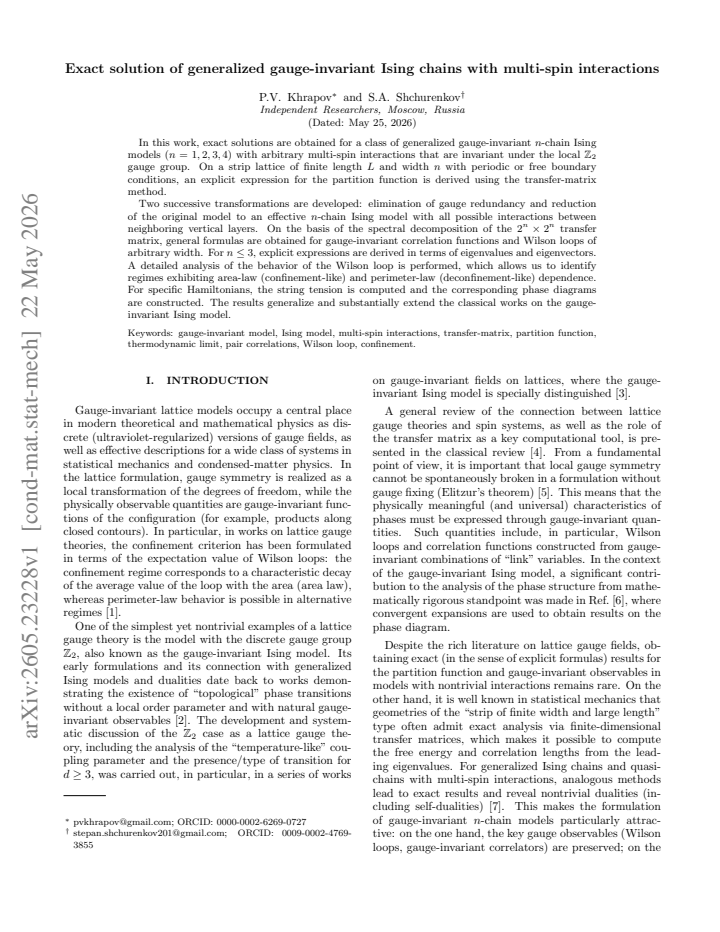

arxiv: 2605.23228 · v1 · pith:7K6MGJYLnew · submitted 2026-05-22 · ❄️ cond-mat.stat-mech

Exact solution of generalized gauge-invariant Ising chains with multi-spin interactions

Pavel Khrapov , Stepan Shchurenkov This is my paper

Pith reviewed 2026-05-25 03:33 UTC · model grok-4.3

classification ❄️ cond-mat.stat-mech
keywords Ising modelgauge invarianceZ2 gauge theorytransfer matrix methodWilson loopsexact solutionstrip latticemulti-spin interactions
0
0 comments X

The pith

Generalized gauge-invariant Ising models on strip lattices admit exact solutions through transfer-matrix methods after gauge redundancy elimination.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives exact solutions for n-chain Ising models with n up to 4 that have multi-spin interactions invariant under local Z2 gauge symmetry. By applying two transformations to remove gauge redundancy and map the system to an effective model, the partition function is obtained as the trace of powers of a 2^n by 2^n transfer matrix. This yields explicit expressions for gauge-invariant correlation functions and Wilson loops, revealing distinct area-law and perimeter-law behaviors. A reader would care because these results provide concrete tools to study confinement in low-dimensional gauge theories with arbitrary interactions.

Core claim

For gauge-invariant n-chain Ising models on a strip of width n and length L, with interactions invariant under local Z2 gauge transformations, the partition function is given explicitly by the eigenvalues of the reduced transfer matrix. General formulas for Wilson loops follow from the spectral decomposition, allowing identification of area-law and perimeter-law regimes for the loop expectation values.

What carries the argument

Two successive transformations that eliminate gauge redundancy and reduce the original model to an effective n-chain Ising model with all possible interactions between neighboring vertical layers, enabling the transfer-matrix eigenvalue problem.

If this is right

  • Explicit expression for the partition function on finite strips with periodic or free boundary conditions.
  • General formulas for gauge-invariant correlation functions and Wilson loops of arbitrary width.
  • For n ≤ 3, explicit expressions in terms of eigenvalues and eigenvectors of the transfer matrix.
  • Identification of area-law (confinement-like) and perimeter-law (deconfinement-like) regimes in the Wilson loop behavior.
  • Construction of phase diagrams and computation of string tension for specific Hamiltonians.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could be extended to study similar gauge-invariant models in higher dimensions or with different symmetries.
  • Wilson loop behaviors might connect to understanding phase transitions in lattice gauge theories more broadly.
  • These exact solutions provide benchmarks for numerical simulations of gauge theories with multi-spin terms.

Load-bearing premise

The multi-spin interactions are assumed to be fully invariant under the local Z2 gauge group on every plaquette, so the transformations map the problem onto a standard unconstrained transfer-matrix problem.

What would settle it

For a small lattice with n=1 or 2 and a specific set of interactions, numerically compute the partition function directly by summing over all spin configurations and compare to the formula derived from the transfer matrix eigenvalues.

Figures

Figures reproduced from arXiv: 2605.23228 by Pavel Khrapov, Stepan Shchurenkov.

Figure 1
Figure 1. Figure 1: FIG. 1: Interlayer interaction [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: Transformation of the two-chain [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

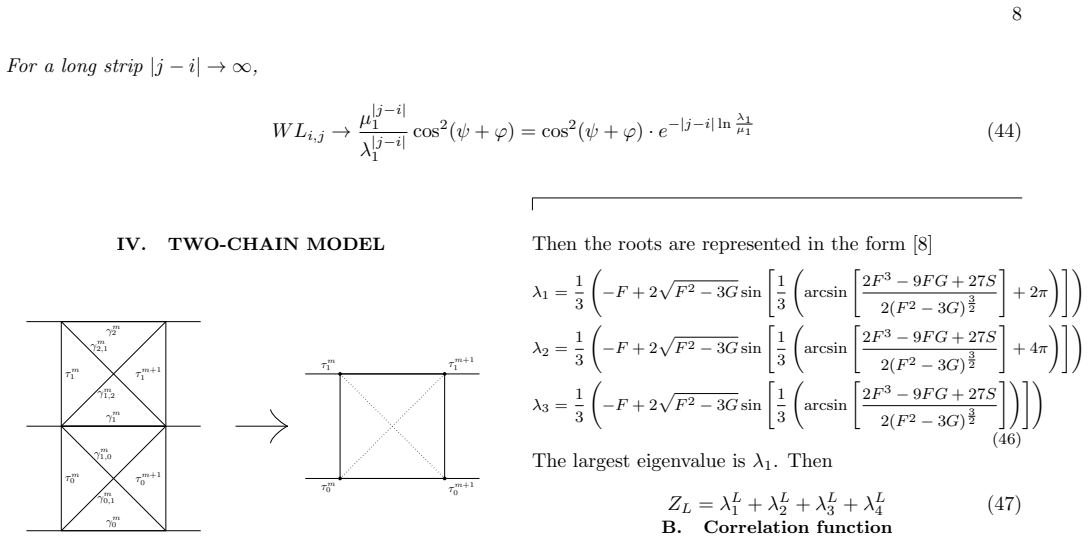

Figure 3. Figure 3: FIG. 3: Transformation of the three-chain [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: Transformation of the four-chain [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5

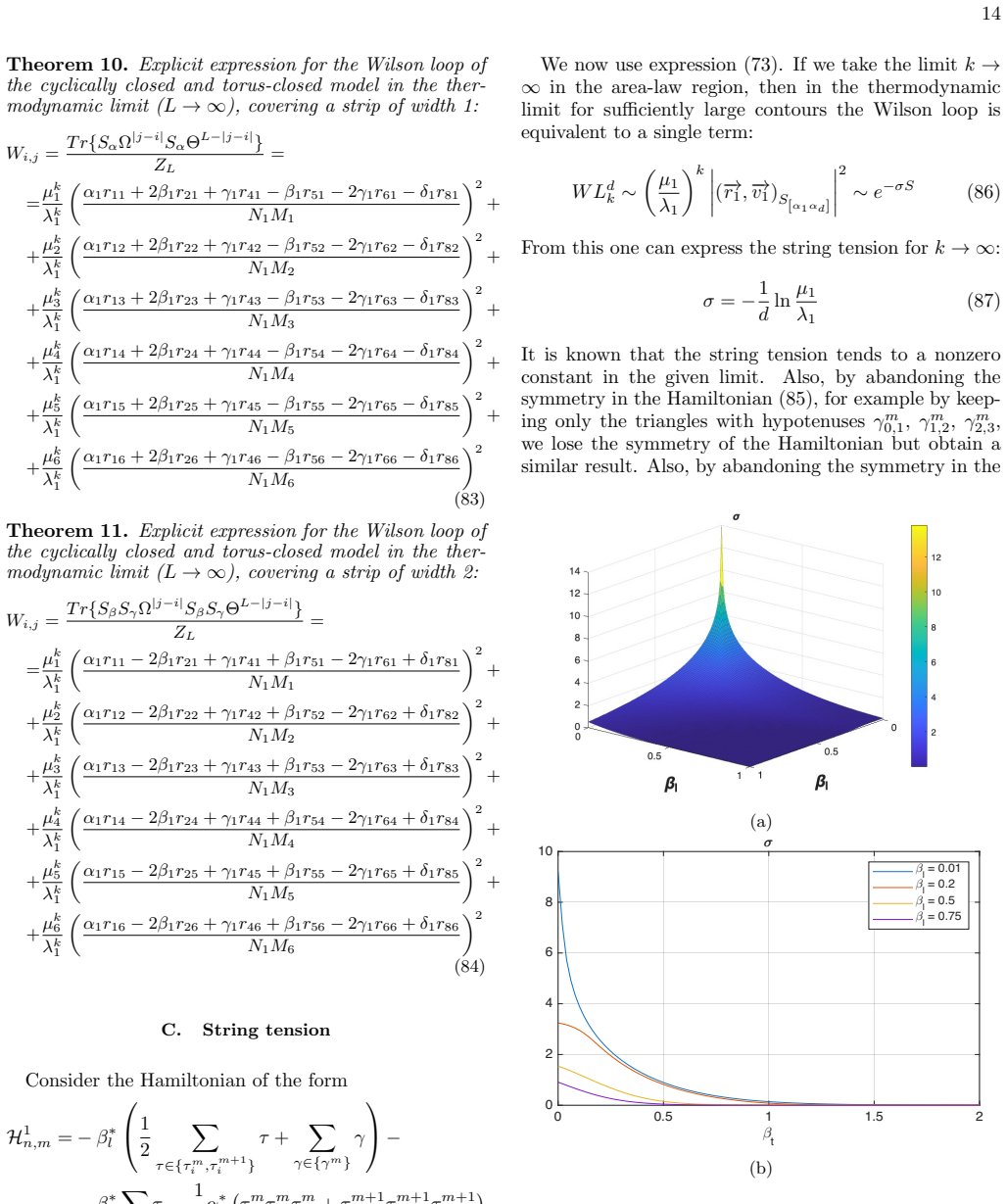

Figure 5. Figure 5: FIG. 5: String tension (5a) hamiltonian (85) with [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6: String tension (5a) with hamiltonian (85), [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
Figure 7

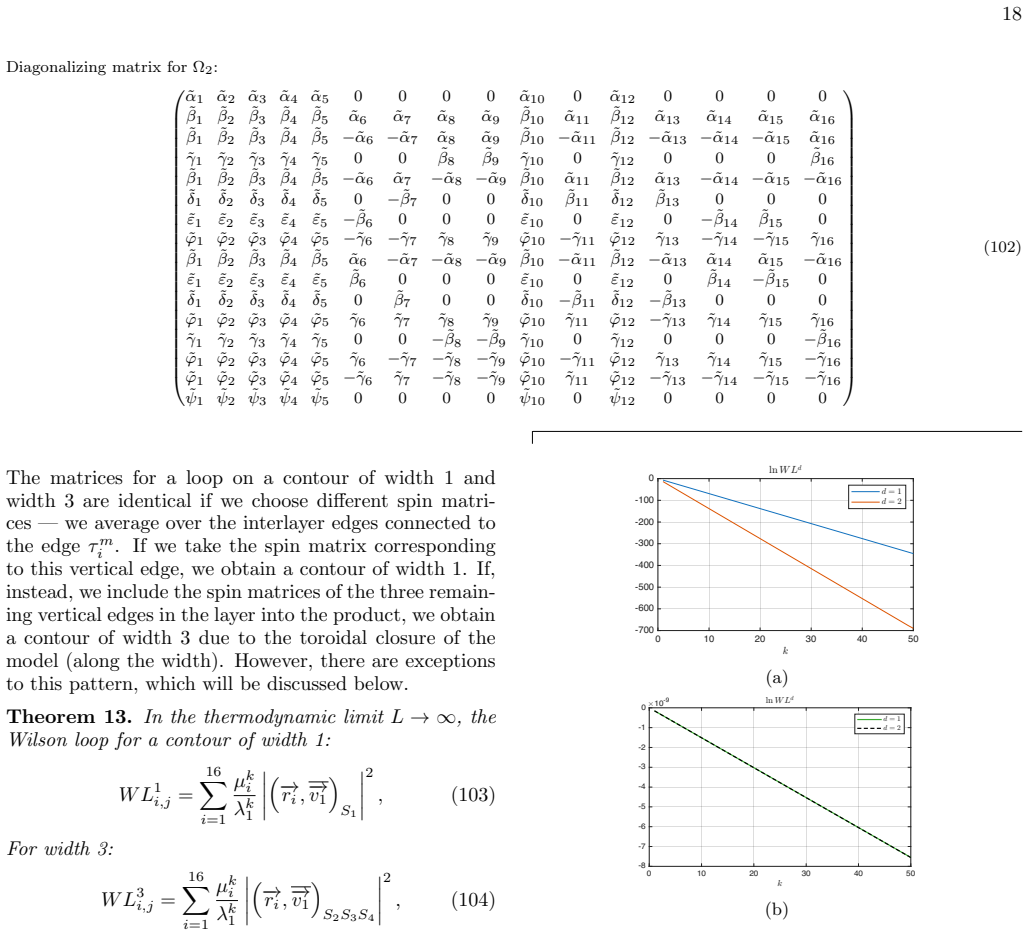

Figure 7. Figure 7: FIG. 7: Plot of the Wilson loop exponent for contours [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8: Ratio of increments of the logarithms of Wilson [PITH_FULL_IMAGE:figures/full_fig_p019_8.png] view at source ↗
read the original abstract

In this work, exact solutions are obtained for a class of generalized gauge-invariant $n$-chain Ising models ($n=1,2,3,4$) with arbitrary multi-spin interactions that are invariant under the local $\mathbb{Z}_2$ gauge group. On a strip lattice of finite length $L$ and width $n$ with periodic or free boundary conditions, an explicit expression for the partition function is derived using the transfer-matrix method. Two successive transformations are developed: elimination of gauge redundancy and reduction of the original model to an effective $n$-chain Ising model with all possible interactions between neighboring vertical layers. On the basis of the spectral decomposition of the $2^n\times 2^n$ transfer matrix, general formulas are obtained for gauge-invariant correlation functions and Wilson loops of arbitrary width. For $n \le 3$, explicit expressions are derived in terms of eigenvalues and eigenvectors. A detailed analysis of the behavior of the Wilson loop is performed, which allows us to identify regimes exhibiting area-law (confinement-like) and perimeter-law (deconfinement-like) dependence. For specific Hamiltonians, the string tension is computed and the corresponding phase diagrams are constructed. The results generalize and substantially extend the classical works on the gauge-invariant Ising model.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper claims to obtain exact solutions for generalized gauge-invariant n-chain Ising models (n=1,2,3,4) with arbitrary multi-spin interactions invariant under the local Z_2 gauge group on strip lattices of length L and width n. Two successive transformations (gauge redundancy elimination followed by reduction to an effective n-chain model) map the problem to a 2^n x 2^n transfer matrix whose spectral decomposition yields closed-form expressions for the partition function, gauge-invariant correlation functions, and Wilson loops; area-law and perimeter-law regimes are identified, with string tension and phase diagrams computed for specific Hamiltonians. The results extend classical gauge-invariant Ising models.

Significance. If the central derivations hold, the work provides a non-trivial generalization of prior gauge-invariant Ising results by accommodating arbitrary plaquette-invariant multi-spin interactions while retaining exact solvability via transfer matrices. The explicit spectral formulas for n≤3, the general Wilson-loop expressions, and the identification of confinement-like vs. deconfinement-like regimes constitute a useful addition to the toolbox of exactly solvable lattice models in statistical mechanics. The absence of ad-hoc parameters or approximations in the mapping is a clear strength.

minor comments (3)
  1. [§3] §3 (transfer-matrix construction): the explicit form of the 2^n x 2^n matrix entries for arbitrary multi-spin couplings is stated only in general terms; providing the explicit 4x4 matrix for n=2 as an illustrative example would improve readability without altering the central claim.
  2. [Abstract and §4] The abstract states that 'explicit expressions are derived in terms of eigenvalues and eigenvectors' for n≤3, but the main text does not clarify whether these are closed algebraic forms or simply the characteristic equation; a short remark on this distinction would help readers.
  3. [§5] Figure captions for the phase diagrams (presumably in §5) should explicitly state the range of the coupling parameters used, to allow direct comparison with the analytic string-tension formulas.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, significance assessment, and recommendation of minor revision. No specific major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper derives exact solutions by first imposing local Z2 gauge invariance on arbitrary multi-spin interactions, then applying two explicit transformations (gauge redundancy elimination followed by reduction to an effective n-chain model) that map the problem onto a standard unconstrained transfer-matrix eigenvalue problem of size 2^n x 2^n. Spectral decomposition then yields closed-form expressions for the partition function, gauge-invariant correlators, and Wilson loops. This chain relies on standard transfer-matrix techniques applied after gauge fixing; no parameters are fitted and then relabeled as predictions, no self-citations serve as load-bearing uniqueness theorems, and the final formulas do not reduce to the inputs by construction. The approach is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, ad-hoc axioms, or invented entities are stated. The construction rests on standard transfer-matrix algebra and the assumption of local Z2 gauge invariance.

axioms (2)
  • domain assumption The interactions are fully invariant under local Z2 gauge transformations on every plaquette.
    Invoked to justify the two successive transformations that eliminate gauge redundancy.
  • standard math The transfer matrix of the effective n-chain model is diagonalizable over the 2^n-dimensional space.
    Required for the spectral decomposition used to obtain closed-form partition functions and correlation functions.

pith-pipeline@v0.9.0 · 5755 in / 1408 out tokens · 44675 ms · 2026-05-25T03:33:03.535534+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

13 extracted references · 13 canonical work pages · 1 internal anchor

  1. [1]

    (51) 9 The two-spin correlator: ⟨τi,ατj,β⟩2 = T r{SαΘ|j−i|SβΘL−|j−i|} ZL (52) If the charges are on the same level (α=β) at distancek=|i−j|whenL→ ∞: ⟨τiτj⟩2 = 2 β2 1 N2 1 λ4 λ1 k + (α2 1 −ε 2 1)2 N4 1 + (α1α2 −ε 1ε2)2 N2 2 N2 1 λ2 λ1 k + (α1α3 −ε 1ε3)2 N2 3 N2 1 λ3 λ1 k (53) If the charges are on different levels (α̸=β) at distancek=|i−j|whenL→ ∞: ⟨τiτj⟩2...

    work page

  2. [2]

    Partition function For a symmetric Hamiltonian the closed model is equivalent to an Ising model with multi-spin interaction determined by the transfer matrix Θ =   a b b c b c c d b e f g f h i j b f e h f i g j c g h k i l l m b f f i e g h j c h i l g k l m c i g l h l k m d j j m j m m n   (74) This model has been considered in Re...

    work page

  3. [3]

    Correlation function The form of the correlation function is: For spins lying on one chaini= 0,1,2: Gτ m i ,τ m+k i = P2n i=2 λk i (− →vi , − →v1)Si (− →v1, − →vi )Si λk 1 ,(75) For spins lying on neighboring chains, where the lower indices can be subjected to the permutations (012) and (210): Gτ m 0 ,τ m+k 1 = P2n i=2 λk i (− →vi , − →v1)S0 (− →v1, − →vi...

    work page

  4. [4]

    Wilson loop The matrix obtained with allowance for the interaction of the interlayer edges entering the Wilson loop contour of widths 1 and 2 has the form Ω =   ˆa ˆb ˆbˆc ˆd ˆf ˆfˆg ˆb ˆiˆc ˆj ˆf ˆhˆg ˆk ˆbˆc ˆi ˆj ˆfˆg ˆh ˆk ˆc ˆj ˆj ˆlˆg ˆk ˆkˆm ˆd ˆf ˆfˆg ˆi ˆj ˆjˆn ˆf ˆhˆg ˆk ˆj ˆlˆnˆo ˆfˆg ˆh ˆk ˆjˆn ˆlˆo ˆg ˆk ˆkˆmˆnˆoˆoˆp  ...

    work page

  5. [5]

    K. G. Wilson, Confinement of quarks, Physical Review D 10, 2445 (1974)

    work page 1974

  6. [6]

    F. J. Wegner, Duality in generalized Ising models and phase transitions without local order parameters, Journal of Mathematical Physics12, 2259 (1971)

    work page 1971

  7. [7]

    Balian, J.-M

    R. Balian, J.-M. Drouffe, and C. Itzykson, Gauge fields on a lattice. II. Gauge-invariant Ising model, Physical Review D11, 2098 (1975)

    work page 2098

  8. [8]

    J. B. Kogut, An introduction to lattice gauge theory and spin systems, Reviews of Modern Physics51, 659 (1979)

    work page 1979

  9. [9]

    Elitzur, Impossibility of spontaneously breaking local symmetries, Physical Review D12, 3978 (1975)

    S. Elitzur, Impossibility of spontaneously breaking local symmetries, Physical Review D12, 3978 (1975)

    work page 1975

  10. [10]

    Marra and S

    R. Marra and S. Miracle-Sole, On the statistical mechanics of the gauge invariant Ising model, Communications in Mathematical Physics67, 233 (1979)

    work page 1979

  11. [11]

    Turban, One-dimensional Ising model with multispin interactions, Journal of Physics A: Mathematical and The- oretical49, 355002 (2016)

    L. Turban, One-dimensional Ising model with multispin interactions, Journal of Physics A: Mathematical and The- oretical49, 355002 (2016)

    work page 2016

  12. [12]

    Cardano, T

    G. Cardano, T. R. Witmer, and O. Ore,The rules of al- gebra: Ars Magna, Vol. 685 (Courier Corporation, 2007)

    work page 2007

  13. [13]

    Exact solution and pair correlation functions for a generalized three-chain Ising tube with multispin interactions

    P. Khrapov and N. Volkov, Exact solution and pair correlation functions for a generalized three-chain Ising tube with multispin interactions (2026), arXiv:2605.17600 [cond-mat.stat-mech]

    work page internal anchor Pith review Pith/arXiv arXiv 2026
