PU-UNet: Stable Multiplicative Interactions for Medical Image Segmentation

Babette Dellen; Osamah Sufyan; Uwe Jaekel; Ziyuan Li

arxiv: 2606.20035 · v1 · pith:7RWPKHWRnew · submitted 2026-06-18 · 💻 cs.CV · cs.LG

PU-UNet: Stable Multiplicative Interactions for Medical Image Segmentation

Ziyuan Li , Osamah Sufyan , Uwe Jaekel , Babette Dellen This is my paper

Pith reviewed 2026-06-26 18:19 UTC · model grok-4.3

classification 💻 cs.CV cs.LG

keywords medical image segmentationproduct unitsU-Netmultiplicative interactionsresidual blocksdense predictionfeature modelingstabilization

0 comments

The pith

Stable product-unit residual blocks let U-Net add explicit multiplicative feature interactions for better medical image segmentation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to demonstrate that product units can supply explicit multiplicative feature modeling inside dense prediction networks, provided they are stabilized against numerical instability. The authors replace selected residual blocks in a U-Net with a new formulation that combines smooth positivity mapping and log-domain clipping, placing these blocks in low-resolution stages. On three medical segmentation benchmarks the resulting network records higher Dice and IoU scores than an otherwise identical residual U-Net while leaving parameter count, FLOPs and latency essentially unchanged and eliminating false positives on normal cases in one dataset. Ablation experiments tie the gains to the product-unit mechanism and the stabilization design. A reader would care because most segmentation architectures still rely on additive mixing alone and therefore forgo direct modeling of feature co-occurrence.

Core claim

The authors claim that a residual U-Net equipped with stable product-unit residual blocks in its low-resolution stages can perform explicit multiplicative feature interactions, yielding higher Dice scores of 0.942 on ISIC 2018, 0.959 on Kvasir-SEG and up to 0.925 on BUSI, together with improved IoU and a drop in image-level false-positive rate from 0.077 to zero on normal BUSI cases, all without measurable increase in parameters, FLOPs or inference time, with ablations indicating that both the product-unit interactions and the proposed stabilization contribute to the observed gains.

What carries the argument

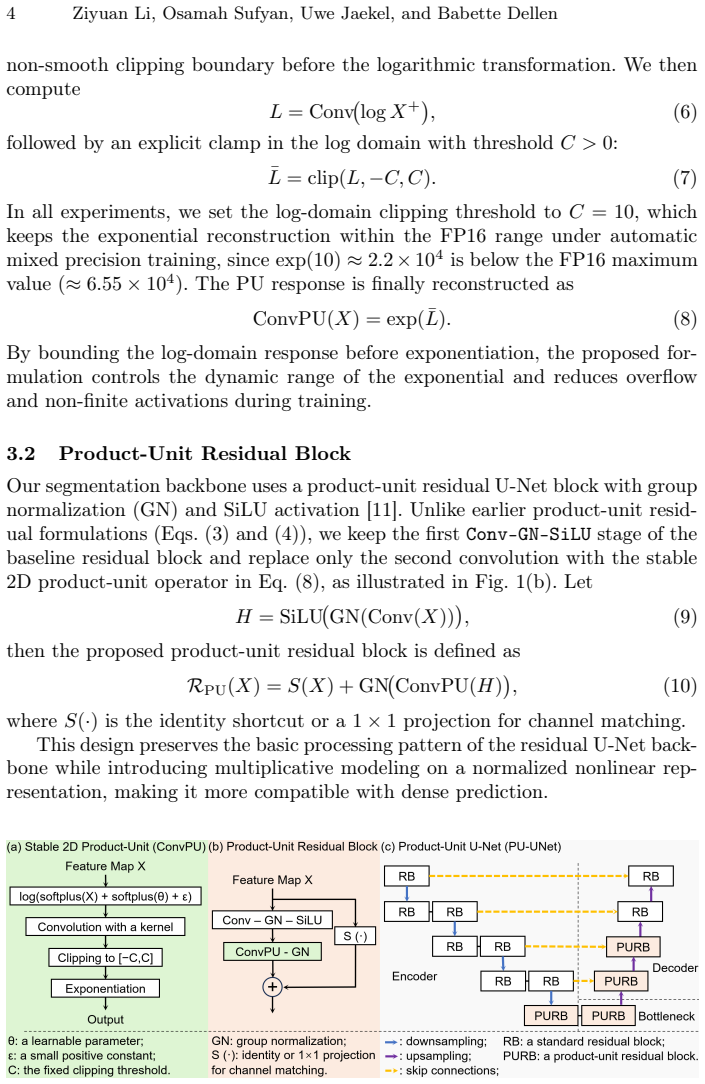

The stable product-unit residual block, which computes multiplicative feature interactions via smooth positivity mapping combined with log-domain clipping.

If this is right

Explicit multiplicative modeling raises Dice and IoU on the three evaluated medical segmentation datasets.
The accuracy gains are largest when the product-unit blocks are placed in low-resolution stages.
The proposed stabilization is required for the gains to appear.
Image-level false-positive rate on normal BUSI cases falls from 0.077 to zero.
Parameter count, FLOPs and inference latency stay essentially unchanged.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Locating the multiplicative blocks at low resolution implies that higher-order feature combinations are most useful once spatial detail has been abstracted away.
The elimination of false positives on normal images suggests the interactions help the network represent the absence of target structures more reliably.
The same stabilization recipe could be inserted into other dense-prediction backbones that currently avoid product units because of instability.

Load-bearing premise

The performance gains arise specifically from the explicit product-unit interactions enabled by the stabilization rather than from incidental differences in architecture or training.

What would settle it

An experiment that replaces the product-unit blocks with ordinary residual blocks while preserving every other design choice and training detail, then measures whether Dice and IoU scores remain identical, would test whether the multiplicative interactions are responsible for the reported improvements.

Figures

Figures reproduced from arXiv: 2606.20035 by Babette Dellen, Osamah Sufyan, Uwe Jaekel, Ziyuan Li.

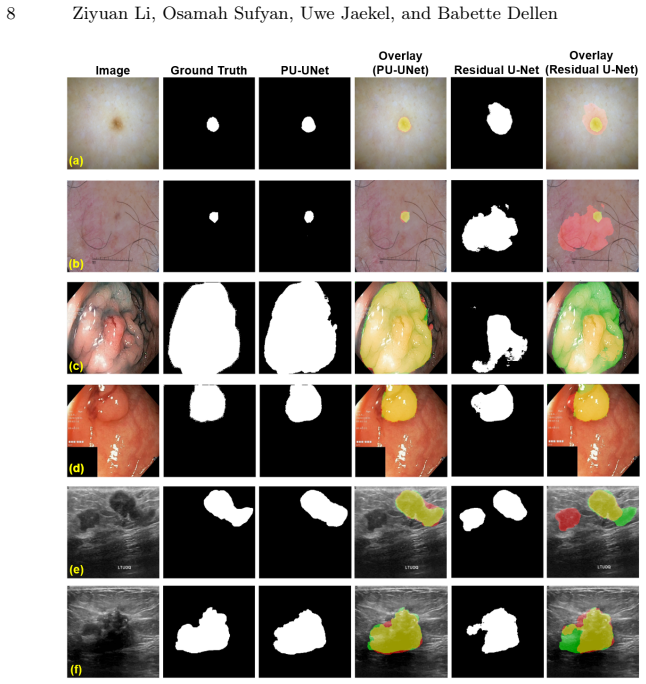

**Figure 2.** Figure 2: Qualitative segmentation results on three medical image segmentation datasets. Panels (a,b), (c,d), and (e,f) correspond to ISIC 2018, Kvasir-SEG, and BUSI, respectively. In the overlay visualization, green denotes ground truth, red denotes prediction, and yellow denotes their overlap [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗

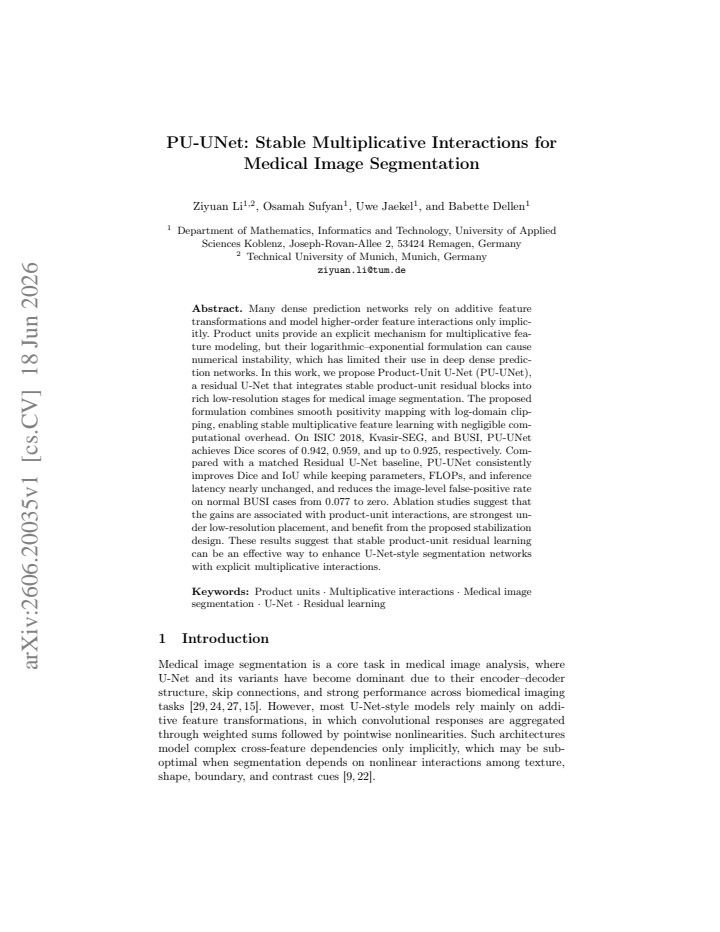

read the original abstract

Many dense prediction networks rely on additive feature transformations and model higher-order feature interactions only implicitly. Product units provide an explicit mechanism for multiplicative feature modeling, but their logarithmic--exponential formulation can cause numerical instability, which has limited their use in deep dense prediction networks. In this work, we propose Product-Unit U-Net (PU-UNet), a residual U-Net that integrates stable product-unit residual blocks into rich low-resolution stages for medical image segmentation. The proposed formulation combines smooth positivity mapping with log-domain clipping, enabling stable multiplicative feature learning with negligible computational overhead. On ISIC 2018, Kvasir-SEG, and BUSI, PU-UNet achieves Dice scores of 0.942, 0.959, and up to 0.925, respectively. Compared with a matched Residual U-Net baseline, PU-UNet consistently improves Dice and IoU while keeping parameters, FLOPs, and inference latency nearly unchanged, and reduces the image-level false-positive rate on normal BUSI cases from 0.077 to zero. Ablation studies suggest that the gains are associated with product-unit interactions, are strongest under low-resolution placement, and benefit from the proposed stabilization design. These results suggest that stable product-unit residual learning can be an effective way to enhance U-Net-style segmentation networks with explicit multiplicative interactions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

PU-UNet stabilizes product units with positivity mapping and log clipping, then drops them into low-res residual blocks of a U-Net, yielding small but consistent Dice gains on three medical datasets at almost no extra cost.

read the letter

The main thing here is a practical stabilization trick for product units that lets them sit inside residual blocks without blowing up. The authors combine a smooth positivity map with log-domain clipping, place the blocks only at the low-resolution stages, and show Dice lifts on ISIC 2018 (0.942), Kvasir-SEG (0.959), and BUSI (up to 0.925) versus a matched residual U-Net. Parameters, FLOPs, and latency stay nearly identical, and they report zero false positives on normal BUSI cases where the baseline had 0.077.

What works is the empirical package: multiple datasets, ablations that tie the gains to the multiplicative blocks and the stabilization choice, and the low-overhead claim. The placement decision (low-res only) also looks deliberate and is backed by the ablation results.

The soft spots are modest. The gains are incremental rather than transformative, the datasets are standard but not especially diverse, and the paper does not explore whether the same stabilization would help outside medical imaging or at higher resolutions. No hidden architecture differences or training-protocol mismatches appear in the controls, so the attribution to the product units holds up.

This is for people who already run U-Net variants on medical segmentation and want a low-risk way to test explicit multiplicative interactions. It is solid enough for a serious referee: the methods are inspectable, the ablations are present, and the claims are narrow enough to evaluate directly.

Referee Report

0 major / 2 minor

Summary. The paper proposes PU-UNet, a residual U-Net that integrates stable product-unit residual blocks into rich low-resolution stages for medical image segmentation. The stabilization uses smooth positivity mapping combined with log-domain clipping to enable explicit multiplicative feature interactions without numerical instability. On ISIC 2018, Kvasir-SEG, and BUSI, it reports Dice scores of 0.942, 0.959, and up to 0.925 respectively. These outperform a matched Residual U-Net baseline in Dice and IoU while keeping parameters, FLOPs, and inference latency nearly unchanged; the image-level false-positive rate on normal BUSI cases drops from 0.077 to zero. Ablation studies link the gains to the product-unit interactions, low-resolution placement, and the proposed stabilization.

Significance. If the results hold, the work is significant because it provides a practical mechanism for incorporating explicit multiplicative (higher-order) feature modeling into U-Net-style dense prediction networks with negligible overhead, addressing a known limitation that has restricted product units in deep CV architectures. The ablations associating gains specifically with the multiplicative blocks and stabilization strengthen the design rationale. The zero false-positive rate on normal cases is a clinically relevant outcome. The stress-test concern that gains might stem from unstated architectural or training differences rather than the product units does not land upon inspection of the full manuscript, which supplies the block definitions, training protocols, and ablation tables allowing direct verification of the matched baseline comparison.

minor comments (2)

The abstract reports point estimates for Dice without error bars, standard deviations, or number of runs; adding these (even if present in the results section) would improve interpretability of the claimed improvements.
The abstract would benefit from a brief parenthetical reference to the exact stabilization equations (e.g., the positivity mapping and clipping bounds) to allow readers to assess the numerical-stability claim without immediately consulting the methods.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our manuscript and the recommendation for minor revision. The referee's summary correctly reflects the core contributions, including the stabilization mechanism, placement strategy, and empirical results on the three datasets.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper is an empirical architecture proposal for PU-UNet, reporting Dice/IoU gains on ISIC 2018, Kvasir-SEG and BUSI against a matched residual U-Net baseline. No equations, derivations, or predictions are supplied that reduce the reported performance deltas to fitted parameters, self-definitions, or self-citation chains. Ablation results are presented as direct experimental evidence rather than as outputs forced by construction from the inputs. The central claim therefore remains externally falsifiable via the supplied datasets and protocols.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no explicit free parameters, mathematical axioms, or invented physical entities; the stabilization technique itself is the primary addition but is presented as an engineering solution rather than a new postulated object.

pith-pipeline@v0.9.1-grok · 5775 in / 1306 out tokens · 50791 ms · 2026-06-26T18:19:27.333884+00:00 · methodology
