Optical and structural properties of Si doped β-Ga₂O₃ (010) thin films homoepitaxially grown by halide vapor phase epitaxy

Bahadir Kucukgok , David J. Mandia , Jacob H. Leach , Keith R. Evans , Jeffrey A. Eastman , Hua Zhou , John Hryn , Jeffrey W. Elam
show 1 more author
Angel Yanguas-Gil
This is my paper

Pith reviewed 2026-05-25 18:02 UTC · model grok-4.3

classification ⚛️ physics.app-ph cond-mat.mtrl-sci
keywords β-Ga2O3HVPEhomoepitaxySi dopingelectron mobilityC-V measurementsgallium oxidehigh-power electronics
0
0 comments X

The pith

HVPE grows Si-doped β-Ga₂O₃ (010) films at high rates while reaching 95 cm²/Vs mobility and matching Hall-C-V data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that halide vapor phase epitaxy can deposit silicon-doped beta-gallium oxide films on matching (010) substrates more than ten times faster than MOCVD yet still produce n-type layers with carrier densities from 10^17 to 10^19 cm^{-3} and peak mobilities of 95 cm²/Vs. Room-temperature photoluminescence remains similar across samples, Raman spectra contain only β-Ga₂O₃ phonon modes, and grazing-incidence X-ray scattering isolates film signals from the substrate. Metal-oxide-semiconductor capacitors made with atomic-layer-deposited hafnium oxide give capacitance-voltage curves whose extracted carrier concentrations and dielectric constants agree with Hall measurements.

Core claim

Silicon-doped β-Ga₂O₃ films homoepitaxially grown on (010) β-Ga₂O₃ substrates by HVPE exhibit n-type behavior with carrier concentrations between 10^{17} and 10^{19} cm^{-3} and electron mobilities reaching 95 cm²V^{-1}s^{-1}. The films are phase-pure β-Ga₂O₃ as confirmed by Raman spectroscopy, show similar room-temperature photoluminescence, and grazing-incidence X-ray scattering confirms high epitaxial quality by separating film and bulk signals. MOS capacitors fabricated with ALD HfO₂ yield C-V characteristics whose extracted carrier concentrations and dielectric constants agree with Hall measurements, demonstrating that HVPE-grown films can achieve the quality needed for vertical high-

What carries the argument

Homoepitaxial HVPE growth of Si-doped β-Ga₂O₃ (010) films characterized by Hall effect, photoluminescence, Raman spectroscopy, grazing-incidence X-ray scattering, and C-V measurements on ALD HfO₂ MOS capacitors.

If this is right

  • Mobility of 95 cm²/Vs is reached at 1.3×10^{17} cm^{-3} despite growth rates more than ten times faster than MOCVD.
  • Carrier concentration can be varied controllably over two orders of magnitude while retaining n-type conduction.
  • Raman and photoluminescence data remain consistent with phase-pure, high-crystal-quality β-Ga₂O₃ across the doping range.
  • C-V data on fabricated MOS capacitors match Hall results, validating the film electrical properties for device use.
  • The combination supports development of vertical high-power electronic devices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Rapid HVPE growth could enable thicker drift layers required for high-voltage blocking without sacrificing quality.
  • The ability of grazing-incidence X-ray to separate film and substrate signals suggests the same approach can scale to thicker films where substrate contribution becomes negligible.
  • If the observed Hall-C-V agreement persists in finished devices, homoepitaxial HVPE stacks could be used for more complex vertical architectures such as current-aperture transistors.

Load-bearing premise

The electrical and optical signals measured on the homoepitaxial stack come mainly from the thin deposited film rather than the identical thick substrate.

What would settle it

Depth-resolved carrier-density profiles that remain unchanged after the film is etched away or that match undoped substrate values would show the measured properties do not belong to the epitaxial layer.

Figures

Figures reproduced from arXiv: 1906.09306 by Angel Yanguas-Gil, Bahadir Kucukgok, David J. Mandia, Hua Zhou, Jacob H. Leach, Jeffrey A. Eastman, Jeffrey W. Elam, John Hryn, Keith R. Evans.

Figure 1

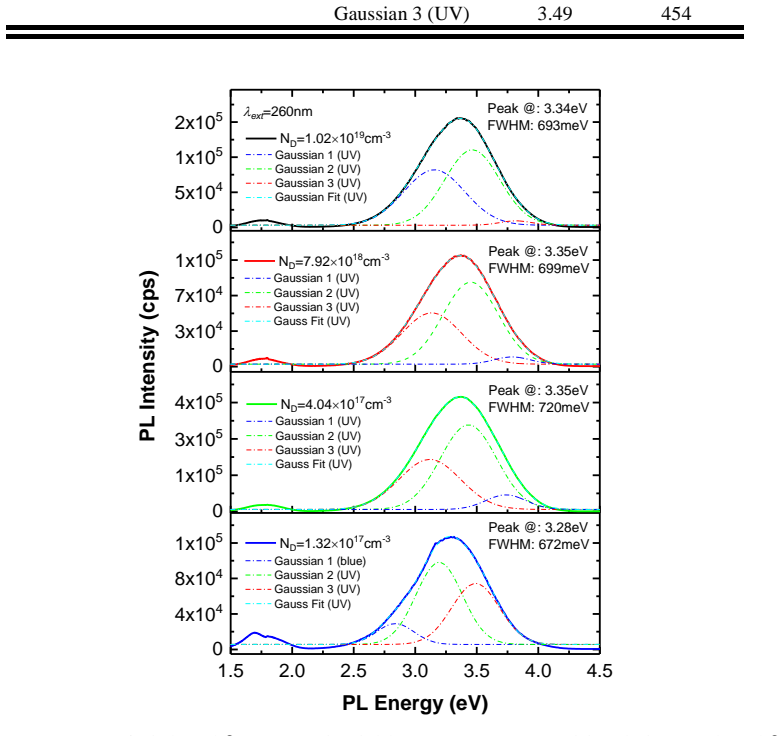

Figure 1. Figure 1: FIG. 1. RT PL spectra of Si [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 5

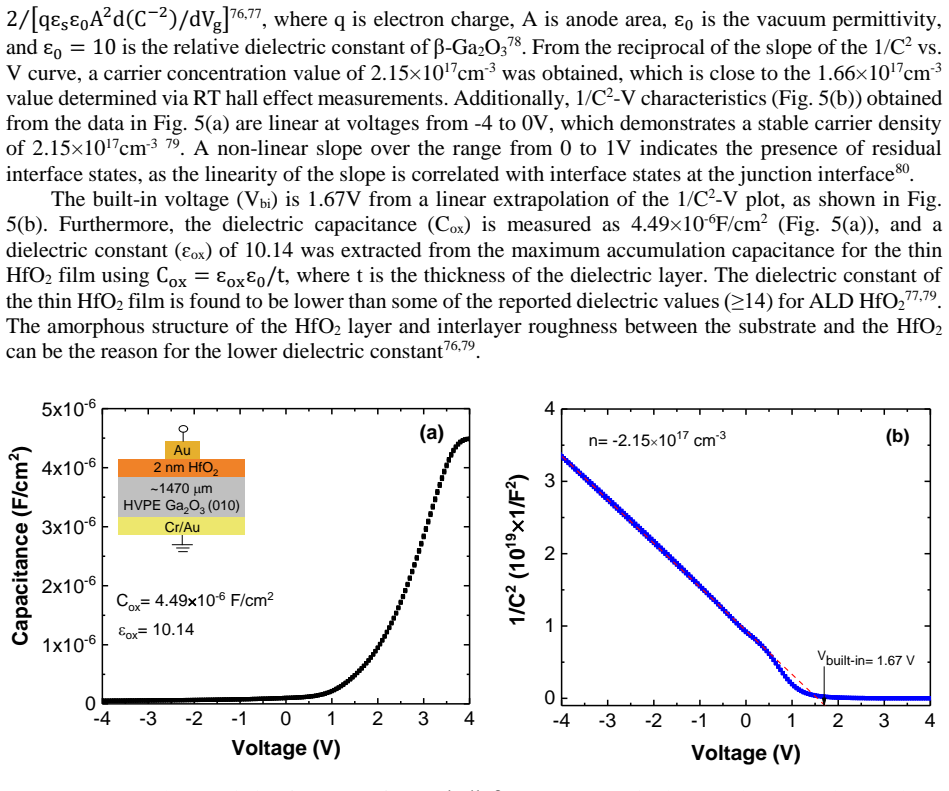

Figure 5. Figure 5: FIG. 5. (a) C [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
