GUI-Reflection: Empowering Multimodal GUI Models with Self-Reflection Behavior

T0 review · 4 major / 4 minor · reviewed 2026-08-07 · deepseek-v4-flash

Pith's one-line read By training reflection at every stage—verifying actions, reversing mistakes, and reattempting—an 8B multimodal GUI agent learns to catch its own errors, raising level-2 task success from 14.58% to 34.72% in the authors' environment and…

desk verdict A well-engineered three-stage reflection pipeline with credible internal ablations, but the external validation is a single modified-protocol AndroidWorld number without error bars. read the letter →

arxiv 2506.08012 v1 pith:A5U26OZ2 submitted 2025-06-09 cs.AI cs.CV

classification cs.AIcs.CV
keywords GUIautomationself-reflectionerrorcorrectionmultimodallargelanguagemodelsmobileagentsiterativeonlinetuningactionverificationbehaviorcloning
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

GUI-Reflection claims that mistake-handling can be trained into an end-to-end GUI agent rather than left to prompt-engineered scaffolds or scale. The paper shows that an 8B multimodal model can learn to recognize its own wrong actions, undo them, and retry, by making reflection an explicit objective at every training stage: a pre-training task suite for verification, reversal, and reattempt skills; offline supervised fine-tuning on automatically generated error scenarios; and iterative online tuning with pre-error and post-error correction labels. On the authors' 215-task Android emulator, adding reflection data to offline SFT raises level-2 success from 14.58% to 23.61%, and adding online reflection tuning raises it further to 34.72%. On the external AndroidWorld benchmark the final model reaches 34.5% success, comparable to the best end-to-end baselines at this scale. The paper's core suggestion is that reflection is a learnable behavior for GUI agents, and that standard training on error-free trajectories actively suppresses it.

What carries the argument

The load-bearing mechanism is the three-step reflection loop operationalized as training targets: (1) verify the previous action by inspecting the outcome screenshot, (2) undo the incorrect action (often Press Back) to restore the pre-mistake state, and (3) summarize the mistake and issue a corrected action from the restored state. The paper encodes this loop as concrete supervision: the GUI-Reflection Task Suite (Action Verification, Action Reversal, Mistake-informed Reattempt) for pre-training, automatically constructed reflection samples for offline SFT, and the iterative online reflection-tuning algorithm whose 'pre-error correction' and 'post-error reflection' annotations replicate the same loop during online rollouts. The model is an InternVL2.5-8B backbone that outputs an action thought, a natural-language action description, and a grounded atomic action, with a history of up to four screenshots, a memory bank, and an action history as context.

What would settle it

Train the full pipeline but evaluate on an independent held-out set of Android tasks drawn from a different distribution (for example, the AndroidControl test split or a third-party benchmark not used in training), and compare against a filtered-behavior-cloning model of equal size; if the success-rate gap collapses outside the in-house environment, the reflection skills are environment-specific rather than general. Additionally, an independent human audit of a random sample of rollouts judged successful by the programmatic and MLLM verifiers would test whether the reward signal itself is trustworthy.

Watch

Extended reading notes

Core claim

On the paper's own terms, the central discovery is that self-reflection and error recovery can be installed into an end-to-end multimodal GUI model through three coordinated training phases. The authors decompose reflection into three atomic abilities—Action Verification (did my last action achieve its purpose?), Action Reversal (what action undoes the mistake?), and Mistake-informed Reattempt (given the known error, what is a better next attempt?)—and train each during GUI pre-training. They then generate offline SFT data containing deliberately injected mistakes: tasks whose goal is perturbed so a recorded action becomes wrong, and ineffective no-op actions inserted into otherwise successful trajectories, with an MLLM writing the post-error reflection. Finally, an iterative online reflection-tuning loop rolls the model out in a 215-template Android environment, keeps the correct prefixes of successful trajectories, and annotates the first error step of failed trajectories with a pre-error correction and a post-error reflection; the model is fine-tuned on this mixture, with sampling reweighted toward harder tasks each iteration. The measured result is that each stage contributes: reflection data in offline SFT adds roughly nine points on level-2 tasks, and the online loop adds roughly eleven more, for a final level-2 success rate of 34.72%.

Load-bearing premise

The load-bearing premise is that the automatically generated error annotations and the 215-task in-house emulator are correct and representative enough that reflection skills learned from them transfer to tasks outside that environment, such as AndroidWorld; if the emulator tasks are too easy, too repetitive, or the MLLM annotations too noisy, the measured gains may not generalize.

Editorial extensions

If this is right

  • A GUI agent trained this way can recognize a mis-click from the resulting screen and press back before continuing, so a single mistake no longer derails a long task.
  • The pipeline runs without human annotation: MLLMs generate the error scenarios, the undo actions, and the reflection thoughts, so the approach scales to new apps by adding task templates to the environment.
  • Standard GUI pre-training and offline SFT on error-free trajectories degrade the base model's verification ability, so reflection must be explicitly trained for rather than assumed to survive fine-tuning.
  • At 34.5% on AndroidWorld, an 8B reflection-trained model lands in the same range as much larger end-to-end baselines and narrows the gap to agent-based systems that use accessibility trees.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the transfer assumption holds, the same three-stage recipe should extend to desktop and web interfaces by swapping in domain-specific screenshots and action spaces; the paper notes this adaptation is not yet demonstrated.
  • The GUI-Reflection Task Suite could serve as a standalone diagnostic before deployment: an agent's verification and reversal scores in pre-training predict whether it will recover from mistakes in online use.
  • A clean ablation would separate the two online annotations: keeping only post-error reflections while dropping pre-error corrections would show whether the gain comes from recognizing mistakes or from learning to backtrack.
  • Because the online loop reweights sampling toward unsolved tasks, adding a policy-gradient objective on top of the programmatic verifier rewards might push success rates further without requiring new data.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 4 minor

Summary. The paper introduces GUI-Reflection, a training framework that adds self-reflection and error recovery to end-to-end multimodal GUI agents built on InternVL2.5-8B. The framework has three components: a GUI-Reflection Task Suite consisting of Action Verification, Action Reversal, and Mistake-informed Reattempt pre-training tasks; an automatic pipeline that converts existing successful GUI trajectories into offline SFT data with injected mistakes and reflective corrections; and an online Android emulator environment with 215 task templates together with an iterative online reflection tuning algorithm. The central empirical claims are that standard GUI pre-training and offline SFT suppress reflection abilities, that the proposed task suite restores them (Table 1), and that adding reflection data in SFT plus online reflection tuning raises level-2 task success from 14.58% to 23.61% to 34.72% in the authors' environment (Table 2), with a 34.5% success rate on AndroidWorld (Table 3) that is competitive with UI-TARS-7B.

Significance. If the results hold, the paper makes a useful contribution: it decomposes GUI reflection into concrete, trainable capabilities, shows that standard GUI pre-training can degrade these abilities, and provides a fully automatic pipeline (no human annotation) spanning pre-training, SFT, and online tuning. The task suite itself is a valuable diagnostic instrument, and the promise to release data, models, environment, and tools is a strong reproducibility asset. The internal ablations in Table 2 support the claim that reflection-specific data improves performance on the authors' own environment. The main weakness is external validity: the only external benchmark result, AndroidWorld in Table 3, is obtained under a modified evaluation protocol with no rerun of baselines under that protocol, and no error bars or multiple seeds are reported. The paper is honest about its scope (Appendix B notes it focuses on visual/action-grounded errors and on mobile environments), which tempers but does not eliminate the transfer concern.

major comments (4)
  1. [§E.2, Table 3] The AndroidWorld evaluation is not a controlled comparison. The protocol changes described in §E.2 (scroll trajectory follows the model's predicted start/end points, type no longer clicks the target element, and maximum steps increased by 5 for all test cases) are applied to the authors' model, but the published baselines (UI-TARS-7B at 33.0, Aguvis-7B at 26.1, etc.) are not re-run under the same modified protocol. Since the reported margin over UI-TARS-7B is only 1.5 points, the 34.5% success rate cannot be attributed to reflection tuning as opposed to the protocol changes. The authors should either re-run baselines under the modified protocol or report results under both the original and modified protocols.
  2. [§3.3, Table 2, Fig. 5] No error bars, confidence intervals, or information about the number of evaluation runs/seeds are reported for any success-rate numbers, including the central Table 2 progression (14.58%, 23.61%, 34.72%) and the Fig. 5 iterative curves. In a dynamic emulator environment, single-run estimates can easily vary by several points, so the reported differences, and especially the 1.5-point AndroidWorld margin, need variance estimates or multiple seeds to be statistically meaningful.
  3. [§2.5 and §3.3] The main ablation is measured in the same 11-app environment used for online training, and the level-2 evaluation tasks share apps and UI layouts with the level-1 training tasks. Because the final model is additionally fine-tuned on data collected in this environment, the observed gains could reflect environment-specific overfitting rather than a general reflection capability. The paper should include a held-out set of apps or tasks, or evaluate on an external benchmark under an unchanged protocol, to support the transfer claim.
  4. [§2.4 and §2.5.2] The reflection and correction training labels are generated automatically by MLLMs (Gemini-2.5-Pro, GPT-4o) and by the model's own grounding outputs, with no human verification or inter-annotator agreement reported for the generated training data. Since the central claim is that these data teach genuine mistake recognition and recovery, the paper should report a human evaluation of a random sample of generated reflection data, including the rate of incorrect, ambiguous, or unhelpful annotations. This is particularly important because the same MLLMs are also used to verify trajectory step correctness in the online loop.
minor comments (4)
  1. [Appendix F.3] The sentence 'we evaluate directly on ScreenSpot [14] and ScreenSpot [43]' should read 'ScreenSpot [14] and ScreenSpotv2 [43]' to match the table headings in Table 1b.
  2. [§3.3] The baseline name 'Filtered BC' is used in Table 2 without a definition in the main text; it should be explicitly defined (e.g., behavior cloning on step-wise filtered successful trajectories) at first use.
  3. [Fig. 5] The axes of Fig. 5 are not labeled; add an x-axis label (iteration) and y-axis label (success rate) and clarify whether these curves are from the same runs reported in Table 2 or from separate evaluation runs.
  4. [Table 1b] The reattempt results (2nd and 3rd attempts) do not specify the decoding temperature, while pass@3 is reported at temperature=1.0; please state the temperature used for the reattempt evaluations.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity: the reflection-training claims are tested on held-out level-2 tasks, the external ScreenSpot benchmark, and the independent AndroidWorld benchmark, with no self-citation chain; the main unresolved issues are external-validity and protocol matters, not by-construction circularity.

full rationale

The paper's derivation chain — (i) reflection-oriented pre-training tasks, (ii) reflection-augmented offline SFT, (iii) iterative online reflection tuning — is not circular in the by-construction sense: no metric or equation used as evidence is defined in terms of the quantity it is claimed to establish. The pre-training claim (Table 1) is anchored on external benchmarks: Mistake-informed Reattempt is evaluated on the public ScreenSpot and ScreenSpotv2 grounding benchmarks, where the reflection-trained model (GUI-Pretrain-Ref) exceeds pass@3 on 3rd-attempt accuracy, an external checkpoint that cannot be produced by the authors' own evaluation data. The offline-SFT and online-tuning claims (Table 2) are measured on level-2 tasks held out from the level-1 training used in all three rows, so the 14.58% to 23.61% to 34.72% progression is a behavioral comparison rather than a metric forced by the training labels; the MLLM-annotated corrections are inputs, while the level-2 success rate is an independent measurement. The final claim (Table 3) uses the independent AndroidWorld benchmark. No load-bearing self-citation exists: the reference list contains no works by the present authors, and the key baselines (UI-TARS, OS-ATLAS, SeeClick, Aguvis) are external. The genuine weaknesses are external-validity and protocol issues, which belong under correctness risk rather than circularity: the single AndroidWorld run uses the modified protocol of Appendix E.2 (scroll follows predicted endpoints, type no longer clicks the target, +5 max steps) with baselines not re-run under that protocol; Fig. 5 adds level-2 tasks to the training pool after iteration 3, so its later level-2 curve partly reflects training-set accuracy; Table 2's 34.72% is hard to reconcile with Fig. 5's 29.36% at the same nominal point; and for tasks judged by the MLLM-based verifier, the evaluation reward and the annotation signal come from the same model family (Gemini-2.0-Flash), a verifier-uniformity concern rather than an equivalence of metric to label. The paper's own limitation (Appendix B) concedes that only visual/action-grounded errors are covered, which narrows the claim's scope but does not make it circular.

Assumptions & free parameters 5 free parameters · 5 assumptions · 3 invented entities

The framework's central claims rest on several hand-chosen design decisions (history length, resolution, thresholds, training schedules) and on MLLM-generated labels being accurate enough to serve as training signal. The environment is a new artifact, but it is externally checked through AndroidWorld. The number of hidden choices is moderate, and many are unablated.

free parameters (5)
  • screenshot history length n=4 = 4
    Chosen by hand in E.1 without ablation, affects how much context the model sees and could influence reflection behavior.
  • past screenshots downsampled to 448x448 = 448x448
    Chosen in E.1 without ablation; resolution affects grounding and verification accuracy.
  • max steps increased by 5 in AndroidWorld = +5 steps
    E.2 reports this modification to AndroidWorld evaluation for all test cases, justified as needed for agents without UI element info; changes the evaluation protocol relative to published AndroidWorld numbers.
  • curriculum and sampling thresholds = 80% success threshold; level-1 first k iterations
    Chosen by hand in 2.5.2 without sensitivity analysis; could affect the online tuning curve.
  • per-component training epochs and learning rates = pre-train 4e-5, SFT 3e-5, online 1e-5, final 2e-5
    Training hyperparameters fixed without ablations; reasonable defaults but their interaction with the claimed gains is not explored.
assumptions (5)
  • domain assumption Base MLLM InternVL2.5-8B has usable GUI grounding and instruction-following abilities.
    Section 2.1.2 chooses InternVL2.5-8B as the base without comparison to other base models; the central results could depend on this choice.
  • domain assumption Gemini-2.5-Pro and Gemini-2.0-Flash annotations (action purpose, undo action, negative purpose, error analysis, reflection thoughts) are accurate enough to serve as ground truth.
    The entire data pipeline in Sections 2.2, 2.3, 2.4, and Appendix F relies on MLLM-generated labels; only the Action Verification and Action Reversal evaluation sets are human-filtered.
  • domain assumption The 215 task templates across 11 apps constitute a diverse enough online training environment.
    Section 2.5.1 asserts diversity but provides no comparison or evidence of coverage of real-world app distributions.
  • domain assumption Step-wise correctness of successful trajectories judged by Gemini-2.0-Flash is a reliable dense reward.
    Section 2.5.2 and Appendix H use the MLLM verifier to filter training data; a wrong judge would systematically inject incorrect labels.
  • domain assumption Reflection behavior trained on mobile screenshots transfers to the AndroidWorld benchmark tasks.
    The AndroidWorld evaluation in Table 3 is the main external validation; the paper does not ablate the transfer or measure distribution shift.
invented entities (3)
  • GUI-Reflection Task Suite (Action Verification, Action Reversal, Mistake-informed Reattempt) independent evidence
    purpose: Training and evaluation tasks for reflection-oriented capabilities in GUI pre-training.
    The tasks are evaluated against Gemini-2.5-Pro, GPT-4o, and other baselines, providing external comparison, and the underlying capabilities are grounded in ScreenSpot/AndroidControl/GUI-Odyssey benchmarks.
  • Online Android environment with 215 task templates independent evidence
    purpose: Environment for iterative online reflection tuning and data collection.
    Will be released publicly and is used to train a model evaluated on an independent benchmark (AndroidWorld), giving it a falsifiable handle.
  • Action Verification, Action Reversal, Mistake-informed Reattempt as named capabilities
    purpose: Decomposition of reflection into trainable atomic skills.
    The decomposition is a design choice of this paper; there is no external evidence that this specific split is necessary or optimal.

how reviews work

0 comments
Cite this review

Pith. "Pith review of GUI-Reflection: Empowering Multimodal GUI Models with Self-Reflection Behavior." pith.science (2026). https://pith.science/paper/A5U26OZ2

@misc{pith2026250608012,
  author       = {Pith},
  title        = {Pith review of: GUI-Reflection: Empowering Multimodal GUI Models with Self-Reflection Behavior},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/A5U26OZ2}},
  note         = {Machine review of arXiv:2506.08012}
}
read the original abstract

Multimodal Large Language Models (MLLMs) have shown great potential in revolutionizing Graphical User Interface (GUI) automation. However, existing GUI models mostly rely on learning from nearly error-free offline trajectories, thus lacking reflection and error recovery capabilities. To bridge this gap, we propose GUI-Reflection, a novel framework that explicitly integrates self-reflection and error correction capabilities into end-to-end multimodal GUI models throughout dedicated training stages: GUI-specific pre-training, offline supervised fine-tuning (SFT), and online reflection tuning. GUI-reflection enables self-reflection behavior emergence with fully automated data generation and learning processes without requiring any human annotation. Specifically, 1) we first propose scalable data pipelines to automatically construct reflection and error correction data from existing successful trajectories. While existing GUI models mainly focus on grounding and UI understanding ability, we propose the GUI-Reflection Task Suite to learn and evaluate reflection-oriented abilities explicitly. 2) Furthermore, we built a diverse and efficient environment for online training and data collection of GUI models on mobile devices. 3) We also present an iterative online reflection tuning algorithm leveraging the proposed environment, enabling the model to continuously enhance its reflection and error correction abilities. Our framework equips GUI agents with self-reflection and correction capabilities, paving the way for more robust, adaptable, and intelligent GUI automation, with all data, models, environments, and tools to be released publicly.

Figures

Figures reproduced from arXiv: 2506.08012 by the authors.

Figure 1
Figure 1. Illustrative comparison of typical GUI models versus our proposed GUI model with [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. The GUI-Reflection framework includes (1) Learning basic reflection-oriented skills from [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Examples of Action Verification (left), Action Reversal (middle), and Mistake-informed [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: The Iterative Online Reflection Tuning algorithm. It features weighted task sampling, [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: Success Rate (%) on Level-1 and Level-2 tasks across iterative reflection tun￾ing iterations. Our iterative reflection tun￾ing with curriculum learning strategy pro￾gressively improves model performance. 8 [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: Illustrative examples of our GUI model’s self-reflection and correction behaviours. The [PITH_FULL_IMAGE:figures/full_fig_p009_6.png]

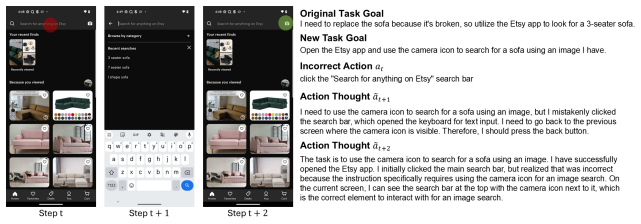

Figure 7
Figure 7. Figure 7: Example of the reflection data generated with the first approach in the offline SFT stage. [PITH_FULL_IMAGE:figures/full_fig_p018_7.png]

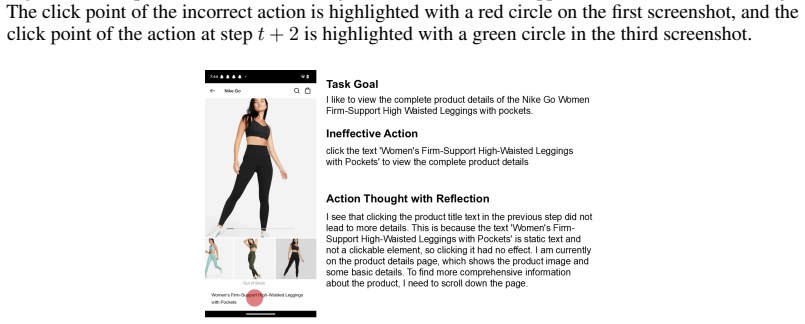

Figure 8
Figure 8. Figure 8: Example of the reflection data generated with the second approach in the offline SFT stage. [PITH_FULL_IMAGE:figures/full_fig_p018_8.png]
