arxiv: 1906.10263 · v1 · pith:AP6PSVPRnew · submitted 2019-06-24 · 💻 cs.LG · cs.AI· stat.ML

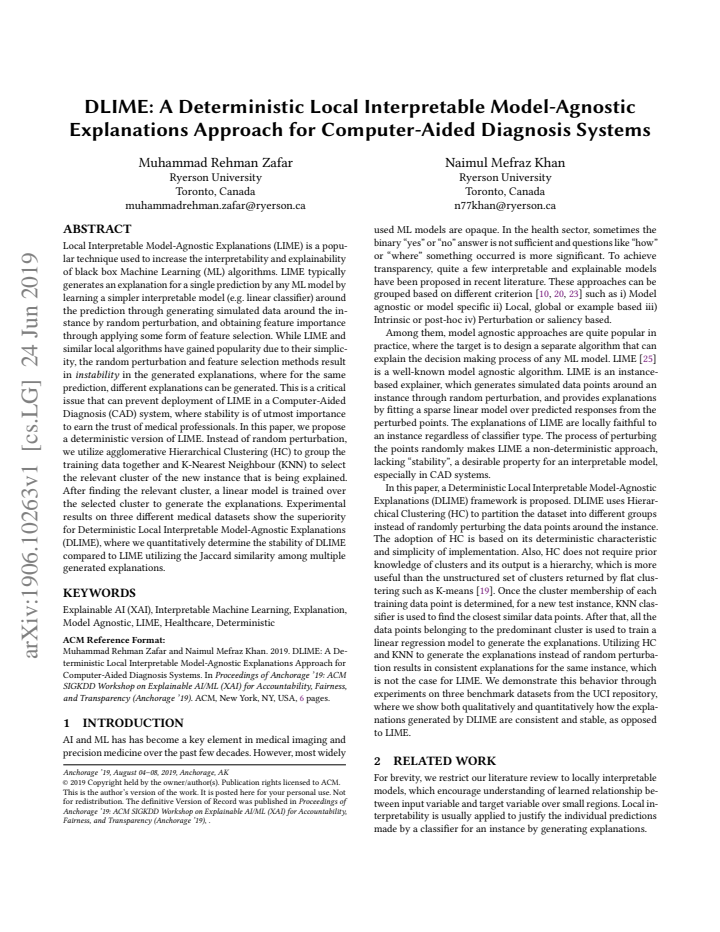

DLIME: A Deterministic Local Interpretable Model-Agnostic Explanations Approach for Computer-Aided Diagnosis Systems

Muhammad Rehman Zafar , Naimul Mefraz Khan This is my paper

Pith reviewed 2026-05-25 17:08 UTC · model grok-4.3

classification 💻 cs.LG cs.AIstat.ML
keywords explainable AILIMEstabilityhierarchical clusteringKNNcomputer-aided diagnosismodel interpretabilitymedical datasets
0
0 comments X

The pith

DLIME replaces LIME's random perturbations with hierarchical clustering and KNN to produce stable explanations for black-box models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents DLIME as a deterministic variant of LIME for explaining predictions from any black-box model in computer-aided diagnosis systems. It groups the full training data with agglomerative hierarchical clustering, then uses KNN to identify the cluster nearest to the instance being explained before fitting a linear surrogate on that cluster. This process eliminates the random sampling step that causes LIME to return different feature attributions for the same instance on different runs. Experiments on three medical datasets show higher Jaccard similarity among repeated DLIME explanations compared with LIME, addressing the instability that can erode trust when explanations are used in medical decision support.

Core claim

DLIME produces explanations by applying agglomerative hierarchical clustering to the entire training set, selecting the relevant cluster for a given instance via KNN, and training a linear model on the selected cluster to obtain feature attributions. This deterministic neighborhood selection yields more stable explanations than standard LIME, as measured by higher Jaccard similarity across multiple runs on the same instances from three medical datasets.

What carries the argument

Agglomerative hierarchical clustering followed by KNN cluster selection, which supplies a fixed local neighborhood for the linear surrogate instead of random perturbation.

If this is right

  • Explanations for any given instance remain identical across repeated queries.
  • Feature attributions exhibit greater consistency than those produced by LIME on the same medical data.
  • The approach can be applied to any existing training set without requiring additional random sampling steps.
  • Linear models fitted on the selected cluster serve as stable local approximations to the original black-box model.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The deterministic clustering step could be reused across multiple instances that fall in the same cluster, reducing computation for batches of explanations.
  • If the hierarchical clusters align with regions where the black-box model behaves linearly, DLIME might also improve the fidelity of the surrogate beyond mere stability.
  • The method could be tested on non-medical tabular datasets to check whether the stability gain generalizes when data distributions differ from the medical cases examined.

Load-bearing premise

The cluster chosen by KNN after hierarchical clustering on the full training set is local enough for the linear model to approximate the black-box behavior and representative enough to avoid systematic bias in the attributions.

What would settle it

Multiple runs of DLIME and LIME on identical medical instances where the Jaccard similarity of DLIME explanations is not higher than that of LIME explanations.

Figures

Figures reproduced from arXiv: 1906.10263 by Muhammad Rehman Zafar, Naimul Mefraz Khan.

Figure 1

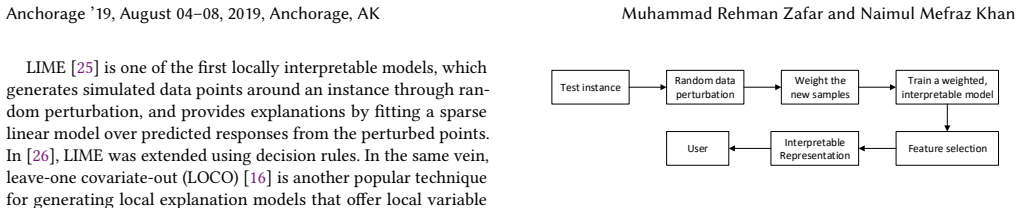

Figure 1. Figure 1: A block diagram of the LIME framework dataset, LIME trains an interpretable model e.g. linear regression. Linear regression maintains relationships amongst variables which are dependent such as Y and multiple independent attributes such as X by utilizing a regression line Y = a+bX, where “a” is intercept, “b” is slope of the line. This equation can be used to predict the value of target variable from given… view at source ↗
Figure 2

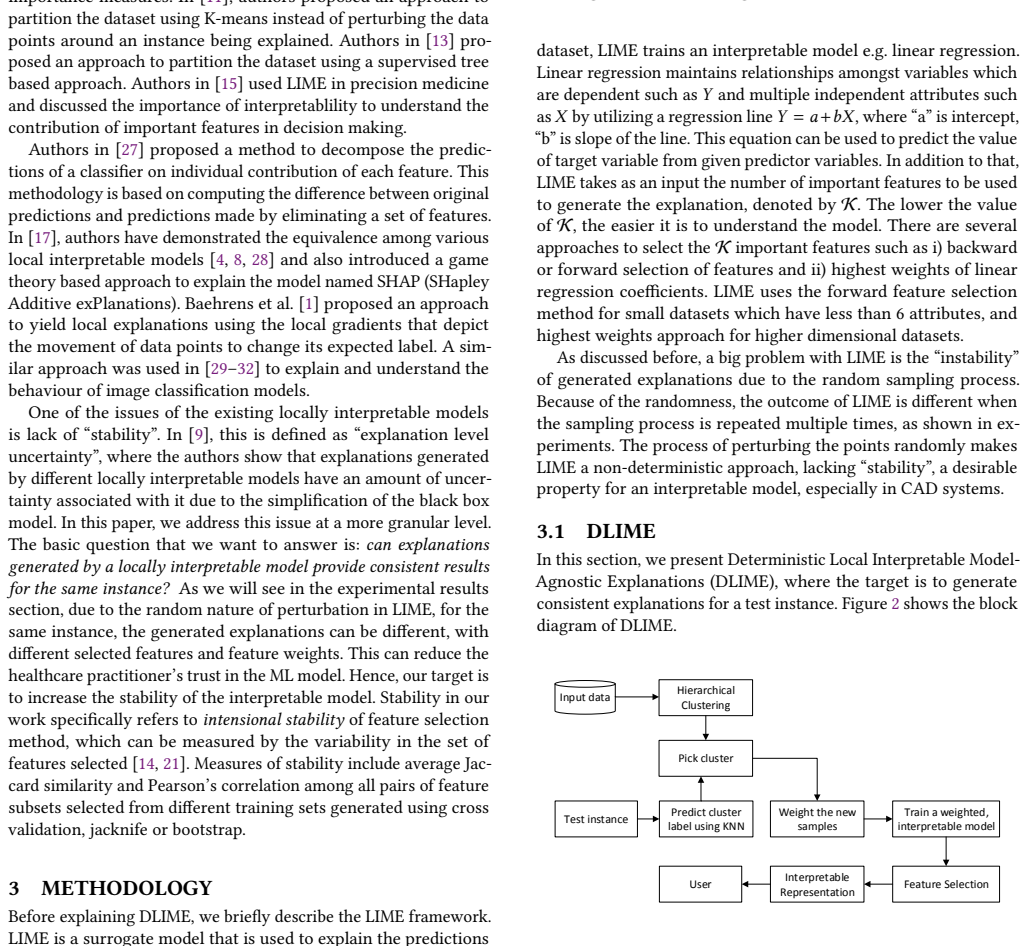

Figure 2. Figure 2: A block diagram of the DLIME framework The key idea behind DLIME is to utilize HC to partition the training dataset into different clusters. Then to generate a set of samples and corresponding predictions (similar to LIME), instead of random perturbation, KNN is first used to find the closest neighbors [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

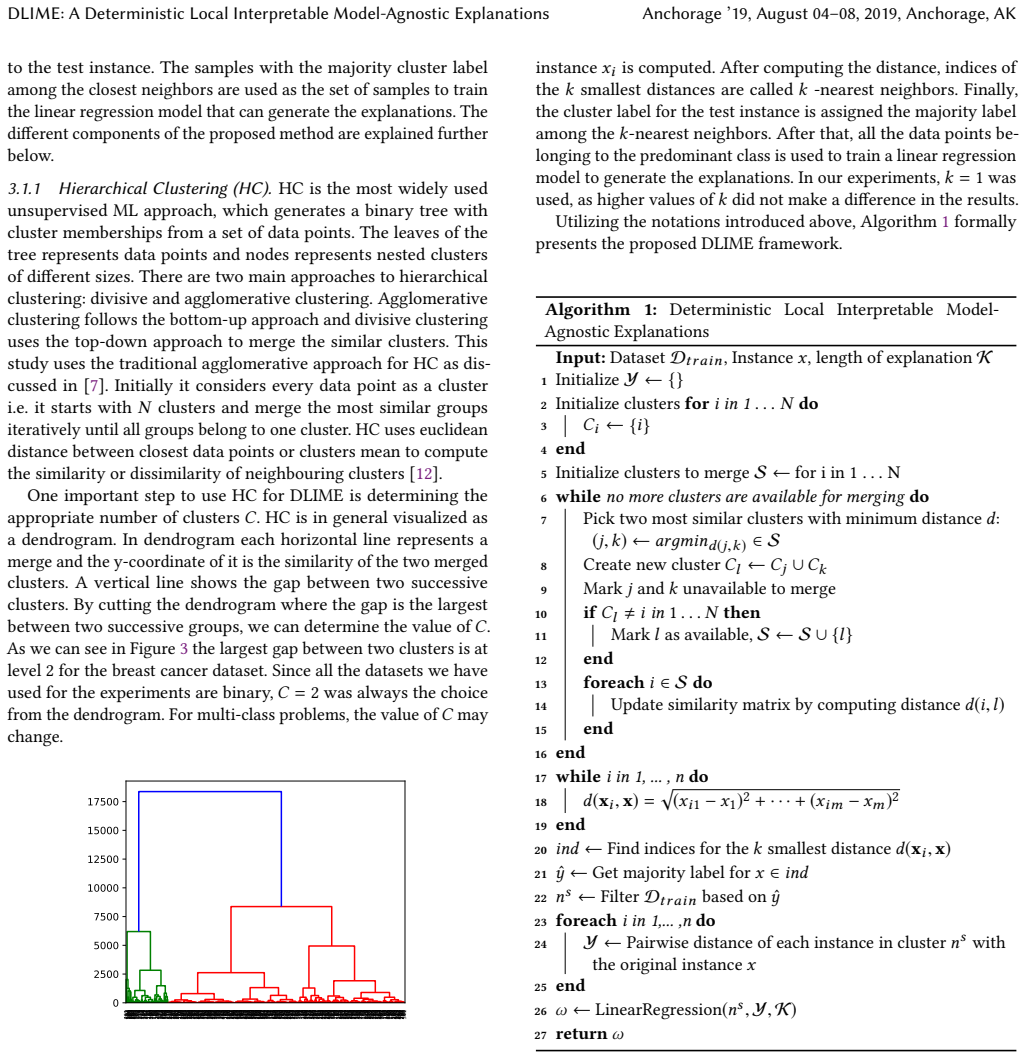

Figure 3. Figure 3: Dendrogram of breast cancer dataset 3.1.2 K-Nearest Neighbor (KNN). Similar to other clustering ap￾proaches, HC does not assign labels to new instances. Therefore, KNN is trained over the training dataset to find the indices of the neighbours and predict the label of new instance. KNN is a simple classification model based on Euclidean distance [3]. It computes the distance between training and test sets. … view at source ↗
Figure 4

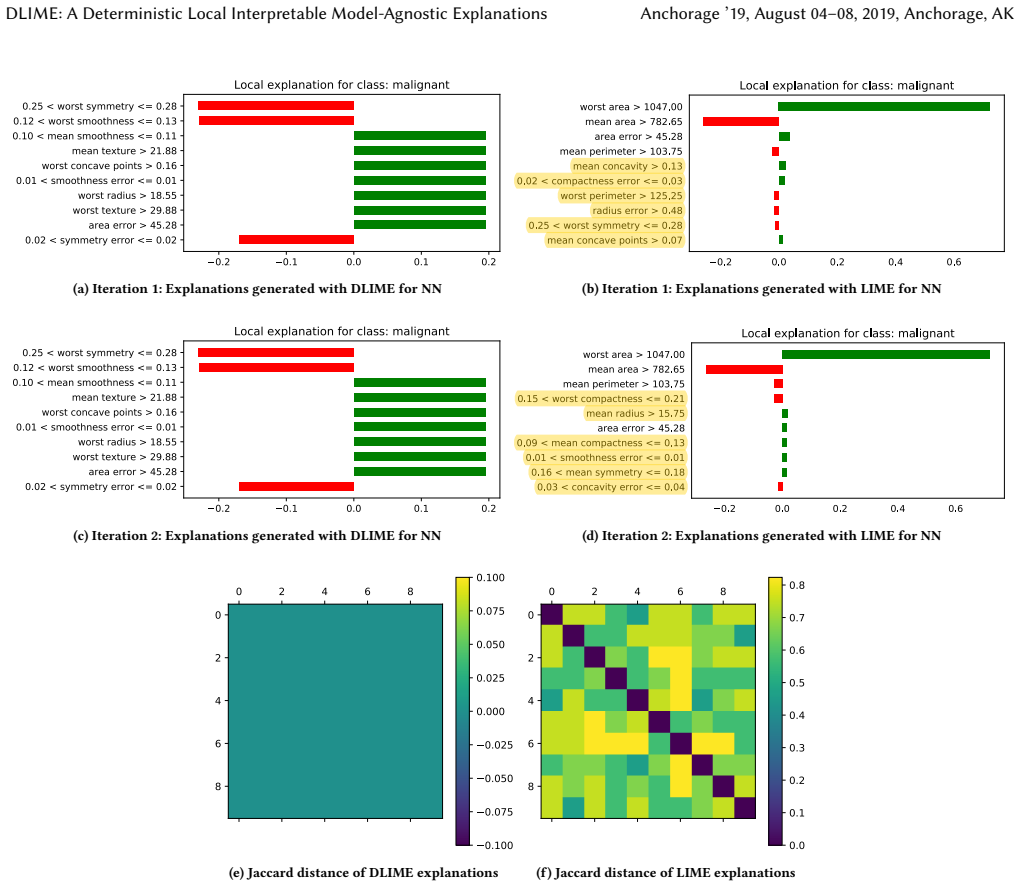

Figure 4. Figure 4: Explanations generated by DLIME and LIME, and respective Jaccard distances over 10 iterations [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

Local Interpretable Model-Agnostic Explanations (LIME) is a popular technique used to increase the interpretability and explainability of black box Machine Learning (ML) algorithms. LIME typically generates an explanation for a single prediction by any ML model by learning a simpler interpretable model (e.g. linear classifier) around the prediction through generating simulated data around the instance by random perturbation, and obtaining feature importance through applying some form of feature selection. While LIME and similar local algorithms have gained popularity due to their simplicity, the random perturbation and feature selection methods result in "instability" in the generated explanations, where for the same prediction, different explanations can be generated. This is a critical issue that can prevent deployment of LIME in a Computer-Aided Diagnosis (CAD) system, where stability is of utmost importance to earn the trust of medical professionals. In this paper, we propose a deterministic version of LIME. Instead of random perturbation, we utilize agglomerative Hierarchical Clustering (HC) to group the training data together and K-Nearest Neighbour (KNN) to select the relevant cluster of the new instance that is being explained. After finding the relevant cluster, a linear model is trained over the selected cluster to generate the explanations. Experimental results on three different medical datasets show the superiority for Deterministic Local Interpretable Model-Agnostic Explanations (DLIME), where we quantitatively determine the stability of DLIME compared to LIME utilizing the Jaccard similarity among multiple generated explanations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes DLIME, a deterministic variant of LIME for explaining black-box ML predictions in CAD systems. It replaces LIME's random perturbation sampling with agglomerative hierarchical clustering on the full training set followed by KNN to select a cluster, then fits a linear surrogate on that cluster. The central claim is that this yields more stable explanations than LIME, quantitatively demonstrated via higher Jaccard similarity among repeated explanations on three medical datasets.

Significance. If the selected clusters remain sufficiently local and the linear surrogates retain comparable fidelity, DLIME would address a practical barrier to deploying explanation methods in medicine by removing randomness while preserving locality. The deterministic construction and use of real training points (rather than synthetic perturbations) are strengths that could be valuable if locality is verified.

major comments (2)
  1. [Method] Method section (description of HC+KNN procedure): agglomerative clustering is performed on the entire training set with no distance threshold or locality constraint, after which KNN assigns the instance to one cluster. Nothing enforces that the chosen cluster lies inside a small ball around the instance or that its points lie on the same side of the black-box decision boundary. This directly risks the linear model reflecting global rather than local behavior, so higher Jaccard similarity would not establish superiority as a local explanation method.
  2. [Experiments] Experiments section (stability evaluation): Jaccard similarity is reported as the stability metric, but no accompanying analysis (e.g., average cluster diameter, distance from instance to cluster centroid, or fidelity comparison) is provided to confirm that the DLIME neighborhoods are local. Without such checks, the quantitative superiority claim cannot be interpreted as evidence of improved local explanations.
minor comments (1)
  1. [Abstract] The three medical datasets are referred to only generically; naming them and providing basic statistics (size, dimensionality, class balance) would improve reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We respond point-by-point to the major comments below.

read point-by-point responses

  1. Referee: [Method] Method section (description of HC+KNN procedure): agglomerative clustering is performed on the entire training set with no distance threshold or locality constraint, after which KNN assigns the instance to one cluster. Nothing enforces that the chosen cluster lies inside a small ball around the instance or that its points lie on the same side of the black-box decision boundary. This directly risks the linear model reflecting global rather than local behavior, so higher Jaccard similarity would not establish superiority as a local explanation method.

    Authors: The referee correctly notes that agglomerative clustering occurs on the full training set without an explicit distance threshold or boundary-side constraint. KNN selects the cluster containing the nearest points to the explained instance, which the method relies upon for locality. We acknowledge this does not strictly guarantee a small ball or same-side points and therefore does not preclude global behavior in some cases. We will revise the method section to clarify this design choice and add an explicit limitations paragraph discussing the risk. revision: yes

  2. Referee: [Experiments] Experiments section (stability evaluation): Jaccard similarity is reported as the stability metric, but no accompanying analysis (e.g., average cluster diameter, distance from instance to cluster centroid, or fidelity comparison) is provided to confirm that the DLIME neighborhoods are local. Without such checks, the quantitative superiority claim cannot be interpreted as evidence of improved local explanations.

    Authors: We agree that metrics such as average cluster diameter, instance-to-centroid distance, and fidelity would help substantiate that the selected clusters function as local neighborhoods. The submitted experiments focus solely on stability via Jaccard similarity. In revision we will add these locality diagnostics computed on the three medical datasets to allow readers to assess whether the stability gains occur within demonstrably local regions. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper introduces DLIME by replacing LIME's random perturbation sampling with agglomerative hierarchical clustering on the full training set followed by KNN cluster assignment for a query instance, then fitting a linear surrogate on the selected cluster. Stability is assessed via an external Jaccard similarity metric computed across multiple generated explanations for both methods. No step reduces a claimed result to a quantity defined in terms of itself, a fitted parameter renamed as a prediction, or a self-citation chain; the determinism is an explicit procedural change whose consistency effect is measured independently rather than assumed by construction. The derivation remains self-contained against the stated experimental comparison.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no explicit free parameters, axioms, or invented entities; the approach relies on standard off-the-shelf clustering and nearest-neighbor routines whose hyperparameters are left unspecified.
